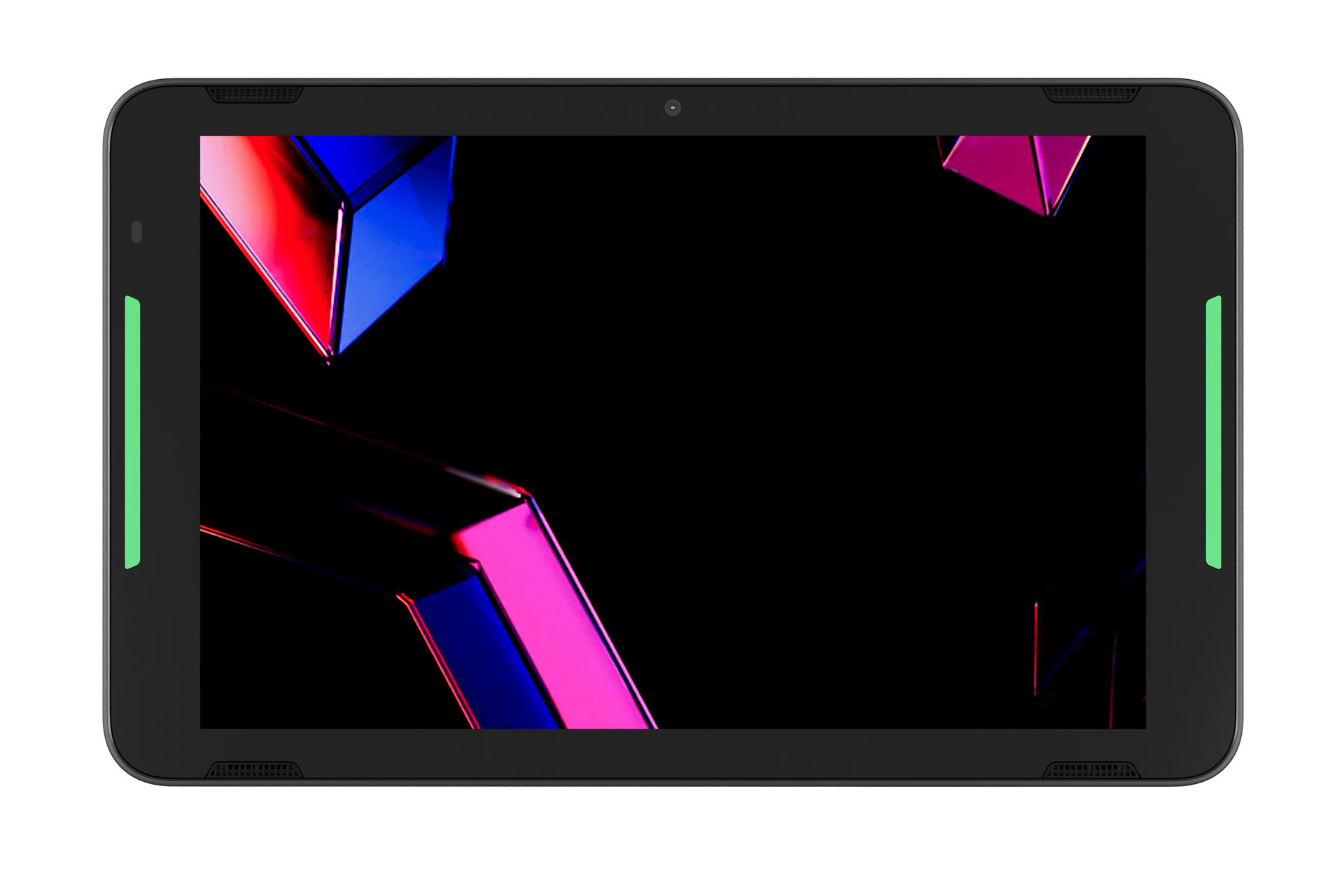

Zebra KC401 kiosk computer, landscape, front

Zebra · Kiosk

Zebra KC401

Provide every user with an exceptional self-service experience

Operating systemAndroid; for supported Android versions, visit: www.zebra.com/android-versions
Display10.1 inches (25.7 cm) WXGA
ScanningFront camera scanning; Optional SR500 1D/2D Scan Engine,; with 0°, -25°, +25° angle SKUs available
SealingIP65

Runs Raptool kiosk apps, price checkers, visitor check-in and time and attendance in the Raptool Client on Android, with access to the scanner, camera and NFC, online and offline. Scanner apps

Overview

Provide customers and frontline workers with an exceptional self-service experience with the KC401 10-inch Android Kiosk. Its modern display and intuitive interface combine with contactless transaction support and an optional scanner to streamline everyday tasks—from instant price checks and payments to secure access and timekeeping. And upgrading from the Zebra CC6000 is seamless—the KC401 is a simple drop-in replacement, allowing you to modernize operations with minimal cost and disruption.

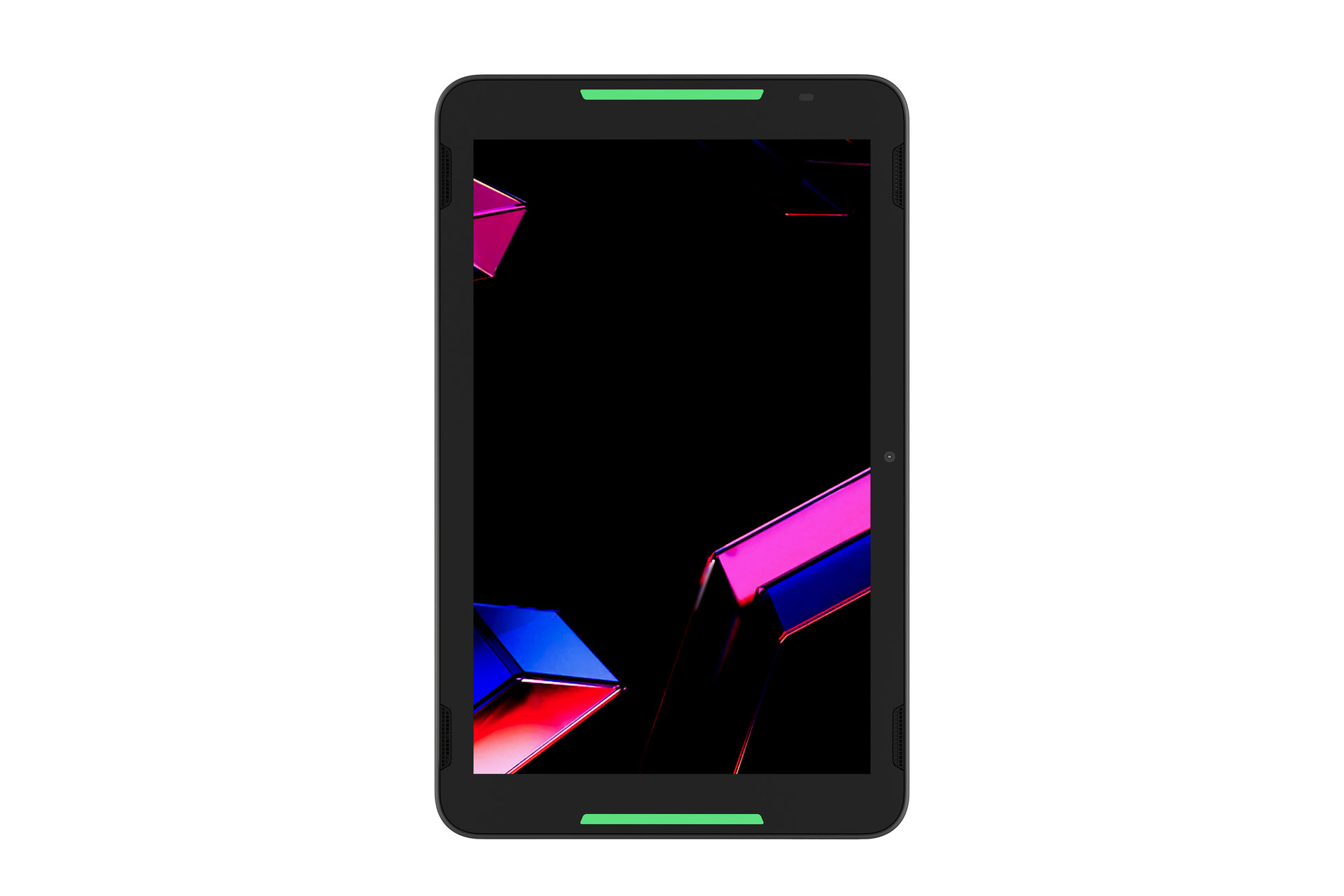

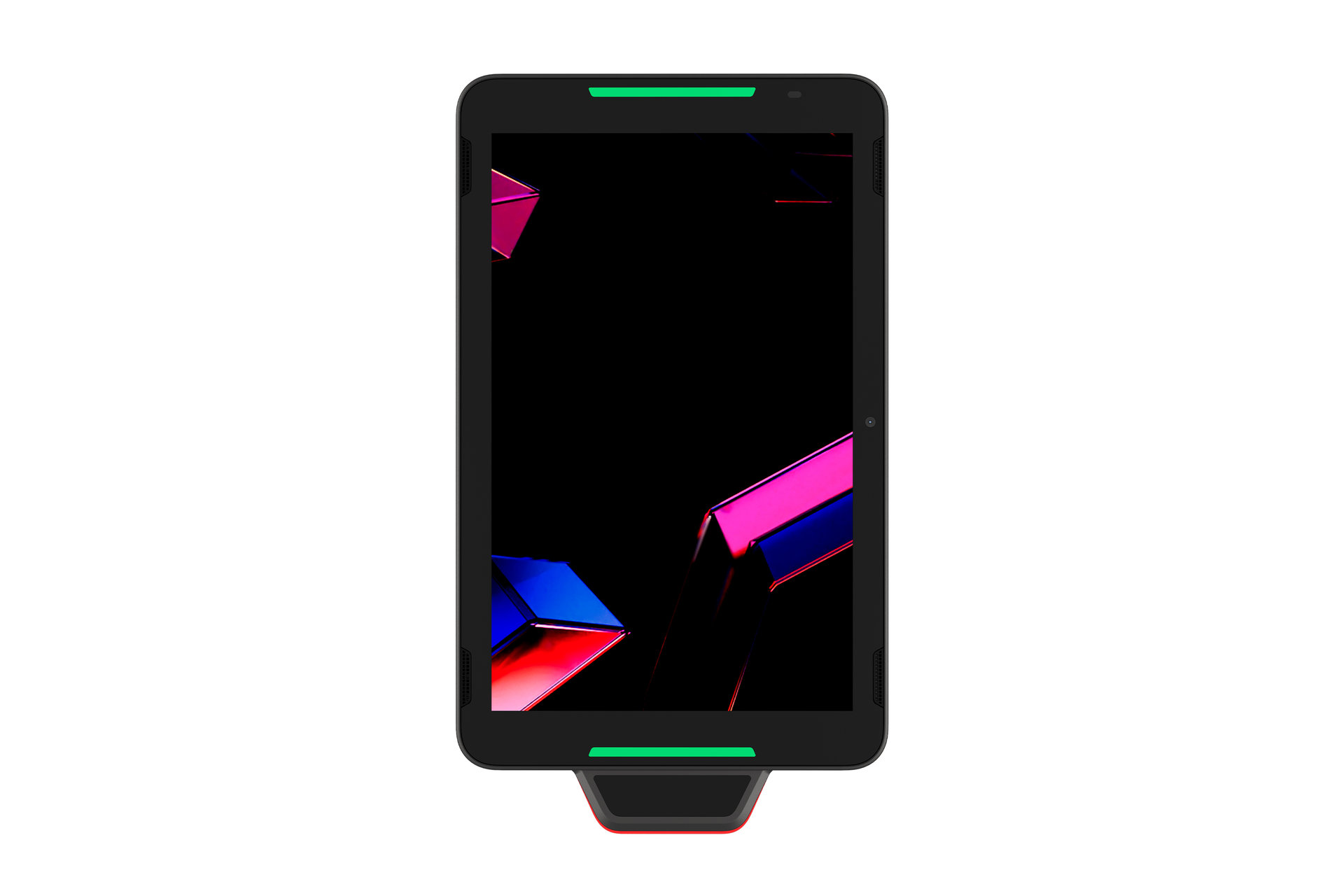

10.1-inch display with intuitive navigation, programmable LED light bars and portrait or landscape setup

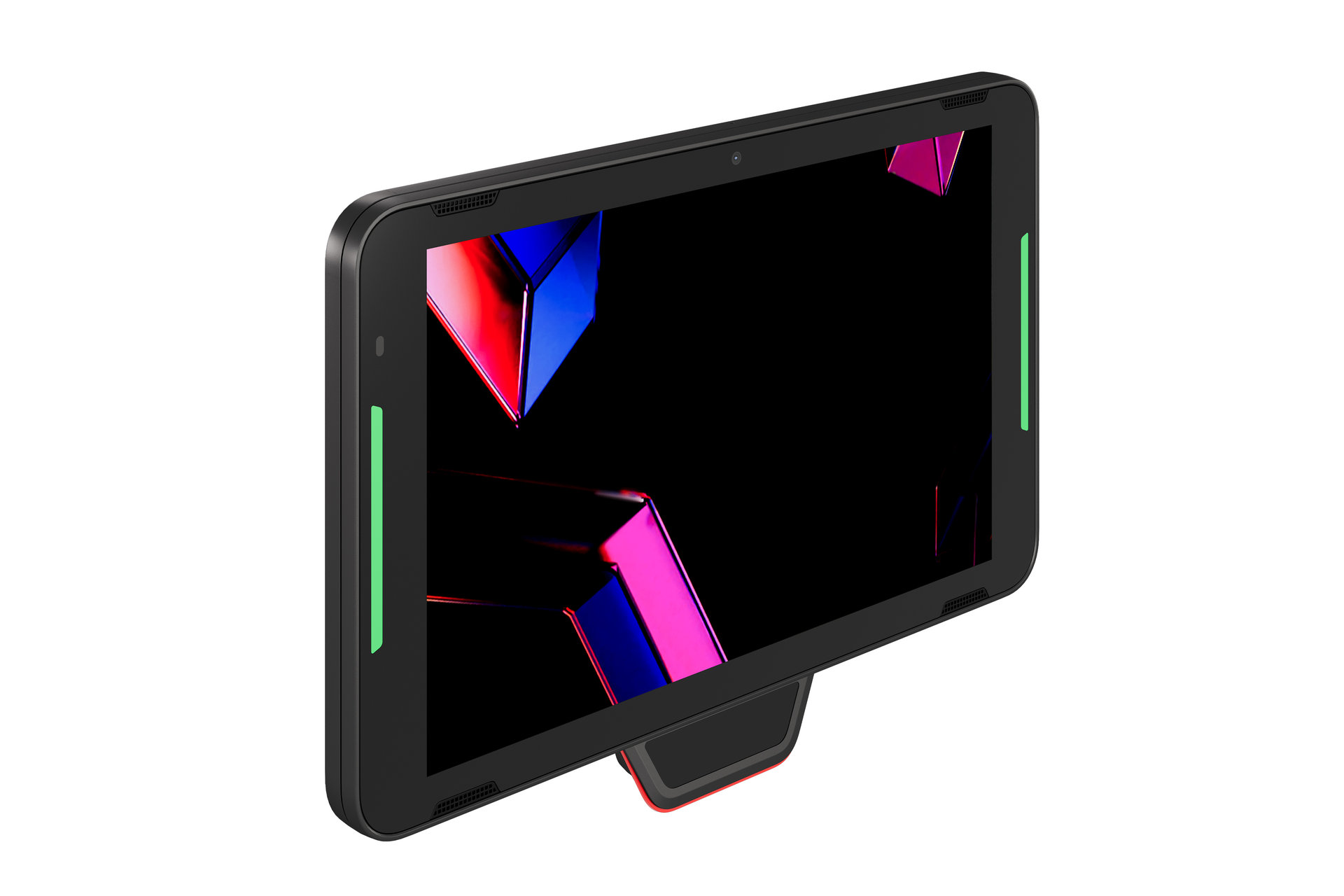

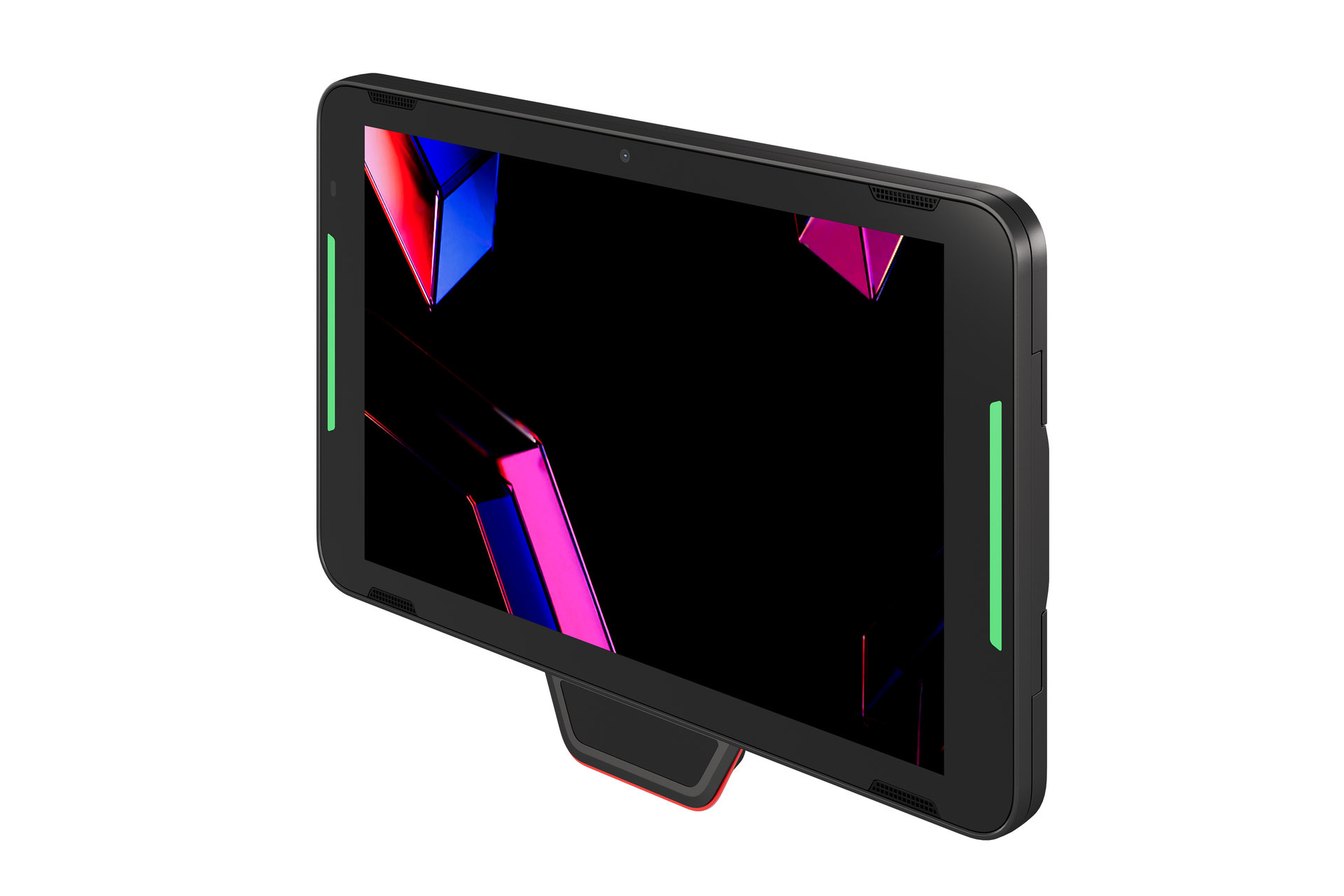

Optional enterprise SR500 1D/2D scanner with 0°, -25° and +25° angle options
NFC for tap-to-pay, mobile wallets, Apple VAS and Google Smart Tap
Help button sends alerts to the nearest worker’s Zebra mobile computer, with voice call-back to the kiosk
Drop-in replacement for the Zebra CC6000 using existing mounts and infrastructure
Power over Ethernet (PoE+) and Wi-Fi 7 for simpler installation
IP65 sealing and 9H scratch-resistant display glass

Best for: Price Checking · Time and Attendance Management · Self-checkout · Coupons and Loyalty · Order and Returns Processing · Guest and patient check-in

Specifications

Physical Characteristics

Dimensions: L x H x D: ; Without scanner: ; Landscape —10.35 x 6.44 x 1.43 inches; (262.9 x 163.7 x 36.2 mm); Portrait —6.44 x 10.35 x 1.43 inches; (163.7 x 262.9 x 36.2 mm); With scanner: ; Landscape —10.35 x 7.44 x 1.43 inches; (262.9 x 189.0 x 36.2 mm); Portrait —6.44 x 11.35 x 1.43 inches; (163.6 x 288.3 x 36.2 mm)
Weight: Without scanner: 2.03 lbs. (920 g); With scanner: 2.09 lbs. (947 g)
Display: 10.1 inches (25.7 cm) WXGA; 1280x800; 300 NITS
Touch Panel: Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); fingerprint resistant coating; durable touch panel glass with 9H hardness
Power: Three power options:; 12V DC 36 W Zebra Power Supply ; (recommended power supply); 5.4V DC 16W Zebra Power Supply 4; Power over Ethernet (PoE+, 30W) RJ45; input IEEE 802.3at/bt Class 4 or greater
Network Connections: LAN: 10/100/1000 Ethernet via RJ45 connector; WLAN: Wi-Fi 7
Notifications: Audible tone; multi-color LED light bars; vibration
Keypad: Virtual; Bluetooth; USB
Voice and Audio: Stereo speakers; two microphones; audio headset support via USB or Bluetooth wireless headset; BLE compatible; VoIP including PTT support; Qualcomm® Fluence™ AI noise suppression
Buttons: Volume up/down; power/reset buttons
Interface Ports: USB Type C (USB 2.0 host or client); USB Type A (USB 2.0 x2); RJ45

Performance Characteristics

CPU: Qualcomm® Dragonwing™ Q-6690; Processor up to 2.0 GHz
Operating System: Android; for supported Android versions, visit: ; www.zebra.com/android-versions
Memory: 6 GB LPDDR5 RAM/64 GB UFS 2.2; Flash; MicroSD card supports up to 2TB

User Environment

Operating Temp.: +32°F to +104°F (0°C to +40°C)
Storage Temp.: -40°F to +158°F (-40°C to +70°C)
Humidity: 5%-95% non-condensing
Sealing: IP65
Electrostatic Discharge (ESD): +/- 15 kV air discharge; +/- 8 kV contact; +/- 8 kV indirect
Vibration: Sine: 4 g’s PK(5 Hz to 2 kHz); Random: 6 g RMS (20 Hz to 2 kHz)
Thermal Shock: -40°F to +158°F (-40°C to +70°C)

Data Capture

Scanning: Front camera scanning; Optional SR500 1D/2D Scan Engine,; with 0°, -25°, +25° angle SKUs available
Front Camera: 5 MP; fixed focus
NFC: NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, Mifare Desfire EV1, EV2, EV3, EMVCO RR2 compliant, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support, Google Wallet support, VAS (Value Added Services). Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK (Apple, Google and Samsung Wallet)

Wireless

Bluetooth: Class 1, Bluetooth v6.0; Classic; Bluetooth(BR/EDR) and Bluetooth LE
Radio: IEEE 802.11 be/az/mc/ax/ac/n/a/g/; b/d/h/i/r/k/u/v/w; Tri-band (2.4 GHz,; 5 GHz, 6 GHz), 2x2 MU-MIMO; Wi-Fi; CERTIFIED 7™; MLO (Simultaneous; Transmit and Receive MLMR); connection in Tri-band and Dual-band; modes; 2.4+5+6, 2.4+5+5, 5+5+6,; 5+6, 5+5, 2.4+5, 2.4+6; Dual Band; Simultaneous, High Band Simultaneous; (HBS);IPv4, IPv6; Wi-Fi Aware
Data Rates: 2.4 GHz : 802.11b/g/n/ax/be—20 MHz; —up to 344 Mbps; 5 GHz: 802.11a/n/ac/ax/be—20 MHz, 40 MHz, 80 MHz, 160 MHz—up to 2882 Mbps; 6 GHz : 802.11ax/be—20 MHz, 40 MHz, 80 MHz, 160MHz, 320MHz—up to 5764 Mbps
Fast Roam: 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC
Operating Channels: Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140,; 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth : 20, 40, 80, 160, 320 MHz; Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Security and Encryption: WPA3 Enterprise 192-bit mode, GCMP-256—EAPTLS; WPA3 Enterprise, AES-CCMP-128, GCMP-256—EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS,; PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD; WPA3 Personal (SAE, SAE-EXT), AES-CCMP-128, GCMP-256; WPA/WPA2 Enterprise, TKIP and; AES-CCMP-128; WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128, GCMP-256; WEP 40 bit and 104 bit
Certifications: Wi-Fi Alliance Certifications : Wi-Fi CERTIFIED 7/6/6E/ac/n; WPA2-Personal/Enterprise; WPA3-Personal/Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint
Multimedia: Wi-Fi Multimedia™ (WMM) and WMM-PS; TSPEC

Mounting

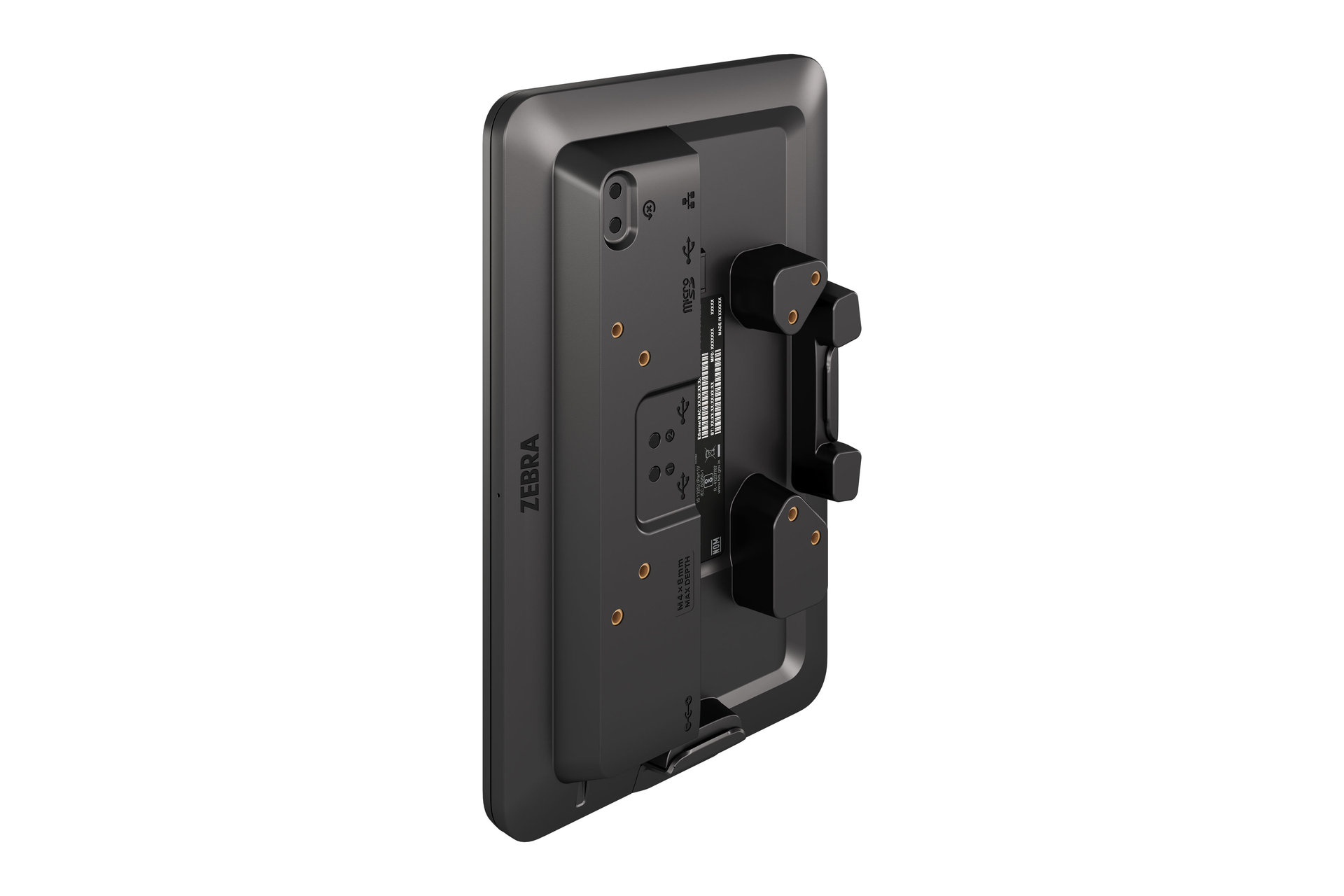

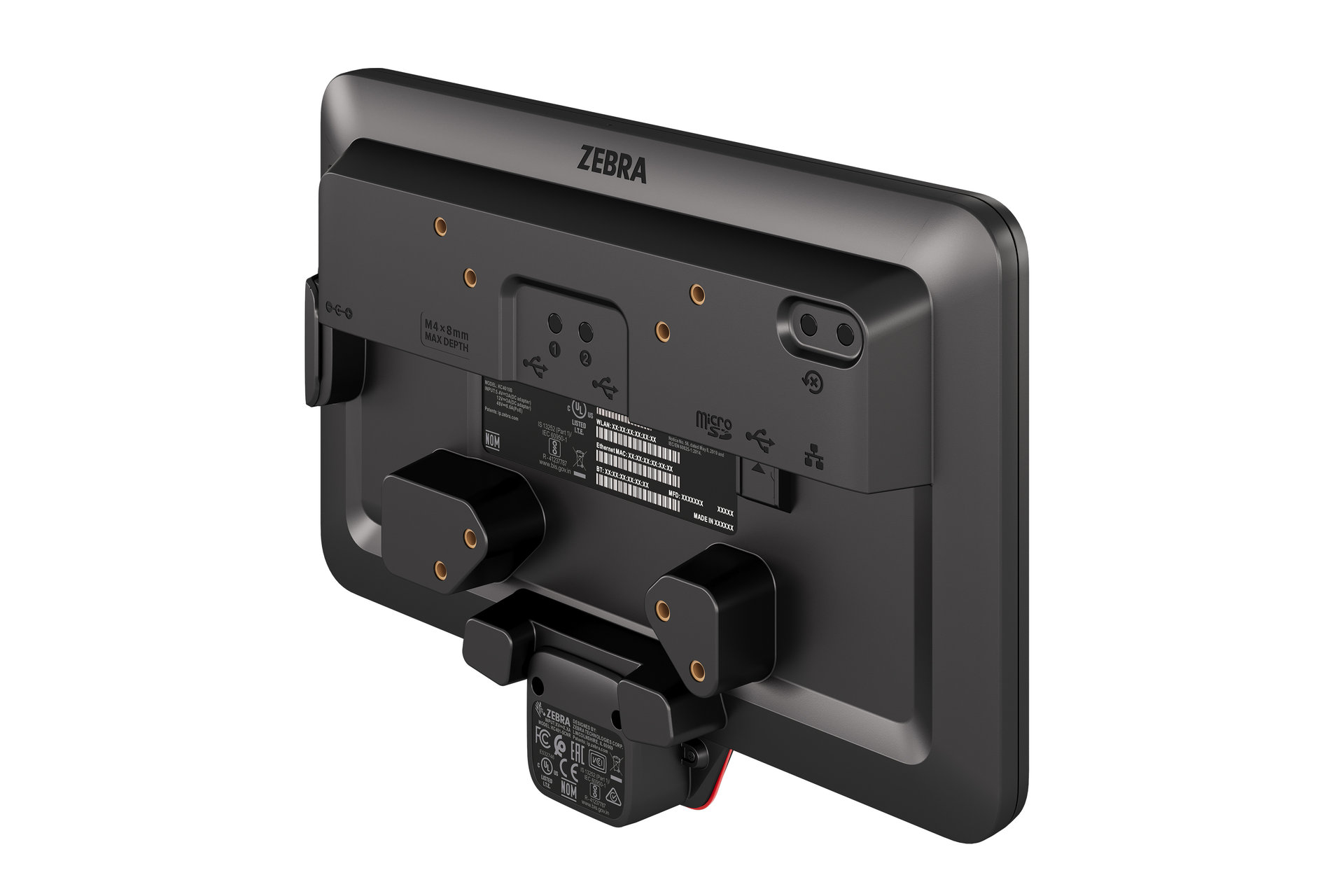

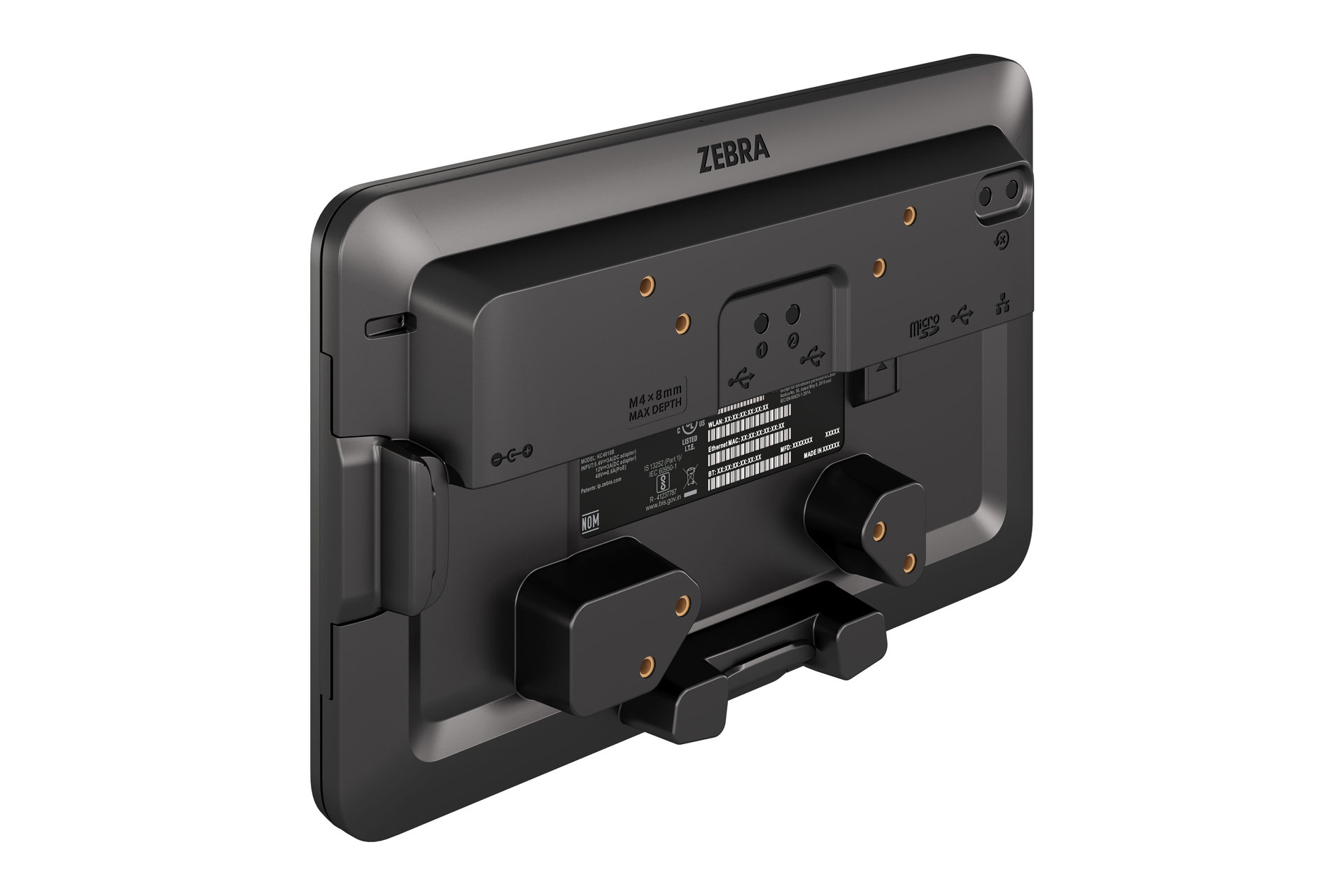

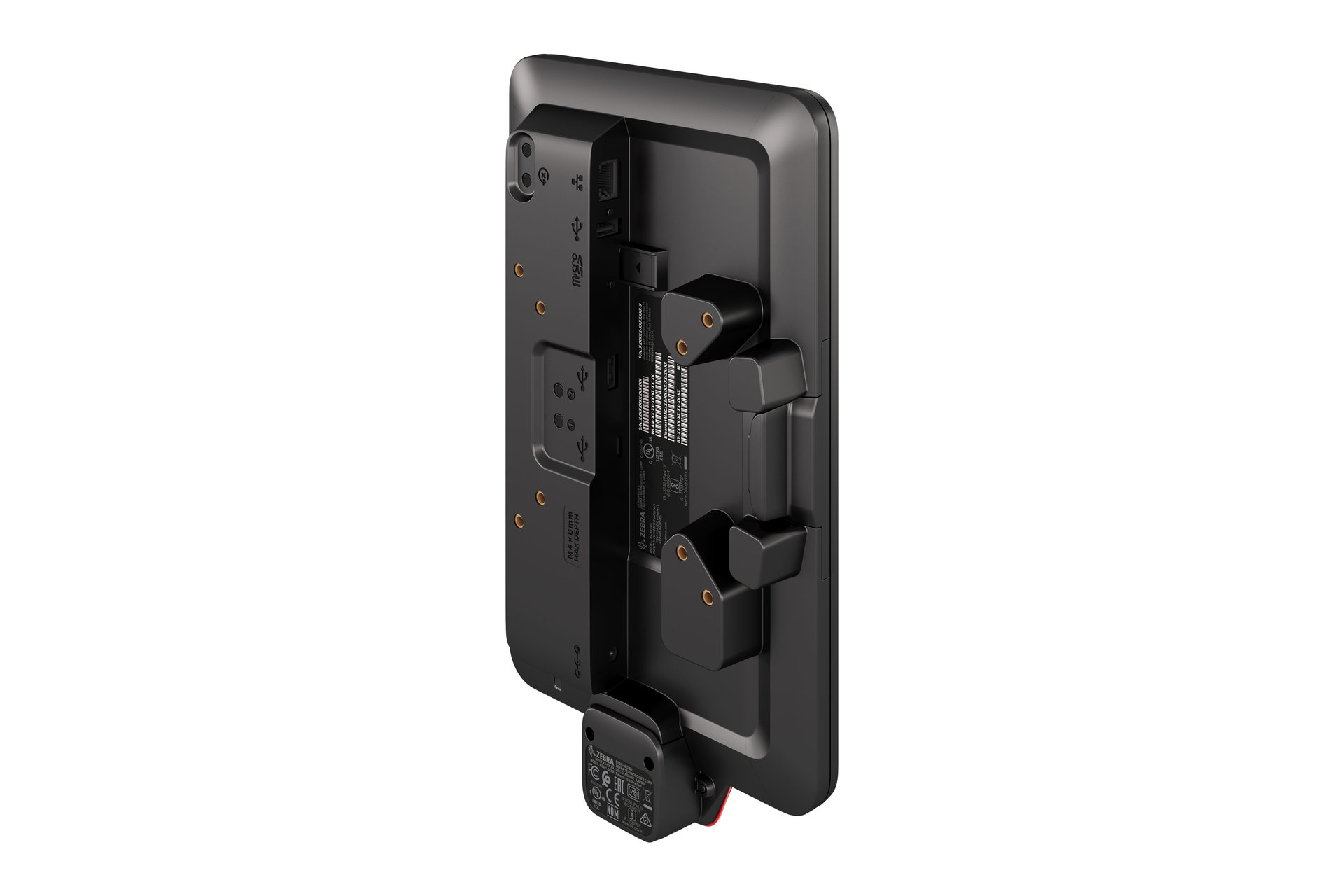

VESA mounting: Universal VESA mounts in multiple sizes; mounts to walls, poles, counters and cabinetry; portrait or landscape

Software

Zebra DNA: Zebra DNA Core (no cost, preloaded); Zebra DNA Core+; Zebra DNA Advanced; LifeGuard for Android (requires Zebra OneCare); Workcloud Timekeeping; Workcloud Sync

Warranty

Warranty: 1 year from date of shipment (defects in workmanship and materials)

Lifecycle

Sales status: Current
Replaces: CC600, CC6000
Status basis: Product page lists the KC401 as a current product; no end-of-life notice found
