Zebra · Tablet

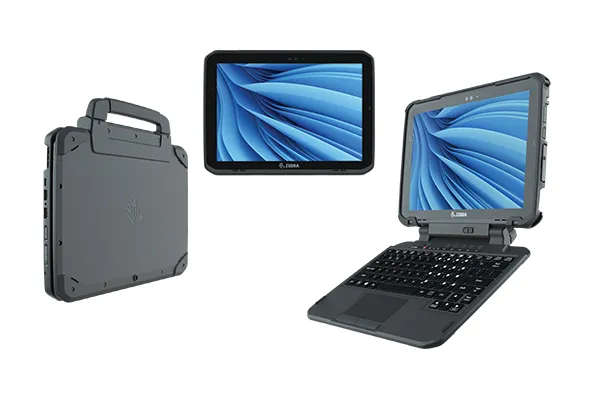

Zebra ET80/ET85 Rugged 2-in-1 Tablet
View and download the technical specification sheet for the ET80/ET85 Rugged 2-in-1 Tablet.
- Operating systemWindows™ 11 Professional 64-bit
- Display12 in. 3:2 QHD (2160 x 1440) — 800 nits Sunlight readable Corning Gorilla Glass Anti-reflective…
- ScanningSE4107 2D scanner (available option)
- Battery5180 mAhr, 7.7V rechargeable Li-Polymer; user replaceable (39.8 Whr) Time to full charge 2.5 hours Optional…
- SealingIEC 60529 Clause 13.4 enclosures; IP65 for tablet with ports open, keyboard and dock
- DropMIL-STD-810H drop to plywood over concrete Standard: 4 ft./1.2 m With optional rugged boot: 5 ft./1.5 m With…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Windows™ 11 Professional 64-bit
- Processor
- 11th generation Intel™ Core™ i7-1180G7 vPro™ processor 11th generation Intel™ Core™ i5-1140G7 vPro™ processor 11th generation Intel™ Core™ i5-1130G7 processor
- RAM / storage options
- 8 GB or 16 GB LPDDR4x-4266 128 GB, 256 GB or 512 GB tool-less user removable PCIe SSD
Display
- Display size
- 12 in. 3:2 QHD (2160 x 1440) — 800 nits Sunlight readable Corning Gorilla Glass Anti-reflective (AR)/Anti-Smudge screen treatment Night-vision mode
- Keyboard / keys
- Volume up/down button; power on/off button; barcode scanner button (user definable in configurations without the barcode reader) Available detachable friction hinge rugged keyboard with standard sized keys; precision multitouch touchpad with two physical click buttons; adjustable color backlighting; waterproof IP65; (6) programmable keys including emergency key
Data capture
- Scan engines / capture options
- SE4107 2D scanner (available option)
- NFC
- Supports NFC peer to peer, card reader/writer and card emulation modes; P2P: ISO/IEC 18092; Reader/Writer: ISO 14443 –A-B, MIFARE, FeliCa™, ISO 15693, NFC Forum Tag Types 1 to 4; Card emulation: ISO 14443 – A-B-B’, MIFARE, FeliCa RF
- Cameras
- 13 MP auto-focus camera with user controllable LED flash; mechanical privacy shade FHD Windows Hello auto-focus camera; mechanical privacy shade
Power
- Battery / runtime
- 5180 mAhr, 7.7V rechargeable Li-Polymer; user replaceable (39.8 Whr) Time to full charge 2.5 hours Optional hot swappable 3400mAh, 7.6V (25.8 Whr) secondary battery (expansion back required) 45W USB-PD (type C) AC adapter sold separately
Connectivity
- Cellular / WWAN
- ET85 configurations required: available 5G (support for 3 GPP Rel 15 including Cat 22 LTE, 3G, and sub 6 GHz NR) data only or Global LTE Category 12 data only
- Location / GPS
- ET85 configurations required: GPS, GLONASS, BeiDou/Compass, Galileo. Dual band (L1 + L5) with aGPS (support varies by carrier)
Rugged
- IP / sealing
- IEC 60529 Clause 13.4 enclosures; IP65 for tablet with ports open, keyboard and dock
- Drop specification
- MIL-STD-810H drop to plywood over concrete Standard: 4 ft./1.2 m With optional rugged boot: 5 ft./1.5 m With keyboard: 3 ft./0.9 m
- Operating temperature
- -4° F to 140° F/-20° C to 60° C
- Storage temperature
- -22° F to 158° F/-30° C to 70° C
- Humidity
- 5% to 95% non-condensing
Size
- Weight
- Tablet (with standard battery) : 2.8 lbs/1.3 kg Keyboard: 1.85 lbs/0.84 kg
- Dimensions
- Tablet : 12.1 in. W x 8.9 in. L x 0.6 in. H 308 mm W x 225 mm L x 16 mm H Tablet with keyboard : 12.1 in. W x 9.6 L in. x 1.1 in. H 308 mm W x 244 mm L x 29 mm H
