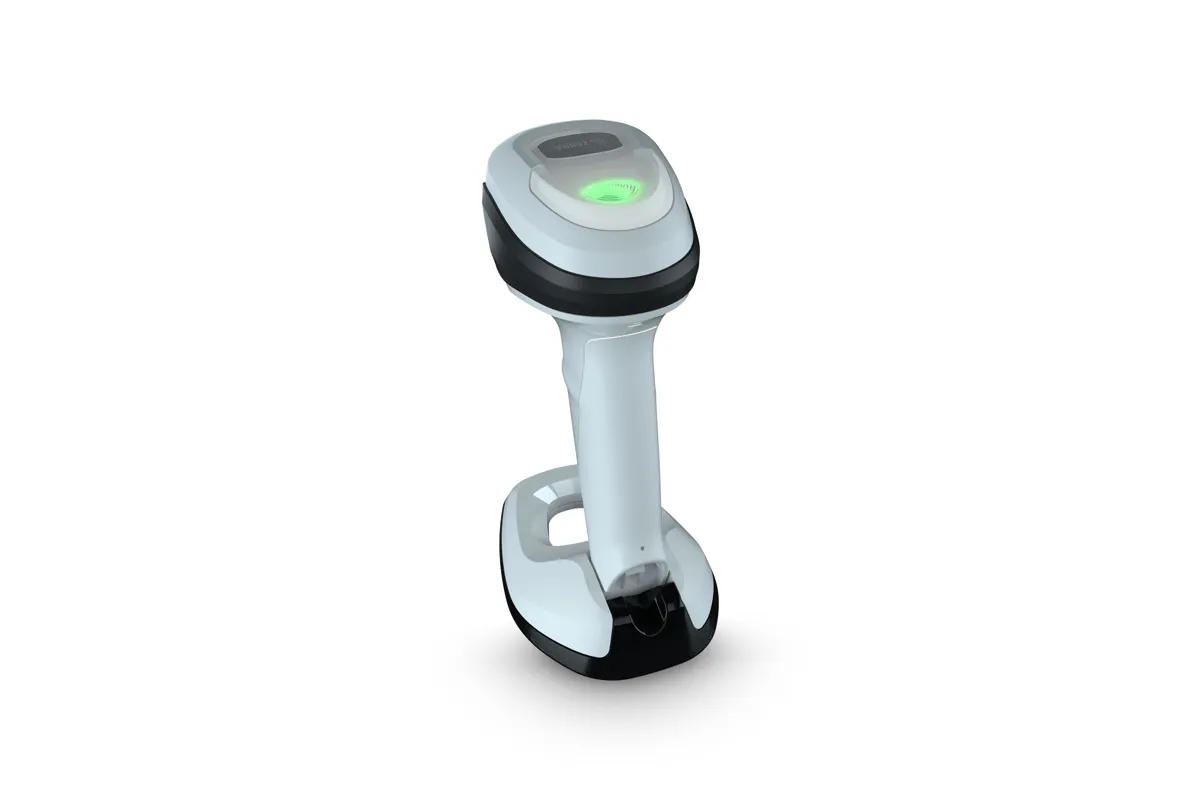

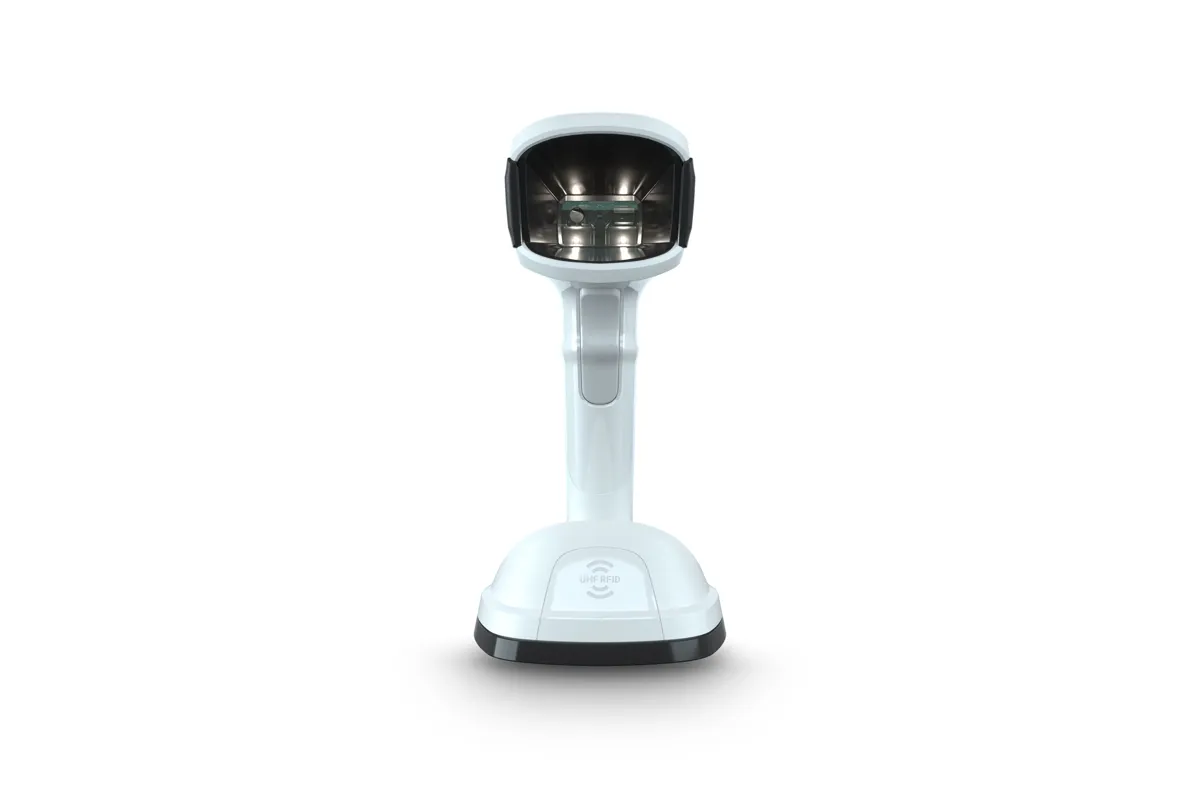

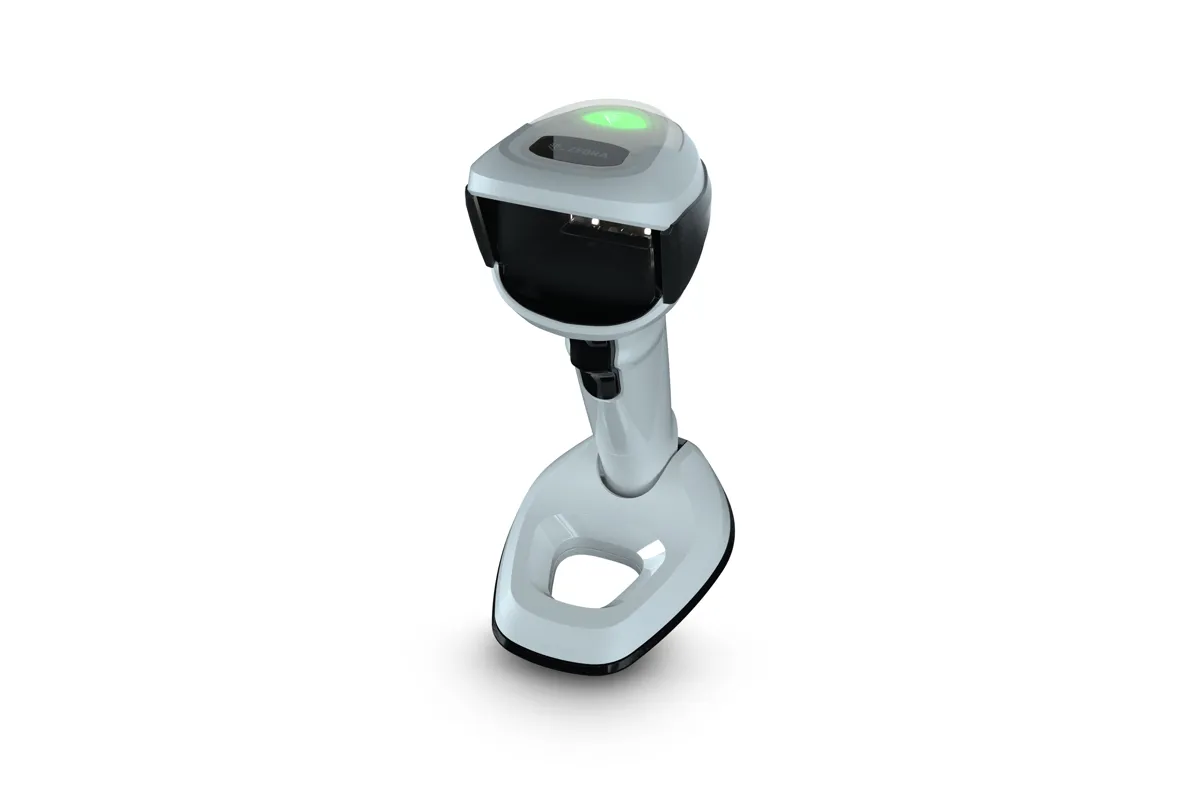

Zebra DS9908-HD hands-free scanner
The Zebra DS9908-HD scanner boosts lab and pharmacy efficiency with accurate first-time capture of diverse barcodes, including high-density and curved types.
- SealingDS9908: IP52 DS9908R: IP42
- DropDS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete DS9908R: Designed to withstand…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 3 Dimensions
- DS9908: 8.0 in. H x 3.7 in. W x 5.2 in. D 20.3 cm H x 9.4 cm W x 13.2 cm D DS9908R: 8.0 in. H x 3.9 in. W x 5.75 in. D 20.3 cm H x 9.9 cm W x 14.6 cm D
- Weight
- DS9908: 11.6 oz./330.0 g DS9908R: 14.8 oz./420.0 g
- Input Voltage Range
- 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
- Current
- Operating current at nominal voltage (5.0V): DS9908: 321 mA (typical) DS9908R: 400 mA (typical) Standby current (idle) at nominal voltage (5.0V): DS9908: 70 mA (typical) DS9908R: 135 mA (typical)
- Color
- Alpine White
- Supported Host Interfaces
- USB Certified 3 , RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
- Keyboard Support
- Supports over 90 international keyboards
- TAA Compliance
- Trade Agreement Act Compliant
- User Indicators
- Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume)
- Swipe Speed (Hands-Free)
- Up to 240 in./610 cm per second for 13 mil UPC in optimized mode
- Light Source
- Aiming Pattern: Circular 528nm green LED
- Illumination
- (2) warm white LEDs
- Imager Field of View
- 48° H x 30.6° V nominal
- Image Sensor
- 1280 x 800 pixels
- Minimum Print Contrast
- 16% minimum reflective difference
- Skew Tolerance
- +/- 60°
- Pitch Tolerance
- +/- 60°
- Roll Tolerance
- 0° - 360°
- Standard Supported
- EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63
- RFID
- Zebra Proprietary Radio Technology
- Nominal Read Range
- ~18 in. / ~45.7 cm
- RFID Power Output
- 3 dBm to 22 dBm
- Frequency Range
- US: 902 - 928 MHz EU: 865 - 868 MHz Japan: 916 - 923 MHz
- Graphics Format Support
- Images can be exported as Bitmap, JPEG or TIFF
- Image Quality (A4 Document)
- 116 PPI on an 8.3 x 11.7 in./21.0 x 29.7 cm document @ 8.0 in./20.3 cm
- Operating temperature
- 32.0° to 122.0° F / 0.0° to 50.0° C
- Storage temperature
- -40.0° to 158.0° F / -40.0° to 70.0° C
- Humidity
- 5% to 95% RH, non-condensing
- Drop specification
- DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete DS9908R: Designed to withstand multiple drops at 4.0 ft./1.2 m to concrete
- Tumble specification
- Designed to withstand 2,000 tumbles in 1.5 ft. /0.5 m tumbler 4
- IP / sealing
- DS9908: IP52 DS9908R: IP42
- Electrostatic Discharge (ESD)
- ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
- Ambient Light Immunity
- 0 to 10,000 Foot Candles / 0 to 107,600 Lux
- Environmental
- EN 50581:2012
- Electrical Safety
- IEC 62368-1 (ed.2) EN 62368-1:2014/AC:2015
- LED Safety
- IEC 62471:2006 (Ed.1.0) EN 62471:2008 (LED)
- EMI/RFI
- EN 55032:2012/AC:2013 (Class B) EN 55032:2015/AC:2016 (Class B) EN 55024:2010 EN 55024:2010/A1:2015 EN 55035:2017 EN 61000-3-2:2014 (Class A) EN 61000-3-3:2013 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
- 1D
- Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
- 2D
- PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes
- OCR
- OCR-A, OCR-B, MICR, US Currency
- Minimum Element Resolution
- Code 39 - 3.0 mil Code 128 - 3.0 mil* DataMatrix - 5.0 mil QR Code - 5.0 mil * with Decode Range Limit feature disabled.
- 123Scan
- Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. www.zebra.com/123Scan
- Symbol Scanner SDK
- Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/windowsSDK
- Scanner Management Service (SMS)
- Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms
- Symbology/Resolution
- Near/Far
- Code 39: 3 mil
- 1.3 in./3.3 cm to 3.7 in./9.4 cm
- Code 128: 3 mil
- 1.4 in./3.6 cm to 4.2 in./10.7 cm
- Code 128: 5 mil
- 0.8 in./2 cm to 7.5 in./19 cm
- PDF 417: 6.7 mil
- 0.8 in./2 cm to 8 in./20 cm
- UPC: 13 mil (100%)
- 0.2 in./0.5 cm to 19.1 in./48.5 cm
- Data Matrix: 10 mil
- 0.5 in./1.3 cm to 9.3 in./23.6 cm
- QR: 20 mil
- 0 in./0 cm to 13.7 in./34.8 cm
- Code 39: 3 mil
- 1.1 in./2.8 cm to 3.7 in./9.4 cm
- Code 128: 5 mil
- 0.6 in./1.5 cm to 2.5 in./6.4 cm
- PDF 417: 6.7 mil
- 0.8 in./2.0 cm to 8.0 in./20.3 cm
- UPC: 13 mil (100%)
- 0 in./0 cm to 9.5 in./24.1 cm
- Data Matrix: 10 mil
- 0 in./0 cm to 9.3 in./23.6 cm
- QR: 20 mil
- 0 in./0 cm to 9.5 in./24.1 cm
