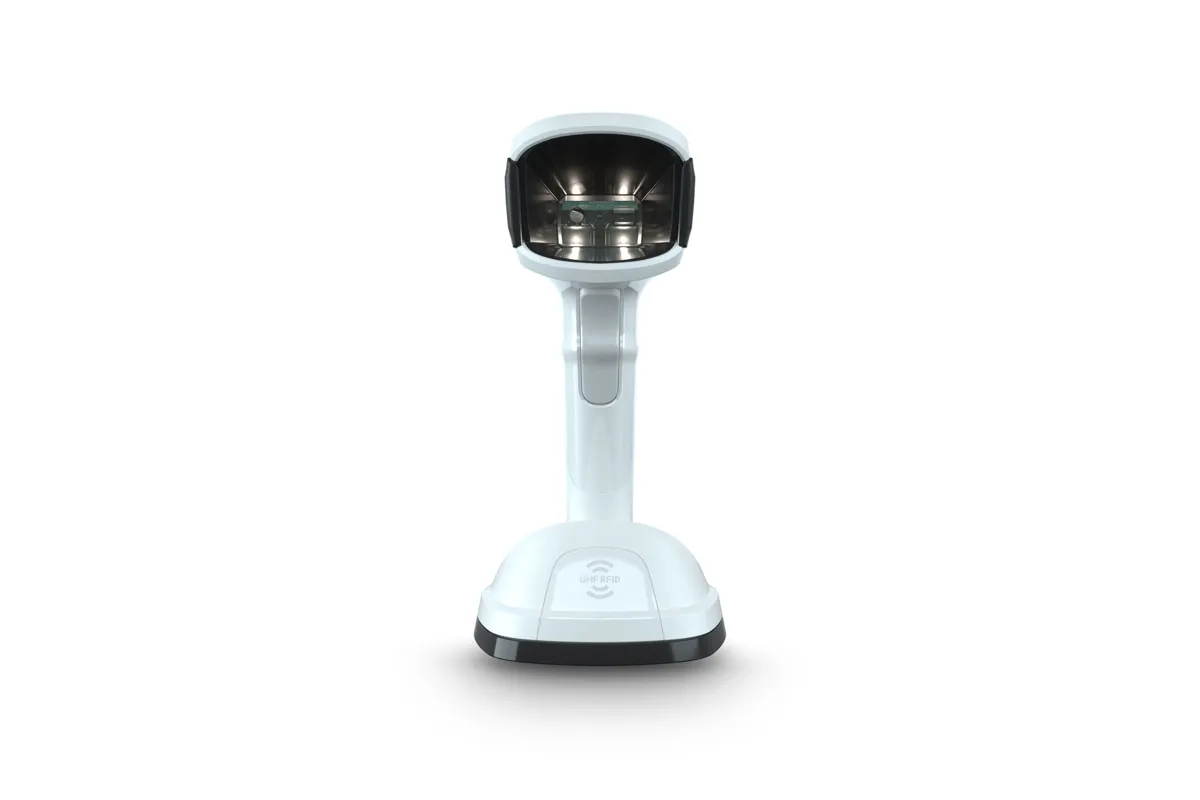

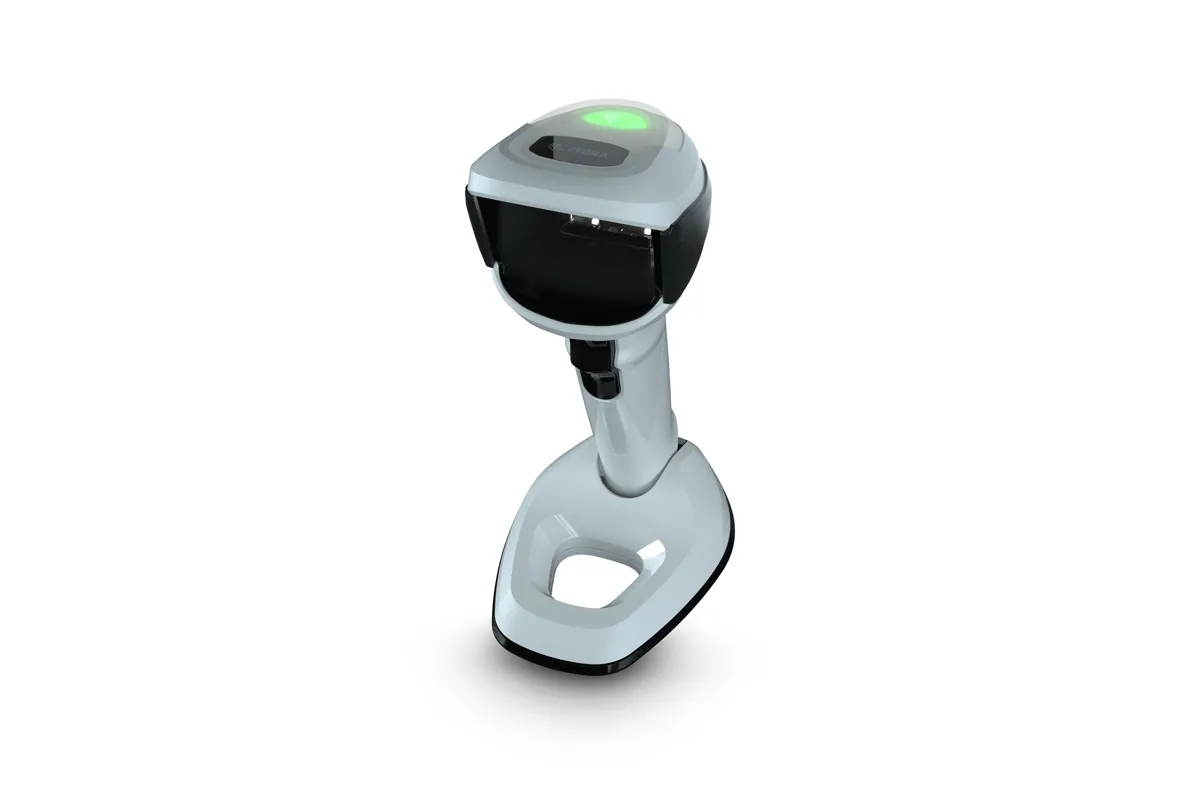

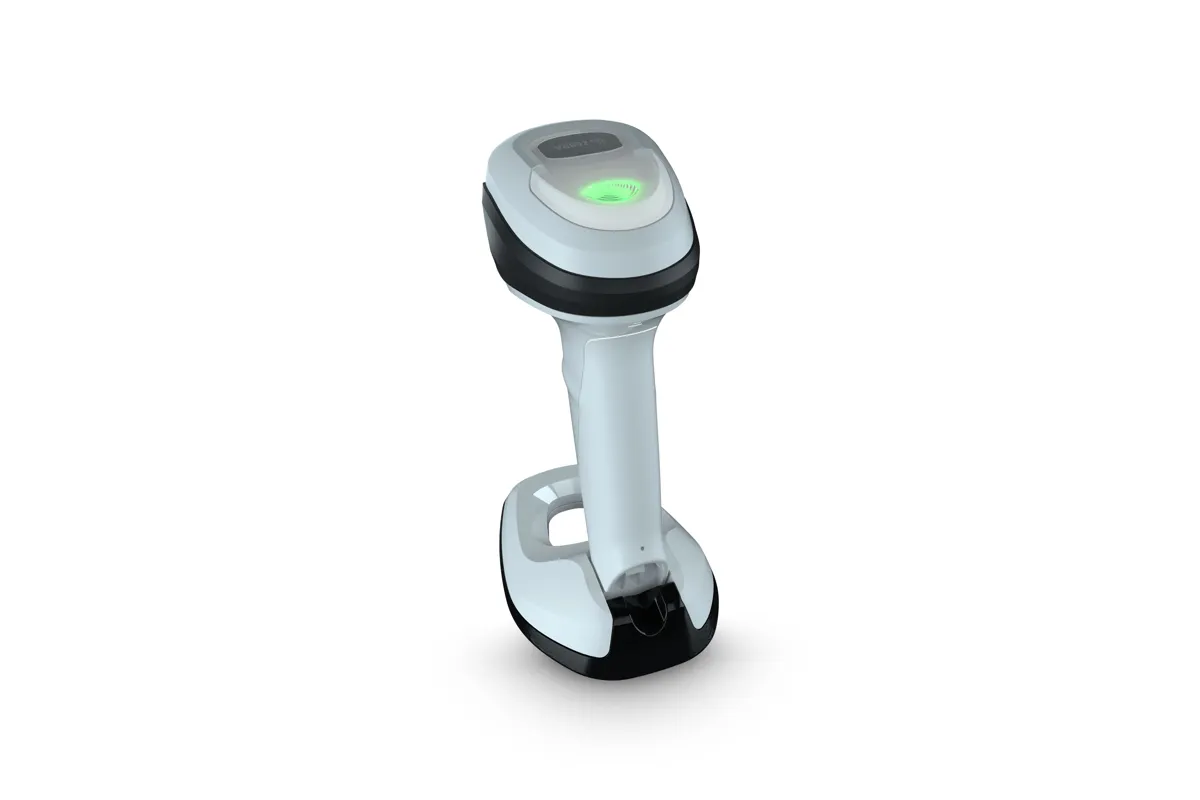

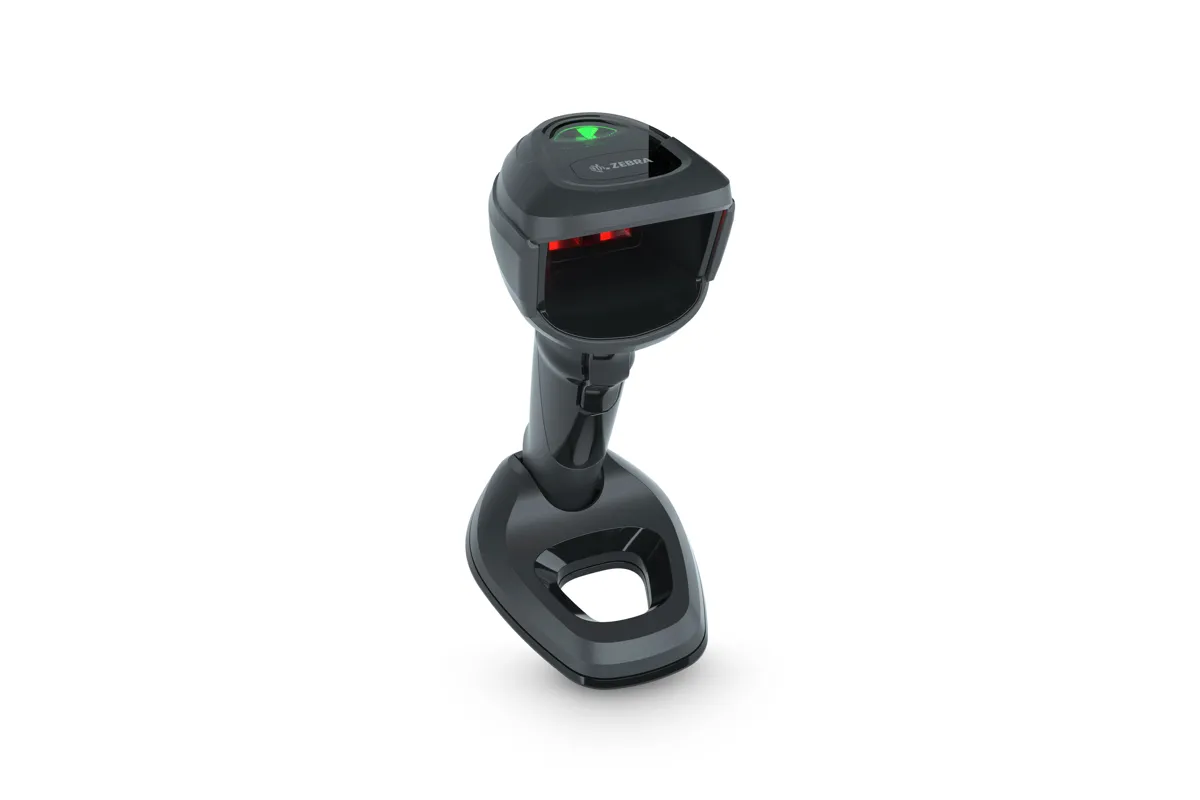

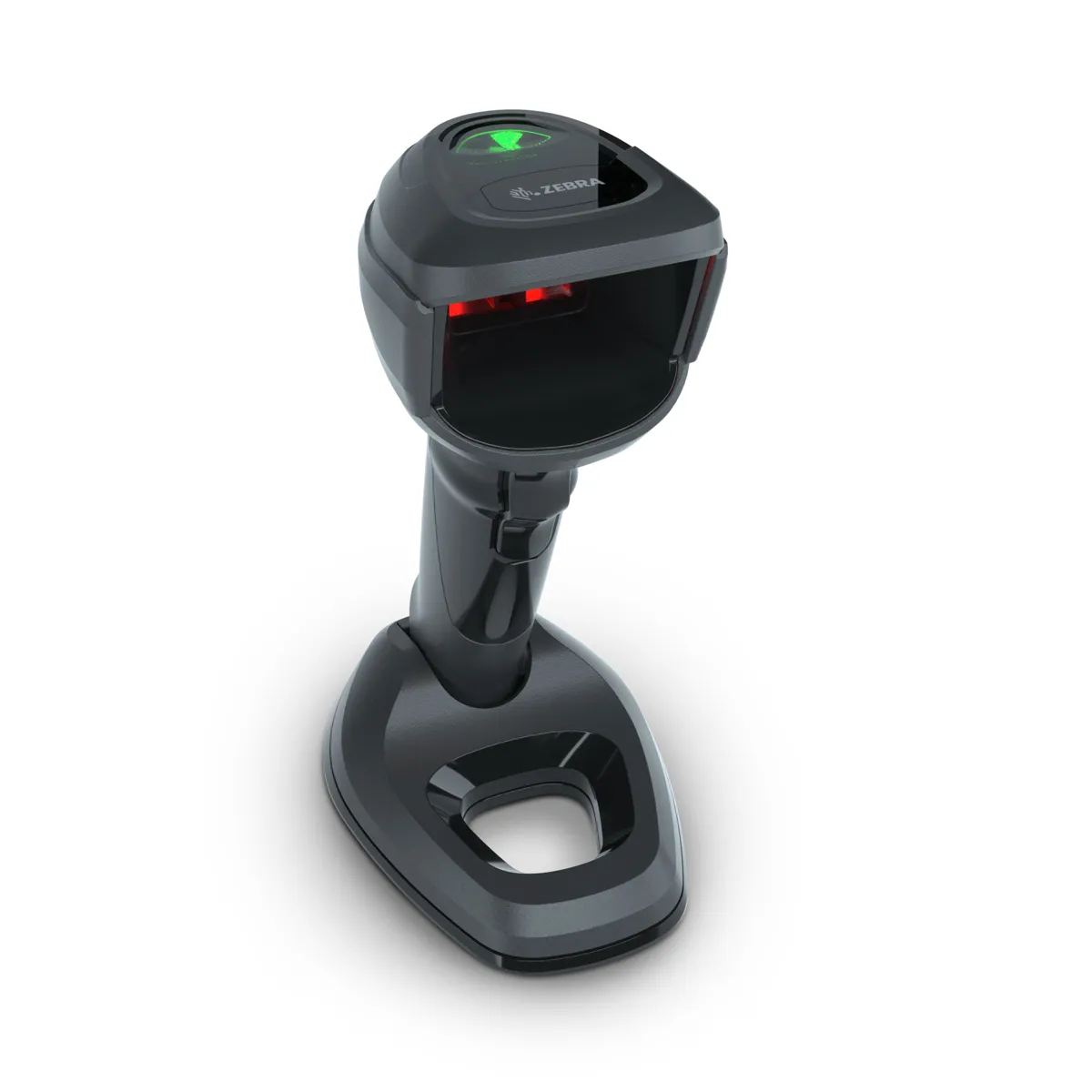

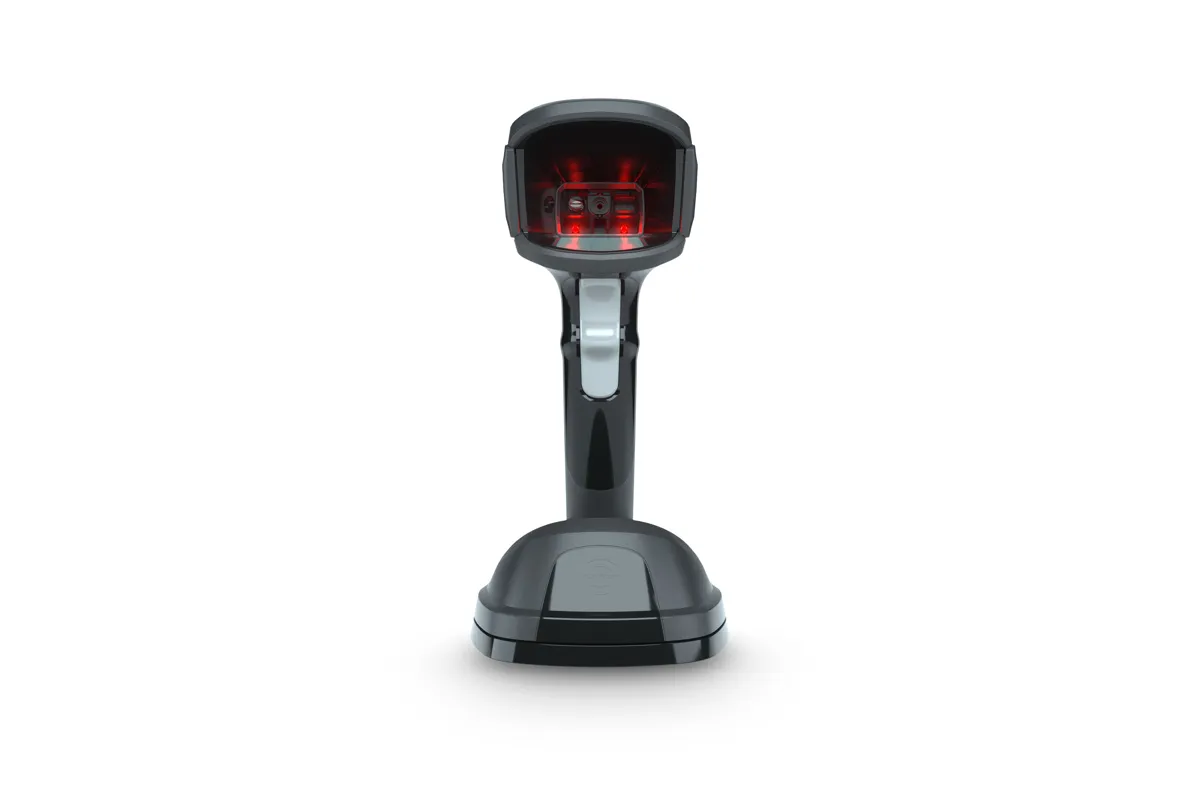

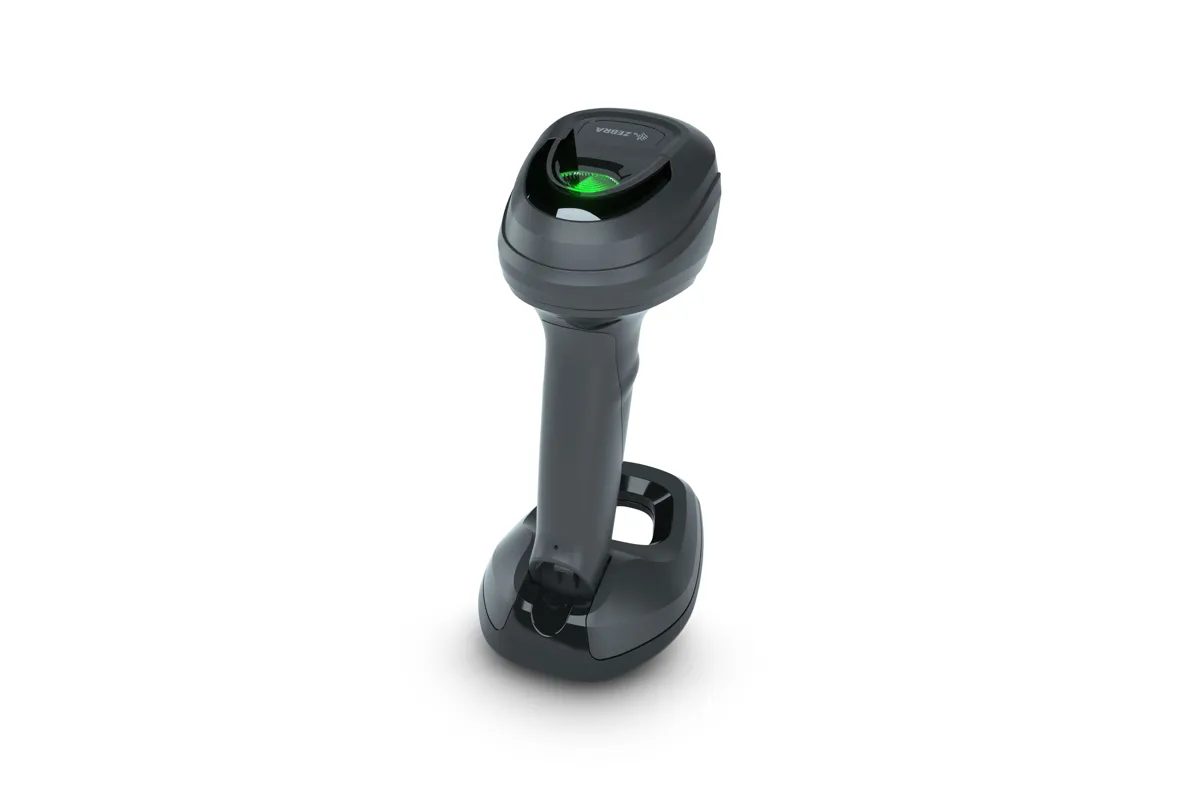

Zebra DS9900 Series 1D/2D Hybrid Scanner
Zebra's DS9908/DS9908-R RFID barcode scanner works to improve your productivity at the point-of-sale and creates a more satisfying checkout experience for your customers.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- DS9908: 8.0 in. H x 3.7 in. W x 5.2 in. D; 20.3 cm H x 9.4 cm W x 13.2 cm D; DS9908R: 8.0 in. H x 3.9 in. W x 5.75 in. D; 20.3 cm H x 9.9 cm W x 14.6 cm D
- Weight
- DS9908: 11.6 oz./330.0 g; DS9908R: 14.8 oz./420.0 g
- Input Voltage Range
- 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
- Current
- Operating current at nominal voltage (5.0V):; DS9908: 321 mA (typical); DS9908R: 400 mA (typical); Standby current (idle) at nominal voltage (5.0V):; DS9908: 70 mA (typical); DS9908R: 135 mA (typical)
- Color
- Midnight Black
- Supported Host Interfaces
- USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
- Keyboard Support
- Supports over 90 international keyboards
- Electronic Article Surveillance
- Compatible with Checkpoint EAS deactivation system
- TAA Compliance
- Trade Agreement Act Compliant
- User Indicators
- Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume)
- Swipe Speed (Hands-Free)
- Up to 240 in./610 cm per second for 13 mil UPC in optimized mode
- Light Source
- Aiming Pattern: Circular 617nm Amber LED
- Illumination
- (2) 645nm Red LEDs
- Imager Field of View
- 48° H x 30.6° V Nominal
- Image Sensor
- 1280 x 800 pixels
- Minimum Print Contrast
- 16% minimum reflective difference
- Skew Tolerance
- +/- 60°
- Pitch Tolerance
- +/- 60°
- Roll Tolerance
- 0° - 360°
- Standards Supported
- EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63
- RFID Engine
- Zebra Proprietary Radio Technology
- Nominal Read Range
- ~18 in. / ~45.7 cm
- RFID Power Output
- 3 dBm to 22 dBm
- Frequency Range
- US: 902 - 928 MHz; EU: 865 - 868 MHz; Japan: 916 - 923 MHz
- Graphics Format Support
- Images can be exported as Bitmap, JPEG or TIFF
- Image Quality (A4 Document)
- 116 PPI on an 8.3 x 11.7 in./21.0 x 29.7 cm document @ 8.0 in./ 20.3 cm
- Operating Temperature
- 32.0° to 122.0° F / 0.0° to 50.0° C
- Storage Temperature
- -40.0° to 158.0° F / -40.0° to 70.0° C
- Humidity
- 5% to 95% RH, non-condensing
- Drop Specification
- DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete; DS9908R: Designed to withstand multiple drops at 4.0 ft./1.2 m to concrete
- Tumble Specification
- Designed to withstand 2,000 tumbles in 1.5 ft. /0.5 m tumbler3
- Environmental Sealing
- DS9908: IP52; DS9908R: IP42
- Electrostatic Discharge (ESD)
- ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
- Ambient Light Immunity
- 0 to 10,000 Foot Candles / 0 to 107,600 Lux
- Environmental
- EN 50581:2012
- Electrical Safety
- IEC 62368-1 (ed.2); EN 62368-1:2014/AC:2015
- LED Safety
- IEC 62471:2006 (Ed.1.0); EN 62471:2008 (LED)
- EMI/RFI
- EN 55032:2012/AC:2013 (Class B); EN 55032:2015/AC:2016 (Class B); EN 55024:2010; EN 55024:2010/A1:2015; EN 55035:2017; EN 61000-3-2:2014 (Class A); EN 61000-3-3:2013; 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 6, Class B
- 1D
- Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
- 2D
- PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes
- OCR
- OCR-A, OCR-B, MICR, US Currency
- Digimarc
- Digimarc barcodes
- Minimum Element Resolution
- Code 39 - 3.0 mil; Code 128 - 3.0 mil*; DataMatrix - 6.0 mil; QR Code - 6.0 mil; * With Decode Range Limit feature disabled.
- 123Scan
- Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports.; www.zebra.com/123Scan
- Symbol Scanner SDK
- Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code.; www.zebra.com/windowsSDK
- Scanner Management Service (SMS)
- Remotely manages your Zebra scanner and queries its asset information.; www.zebra.com/sms
- Symbology/Resolution
- Near/Far
- Code 39: 3 mil
- 1.1 in./2.8 cm to 3.0 in./7.6 cm
- Code 128: 3 mil
- 1.4 in./3.6 cm to 3.5 in./8.9 cm
- Code 128: 5 mil
- 1.0 in./2.5 cm to 7.1 in./18.0 cm
- PDF 417: 6.7 mil
- 1.2 in./3.0 cm to 8.0 in./20.3 cm
- UPC: 13 mil (100%)
- 0 in./0 cm to 24.7 in./62.7 cm
- Data Matrix: 10 mil
- 1.3 in./3.3 cm to 9.3 in./23.6 cm
- QR: 20 mil
- 1.0 in./2.5 cm to 18.0 in./45.7 cm
