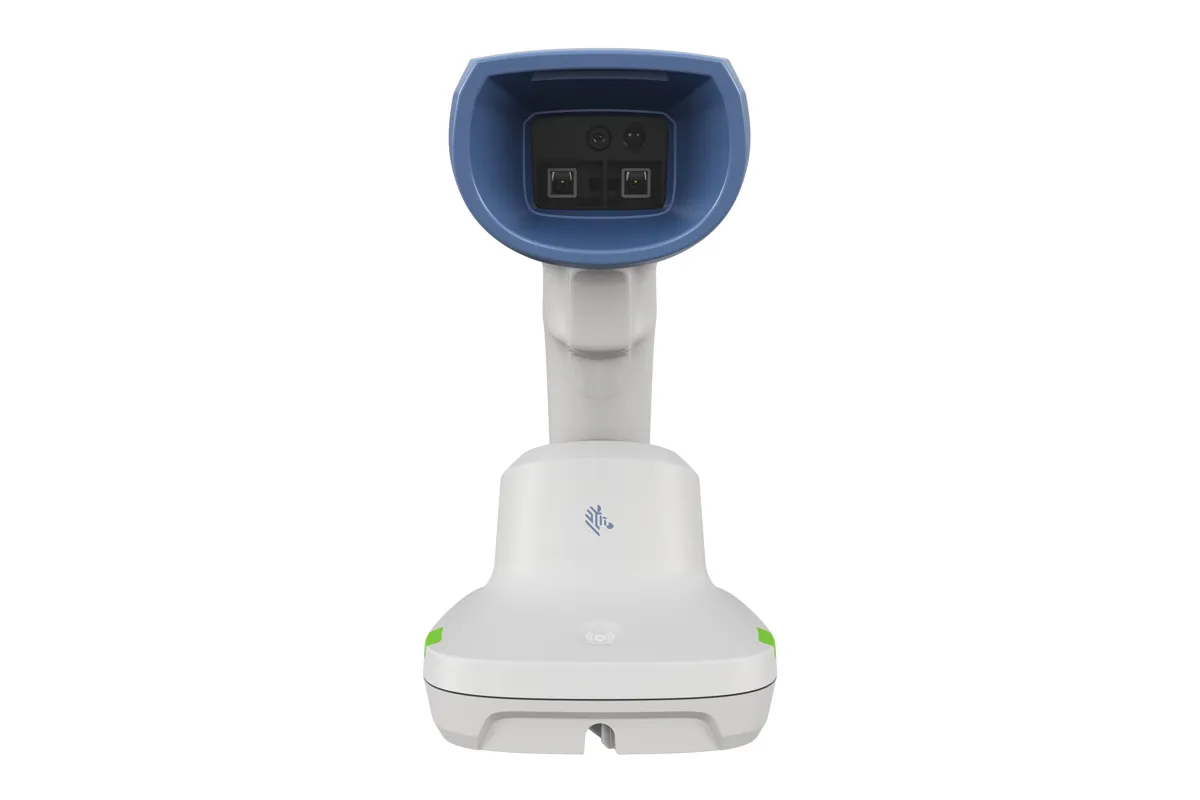

Zebra DS8288-HC

Specifications

Scan Type

1D, 2D, Digimarc, OCR

Image Sensor

1600x1200 pixels

Corded/Cordless

Cordless

Battery Capacity

Battery: Up to 100,000 scans (3500 mAh), PowerCap™: Up to 6000 scans (1000 F Li-ion)

Dimensions

Corded: H x W x D: 6.5 x 2.7 x 4.1 in. (16.5 x 6.9 x 10.5 cm); Cordless: H x W x D: 6.9 x 2.7 x 4.4 in. (17.6 x 6.9 x 11.1 cm); Standard/Desktop Cradle: H x W x D: 2.9 x 3.0 x 8.3 in.; (7.3 x 7.6 x 21.1 cm); Presentation Cradle: H x W x D: 3.0 x 3.7 x 4.9 in. ; (7.7 x 9.4 x 12.5 cm)

Weight

Corded: 6.5 oz. (185.5 g); Cordless with battery: 9.6 oz. (272.5 g); Cordless with PowerCap™: 8.8 oz. (248.3 g); Standard/Desktop Cradle: 9.0 oz. (255.3 g); Presentation Cradle: 8.0 oz. (226.3 g)

Input Voltage Range

Corded: 4.8 to 5.5 VDC host powered; Workstation/Wall Cradle: 4.8 to 5.5 VDC host powered; 10.8 to 13.2 VDC external power supply; Presentation Cradle: 4.7 to 5.5 VDC host powered; 10.8 to 13.2 VDC external power supply

Current

Corded operating current at nominal voltage (5.0 V): 450 mA (typical); Corded standby current (idle) at nominal voltage (5.0 V): 90 mA (typical); Cradles: 470 mA (typical) standard USB; 1450 mA (typical) BC 1.2 USB

Color

Healthcare White

Supported Host Interfaces

USB, RS232

Keyboard Support

Supports over 90 international keyboards

FIPS Security Certification

Certified compliant with FIPS 140-3

User Indicators

Direct Decode Indicator, Good Decode LEDs, Rear View LEDs, speaker (adjustable tone and volume), haptic feedback on decode, capacitive multi-function button with haptic feedback, battery indicator

Motion Tolerance (Handheld)

Up to 160 in. (406 cm) per second for 13 mil UPC in optimized mode

Swipe Speed (Hands-Free)

Up to 40 in. (102 cm) per second for 13 mil UPC in optimized mode

Light Source

Aiming Pattern: Circular 524 nm green LED

Illumination

Two warm white LEDs

Imager Field of View

48° H x 36° V nominal

Minimum Print Contrast

16% minimum reflective difference

Skew Tolerance

±60°

Pitch Tolerance

±60°

Roll Tolerance

0° - 360°

Graphics Format Support

Images can be exported as Bitmap, JPEG or TIFF

Image Quality

140 PPI on an 11.0 x 8.5 in. (27.9 x 21.6 cm) document @ 11.8 in. (30.0 cm)

Operating Temperature

32.0°F to 122.0°F (0.0°C to 50.0°C)

Storage Temperature

-40.0°F to 158.0°F (-40.0°C to 70.0°C)

Humidity

0% to 95% RH, non-condensing

Drop Specification

Designed to withstand 54 drops at 6.0 ft. (1.8 m) to concrete MIL STD 810 H, 8' height to plywood backed by concrete

Tumble Specification

Designed to withstand 2,000 tumbles in 1.5 ft. (0.5 m) tumbler

Sealing

IP52

Electrostatic Discharge (ESD)

Scanner: ESD per EN61000-4-2, +/-16 KV Air, +/-8 KV Direct, +/-8 KV Indirect; Standard/Desktop Cradle: ESD per EN61000-4-2, +/-16 KV Air, +/-8 KV Direct, +/-8 KV Indirect; Presentation Cradle: ESD per EN61000-4-2, +/-16 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 10,000 Foot Candles / 0 to 107,600 Lux

Approved Cleaners

Refer to the Product Reference Guide for the complete list of approved cleaners

Bluetooth Radio

Standard Bluetooth Version 5.2 with BLE: Class 1 330 ft. (100 m) and Class 2 33 ft. (10 m), Serial Port and HID Profiles

Adjustable Bluetooth Power

Class 1: Output power adjustable down from 4 dBm in 8 steps; Class 2: Output power adjustable down from 2 dBm in 8 steps

PowerPrecision+ Li-Ion; Battery

Capacity: 3500 mAh; Number of scans from full charge: 100,000 scans at 60 scans per minute or 65,000 scans at 10 scans per minute`1; Operating time per full charge1: 108 hours ; Charge time from empty to ready-to-scan for 14-hour shift: 90 minutes over standard USB, 25 minutes over external 5V source, and 25 minutes over USB Type C; Charge time from empty to full charge: 13 hours over standard USB, 3.5 hours over external 5V source, and 3.5 hours over USB Type C

PowerCap™; supercapacitor

Capacity: 1000 F Li-ion; Number of scans from full charge: 6,000 scans at 60 scans per minute or 4,000 scans at 10 scans per minute2; Operating time per full charge1: 6.7 hours ; Charge time from empty to full charge: 60 minutes over standard USB, 15 minutes over BC1.2 USB, 13 minutes over external 5V source, 13 minutes over external 12V source, and 14 minutes over USB Type C

Environmental

EN IEC 63000:2018

Electrical Safety

EN 62368-1; IEC 62368-1; UL 62368-1, CAN/CSA-C22.2 No. 62368-1-19; EN 50663; EN 62479; FCC 47CFR Part 2.1093; RSS 102 Issue 6

LED Safety

IEC 62471; EN 62471

EMI/RFI

EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 61000-6-2; EN 60601-1-2; 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 7, Class B; EN 300 328; EN 303 417; EN 301 489-1; EN 301 489-17

1D

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm

OCR

OCR-A, OCR-B, MICR, US Currency

GS1

Digital Link

Digimarc

Digimarc barcodes

Minimum Element Resolution

Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil

3 mil Code 39

1.4 in. (3.5 cm) to 6.1 in. (15.5 cm)

5 mil Code 39

0.5 in. (1.3 cm) to 12.3 in. (31.2 cm)

10 mil Code 39

0.2 in. (0.5 cm) to 22 in. (55.9 cm)

20 mil Code 39

0.8 in. (2.0 cm)5 to 31.5 in. (80.0 cm)

3 mil Code 128

1.7 in. (4.3 cm) to 6.2 in. (15.7 cm)

5 mil Code 128

0.9 in. (2.3 cm) to 10.6 in. (26.9 cm)

7.5 mil Code 128

0.4 in. (1.0 cm) to 14.9 in. (37.8 cm)

15 mil Code 128

3.4 in. (8.6 cm)5 to 24.3 in. (61.7 cm)

4 mil PDF 417

1.9 in. (4.8 cm) to 6.4 in. (16.2 cm)

5 mil PDF 417

1.6 in. (4.1 cm) to 7.8 in. (19.8 cm)

6.7 mil PDF 417

1.0 in. (2.5 cm) to 10.2 in. (25.9 cm)

13 mil UPC (100%)

0.3 in. (0.8 cm) to 22.2 in. (56.4 cm)

5 mil DataMatrix

1.9 in. (4.8 cm) to 5.9 in. (15.0 cm)
