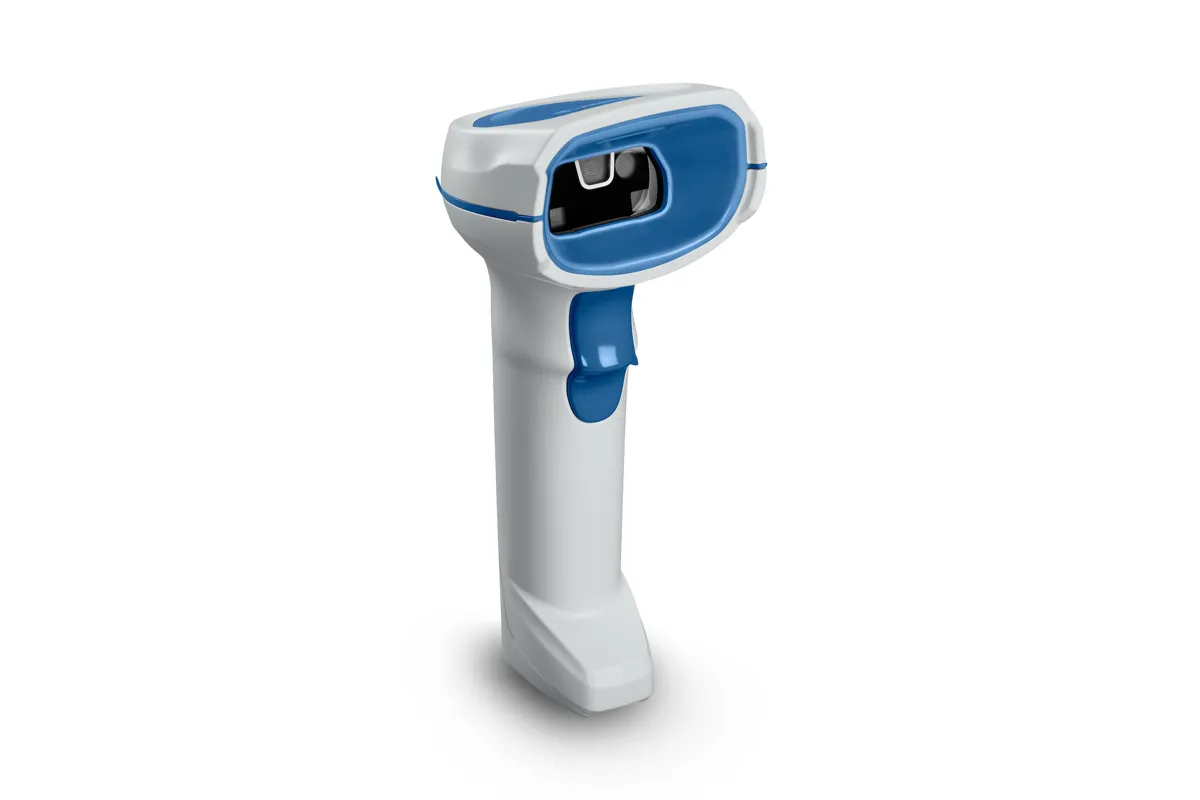

Zebra DS8178-HC Healthcare Scanner

Specifications

Scan Type

2D, 1D

Image Sensor

1280x960 pixels

Corded/Cordless

Cordless

Battery Capacity

Battery: Up to 65,000 scans (2,500 mAh), Capacitor: Up to 2,000 scans (440 mAh)

Dimensions

Corded DS8108-HC and Cordless DS8178-HC:; 6.6 in. H x 2.6 in. W x 4.2 in. D; 16.8 cm. H x 6.6 cm. W x 10.7 cm. D Standard Cradle:; 2.8 in. H x 3.3 in. W x 8.3 in. D; 7.1 cm. H x 8.4 cm. W x 21.1 cm. D Presentation Cradle:; 2.9 in. H x 3.7 in. W x 4.8 in. D; 7.4 cm. H x 9.4 cm. W x 12.2 cm. D

Weight

Corded DS8108-HC: 5.4 oz./154 g; Cordless DS8178-HC: 8.3 oz./235.3 g; Desk/Wall Cradle: 7.1 oz./202 g; Presentation Cradle: 6.5 oz./182 g

Input Voltage Range

DS8108-HC: 4.5 to 5.5VDC; DS8178-HC Cradles: 5V: 4.7 to 5.5VDC; 12V: 10.8 to 13.2VDC

Current2

Corded DS8108-HC Operating Current at Nominal Voltage (5.0V): 450 mA; Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V

Color

Healthcare White

Supported Host Interfaces

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard Support

Supports over 90 international keyboards

FIPS Security Certification

Certified Compliant with FIPS 140-3; Trade Agreement Act Compliant (specific configuration required)

Apple MFi Certification

MFi certified for use with iPhones and iPads (cordless DS8178-HC)

User Indicators

Direct decode indicator, good decode LEDs, rear view LEDs, beeper (adjustable tone and volume), dedicated Power Charge Gauge

Light Source

Aiming pattern: True Green (528 nm) Circular

Illumination

Two (2) warm white LEDs

Imager Field of View

48° H x 37° V nominal

Minimum Print Contrast

16% minimum reflective difference

Skew/Pitch Roll Tolerance

+/- 60°; +/- 60°; 0-360°

Graphics Format

Images can be exported as Bitmap, JPEG or TIFF

Image Quality

109 PPI on an A4 document

Minimum Element Resolution

Code 39 - 3.0 mil; Code 128 - 3.0 mil; Data Matrix - 5.0 mil; QR Code - 5.0 mil; PDF - 4.0 mil

Operating Temperature

Scanner: 32°F to 122°F/0°C to 50°C; Presentation Mode: 32°F to 104°F/0°C to 40°C

Charging Temperature

32°F to 104°F/0°C to 40°C

Storage Temperature

-40°F to 158°F/-40°C to 70°C

Humidity

5% to 95% RH, non-condensing

Drop Specification

Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete

Tumble Specification

Designed to withstand 2,000 1.5 ft./0.5 m tumbles3

Environmental Sealing

IP52

Approved Cleaners

Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners.

Electrostatic Discharge (ESD)

DS8108-HC/DS8178-HC and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 9,000 Foot Candles/0 to 96,840 Lux

Bluetooth Radio

Standard Bluetooth Version 4.0 with BLE: Class 1 330 ft./100m and Class 2 33 ft./10m, Serial Port and HID Profiles

Adjustable Bluetooth Power

Class 1: Output power adjustable down from 4 dBm in 8 Steps; Class 2: Output power adjustable down from 2 dBm in 8 Steps

PowerPrecision+ Li-Ion Battery

Capacity: 2500 mAh; Number of scans from full charge: 65,0004; Charge time from empty to full: 9 hours over USB; Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 3 hours over USB

PowerCap Capacitor

Capacity: 440 F; Number of scans from full charge: 2,0004; Number of scans from Ready-To-Scan at 20% of full charge (default): 2004; Number of scans from Ready-To-Scan at 15% of full charge: 1004; Charge time from empty to full: 30 min over USB; Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 90 sec over USB; Charge time from audible low charge warning to Ready-to-Scan at 15% of full charge: 35 sec over USB

Electrical Safety

EN 60950-1 2ed + A11 + A1 + A12 + A2:2013,; IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07

Environmental

RoHS EN 50581

LED Safety

IEC 62471

IT Emissions

EN 55022 (Class B); EN 55032 (Class B)

IT Immunity

EN 55024

Harmonic Current Emissions

EN 61000-3-2

Voltage Fluctuation and Flicker

EN 61000-3-3

Radio Frequency Devices

47 CFR Part 15, Subpart B, Class B

Digital Apparatus

ICES-003 Issue 6, Class B

Medical Equipment Apparatus

EN60601-1-2: 2015

1D

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, securPharm, DotCode, Dotted DataMatrix

Symbology/Resolution

Near/Far

Code 39: 3 mil

1.4 in./3.6 cm to 5.1 in./13.0 cm

Code 128: 3 mil

1.8 in./4.6 cm to 4.1 in./10.4 cm

Code 128: 5 mil

1.2 in./3.0 cm to 8.1 in./20.6 cm

Code 128: 15 mil

1.0 in./2.5 cm to 16.9 in./42.9 cm

PDF 417: 5 mil

1.5 in./3.8 cm to 6.1 in./15.5 cm

PDF 417: 6.67 mil

1.1 in./2.8 cm to 8.1 in./20.6 cm

Data Matrix: 5 mil

1.9 in./4.8 cm to 4.5 in./11.4 cm

Data Matrix: 7.5 mil

1.3 in./3.3 cm to 6.7 in./17.0 cm

Data Matrix: 10 mil

0.6 in./1.5 cm to 8.5 in./21.6 cm

UPC: 13 mil (100%)

0.0 in./0.0 cm to 15.9 in./40.4 cm
