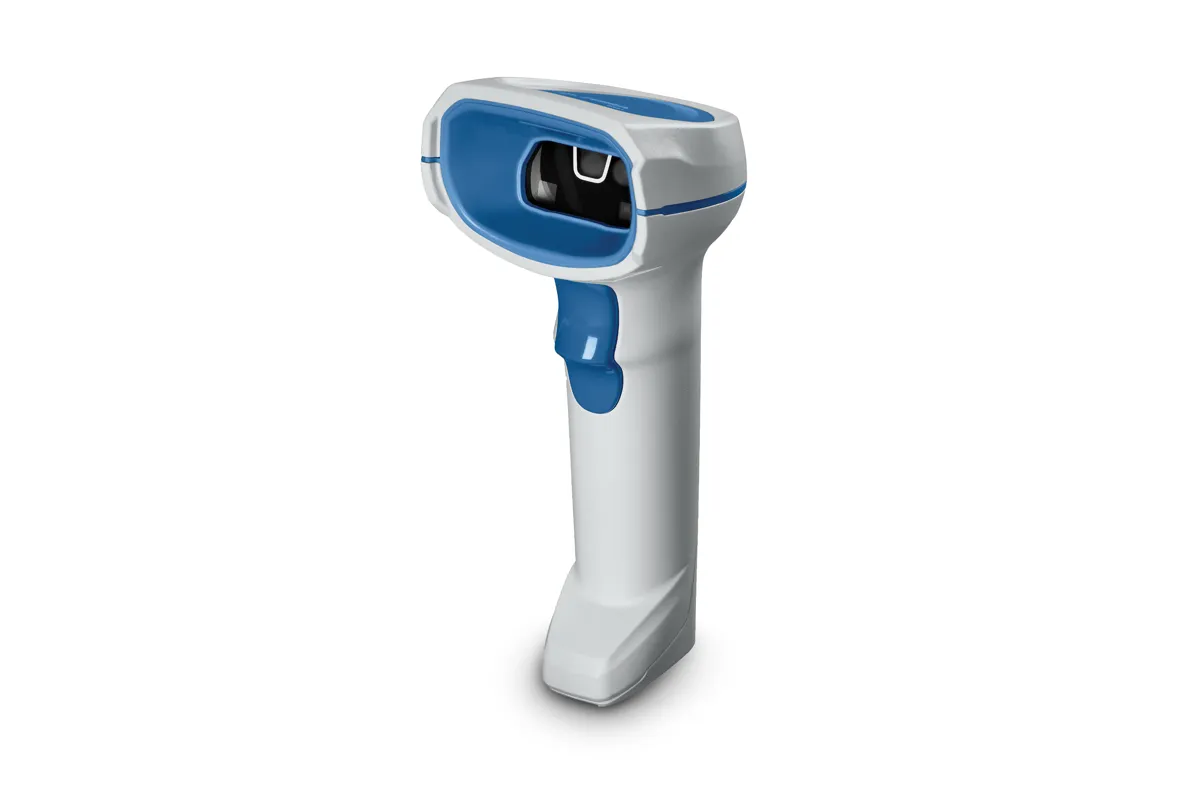

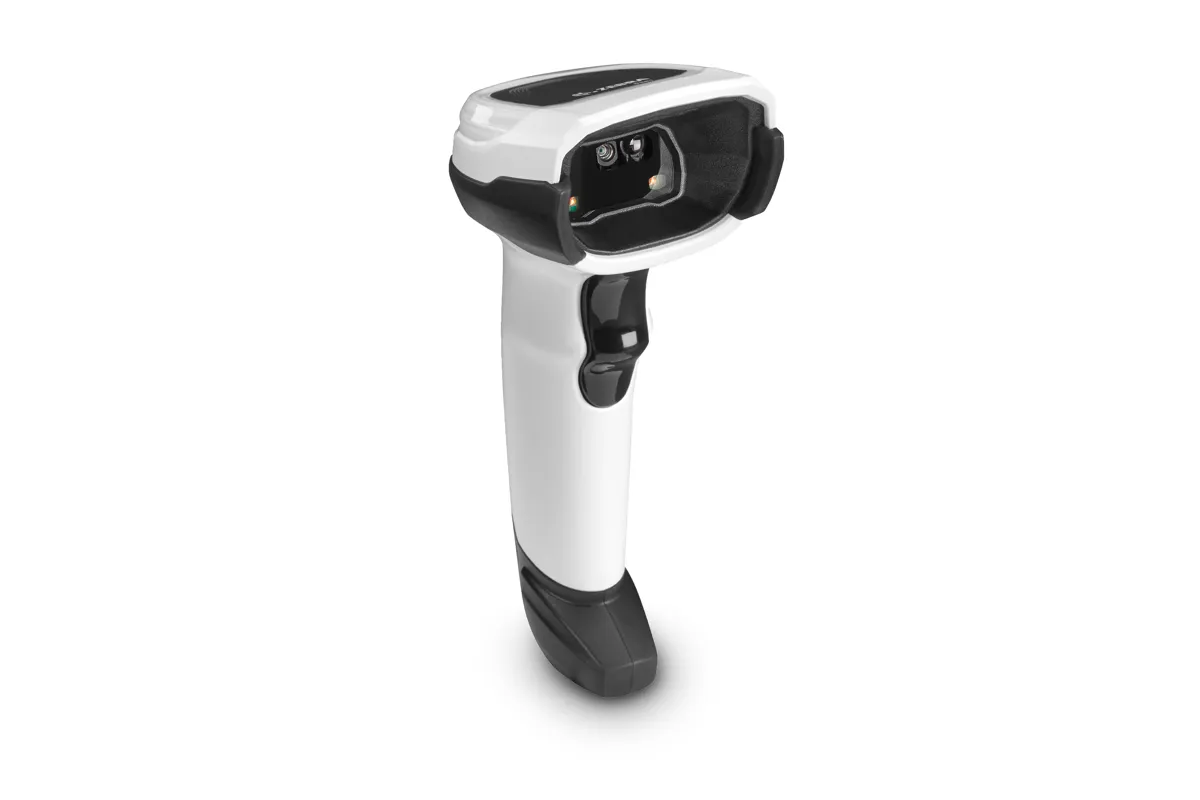

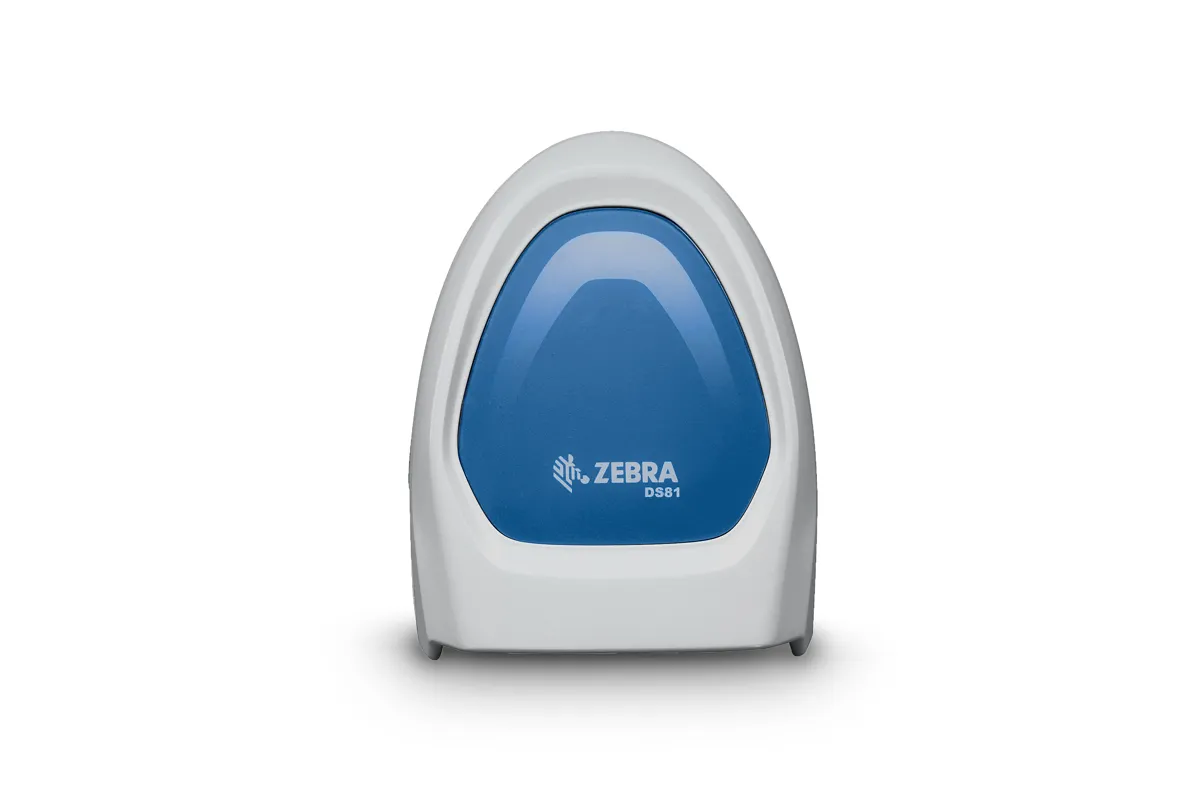

Zebra DS8100 Series 1D/2D Scanners

Specifications

Dimensions

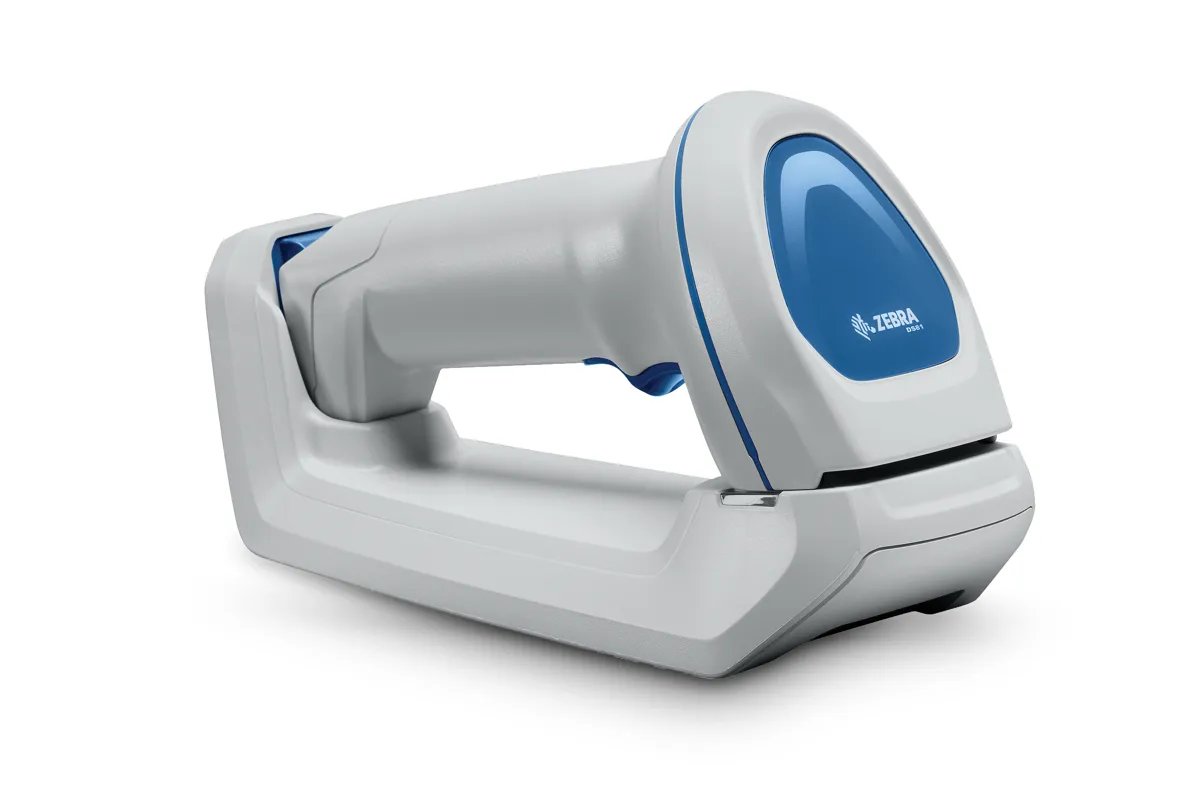

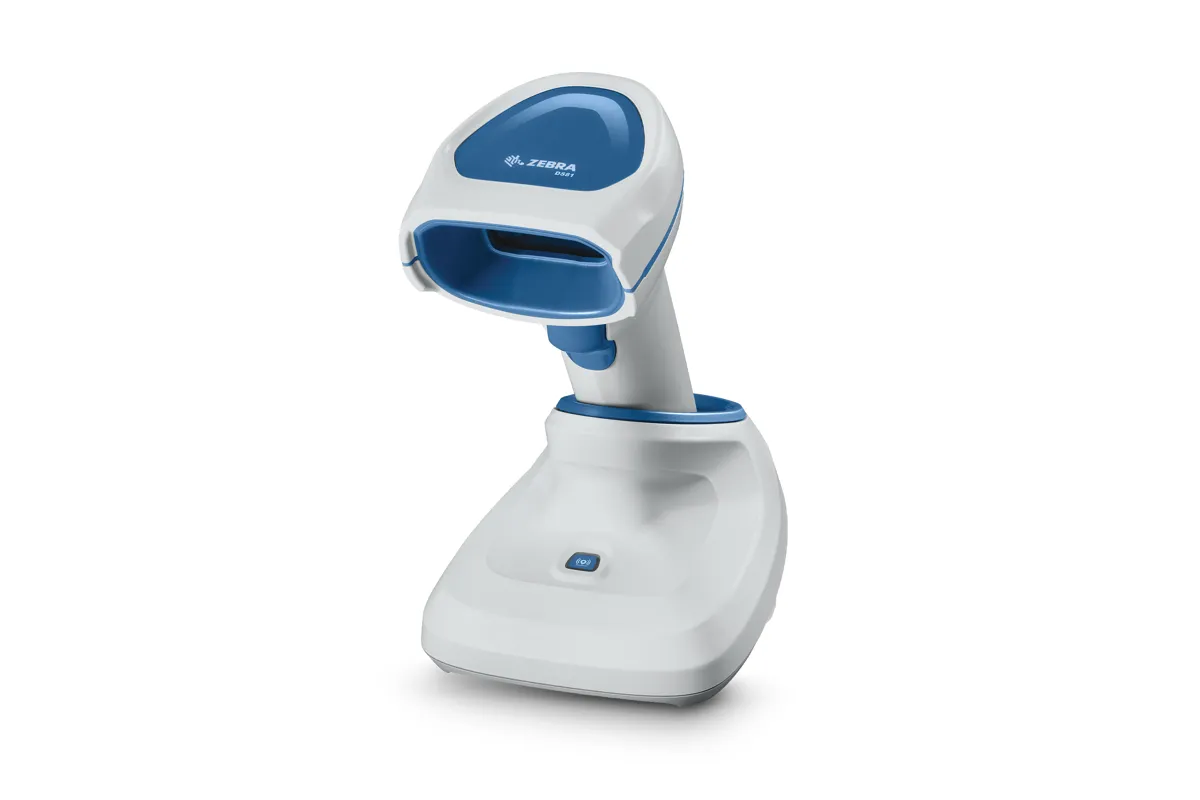

Corded DS8108 and Cordless DS8178: (WxHxD) 6.6 x 2.6 x 4.2 inches (16.8 x 6.6 x 10.7 cm) Standard Cradle: 2.8 x 3.3 x 8.3 inches (7.1 x 8.4 x 21.1 cm) Presentation Cradle: 2.9 x 3.7 x 4.8 inches (7.4 x 9.4 x 12.2 cm)

Weight

Corded DS8108: 5.4 oz./154 g Cordless DS8178: 8.3 oz./235.3 g Desk/Wall Cradle: 7.1 oz./202 g Presentation Cradle: 6.5 oz./182 g

Input Voltage Range

DS8108: 4.5 to 5.5VDC DS8178 Cradles: 5V: 4.7 to 5.5VDC; 12V: 10.8 to 13.2VDC

Current 2

Corded DS8108 Operating Current at Nominal Voltage (5.0V): 450 mA Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V

Color

Nova White, Twilight Black

Supported Host Interfaces

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard Support

Supports over 90 international keyboards

FIPS Security Certification

Certified Compliant with FIPS 140-3; Trade Agreement Act Compliant (specific configuration required)

User Indicators

Direct decode indicator, good decode LEDs, rear view LEDs, beeper (adjustable tone and volume), dedicated Power Charge Gauge

Light Source

Aiming Pattern; circular 617nm amber LED

Illumination

(2) 645nm red LEDs

Imager Field of View

48° H x 37° V nominal

Image Sensor

1,280 x 960 pixels

Minimum Print Contrast

16% minimum reflective difference

Skew/Pitch Roll Tolerance

+/- 60°; +/- 60°; 0-360°

Graphics Format

Images can be exported as Bitmap, JPEG or TIFF

Image Quality

109 PPI on an A4 document

Minimum Element Resolution

Code 39 - 3.0 mil; Code 128 - 3.0 mil; Data Matrix - 6.0 mil; QR Code - 6.0 mil; PDF - 5.0 mil

Operating temperature

32°F to 122°F/0°C to 50°C

Charging Temperature

32°F to 104°F/0°C to 40°C

Storage temperature

-40°F to 158°F/-40°C to 70°C

Humidity

5% to 95% RH, non-condensing

Drop specification

Designed to withstand multiple drops at 6.0 ft/1.8 m to concrete

Tumble specification

Designed to withstand 2,000 1.5 ft./0.5 m tumbles 3

IP / sealing

IP52

Electrostatic Discharge (ESD)

DS8108/DS8178 and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 9,000 Foot Candles/0 to 96,840 Lux

Bluetooth Radio

Standard Bluetooth Version 4.0 with BLE: Class 1 330 ft./100m and Class 2 33 ft./10m, Serial Port and HID Profiles

Adjustable Bluetooth Power

Class 1: Output power adjustable down from 4 dBm in 8 Steps Class 2: Output power adjustable down from 2 dBm in 8 Steps

PowerPrecision+ Li-Ion Battery

Capacity: 2500 mAh Number of scans from full charge: 65,000 4 Charge time from empty to full: 9 hours over USB Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 3 hours over USB

PowerCap Capacitor

Capacity: 440 F Number of scans from full charge: 2,000 4 Number of scans from Ready-To-Scan at 20% of full charge (default): 200 4 Number of scans from Ready-To-Scan at 15% of full charge: 100 4 Charge time from empty to full: 30 min over USB Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 90 sec over USB Charge time from audible low charge warning to Ready-to-Scan at 15% of full charge: 35 sec over USB

Electrical Safety

EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07

Environmental

RoHS EN 50581

LED Safety

IEC 62471

IT Emissions

EN 55022 (Class B); EN 55032 (Class B)

IT Immunity

EN 55024

Harmonic Current Emissions

EN 61000-3-2

Voltage Fluctuation and Flicker

EN 61000-3-3

Radio Frequency Devices

47 CFR Part 15, Subpart B, Class B

Digital Apparatus

ICES-003 Issue 6, Class B

1D

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, SecurPharm, DotCode, Dotted DataMatrix

Digimarc

Digital watermark technology

Symbology/Resolution

Near/Far

Code 39: 3 mil

2.2 in./5.6 cm to 5.0 in./12.7 cm

Code 39: 20 mil

0 in./0 cm to 36.8 in./93.5 cm

Code 128: 3 mil

2.6 in./6.6 cm to 4.5 in./11.4 cm

Code 128: 5 mil

1.6 in./4.1 cm to 8.4 in./21.3 cm

Code 128: 15 mil

0 in./0 cm to 27.1 in./68.8 cm

PDF 417: 5 mil

2.3 in./5.8 cm to 6.4 in./16.3 cm

PDF 417: 6.7 mil

1.8 in./4.6 cm to 8.5 in./21.6 cm

UPC: 13 mil (100%)

0 in./0 cm to 24.0 in./61.0 cm

Data Matrix: 7.5 mil

2.1 in./5.3 cm to 6.9 in./17.5 cm

Data Matrix: 10 mil

1.1 in./2.8 cm to 9.9 in./25.1 cm

QR: 20 mil

0.1 in./0.3 cm to 17.6 in./44.7 cm

123Scan

Programs scanner parameters, upgrades firmware, displays scanned barcode data, scanning statistics, battery health, asset data and prints reports. www.zebra.com/123scan

Symbol Scanner SDK

Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/scannersdkforwindows

Scanner Management Service (SMS)

Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms

Dimensions

Corded DS8108-HC and Cordless DS8178-HC: 6.6 in. H x 2.6 in. W x 4.2 in. D 16.8 cm. H x 6.6 cm. W x 10.7 cm. D Standard Cradle: 2.8 in. H x 3.3 in. W x 8.3 in. D 7.1 cm. H x 8.4 cm. W x 21.1 cm. D Presentation Cradle: 2.9 in. H x 3.7 in. W x 4.8 in. D 7.4 cm. H x 9.4 cm. W x 12.2 cm. D

Weight

Corded DS8108-HC: 5.4 oz./154 g Cordless DS8178-HC: 8.3 oz./235.3 g Desk/Wall Cradle: 7.1 oz./202 g Presentation Cradle: 6.5 oz./182 g
