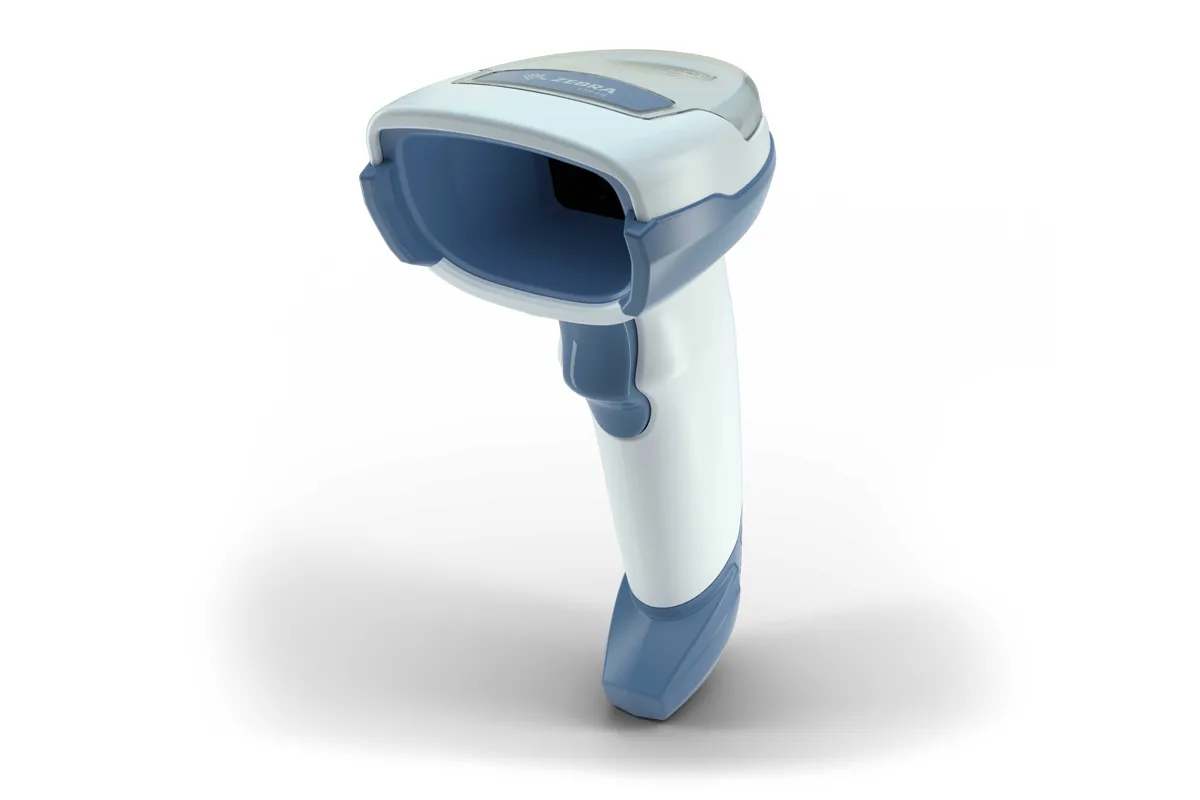

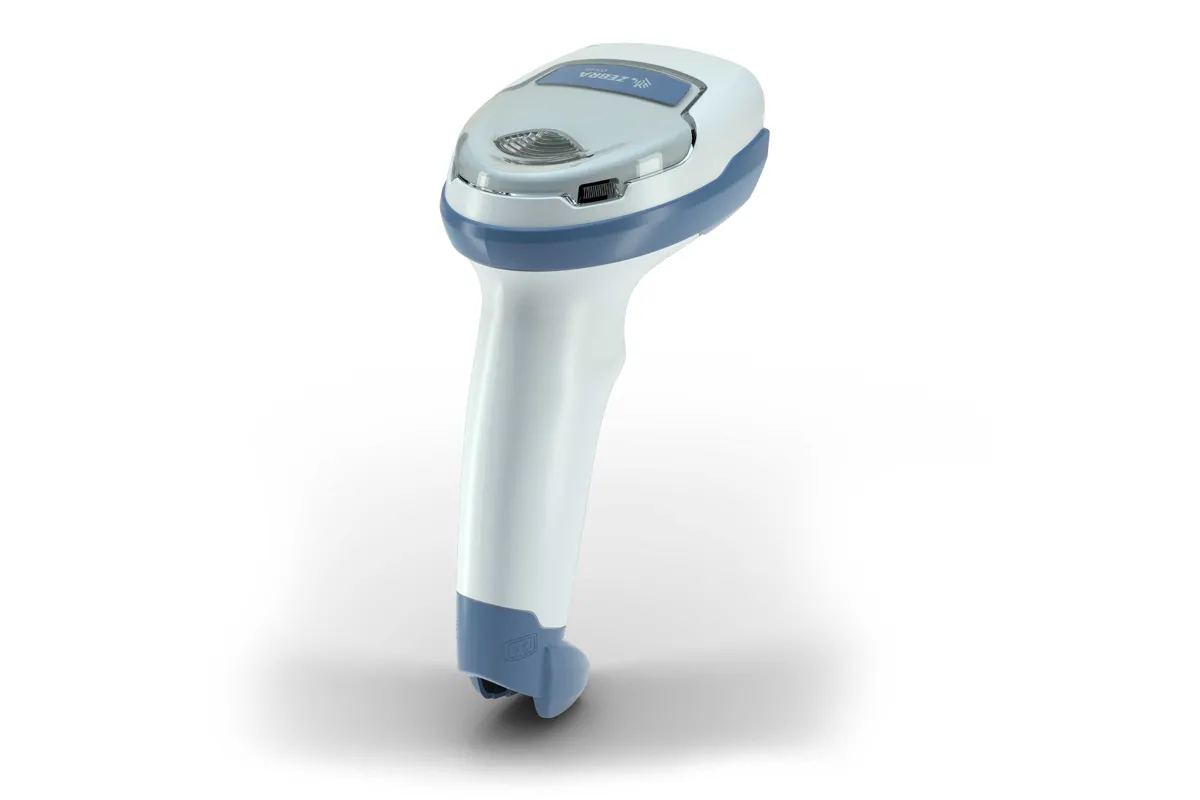

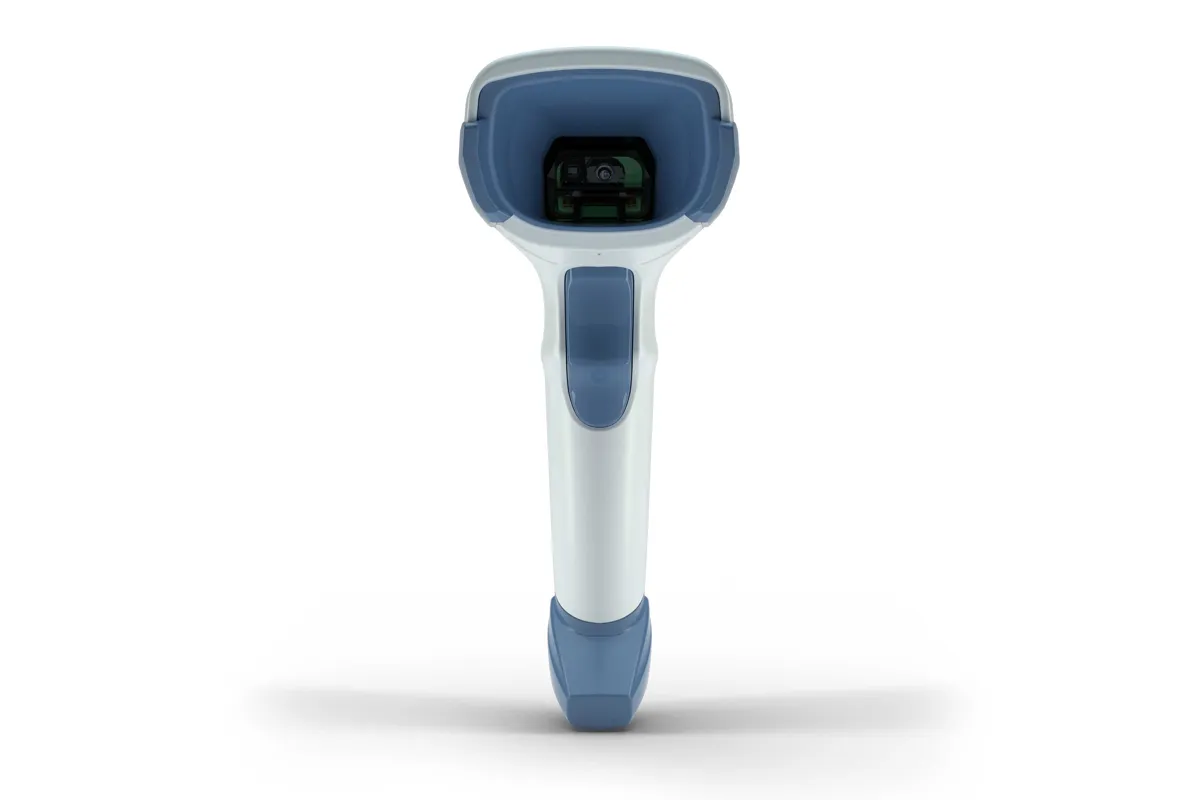

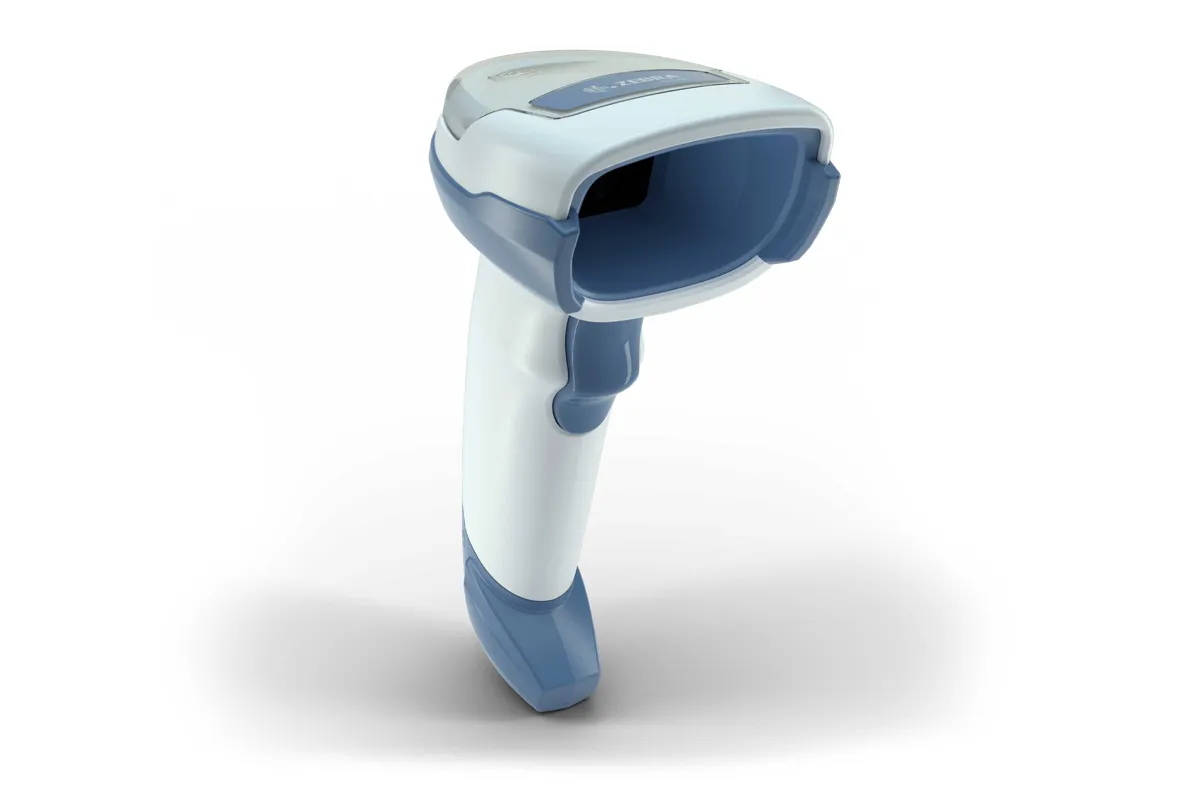

Zebra DS4608-HC Healthcare Scanner
The Zebra DS4608-HC healthcare scanner captures barcodes in hospitals, withstands disinfecting, and features an NICU-safe LED aimer for workflow efficiency.
- SealingIP52
- DropDesigned to withstand multiple drops at 6.0 ft./1.8 m to concrete
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.7 cm W x 9.8 cm D
- Weight
- 5.7 oz. / 161.9 g
- Input Voltage Range
- 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
- Operating Current at Nominal Voltage (5.0V)
- 375 mA (typical)
- Standby Current (Idle) at Nominal Voltage (5.0V)
- 150 mA (typical)
- Color
- Healthcare White
- Supported Host Interfaces
- USB, RS232, TGCS (IBM) 46XX over RS485
- Keyboard Support
- Supports over 90 international keyboards
- User Indicators
- Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper (adjustable tone and volume), haptic/vibration
- Light Source
- Aiming Pattern: circular 528nm true green LED
- Illumination
- (2) warm white LED’s
- Imager Field of View
- 35° H x 22° V nominal
- Image Sensor
- 1280 x 800 pixels
- Minimum Print Contrast
- 15% minimum reflective difference
- Skew Tolerance
- +/- 60°
- Pitch Tolerance
- +/- 60°
- Roll Tolerance
- 0° - 360°
- Graphics Format Support
- Images can be exported as Bitmap, JPEG or TIFF
- Operating temperature
- 32.0° to 122.0° F / 0.0° to 50.0° C
- Storage temperature
- -40.0° to 158.0° F / -40.0° to 70.0° C
- Humidity
- 5% to 95% RH, non-condensing
- Drop specification
- Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
- Tumble specification
- Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler
- IP / sealing
- IP52
- Approved Cleaners
- Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners.
- Electrostatic Discharge (ESD)
- ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
- Ambient Light Immunity
- 0 to 10,000 foot candles/0 to 107,000 Lux
- Environmental
- 2011/65/EU and EN 50581:2012 and EN IEC 63000:2018
- Electrical Safety
- UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07. EN 60950-1:2006/A2:2013 IEC 60950-1:2005/A2:2013 IEC 62368-1 (ed.2); EN 62368-1:2014
- LED Safety
- IEC 62471:2006 (Ed.1.0); EN 62471:2008
- EMI/RFI
- FCC: 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B EN 55032, Class B EN 55024 EN 55035 EN 60601-1-2:2015 IEC 60601-1-2:2014
- 1D
- Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
- 2D
- PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm
- Minimum Element Resolution
- Code 39 - 2.0 mil DataMatrix - 4.0 mil
- Symbology/Resolution
- Near/Far
- Code 39: 3 mil
- 1.3 in./3.3 cm to 6.0 in./15.2 cm
- Code 39: 5 mil
- 0 .1 in./0.3 cm to 11.5 in./29.2 cm
- Code 39: 20 mil
- 0.6 in./1.5 cm to 29.0 in./73.7 cm
- Code 128: 5 mil
- 1.7 in./4.3 cm to 5.0 in./12.7 cm
- PDF 417: 6.7 mil
- 0.6 in./1.5 cm to 9.3 in./23.6 cm
- UPC: 13 mil (100%)
- 0 in./0 cm to 18.0 in./45.7 cm
- DataMatrix: 10 mil
- 0.2 in./0.5 cm to 9.5 in./24.1 cm
- QR: 20 mil
- 0 in./0 cm to 13.5 in./34.3 cm
