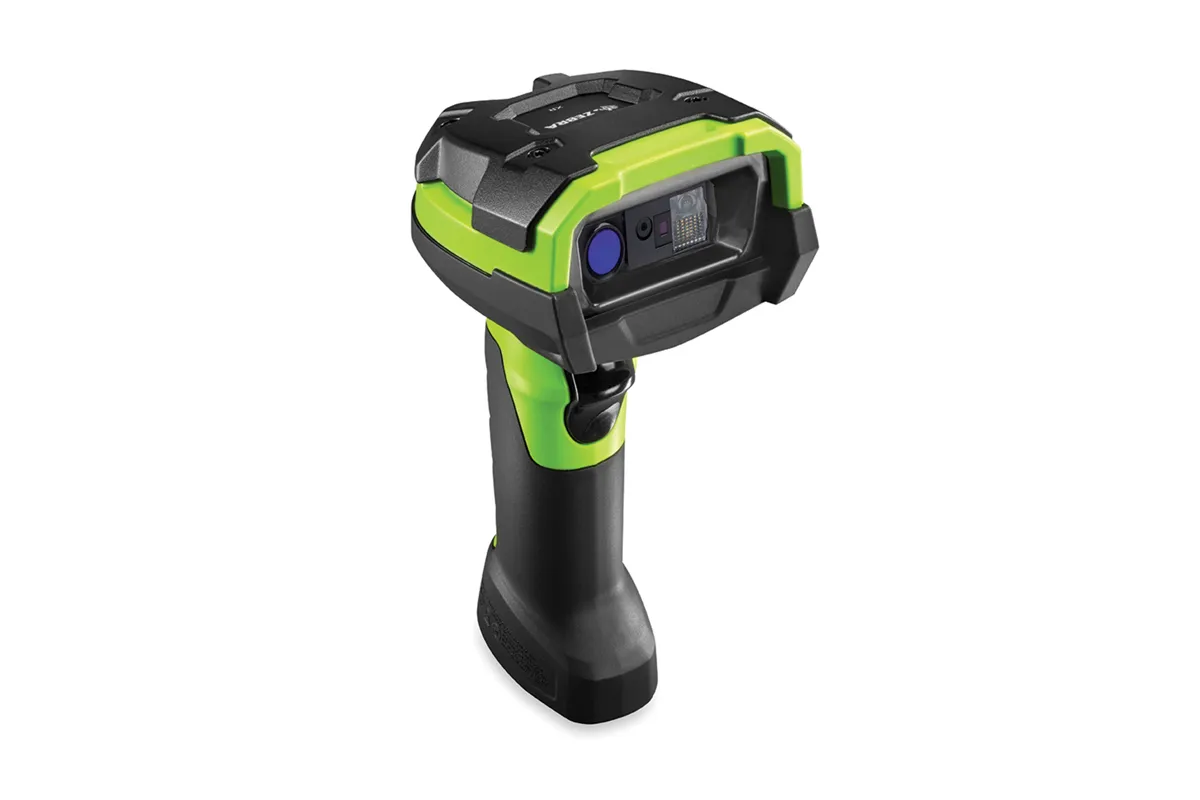

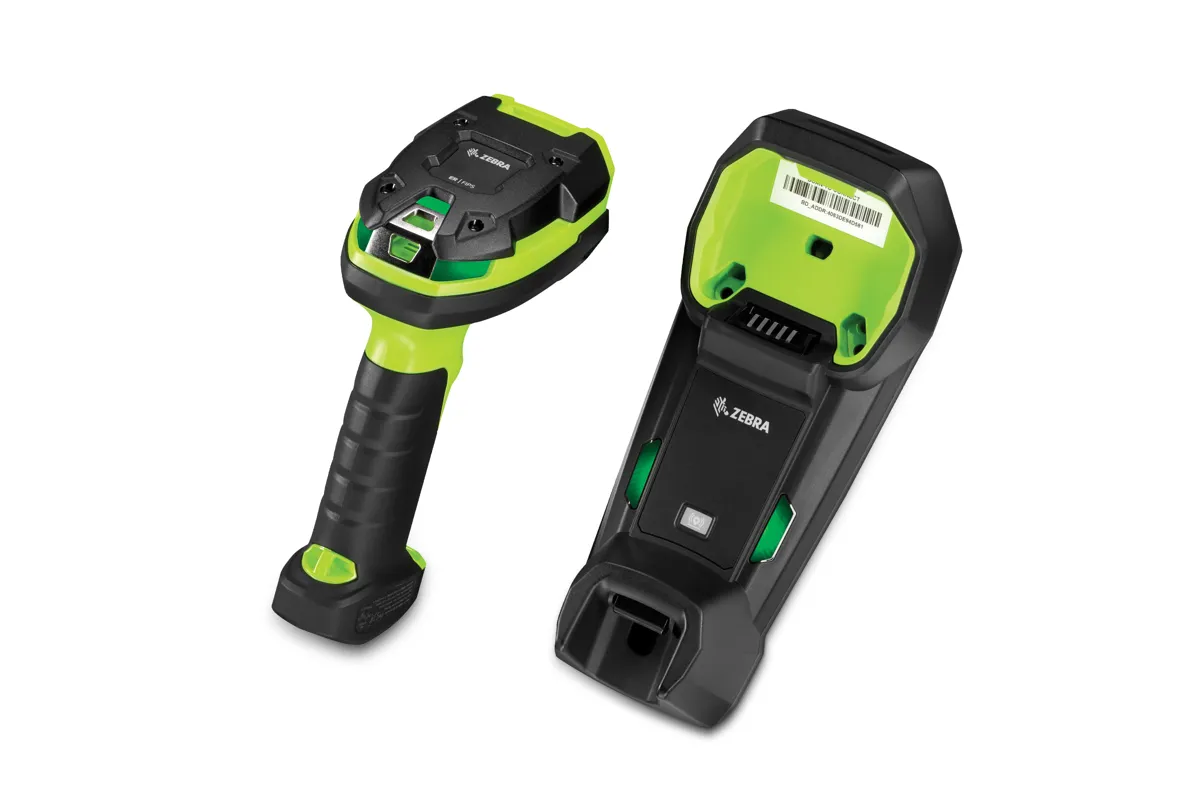

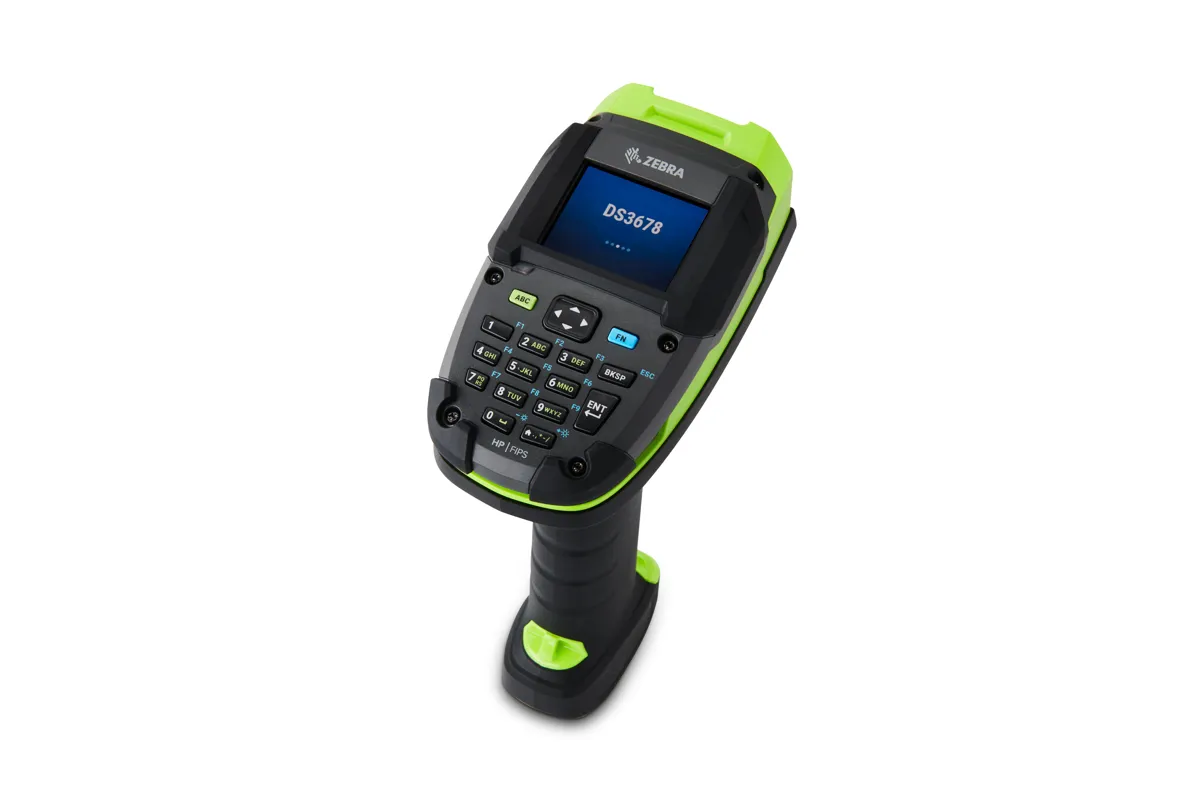

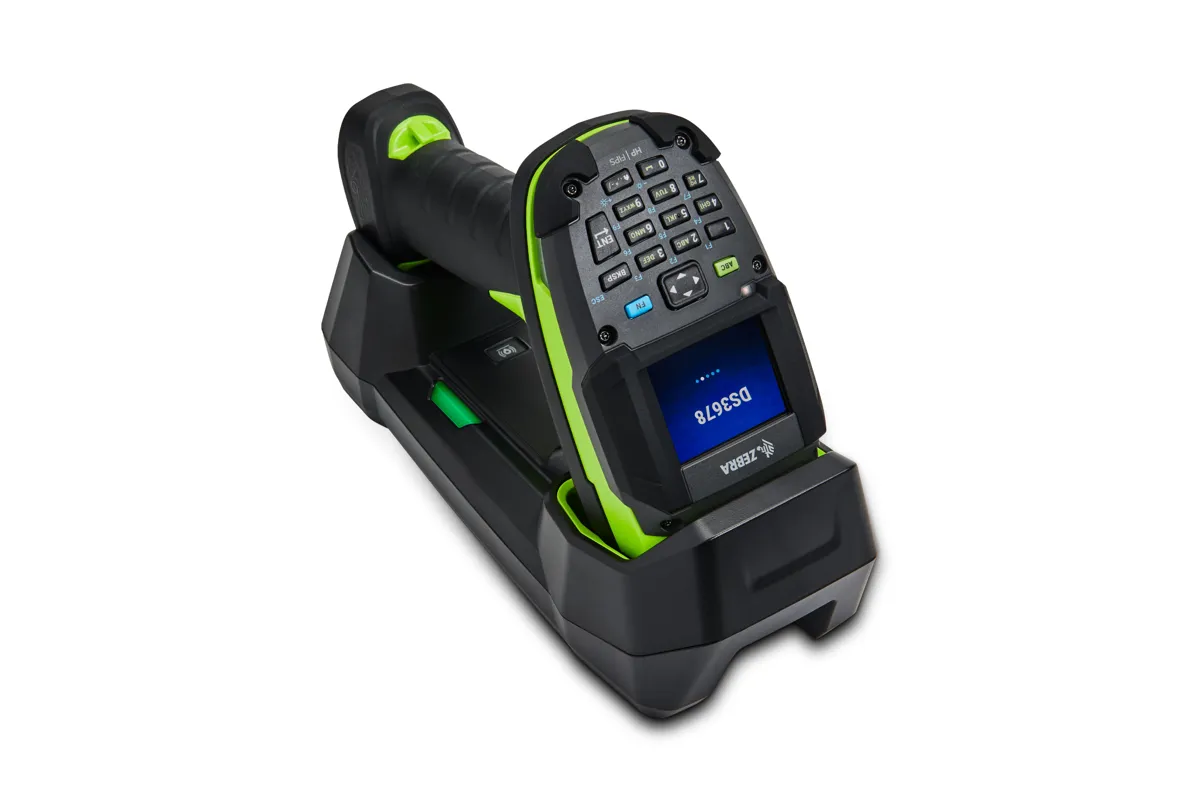

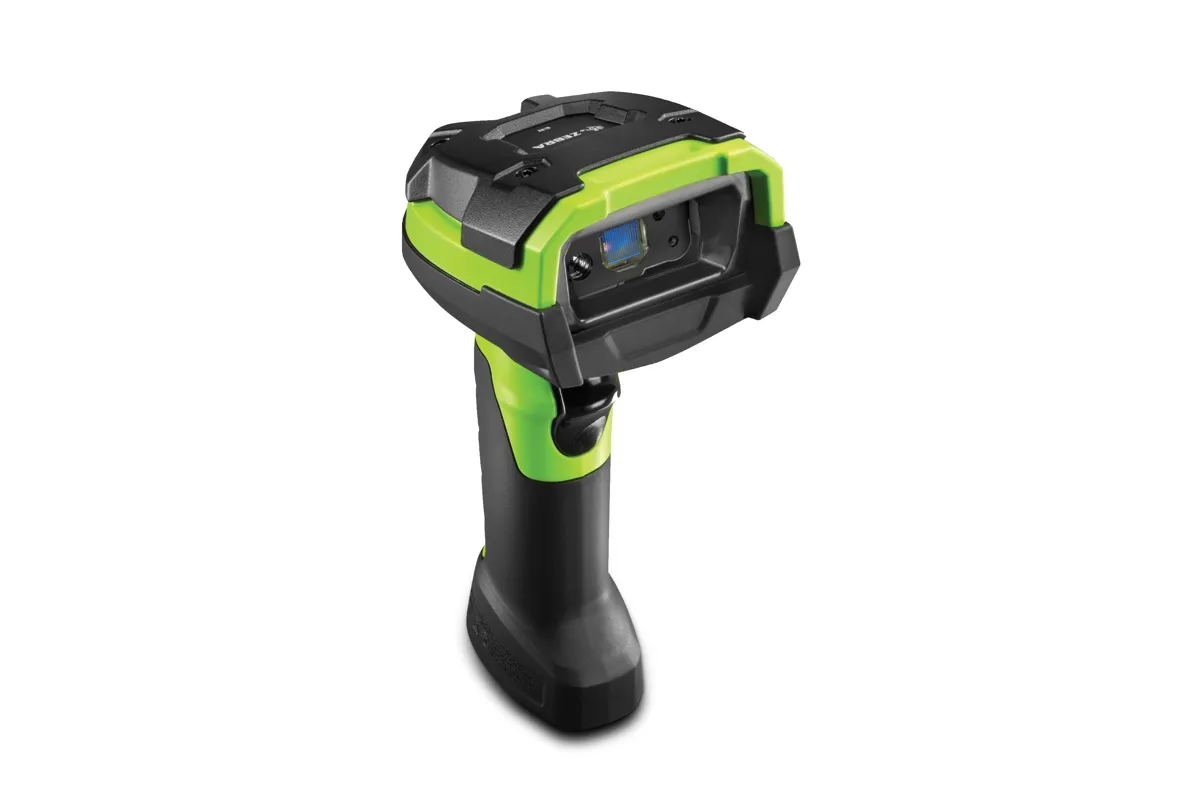

Zebra DS3600 Series Ultra-Rugged Barcode Scanners

Specifications

Dimensions

Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.7 cm W x 14.2 cm D

Weight

Corded: 10.86 oz./308 g Cordless: 14.46 oz./410 g

Input Voltage Range

Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.

Operating Current

Corded: Near: 360mA (RMS typical) Far: 450mA (RMS typical)

Standby Current

Corded: 100 mA (RMS typical)

Color

Industrial Green

Supported Host Interfaces

USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP

Battery / runtime

PowerPrecision+ 3100 mAh Li-Ion rechargeable battery

FIPS Security Certification and TAA Compliance

Certified Compliant with FIPS 140-3; Trade Agreement Act Compliant (specific configuration required)

User Indicators

Direct decode indicator; LEDs; beeper; vibration

Scans per Full Charge (Cordless)

80,000

Image Capture

Basic

Aimer

520 nm laser

Illumination

Two warm-white LEDs 2700K

Imager Field of View

Near: 42.1° (H) x 27° (V); Far: 14° (H) x 7.9° (V)

Image Sensor

Far: 1920 horizontal x 1080 vertical pixels Near: 1280 horizontal x 800 vertical pixels

Minimum Print Contrast

25% minimum reflective difference

Skew/Pitch/Roll

Skew: ± 60°; Pitch: ± 60°; Roll: ± 360°

1D

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

Digimarc

Digital watermark technology

IUID

Supports IUID parsing, the ability to read and separate IUID fields per application requirements

Operating temperature

Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C

Storage temperature

-40° F to 158° F/-40° C to 70° C

Humidity

5% to 95% non-condensing

Drop specification

DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature Cordless: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C Corded: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C

Tumble specification

7500 3.3 ft./1.0 m tumbles

IP / sealing

Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65

ESD

Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge

Ambient Light Immunity

0 to 10,000 Foot Candles/0 to 107639 Lux (direct sunlight)

Bluetooth Radio

Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles

Data Rate

3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy

Radio Range

Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

Symbology/Resolution

Near/Far

100% UPCA: 13 mil

1.3 in. to 12.1 ft./3.3 cm to 3.7 m

Code 128: 10 mil

2.2 in. to 8.5 ft./5.6 cm to 2.6 m

Code 128: 15 mil

2.1 in. to 13.6 ft./5.3 cm to 4.1 m

Code 128: 40 mil

* 4 to 34.6 ft./* 4 to 10.5 m

Code 128: 100 mil

* 4 to 87.6 ft./* 4 to 26.7 m

Code 39: 5 mil

1.3 in. to 4.7 ft./3.3 cm to 1.4 m

Code 39: 7.5 mil

1.3 in. to 7.4 ft./3.3 cm to 2.2 m

Code 39: 20 mil

2.0 in. to 18.1 ft./5.1 cm to 5.5 m

Code 39: 40 mil

* 4 to 41.1 ft./* 4 to 12.5 m

Code 39: 55 mil Reflective

* 4 to 61.1 ft./* 4 to 18.6 m

Code 39: 100 mil

* 4 to 105.1 ft./* 4 to 32.0 m

Data Matrix: 10 mil

1.3 in. to 5.5 ft./3.3 cm to 1.7 m

Data Matrix: 100 mil

* 4 to 52.1 ft./* 4 to 15.9 m

Data Matrix: 200 mil

* 4 to 100.0 ft./* 4 to 30.5 m

QR Code: 10 mil

1.3 in. to 4.6 ft./3.3 cm to 1.4 m

123Scan

Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan

Scanner SDK

Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowssdk

Scanner Management Service (SMS)

Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms

Network Connect

Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network without any third-party conversion equipment. For more information, visit www.zebra.com/NetworkConnect

Environmental

RoHS EN 50581: 2012

Electrical Safety

EN 62368-1:2014/AC:2015 EN 62368-1:2014/A11:2017 IC 62368-1 (Ed.2) UL 60950-1, second edition, CAN/CSA-C22.2 N

Laser/LED Safety

21CFR1040.10 (Laser) IC 60825-1:2014 (Ed.3.0): EN 60825-1:2014 (Laser) EN 60825-1:2014/A11:2021 IC 62471:2006 (Ed.1.0): EN 62471:2008 (LED)

EMI/RF

EN 55032:2015/A11:2020 (Class B) EN 55035:2017/A11:2020 EN 61000-6-2:2005/AC:2005 EN 61000-3-2:2014 (Class A) EN 61000-3-2:2019 (Class A) EN 61000-3-3:2013 EN 61000-3-3:2013/A1:2019 EN 60601-1-2:2015. IC 60601-1-2:2014 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 7, Class B
