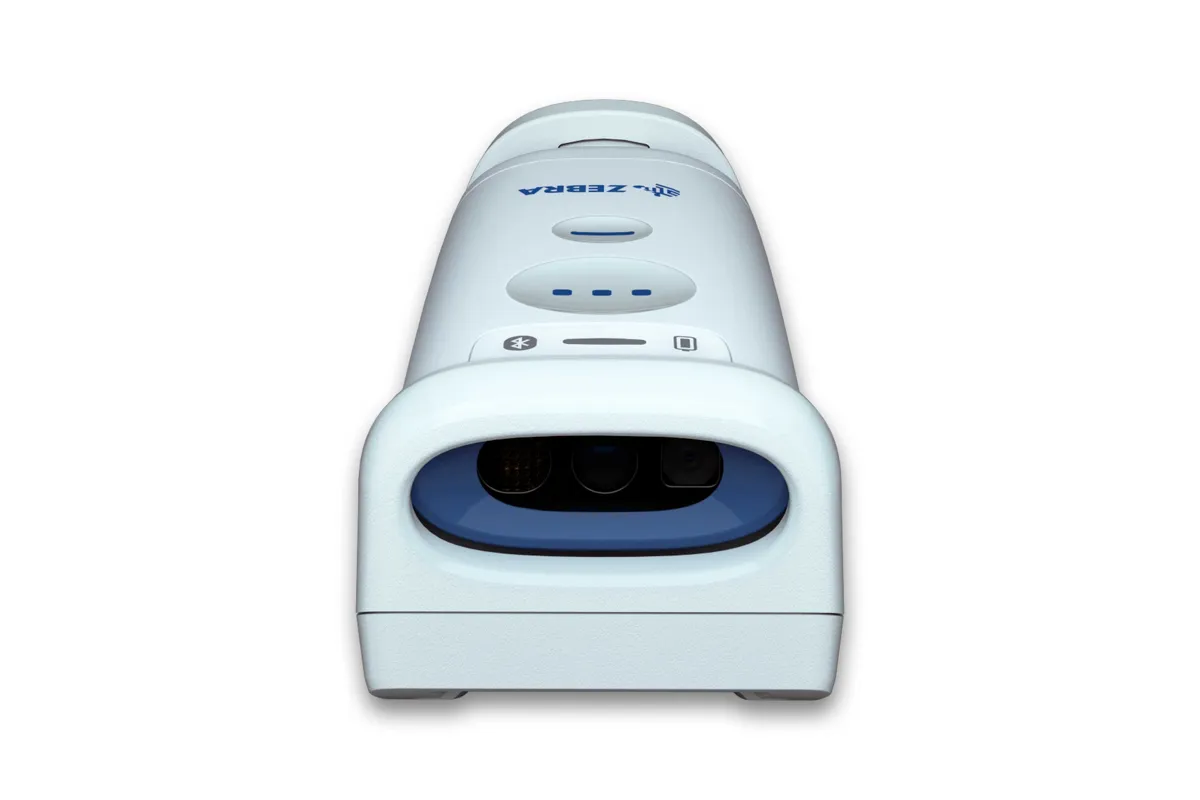

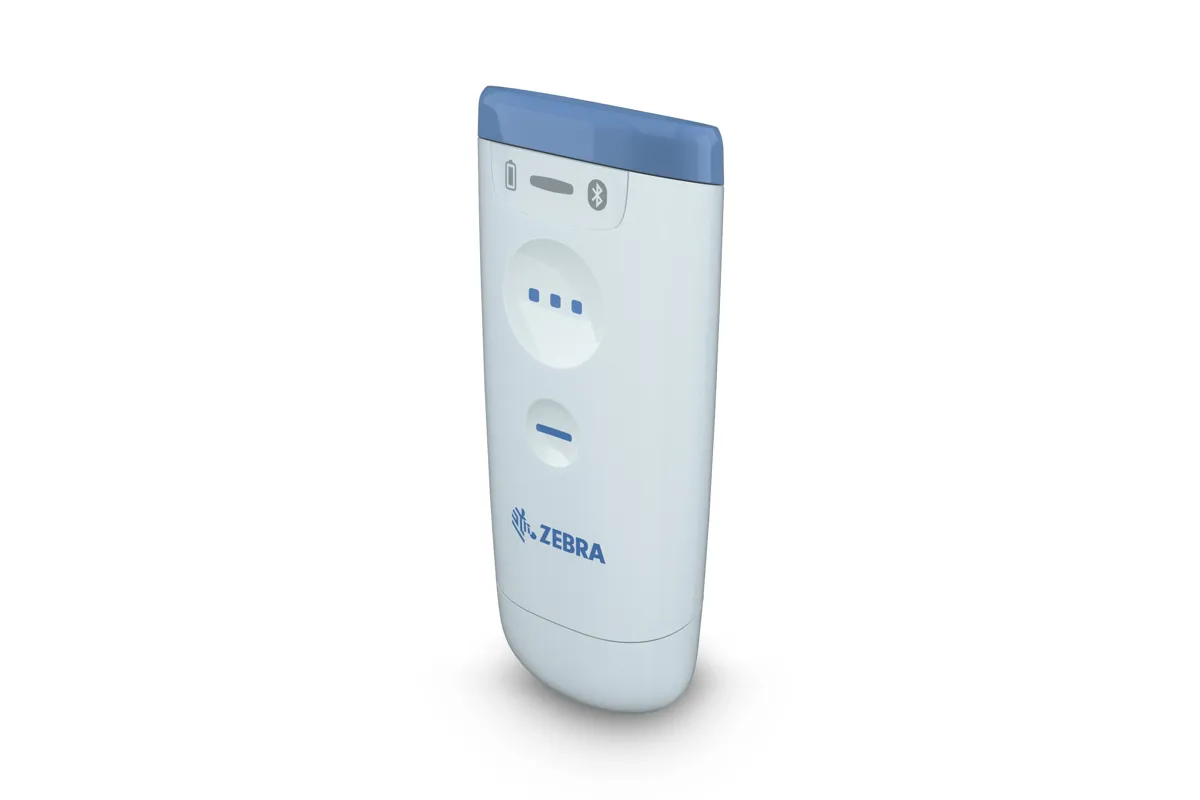

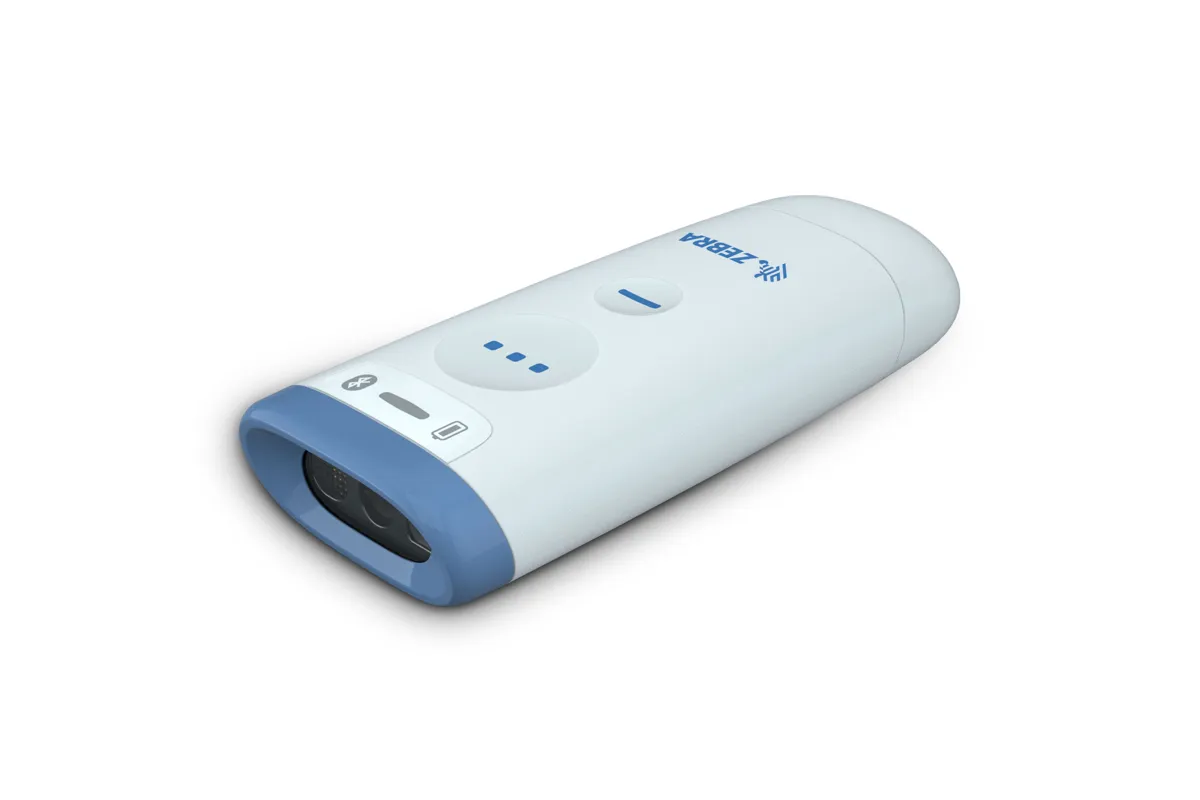

Zebra CS60-HC Companion scanner

Specifications

Dimensions

Scanner 0.9 in. H x 1.8 in. W x 4.3 in. D 2.3 cm H x 4.6 cm W x 10.9 cm D Presentation Cradle 3.5 in. H x 2.1 in. W x 2.4 in. D 9.0 cm H x 5.3 cm W x 6.1 cm D

Weight

Corded CS60-HC: 2.0 oz. / 58.0 g Cordless CS60-HC: 3.1 oz. / 87.0 g Presentation Cradle: 3.4 oz. / 96.0 g

Input Voltage Range

Scanner and presentation cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply

Current

Operating current at nominal voltage (5.0V): 400 mA (typical) Standby current (idle) at nominal voltage (5.0V): 90 mA (typical) Presentation Cradle: 450 mA (typical) Standard USB; 600 mA (typical) BC 1.2 USB

Color

Healthcare white

Supported Host Interfaces

USB Certified

Keyboard Support

Supports over 90 international keyboards

FIPS Security Certification and TAA Compliance

Certified compliant with FIPS 140-3; Trade Agreement Act Compliant (specific configuration required)

User Indicators

Direct Decode Indicator, Good Decode LEDs, beeper (adjustable tone and volume), haptic feedback on decode, capacitive trigger with haptic and audible feedback, dedicated battery gauge, dedicated Bluetooth LED

Motion Tolerance (handheld)

Up to 20 in. / 51 cm. per second for 13 mil UPC in optimized mode

Light Source

Aiming Pattern: circular 525nm true green LED

Illumination

(1) warm white LED

Imager Field of View

45° H x 34° V nominal

Image Sensor

1280 x 960 pixels

Minimum Print Contrast

20% Minimum Reflective Distance

Skew Tolerance

+/- 60°

Pitch Tolerance

+/- 60°

Roll Tolerance

0° - 360°

Minimum Element Resolution

Code 39 - 5.0 mil

Operating temperature

32° F to 122° F / 0° C to 50° C

Storage temperature

-40° F to 158° F / -40° C to 70° C

Humidity

5% to 95% RH, non-condensing

Drop specification

Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete

Tumble specification

Designed to withstand 250 tumbles in 1.5 ft./0.5 m tumbler (1 tumble = 0.5 cycle)

IP / sealing

Scanner: IP65

Approved Cleaners

Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners.

Electrostatic Discharge (ESD)

Scanner and cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 10037 foot candles / 0 to 108,000 Lux

Bluetooth Radio

Standard Bluetooth Version 5.0 with BLE: Class 1 330ft. (100m) and Class 2 33ft. (10m), Serial Port and HID Profiles

Adjustable Bluetooth Power

Output power adjustable down to negative 10 dBm in 8 steps

MFi

MFi Certified (specific configuration required)

Battery / runtime

745 mAh Lithium Polymer battery

Scans Per Battery Charge 2

13,000 scans

Operating Time Per Full Charge 2

18 hours

Standard USB

Full charge: 8 hours

BC1.2 USB

Full charge: 6 hours

Environmental

EN 50581:2012 EN IEC 63000:2018

Electrical Safety

IEC 62368-1 (Ed.2) EN 62368-1:2014/AC:2015

LED Safety

IEC 62471:2006 (Ed.1.0) EN 62471:2008 (LED)

EMI/RFI

EN 55032:2015/AC:2016 (Class B) EN 55035:2017 EN 61000-3-2:2014 (Class A) EN 61000-3-3:2013 47 CFR Part 15, Subpart B, Class B

Cordless Accessories

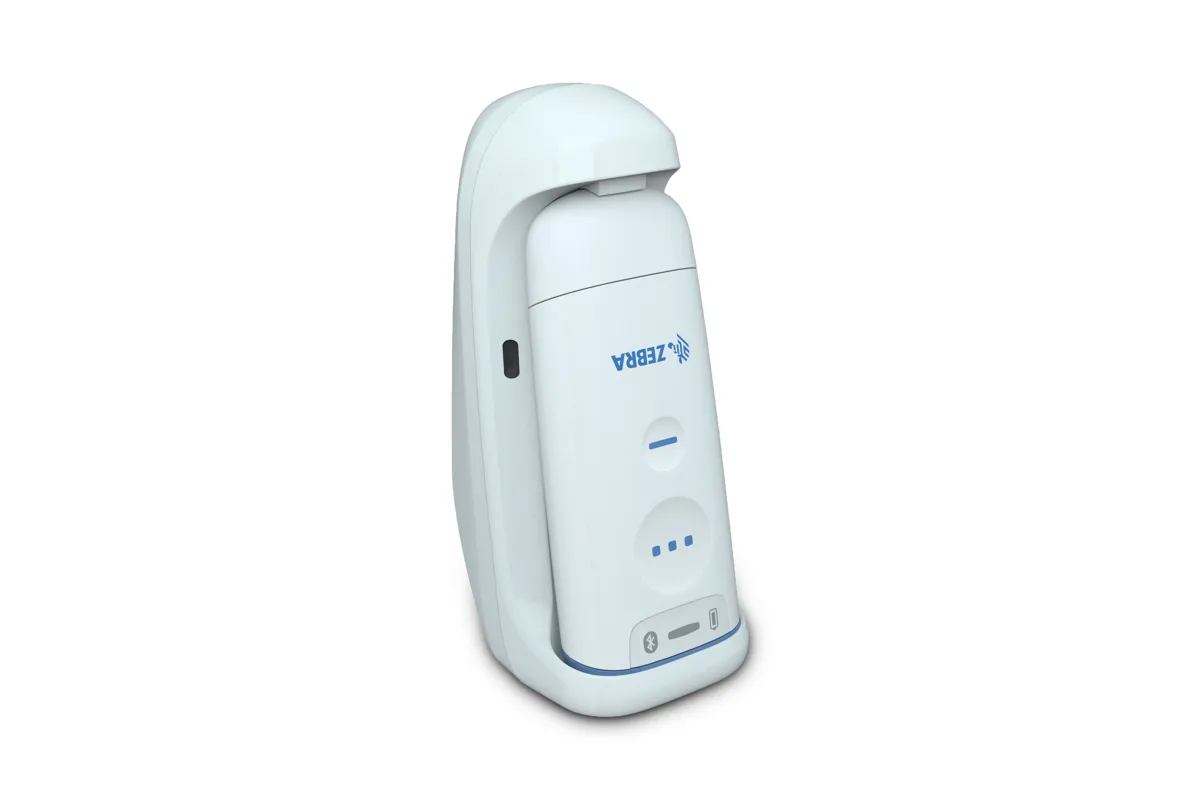

Presentation cradle, spare battery, 4-slot scanner ShareCradle, 4-slot battery ShareCradle, lanyard, Qi Pad

Corded Accessories

Gooseneck Intellistand (weighted and standard), cup, corded USB converter

1D

Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN

2D

Aztec, Composite Codes, DataMatrix, Dotted DataMatrix, Dotcode, Han Xin, MaxiCode, PDF417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm

OCR

OCR-A, OCR-B, MICR, US Currency

Symbology/Resolution

Near/Far

Code 39: 5 mil

2.4 in./6.1 cm to 9.5 in./24.1 cm

Code 39: 20 mil

2.5 in./6.4 cm to 26.0 in./66.0 cm

Code 128: 5 mil

2.8 in./7.1 cm to 9.0 in./22.9 cm

PDF 417: 6.7 mil

2.4 in./6.1 cm to 8.0 in./20.3 cm

UPC: 13 mil (100%)

1.8 in./4.6 cm to 19.5 in./49.5 cm

Data Matrix: 10 mil

2.9 in./7.4 cm to 8.0 in./20.3 cm

QR: 20 mil

1.2 in./3.0 cm to 14 in./35.6 cm
