Toshiba Global Commerce Solutions · Kiosk

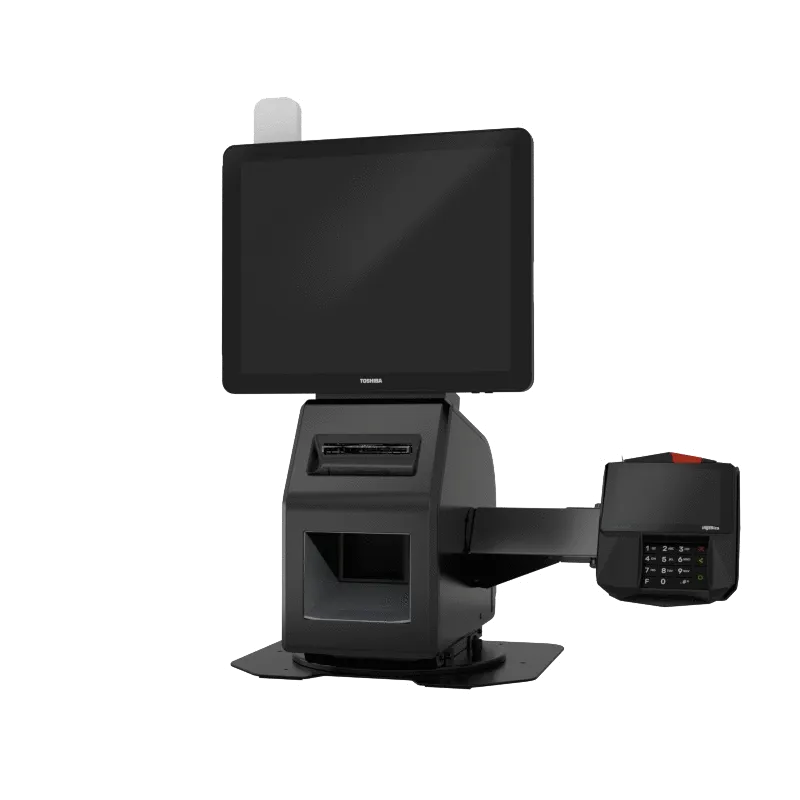

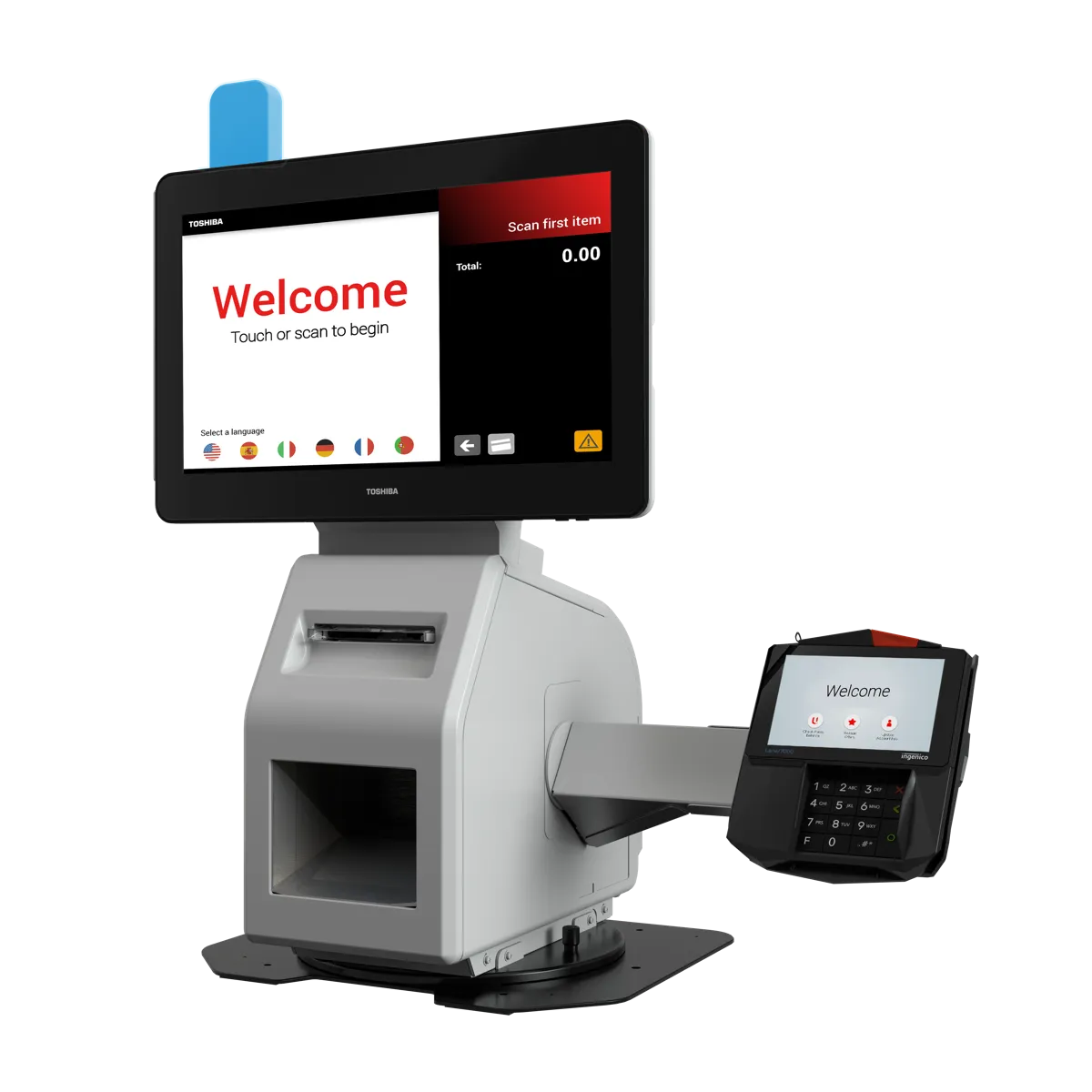

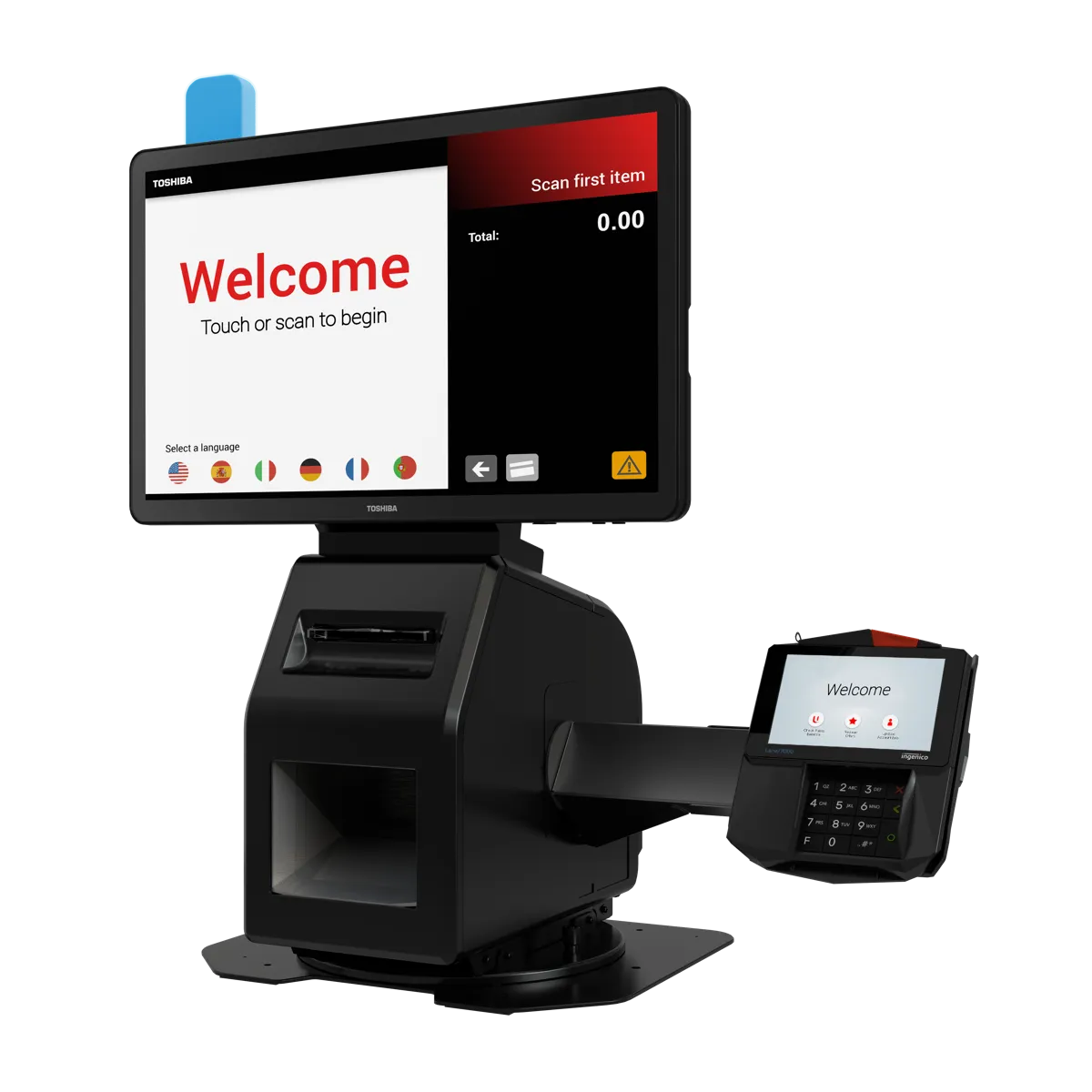

Toshiba Global Commerce Solutions Pro-X Hybrid Kiosk
Made to deliver the fast, easy experiences shoppers expect, the Pro-X Hybrid Kiosk is a self-service touchpoint with a flexible, compact design that can help retailers reimagine their store's strategy and protect technology investments.
Product page at Toshiba Global Commerce Solutions
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Product Name Model
- Pro-X Hybrid Kiosk 6900-1K0
- Printer
- Toshiba 80 mm width high-performance KIOSK Thermal Printer KOP-3S01
- Voltage Options
- - Low Voltage option (110-120V AC, 60 Hz) - High voltage option (220-240V AC, 50 Hz)
- TCx 800 All-in-One POS Processor
- Intel 7th Generation uSeries processors: - Celeron 3965U - Core i3-7100U - Core i5-7300U - Core i7-7600U
- TCx 800 All-in-One POS Memory
- 8GB, 16GB, or 32GB DDR4
- TCx 800 All-in-One POS Storage
- - 128 GB, 256 GB or 512 GB PCIe NVMe M.2 SSD - Up to 2x SSDs supported - RAID support (i5/i7 models)
- TCx 800 All-in-One POS Primary Display
- 15” (4:3) or 15.6” (16:9) or 18.5” (16:9) (Black version) 15” (4:3) or 15.6” (16:9) (Brilliant White version) - Back-lit LCD - Bezel-less 10 point PCAP Touch Sensor
- TCx 800 ALL-IN-ONE POS: OPERATING SYSTEM
- SUPPORT
- RAM / storage options
- 8GB or 16GB DDR4 options (up to 3200MHz)
- Max System Memory Supported
- Up to 32 GB
- Max Video Memory Support
- Up to half of system memory
- RAM / storage options
- - 128 GB, 256 GB or 512 GB PCIe NVMe M.2 SSD - Up to 2x SSDs supported - RAID support (i5/i7 models)
- Powered Connector options (System)
- N/A
- Primary Display
- - 15” 4:3 or 15.6” Full HD 16:9 or 19.5” Full HD 16:9 (Black version) - 15” 4:3 or 15.6” Full HD 16:9 (Brilliant White version) - Back-lit LCD - 10 point PCAP multi-touch
- Video Memory
- 32 MB allocated, up to 256MB shared
- RAM / storage options
- 8 GB or 16 GB DDR4 options (up to 2400MHz)
- Max System Memory Supported
- 16 GB Max
- RAM / storage options
- 128 GB PCIe NVMe M.2 SSD (1 slot) 256 GB PCIe NVMe M.2 SSD (optional)
- Powered Connector options (System)
- N/A
- Primary Display
- 15-inch 4:3
- Touch panel
- 10 point PCAP multi-touch
- Printer
- Toshiba 80 mm width high-performance KIOSK Thermal Printer KOP-3S01
- Voltage Options
- - Low Voltage option (110-120V AC, 60 Hz) - High voltage option (220-240V AC, 50 Hz)
- T10 All-in-One POS Processor
- Intel® Celeron® J1900 - up to 2.42 GHz
- T10 All-in-One POS Memory
- 4GB Memory (1 DIMM & Upgradeable), up to 8GB max
- T10 All-in-One POS Storage
- 128GB SATA M.2 2280 SSD
- T10 All-in-One POS Powered Connector Options (System)
- - (1) x 24V Powered USB - (2) x 12V Powered USB - (4) x 5V USB 3.0 - (4) x RS232 (2-DB-9, 2 RJ50) - (1) x Mini Display Port/VGA - (1) x Drawer Port Minimum – RJ12 - (1) x RJ45 Ethernet - (1) x 3.5mm 4 conductor combo audio jack (Line-out and Mic-in) - Stereo Speaker/PC Beeper
- T10 All-in-One POS Primary Display
- - 15’’ 4:3 1024x768 resolution - 250 nits - LED backlight with 50K hours of life - Bezel Free with 10-points PCT touch"
- T10 ALL-IN-ONE POS: OPERATING SYSTEM
- SUPPORT
