ProDVX · Panel PC

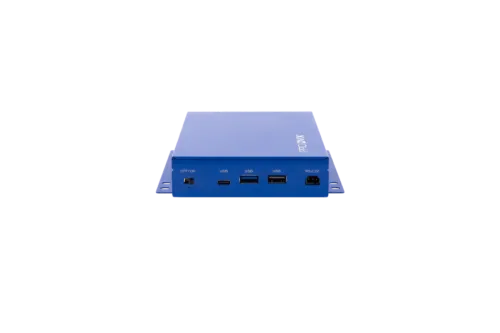

ProDVX ABPC-4320
ABPC-4320 (R26-4321) Art. No: 7099400 Dual HDMI-out ports Power over Ethernet Android 15 Get Quote Request demo device
- Operating systemAndroid 15
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Convenience
- Easy installation
- Operation hours
- 24/7
- Processor
- Cortex A72, 4-Core; Cortex-A53, 4-Core
- Processor
- RK3576 (Quad Core Cortex-A72 with Quad Core Cortex-A53)
- GPU
- ARM Mali-G52-MC3
- Cooling
- Fanless
- RAM / storage options
- 4GB DRAM
- Video out
- Yes, 2x HDMI out
- Internal storage
- 16GB eMMC
- External storage
- MicroSD-Card Slot (door)
- Card slot
- MicroSD
- Operating system
- Android 15
- Ports / interfaces
- 3.5 mm (IR and PIR sensor in),Combo Jack,RJ45,USB 2.0,USB 3.0,USB-C,1x RS232,GPIO,HDMI-out 2.0,HDMI out (v1.4)
- Network LAN RJ45
- 10/100/1000 Mbps LAN
- Wi-Fi / WLAN
- optional via USB dongle
- Bluetooth
- optional via USB dongle
- Power over Ethernet (PoE)
- IEEE 802.3at (PoE+)
- Integrated NFC
- via USB
- Cameras
- via USB
- Video support
- 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
- Audio support
- AAC,ASF,MP2,OGG,WAV,WMA
- Photo support
- JPG,JPEG,PNG,BMP,GIF
- Audio Jack Output 3.5mm
- YES
- Housing
- Metal
- Color
- Blue
- Weight
- 470 g
- Dimensions
- 153,3 x 107 x 30,6 mm
- Mounting / VESA
- VESA 75/100 x 120 mm
- Charging / power
- 12V / 2A DC input
- Power Supply Included?
- No
- Power Usage
- 10 ~ 15 Watt
- OSD Language
- Multi OSD language
- Clock Battery (for RTC)
- CR1220 - Lithium‐metal non‐rechargeable coin
- Storage temperature
- -10~55 degrees C
- Working Temp
- 0 ~ 40 degrees C
- Storage/Working Humidity
- 10 ~ 90% non-condensing
- MTBF
- 45,000 hours demonstrated
- Standard Warranty
- 3 years
- Certifications
- UKCA, CE, FCC, RoHS, REACH
- Art. No
- 7099400
