Newland · Panel PC
Newland NQuire 1500 Mobula II
The NQuire 1500 Mobula II enables a slimmer profile with a larger screen design. Equally neat and lightweight, it suits most mounting needs without compromising valuable space. Ideal for micro market or self-service barcode scanning.
- Display1D & 2D 4G Android
- Scanning1D All major 1D symbologies
- SealingIP54 (front only)
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Processor
- 2.0 GHz octa-core, 64-bit
Display
- Display size
- 1D & 2D 4G Android
- Keyboard / keys
- Up/down keys, Vol+/VoI-keys, Menu key 5 keys
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies
- Scan range / decode distances
- 110 mm - 290 mm 110 mm - 260 mm 70 mm - 610 mm 110 mm - 230 mm 55 mm - 410 mm GS1 Ready Yes
- NFC

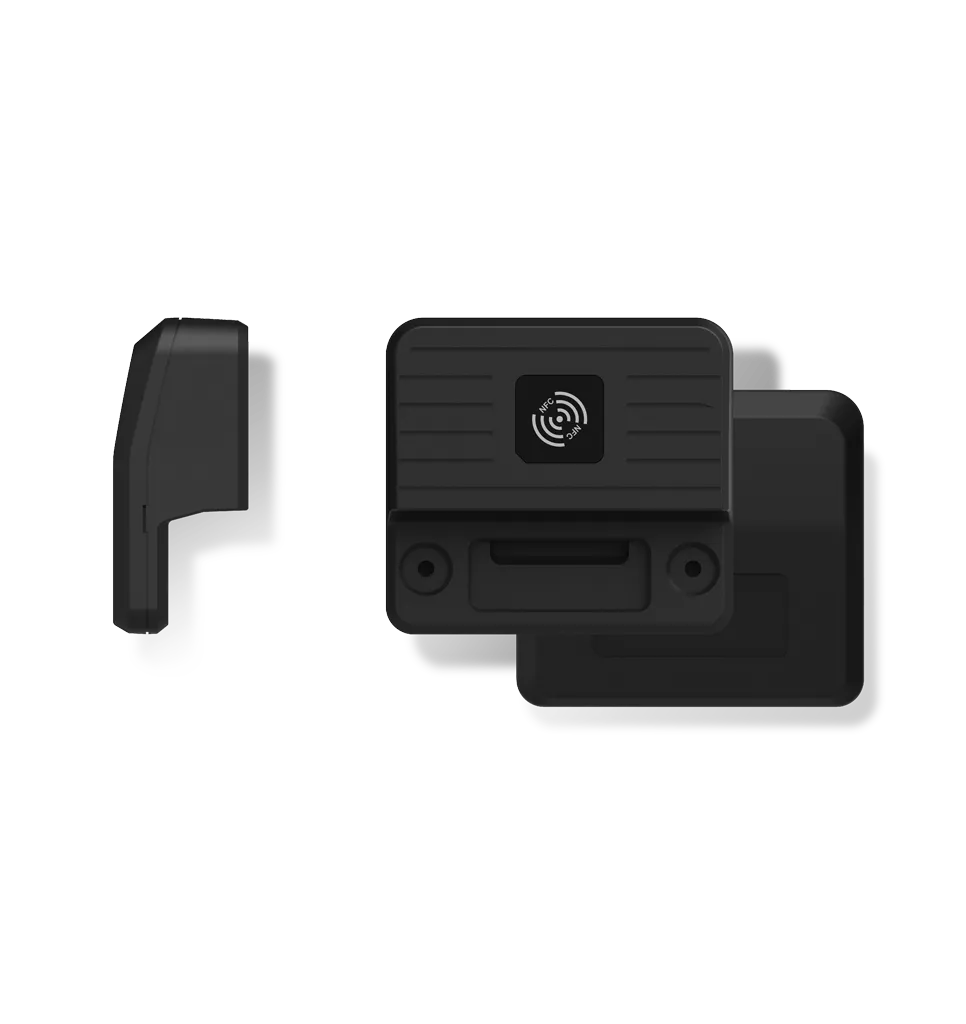

- 13.56MHz RFID: ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693. Supports ID card reading, supports reader/writer modes. (optional NFC module is required)
- Cameras
- 8 MP GS1
Connectivity
- Bluetooth
- 5.2
- Location / GPS
- GPS (AGPS), GLONASS, Beidou, Galileo
- Ports / interfaces
- USB-C, MicroSD Card, USB-A, GPIO, Ethernet
Rugged
- IP / sealing
- IP54 (front only)
- Operating temperature
- -10°C to 50°C (14°F to 122°F)
- Storage temperature
- -20°C to 60°C (-4°F to 140°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Dimensions
- 380.5(W) x 246.5(D) x 33(H) mm
Software & service
- Warranty
- 2 Years Comprehensive Service Contract 3 Years, 5 Years
