Newland · Fixed barcode scanner

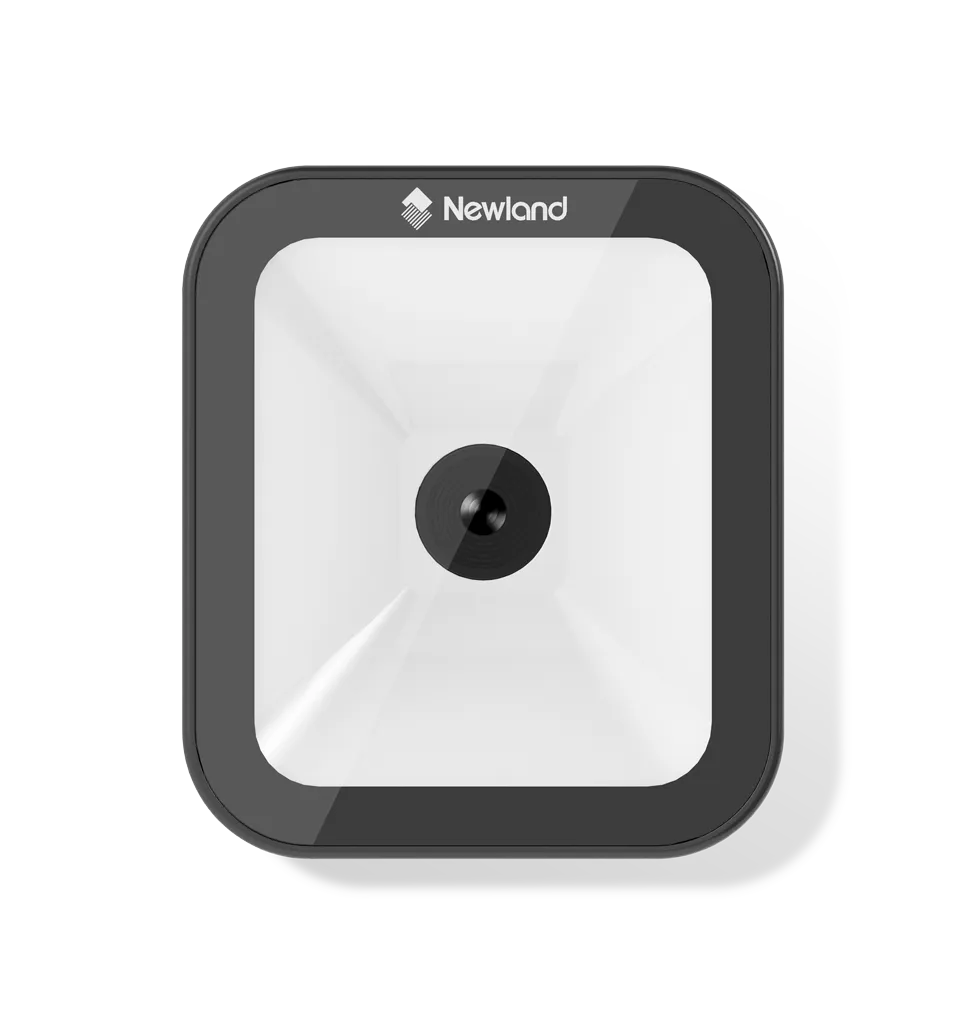

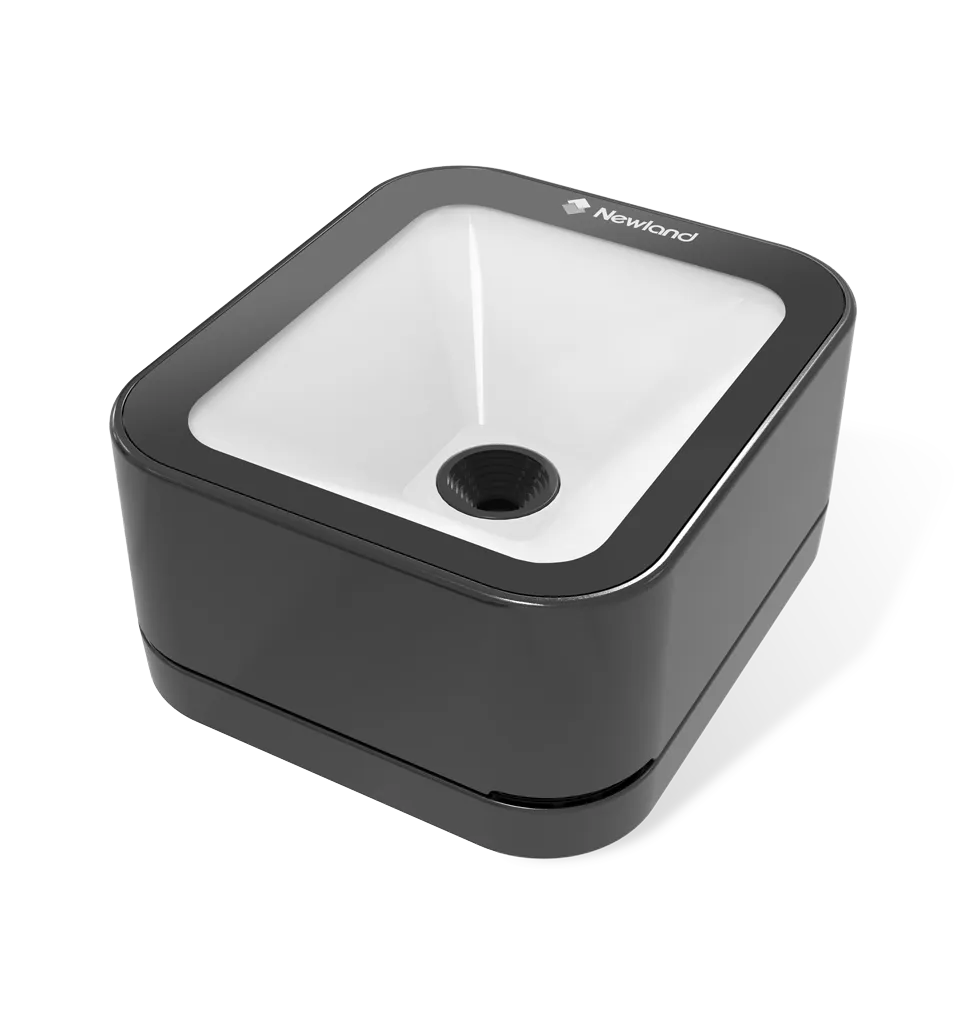

Newland FR27 Urchin

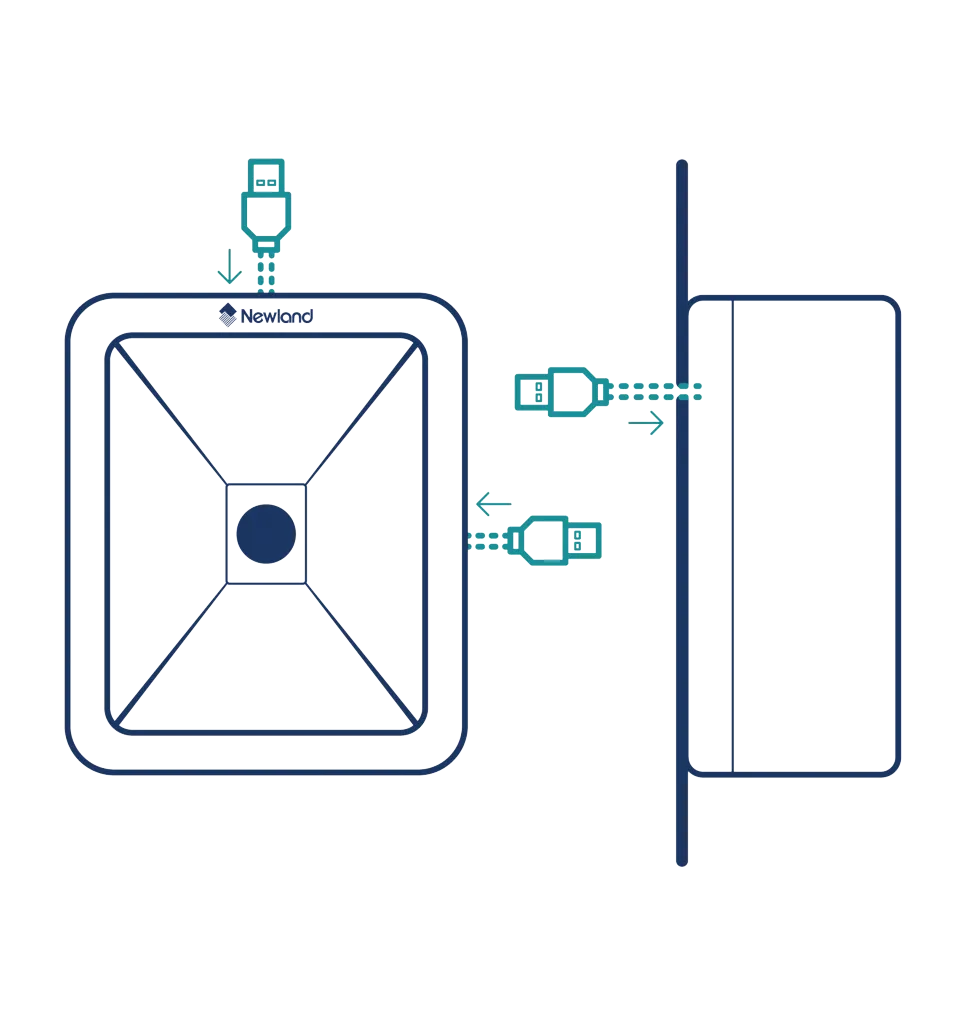

The FR27 Urchin, Newlands smallest presentation barcode scanner, is easily set up via USB and plug-and-play. Its large scan window and outstanding motion tolerance make self-service and scanning 1D and 2D barcodes a breeze.
- Scanning1D All major 1D symbologies.
- SealingIP42
- Drop1.5 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies.
- Scan range / decode distances
- 30 mm - 45 mm 20 mm - 105 mm 30 mm - 40 mm 0 mm - 85 mm Field of View Diagonal 84.8˚
Power
- Charging / power
- 5 VDC ±5%
Connectivity
- Ports / interfaces
- USB
Rugged
- IP / sealing
- IP42
- Drop specification
- 1.5 m
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 120 g
- Dimensions
- 66.3(W) x 76.3(D) x 38(H) mm
Software & service
- Warranty
- 5 Years Warranty Standard 5 Years
