Newland · Fixed barcode scanner

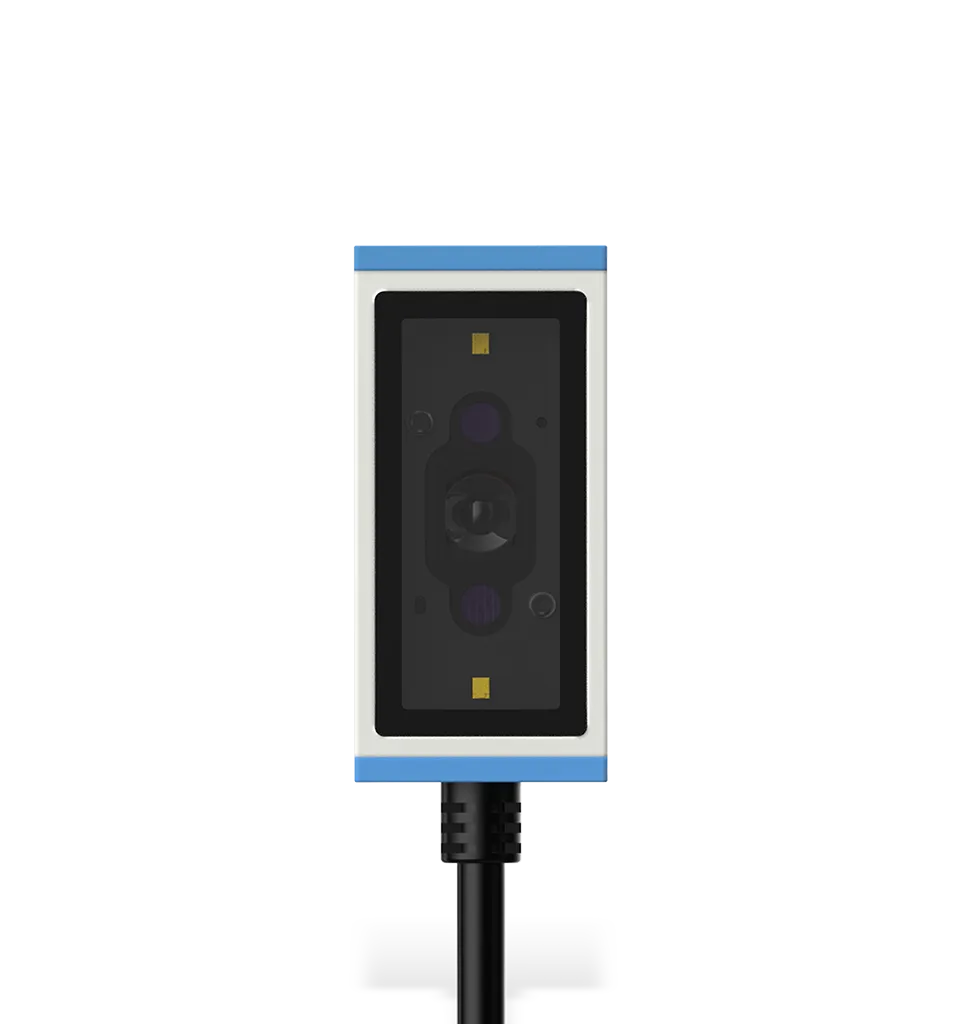

Newland FM550
Ready for integration with your medical equipment, the FM550 combines compact design with high-performance scanning of both 1D and 2D barcodes from close-up. This makes it a perfect scanner for laboratory automation applications.
- Scanning1D Code 128, EAN-8, EAN-13, EAN-13 Addendum, UPC-E, UPC-A, Interleaved 2/5, Code
- SealingIP65
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D Code 128, EAN-8, EAN-13, EAN-13 Addendum, UPC-E, UPC-A, Interleaved 2/5, Code
- Scan range / decode distances
- 45 mm - 90 mm 45 mm - 85 mm Field of View Horizontal 52˚
Power
- Charging / power
- 5 VDC ±5%
Connectivity
- Ports / interfaces
- RS-232, USB
Rugged
- IP / sealing
- IP65
- Operating temperature
- 0°C to 50°C (32°F to 122°F)
- Storage temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 107 g
- Dimensions
- 54(W)× 27.5(D)× 25.5(H) mm
Software & service
- Warranty
- 2 Years Warranty Standard 2 Years
