Newland · Fixed barcode scanner

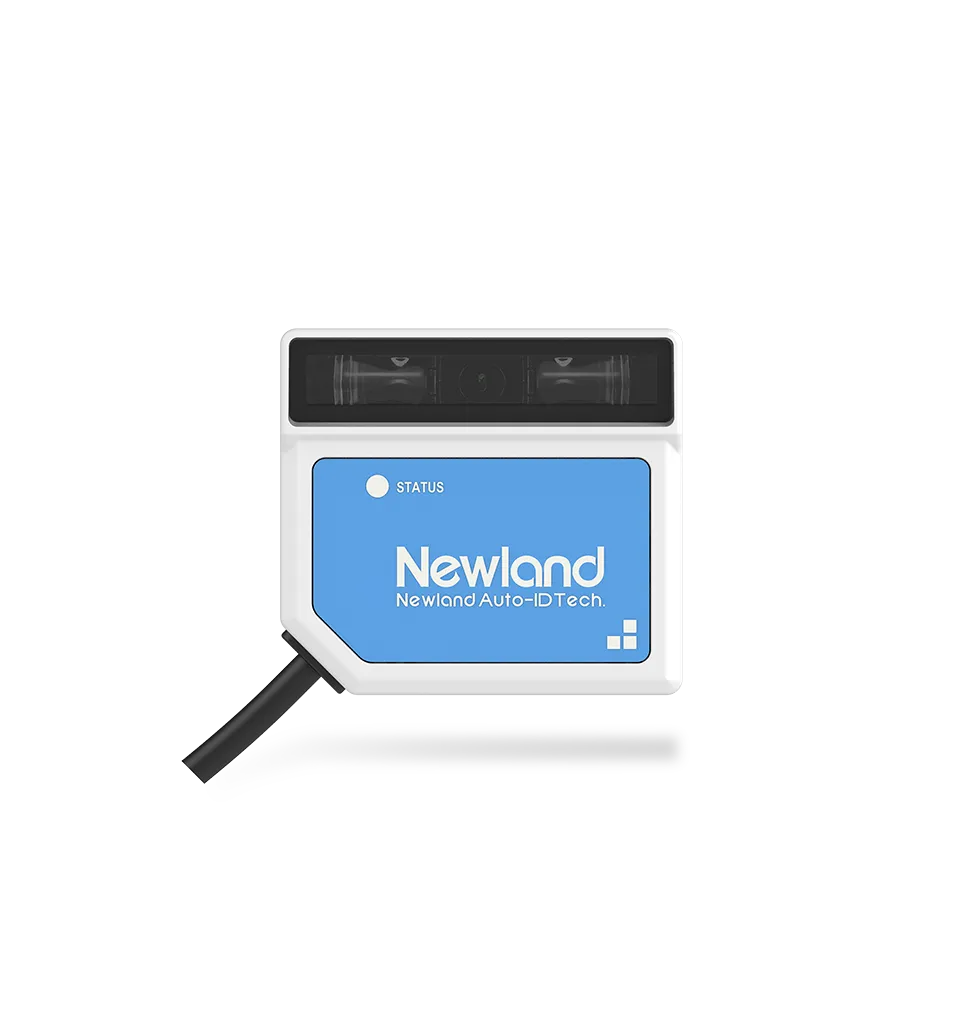

Newland FM510-V
With its wide scan angle and close scanning range, the FM510-V can easily decode extended 1D barcodes, making it a perfect fixed-mount scanner for laboratory automation applications.
- Scanning1D All major 1D symbologies
- SealingIP54
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies
- Scan range / decode distances
- 15 mm - 95 mm Field of View Vertical 68˚
Power
- Charging / power
- 5-24 VDC ±5%
Connectivity
- Ports / interfaces
- RS-232
Rugged
- IP / sealing
- IP54
- Operating temperature
- 0°C to 50°C (32°F to 122°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 120 g
- Dimensions
- 62.5(W) × 57(D) × 21.5(H) mm
Software & service
- Warranty
- 2 Years Warranty Standard 2 Years
