Newland · Fixed barcode scanner

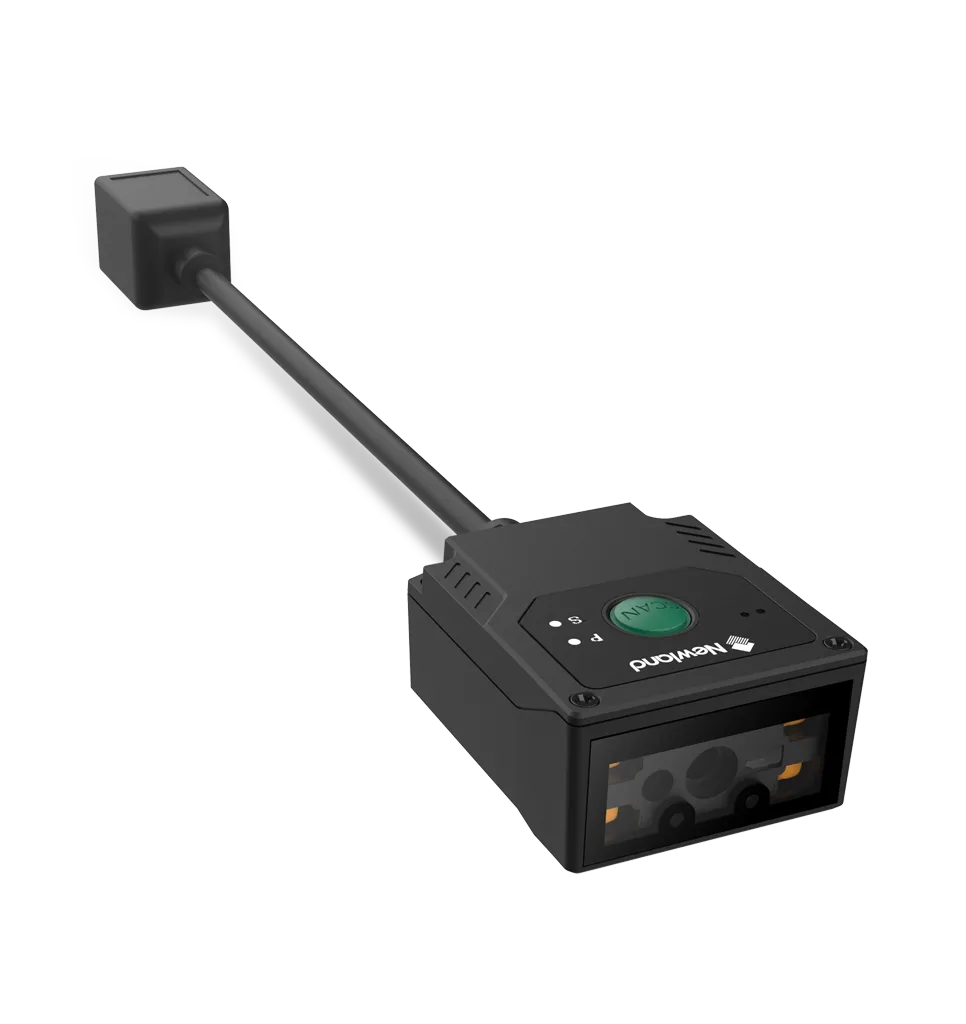

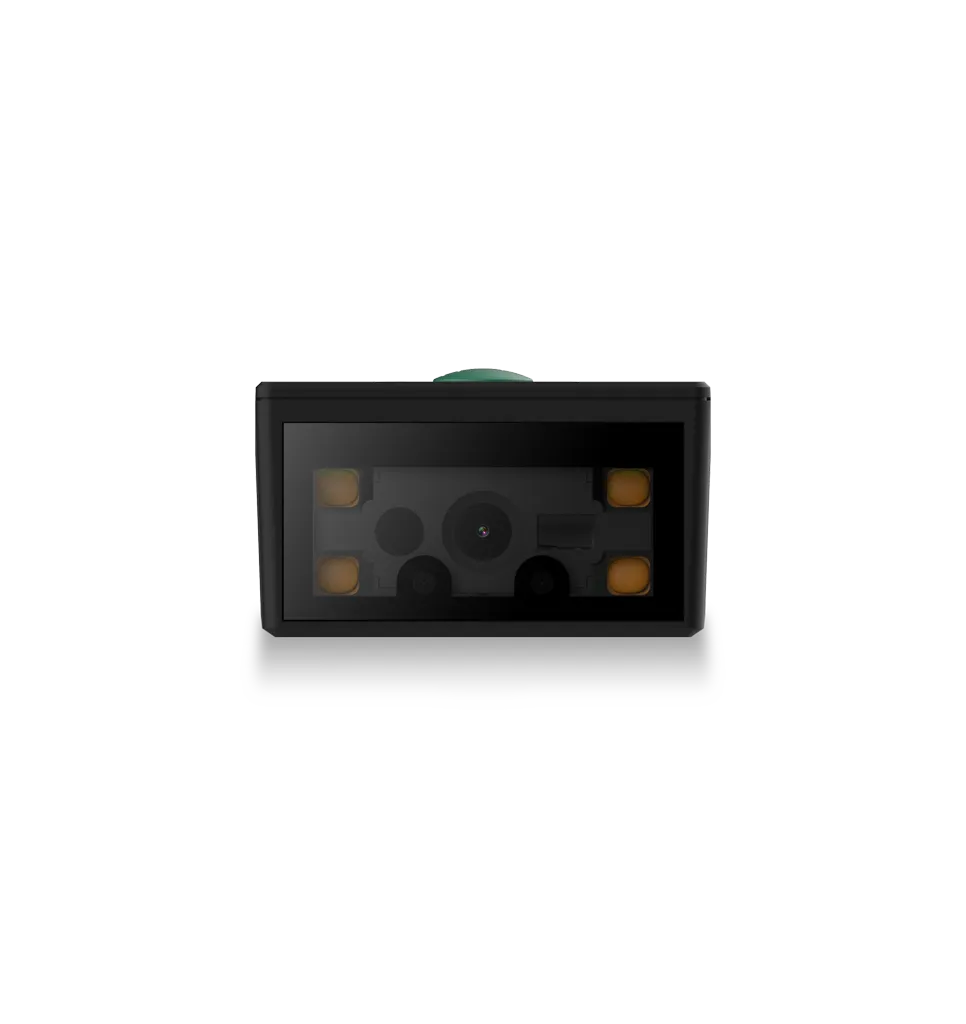

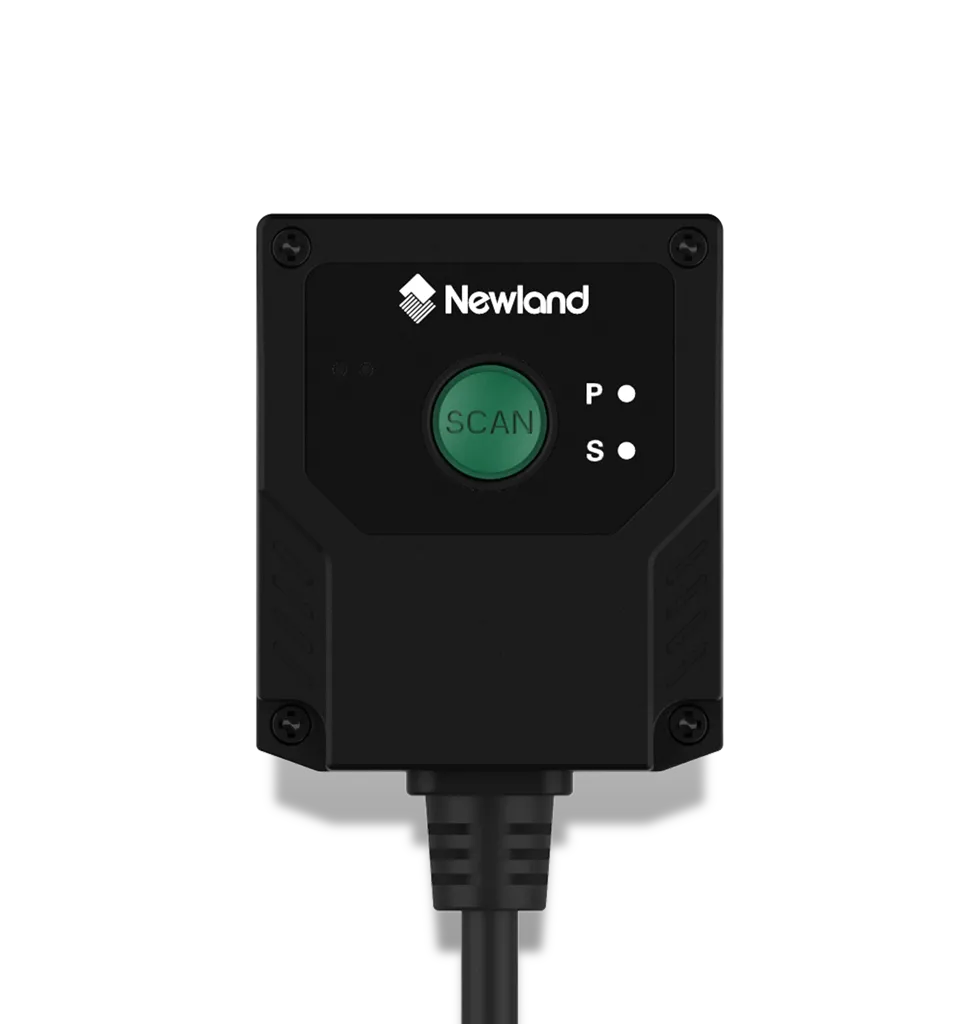

Newland FM431 Barracuda Pro
This stationary scanner adds more speed and accuracy to the FM430 Series. Its design allows for scanning 1D and 2D barcodes even under direct sunlight, making the FM431 Barracuda Pro a versatile fixed-mount scanner.
- Scanning1D All major 1D symbologies
- SealingIP54
- Drop1.5 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies
- Scan range / decode distances
- 65 mm - 230 mm 50 mm - 230 mm 55 mm - 460 mm 55 mm - 190 mm 40 mm - 310 mm Field of View Horizontal 51°
Power
- Charging / power
- 5 VDC ±5%
Connectivity
- Ports / interfaces
- RS-232, USB EasySet IP54
Rugged
- IP / sealing
- IP54
- Drop specification
- 1.5 m
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 56 g
- Dimensions
- 41.5(W) × 49.5 (D) × 24.3(H) mm
Software & service
- Warranty
- 5 Years Warranty Standard 5 Years
