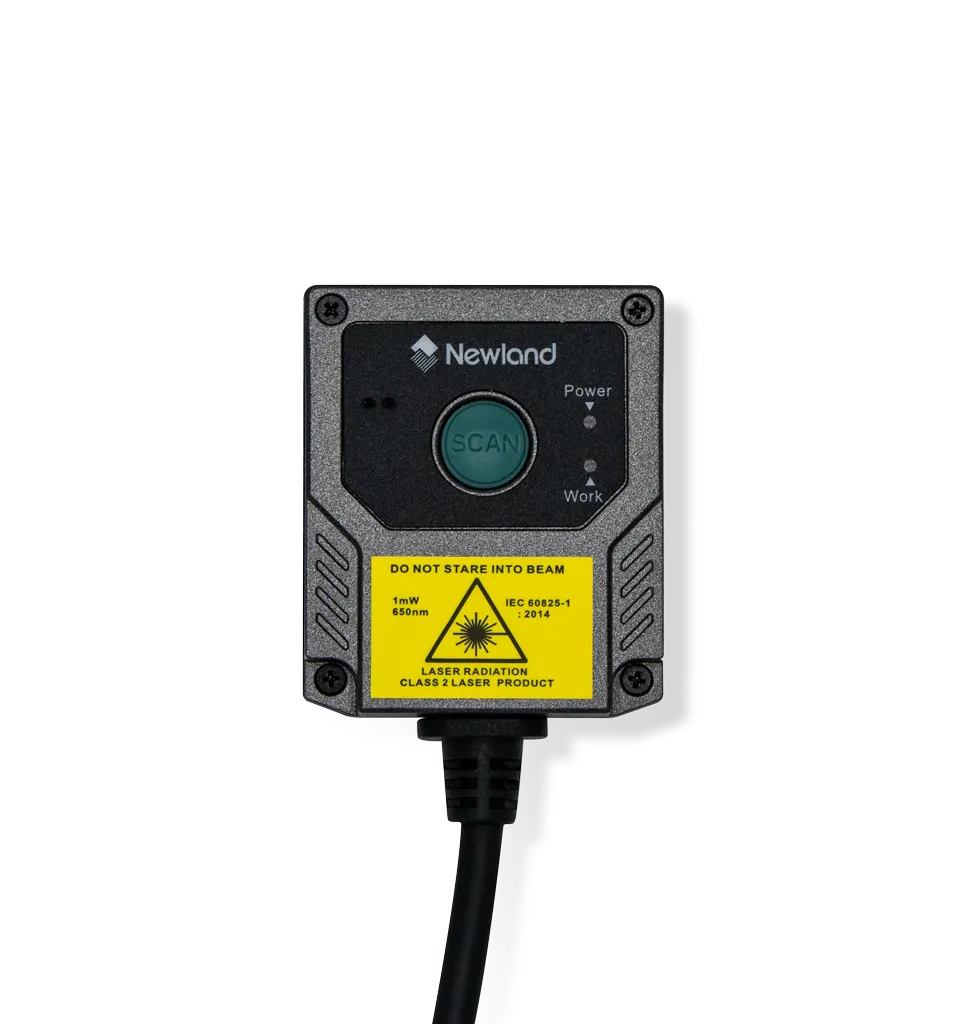

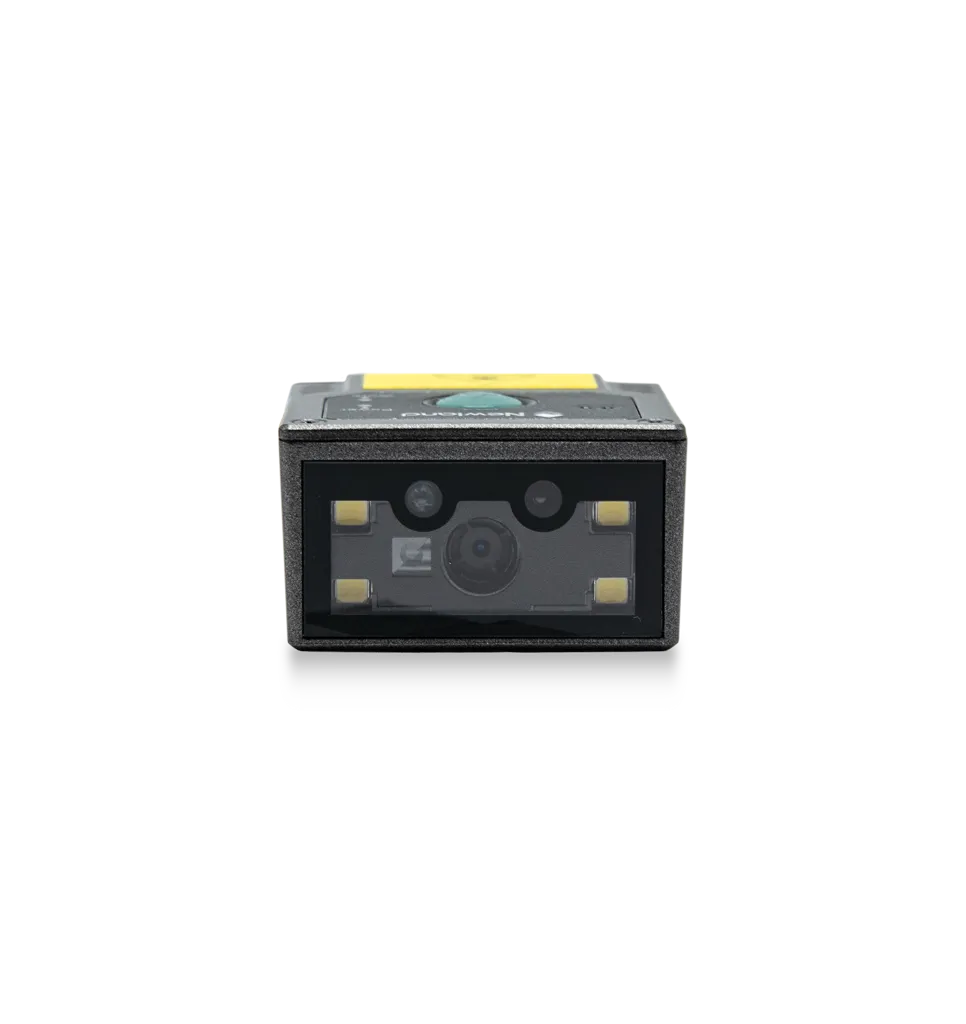

Newland FM430 Barracuda
The FM430 Barracuda is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small ones, with impressive speed and ease. Click for more information.
- Scanning1D All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code
- SealingIP54
- Drop1.5 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Processor
- 1 GHz, X1500
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code
- Scan range / decode distances
- 70 mm - 180 mm 50 mm - 170 mm 55 mm - 360 mm 55 mm - 160 mm 40 mm - 210 mm Field of View Horizontal 51°
Power
- Charging / power
- 5 VDC ±5%
Connectivity
- Ports / interfaces
- RS-232, USB EasySet IP54 Laser
Rugged
- IP / sealing
- IP54
- Drop specification
- 1.5 m
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 75 g
- Dimensions
- 41.5(W) × 49.5(D) × 24.3(H) mm
Software & service
- Warranty
- 5 Years Warranty Standard 5 Years
