Newland · Fixed barcode scanner

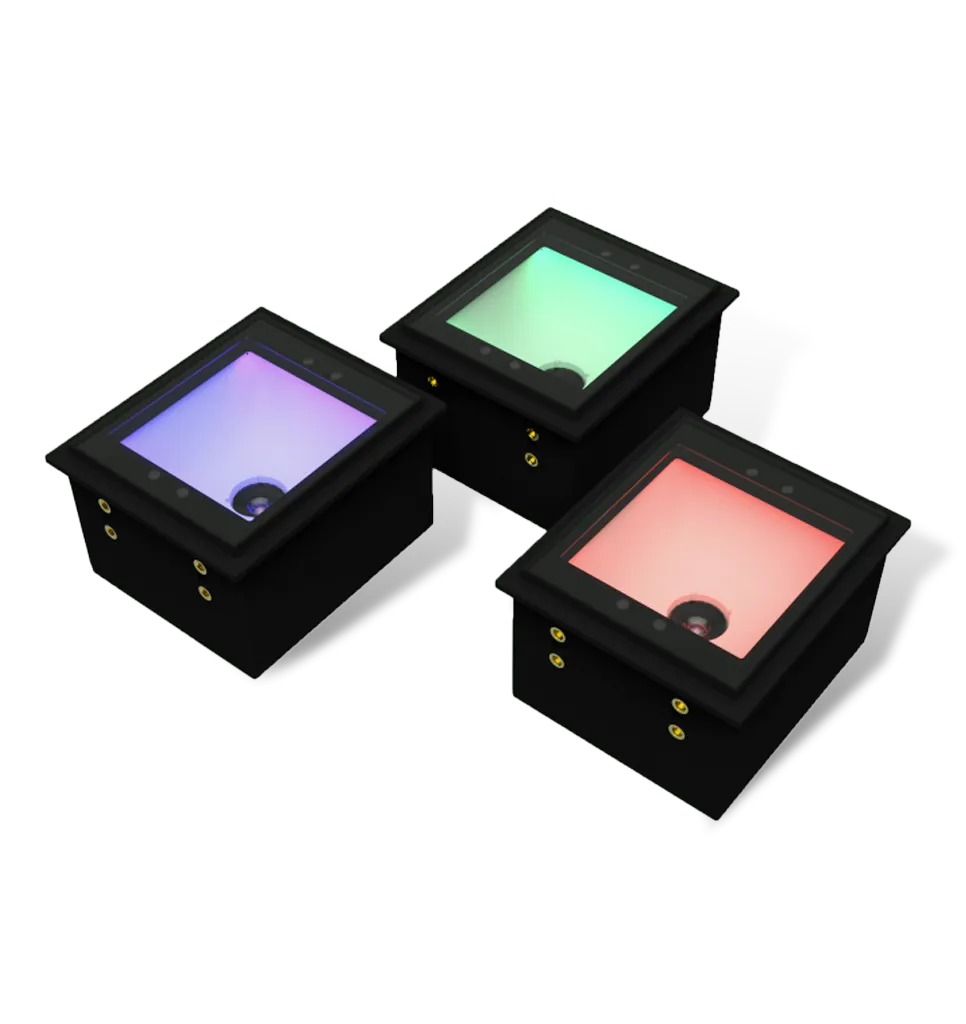

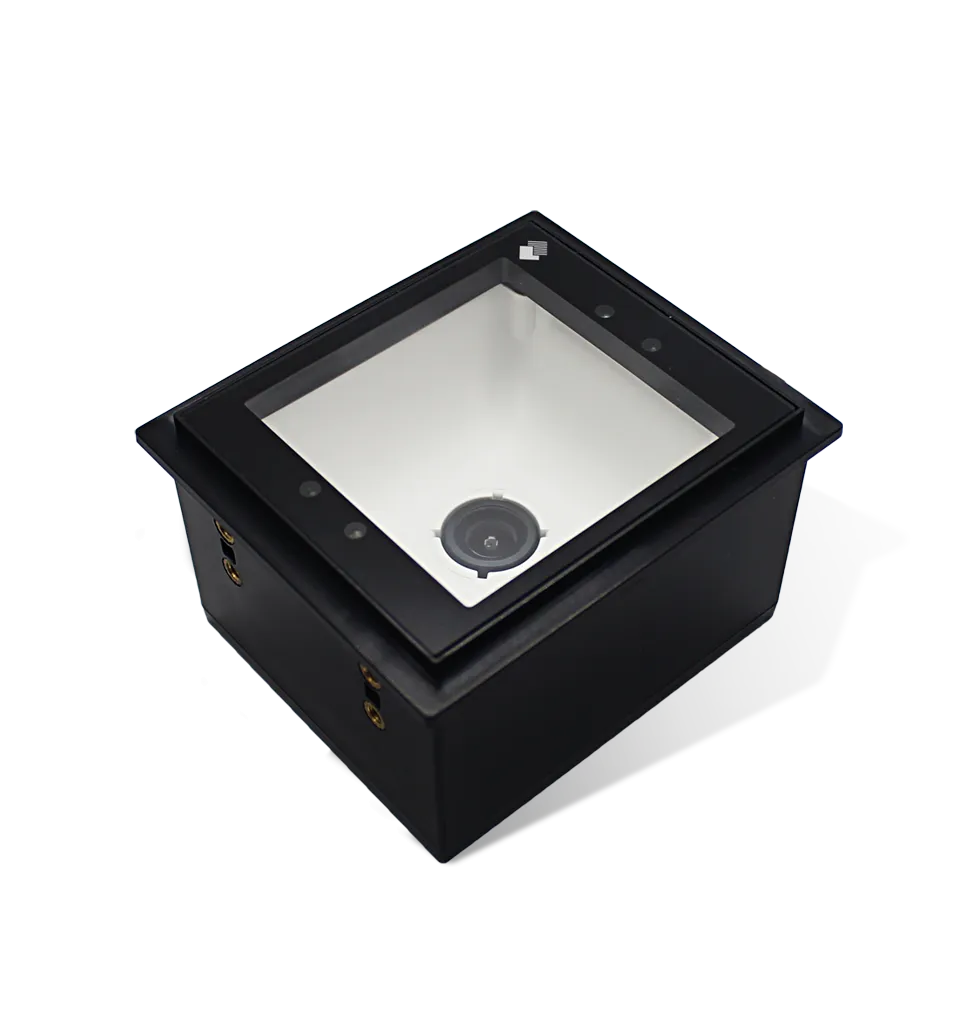

Newland FM3080 Hind
The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data. Want to combine ease of customization and performance? See more now.
- Scanning1D All major 1D symbologies, including EAN-8, EAN-13, UPC-A, UPC-E, ISSN, ISBN,
- SealingIP65
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies, including EAN-8, EAN-13, UPC-A, UPC-E, ISSN, ISBN,
- Scan range / decode distances
- 0 mm - 185 mm 40 mm - 210 mm 0 mm - 190 mm 0 mm - 130 mm Field of View Horizontal 74°
Power
- Charging / power
- 5 VDC ±5%
Connectivity
- Ports / interfaces
- RS-232, USB EasySet Infrared IP65
Rugged
- IP / sealing
- IP65
- Operating temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 132 g
- Dimensions
- 78.7(W) x 67.7(D) x 47.5(H) mm
Software & service
- Warranty
- 5 Years Warranty Standard 5 Years
Send a request
Get a quote for the FM3080 Hind
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
