Elo Touch PayPoint for Android — with Google Play Services 3.0

Overview

Operating systemAndroid 8.1™ Oreo™ with Google™ Play Services; EloView® content deployment and management
Display13.3'' diagonal, Active matrix TFT LCD
Scanning1D CCD
SealingTouchscreen sealed to LCD (all)

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

This version has been discontinued. Please see the replacement models - EloPOS for Android .

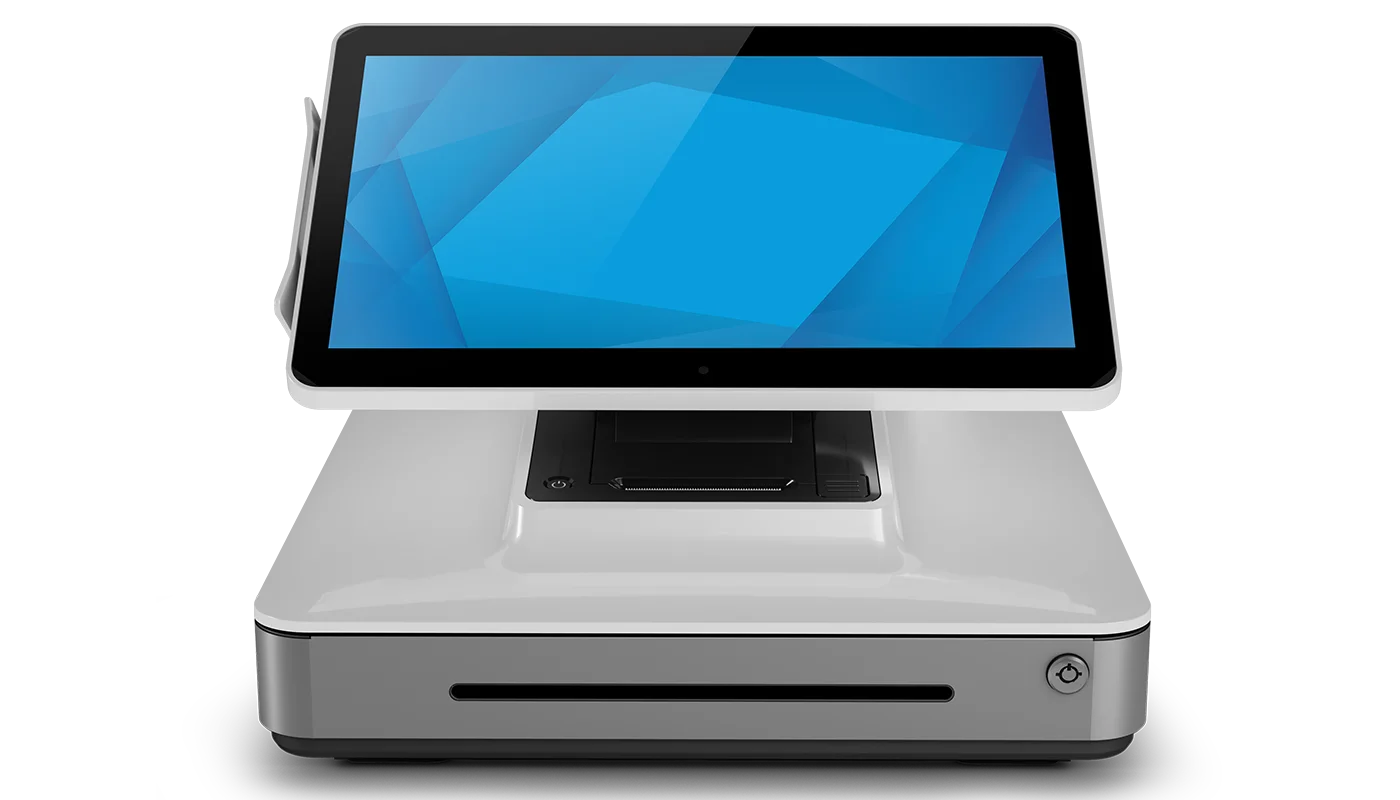

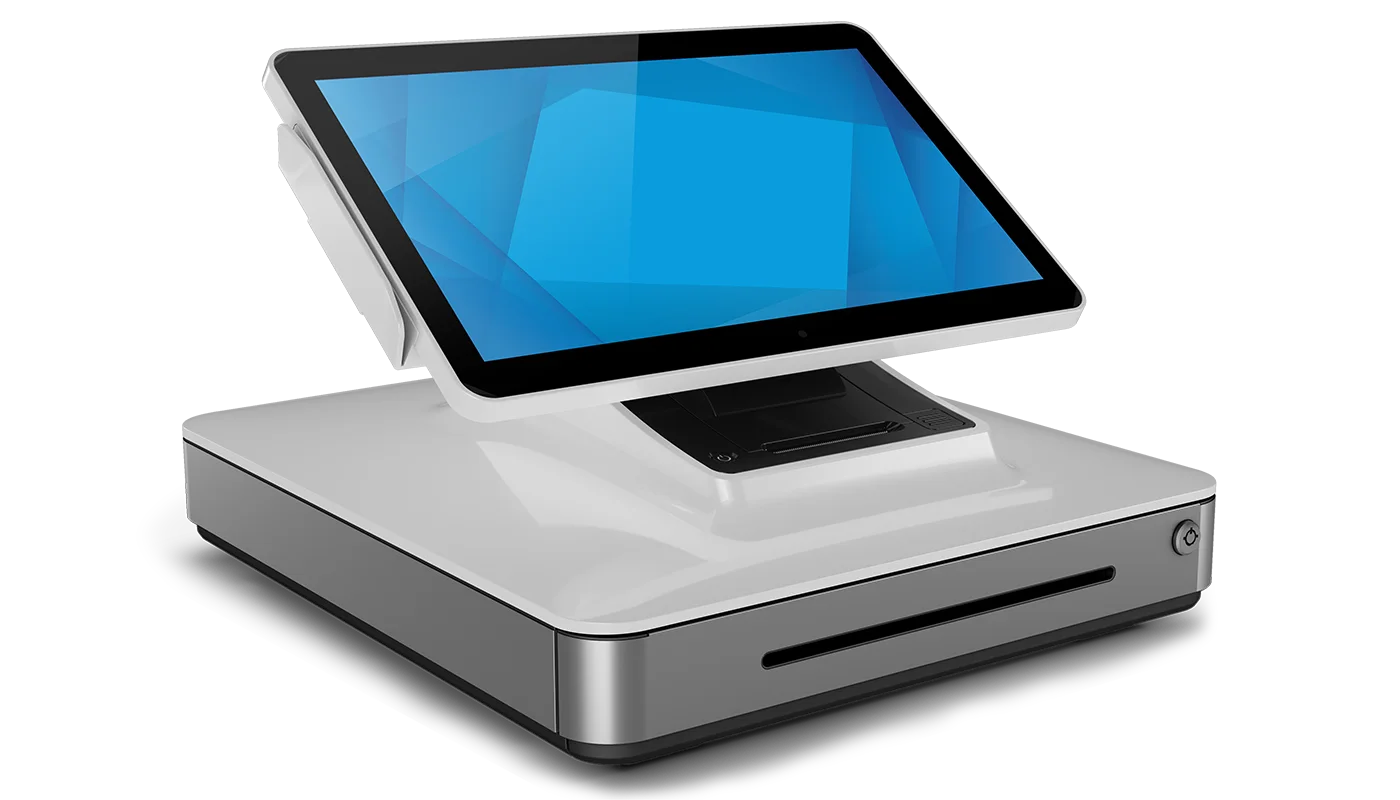

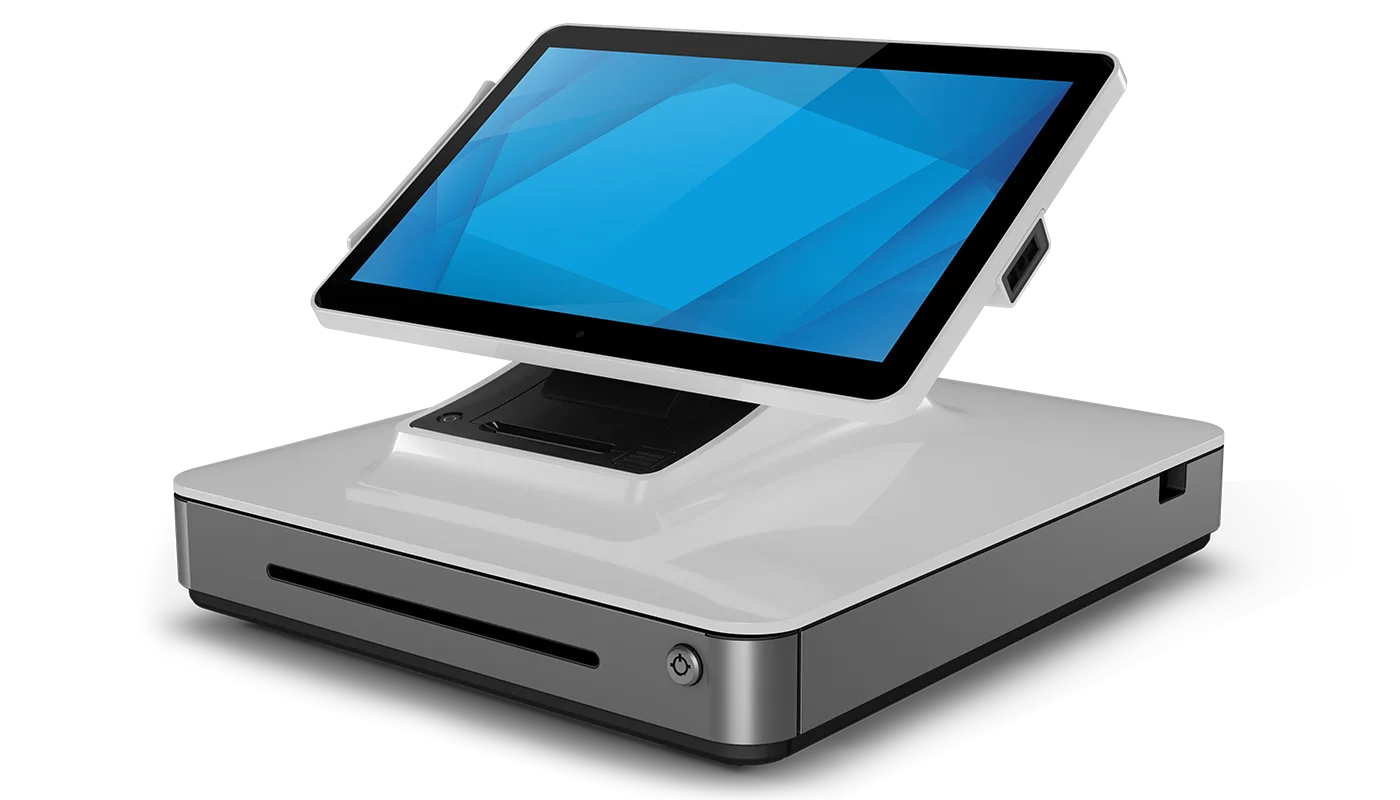

PayPoint™ for Android™ combines a reliable and secure, commercial-grade POS System with flexibility and functionality of Google Play Services. Running Android 8.1 and powered by a blazing-fast blazing-fast Qualcomm™ Snapdragon™ octa-core processor, the all-in-one mPOS solution brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint provides everything a merchant needs in a compact Android-powered system including a 13.3-inch touchscreen, fully integrated peripherals and connections for third party devices. With a flip-for-signature touchscreen and built-in customer facing display to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
Whether you deploy one hundred or one hundred thousand PayPoint devices, EloView™ makes it easy to connect and control them while Google Mobile Services gives you access to Google’s most popular apps and APIs. Available with your choice of size and configuration, the POS system is designed to offer versatility across environments with the durability to meet the demands of continuous public use.
With its single cable design, PayPoint makes setting up the mobile point of sale system fast and easy. Just plug in, connect, and go.
Whether in a retail or QSR environment, counter space is at a premium when it comes to the POS system. Ensuring that the counter looks inviting and remains functional is of the utmost importance. With its small footprint and attractive design, PayPoint for Android turns the cash wrap into a beautiful and functional space to allow you to better serve your customers.

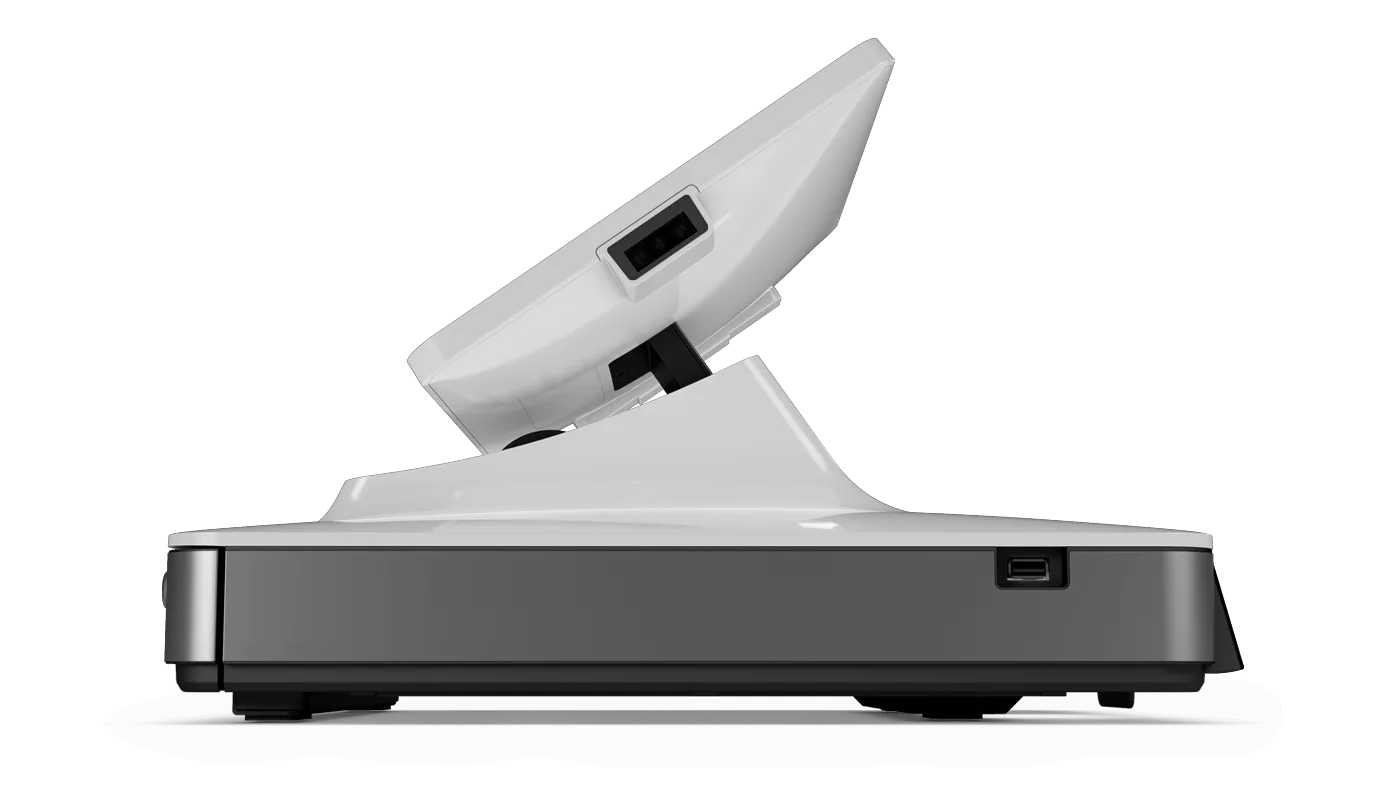

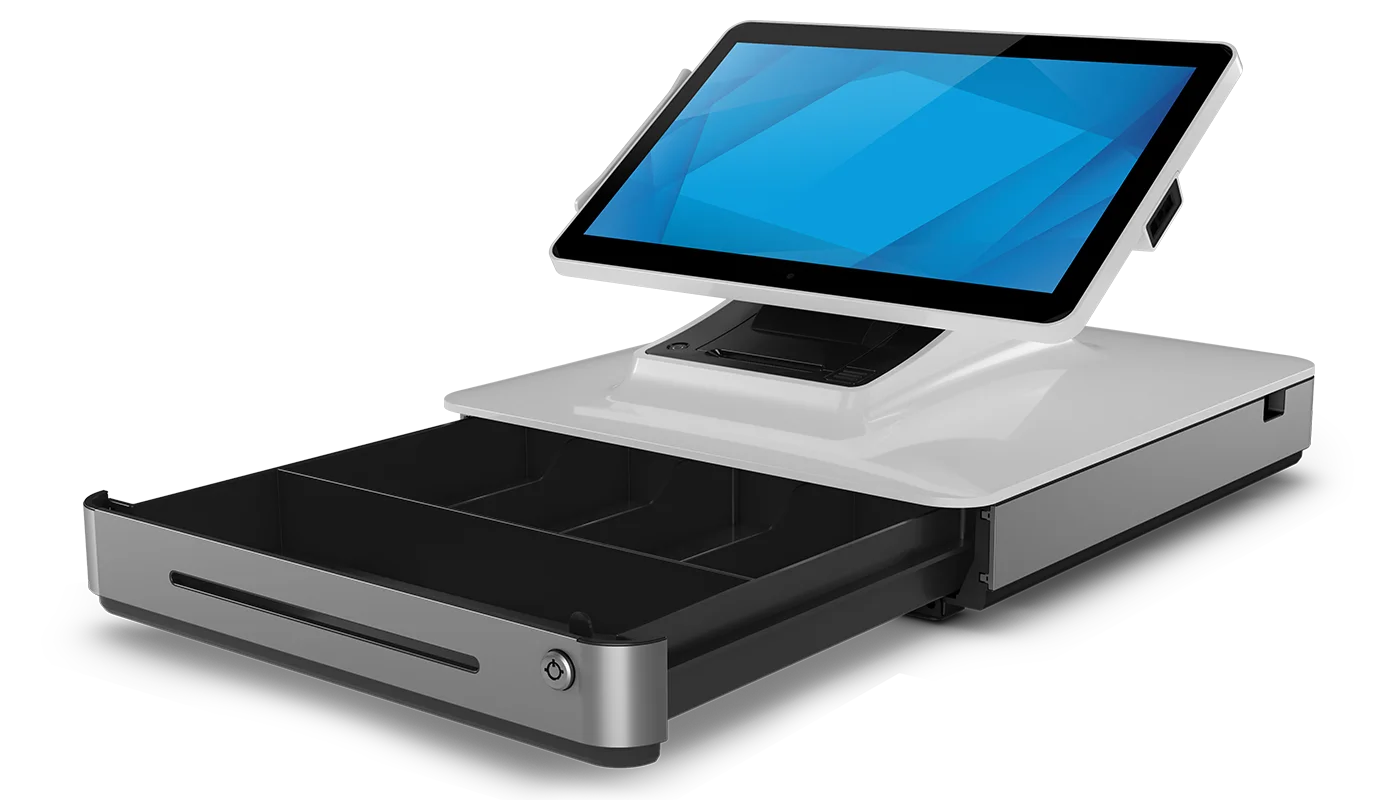

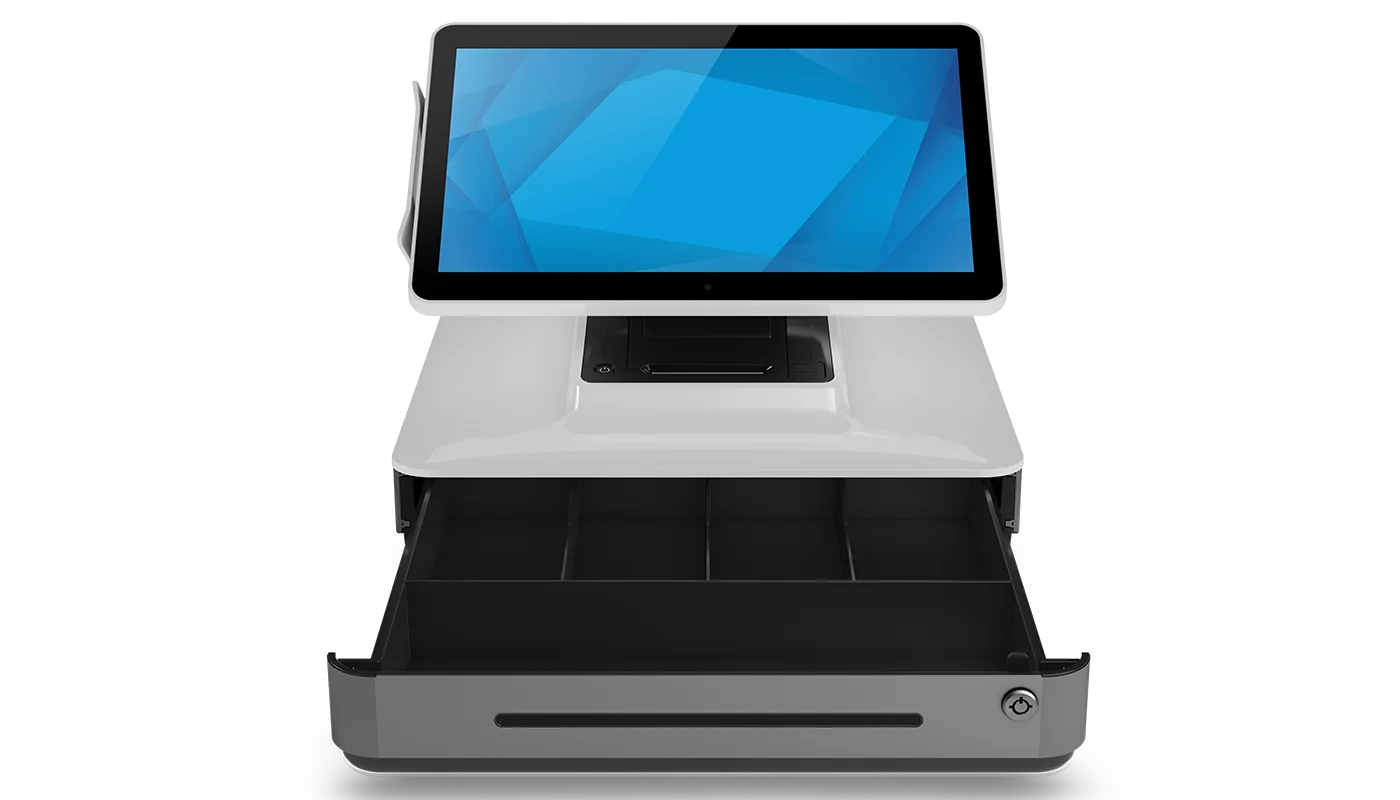

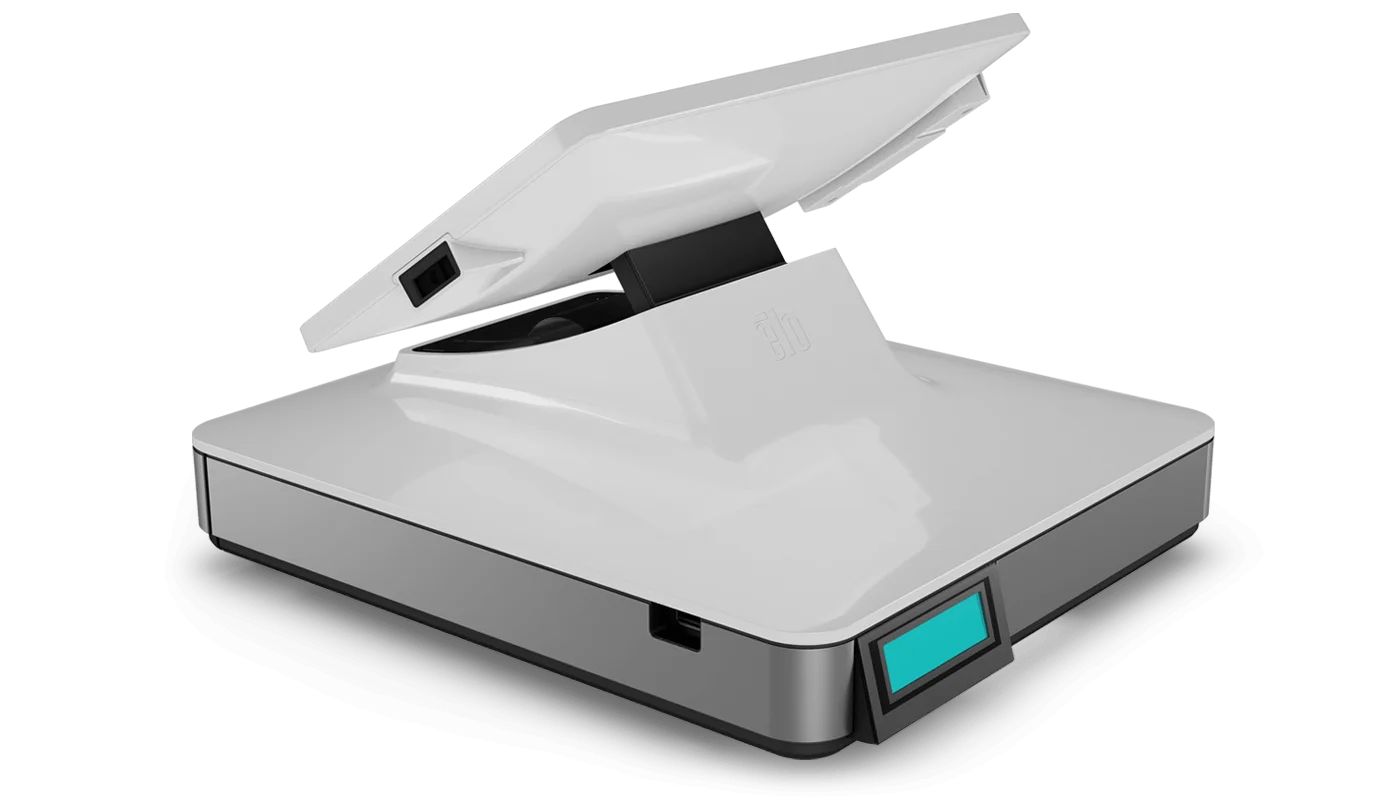

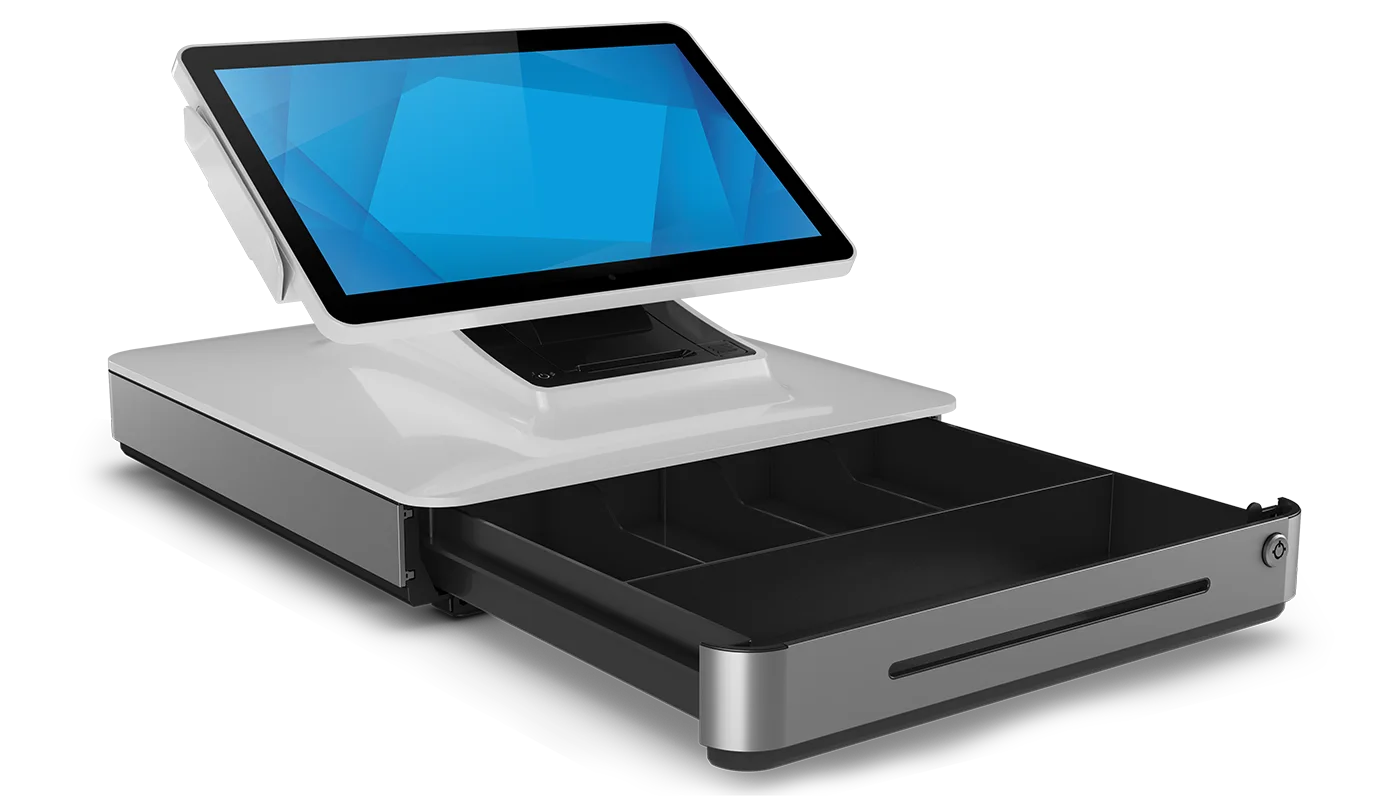

The PayPoint for Android POS platform integrates a receipt printer, cash drawer, MSR, barcode scanner and, on select models, customer facing display. The flip-for-signature screen encourages shopper engagement and electronic receipt delivery. Bluetooth 4.1 connectivity and expansion ports allow for the addition of optional peripherals such as a handheld scanner or weight scale.

Specifications

Technical

Part Number(s): White (North America) - E463541; Black (North America) - E463738; White (Worldwide) - E463943; Black (Worldwide) - E464141
Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - up to 5 touches
Diagonal Size: 13.3'' diagonal, Active matrix TFT LCD
Aspect Ratio: 16:9
Resolution: 1920 x 1080 @ 60Hz
Active Area: 11.53" x 6.49" / 293 mm x 165 mm
Brightness (typical): LCD Panel: 350 nits; PCAP: 300 nits
Response Time-total (typical): 30 msec
Touch Interface: USB/I2C
Contrast Ratio: 800:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
OS: Android 8.1™ Oreo™ with Google™ Play Services; EloView® content deployment and management
Processor: Qualcomm Snapdragon 2.0GHz Octa-Core
Memory (RAM): 3GB
Storage: 32GB; NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less
USB Ports: 1 x USB 2.0; 1 x mini USB 2.0
Ethernet Port: 1 x LAN (Gigabit)
Wireless: 802.11 b/g/n/ac + Bluetooth 4.1
Magnetic Stripe Reader (MSR): Magtek 3 track encryptable; Default Security Level 2
Barcode Reader: 1D CCD
Customer Display: 2x16 character display
Printer: 2" thermal printer with tear bar
Cash Drawer: 4 bill, 5 coin built in cash drawer; Removable coin slot insert; Slot for checks
Speakers: 1 x 1W internal speaker
Power: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): 56W
Dimensions: 13.6" x 11.3" x 8.4" / 345 mm x 288 mm x 212 mm
Shipping Box Dimensions: 17.7" x 18.7" x 13.4" / 450 mm x 475 mm x 340 mm
Weight (Unpackaged): 13.85 lbs / 6.28kg
Weight (Packaged): 19.25 lbs / 8.73kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Real-Time Clock: lithium coin cell battery
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582
Sealability: Touchscreen sealed to LCD (all)
Power Cables: Internal Power Supply (North American or China, European or UK)
Mounting Options: Ability to secure base to tabletop
What's in the Box: 13-inch PCAP display, cash drawer, printer, MSR, barcode scanner, customer facing display, Power cable, 2 receipt paper rolls, 2 cash drawer keys, Quick Installation Guide
Optional Accessories: PayPoint NFC Kit - Elo P/N: E149962; PayPoint Cash Drawer Kit US - Elo P/N: E332393; PayPoint Cash Drawer Kit Worldwide - Elo P/N: E332197; EMV Cradle for Ingenico ICMP - Elo P/N: E953516
Regulatory approvals and declarations: UL/cUL, FCC, CE, CB, CCC, SRRC
Supported Countries: Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Contact PayPoint Sales: 1.844.356.3548

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: EloPOS for Android
Status basis: elotouch.com product page marks it as discontinued
