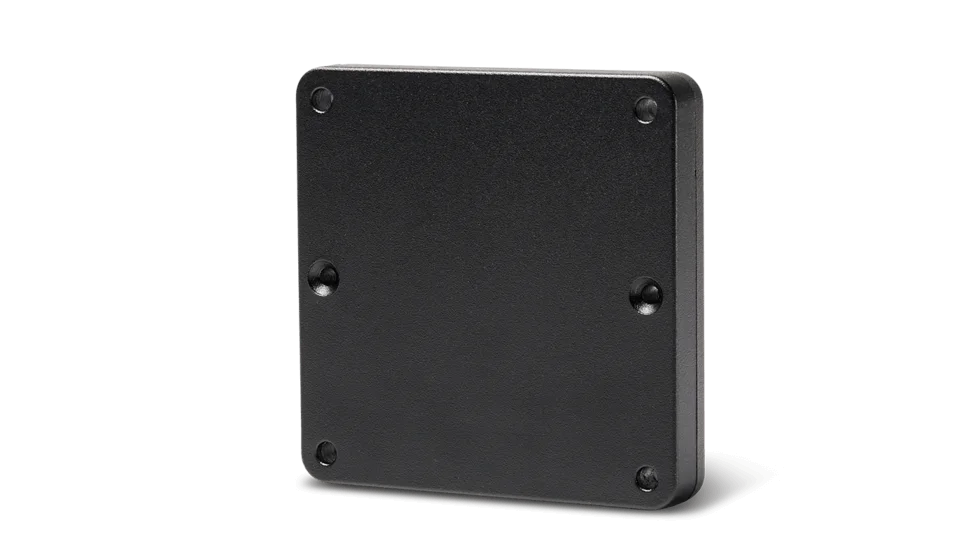

Name: Elo Touch Power-over-Ethernet (POE) Module (For I-Series 2.0/3.0 for Android)
Brand: Elo Touch

Overview

The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the I-Series 2.0/3.0 for Android. The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source. So instead of requiring a power drop which can be expensive, you can run a low voltage network to simplify installation of solutions for shelf signage and AV applications like conference room schedulers or AV control displays.

Available Features — When using the POE Module with the I-Series 2.0/3.0 for Android
10 Value 15 Value 10 Standard 15 Standard 22 Standard Micro SD Card Available Available Available Available Not Available WiFi Not Available Not Available Not Available Not Available Not Available Bluetooth Available Available Available Available Available Camera Not Available Not Available Available Available Not Available Touch Available Available Available Available Available Audio Available Available Available Available 50% (user selectable)* Ethernet Available Available Available Available Available USB Peripheral Ports Not Available Not Available 1 port (user selectable)** 1 port (user selectable)** 1 port (user selectable)** USB 3.0 Type A Available Available Not Available Not Available Not Available HDMI Out Not Available Not Available Not Available Not Available Not Available GPIO Available Available Available*** Available*** Available*** * Audio – if enabled, will be limited to 50% volume
Notewhen using PoE with the 21.5 i-series 2.0/3.0, brightness will be limited to 70%

Specifications

Technical

Part Number(s): E615169
Enclosure Color: Black
POE Standard Protocols: IEEE802.3, 10BASE T/1000BASE-T IEEE802.3u,100BASE-TX, IEEE802.3at, Power over Ethernet
Input Connection: POE+ (30W) - Warning: Please do not use other types of PoE such as PoE (15.4W) or UPoE (65W)
Dimensions: 3.5" x 3.5" x 0.8" / 89.2 mm x 89.2 mm x 20.5 mm
Shipping Box Dimensions: 6.5" x 6.3" x 2.5" / 165 mm x 160 mm x 63.5 mm
Mounting Options: Adding a spacer bracket will allow 100 mm x 100 mm VESA mounting. For more information about mounting, please review the User Manual and Quick Install Guide
Weight (Unpackaged): 0.35 lbs / 0.16 kg
Weight (Packaged): 0.70 lbs / 0.32 kg
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 50°C (-4°F to 122°F)
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Warranty: 2-year
Regulatory approvals and declarations: POE Module only: UL/cUL (US), IC (Canada), CE (Europe), CB (International), VCCI (Japan), RCM (Australia), KCC (Korea); Tested with I-Series 2.0/3.0 for Android - FCC (US), China RoHS (China)
What's in the Box: POE Device; Quick Install Guide; 2x M3 x 16mm screws; 4x M4 x 18mm flat head screws; 4x M4 x 18mm pan head screws; 1x POE Spacer
Note: I-Series 2.0/3.0 for Android features vary when using the POE Module. Please review the datasheet for more information.

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
