Elo Touch 5503L 55" Interactive Display

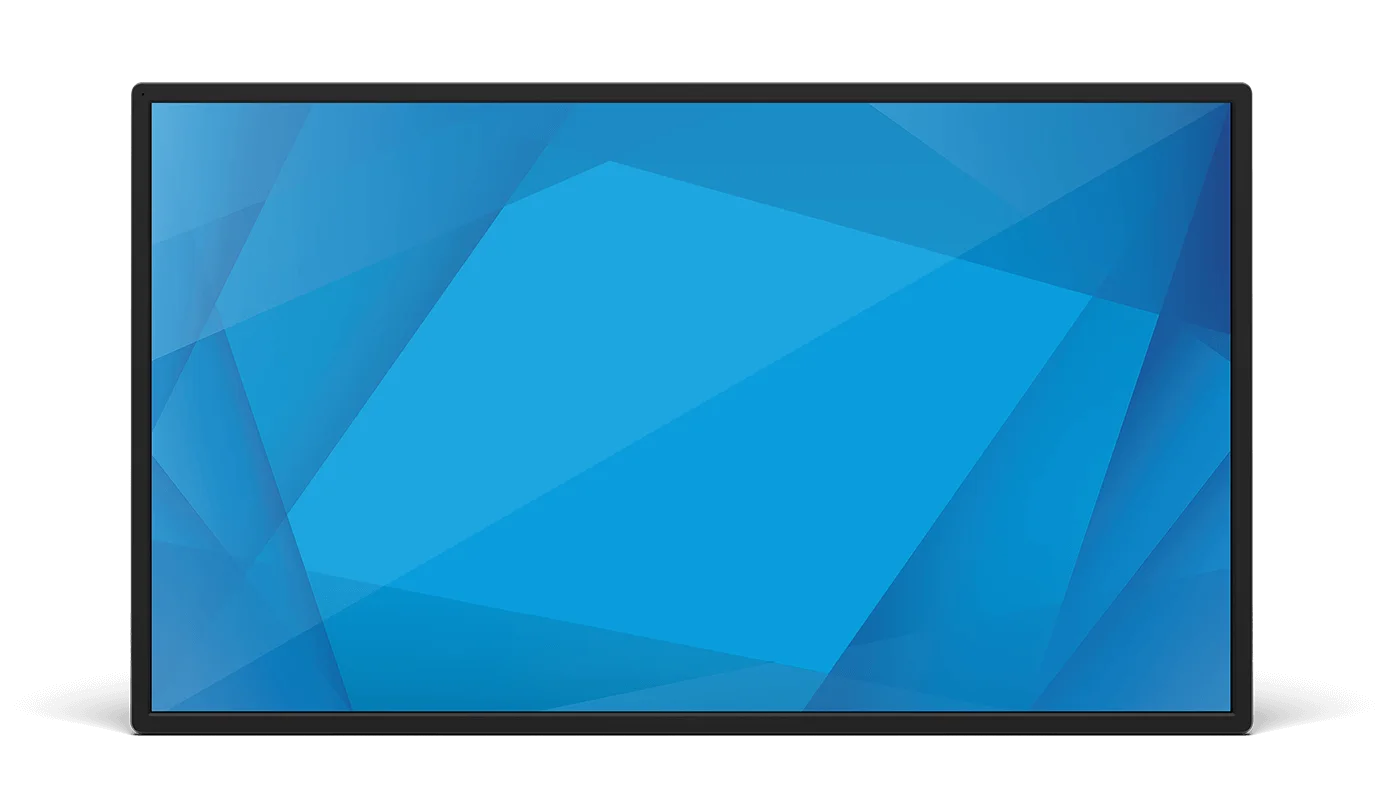

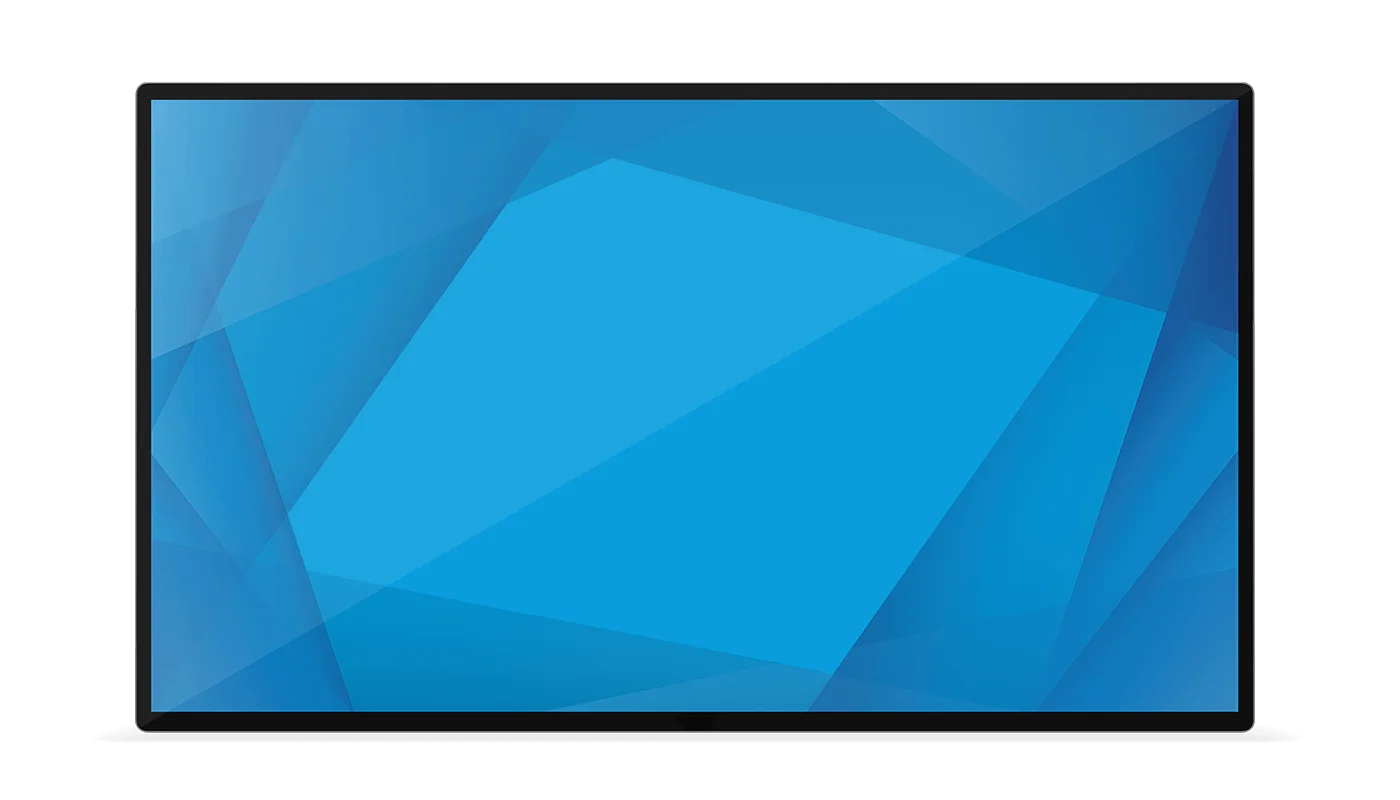

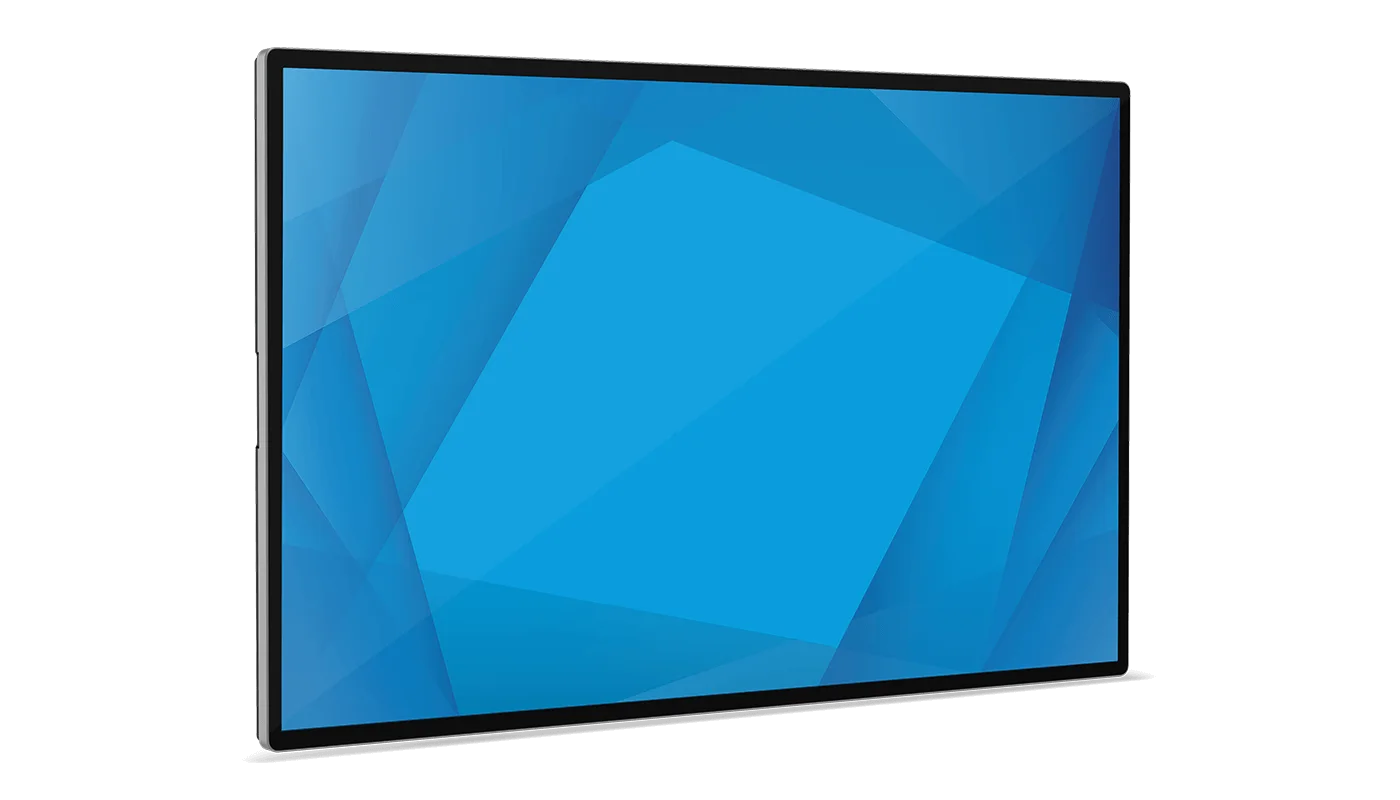

Elo's 55" 5503L Interactive Display

Display55'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The Elo 5503L 55-inch touch screen monitor provides a brilliant canvas for adding interactivity to any environment. Perfect for everything from endless aisle and brand experiences to menu boards, collaborative meetings and dashboarding, the 5503L digital signage display offers a sleek, slim design built to withstand the rigors of continuous commercial use. And with Elo’s computer modules, you can easily turn the display into a powerful, all-in-one, life-size 55-inch tablet.

Available with Elo’s industry leading TouchPro® PCAP technology enabling up to 40 touches or Infrared with up to 20 touches, Elo’s 5503L delivers fast and extremely sensitive response time. Elo’s TouchPro PCAP also offers anti-friction glass to minimize heat as fingertips drag across the screen and touch thru capability, allowing the interactive display to be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Boot Barn Testimonial Boot Barn chose Elo’s interactive digital signage display, the Elo Backpack® and EloView® software to power their Range Finder kiosk.

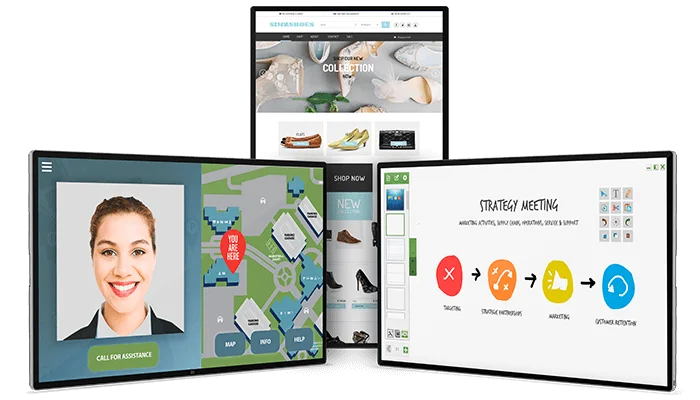

Purpose-built to make collaboration easy – simply add your software of choice with the 55" Interactive Display to enable seamless meetings and heightened teamwork with the effectiveness of an in person meeting. Start driving concepts and innovation beyond what a phone call, projector or whiteboard and dry erase marker once did.

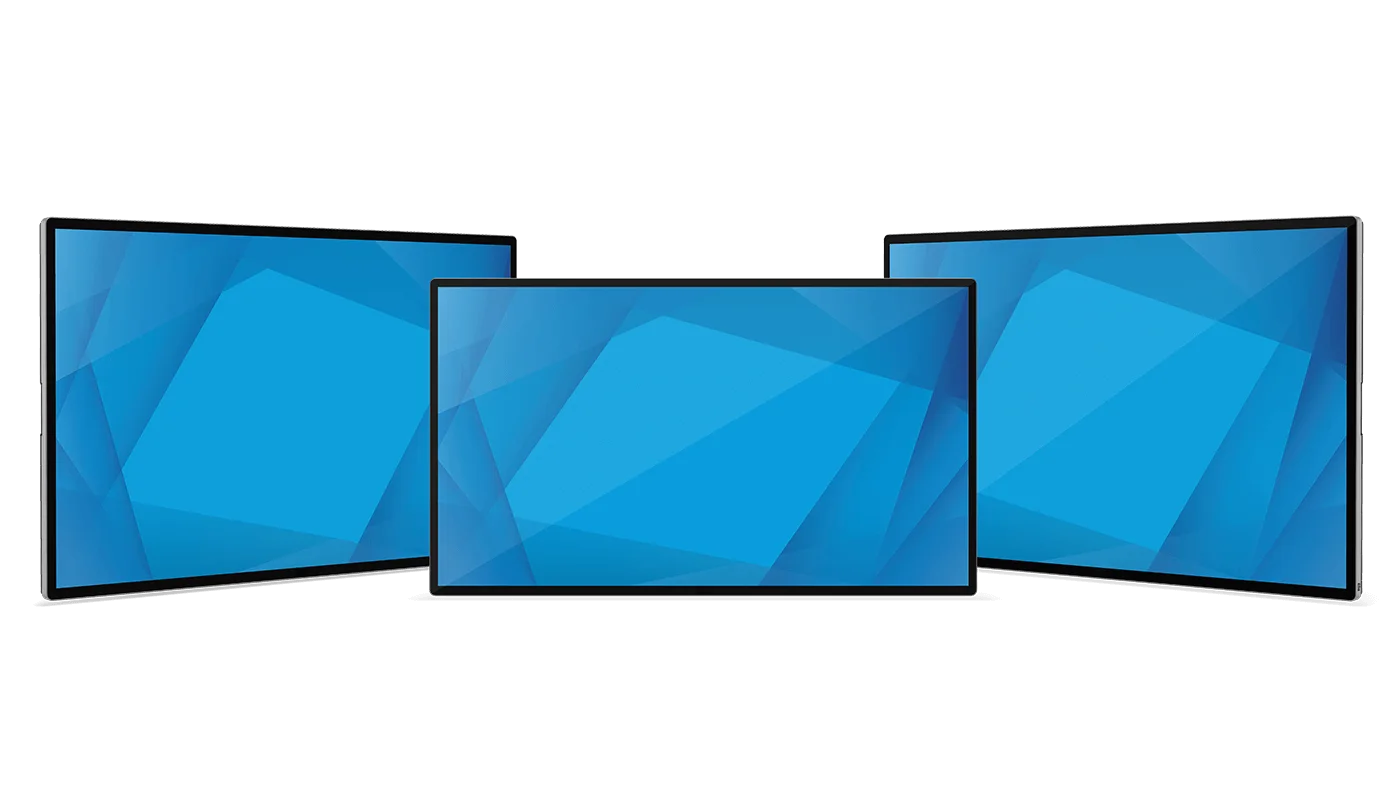

From 32- to 65-inches, choose the digital signage display size that fits each space perfectly.
The 5503L digital signage display offers a flexible design that can be easily configured to fit any use with Elo Edge Connect™ compatibility. Choose from a variety of accessories including payment devices, cameras, barcode readers and many others - configuration is up to you and can be easily changed at any time.

Videos

Elo 5503L 55" Interactive Display video

Specifications

Technical

Part Number(s): TouchPro PCAP (clear with anti-friction) - E531934; Infrared (clear) - E532139
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability; Infrared - 20 Touch
Touch Thru: TouchPro PCAP supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
Touch Interfaces: USB-C
Diagonal Size: 55'' diagonal, Active matrix TFT LCD (LED)
Active Area: 47.62" x 26.79'' / 1209.6 mm x 680.4 mm
Aspect Ratio: 16:9
Resolution: 1920 x 1080 @ 60hz
Other Supported Resolutions: 640x480 60Hz; 800x600 56/60Hz; 1024x768 60Hz; 1280x720 60Hz; 1280x960 60Hz; 1280x1024 60Hz; 1920x1080 50/60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 8-bit + FRC (1.07 billion)
Brightness (typical): LCD Panel: 450 nits; PCAP: 382 nits; IR: 405 nits
Response Time-total (typical): 8 msec
Contrast Ratio: 4000:1
On Screen Display: Let’s Get Started: Language Selection, Time Setting, Time Zone; Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C, Internal-PC DP, Internal-PC HDMI; Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio can be selected; Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range are available in this menu.; Audio Settings: Audio Input, Audio Output, Mute, Volume selection are available here.; Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options are available here; Time: Time Set, On/Off Schedule; OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Switch, Tabletop; Information: Monitor, Temperature, Help and Support are available here; See user manual for full details.
I/O Ports: HDMI 1.4 x2; USB-C (for Touch and video); RJ45 (for optional OSD remote); DisplayPort 1.2; 3.5mm TRS jack (for RS232); 3.5mm Audio Headphones out; Elo Edge Connect Micro USB 2.0 x4
Control Buttons: Power; Video Source Selection; On Screen Display
Video: 2x HDCP-capable HDMI on Type A connector (HDR feature support); DisplayPort 1.2 connector; USB-C connector; Input Video Horizontal Sync frequency range: 30 – 69KHz; Input Video Vertical Sync (frame rate) frequency range: 24 – 64Hz
Headphone Output Connector: 3.5 mm TRS jack
Speakers: 2 x 10 W stereo speakers
Power: Input connector (power): IEC 60320-C13; Input signal specifications (power): 100-240VAC 50/60Hz
Maximum Operating Time: 24 hours/day
Power Consumption (Typical): Monitor + AC/DC adapter:; ON: 81 W; SLEEP: 1.8 W; OFF: 0.3 W; Monitor with ECMG4 + AC/DC adapter:; ON: 207 W; SLEEP: 8.6 W
Dimensions: TouchPro PCAP: 50.07" x 29.24" x 3.15" / 1271.8 mm x 742.6 mm x 80 mm; IR: 50.07" x 29.24" x 3.54" / 1271.8 mm x 742.6 mm x 89.8 mm
Shipping Box Dimensions: 55.12" x 36.61" x 9.61" / 1410 mm x 930 mm x 244 mm
Weight (Unpackaged): TouchPro PCAP:; With ECMG4: 81.76 lbs / 37.09 Kg; Without ECMG4: 77.69 lbs / 35.24 Kg; IR:; With ECMG4: 82.67 lbs / 37.50 Kg; Without ECMG4: 80.79 lbs / 36.65 Kg
Weight (Packaged): TouchPro PCAP:; Without ECMG4: 93.18 lbs / 42.27 Kg; IR:; Without ECMG4: 93.93 lbs / 42.61 Kg
Operating Temperature: Portrait/Landscape Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F; Table top Mode: 0° C to 35° C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7°C max wet bulb temperature)

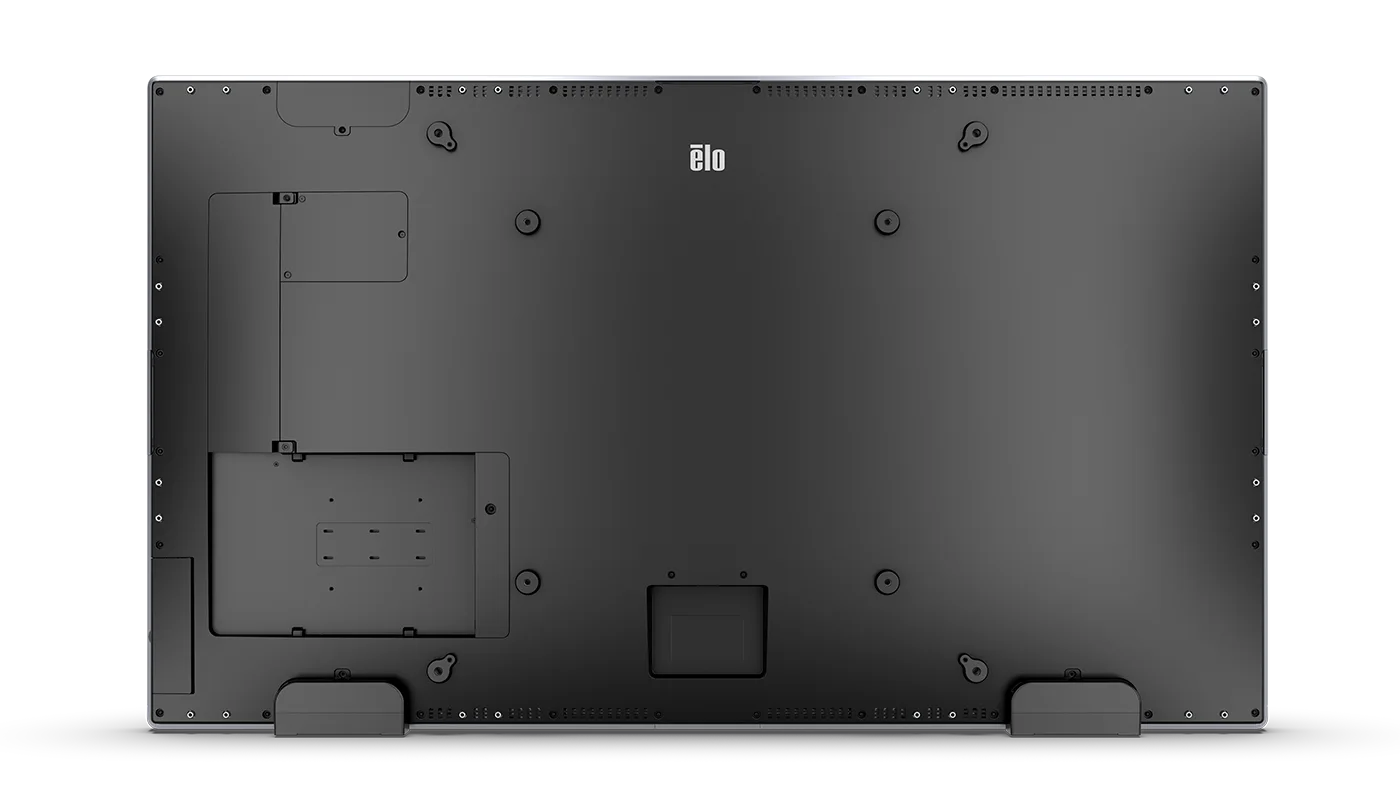

Mounting Options: VESA 400 x 400mm, M6; VESA 600 x 600mm, M8
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year with AUR included
Extended Service Options: 4 year warranty coverage + AUR - Elo P/N: E740135; 5 year warranty coverage + AUR - Elo P/N: E740330; 3 year warranty coverage + OSE - Elo P/N: E740527; 4 year warranty coverage + OSE - Elo P/N: E740728; 5 year warranty coverage + OSE - Elo P/N: E740918
Regulatory approvals and declarations: UL 62368-1; FCC (US); cUL, IC (Canada); CB (International safety) (IEC/EN60950-1+IEC/EN62368-1); CE (Europe); VCCI (Japan); RCM (Australia); CCC, China RoHS (China) (for TouchPro version only); IK07 and UL60950 for ball drop test; EAC (Russia); NOM (Mexico)
Energy Star: 8.0
Other Features: Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
What's in the Box: Quick Install Guide; HDMI 2.0 cable (Type A plug to Type A plug); USB cable (Type A plug to Type C plug); Power cable, IEC 60320-C13 to NA plug; Power cable, IEC 60320-C13 to EU/KR plug; Power cable, IEC 60320-C13 to UK plug; Serial 3.5mm male to Serial DB9 female cable (MDC Cable); Energy label according to EU Regulation 1062/2010
IDS Optional Accessories: 2D Barcode Scanner (SE4720) – Elo P/N: E384627; 2D Barcode Scanner (SE4107) – Elo P/N: E245047; Magnetic Stripe Reader – Elo P/N: E001002; NFC/RFID Reader – Elo P/N: E001004; EMV Cradle for Ingenico ICMP - Elo P/N: E200788; EMV Cradle for Verifone E355 - Elo P/N: E201363; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Fingerprint Scanner – Elo P/N: E134286; Wired OSD Remote - Elo P/N: E483757; Passive Stylus - Elo P/N: E727568; Active PCAP Stylus - Elo P/N: E216215; Replacement Cable Kit - Elo P/N: E141067; i5-7500 ECMG4 with No OS - Elo P/N: E227895; i5-7500 ECMG4 with Win10 (LTSC) - Elo P/N: E228087; Wallmount - Elo P/N: E727774; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; Elo Backpack® 4 (Value Model) - Elo P/N: E393754; Elo Backpack® 4 (Standard Model) - Elo P/N: E393359; RFID - Elo P/N: E673037

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: 5554L
Status basis: elotouch.com lists it as replaced by 5554L
