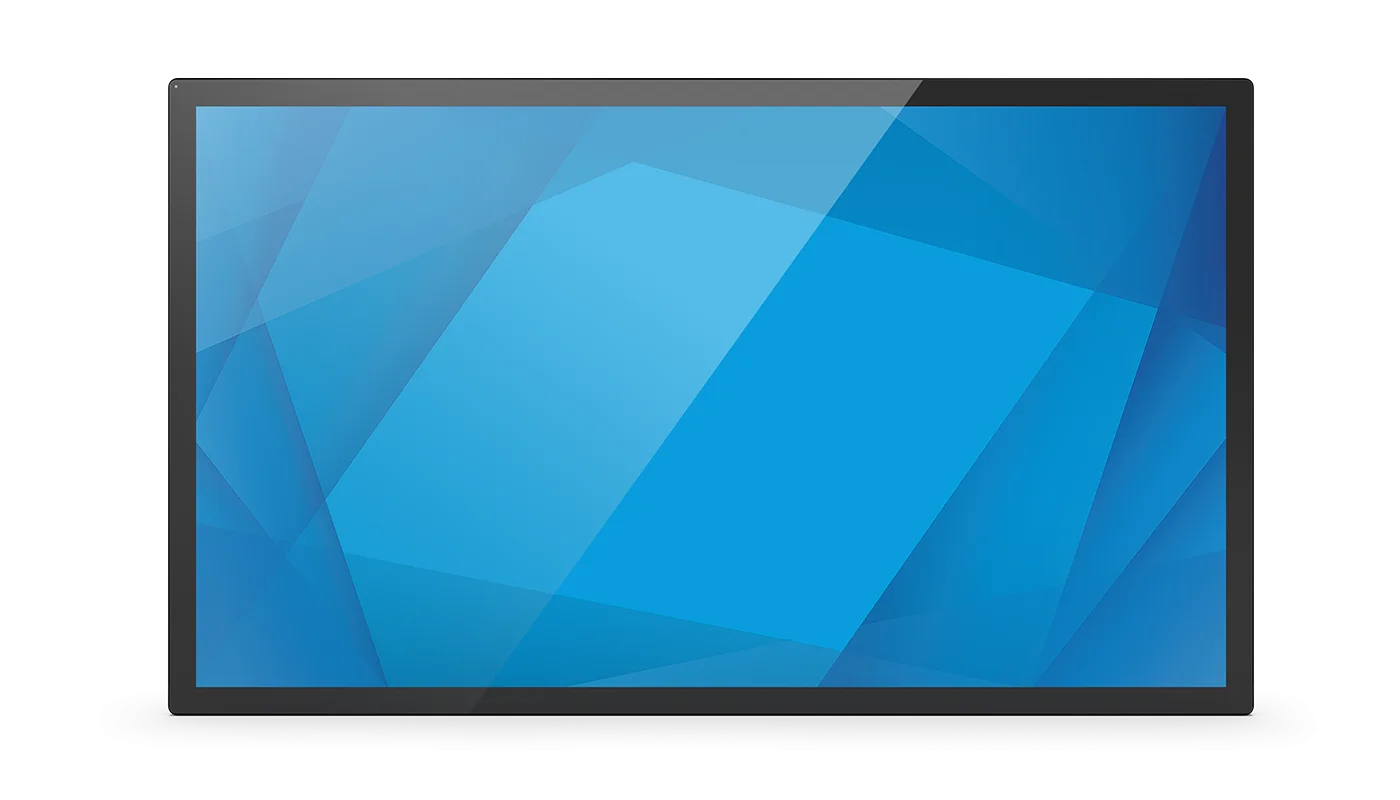

5054L 50" (4K) Interactive Display by Elo

Elo Touch · Display

Elo Touch 5054L 50" (4K) Interactive Display

Display50'' / 1270 mm diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

Elevate your applications with Elo’s 5054L 50‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 5054L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 50‑inch tablet.

With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.
Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 5054L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.
With touch thru capability, Elo’s TouchPro™ PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

Best for: Digital Menu Boards · Conference Room Technology · Conference Room Displays & Interactive Whiteboards

Specifications

Technical

Part Number(s): TouchPro PCAP (clear with anti-friction) - E103538; TouchPro PCAP (anti-glare) - E103738; IR (clear with anti-friction) - E103937
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability; Infrared - 20 Touch
Touch Thru: Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
Touch Interfaces: USB-C
Diagonal Size: 50'' / 1270 mm diagonal, Active matrix TFT LCD (LED)
Active Area: 43.14" x 24.27" / 1095.8 mm x 616.4 mm
Aspect Ratio: 16:9
Resolution: 3840 x 2160 @ 60 Hz
Other Supported Resolutions: 640 x 480 @ 60Hz; 800 x 600 @ 56/60Hz; 1024 x 768 @ 60Hz; 1280 x 720 @ 60Hz; 1280 x 960 @ 60Hz; 1280 x 1024 @ 60Hz; 1920 x 1080 @ 50/60Hz; 2560 x 1440 60 Hz; 2560 x 1600 60 Hz; 3840 x 2160 30/60 Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 8-bit + FRC (1.07 billion)
Brightness (typical): LCD Panel: 500 nits; PCAP: 430 nits \IR: 450 nits
Response Time-total (typical): 9.5 msec
Contrast Ratio: 4000:1
Compute mounting options: Elo Backpack 4 & 5 with Android; Elo Backpack with Intel; Intel NUC with 100 mm x 100 mm VESA mounting plate; BrightSign XT/XD/XC/HD Series Player
Built-in IoT control: EloView: Elo Cloud control supported; Crestron: Crestron Connected V2 supported
On Screen Display: Let’s Get Started: Language Selection, Time Setting, Time Zone; Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C; Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio; Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range; Audio Settings: Audio Output, Mute, Volume selection; Information: Monitor, Temperature, IoT Network status, IoT Error Message, Help and Support; Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options, HDMI CEC; Time: Time Set, On/Off Schedule; OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Through, Tabletop; Configuration: Source Port Lock (Will sync to EloView when connected), FW Update (via OTA or USB); Configuration 2: IoT connectivity setting and Network time sync. switch.; See user manual for full details.
I/O Ports: 2x HDMI 2.0; USB-C (for Touch control and Video input); USB-A (for Wi-Fi Adapter only); RJ45 (for IoT LAN port); RJ45 (for optional OSD remote); DisplayPort 1.4; 3.5mm TRS jack (for RS232/MDC); 3.5mm Audio Headphones out; 4x Elo Edge Connect Micro USB 2.0
Control Buttons: Power; Video Source Selection; On Screen Display
Video: 2x HDMI on Type A connector (HDCP-capable); DisplayPort 1.2 connector (HDCP-capable); USB-C connector (HDCP-capable); Input Video Horizontal Sync frequency range: FHD: 30 – 135 KHz; Input Video Vertical Sync (frame rate) frequency range: 24 - 64 Hz
Headphone Output Connector: 3.5 mm TRS jack
Speakers: 2 x 8 W stereo speakers
Power: Input connector (power): IEC 60320-C13; Input signal specifications (power): 100-240VAC 50/60Hz; Output connector (bypass input power to backside device): IEC 60320-C14; AC outlet short cable (IEC C14 to C5 head) power rating: 100V/2A (200Watt), 220V/2A (440Watt)
Maximum Operating Time: 24 hours/day
Power Consumption (Typical): ON: 99 W; SLEEP: 2.3 W; OFF: 0.28 W
Dimensions: PCAP: 45.71" x 26.84" x 2.11" / 1161.1 mm x 681.7 mm x 53.6 mm; IR: 45.71" x 26.84" x 2.50" / 1161.1 mm x 681.7 mm x 63.4 mm
Shipping Box Dimensions: 51.57" x 37.0" x 7.36" / 1310 mm x 940 mm x 187 mm
Weight (Unpackaged): PCAP: 56.79 lbs / 24.23 kg; IR: 56.99 lbs / 24.42 kg
Weight (Packaged): PCAP: 69.84 lbs / 30.79 kg; IR: 71.1 lbs / 30.89 kg
Operating Temperature: Portrait/Landscape/Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F; Table top Mode: 0° C to 35° C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7°C max wet bulb temperature)

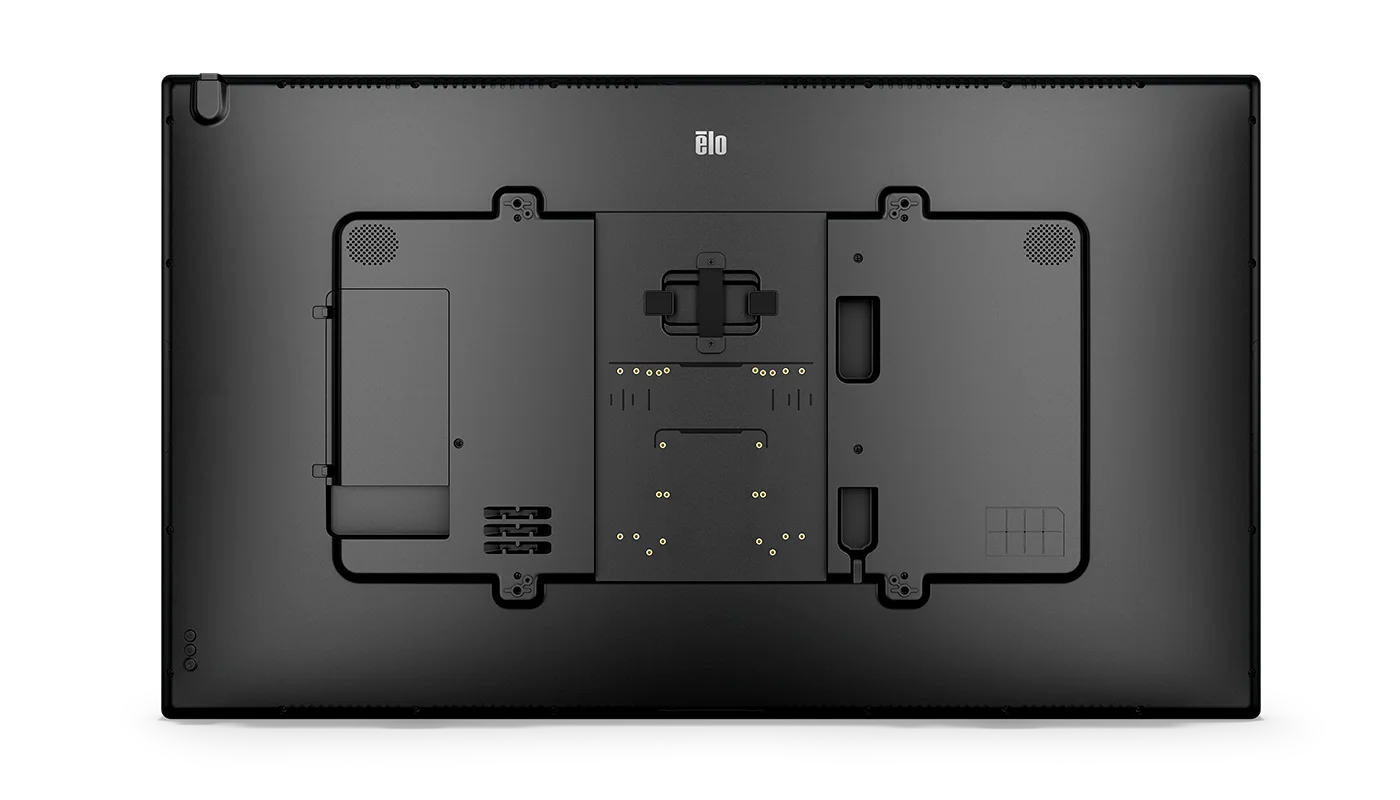

Mounting Options: VESA 400 x 400mm, M6
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year with AUR included
Extended Service Options: 4 year warranty coverage + AUR - Elo P/N: E740135; 5 year warranty coverage + AUR - Elo P/N: E740330; 3 year warranty coverage + OSE - Elo P/N: E740527*; 4 year warranty coverage + OSE - Elo P/N: E740728*; 5 year warranty coverage + OSE - Elo P/N: E740918*; *Continental US only
Regulatory approvals and declarations: UL 62368-1; FCC/CEC (US); cUL, IC (Canada); CB (International safety) (IEC/EN60950-1+IEC/EN62368-1); CE (Europe); VCCI (Japan); RCM (Australia); CCC/CEL, China RoHS (China); NOM Mexico; KCC (Korea); IK07 and UL60950 for ball drop test
Energy Star: 8.0
Other Features: Ambient Light Sensor - changes panel color to match ambient light, Auto Wake; OTA FW upgrade
What's in the Box: 5054L Interactive Display; Quick Install Guide; AC(in) Power cable, IEC 60320-C13 to NA plug; AC(in) Power cable, IEC 60320-C13 to EU/KR plug; AC(in) Power cable, IEC 60320-C13 to UK plug; AC(out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m) (With PSE certified); USB cable (1m) (Connector: Type-C to Type-C); Energy label according to EU Regulation 2019/2013, 1x EU EEI, 2x UK EEI; 4x M4x6mm flat head screws (for BrightSign players)
IDS Optional Accessories: 2D Barcode Scanner (SE4107) – Elo P/N: E245047; 2D Barcode Scanner (SE2707) – Elo P/N: E393160; Fingerprint Scanner – Elo P/N: E134286; Stand for IDS - Elo P/N: E722153; Wired OSD Remote - Elo P/N: E483757; Wall Mount Kit - Elo P/N: E721949; Replacement Cable Kit - Elo P/N: E285277; Passive Stylus - Elo P/N: E727568; Active PCAP Stylus - Elo P/N: E216215; Elo Backpack® 4 (Value Model) - Elo P/N: E393754; Elo Backpack® 4 (Standard Model) - Elo P/N: E393359; Elo Backpack® 5 (Standard Model) - Elo P/N: E620713; Elo Backpack® with Intel, Win 11, N97, 8GB RAM, 128GB SSD - Elo P/N: E345569; Elo Backpack® with Intel, Win 11, i3, 16GB RAM, 256GB SSD - Elo P/N: E346150; Elo Backpack® with Intel, Win 11, i5, 16GB RAM, 256GB SSD - Elo P/N: E346532; RFID - Elo P/N: E673037; 4K Conference Camera - Elo P/N: E988153; Elo Backpack® Linux- Elo P/N: E143585; Wi-Fi Adapter Kit - Elo P/N: E131942; 1.8M HDMI 2.0 Cable - Elo P/N: E951189; 1.8M RS232 Cable - Elo P/N: E959434; 1.8M USB Type-A to Type-C Cable - Elo P/N: E951381; 1.8M DisplayPort to DisplayPort video Cable - Elo P/N: E582895; Elo 1M USB Type-C Cable Kit - Elo P/N: E802914; Bracket for EloPOS Pack - Elo P/N: E272155

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
