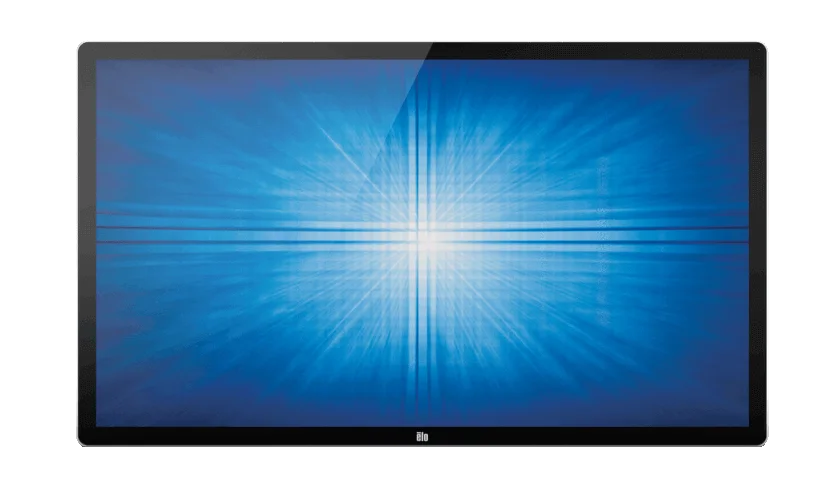

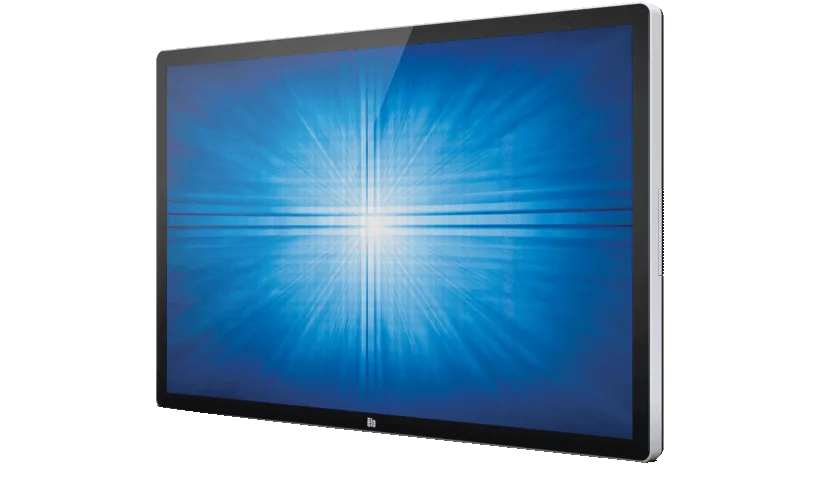

Elo Touch 4602L 46" Interactive Digital Signage
Elo 4602L Touchscreen Signage Display
- Display46'' diagonal, Active matrix TFT LCD (LED)
- SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
Add interactivity to any environment with Elo’s 4602L 46-inch touchscreen display. With a brilliant and responsive interactive canvas for leveraging a variety of content, the professional-grade large format display is well-suited for creating engaging experiences. From endless aisle and brand experiences to way-finding and collaboration, Elo’s touchscreen displays from 10 to 70 inches offer everything you need in a sleek, slim design and are built to withstand the rigors of continuous public use.
- Not only do high traffic environments demand interaction, but meeting rooms and classrooms do as well. They introduce heightened collaboration capabilities between the instructor and their audience, helping to drive concepts and innovation beyond what a whiteboard and dry erase marker once did.
- The 4602L is available with two touch technology options. Both enable 10+ touch for multi-user interaction with fast and sensitive responses. TouchPro™ PCAP offers clear anti-friction edge-to-edge glass with touch thru performance. Infrared (IR) offers ease of scalability to larger sizes with an extra level of protection against scratches.
- Expand your touchscreens potential by adding an EMV reader, NFC/RFID, MSR, barcode reader or one of our many other accessories. With the Elo Edge Connect system, accessories attach flush to the edge of the touchscreen/display for a clean design and extended functionality. On the 4602L touchscreen monitor, you can easily add any combination of up to four Edge Connect products – configuration is up to you and easily changed at any time.
- With high-powered CPU options for Android or Windows OS, Elo enables a seamless end-to-end solution from one manufacturer for interactive experiences. Purpose-built for compatibility and long life-cycles, the compute modules and touchscreen systems create one of the most robust and reliable solutions on any platform.
- The Elo Computer Modules (ECMs) for Windows slide into the back of the touchscreen display to deliver one of the industry's thinnest commercial grade all-in-one large format touchcomputers. AC power, video and USB signals pass between the computer module and the display making field installation and maintenance easy with no external cables required.
Videos
Specifications
Technical
- Part Number(s)
- Infrared (clear) - E222370; TouchPro PCAP (clear with anti-friction) - E222373
- Enclosure Color
- Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 12 Touch; Infrared - 20 Touch
- Touch Interfaces
- USB
- Diagonal Size
- 46'' diagonal, Active matrix TFT LCD (LED)
- Active Area
- 40.08" x 22.55" / 1018.08mm x 572.67mm
- Aspect Ratio
- 16:9
- Resolution
- 1920 x 1080 @ 60hz
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD Panel: 500 nits; IR: 450; PCAP: 430 nits
- Response Time-total (typical)
- 6.5 msec
- Contrast Ratio
- 4000:1
- I/O Ports
- Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in; Output: Audio Headphones out, RJ45 (for optional OSD remote)
- Input Video Frequency
- Horizontal: 31.5 - 73 KHz; Vertical: 47 - 63 Hz
- Audio Input Connector
- 3.5 mm TRS jack
- Audio Input Signal Range
- 1Vrms max stereo signal (standard PC line out)
- Headphone Output Connector
- 3.5 mm TRS jack
- Speakers
- 4 x 5 W stereo speakers
- Power Supply
- AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080
- Input Connector
- IEC 60320 C6
- Input Voltage
- 100 - 240 VAC 50/60Hz
- Maximum Operating Time
- 24 hours/day
- Power Consumption (Typical)
- Monitor Only; (Typical at 120V at 60Hz): ON: 95.0 W; SLEEP: 8.7 W; OFF: 2.5 W; (Typical at 230V at 50Hz): ON: 96.0 W; SLEEP: 8.0 W; OFF: 2.8 W; Monitor with ECMG3; (Typical at 120V at 60Hz): ON: 106 W; SLEEP: 11.3 W; OFF: 11.0 W; (Typical at 230V at 50Hz): ON: 107.0 W; SLEEP: 11.2 W; OFF: 11.0 W
- Dimensions
- IR: 42.63" x 25.09" x 2.43" / 1082.8mm x 637.4mm x 61.6mm; PCAP: 42.63" x 25.09" x 2.02" / 1082.8mm x 637.4mm x 51.3mm
- Shipping Box Dimensions
- 48.03" x 8.27" x 29.53" / 1220mm x 210mm x 750mm
- Weight (Unpackaged)
- IR:; With ECMG3: 59.19lbs / 26.85 Kg; Without ECMG3: 52.58 lbs / 23.85 Kg; PCAP; With ECMG3: 59.55 lbs / 27.01 Kg; Without ECMG3: 52.93 lbs / 24.01 Kg
- Weight (Packaged)
- IR:; Without ECMG3: 67.79 lbs / 30.75 Kg; PCAP; Without ECMG3: 68.10 lbs / 30.89 Kg
- Operating Temperature
- Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F; Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- Mounting Options
- VESA mount per MIS-F, 400, 400, 6MM
- Sealability
- Touchscreen sealed to bezel; Touchscreen sealed to LCD
- MTBF
- 50,000 hours demonstrated
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage + AUR - Elo P/N: E740135; 5 year warranty coverage + AUR - Elo P/N: E740330; 3 year warranty coverage + OSE - Elo P/N: E740527; 4 year warranty coverage + OSE - Elo P/N: E740728; 5 year warranty coverage + OSE - Elo P/N: E740918
- Optional Product Coverage
- Extended Warranty (North America and EMEA only)
- Regulatory approvals and declarations
- UL, FCC (US) - Class A; cUL, IC (Canada); CB (International safety); CE (Europe) - Class A; CCC (China); EAC (Russia); VCCI (Japan)
- RFID Supported Protocols
- ISO - 14443-A; ISO - 14443-B; ISO – 15693
- What's in the Box
- HDMI cable (Type A plug to Type A plug), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C5 to NA plug power cable, IEC 60320-C5 to EU/KR plug power cable, IEC 60320-C5 to UK plug, 3.5mm Audio Cable, Energy label according to EU Regulation
- Optional PCAP Stylus Pen
- E066148
- IDS Optional Accessories
- Barcode Reader – Elo P/N: E093433; 2D Barcode Scanner – Elo P/N: E926356; Elo Backpack® - Elo P/N: E611864; Elo Backpack® 3.0 - Elo P/N: E901355; Magnetic Stripe Reader – Elo P/N: E001002; NFC/RFID Reader – Elo P/N: E001004; Wallmount for IDS 02 Series – Elo P/N: E275050; EMV Cradle for Ingenico ICMP - Elo P/N: E200788; EMV Cradle for Verifone E355 - Elo P/N: E201363; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Fingerprint Scanner – Elo P/N: E134286; ECM Power Connector Module for IDS 02 Series – Elo P/N: E275433; Stand for IDS 02 Series - Elo P/N: E275623; IDS Side-mount Brackets - Elo P/N: E329508; Wired OSD Remote - Elo P/N: E483757; ECMG2C Android Computer Module Kit for IDS 02 Series - Elo P/N: E336899; OPS adaptor kit for IDS 02 Series - Elo P/N: E337104; Note: All ELO-KIT-ECMG2C include the E275433 ECM Power Connector Module for IDS02; i3-6100 ECMG3 with No OS - Elo P/N: E400587; i3-6100 ECMG3 with Windows 10 - Elo P/N: E400965; i5-6500 ECMG3 with No OS - Elo P/N: E401168; i5-6500 ECMG3 with Windows 10 - Elo P/N: E401558; i5-6500 ECMG3 with Windows 10 (256 GB SSD & 8GB RAM) - Elo P/N: E458919; i5-6500 ECMG3 with Windows 10 and DisplayNote Montage Software - Elo P/N: E343989; i7-6700 ECMG3 with No OS - Elo P/N: E401764; i7-6700 ECMG3 with Windows 10 - Elo P/N: E402161; i7-6700 ECMG3 with Windows 10 (256 GB SSD) - Elo P/N: E459109; Note: All ECMG3 Kits include the E275433 ECM Power Connector Module for IDS02; Replacement Cable Kit - Elo P/N: E060080; Collaboration Tray - Elo P/N: E477238
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- Replacement
- 5053L
- Status basis
- elotouch.com lists it as replaced by 5053L
