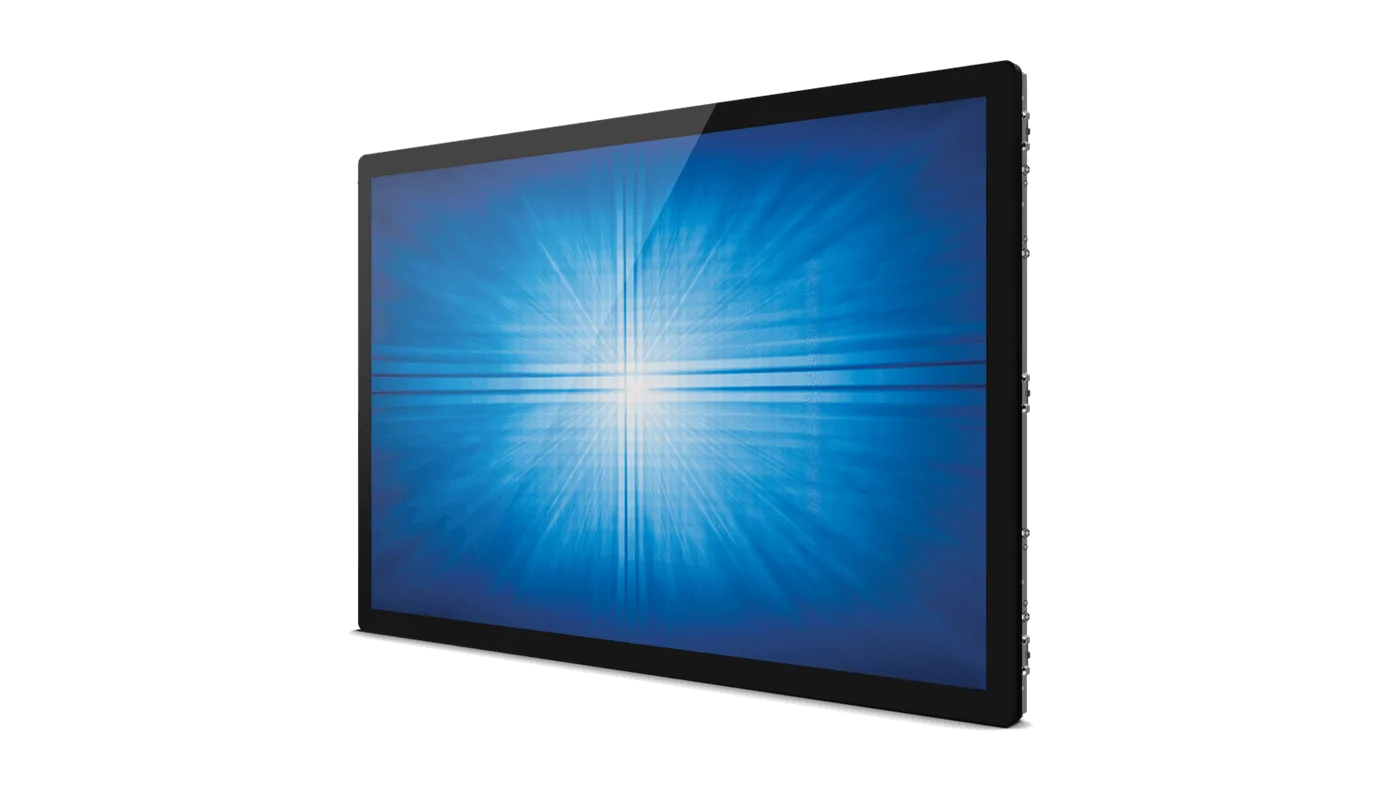

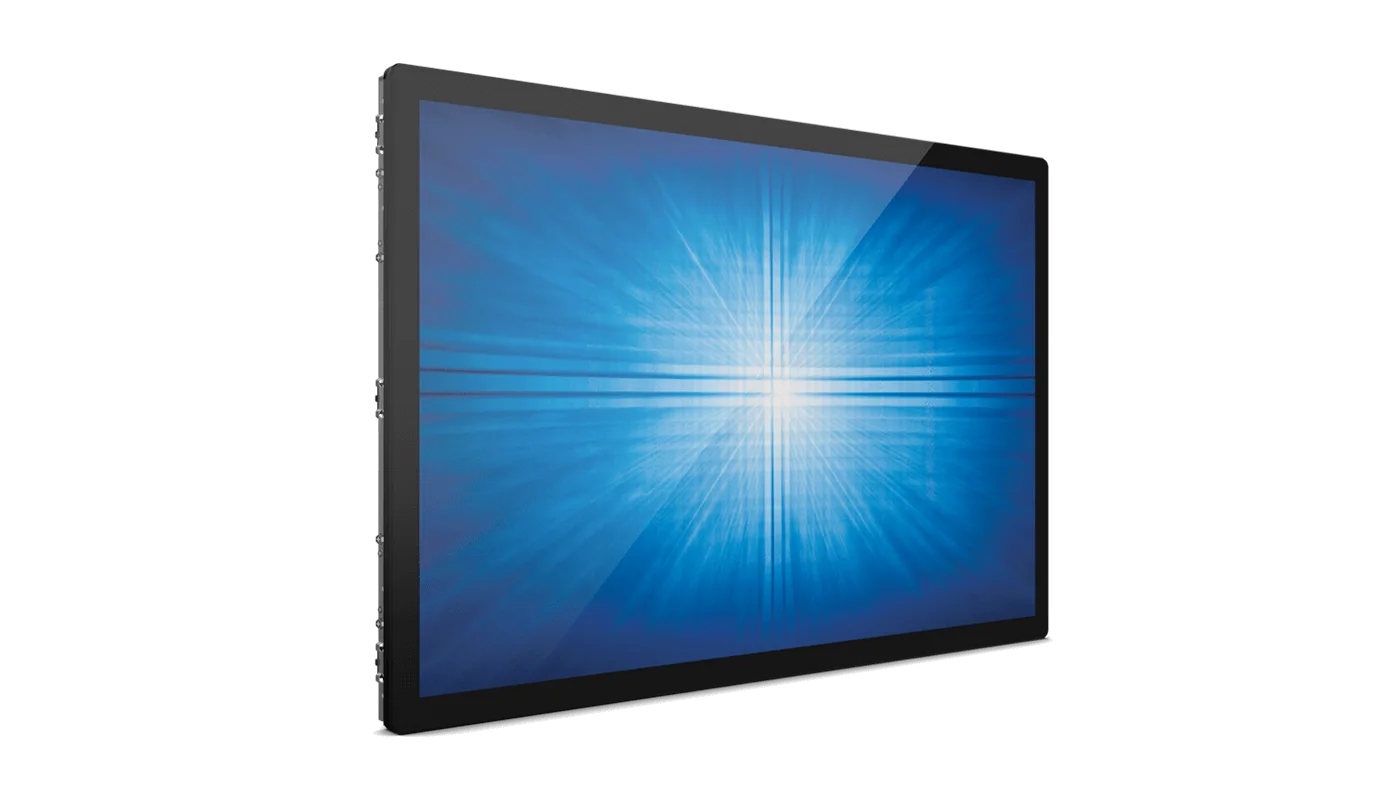

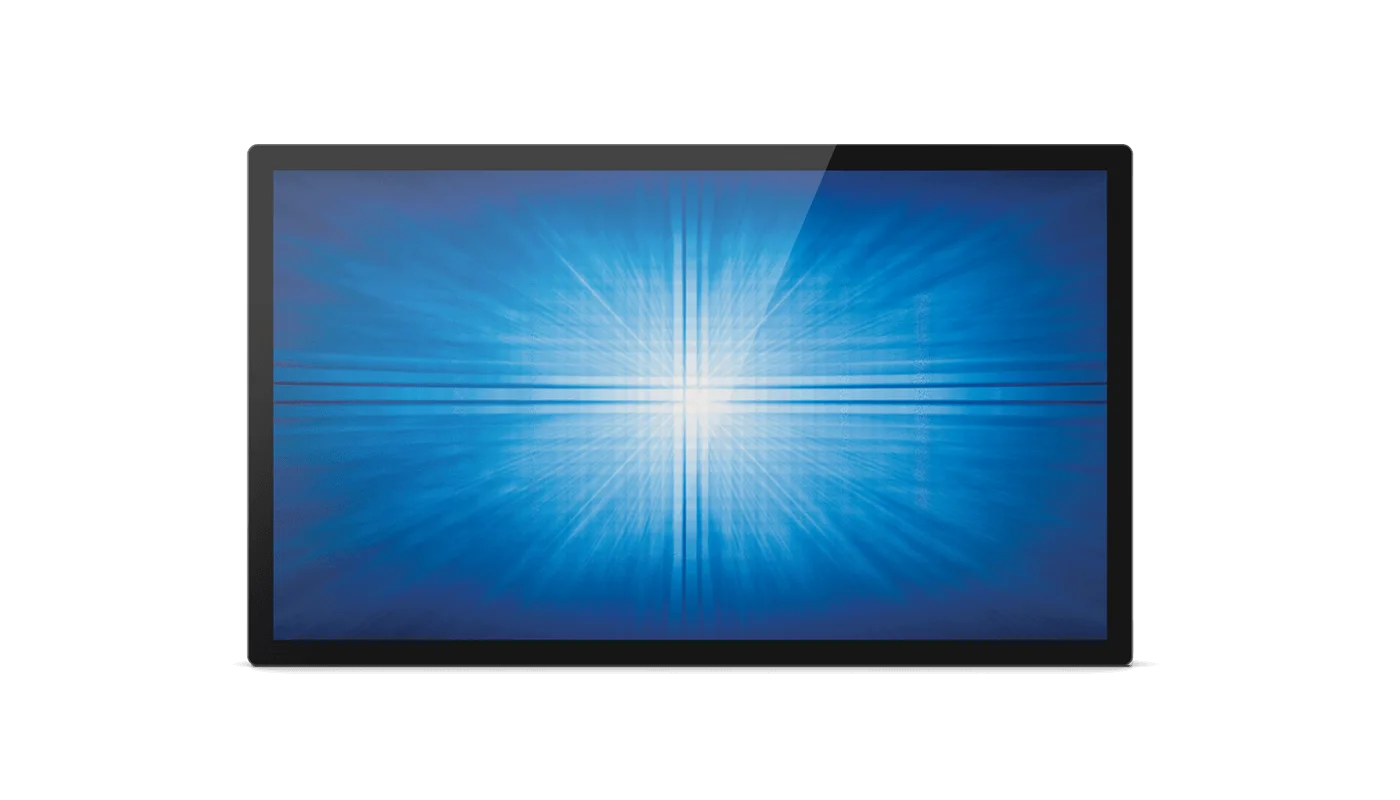

Elo Touch 4343L Open Frame Touchscreen

Overview

Display42.5'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

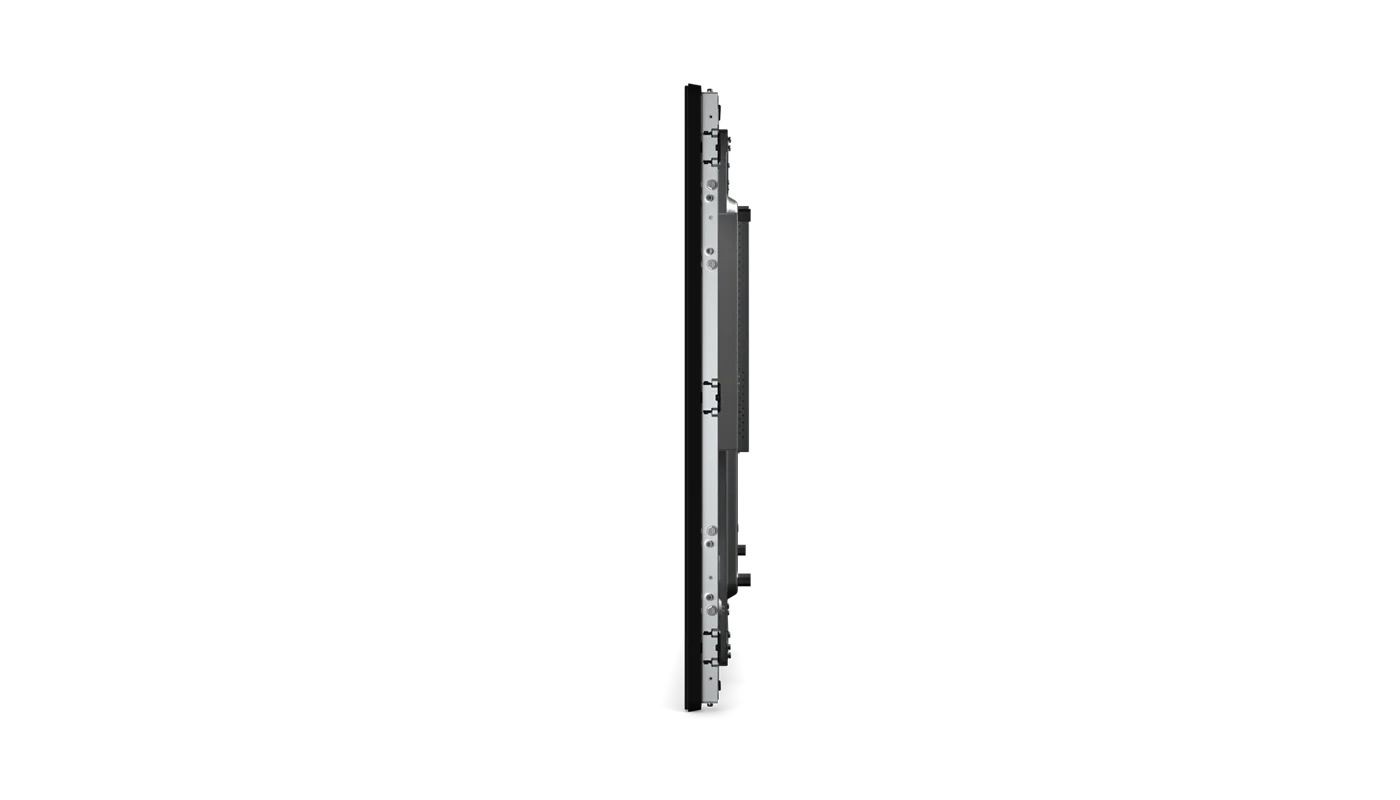

Elo's 4343L open frame touchscreen delivers a professional-grade large format 42.5-inch full HD display in a sleek and thin 2.6-inch (66 mm) form factor. The 4343L enables a thinner and smaller kiosk design for applications with limited space. The touchscreen glass is built and tested to provide robust impact resistance by exceeding the UL60950 ball-drop and IK06 impact immunity requirements. Energy Star 7.0 certified, the 4343L, with its’ energy efficient LED backlight, is designed for optimal energy conservation reducing power consumption and heat dissipation. The 4343L offers multiple mounting options, sleek edge-to-edge glass architecture and can handle 24/7 operation, making it ideal for public venue self-service kiosks and built-in application installs for retail, hotels, gaming, transportation and other commercial uses.

TouchPro™ Projected Capacitive (PCAP) units offer clear anti-friction glass that are sealed against dirt and dust to simplify integration into the final enclosure. And with the capability to support touch thru glass (available upon request), the 4343L can be sealed into a solution and obtain an IP65 rating on the front side of the unit. The flush mount kit is included to enable a seamless and elegant front kiosk surface. And, as with all Elo open frame touchscreen displays, we control the design and tooling to help ensure future products will be identical in form, fit and mechanical design whenever possible helping you to minimize costly enclosure changes.
Designed for touch from the start, the seamless zero-bezel 42.5-inch multi-touch display is available with our latest TouchPro PCAP advanced solution offering a lighter 12-point multi-touch screen specifically designed for large format, high-use applications. The 4343L’s TouchPro PCAP offers fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows™ 7, Windows 8 and Windows 10. The 4343L touchscreen provides pure glass construction to deliver a clear, bright and long-lasting touchscreen solution.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. Designed and built by Elo, we use our own touchscreens, software and drivers ensuring everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
Bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
TouchPro PCAP technology utilizes clear glass with anti-friction coating to provide a smooth smartphone like touch experience without surface tension.

Specifications

Technical

Part Number(s): TouchPro PCAP (clear with anti-friction) - E220574
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 12 Touch
Touch Interface: USB
Diagonal Size: 42.5'' diagonal, Active matrix TFT LCD (LED)
On Screen Display: Accessible through switches on the OSD Control Remote accessory.; Controls (side): Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source, Touch, RTC; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power; RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.; See user manual for full details.
Aspect Ratio: 16:9
Active Area: 37.05" x 20.84" / 941.2 mm x 529.4 mm
Resolution: 1920 x 1080
Other Supported Resolutions: 640x480 60Hz; 720x480 60Hz; 720x576 50Hz; 800x600 56, 60Hz; 1024x768 60Hz; 1280x720 50, 60Hz; 1280x960 60Hz; 1280x1024 60Hz; 1366x768 60Hz; 1440x900 60Hz; 1680x1050 60Hz; 1920x1080 50, 60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical): LCD panel: 450 nits; TouchPro PCAP: 387 nits
Response Time-total (typical): 12 msec
Contrast Ratio: 1100:1
Input Video Signal Connector: Analog VGA on Female DE-15 connector; HDCP-capable HDMI on HDMI Type A receptacle connector
Input Video Frequency: Horizontal: 31 - 75 KHz; Vertical: 47 - 63 Hz
Input Voltage: 100-240 VAC, 50/60 Hz
Input Connector: IEC 60320 C14
Maximum Operating Time: 24 hours/day
Power Consumption (Typical): Power Consumption (Typical at 100V at 60Hz):; ON (monitor + AC/DC adapter): 59.85W; SLEEP (monitor + AC/DC adapter): 0.80W; OFF (monitor + AC/DC adapter): 0.17W; Power Consumption (Typical at 240V at 50Hz):; ON (monitor + AC/DC adapter): 58.44W; SLEEP (monitor + AC/DC adapter): 1.26W; OFF (monitor + AC/DC adapter): 0.35W
Dimensions: 39.34" x 23.13" x 2.61" / 999.3 mm x 587.5 mm x 66.4 mm
Shipping Box Dimensions: 48.0" x 31.1" x 9.84" / 1220 mm x 790 mm x 250 mm
Weight (Unpackaged): 40.2 lbs / 18.2 kg
Weight (Packaged): 53.2 lbs / 24.1 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year
Extended Service Options: 4 year warranty coverage + AUR - Elo P/N: E740135; 5 year warranty coverage + AUR - Elo P/N: E740330
Regulatory approvals and declarations: Argentina S-Mark; Australia C-Tick; Canada CUL, IC; China CCC; Europe CE; Japan VCCI; Korea KC, KCC, e-Standby; Mexico CoC; Russia EAC; Taiwan BSMI; United States UL, including UL 62368-1, FCC; International CB; RoHS, China RoHS, WEEE; GLI 27 kV air / 8 kV contact ESD compliant; Energy Star 7.0; UL 60950 ball-drop compliant; IK06 impact compliant; EU Energy Efficiency A rating

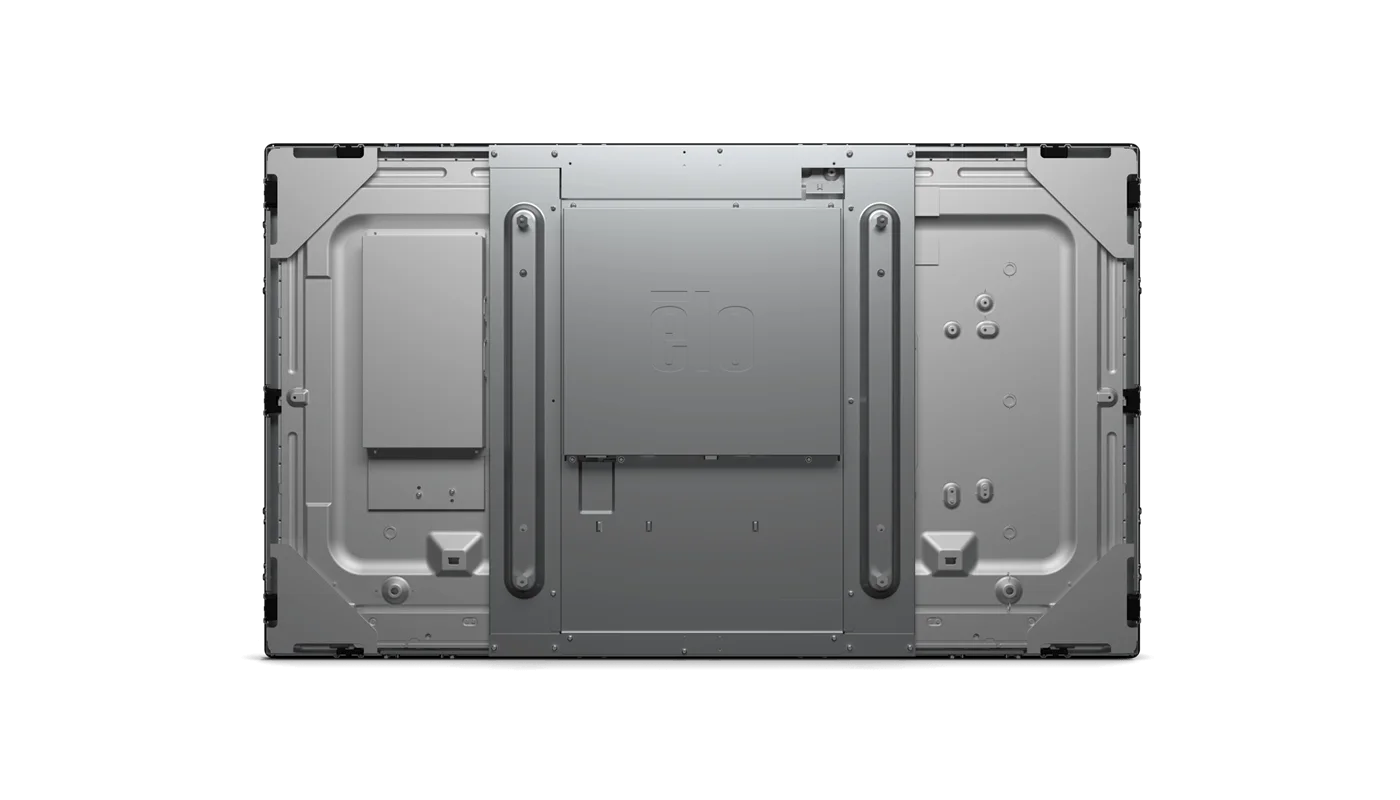

Mounting Options: 400mm x 400mm VESA 4-hole mounting interface on rear of unit; Flush Mount Brackets available in the Accessories Box; See dimensional drawings for details
What's in the Box: 4343L; QIG; EEI Label; OSD Remote; HDMI Cable; VGA Cable; USB Cable (Type A To B); Power Cable IEC 60320-C13 (NA plug); Power Cable IEC 60320-C13 (EU/KR plug); Power Cable IEC 60320-C13 (UK plug); Flushmount Brackets x8; Flushmount Bracket Screws x48
Options / Peripherals / Upgrades: Remote OSD (RJ45) - Elo P/N: E483757; Optional PCAP Stylus Pen - Elo P/N: E066148

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: 4363L
Status basis: elotouch.com lists it as replaced by 4363L
