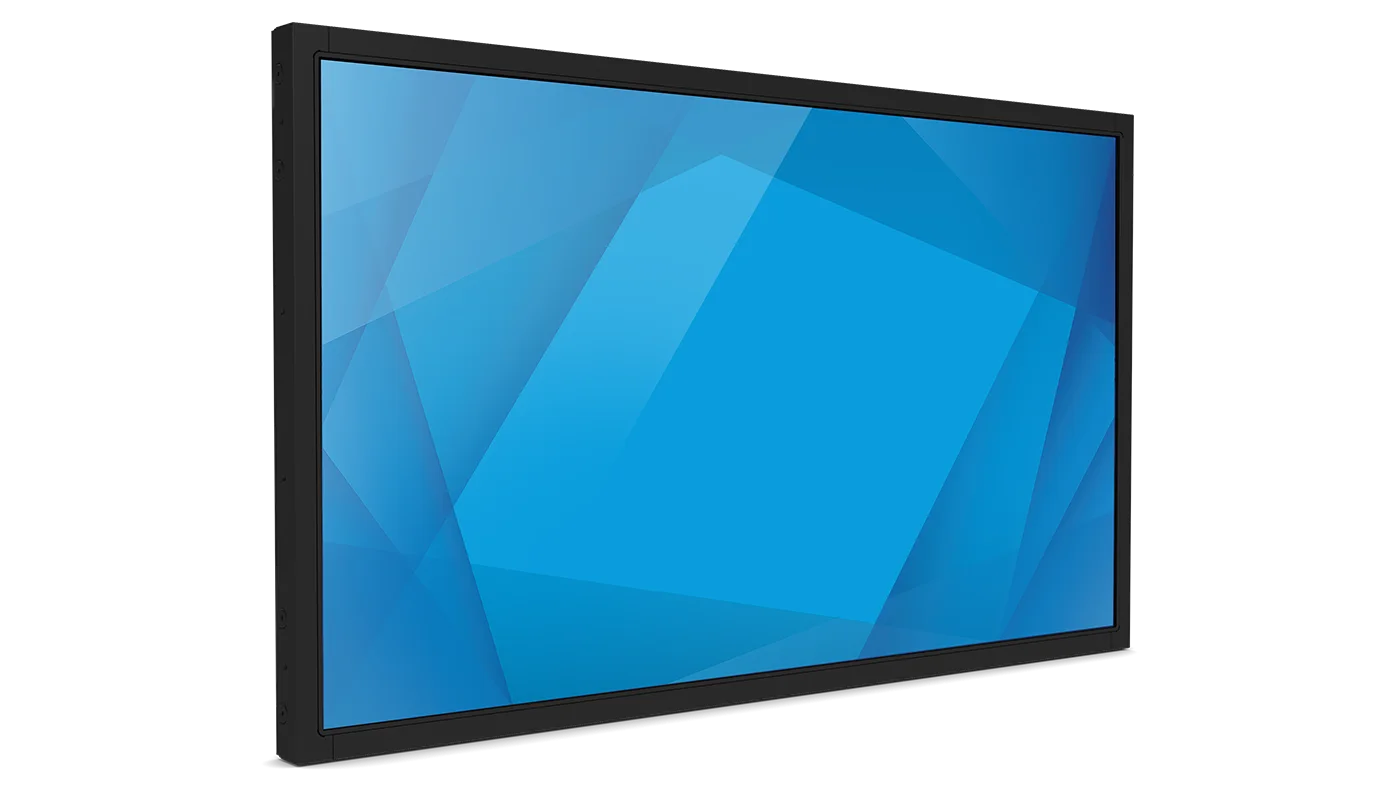

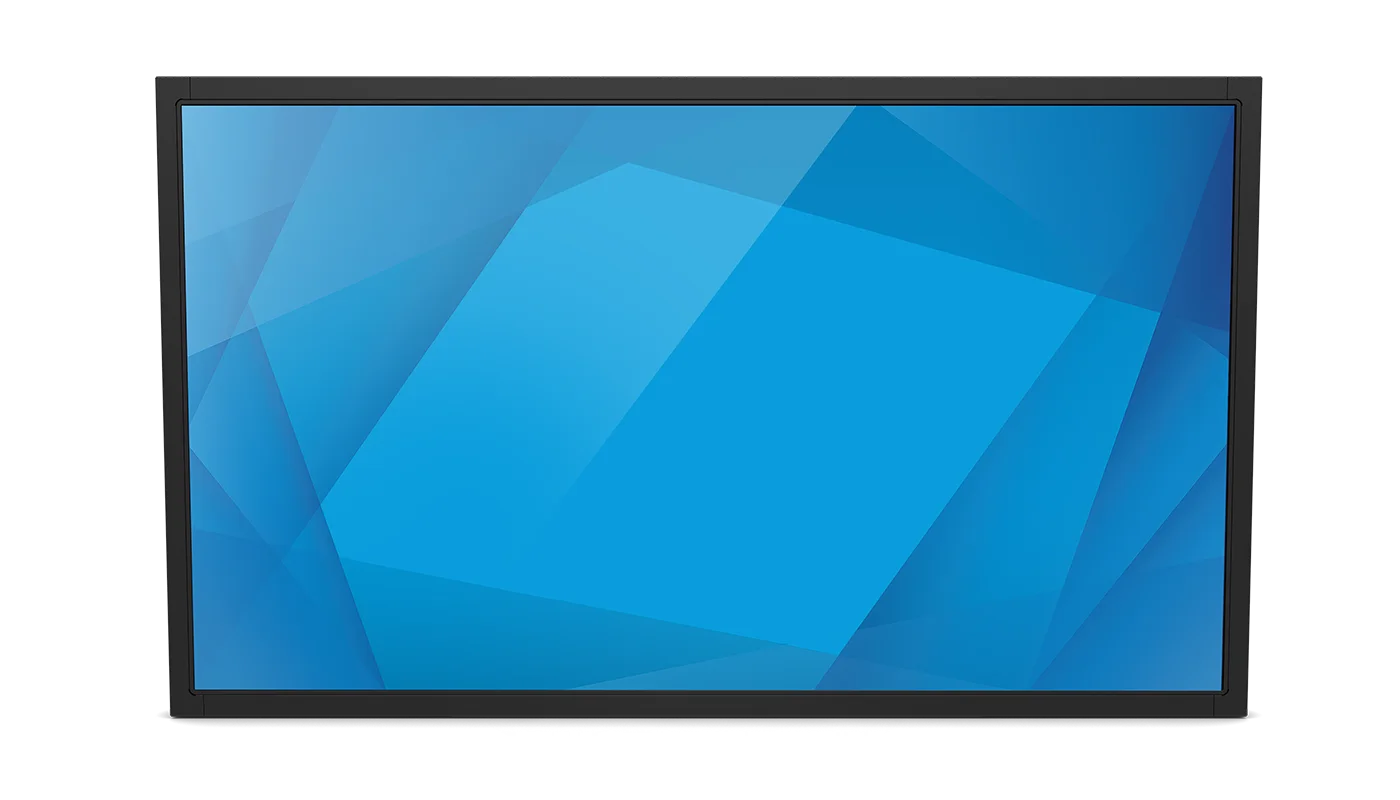

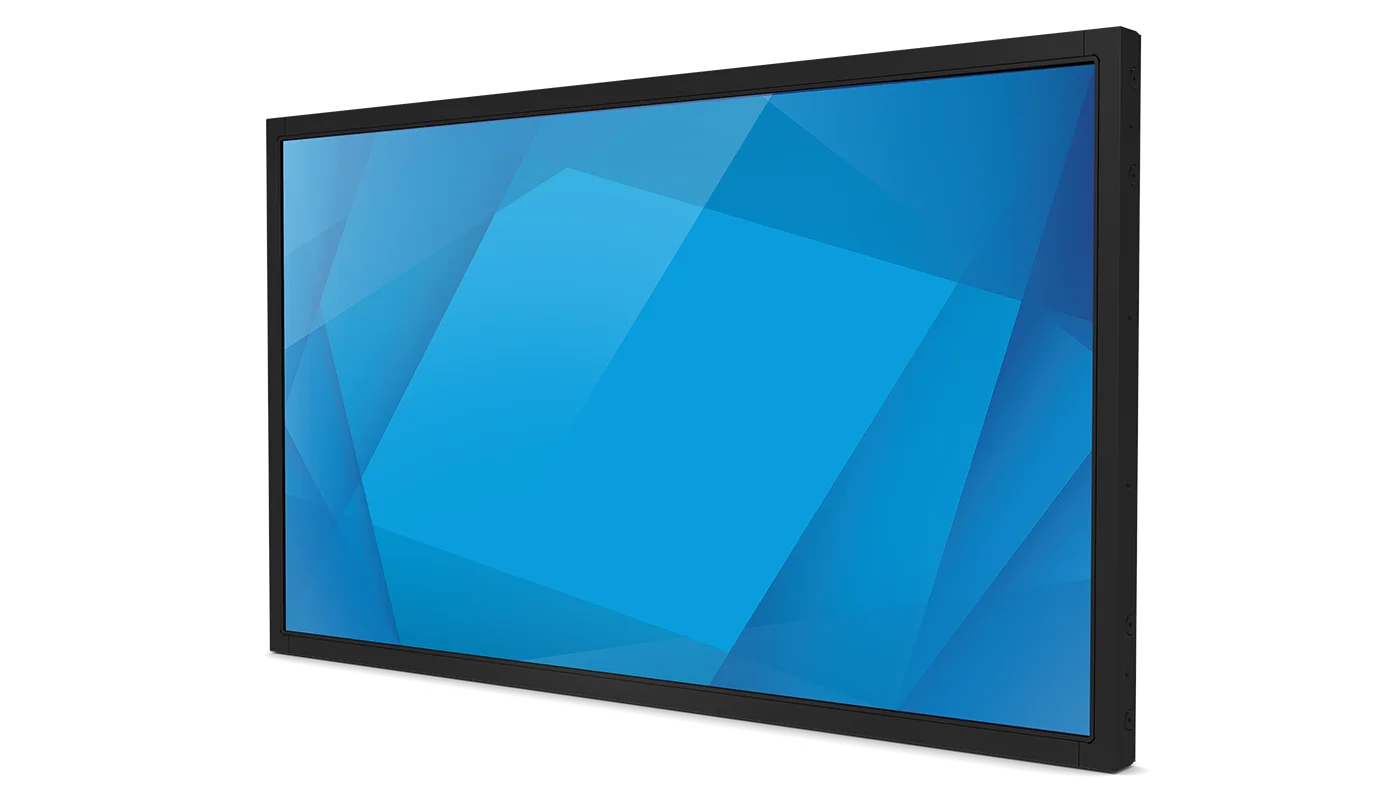

Elo Touch 4243L Open Frame Touchscreen

Overview

Display42'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The Elo 4243L 42-inch full HD open-frame touchscreen delivers a professional-grade large format display at less than 2.6 inches (66 mm) in total thickness and less than 1 inch in border width. Designed for touch from the start with proven Elo expertise and reliability built in, the 4243L offers a sleek state-of-the-art slim design using LED backlighting, reducing power consumption and heat to enable thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust UL60950 ball-drop requirements, supporting applications in demanding public access environments. The 4243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 4243L.

Featuring a compact form factor and optional rack- and front-mount bezels, the 4243L is easy to integrate. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With design and tooling being controlled by Elo, long-lasting product availability, as well as backwards compatibility, can be expected helping to minimize enclosure costs.
The 4243L is available with a choice of dual- or multi-touch technologies as well as a non-touch option. IntelliTouch™ surface acoustic wave (SAW) dual-touch offers the ultimate in optical quality. All 4243L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to physically wear them out.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
1920 x 1080 full HD provides a bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
Worldwide agency approvals and a three-year standard warranty extendable to five years

Specifications

Technical

Part Number(s): IntelliTouch Dual Touch (Worldwide) - E000444
Enclosure Color: Black
Touch Technology & Capacity: SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
Diagonal Size: 42'' diagonal, Active matrix TFT LCD (LED)
On Screen Display: Accessible through switches on the OSD Control Remote accessory.; Controls (side): Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power; RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.; See user manual for full details.
Aspect Ratio: 16:9
Active Area: 36.6" x 20.6" / 930mm x 523mm
Resolution: 1920 x 1080
Other Supported Resolutions: 640 x 480 at 60Hz; 800 x 500 at 60Hz; 800 x 600 at 56/60Hz; 1024 x 768 at 60Hz; 1280 x 720 at 60Hz; 1280 x 960 at 60 Hz; 1280 x 1024 at 60Hz; 1360 x 768 at 60 Hz; 1366 x 768 at 60 Hz; 1440 x 900 at 60 Hz; 1600 x 1200 at 60 Hz; 1680 x 1050 at 60 Hz; 1920 x 1080 at 60 Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 1073.7 million
Brightness (typical): LCD panel: 500 nits; IntelliTouch Dual Touch: 450 nits
Response Time-total (typical): 8 msec
Contrast Ratio: 4000:1
Input Video Format: Analog VGA, HDCP-capable HDMI 1.3
Input Video Signal Connector: Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only)
Input Video Frequency: Horizontal: 31 - 80 KHz; Vertical: 47 - 63 Hz
Power Supply: Internal AC
Input Voltage: AC: 100-240 VAC, 50/60 Hz
Input Connector: AC: IEC 60320 C14
Maximum Operating Time: 24 hours/day
Power Consumption (Typical): Monitor Only; (Typical at 100V at 60Hz):; ON: 72.87 W; SLEEP: 0.24 W; OFF: 0.16 W; (Typical at 240V at 50Hz):; ON: 74.38 W; SLEEP: 0.45 W; OFF: 0.35 W
Dimensions: 38.5" x 22.6" x 2.6" / 978mm x 575mm x 65mm
Shipping Box Dimensions: 45.9" x 33.7" x 11.02" / 1168mm x 856mm x 280mm
Weight (Unpackaged): 44 lbs / 20 kg
Weight (Packaged): 61 lbs / 27.67 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95%
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year
Extended Service Options: 4 year warranty coverage + AUR - Elo P/N: E740135; 5 year warranty coverage + AUR - Elo P/N: E740330
Regulatory approvals and declarations: Australia RCM; Canada cUL, IC; China CCC, China RoHS; Europe CE; Japan VCCI; Korea KCC e-standby; Mexico NOM, CoC; Taiwan BSMI; United States UL, including UL 62368-1, FCC; International CB; Russia EAC

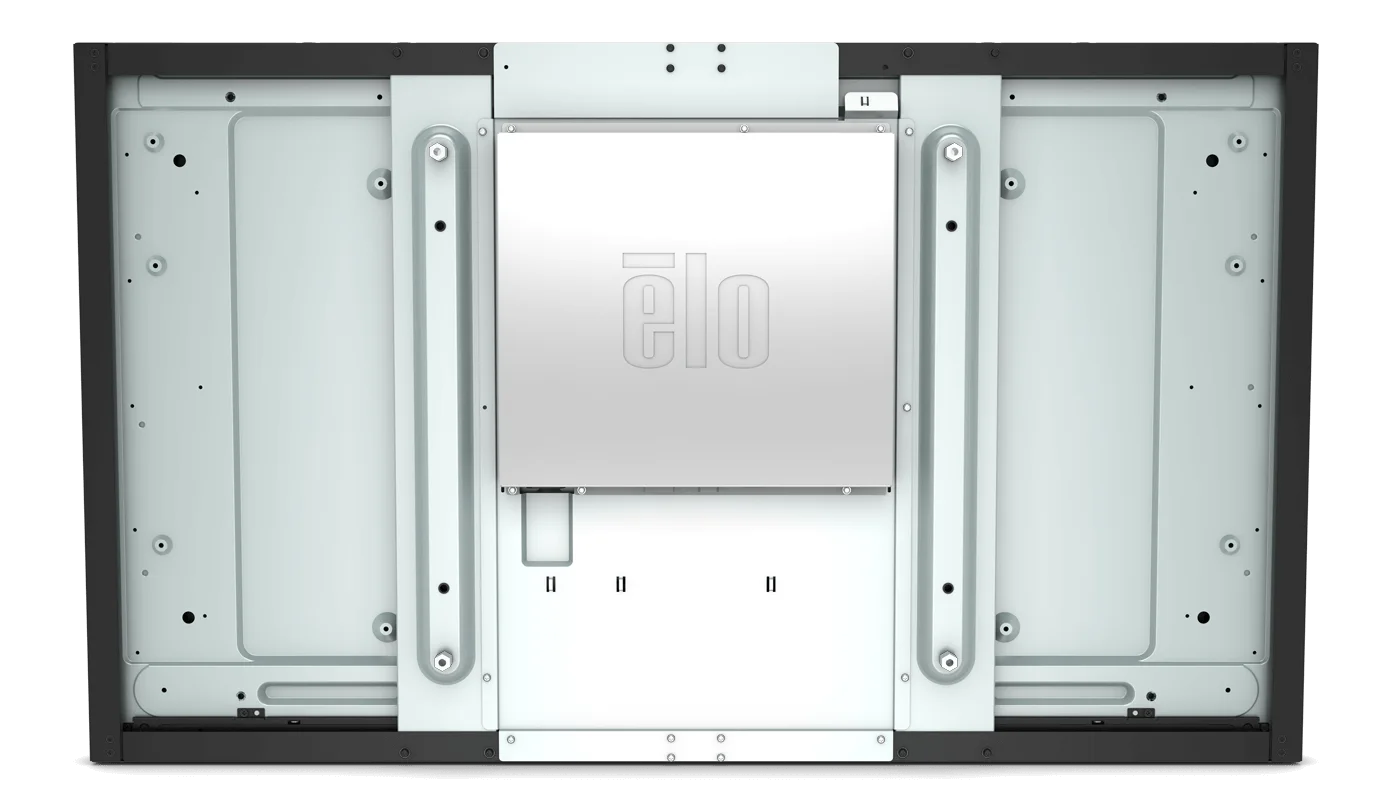

Mounting Options: Mounting Options 400, 400, 6mm VESA mount; Side mounting brackets included
What's in the Box: 4243L; QIG; EEI Label; OSD Remote; HDMI Cable; VGA Cable; USB Cable (Type A to B); Power Cable IEC 60320-C13 (NA plug); Power Cable IEC 60320-C13 (EU/KR plug); Power Cable IEC 60320-C13 (UK plug); Power Cable IEC 60320-C13 (AR plug); Power Cable IEC 60320-C13 (CH plug); Power Cable IEC 60320-C13 (TW plug); Power Cable IEC 60320-C13 (JP plug); 3-pin to 2-pin adapter for JP power cable; Side Mount Brackets x8; Side Mount Bracket Screws x16
Options / Peripherals / Upgrades: Remote OSD (RJ45) - Elo P/N: E483757; IntelliTouch Stylus Pen - Elo P/N: D82064-000; Replacement Bracket Kit for 3243L IT model – Elo P/N: E727550

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: 4363L
Status basis: elotouch.com lists it as replaced by 4363L
