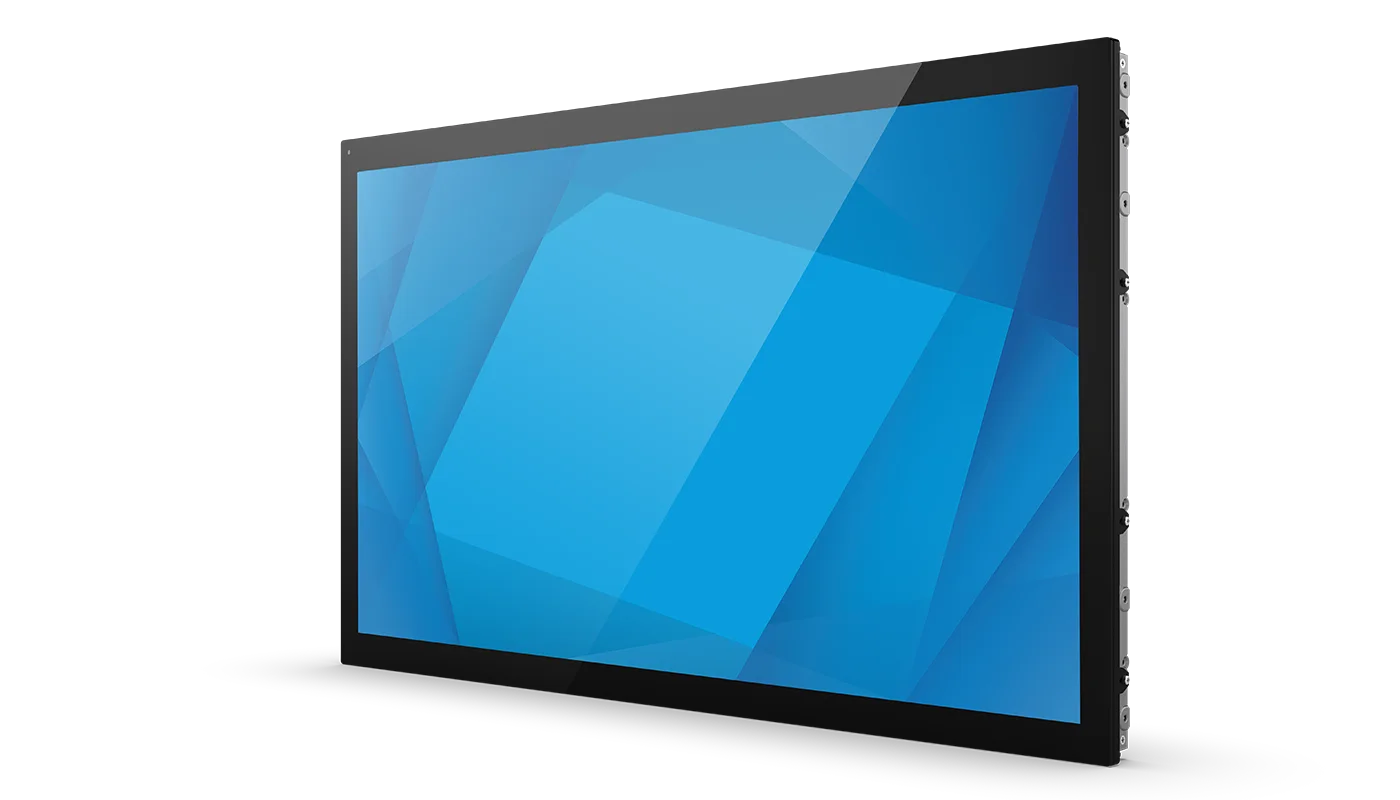

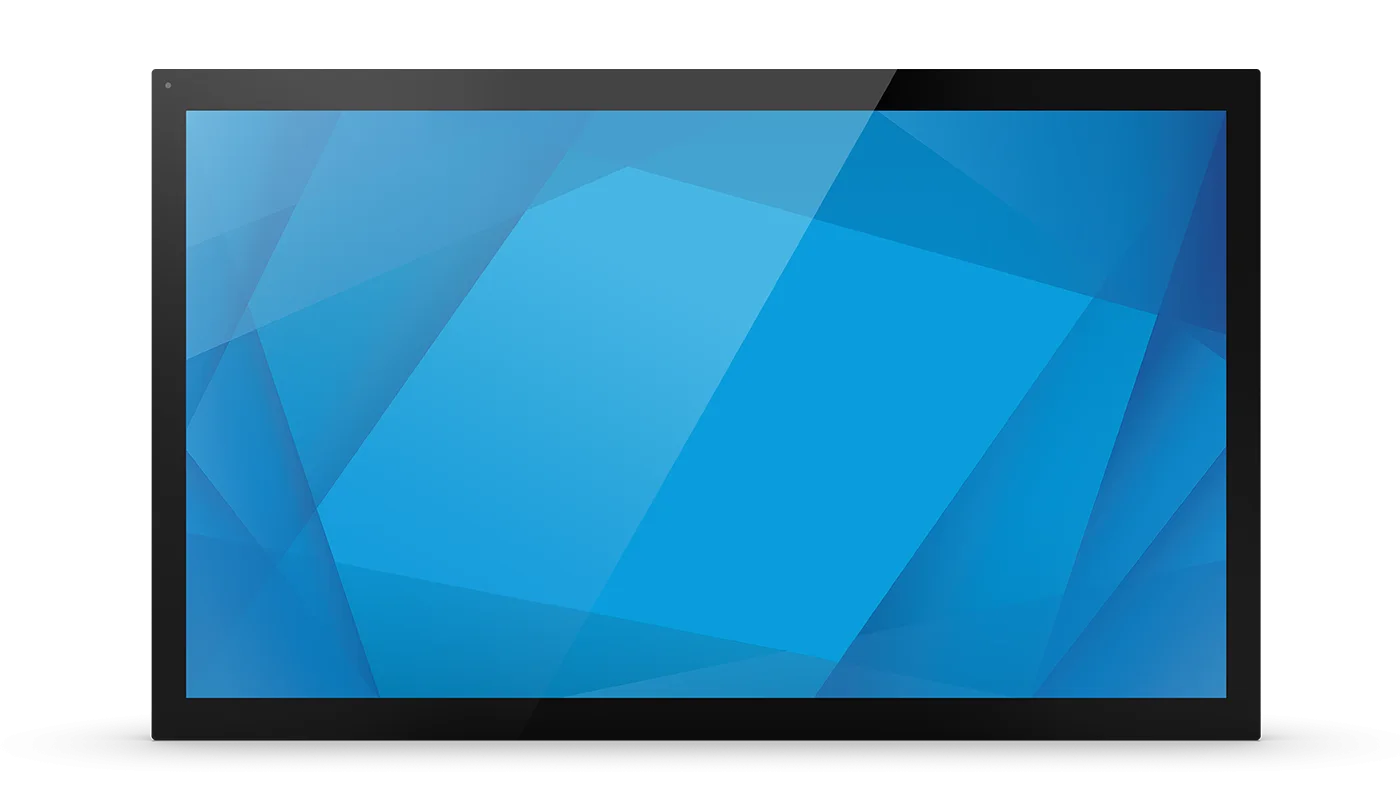

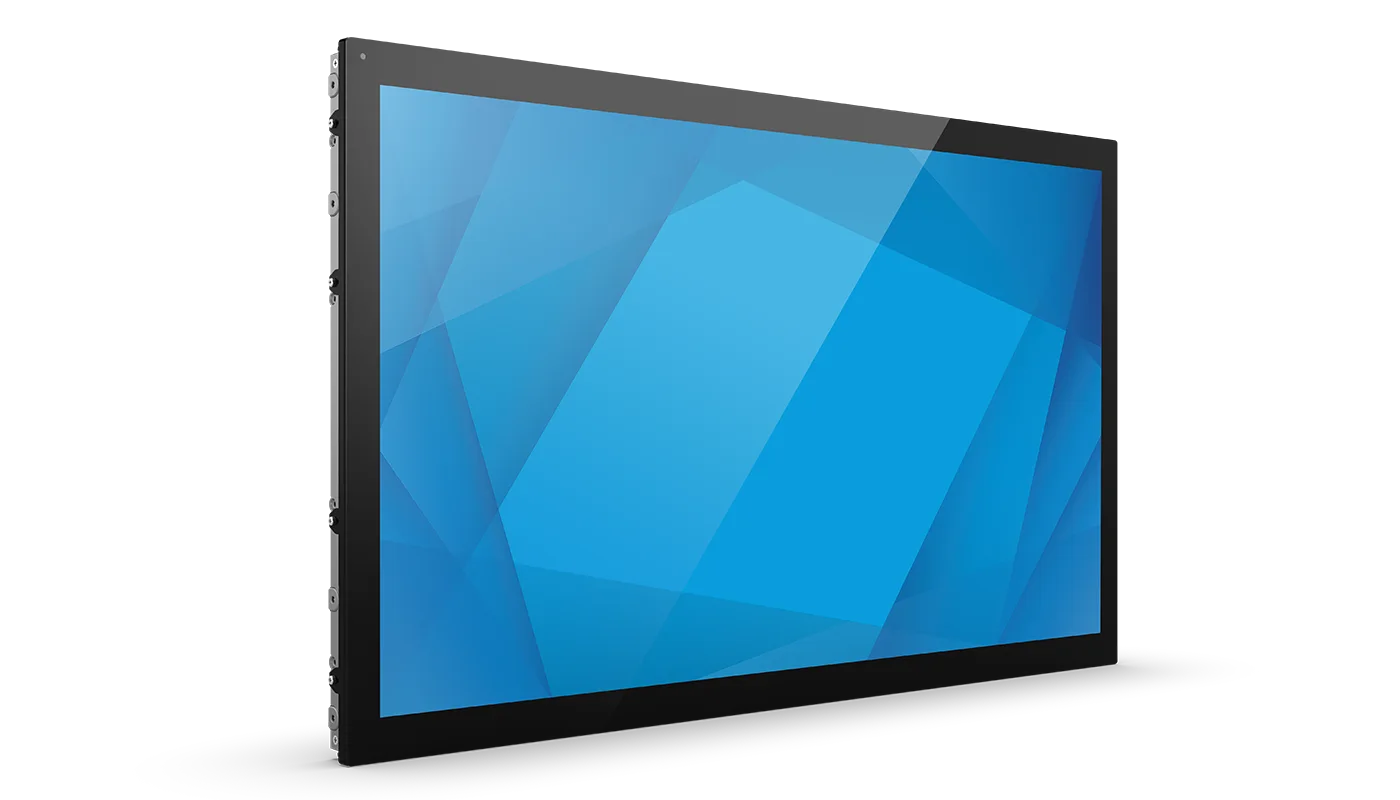

Elo Touch 3263L 31.5" Open Frame Touchscreen
The perfect touchscreen for any enclosure.
- Display31.5'' diagonal, Active matrix TFT LCD (LED)
- SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.
- The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
- Captivate customers and employees with reliable, easy to use interactive solutions.

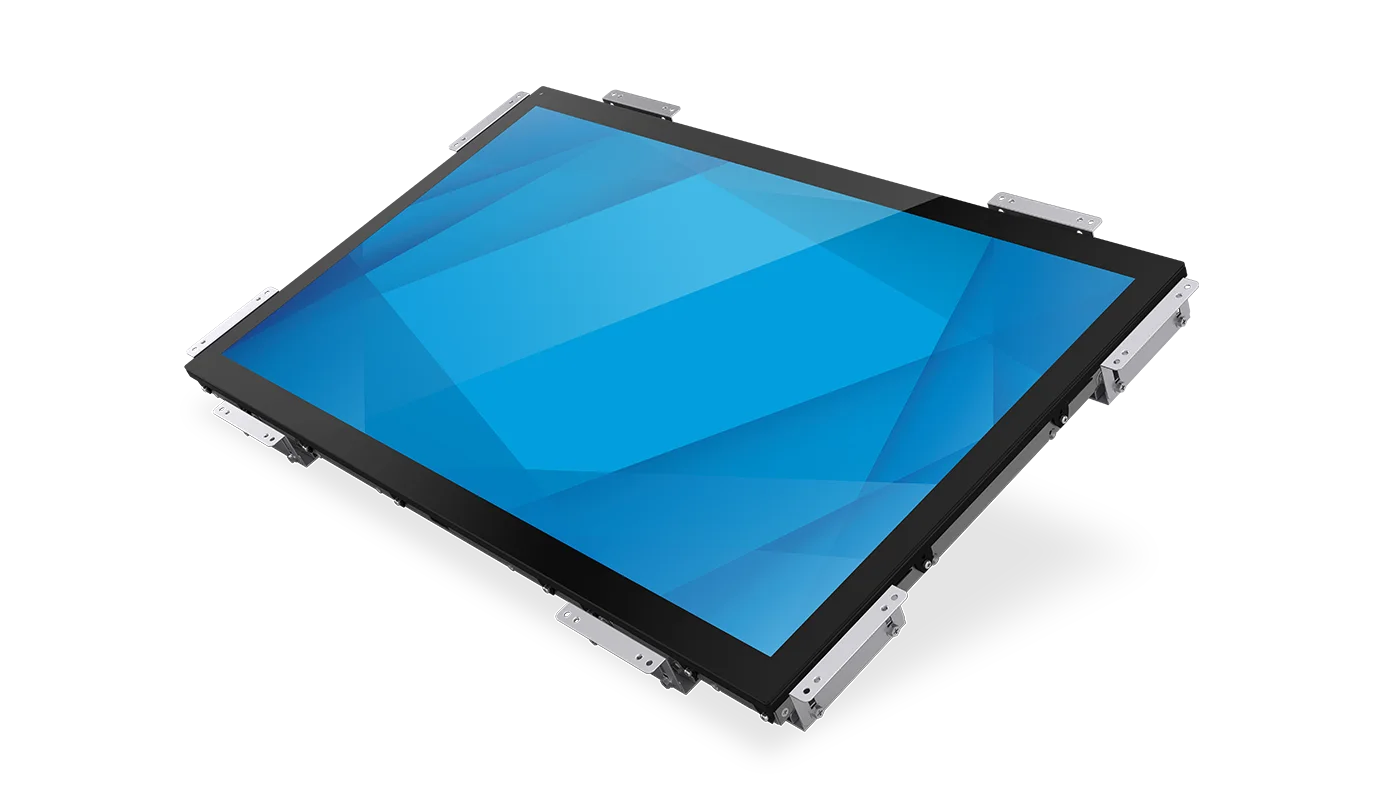

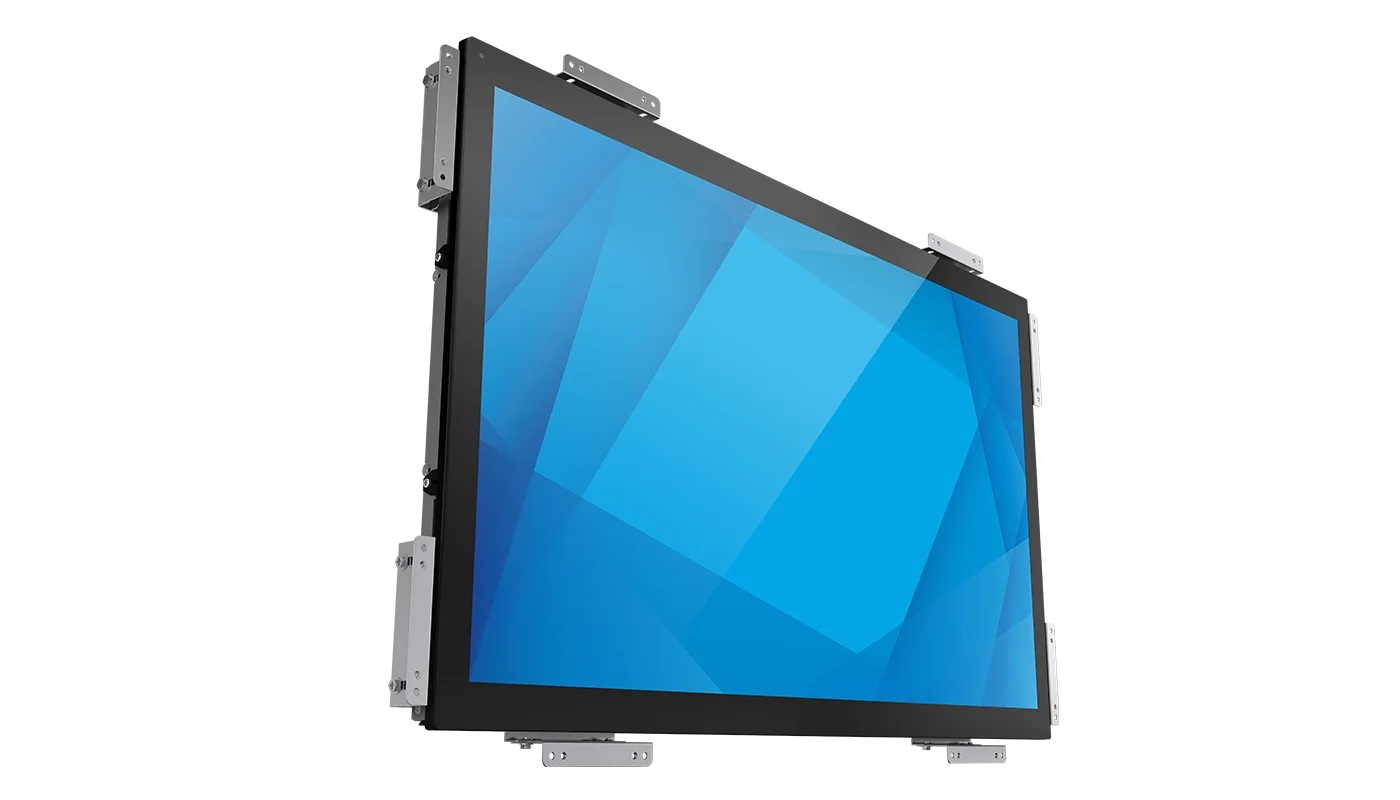

- Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.
- Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.
- For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Best for: Digital Menu Boards
Specifications
Technical
- Part Number(s)
- TouchPro PCAP (clear with anti-friction) - E343671; TouchPro PCAP (anti-glare) - E343872
- Enclosure Color
- Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability
- Touch Thru
- Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
- Touch Interface
- USB
- Diagonal Size
- 31.5'' diagonal, Active matrix TFT LCD (LED)
- On Screen Display
- Accessible through switches on the OSD Control Remote accessory.; Controls (side): Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source, Touch, RTC, MDC, Touch Through; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power; RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.; See user manual for full details.
- Aspect Ratio
- 16:9
- Active Area
- 27.5" x 15.47" / 698.4 mm x 392.9 mm
- Resolution
- 1920 x 1080 @ 60hz
- Other Supported Resolutions
- 640x480 @ 60Hz; 800x600 @ 56/60Hz; 1024x768 @ 60Hz; 1280x720 @ 60Hz; 1280x800 @ 60Hz RB; 1280x960 @ 60Hz; 1280x1024 @ 60Hz; 1366x768 @ 60Hz; 1366x768 @ 60Hz RB; 1440x900 @ 60Hz; 1440x900 @ 60Hz RB; 1680x1050 @ 60Hz; 1680x1050 @ 60Hz RB; 1920x1080 @ 60Hz
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Number of Colors
- 8-bit (16.7 million)
- Brightness (typical)
- LCD panel: 500 nits; TouchPro PCAP: 425 nits
- Response Time-total (typical)
- 8 msec
- Contrast Ratio
- 3000:1
- I/O Ports
- HDMI 1.4 x2; USB 2.0 Type B (for Touch); RJ45 (for optional OSD remote); VGA
- Video
- 2x HDCP-capable HDMI on Type A connector; Female DE-15 VGA connector; Input Video Horizontal Sync frequency range: 31.5 – 80 KHz; Input Video Vertical Sync (frame rate) frequency range: 47 – 63 KHz
- Power
- Input connector (power): IEC 60320-C14; Input signal specifications (power): 100-240VAC 50/60Hz
- Maximum Operating Time
- 24 hours/day
- Power Consumption (Typical)
- ON: 44.3 W; SLEEP: 0.61 W; OFF: 0.20 W
- Dimensions
- 29.42" x 17.82" x 2.16" / 747.3 mm x 452.7 mm x 55 mm
- Shipping Box Dimensions
- 39.4" x 12.05" x 26.79" / 1000 mm x 306 mm x 680 mm
- Weight (Unpackaged)
- 24.17 lbs / 10.99 Kg
- Weight (Packaged)
- 37.47 lbs / 17.03 Kg
- Operating Temperature
- Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F; Tabletop Mode: 0° C to 35° C / 32°F to 95°F
- Storage Temperature
- Portrait/Landscape Mode: -20°C to 60°C / -4°F to 140°F; Tabletop Mode: -20° C to 60° C / -4° F to 140° F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 90% (38.7°C max wet bulb temperature)
- Sealability
- Touchscreen sealed to bezel; Touchscreen sealed to LCD
- MTBF
- 50,000 hours demonstrated
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage + AUR - Elo P/N: E740135; 5 year warranty coverage + AUR - Elo P/N: E740330
- Regulatory approvals and declarations
- Argentina S-Mark; Australia RCM; Canada CUL, IC; China CCC; Europe CE; Japan VCCI; Korea KCC e-Standby; Mexico CoC; Russia EAC; Taiwan BSMI; United States UL, FCC; International CB; Mexico NOM; RoHS, China RoHS, WEEE; Energy Star 8.0; UL 60950 ball-drop compliant; IK07 impact compliant; CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)

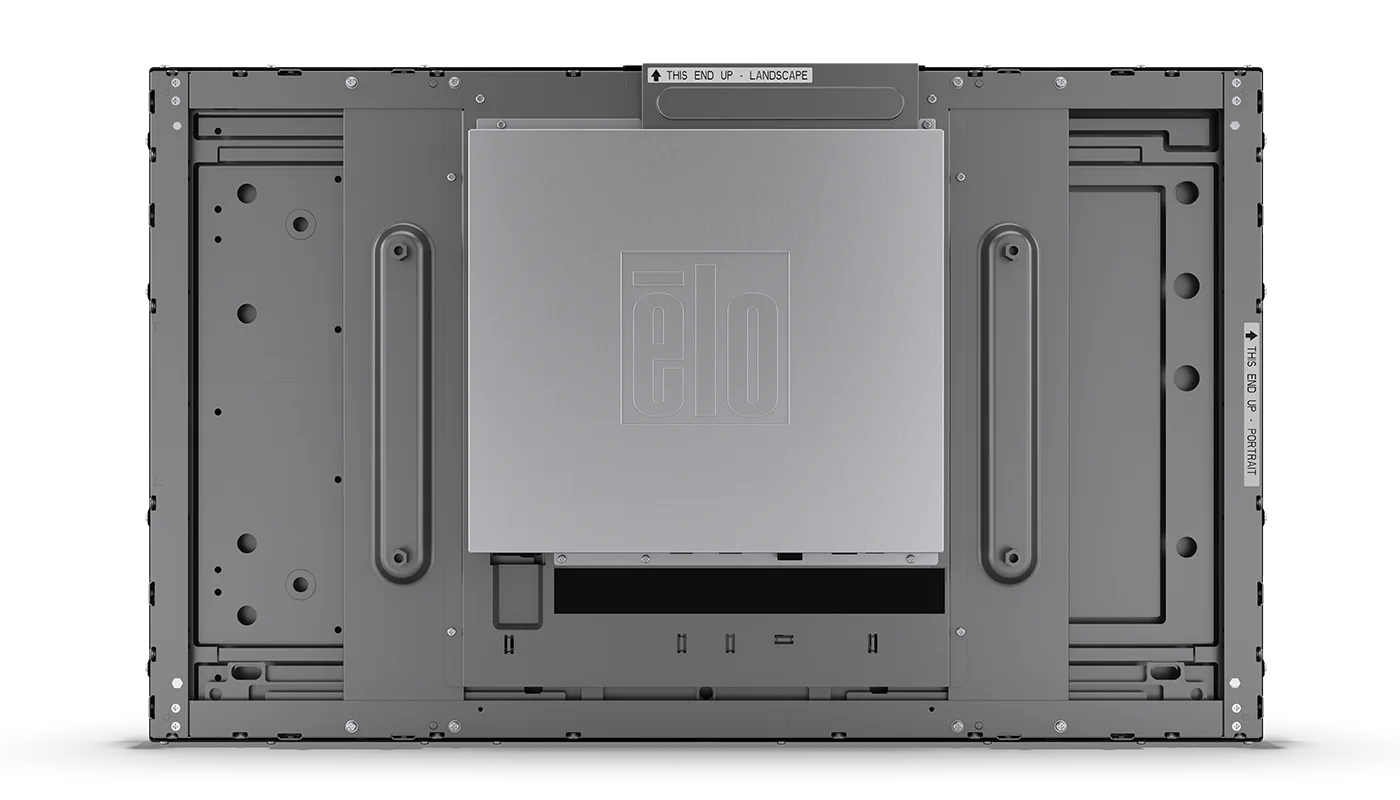

- Mounting Options
- VESA 400mm x 200mm; See dimensional drawings for details
- Other Features
- Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
- What's in the Box
- Quick Install Guide; HDMI 1.4 cable (Type A plug to Type A plug); VGA cable (DB-15 male to DB-15 male); USB cable (Type A plug to Type B plug); RJ45 Wired OSD remote; Power cable, IEC 60320-C13 to NA plug; Power cable, IEC 60320-C13 to EU/KR plug; Power cable, IEC 60320-C13 to UK plug; Energy label according to EU Regulation 2019/2013; 8 sets Flushmount Brackets 48 pcs Screws
- Options / Peripherals / Upgrades
- Remote OSD (RJ45) - Elo P/N: E483757; Elo 32-inch Wide Flush-mount Bracket - Elo P/N: E312503; Optional PCAP Stylus Pen - Elo P/N: E066148
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
