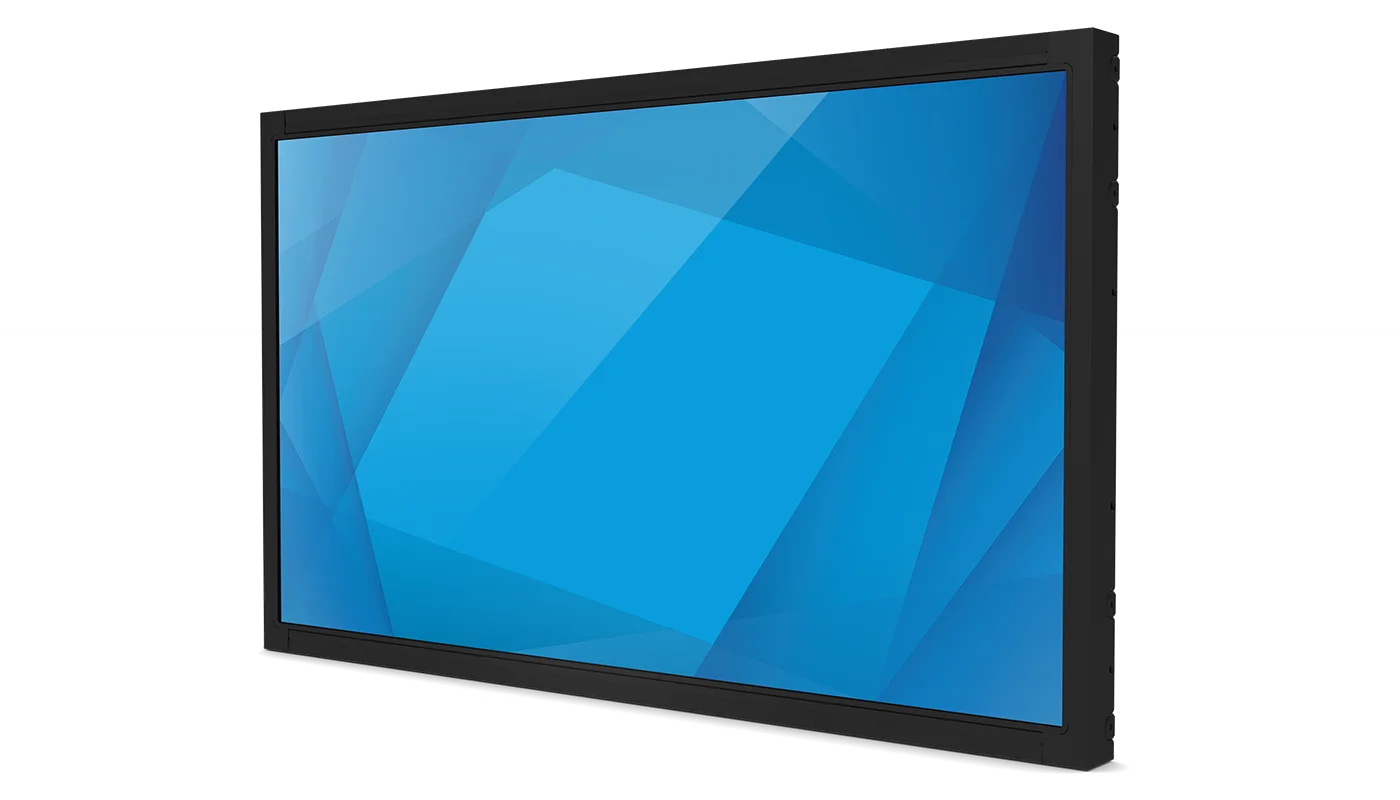

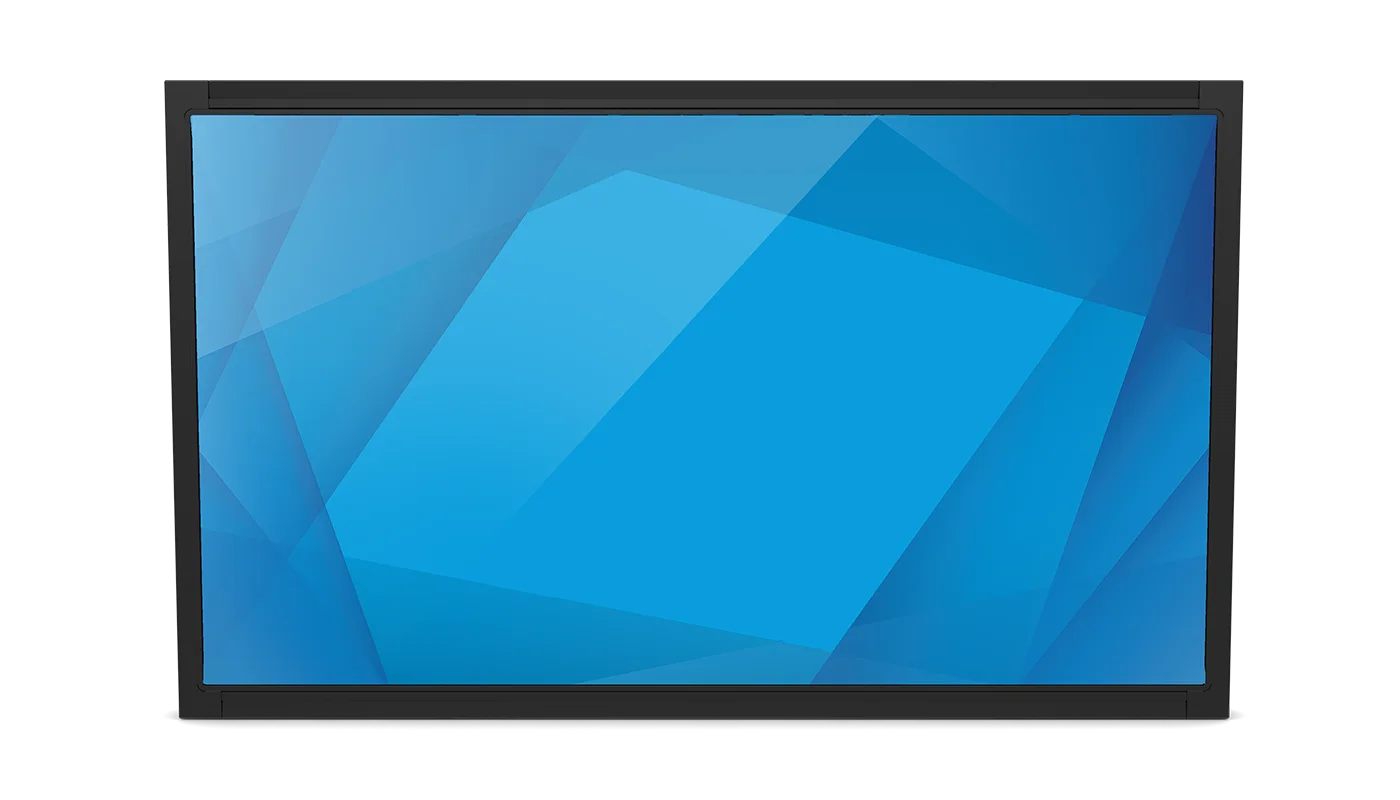

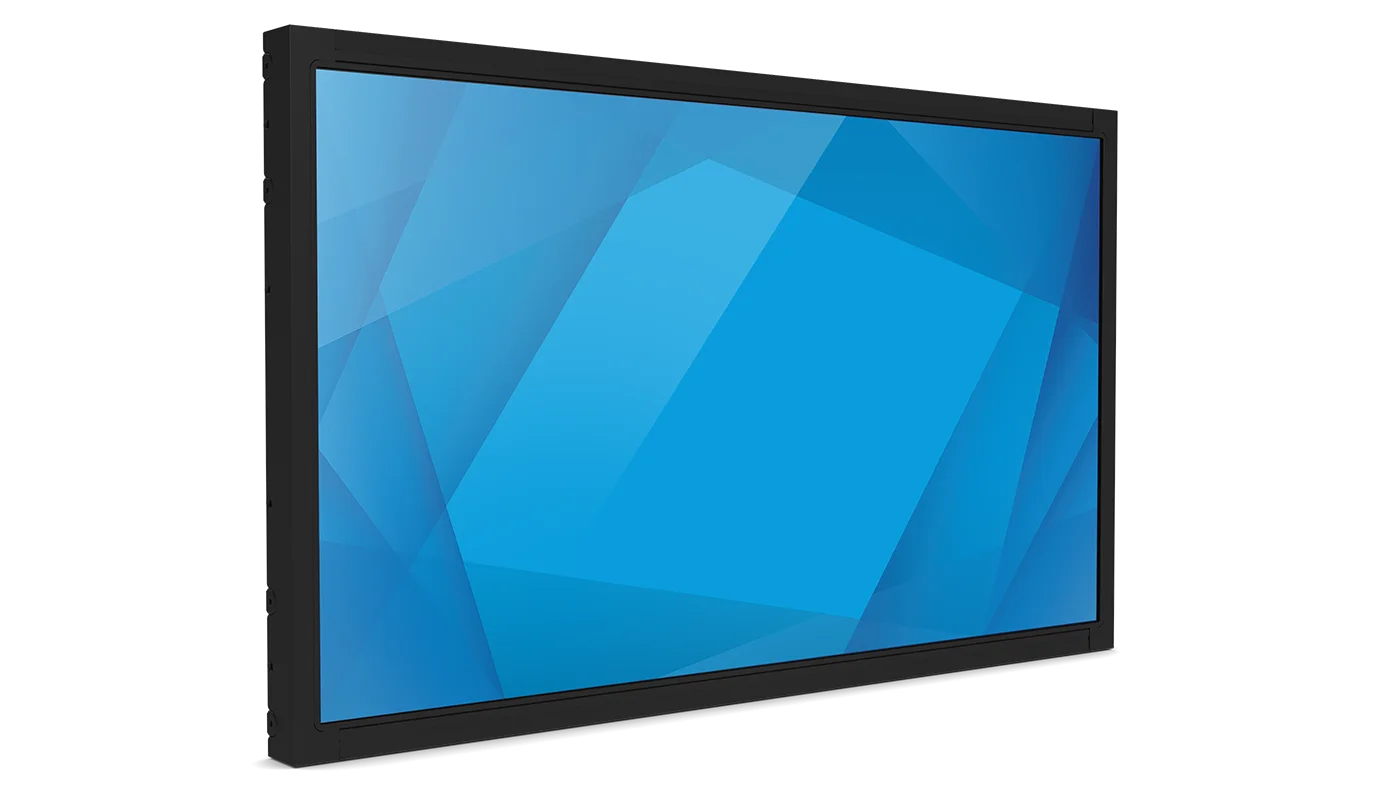

Elo Touch 3243L Open Frame Touchscreen

Overview

Display31.5'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The Elo 3243L 32-inch full HD open-frame touchscreen delivers a professional-grade large-format display and sleek design at less than 2.3 inches (58 mm) in total thickness. Designed for touch from the start with proven Elo expertise and reliability built in, the 3243L offers a state-of-the-art slim design using LED backlighting, reducing power consumption and heat to enable thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust UL60950 ball-drop requirements, supporting applications in demanding public access environments. The comprehensive range of features includes analog and digital interfaces, multi-lingual and cabled remote on-screen display (OSD), mounting VESA standard, mounting brackets, and worldwide compliance.

Featuring a compact form factor and optional rack- and front-mount bezels, the 3243L is easy to integrate. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability, as well as backwards compatibility, can be expected, helping minimize enclosure costs.
The 3243L is available with a choice of dual-touch technologies. The IntelliTouch™ surface acoustic wave (SAW) dual touch technology offers the ultimate in optical quality. The 3243L touchscreen provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to wear them out.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
1920 x 1080 full HD provides a bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
Worldwide agency approvals and a three-year standard warranty extendable to five years

Specifications

Technical

Part Number(s): IntelliTouch Dual Touch (clear) - E326202
Enclosure Color: Black
Touch Technology & Capacity: SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
Touch Interface: USB
Diagonal Size: 31.5'' diagonal, Active matrix TFT LCD (LED)
On Screen Display: Accessible through switches on the OSD Control Remote accessory.; Controls (side): Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power; RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.; See user manual for full details.
Aspect Ratio: 16:9
Active Area: 27.57" x 15.54" / 700.4mm x 394.85mm
Resolution: 1920 x 1080
Other Supported Resolutions: 640 x 480 at 60Hz; 800 x 500 at 60Hz; 800 x 600 at 56/60Hz; 1024 x 768 at 60Hz; 1280 x 720 at 60Hz; 1280 x 960 at 60 Hz; 1280 x 1024 at 60Hz; 1360 x 768 at 60 Hz; 1366 x 768 at 60 Hz; 1440 x 900 at 60 Hz; 1600 x 1200 at 60 Hz; 1680 x 1050 at 60 Hz; 1920 x 1080 at 60 Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical): LCD panel: 500 nits; IntelliTouch Dual Touch: 450 nits
Response Time-total (typical): 8 msec
Contrast Ratio: 3000:1
Input Video Format: Analog VGA, HDCP-capable HDMI 1.3
Input Video Signal Connector: Female DE-15 VGA, HDMI Type A Receptacle Connector
Input Video Frequency: Horizontal: 31 - 75 KHz; Vertical: 47 - 63 Hz
Power Supply: Internal AC
Input Voltage: AC: 100-240 VAC, 50/60 Hz
Input Connector: AC: IEC 60320 C14
Maximum Operating Time: 24 hours/day
Power Consumption (Typical): Monitor + AC/DC adapter; (Typical @ 120V at 60Hz):; ON: 47.4W; SLEEP: 1.1W; OFF: 0.1W; (Typical @ 230V at 50Hz):; ON: 47.1W; SLEEP: 1.1W; OFF: 0.1W
Dimensions: 29.0" x 17.4" x 2.25" / 736.4mm x 443mm x 57.2mm
Shipping Box Dimensions: 39.0" x 26.4" x 11.65" / 992mm x 672 mm x 296mm
Weight (Unpackaged): 26.7 lbs / 12.1 kg
Weight (Packaged): 41.1 lbs / 18.6 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year
Extended Service Options: 4 year warranty coverage + AUR - Elo P/N: E740135; 5 year warranty coverage + AUR - Elo P/N: E740330
Regulatory approvals and declarations: Argentina S-Mark; Australia RCM; Canada cUL, IC; China CCC; Europe CE; Japan VCCI; Korea KCC e-standby; Mexico CoC; Russia EAC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE; United States UL 60950 ball-drop compliant

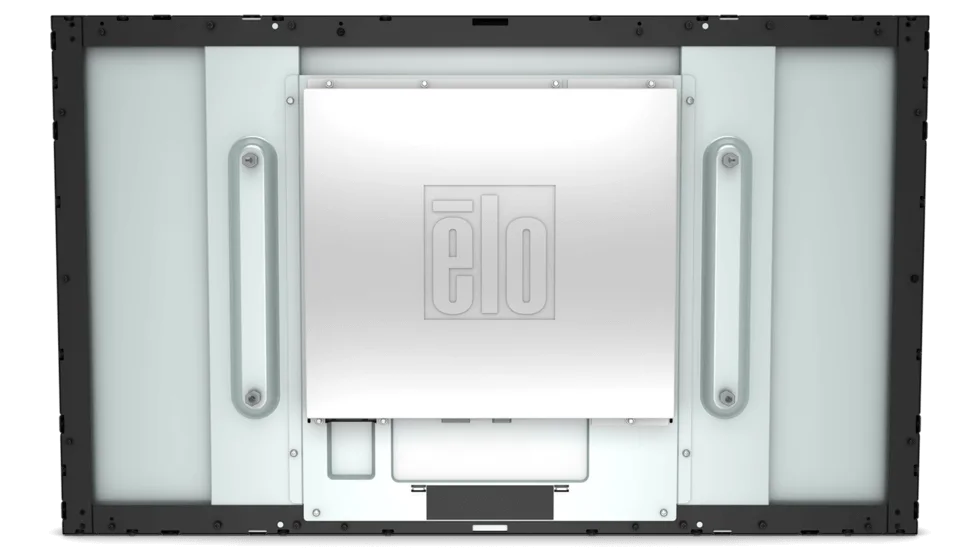

Mounting Options: 400mm x 200mm VESA 4-hole mounting interface on rear of unit; Side mounting brackets included (with IntelliTouch Dual Touch models only)
What's in the Box: 3243L IntelliTouch, QIG (With Driver), Japan Kiosk Class A info, EEI Label, Side Mount Bracket Kit (8 pc brackets, 16 pc M4x5 screws), HDMI cable (Type A plug to Type A plug), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C13 to NA plug, power cable, IEC 60320-C13 to EU/KR plug, power cable, IEC 60320-C13 to UK plug, power cable, IEC 60320-C13 to AR plug, power cable, IEC 60320-C13 to CH plug, power cable, IEC 60320-C13 to TW plug, power cable, IEC 60320-C13 to JP plug, 3-pin to 2-pin adapter for JP power cable
Options / Peripherals / Upgrades: Remote OSD (RJ45) - Elo P/N: E483757; Replacement Cable Kit - Elo P/N: E378229; IntelliTouch Stylus Pen - Elo P/N: D82064-000; Replacement Bracket Kit for 3243L IT model – Elo P/N: E727550

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: 3263L
Status basis: elotouch.com lists it as replaced by 3263L
