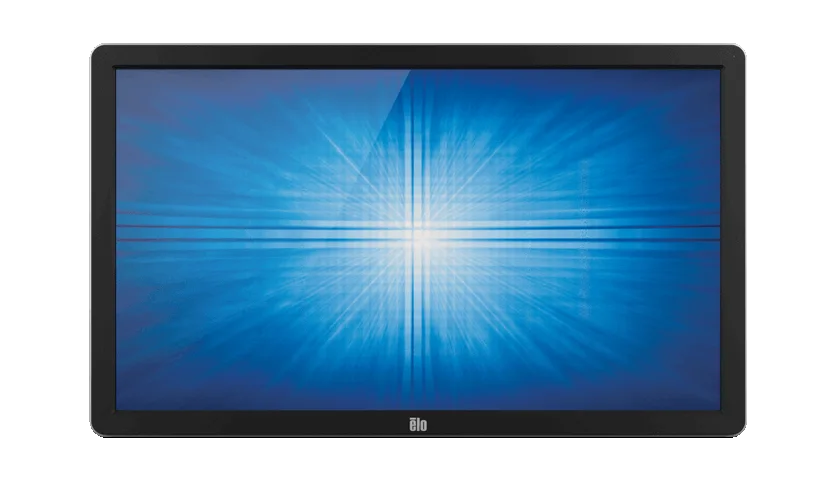

Elo Touch 3202L 32" Interactive Digital Signage (IR Model)

This product has been replaced by the 3203L . Elo 3202L Touchscreen Signage Display

Display31.5'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

Add interactivity to any environment with Elo’s 3202L 32-inch touchscreen display. With a brilliant and responsive interactive canvas for leveraging a variety of content, the professional-grade large format display is well-suited for creating engaging experiences. From endless aisle and brand experiences to way-finding and collaboration, Elo’s touchscreen displays from 10 to 70 inches offer everything you need in a sleek, slim design and are built to withstand the rigors of continuous public use.

Not only do high traffic environments demand interaction, but meeting rooms and classrooms do as well. They introduce heightened collaboration capabilities between the instructor and their audience, helping to drive concepts and innovation beyond what a whiteboard and dry erase marker once did.
The 3202L is available with two touch technology options. Both enable 10+ touch for multi-user interaction with fast and sensitive responses. TouchPro™ PCAP offers clear anti-friction edge-to-edge glass with touch thru performance. Infrared (IR) offers ease of scalability to larger sizes with an extra level of protection against scratches.
Expand your touchscreens potential by adding an EMV reader, NFC/RFID, MSR, barcode reader or one of our many other accessories. With the Elo Edge Connect system, accessories attach flush to the edge of the touchscreen/display for a clean design and extended functionality. On the 3202L touchscreen monitor, you can easily add any combination of up to four Edge Connect products – configuration is up to you and easily changed at any time.
With high-powered CPU options for Android or Windows OS, Elo enables a seamless end-to-end solution from one manufacturer for interactive experiences. Purpose-built for compatibility and long life-cycles, the compute modules and touchscreen systems create one of the most robust and reliable solutions on any platform.
The Elo Computer Modules (ECMs) for Windows slide into the back of the touchscreen display to deliver one of the industry's thinnest commercial grade all-in-one large format touchcomputers. AC power, video and USB signals pass between the computer module and the display making field installation and maintenance easy with no external cables required.

Videos

Elo 3202L 32" Interactive Digital Signage (IR Model) video

Specifications

Technical

Part Number(s): Infrared (clear) - E222368
Enclosure Color: Black
Touch Technology & Capacity: Infrared - 20 Touch
Touch Interfaces: USB
Diagonal Size: 31.5'' diagonal, Active matrix TFT LCD (LED)
Active Area: 27.49" x 15.47" / 698.4mm x 392.9mm
Aspect Ratio: 16:9
Resolution: 1920 x 1080 @ 60hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical): LCD Panel: 500 nits; IR: 450 nits
Response Time-total (typical): 8 msec
Contrast Ratio: 3000:1
I/O Ports: Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in; Output: Audio Headphones out, RJ45 (for optional OSD remote)
Input Video Frequency: Horizontal: 31.5 - 73 KHz; Vertical: 47 - 63 Hz
Audio Input Connector: 3.5 mm TRS jack
Audio Input Signal Range: 1Vrms max stereo signal (standard PC line out)
Headphone Output Connector: 3.5 mm TRS jack
Speakers: 4 x 5 W stereo speakers
Power Supply: AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080
Input Connector: IEC 60320 C6
Input Voltage: 100 - 240 VAC 50/60Hz
Maximum Operating Time: 24 hours/day
Power Consumption (Typical): Monitor Only; (Typical at 120V at 60Hz): ON: 55.0 W; SLEEP: 9.0 W; OFF: 2.0 W; (Typical at 230V at 50Hz): ON: 53.0 W; SLEEP: 9.0 W; OFF: 2.5 W; Monitor with ECMG3; (Typical at 120V at 60Hz): ON: 62.0 W; SLEEP: 12.0 W; OFF: 11.0 W; (Typical at 230V at 50Hz): ON: 63.0 W; SLEEP: 11.0 W; OFF: 12.0 W
Dimensions: I30.03" x 18.00" x 2.43" / 762.8mm x 457.3mm x 61.6mm
Shipping Box Dimensions: 34.84" x 7.87" x 22.83" / 885mm x 200mm x 580mm
Weight (Unpackaged): With ECMG3: 35.83 lbs / 16.25 Kg; Without ECMG3: 29.21 lbs / 13.25 Kg
Weight (Packaged): Without ECMG3: 39.88 lbs / 18.09 Kg
Operating Temperature: Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F; Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95%
Mounting Options: VESA mount per MIS-F, 400, 400, 6MM
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year
Extended Service Options: 4 year warranty coverage + AUR - Elo P/N: E740135; 5 year warranty coverage + AUR - Elo P/N: E740330; 3 year warranty coverage + OSE - Elo P/N: E740527; 4 year warranty coverage + OSE - Elo P/N: E740728; 5 year warranty coverage + OSE - Elo P/N: E740918
Regulatory approvals and declarations: UL, FCC (US) - Class A; cUL, IC (Canada) CB (International safety); CE (Europe) - Class A; CCC (China); EAC (Russia); VCCI (Japan)
RFID Supported Protocols: ISO - 14443-A; ISO - 14443-B; ISO – 15693
What's in the Box: HDMI cable (Type A plug to Type A plug), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C5 to NA plug power cable, IEC 60320-C5 to EU/KR plug power cable, IEC 60320-C5 to UK plug, 3.5mm Audio Cable, Energy label according to EU Regulation
Optional PCAP Stylus Pen: E066148
IDS Optional Accessories: Barcode Reader – Elo P/N: E093433; 2D Barcode Scanner – Elo P/N: E926356; Elo Backpack® - Elo P/N: E611864; Elo Backpack® 3.0 - Elo P/N: E901355; Magnetic Stripe Reader – Elo P/N: E001002; NFC/RFID Reader – Elo P/N: E001004; Wallmount for IDS 02 Series – Elo P/N: E275050; EMV Cradle for Ingenico ICMP - Elo P/N: E200788; EMV Cradle for Verifone E355 - Elo P/N: E201363; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Fingerprint Scanner – Elo P/N: E134286; ECM Power Connector Module for IDS 02 Series – Elo P/N: E275433; Stand for IDS 02 Series - Elo P/N: E275623; Wired OSD Remote - Elo P/N: E483757; OPS adaptor kit for IDS 02 Series - Elo P/N: E337104; i3-6100 ECMG3 with No OS - Elo P/N: E400587; i3-6100 ECMG3 with Windows 10 - Elo P/N: E400965; i5-6500 ECMG3 with No OS - Elo P/N: E401168; i5-6500 ECMG3 with Windows 10 - Elo P/N: E401558; i5-6500 ECMG3 with Windows 10 (256 GB SSD & 8GB RAM) - Elo P/N: E458919; i5-6500 ECMG3 with Windows 10 and DisplayNote Montage Software - Elo P/N: E343989; i7-6700 ECMG3 with No OS - Elo P/N: E401764; i7-6700 ECMG3 with Windows 10 - Elo P/N: E402161; i7-6700 ECMG3 with Windows 10 (256 GB SSD) - Elo P/N: E459109; Note: All ECMG3 Kits include the E275433 ECM Power Connector Module for IDS02; Replacement Cable Kit - Elo P/N: E060080; Collaboration Tray - Elo P/N: E477238

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: 3203L
Status basis: elotouch.com lists it as replaced by 3203L
