Elo Touch · Display

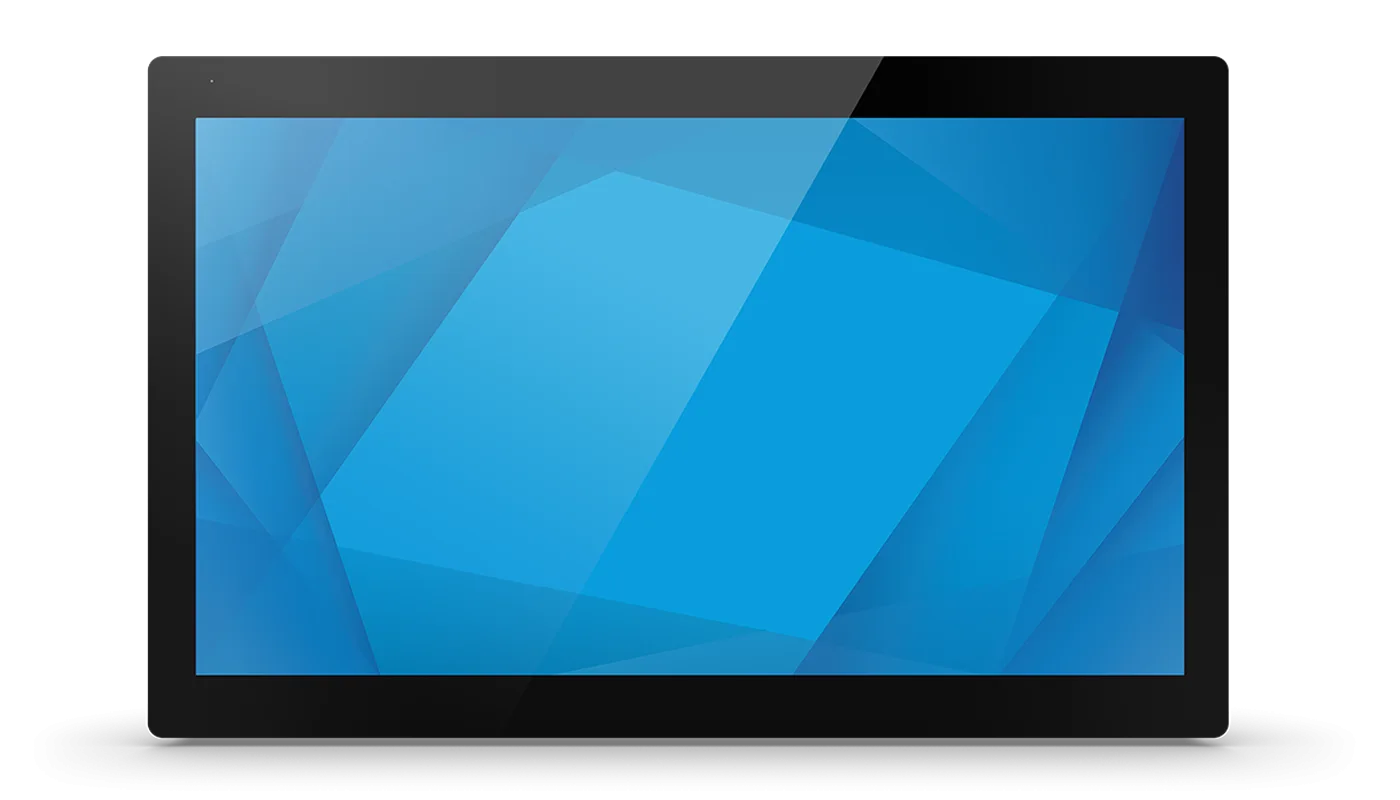

Elo Touch 2799L 27" Outdoor Open Frame Touchscreen
Outdoor kiosk ready.
- Display27'' diagonal, Active matrix TFT LCD (LED)
- SealingSealable to IP66 / NEMA 4x
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
Elo's 27-inch outdoor monitor, boasting 1500 NITs brightness and IK10 vandal-proof rating, is ready for 24/7 use, even in direct sunlight. Readable with polarized sunglasses, it thrives in extended temperatures. Ideal for payment systems, signage, and charging stations, this brilliant, optically bonded weatherproof monitor features edge-to-edge glass for seamless outdoor enclosure integration.
- Built to perform outdoors, Elo’s 2799 weatherproof monitor offers IP66 and NEMA 4X when integrated into an enclosure as well as IK10 impact protection. With extended operating temperatures from -20 to 60 degrees Celsius, the integrated outdoor digital signage display can withstand harsh physical and thermal requirements.
- To provide unmitigated performance from day to night, the ambient light sensor automatically adjusts the display’s brightness to optimize power consumption, extend the life of the display and enhance the viewing experience.
- Elo’s 2799L outdoor monitor enables you to create reliable outdoor kiosks that will capture audiences and differentiate your sunlight readable outdoor display.
- Transform Elo touchscreens into an affordable, scalable, single-architecture media platform with EloView™ and the Android Backpack. With simplified content-delivery and remote-management capabilities, managing isolated outdoor kiosks out-of-the-box is simplified.
- The Elo Backpack delivers a powerful, commercial- grade Android 10 compute engine designed to simplify the deployment of content, websites and Android- based apps across your interactive experiences. Purpose-built to fit in compact spaces, the Elo Backpack boasts a small footprint in both size and weight to secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
Specifications
Technical
- Part Number(s)
- TouchPro PCAP with anti-glare - E399052
- Enclosure Color
- Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Touch Thru
- Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
- Touch Interface
- 10 touch with USB 2.0; 2 touch with RS232 via VGA port with E810917
- Diagonal Size
- 27'' diagonal, Active matrix TFT LCD (LED)
- On Screen Display
- Accessible through switches on the unit’s tethered OSD Control box.; Controls: Menu, Up, Down, Select, Power; Settings: Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
- Aspect Ratio
- 16:9
- Active Area
- 23.54" x 13.24" / 597.89 mm x 336.31 mm
- Resolution
- 1920 x 1080
- Other Supported Resolutions
- 640 x 480 60Hz; 720 x 400 70Hz; 800 x 500, 60Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50, 60Hz
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD panel: 1500 nits; TouchPro PCAP: 1320 nits
- Response Time-total (typical)
- 14 msec
- Contrast Ratio
- 1000:1
- I/O Ports
- Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in, Terminal Block for GPIO control (4 pins)
- Video
- HDMI V1.3 Type A receptacle for HDMI input; Analog VGA on Female DE-15 (DB-15) connector (Support RS232 touch via E810917); DisplayPort V1.1a - Supports later versions of DisplayPort video input; Input Video Horizontal Sync frequency range: 30 – 82K KHz; Input Video Vertical Sync (frame rate) frequency range: 50-75Hz
- Power
- External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 9.5mm (+/- 0.2mm) Barrel depth); Monitor input voltage range: 12V – 24V DC +/- 5%; Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- Monitor + adapter; ON: 70W; SLEEP from PC: 1.23W; OFF: 0.26W
- Dimensions
- 16.34" x 25.90" x 2.6" / 415 mm x 658 mm x 66 mm
- Shipping Box Dimensions
- 22.25" x 32.29" x 9.06" / 565 mm x 820 mm x 230 mm
- Weight (Unpackaged)
- 30.00 lbs / 13.6 kg
- Weight (Packaged)
- 36.60 lbs / 16.6kg
- Operating Temperature
- -20°C to 60°C / -4°F to 140°F
- Storage Temperature
- -30°C to 80°C / -22°F to 176°F
- Humidity
- Operating: 10% to 90%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)
- Sealability
- Sealable to IP66 / NEMA 4x
- MTBF
- 50,000 hours demonstrated
- Warranty
- 2-year
- Regulatory approvals and declarations
- Australia RCM; Canada cUL, IC; China CCC; Europe CE, TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NoM; Taiwan BSMI; United States UL, FCC; International CB; Russia EAC; RoHS, China RoHS, WEEE
- Compliance
- GLI 15 kV air / 8 kV contact ESD compliant; UL ball-drop compliant; IK10 impact compliant
- Mounting Options
- 200x100mm VESA mount on rear of unit; 4 Hole mounting interface on all four sides.; Flush mount with included brackets
- Other Features
- Polarize sunglasses view: portrait and landscape; Ambient light sensor (1x); Thermal sensor (2x); Internal fan (2x); External fan (4x); GPIO Control (1x input, 1x output, VCC, GND)
- What's in the Box
- 2799L; HDMI cable with screw-locked type; VGA Cable; Remote OSD; Touch USB Cable with screw-locked type; Quick Install Guide; Flush Mount Brackets w/Screws; EEI Label
- Options / Peripherals / Upgrades
- Remote OSD (RJ45) - Elo P/N: E483757; Cable Kit DVI-D to HDMI – Elo P/N: E538507; Cable Kit DP to DP – Elo P/N: E582895; PCAP Flush-Mount Kit – Elo P/N: E598366; Y Cable Kit – Elo P/N: E810917; External 80W power brick and cable, LVL6 America – Elo P/N: E596619; External 80W power brick and cable, LVL6 Europe – Elo P/N: E596821; External 80W power brick and cable, LVL6 UK – Elo P/N: E597014; External 80W power brick and cable, LVL6 China – Elo P/N: E597205; External 80W power brick and cable, LVL6 Taiwan – Elo P/N: E597410; External 80W power brick and cable, LVL6 Japan – Elo P/N: E597608; External 80W power brick and cable, LVL6 Argentina – Elo P/N: E597792; External 80W power brick and cable, LVL6 Australia – Elo P/N: E597994; Outdoor Cable Kit – Elo P/N: E503785; HDMI to HDMI Locking Cable – Elo P/N: E503967; DC locking power cable 1.8 m – Elo P/N: E162782
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
