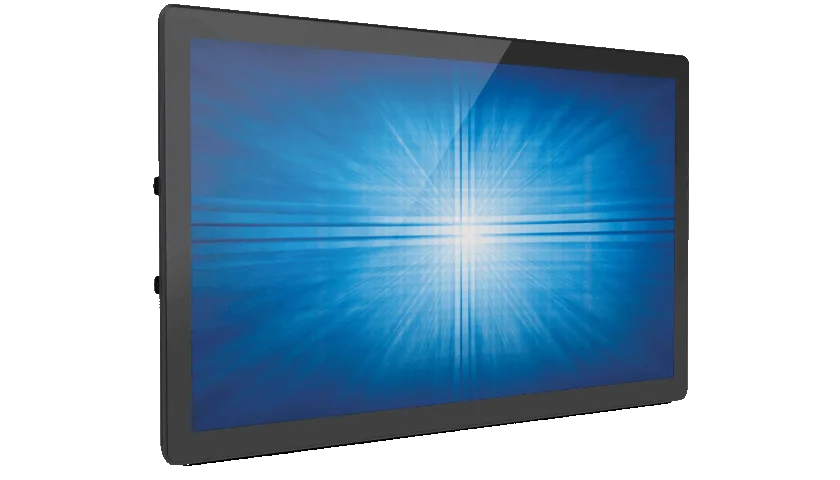

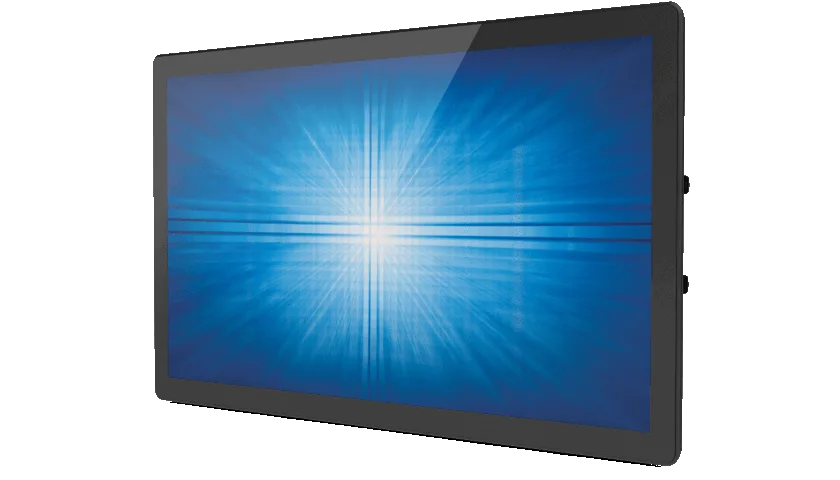

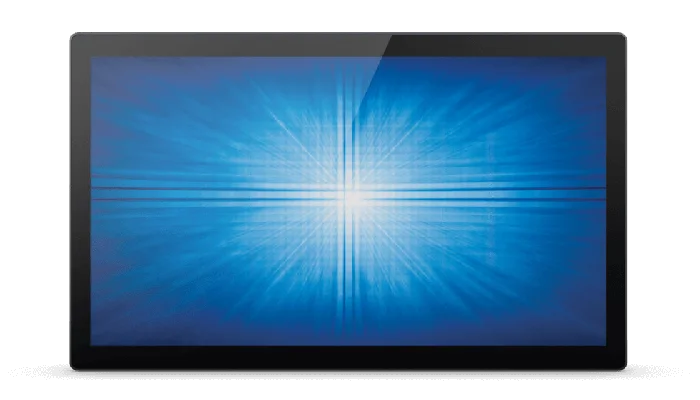

Elo Touch 2796L 27" Open Frame Touchscreen

Display27'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro™ PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.

Create a design-in solution that will capture audiences, attract integrators, and differentiate you from the competition.
Interactive self-service experiences are rapidly expanding across verticals and markets. From QSR and retail to entertainment and vending, customers want more control and seamless efficiency. Elo’s new high-bright touchscreens offer you the dependability your business needs with added brilliance to attract and engage your customers.
Interactive entertainment experiences are everywhere, from casino slot machines and electronic table games to museums and libraries. With Elo’s new high-bright touchscreens, you can create brighter, tablet-like experiences to set your solution apart from the crowd. And with the durability needed to withstand continuous public use, you can count on your solution to capture everyone’s attention, and convert them into valuable, engaged consumers.
With the rise of automation, touchscreens have become critical for enabling communication between machines, devices, sensors and people. Elo’s robust high-bright, industrial-grade displays provide picture-perfect clarity for interactions with Human Machine Interfaces (HMI) while offering world-class durability for better performance over a longer life in varying conditions and lighting environments.
Interactive signage is continuing to enhance retail environments, from endless aisle and product configurators to brand experiences and self-service checkout. With Elo’s high bright products, you can integrate brilliant interactive signage to attract and engage customers in areas requiring a compact form factor with the same convenience and content as larger signage.

Videos

Elo 2796L 27" Open Frame Touchscreen video

Specifications

Technical

Part Number(s): TouchPro PCAP (Worldwide) - E146826
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Interface: USB 2.0
Diagonal Size: 27'' diagonal, Active matrix TFT LCD (LED)
On Screen Display: Accessible through switches on the unit’s tethered OSD Control box.; Controls: Menu, Up, Down, Select, Power; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
Aspect Ratio: 16:9
Active Area: 23.54" x 13.24" / 597.89 mm x 336.31 mm
Resolution: 1920 x 1080
Other Supported Resolutions: 640 x 480 60Hz; 720 x 400 70Hz; 800 x 500 60Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50, 60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 10-bit (1.07 billion)
Brightness (typical): LCD panel: 1000 nits; TouchPro PCAP: 900 nits
Response Time-total (typical): 14 msec
Contrast Ratio: 1000:1
I/O Ports: USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in
Input Video Format: HDMI V1.3 Type A receptacle for HDMI input; Analog VGA on Female DB-15 connector; DisplayPort V1.1a - Supports later versions of DisplayPort video input
Input Video Frequency: Horizontal: 30 - 82 KHz; Vertical: 50 - 75 Hz
Power: External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input voltage range: 12VDC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): Monitor + Adapter; ON: 55 W; SLEEP FROM PC: 0.85 W; OFF: 0.5 W
Dimensions: 25.36" x 15.29" x 2.02" / 644.2 mm x 388.4 mm x 51.4 mm
Shipping Box Dimensions: 30.79" x 20.87" x 7.87" / 782 mm x 530 mm x 200 mm
Weight (Unpackaged): 17.01 lbs / 7.73 kg
Weight (Packaged): 24.93 lbs / 11.33 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95%
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
Compliance: GLI 27 kV air / 8 kV contact ESD compliant; UL 60950 ball-drop compliant; IK07 impact compliant

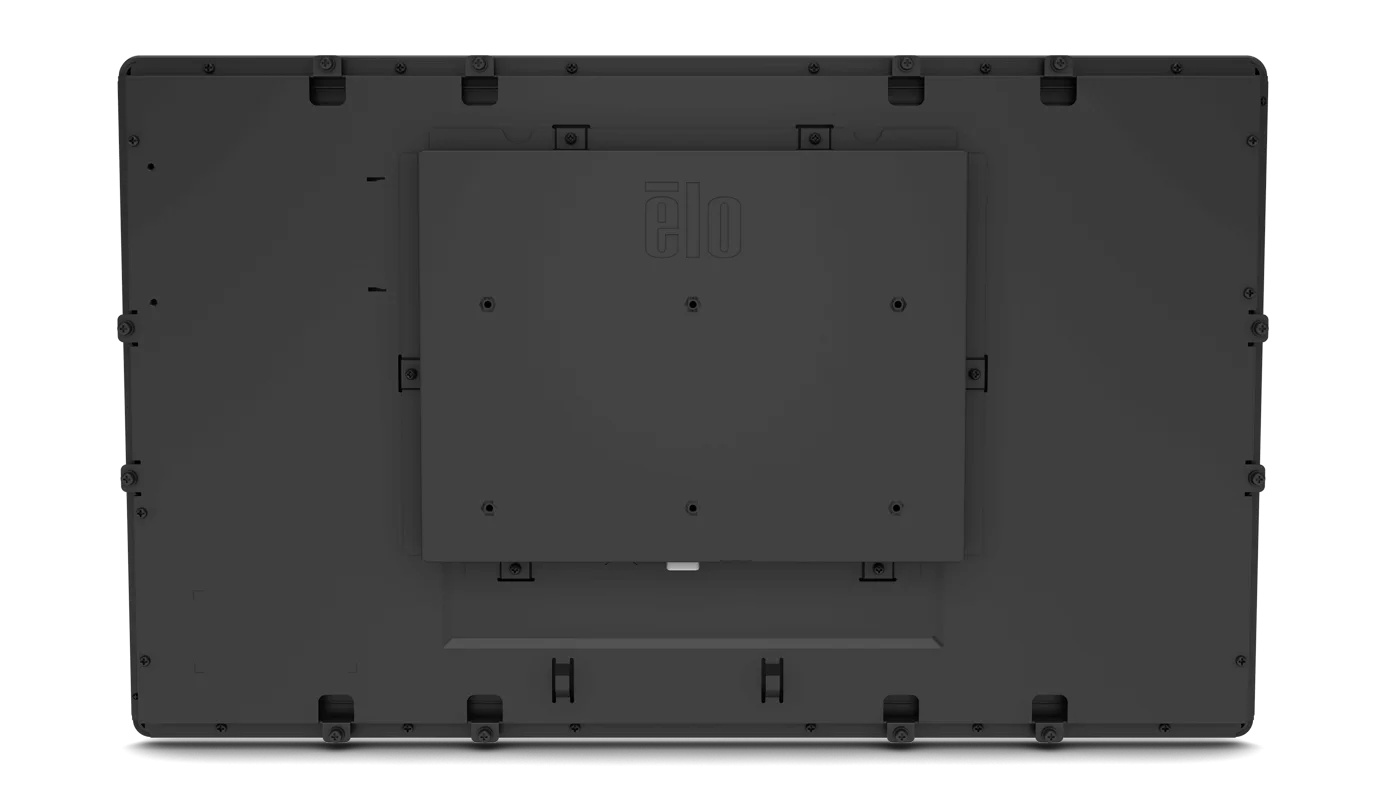

Mounting Options: 200x100mm VESA mount on rear of unit; 4 Hole mounting interface on all four sides.; Flush mount with included brackets
What's in the Box: HDMI cable; VGA Cable; Remote OSD; Touch USB Cable; Quick Install Guide; Flush Mount Brackets w/Screws; EEI Label; Japan Class-B TM info sheet
Options / Peripherals / Upgrades: Remote OSD (RJ45) - Elo P/N: E483757; Replacement Cable Kit (HDMI, VGA, USB and Serial cables) - Elo P/N: E546861; Cable Kit DVI-D to HDMI – Elo P/N: E538507; Cable Kit DP to DP – Elo P/N: E582895; North America power brick 65W - Elo P/N: E642301; European & Korea power brick 65W - Elo P/N: E631191; UK power brick 65W - Elo P/N: E631382; China power brick 65W - Elo P/N: E631579; Taiwan power brick 65W - Elo P/N: E631771; Japan power brick 65W - Elo P/N: E631959; Argentina power brick 65W - Elo P/N: E632151; Australia power brick 65W - Elo P/N: E632528; Elo 27-inch Wide Flush-mount Bracket - Elo P/N: E632340

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: 2794L
Status basis: elotouch.com lists it as replaced by 2794L
