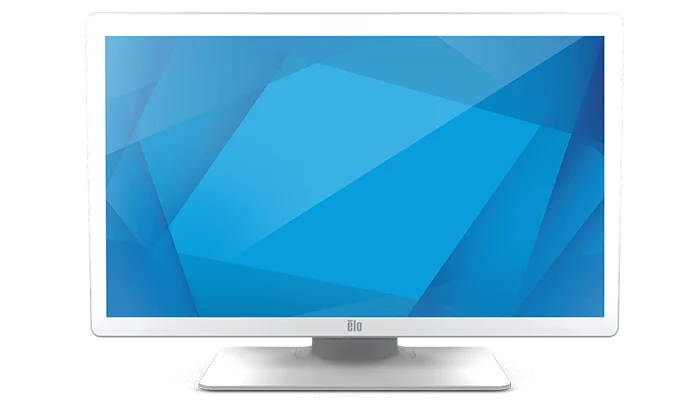

2703LM 27" Medical Grade Touchscreen Monitor by Elo

Elo Touch · Display

Elo Touch 2703LM 27" Medical Grade Touchscreen Monitor

Display27'' diagonal, Active matrix TFT LCD (LED)
SealingIP54 entire enclosure

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.
TouchPro™ PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.
Backed by Elo’s 3-year standard warranty with optional EloCare service offerings.
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Specifications

Technical

Part Number(s): TouchPro PCAP White with stand - E659793; TouchPro PCAP Black with stand - E659596; TouchPro PCAP White without stand - E381844; TouchPro PCAP Black without stand - E381654
Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size: 27'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 23.54" x 13.24" / 597.88 x 336.31 mm
Resolution: 1920 x 1080 @ 50, 60Hz
Other Supported Resolutions: 640 x 480 60Hz; 640 x 400 70Hz; 720 x 400 70Hz; 800 x 500 60Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 720 @ 58Hz, 60Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical): LCD Panel: 300 nits; TouchPro PCAP: 270 nits
Response Time-total (typical): 14 msec
Contrast Ratio: 1000:1
Touch Interface: USB, Serial (via VGA)
Surface Treatment: Anti-glare
On Screen Display: Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM; Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean; Lockouts: OSD, Power
I/O Ports: VGA (RS232 touch supported via E810917); HDMI; Combo Jack; DC jack; USB Type B; USB 2.0 Type A; 4x Micro USB
Speakers: Two x 2W internal speakers
Input Video Format: VGA (VGA DE-15 (DB-15) Male connecter cable included); HDMI (HDMI cable included)
Input Video Frequency: Horizontal: 30 – 82KHz; Vertical: 50 - 75Hz
Power Consumption (Typical): Monitor + AC/DC adapter; ON (Default - 75% Brightness): 17.37 W; ON (Typical - 100% Brightness): 22.41W; SLEEP: 1.006 W; OFF: 0.24 W
Input Voltage: 12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector: Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting: 4x Micro USB side ports (Top, Bottom, Left, Right)
Monitor Dimensions (without Stand): 15.52" x 25.50" x 1.77" / 394.1 mm x 647.6 mm x 44.9 mm
Monitor Dimensions (with Stand): 17.75" x 25.50" x 9.17" / 450.9 mm x 647.6 mm x 233 mm
Shipping Box Dimensions: With Stand: 22.05" x 30.08" x 12.68" / 560 mm x 764 mm x 322 mm; Without Stand: 20.47'' x 30.31'' x 7.36'' / 520 mm x 770 mm x 187 mm
Weight (Unpackaged): With Stand: 22.64 lbs / 10.27 kg; Without Stand: 15.72 lbs / 7.13 kg
Weight (Packaged): With Stand: 31.48 lbs / 14.28 kg; Without Stand: 22.95 lbs / 10.41 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 4-hole 100mm mounting interface on rear of unit
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Canada CUL, IC; China CCC; Europe CE; United Kingdom UKCA; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico CoC; RoHS, China RoHS, WEEE, REACH; India BIS; ANSI/AAMI ES60601-1 (2005/(R)2012 + A1:2012, C1:2009/(R)2012 + A2:2010/(R)2012) - Amendment 1 - Revision Date 2012/08/21; CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 - Revision Date 2014/03; CB: IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD:2020 (Ed 3.2); CE: IEC 60601-1-2:2014 (Ed. 4); Risk Management: ISO 14971:2019; Usability: IEC 60601-1-6:2010/AMD2:2020, IEC 62366:2017
DICOM: DICOM Part 14 (AAPM secondary display)
Ingress Protection: IP54 entire enclosure
Impact Protection: IK06
Power Cables: North America Power Cable C13 - Elo P/N: E593865; Australia Power Cable C13 - Elo P/N: E594067; Europe Power Cable C13 - Elo P/N: E594264; Korea Power Cable C13 - Elo P/N: E594466; China Power Cable C13 - Elo P/N: E594670; Taiwan Power Cable C13 - Elo P/N: E594869; Japan Power Cable C13 - Elo P/N: E793799
What's in the Box: Touchmonitor; Quick Install Guide; 3x Tie wraps; VGA cable; HDMI cable; Touch USB cable; Audio cable; Power brick (E323104); NA Power cable; EU Power cable; EEI Label; DICOM calibration sheet; 4 x VESA Screws (only for E381654 and E381844); 4 x rubbers (only for E381654 and E381844, affix to VESA holes); 2 x Cable cover screws
Replacement DC Power Supply: Power Brick - E593253
Optional Peripherals: PCAP Stylus Pen - Elo P/N: E066148; Privacy Screen 27-inch - Elo P/N: E353170; Elo Monitor Handles – 1 Set - Elo P/N: E352196
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; 1.8m Cable Kit - Elo P/N: E408193; Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844; Elo Stand 2402/3-2702/3 - White (100 mm VESA) - Elo P/N: E510042; Serial Touch & VGA Video Y-Cable - Elo P/N: E810917; Wallaby™ Pro countertop stand – Elo P/N: E989127; Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512; Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E989705; Wallaby™ Pro wall-mounted stand – Elo P/N: E989127 + E990079; VESA Mount for 02/03 Monitors on Wallaby Countertop and Floor Stands – Elo P/N: E698263

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
