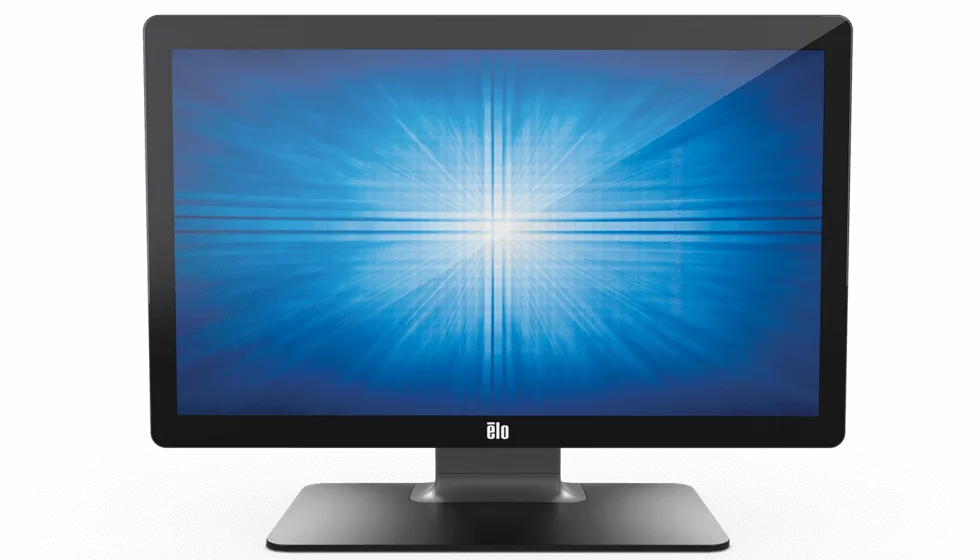

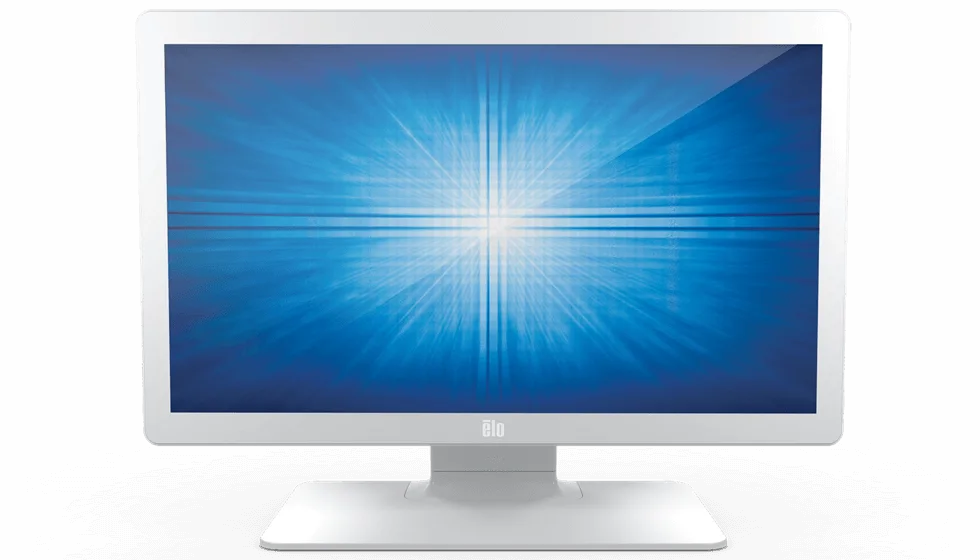

Elo Touch 2703LM 27" Medical Grade Touchscreen Monitor (Gen 1)

03-Series Medical Grade Touchscreen Monitors

Display27'' diagonal, Active matrix TFT LCD (LED)
SealingIP54 entire enclosure

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The Elo 03-Series of Touchscreen Monitors designed for the Healthcare applications includes four sizes – a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration the 03-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. Additionally, the 03-Series complies with IEC60601-1 4th edition requirements and is IP54 certified to support healthcare installations.

The clear glass touchscreens with Elo's industry-leading TouchPro™ PCAP technology offer wide viewing angles with excellent image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 03-Series Monitors provide a tablet-like experience.
The 03-Series Medical Grade Touchscreen Monitors offer flexibility for installation in a variety of healthcare environments — from exam rooms and lab clinics to patient check-in and pharmacy check out. Whether you need a touchscreen at a nurse's station to enable support or as a directory to help patients and visitors get around the healthcare facility, the line of 03-Series monitors can support increased communication among patients and healthcare providers.*
* This product is not an FDA approved “medical device” or otherwise approved by the FDA and is not ISO-13485 compliant. Depending on the intended use, additional certifications may be required.
Optional privacy screen can be used as an additional physical safeguard for private health information or sensitive administrative data. Whether you are a physician or a patient, privacy matters.
Some healthcare applications require a display with flexibility of movement to support the appointment with a patient. With handles connected to the monitor, a physician can easily move the display to a comfortable orientation.

Specifications

Technical

Part Number(s): TouchPro PCAP Black (Worldwide) - E351013; TouchPro PCAP White (Worldwide) - E351200
Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size: 27'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 23.54" x 13.24" / 597.88 x 336.31 mm
Resolution: 1920 x 1080 @ 50, 60Hz
Other Supported Resolutions: 640 x 480 60Hz; 640 x 400 70Hz; 720 x 400 70Hz; 800 x 500 60Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 720 @ 58Hz, 60Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical): LCD Panel: 300 nits; TouchPro PCAP: 250 nits
Response Time-total (typical): 14 msec
Contrast Ratio: 1000:1
Touch Interface: USB
Surface Treatment: Clear
On Screen Display: Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF; Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean; Lockouts: OSD, Power
I/O Ports: VGA; HDMI; Combo Jack; DC jack; USB Type B; USB 2.0 Type A; 4x Micro USB
Speakers: Two x 2W internal speakers
Input Video Format: VGA (VGA DB-15 Male connecter cable included); HDMI (HDMI cable included)
Input Video Frequency: Horizontal: 30 – 82KHz; Vertical: 50 - 75Hz
Power Consumption (Typical): Monitor + AC/DC adapter; ON: 28W; SLEEP: 0.45W; OFF: 0.38W
Input Voltage: 12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector: Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting: 4x Micro USB side ports (Top, Bottom, Left, Right)
Monitor Dimensions (with Stand): 17.75" x 25.50" x 9.17" / 450.9 mm x 647.6 mm x 233 mm
Shipping Box Dimensions: 22.05" x 30.08" x 12.68" / 560 mm x 764 mm x 322 mm
Weight (with stand): 23.15 lbs / 10.5 kg
Weight (without stand): 15.96 lbs / 7.24 kg
Weight (Packaged): 31.53 lbs / 14.3 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95%
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated

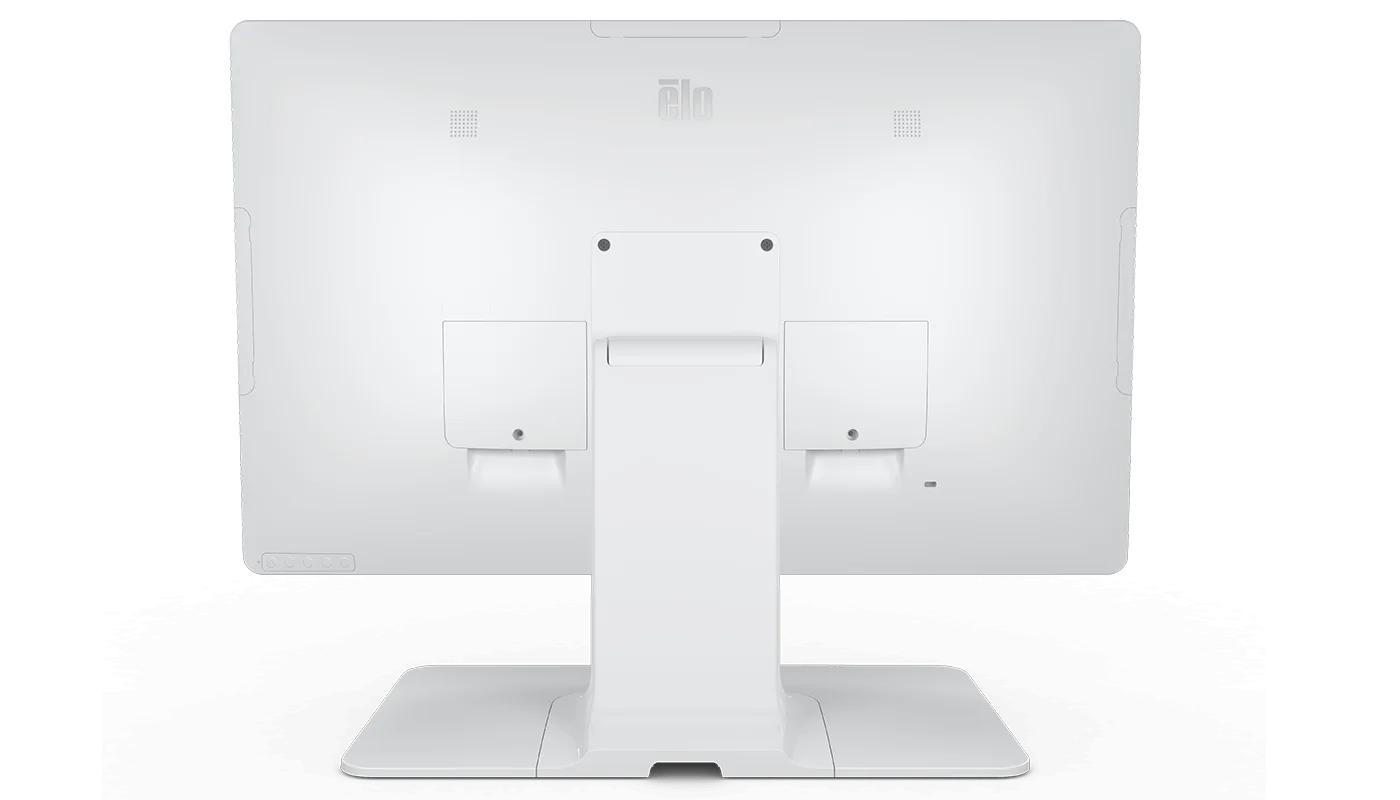

Mounting Options: VESA 4-hole 100mm mounting interface on rear of unit
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Canada CUL, IC; China CCC; Europe CE; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico CoC; UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1; cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1; CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1); CE: IEC 60601-1-2:2014 (Ed. 4); Risk Management: ISO 14971:2007 + EN ISO 14971:2012; Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)
Ingress Protection: IP54 entire enclosure
Power Cables: North America Power Cable C13 - Elo P/N: E593865; Australia Power Cable C13 - Elo P/N: E594067; Europe Power Cable C13 - Elo P/N: E594264; Korea Power Cable C13 - Elo P/N: E594466; China Power Cable C13 - Elo P/N: E594670; Taiwan Power Cable C13 - Elo P/N: E594869; Japan Power Cable C13 - Elo P/N: E793799
What's in the Box: Touchmonitor with stand; Japanese language regulatory information pamphlet; Quick Install Guide; 3x Tie wraps; VGA cable; HDMI cable; Touch USB cable; Audio cable; Power brick; NA Power cable; EU Power cable; EEI Label
Replacement DC Power Supply: Power Brick 65W - E593253
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Magnetic Stripe Reader (White MSR) – Elo P/N: E352392; PCAP Stylus Pen - Elo P/N: E066148; Privacy Screen 27-inch - Elo P/N: E353170; Elo Monitor Handles – 1 Set - Elo P/N: E352196
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; 1.8m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210789; 3m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210606; Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844; Elo Stand 2402/3-2702/3 - White (100 mm VESA) - Elo P/N: E510042

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
End of sale / last shipment: August 2019
Status basis: elotouch.com product page marks it as discontinued
