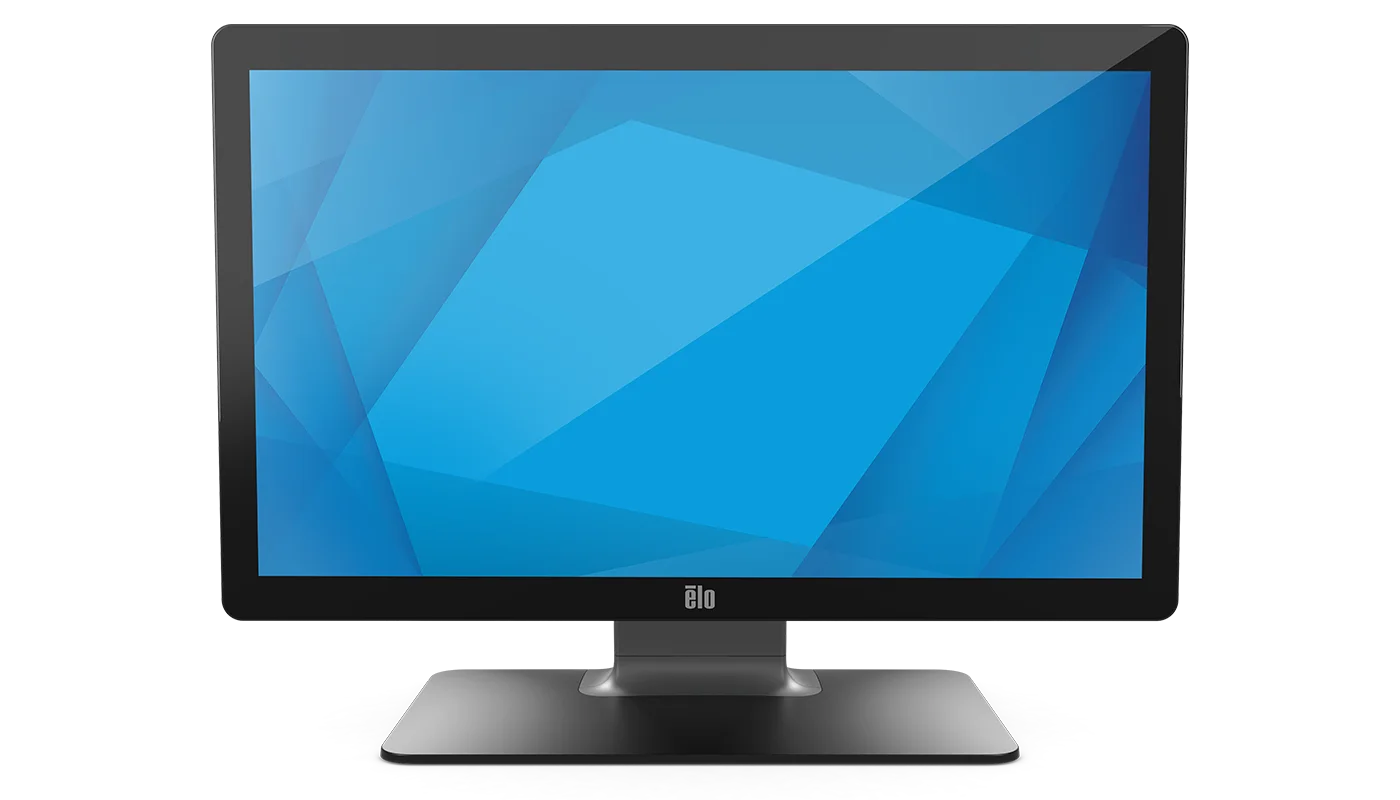

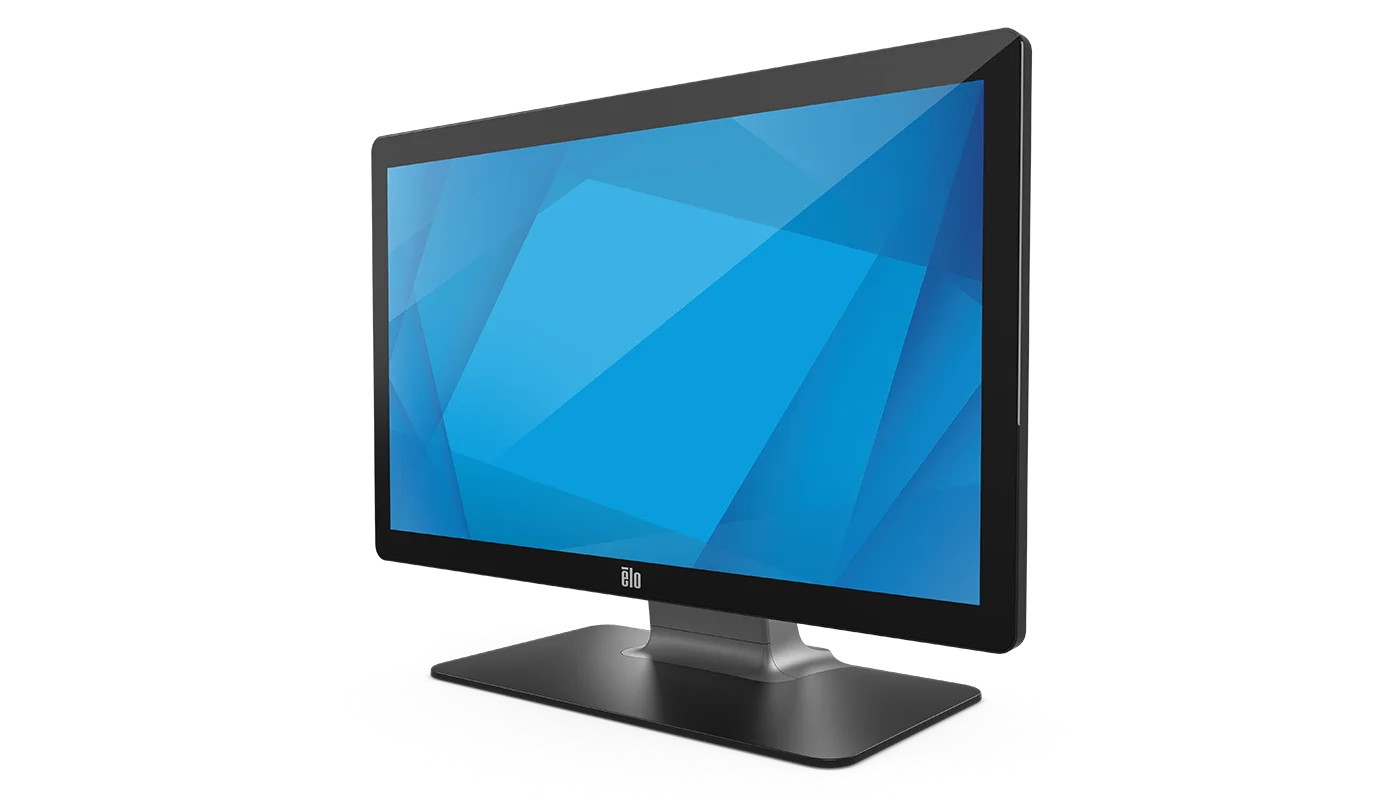

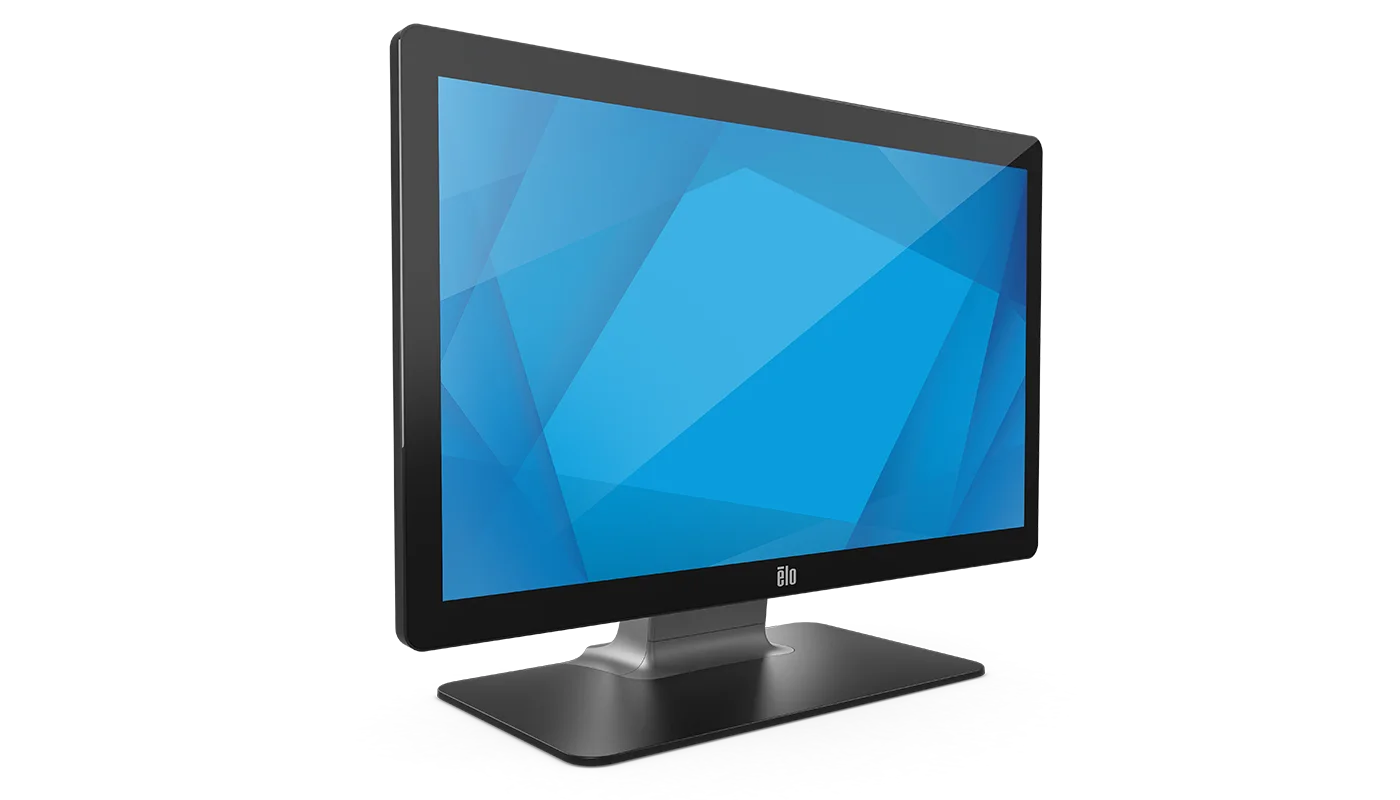

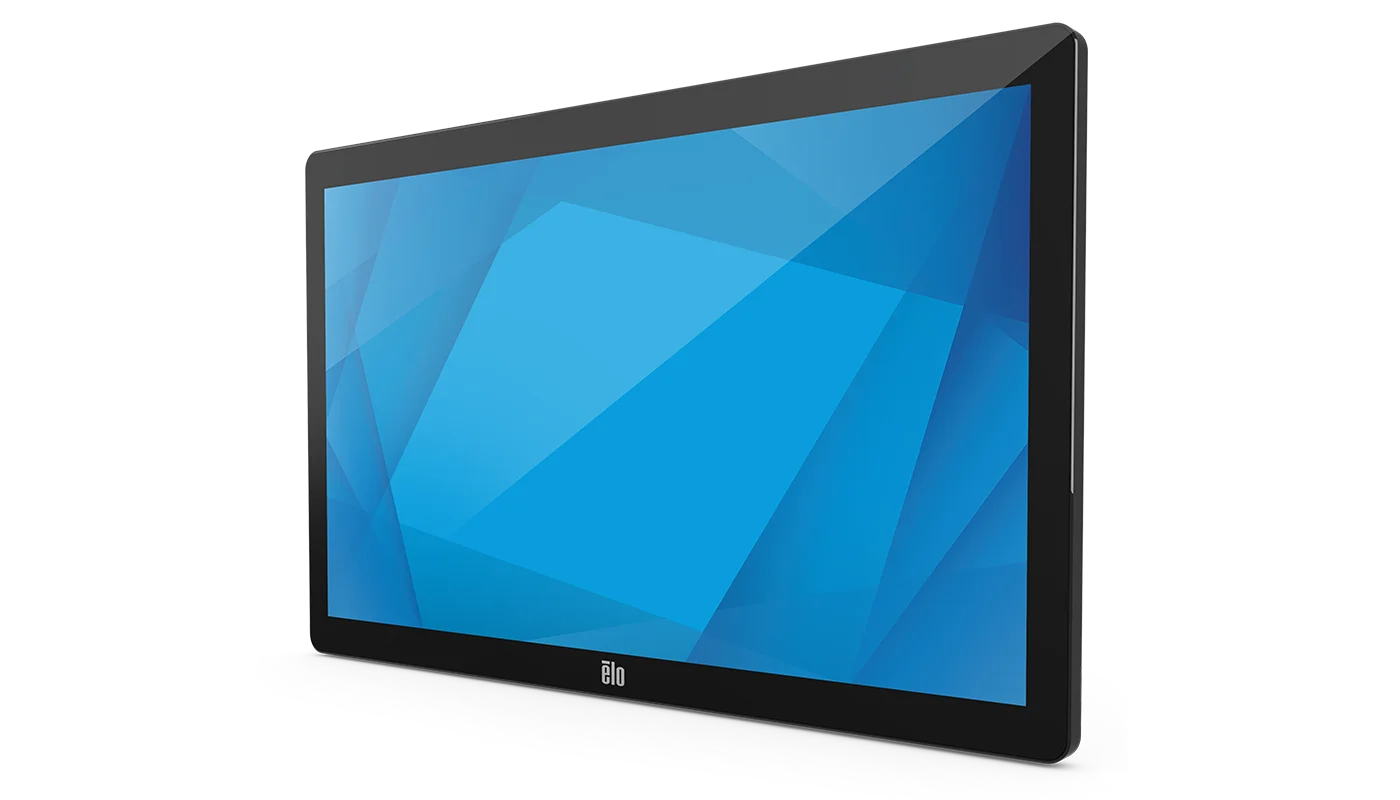

Elo Touch 2402L 24" Touchscreen Monitor

Display23.8'' diagonal, Active matrix TFT LCD (LED)
SealingIPX1 - Front only

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

The brilliant touchscreens with Elo's industry-leading TouchPro™ PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
The Biometric Fingerprint Scanner can be attached to provide secure and quick login.
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

Best for: Kitchen Display Systems · Price Checkers · Interactive Price Check Displays

Specifications

Technical

Part Number(s): With Stand - E351806; Without Stand - E126288
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size: 23.8'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 20.75" x 11.67" / 527.04 mm x 296.46 mm
Resolution: 1920 x 1080 @ 50, 60Hz
Other Supported Resolutions: 640 x 480 60Hz; 640 x 400 70Hz; 720 x 400 70Hz; 800 x 500 60Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 720 @ 58Hz, 60Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50 60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical): LCD Panel: 250 nits; TouchPro PCAP: 225 nits
Response Time-total (typical): 16 msec
Contrast Ratio: 1000:1
Touch Interface: USB
Surface Treatment: Clear
On Screen Display: Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru; Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean; Lockouts: OSD, Power
I/O Ports: VGA; HDMI; Combo Jack; DC jack; USB Type B; USB 2.0 Type A; 4x Micro USB
Speakers: Two x 2W internal speakers
Input Video Format: VGA (VGA DE-15 (DB-15) Male connecter cable included); HDMI (HDMI cable included)
Input Video Frequency: Horizontal: 30 – 82KHz; Vertical: 50 - 75Hz
Power Consumption (Typical): Monitor + AC/DC adapter; ON (Default - 75% Brightness): 14.33 W; ON (Typical - 100% Brightness): 16.81 W; SLEEP: 0.974 W; OFF: 0.279 W
Input Voltage: 12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector: Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting: 4x Micro USB side ports (Top, Bottom, Left, Right)

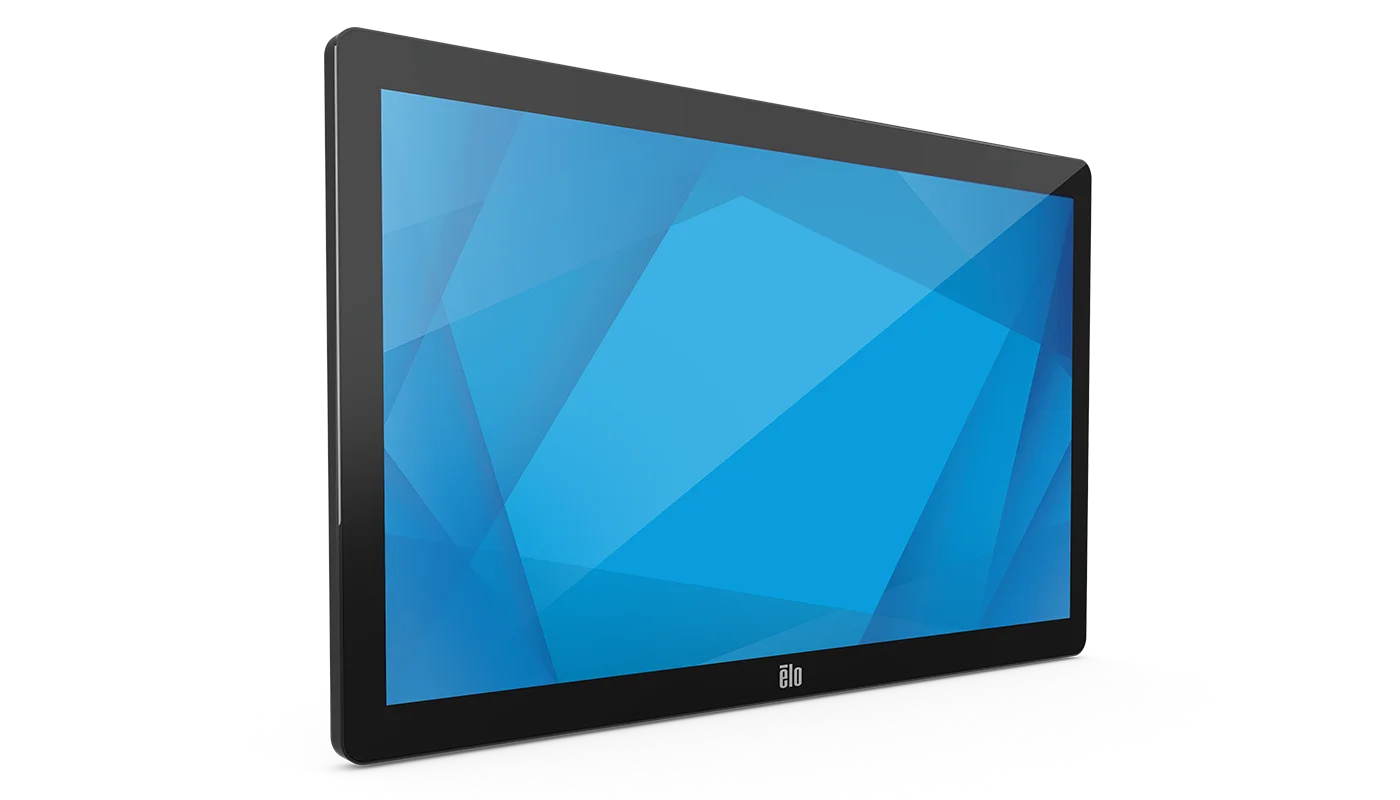

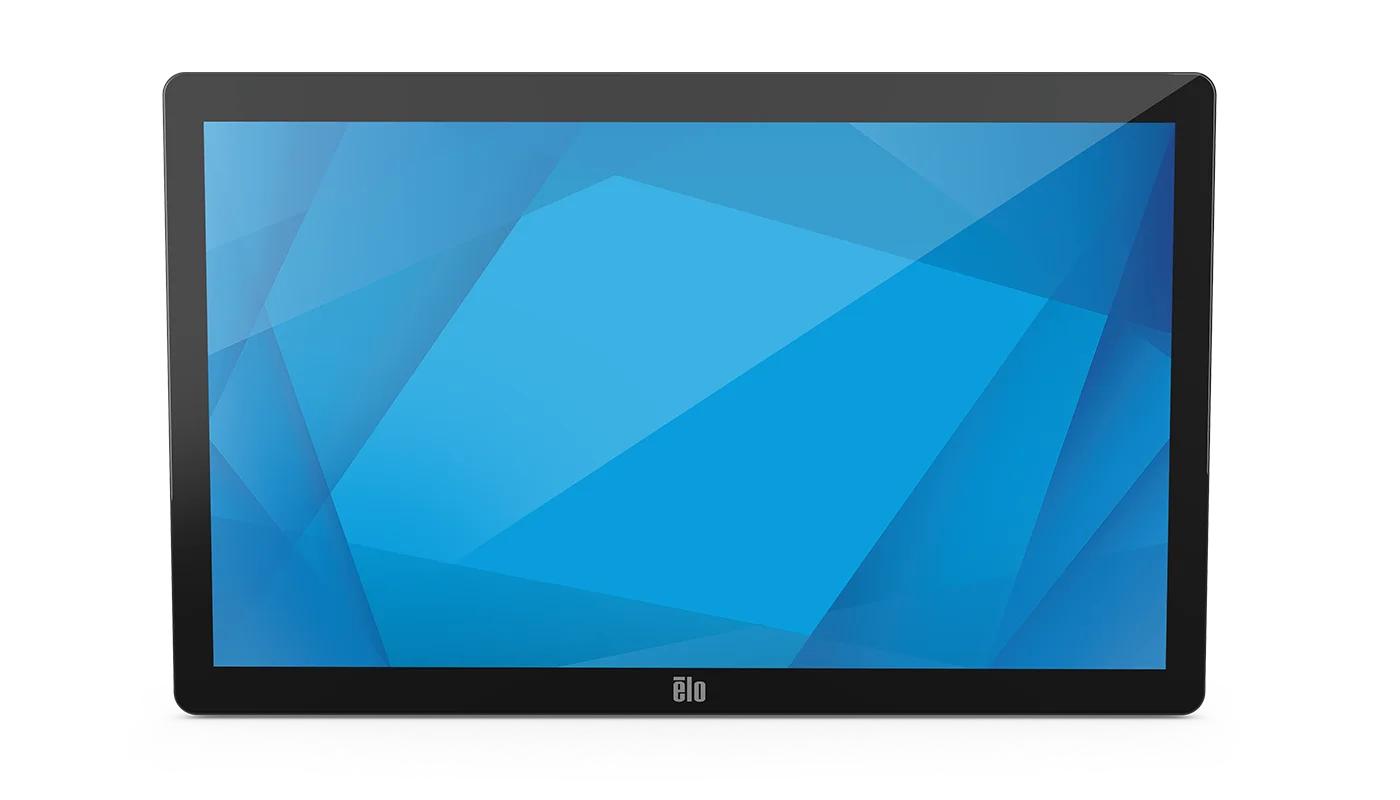

Monitor Dimensions (without Stand): 13.94" x 22.62" x 1.69" / 354.1 mm x 574.6 mm x 42.8 mm

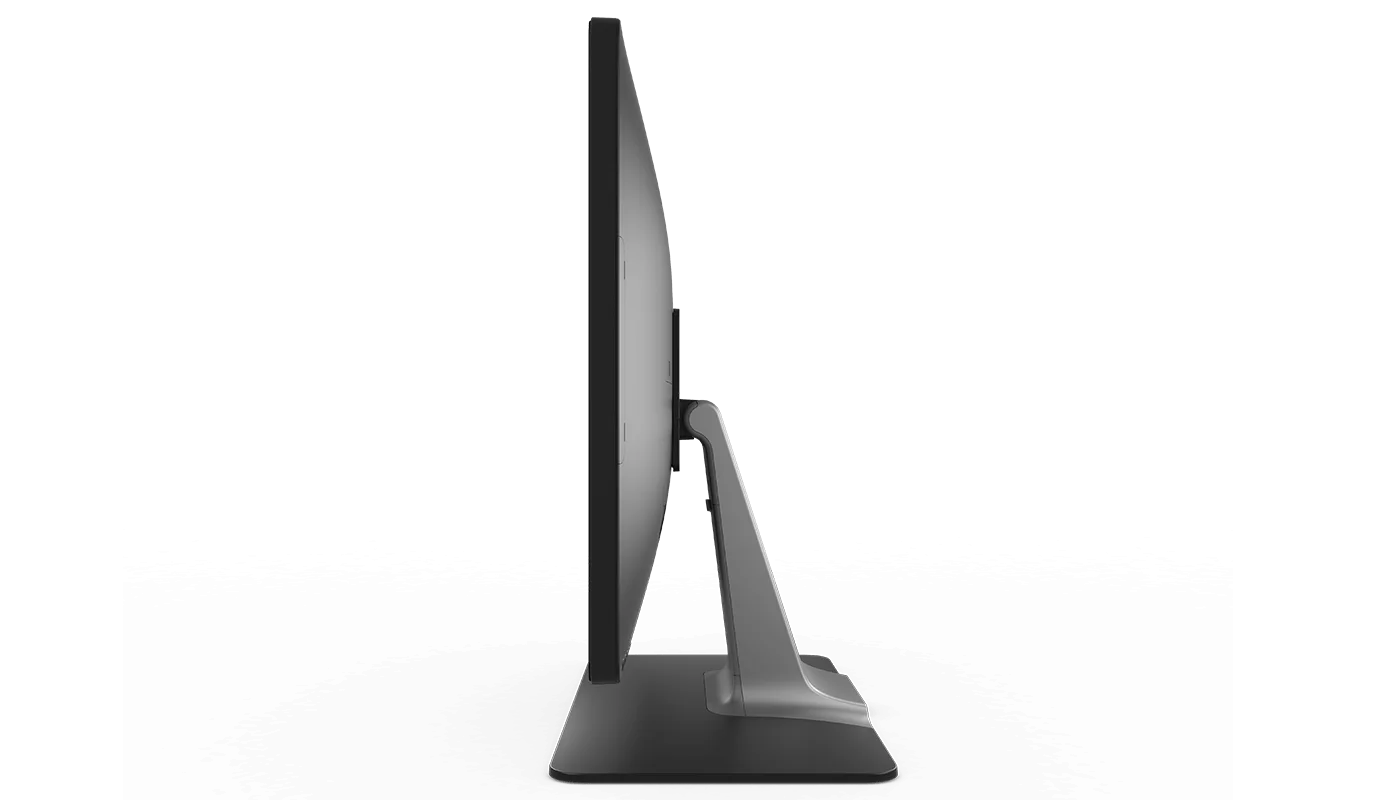

Monitor Dimensions (with Stand): 17.04" x 22.62" x 9.17" / 432.9 mm x 574.6 mm x 233 mm
Shipping Box Dimensions: With Stand: 20.71" x 26.77" x 12.52" / 526 mm x 680 mm x 318 mm; Without Stand: 18.11" x 26.77" x 6.65" / 460 mm x 680 mm x 169 mm
Weight (Unpackaged): With Stand: 21.58 lbs / 9.80 kg; Without Stand: 14.73 lbs / 6.69 kg
Weight (Packaged): With Stand: 28.45 lbs / 12.92 kg; Without Stand: 22.39 lbs / 10.17 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated

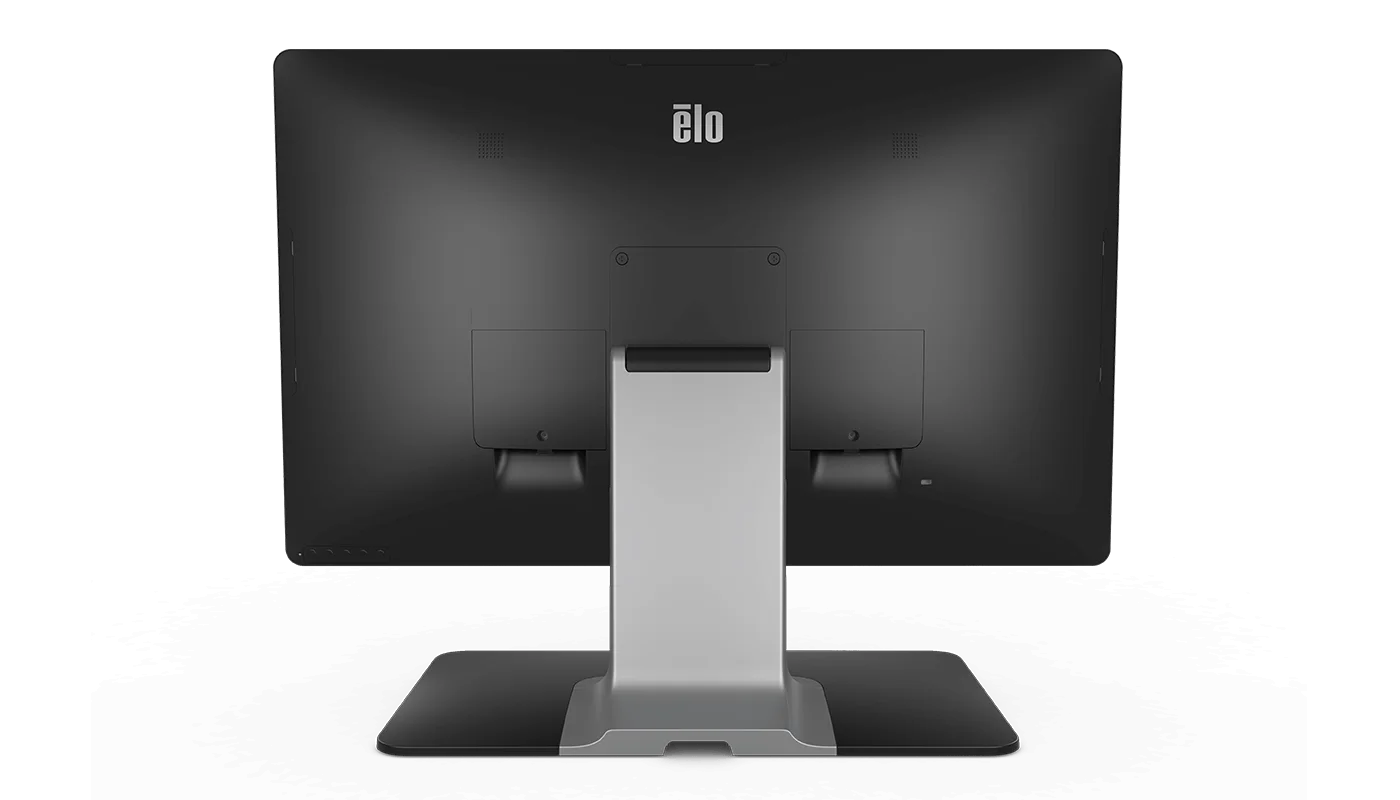

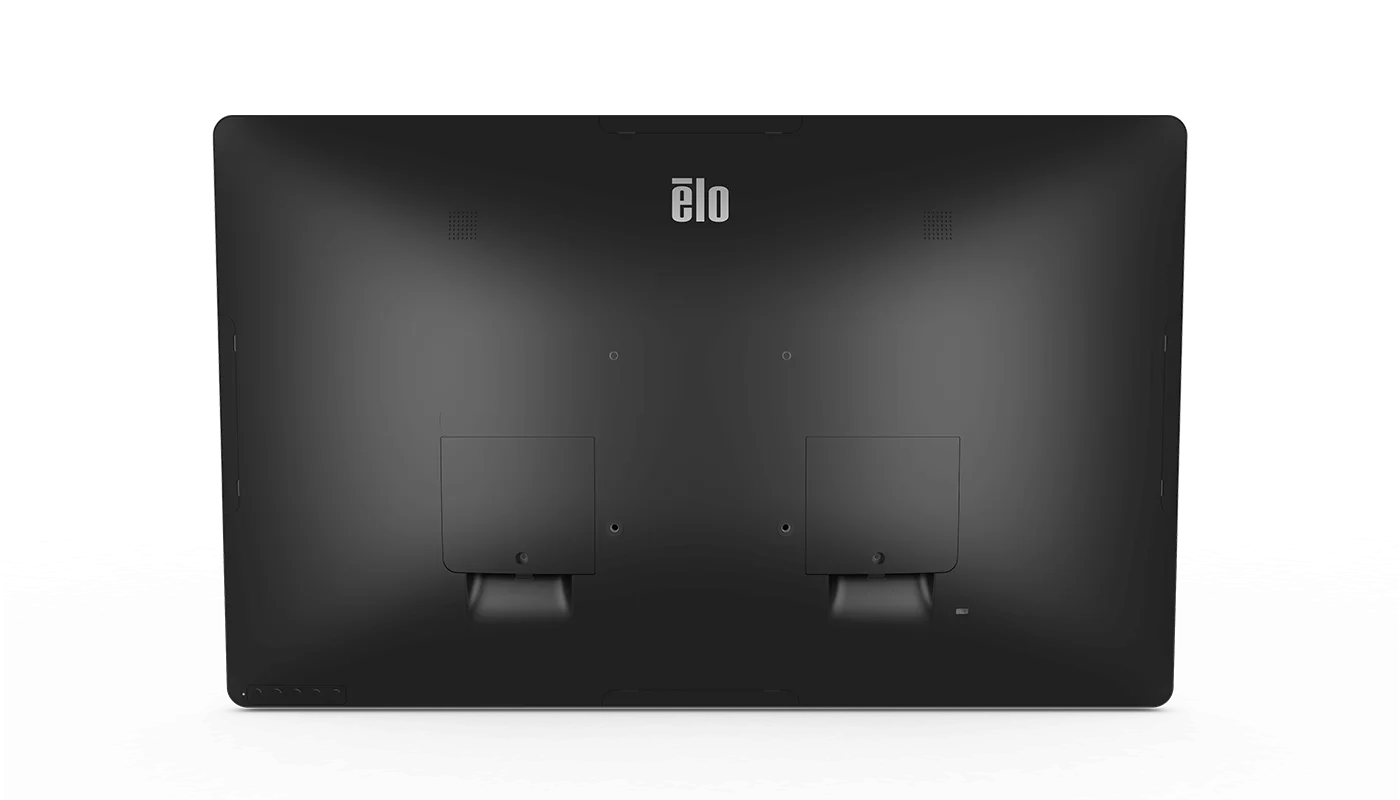

Mounting Options: VESA 4-hole 100mm mounting interface on rear of unit
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Canada CUL, IC; China CCC; Europe CE; United Kingdom UKCA; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico CoC; RoHS, China RoHS, WEEE, REACH; India BIS
Ingress Protection: IPX1 - Front only
Impact Protection: IK06
Power Cables: North America Power Cable C13 - Elo P/N: E593865; Australia Power Cable C13 - Elo P/N: E594067; Europe Power Cable C13 - Elo P/N: E594264; Korea Power Cable C13 - Elo P/N: E594466; China Power Cable C13 - Elo P/N: E594670; Taiwan Power Cable C13 - Elo P/N: E594869; Japan Power Cable C13 - Elo P/N: E793799
What's in the Box: Touchmonitor; Quick Install Guide; 3x Tie wraps; VGA cable; HDMI cable; Touch USB cable; Audio cable; Power brick; NA Power cable; EU Power cable; EEI Label; 4 screws (for E126288); 2 x cable cover screws
Replacement DC Power Supply: Power Brick 50W - E593661
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; 1.8m Cable Kit - Elo P/N: E408193; Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; Elo Backpack® 4 (Value Model) - Elo P/N: E393754; Elo Backpack® 4 (Standard Model) - Elo P/N: E393359; Wallaby™ Pro countertop stand – Elo P/N: E989127; Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512; Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E989705; Wallaby™ Pro wall-mounted stand – Elo P/N: E989127 + E990079

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
