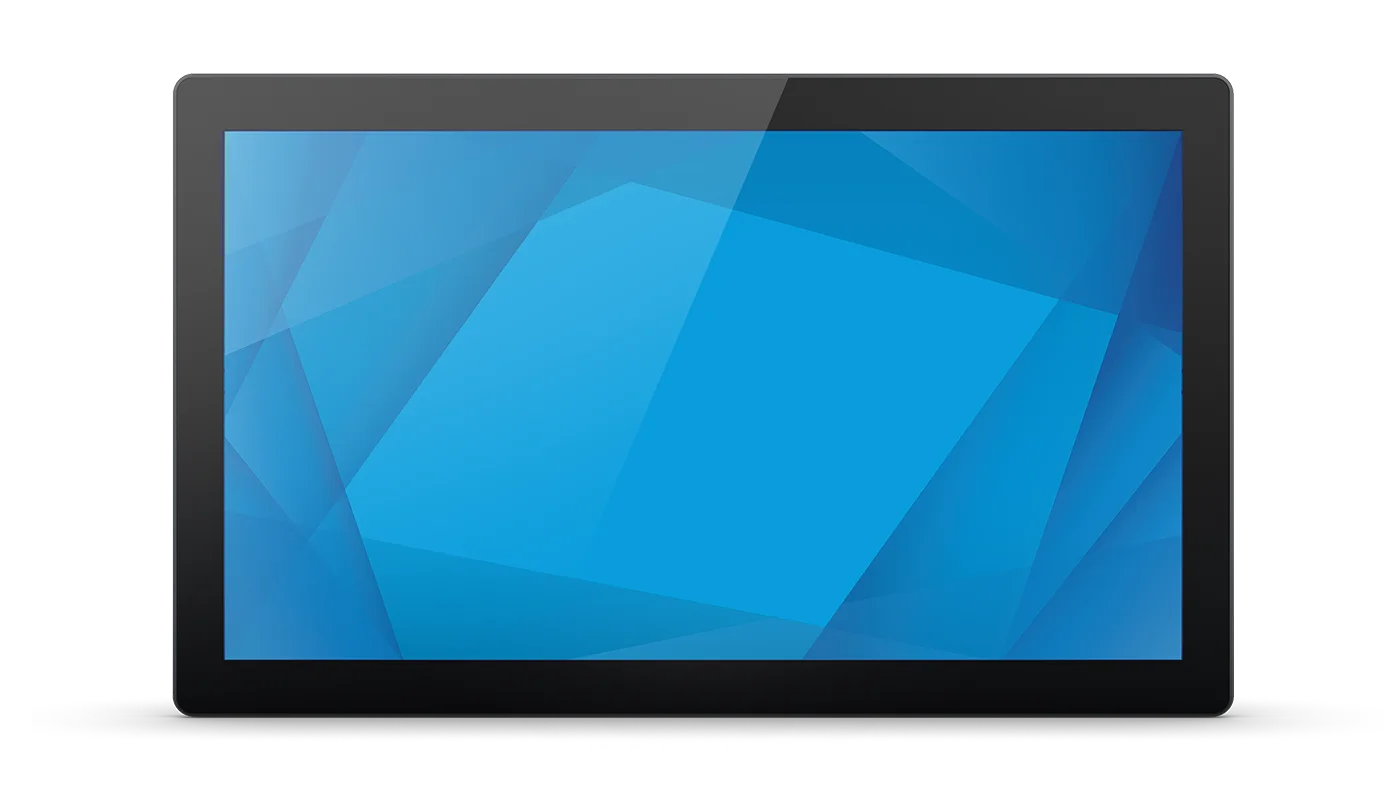

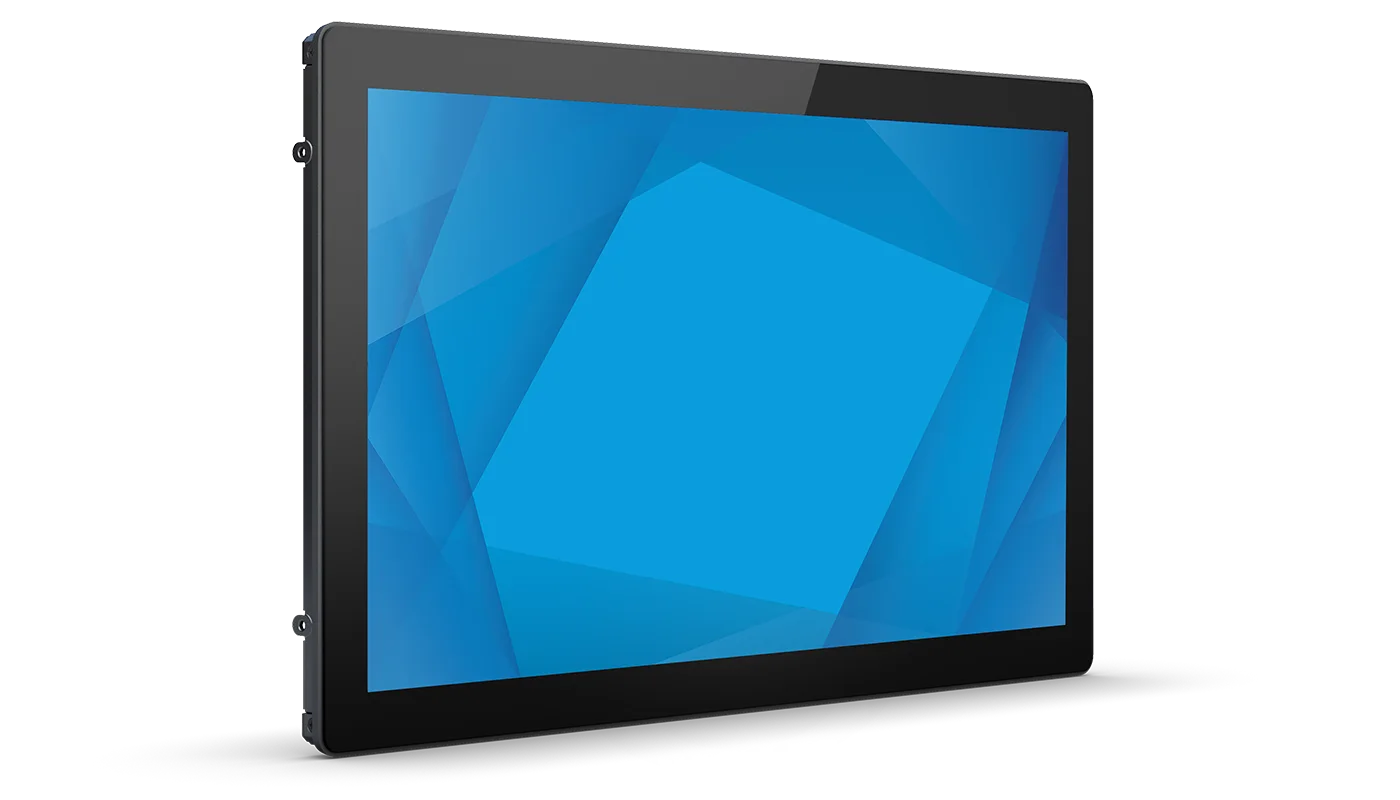

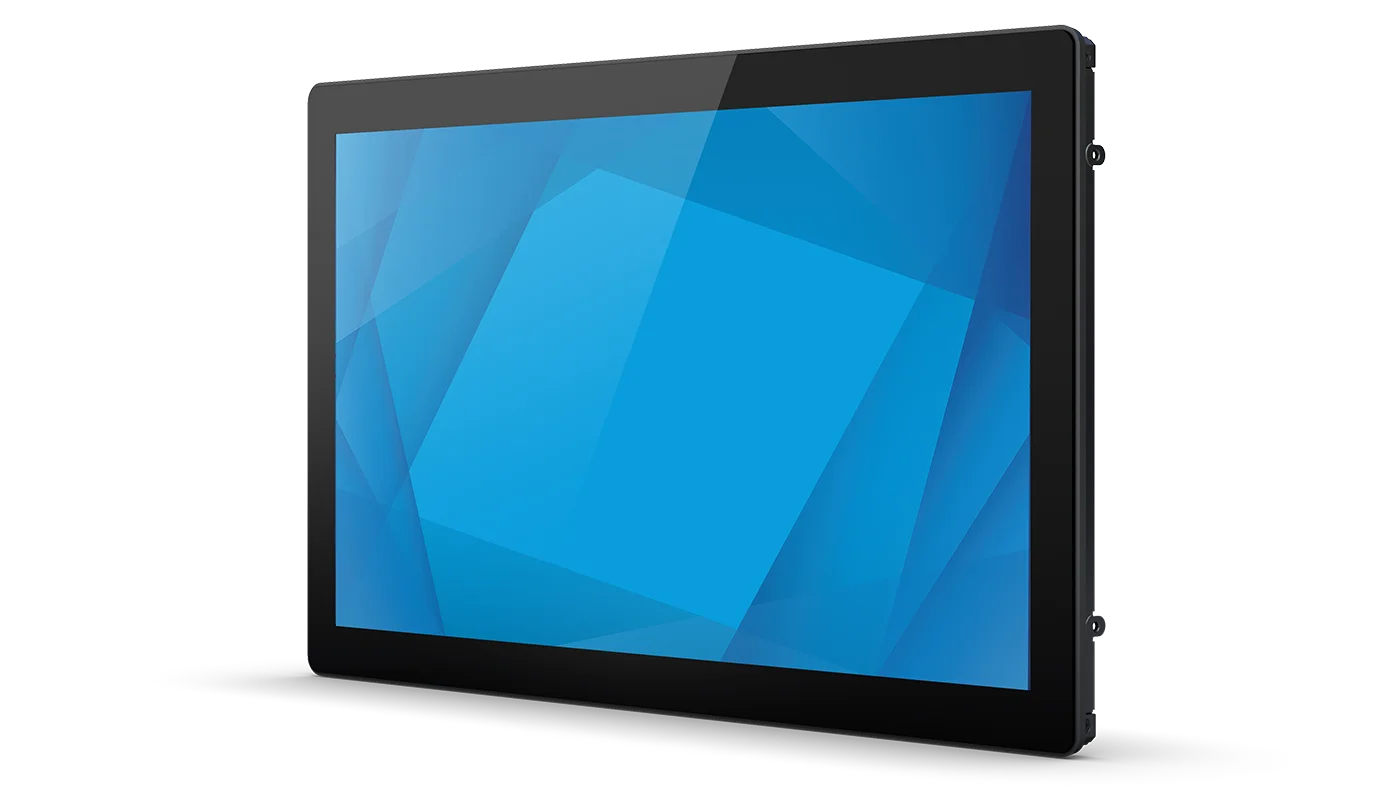

Elo Touch 2295L 21.5" Open Frame Touchscreen

Display21.5'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro™ PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.

Create a design-in solution that will capture audiences, attract integrators, and differentiate you from the competition.
Interactive self-service experiences are rapidly expanding across verticals and markets. From QSR and retail to entertainment and vending, customers want more control and seamless efficiency. Elo’s new high-bright touchscreens offer you the dependability your business needs with added brilliance to attract and engage your customers.
Interactive entertainment experiences are everywhere, from casino slot machines and electronic table games to museums and libraries. With Elo’s new high-bright touchscreens, you can create brighter, tablet-like experiences to set your solution apart from the crowd. And with the durability needed to withstand continuous public use, you can count on your solution to capture everyone’s attention, and convert them into valuable, engaged consumers.
With the rise of automation, touchscreens have become critical for enabling communication between machines, devices, sensors and people. Elo’s robust high-bright, industrial-grade displays provide picture-perfect clarity for interactions with Human Machine Interfaces (HMI) while offering world-class durability for better performance over a longer life in varying conditions and lighting environments.
Interactive signage is continuing to enhance retail environments, from endless aisle and product configurators to brand experiences and self-service checkout. With Elo’s high bright products, you can integrate brilliant interactive signage to attract and engage customers in areas requiring a compact form factor with the same convenience and content as larger signage.

Best for: Digital Menu Boards

Videos

Elo 2295L 21.5" Open Frame Touchscreen video

Specifications

Technical

Part Number(s): TouchPro PCAP (Worldwide) - E146083
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Interface: USB 2.0
Diagonal Size: 21.5'' diagonal, Active matrix TFT LCD (LED)
On Screen Display: Accessible through switches on the unit’s tethered OSD Control box.; Controls: Menu, Up, Down, Select, Power; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
Aspect Ratio: 16:9
Active Area: 18.74" x 10.54" / 476.06 mm x 267.79 mm
Resolution: 1920 x 1080
Other Supported Resolutions: 640 x 480 60Hz; 720 x 400 70Hz; 800 x 500, 60Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50, 60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical): LCD panel: 500 nits; TouchPro PCAP: 450 nits
Response Time-total (typical): 22 msec
Contrast Ratio: 1000:1
I/O Ports: USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in
Input Video Format: HDMI V1.3 Type A receptacle for HDMI input; Analog VGA on Female DB-15 connector; DisplayPort V1.1a - Supports later versions of DisplayPort video input
Input Video Frequency: Horizontal: 30 - 82 KHz; Vertical: 50 - 75 Hz
Video Interface: HDMI, VGA & Display Port
Power: External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input voltage range: 12VDC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): Monitor + Adapter; ON: 26.2 W; SLEEP: 0.48 W; OFF: 0.28 W

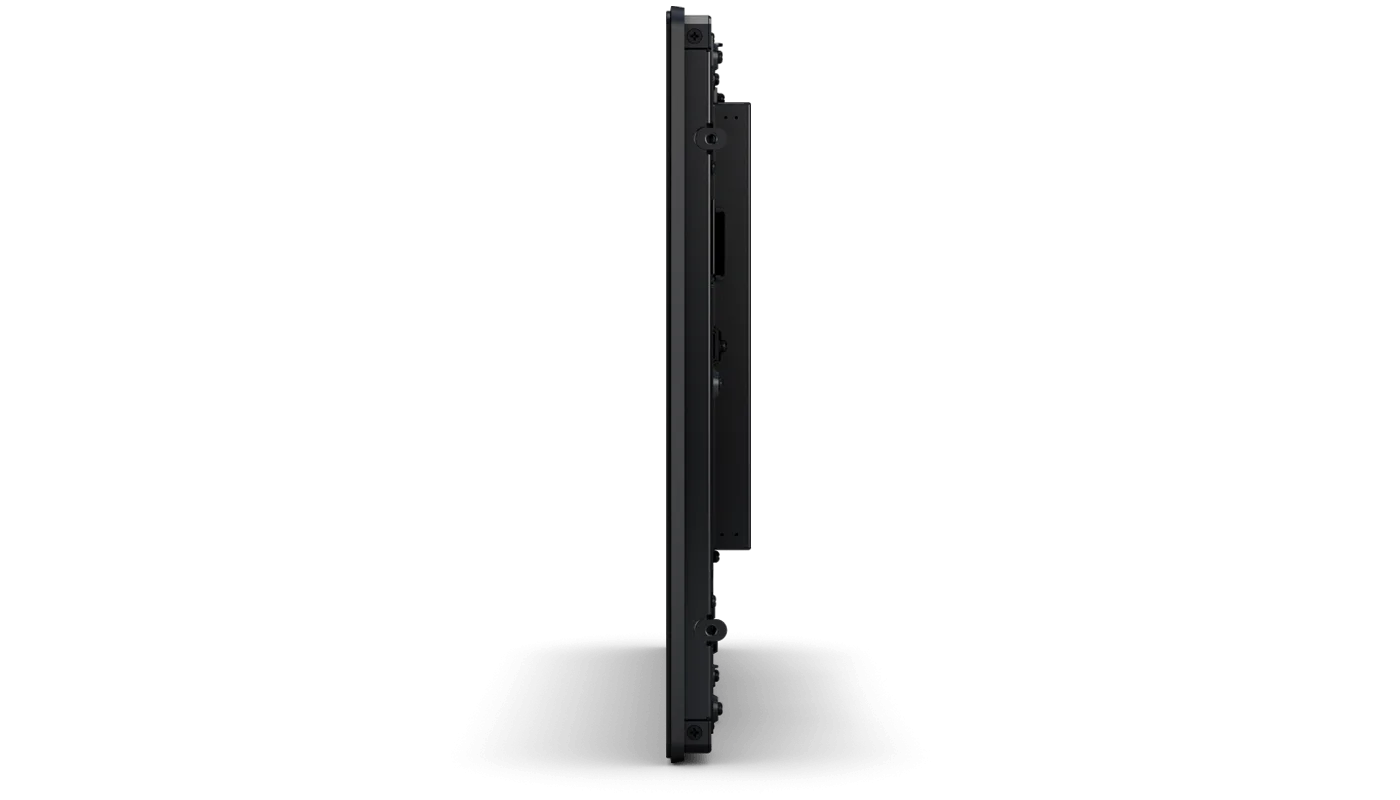

Dimensions: 20.31" x 12.24" x 1.85" / 516 mm x 311 mm x 46.9 mm
Shipping Box Dimensions: 24.41" x 16.65" x 7.48" / 620 mm x 423 mm x 190 mm
Weight (Unpackaged): 11.9 lbs / 5.41 kg
Weight (Packaged): 18.92 lbs / 8.6 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95%
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; Russia EAC; RoHS, China RoHS, WEEE
Compliance: GLI 27 kV air / 8 kV contact ESD compliant; UL 62368 ball-drop compliant; IK07 impact compliant

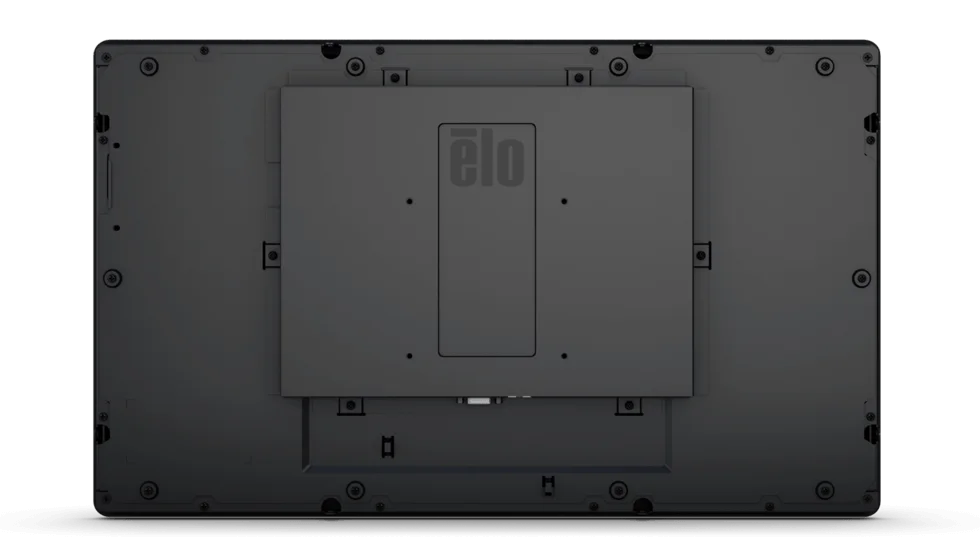

Mounting Options: VESA 4-hole 100mm mounting interface on rear of unit; Flush mount with included brackets
What's in the Box: HDMI cable; Touch USB Cable; VGA Cable; Remote OSD; Flush Mount Brackets w/Screws; Quick Install Guide; EEI Label; Japan Class-B TM info sheet
Options / Peripherals / Upgrades: Remote OSD (RJ45) - Elo P/N: E483757; Replacement Cable Kit (HDMI, VGA, USB and Serial cables) - Elo P/N: E546861; Cable Kit DVI-D to HDMI – Elo P/N: E538507; Cable Kit DP to DP – Elo P/N: E582895; North America power adapter and cable kit - Elo P/N: E005277; European & Korea power adapter and cable kit - Elo P/N: E571601; UK power adapter and cable kit - Elo P/N: E180092; China power adapter and cable kit - Elo P/N: E558862; Taiwan power adapter and cable kit - Elo P/N: E818655; Japan power adapter and cable kit - Elo P/N: E182546; Argentina power adapter and cable kit - Elo P/N: E887099; Australia power adapter and cable kit - Elo P/N: E637593; Elo 20-inch & 22-inch Wide Flush-mount Bracket - Elo P/N: E190706; Elo Backpack® 5 (Standard Model) - Elo P/N: E620713
Optional PCAP Stylus Pen: E066148

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
