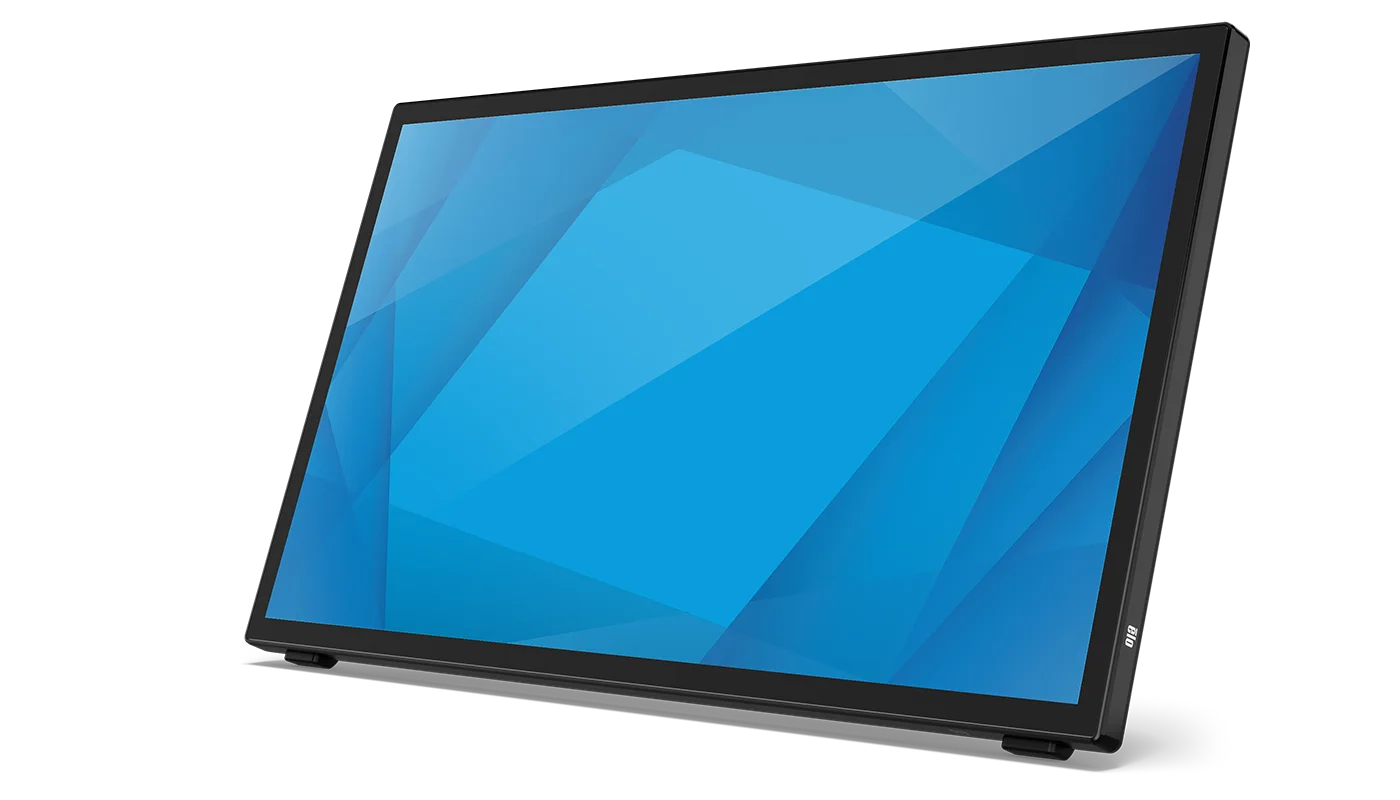

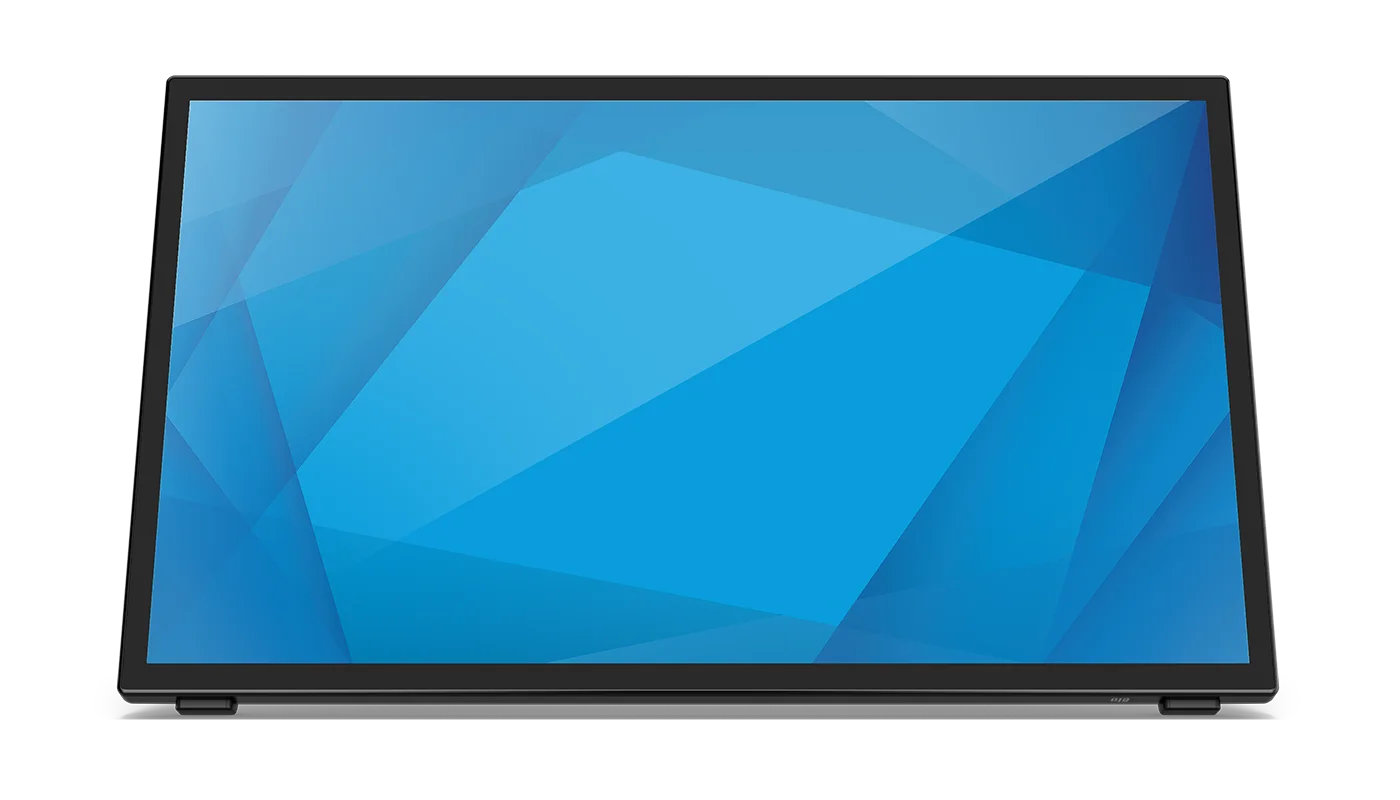

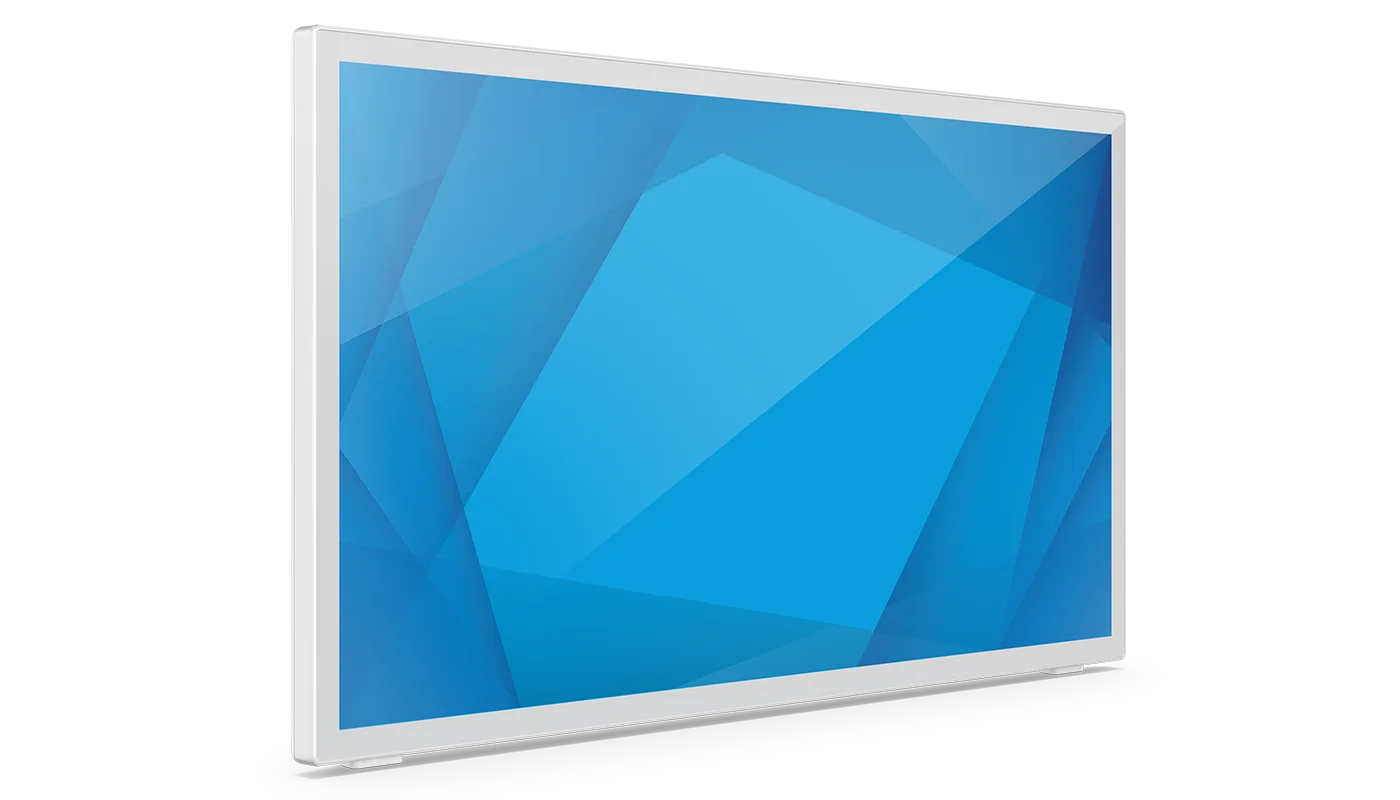

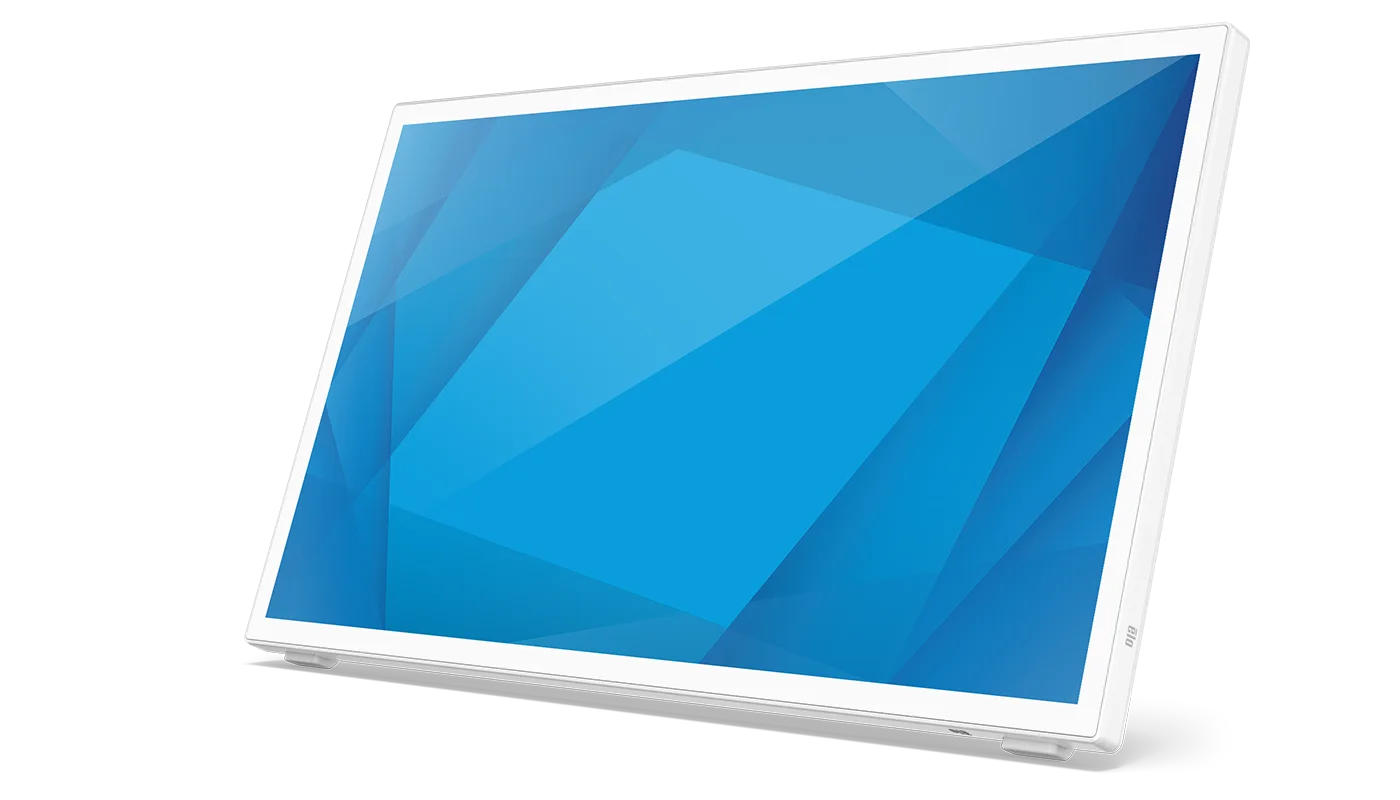

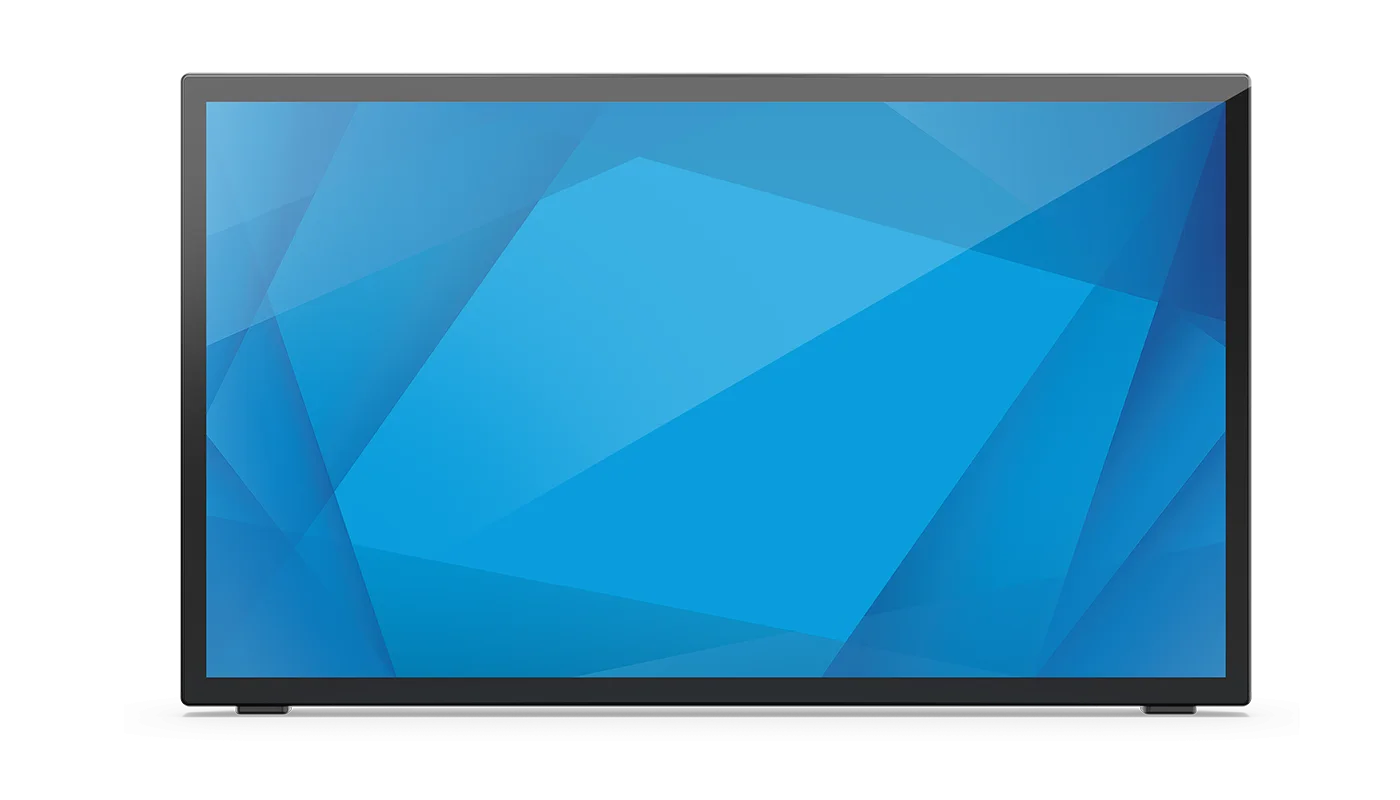

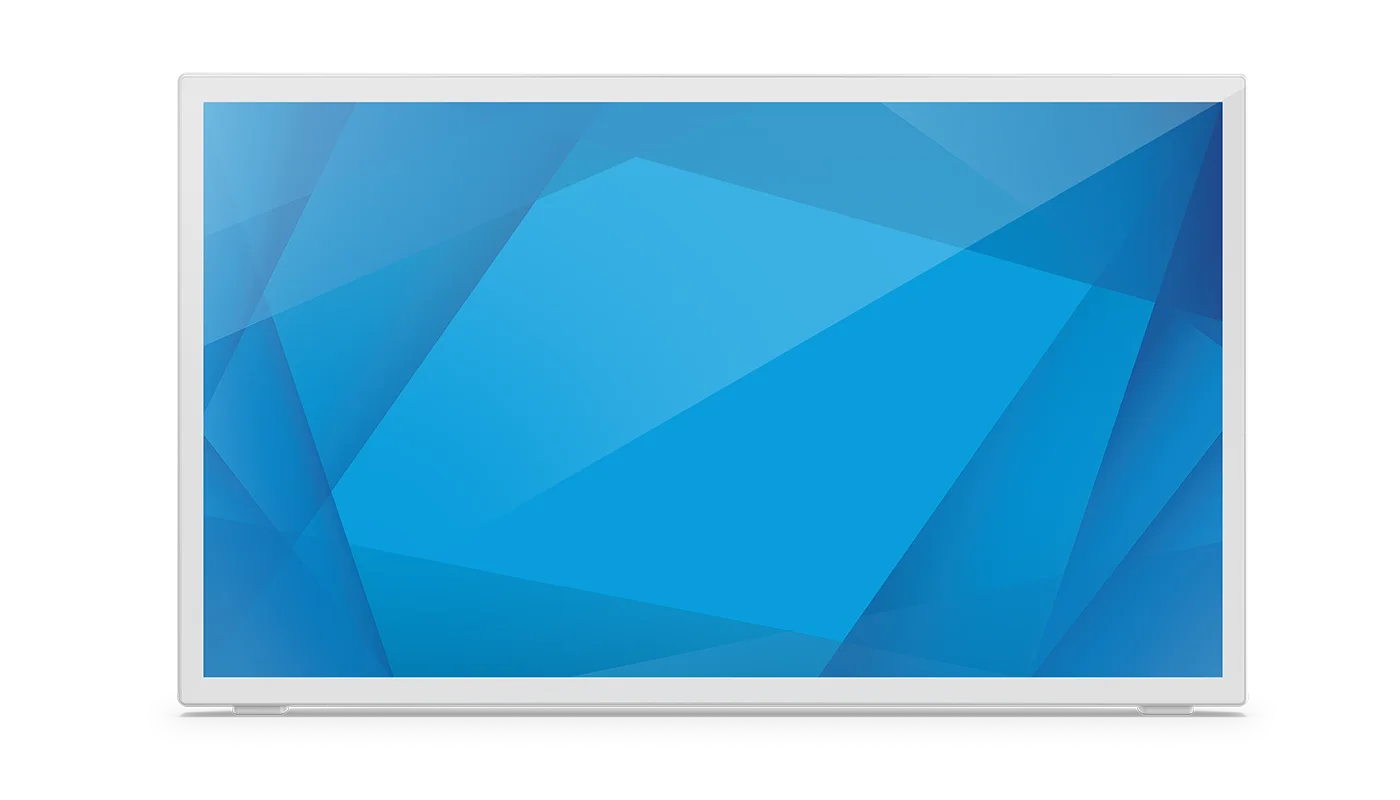

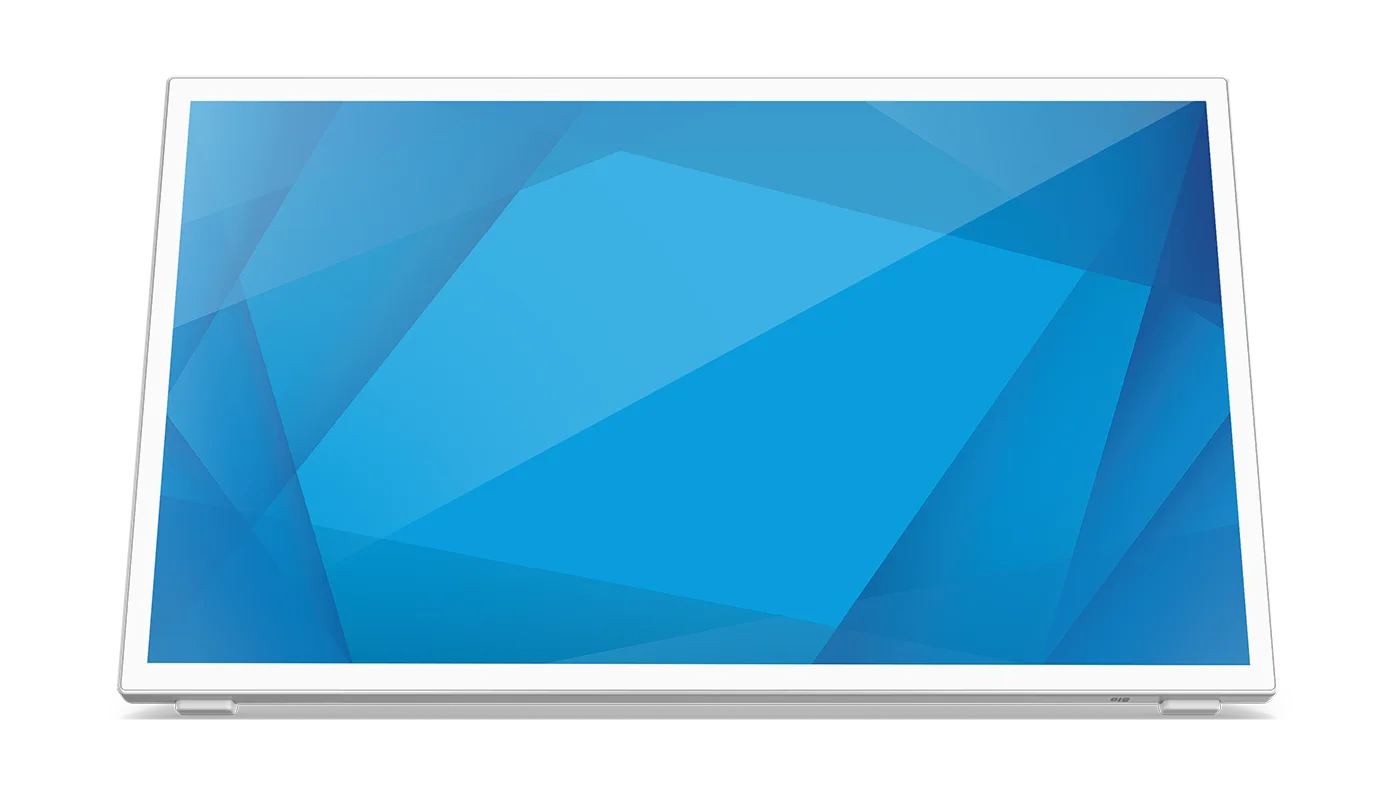

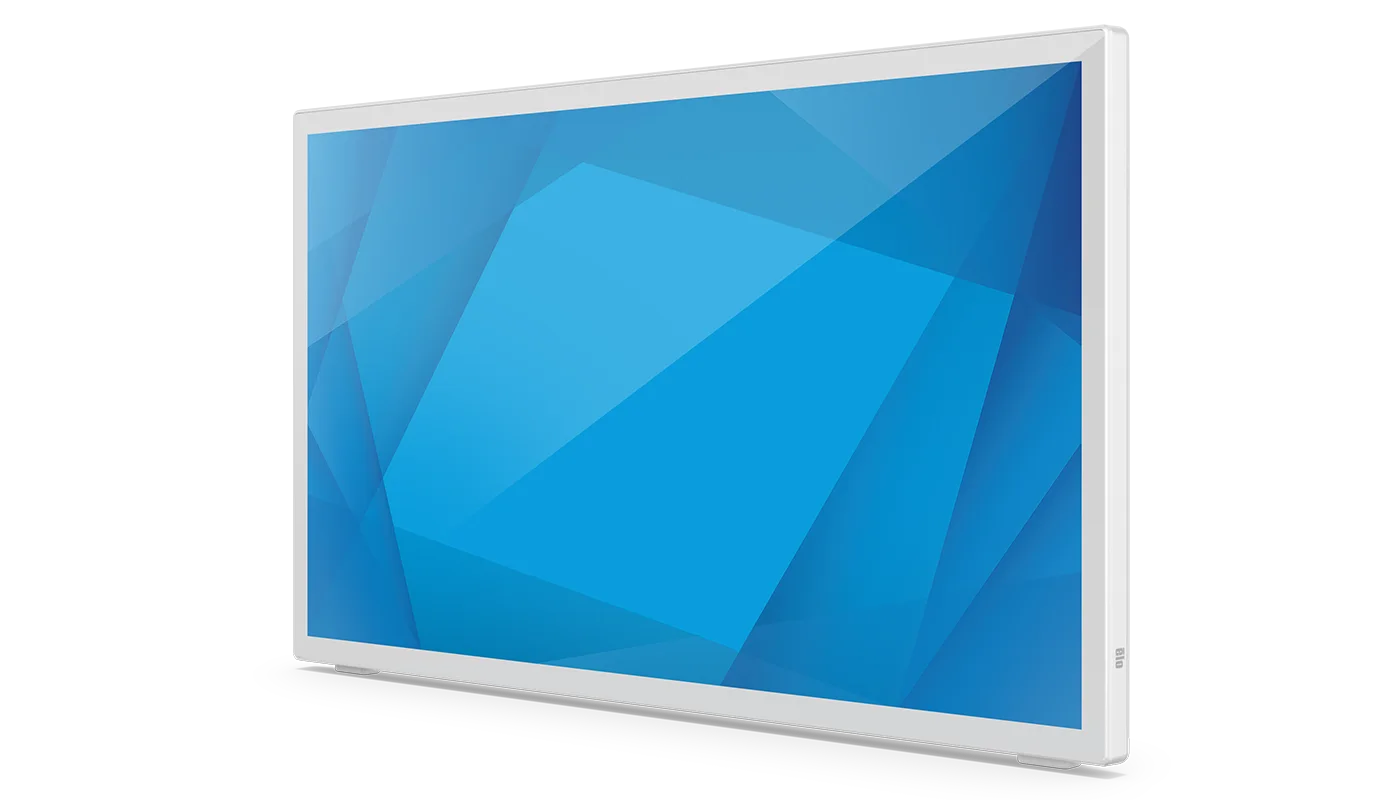

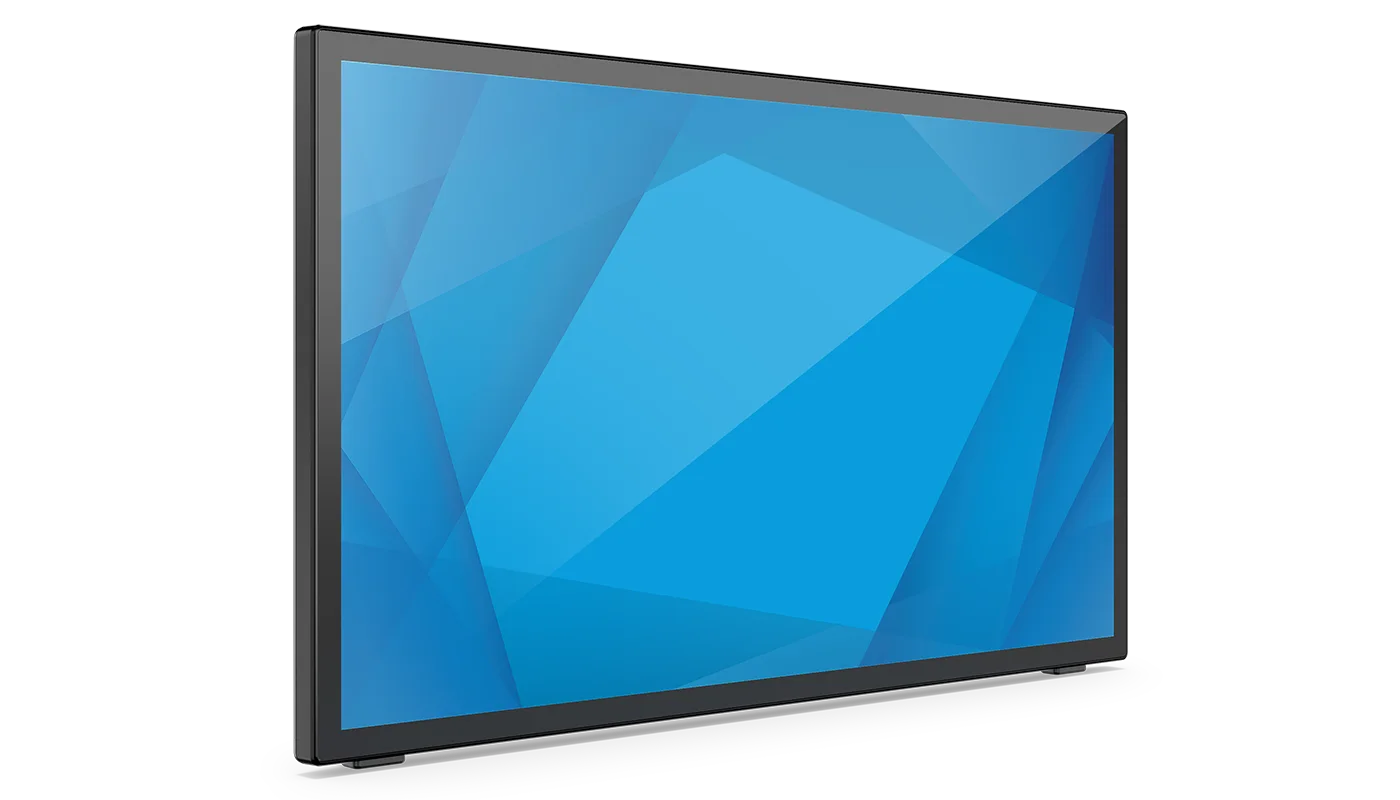

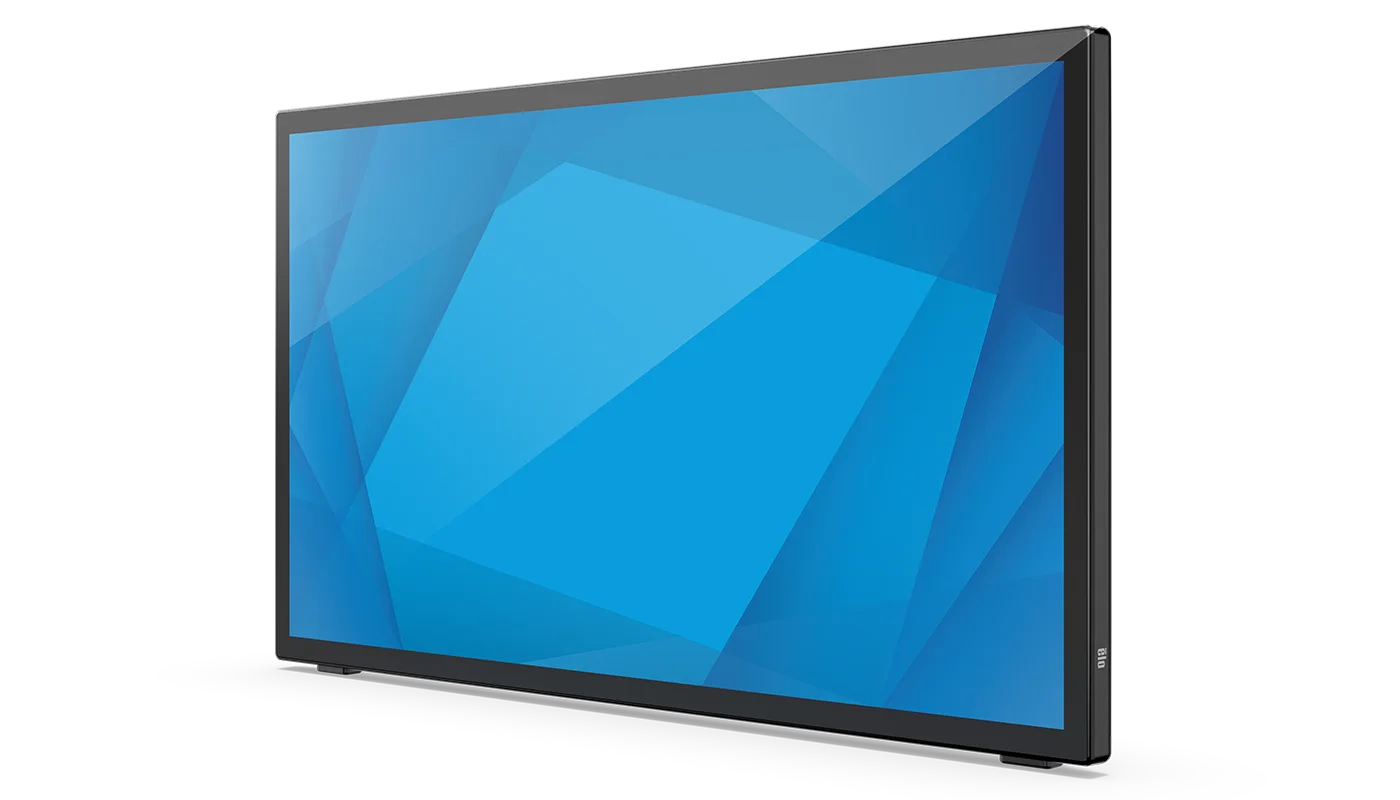

Elo Touch 2270L 22" Touchscreen Monitor

Technical

Part Number(s)

Black, clear - E510259; Black, anti-glare - E511214; White, anti-glare - E265991

Enclosure Color

White or Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Diagonal Size

21.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area

18.74" x 10.54" / 476.06 mm x 267.79 mm

Resolution

1920 x 1080 @ 50, 60Hz

Other Supported Resolutions

640 x 480 60Hz; 640 x 400 70Hz; 720 x 400 70Hz; 800 x 500 60Hz; 800 x 600 56Hz, 60Hz; 1024 x 768 60Hz; 1280 x 720 @ 58Hz, 60Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 250 nits; TouchPro PCAP: 225 nits

Response Time-total (typical)

14 msec

Contrast Ratio

1000:1

Touch Interface

USB

Surface Treatment

Clear or Anti-glare

On Screen Display

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.; Controls: Menu, Power; Settings: Brightness, Contrast, Video Priority, Clock, Phase, H-position, V-position, Auto-Adjust, Color Temperature, Low Blue Light, Volume, Mute, Audio Source Select, Line-in/Headphone Out, OSD Timeout, OSD Language, Aspect Ratio, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults; Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese; Lockouts: OSD, Power

I/O Ports

AC Input (IEC60320 C6); Audio in/out; VGA; HDMI; DisplayPort; USB 2.0 Type B; 2x USB 2.0 Type A

Speakers

Two x 2W internal speakers

Video

VGA (Female DB-15 connector); HDMI (receptable type A); DisplayPort

Input Video Frequency

Horizontal: 30 – 82KHz; Vertical: 50 - 75Hz

Power

AC power input connector (IEC 60320 C6); AC input voltage range: 100-240VAC, 50/60Hz

Power Consumption (Typical)

Only display and touch function available:; ON (Default - 80% Brightness): 12.2 W; ON (Typical - 100% Brightness): 13.8 W; SLEEP: 0.5 W; OFF: 0.16 W

Monitor Dimensions (without Stand)

19.87" x 11.91" x 1.63" / 504.7 mm x 302.4 mm x 41.3 mm

Shipping Box Dimensions

23.19" x 5.35" x 15.55" / 589 mm x 136 mm x 395 mm

Weight (Unpackaged)

9.04 lbs / 4.1 kg

Weight (Packaged)

14.11 lbs / 6.4 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

MTBF

50,000 hours demonstrated

Mounting Options

VESA 4-hole 100mm mounting interface on rear of unit

Other Features

Energy Star 8.0; TUV Rheinland (Flicker Free); TUV Rheinland (Low Blue Light); Power collection function via DDCCI

Warranty

3-year

Extended Service Options

4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125

Regulatory approvals and declarations

Argentina AR certificate; Canada CUL, IC; China CCC; Europe CE; United Kingdom UKCA; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI, PSE; International CB; Australia RCM; Russia EAC; Mexico CoC; RoHS, China RoHS, WEEE, REACH; India BIS

Impact Protection

IK07

What's in the Box

2270L Touchmonitor; Quick Install Guide; HDMI cable; Touch USB cable; NA Power cable; EU Power cable; EEI Label (EU); 2x EEI Label (UK); 2x Replace foot cover; 5x Cable tie

Stands, Mounts & Kits

Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963
