Elo Touch · Display
Elo Touch 2210L 22" Monitor
The 2210L 22-inch Monitor delivers the superior quality Elo is known for in a non-touch display. Designed for durability, the Elo 22-inch monitor features anti-glare edge-to-edge glass with IK06 impac
- Display21.5'' diagonal, Active matrix TFT LCD (LED)
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The 2210L 22-inch Monitor delivers the superior quality Elo is known for in a non-touch display. Designed for durability, the Elo 22-inch monitor features anti-glare edge-to-edge glass with IK06 impact resistance, enhanced ESD performance and a ventless back and cable cover design to help reduce foreign contaminant ingress. From digital signage and kitchen display systems to dashboards, medical carts and production line monitors, the 2210L monitor provides a reliable, cost-effective display in a thin, compact form factor.
- The 10L-Series 22-inch monitor is designed to meet the demands of commercial environments, offering durability, ease of maintenance, and visibility in bright lit environments.
- The 22-inch monitor features easy-to-clean, anti-glare edge-to-edge glass offering optimal visibility in brightly lit environments.
- Engineered with chemically strengthened, impact-resistant glass, the 10L-Series is designed to help resist vibrations and incidental contact.
- The 10L-Series is engineered for maximum longevity- designed and tested to deliver reliable performance while maintaining consistent availability over time. As a result, Elo customers experience fewer disruptions, lower replacement costs, and greater ROI.

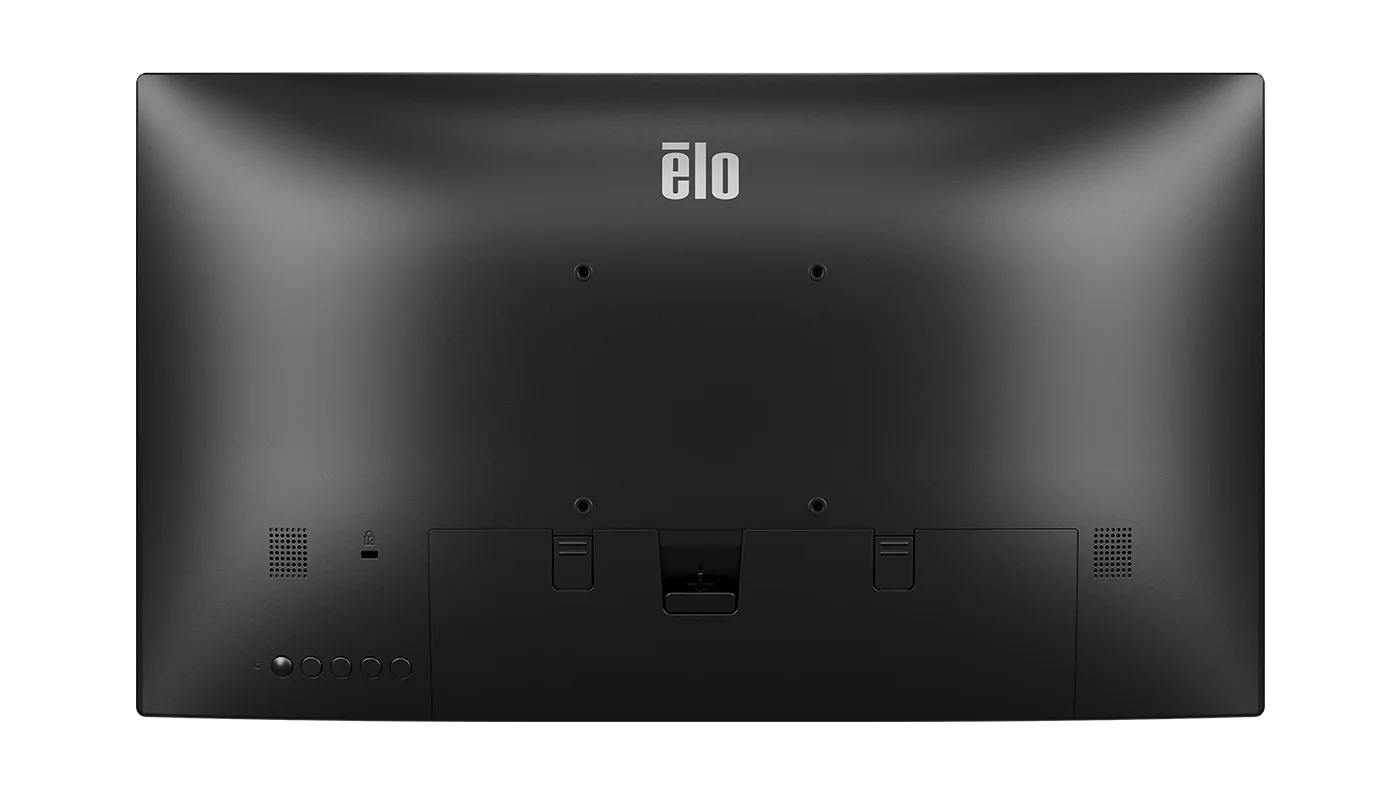

- The 22-inch monitor offers a ventless-back and cable cover design to help prevent foreign contaminant ingress, supporting longer-term reliability in demanding environments.
Specifications
Technical
- Part Number(s)
- North America - E448150; EMEA - E448346; APAC (power cable not included) - E746145
- Enclosure Color
- Black
- Touch Technology & Capacity
- Non-Touch
- Diagonal Size
- 21.5'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 18.84" x 10.25" / 478.66 mm x 260.28 mm
- Resolution
- 1920 x 1080
- Other Supported Resolutions
- 640x480 60Hz,; 640x400 70Hz; 720x400 70Hz; 800x600 56, 60Hz; 1024x768 60Hz; 1280x720 50, 60Hz; 1280x800 60Hz; 1280x1024 60Hz; 1366x768 60Hz, 60Hz RB; 1440x900 60Hz, 60Hz RB; 1680x1050 60Hz, 60Hz RB; 1920x1080 50Hz, 60Hz
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD panel: 250 nits; With AG screen: 220 nits
- Response Time-total (typical)
- 20 msec
- Contrast Ratio
- 3000:1
- Surface Treatment
- Anti-glare
- On Screen Display
- The unit has on-screen display (OSD) buttons on the back; Controls: Menu (Select), Down (Minus), Up (Plus), Source (Exit), Power; Settings: Brightness, Contrast, Eco Mode, Clock, Phase, H. Position, V. Position, Image Ratio, Color Temperature, OSD H. Position, OSD V. Position, OSD Timeout, OSD Language, Input Select, Reset, Information, Auto adjust, Volume, Video Source (triggered by the hotkeys); Languages: English, French, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Portuguese. Japanese; Lockouts: OSD, Power
- Audio
- Audio in; Audio out
- Speakers
- Two x 2W internal speakers
- Video
- HDMI V1.4 Type A receptacle for HDMI input; Analog VGA on Female DB-15 (DE-15) connector; DisplayPort V1.2 - Supports later versions of Display Port video input; Input Video Horizontal Sync frequency range: 30 – 82KHz; Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz
- Power
- AC power input connector (IEC 60320 C6); AC input voltage range: 100-240VAC, 50/60Hz
- Power Consumption (Typical)
- ON (Default - 90% Brightness): 15W; ON (Typical - 100% Brightness): 18.5W; SLEEP (monitor + adapter): 0.5W; OFF (monitor + adapter): 0.3W
- Monitor Dimensions (without Stand)
- 19.6" X 11.20" X 1.76" / 497.81 mm X 284.55 mm X 44.8 mm
- Shipping Box Dimensions
- 22.36" x 14.57" x 6.1" / 568 mm x 370 mm x 155 mm
- Weight (Unpackaged)
- 5.89 lbs / 2.67 kg
- Weight (Packaged)
- 11.02 lbs / 5 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- VESA 4-hole 100mm mounting interface on rear of unit
- Warranty
- 3-year
- Regulatory approvals and declarations
- Australia RCM; Canada cUL, IC; China CCC; Europe CE, TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Taiwán BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
- Compliance
- GLI 10 kV air / 8 kV contact ESD compliant; UL62368 ball-drop compliant; IK06 impact compliant
- What's in the Box
- Touchmonitor; HDMI cable; Quick Install Guide; EEI Label; Japan Class-B TM info sheet (E746145 only); 4 x VESA screws; NA Power Cord (E448150 only); EMEA Power Cord (E448346 only)
- Stands, Mounts & Kits
- Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
