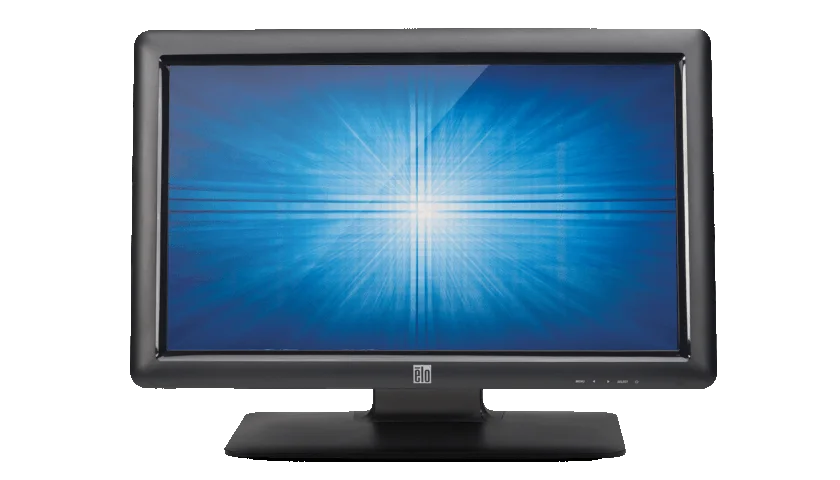

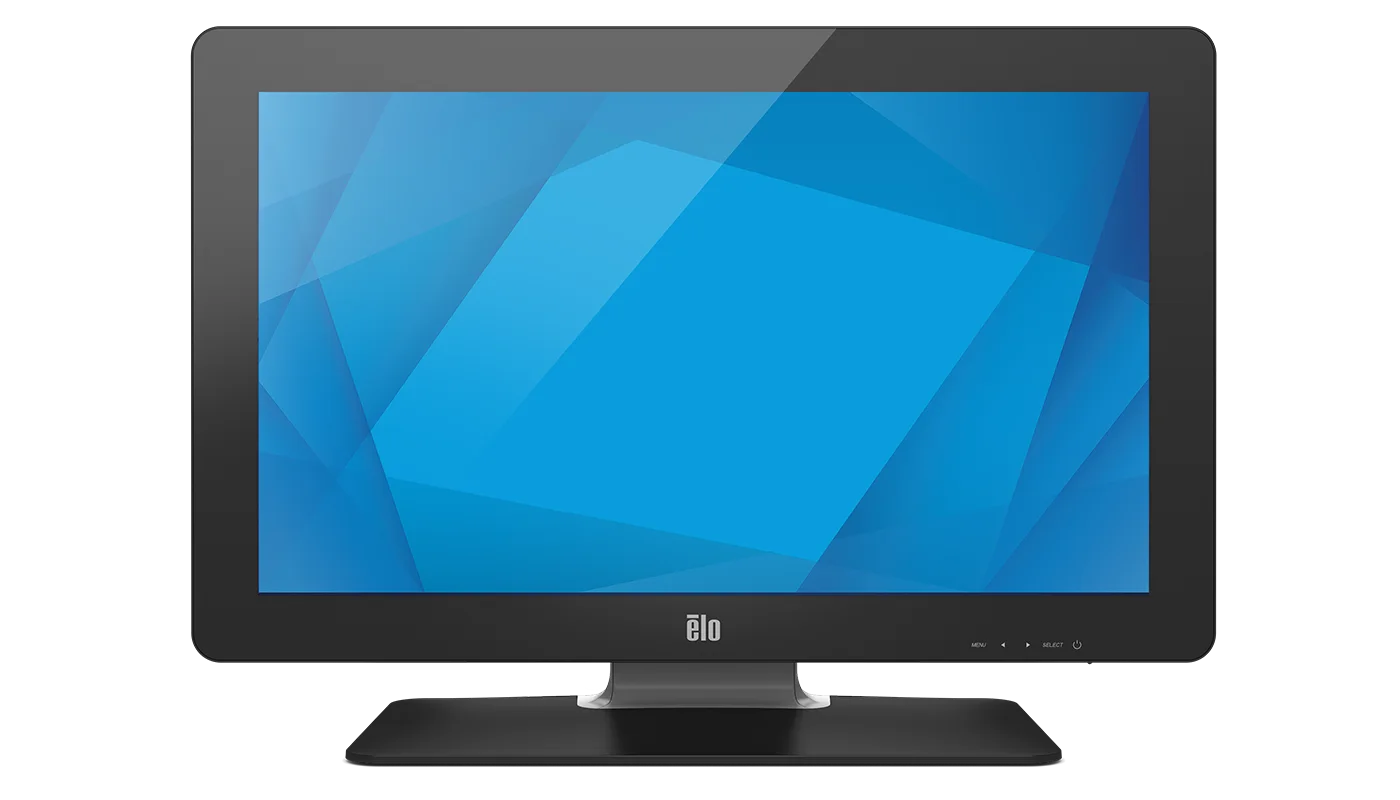

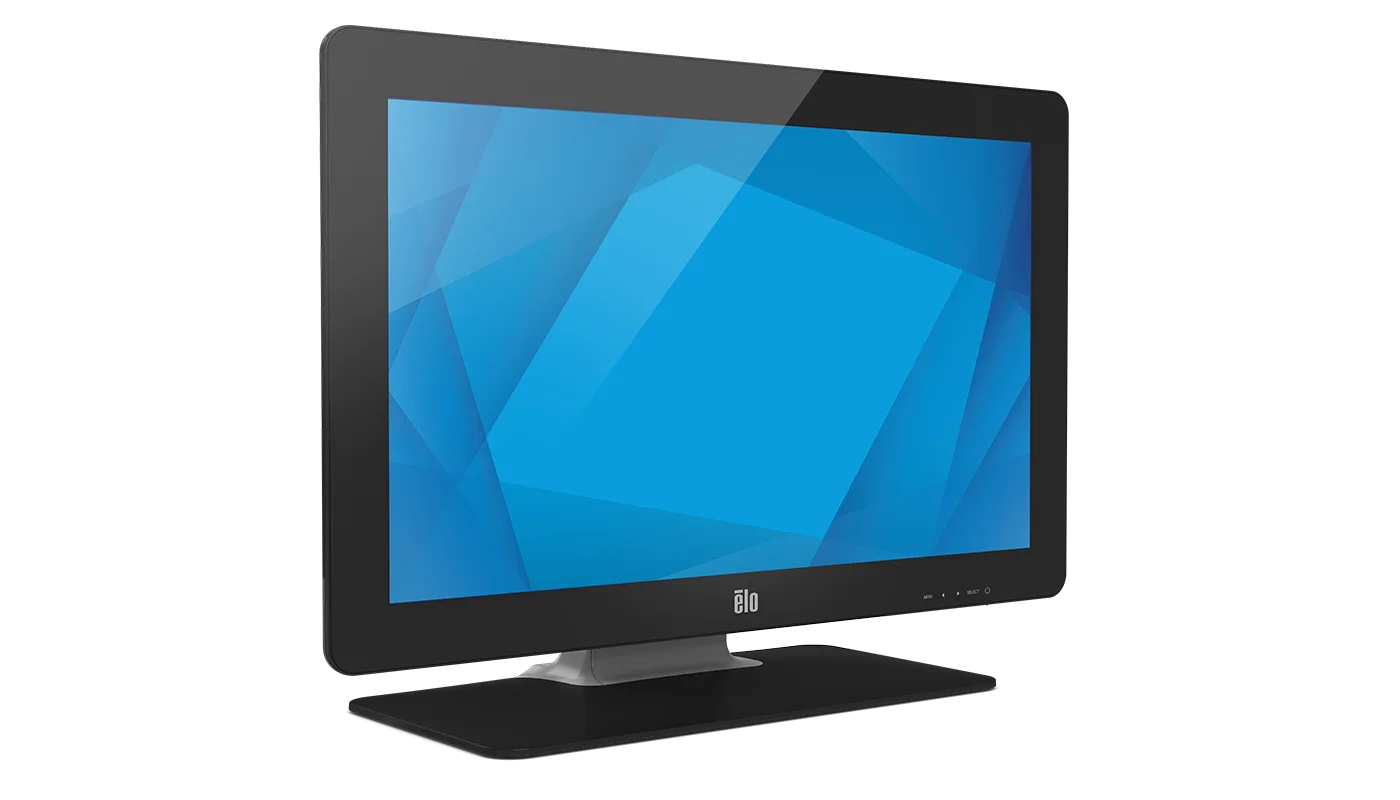

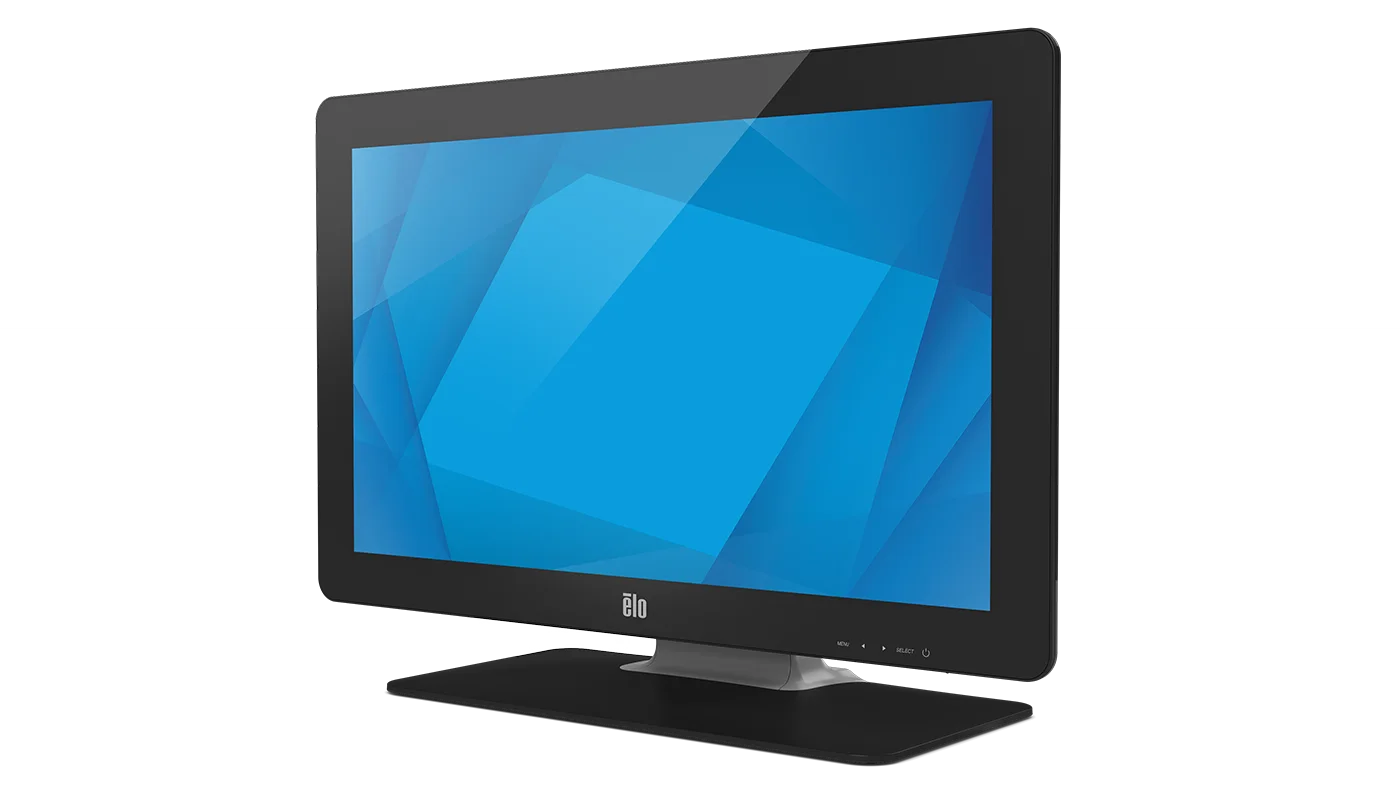

Elo Touch 2201L 22" Touchscreen Monitor

Overview

Display22'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The 2201L wide-aspect 21.5 -inch LCD touchscreen monitor offers a flexible, space-saving design. Built to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions, the 2201L offers built-for-touch reliability with Elo’s three-year standard warranty. The touchmonitor is available with industry-leading Elo touch technologies and multiple mounting options to support most applications. The 2201L is ultra-efficient using state-of-the-art LED technology to reduce energy usage.

The 2201L features a choice of touchscreen technologiesIntelliTouch™ surface acoustic wave (SAW) with a dual touch experience and IntelliTouch zero-bezel with an accurate single touch response. For a 10-touch tablet like experience, TouchPro™ PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.
The Elo 2201L offers multiple mounting options to ensure installation flexibility including: wall-, arm- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand.
Wide-aspect displays like the Elo 2201L are easier to use and incorporate into the workplace than traditional desktop monitors. Widescreen format displays accommodate extra content on screen and are quickly becoming preferred in corporate environments for publishing and dual window applications, and are popular in public venue environments due to a high-definition cinematic-like experience.
The 2201L touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
High definition LED display offers ultimate FHD interactivity, clarity and resolution

Specifications

Technical

Part Number(s): IntelliTouch ZB (Worldwide) - E382790; IntelliTouch Dual-Touch (Worldwide) - E107766
Enclosure Color: Black
Touch Technology & Capacity: SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch; SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size: 22'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 18.8" x 10.6" / 476mm x 268mm
Resolution: 1920 x 1080 @ 50, 60Hz
Other Supported Resolutions: 640 x 480 60Hz; 720 x 576 50Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 720 50, 60Hz; 1280 x 960 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz; 1440 x 900 60Hz; 1680 x 1050 60Hz; 1920 x 1080 50, 60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical): LCD Panel: 250 nits; IntelliTouch DT: 225 nits; IntelliTouch ZB: 225 nits
Response Time-total (typical): 14 msec
Contrast Ratio: 1000:1
Input Video Format: Analog VGA on Female DB-15 connector; Digital DVI on Female DVI-D connector
Input Video Frequency: Horizontal: 32 - 80 KHz; Vertical: 50 - 75 Hz
Audio Input Connector: One 3.5mm TRS jack
Headphone Output Connector: One 3.5mm TRS jack
Power Supply: DC (external power adapter included with unit)
Input Voltage: 12VDC +/- 5%
Input Connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Adapter Input Connector: IEC 60320 C6
Adapter Input Voltage Range: 100-240 VAC, 50 - 60 Hz
Power Consumption (Typical): ON (monitor + adapter): 26.04W; SLEEP (monitor + adapter): 0.83W; OFF (monitor + adapter at): 0.67W
Speakers: Two x 2W internal speakers
On Screen Display: Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, Vposition, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults, Video Source; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
Monitor Dimensions (with Stand): 21.7" x 15.4" x 7.6" / 551mm x 392mm x 193mm
Shipping Box Dimensions: 20.5" x 27.2" x 11.0" / 520mm x 690mm x 280mm
Weight (Unpackaged): 16.5 lb / 7.5 kg
Weight (Packaged): 27.6 lb / 12.5 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95%
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Stand Options: Tiltable and removable

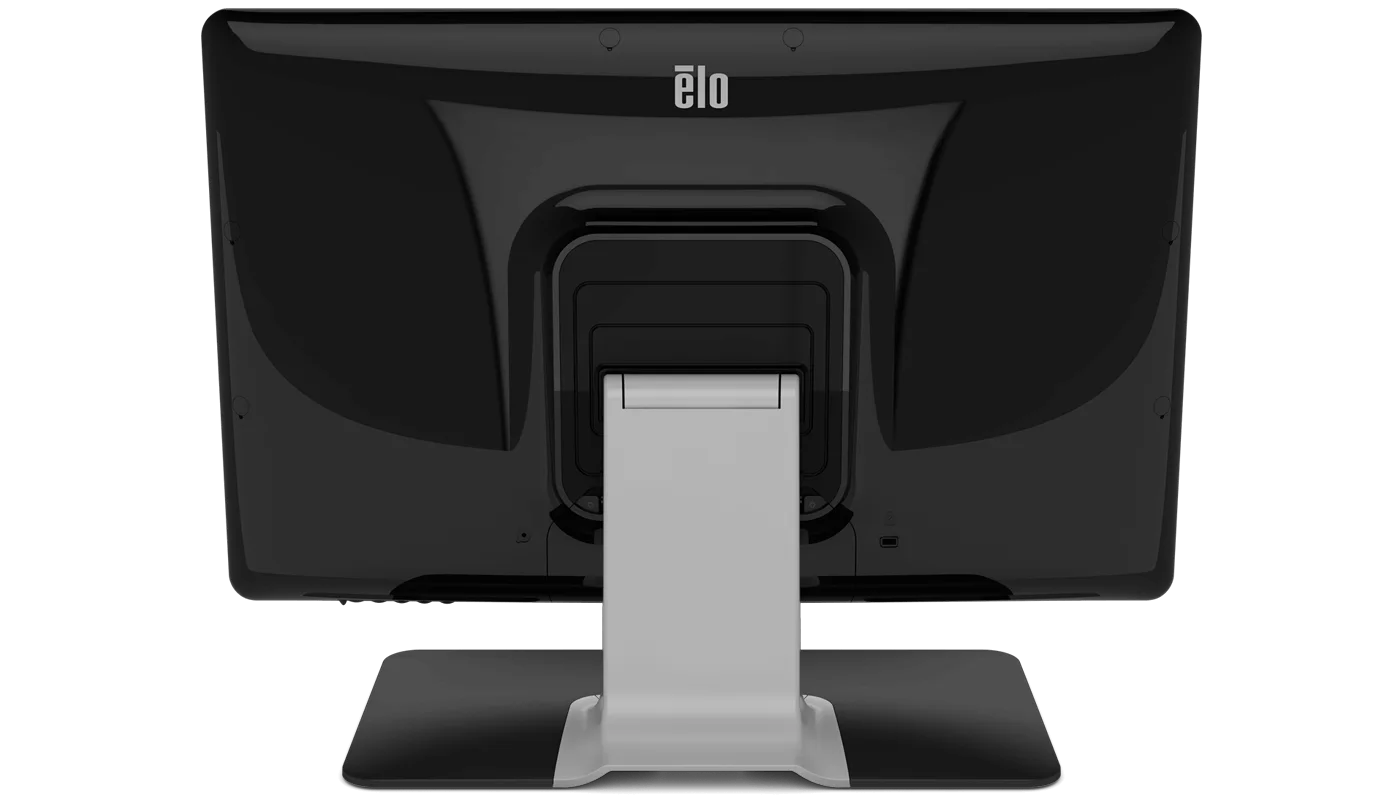

Mounting Options: VESA 4-hole 100mm mounting interface on rear of unit; 4-hole 200x100mm threaded mounting on bottom of stand
Other Features: Security lock receptacle
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Australia RCM; Canada cUL, IC; China CCC; Europe CE; United Kingdom UKCA; Japan VCCI; Korea KCC, e-Standby; Mexico CoC; Russia EAC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERC
What's in the Box: For P/N: E382790 and E107766 - Touchmonitor, TouchTools CD, Quick Install Guide, JP regulatory pamphlet, Cables – DVI, VGA, USB, Audio, AC-DC power adapter, NA and EU power cables.; For P/N: E110488 - Touchmonitor, TouchTools CD, Quick Install Guide, JP regulatory pamphlet, Cables –DVI, VGA, USB, Audio, AC-DC power adapter, CCC power cable.
Replacement DC Power Supply: The monitor may be powered with DC voltage. An optional 12V DC power brick is available at additional cost.; Replacement power brick kits - 50W power adapter + regional power cable-C13 type; United States: E005277; Europe & Korea: E571601; United Kingdom: E180092; China: E558862; Taiwan: E818655; Japan: E182546; Argentina: E887099
Optional IntelliTouch Stylus Pen: Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo P/N: D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables: Detachable touch, audio, power (for all regions) and video cables are included.
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E757859

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: 2202L
Status basis: elotouch.com lists it as replaced by 2202L
