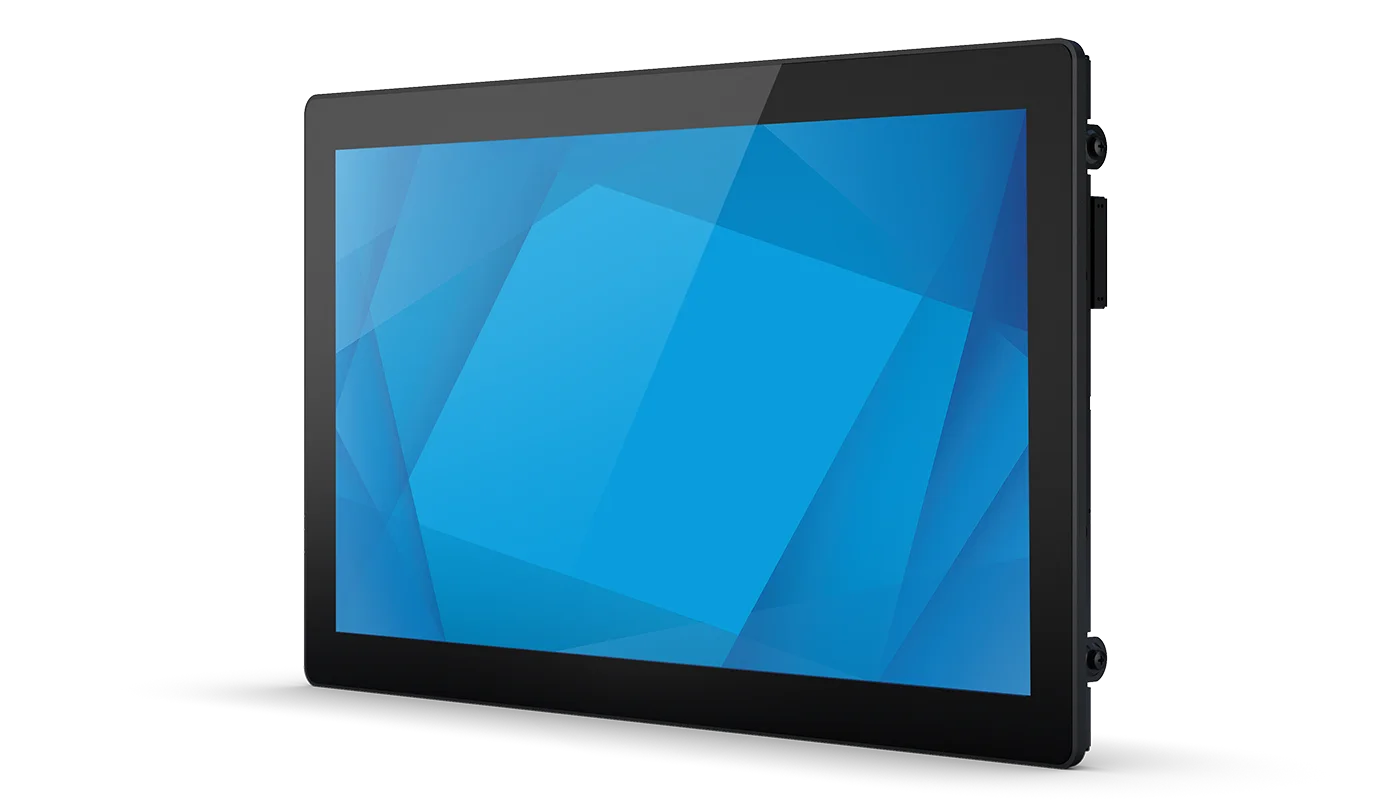

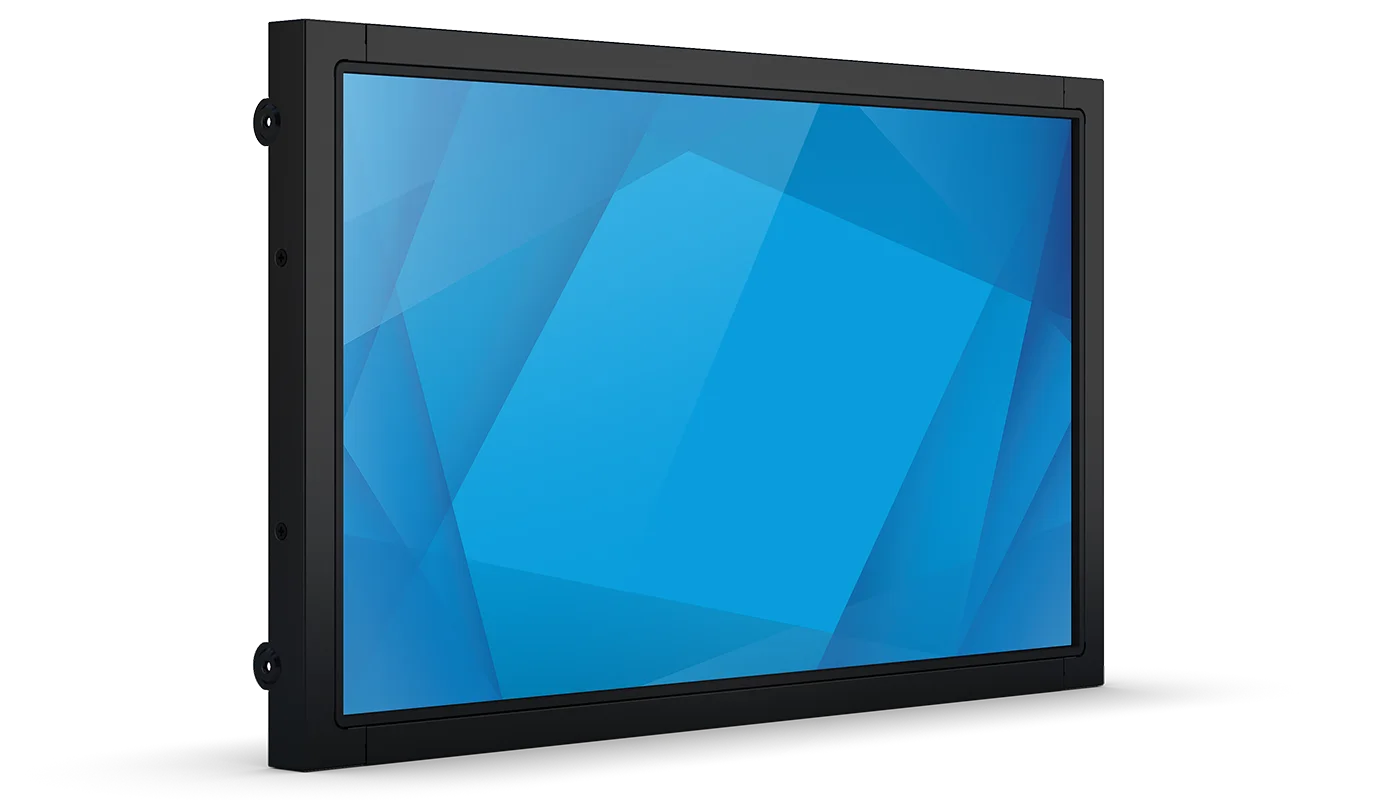

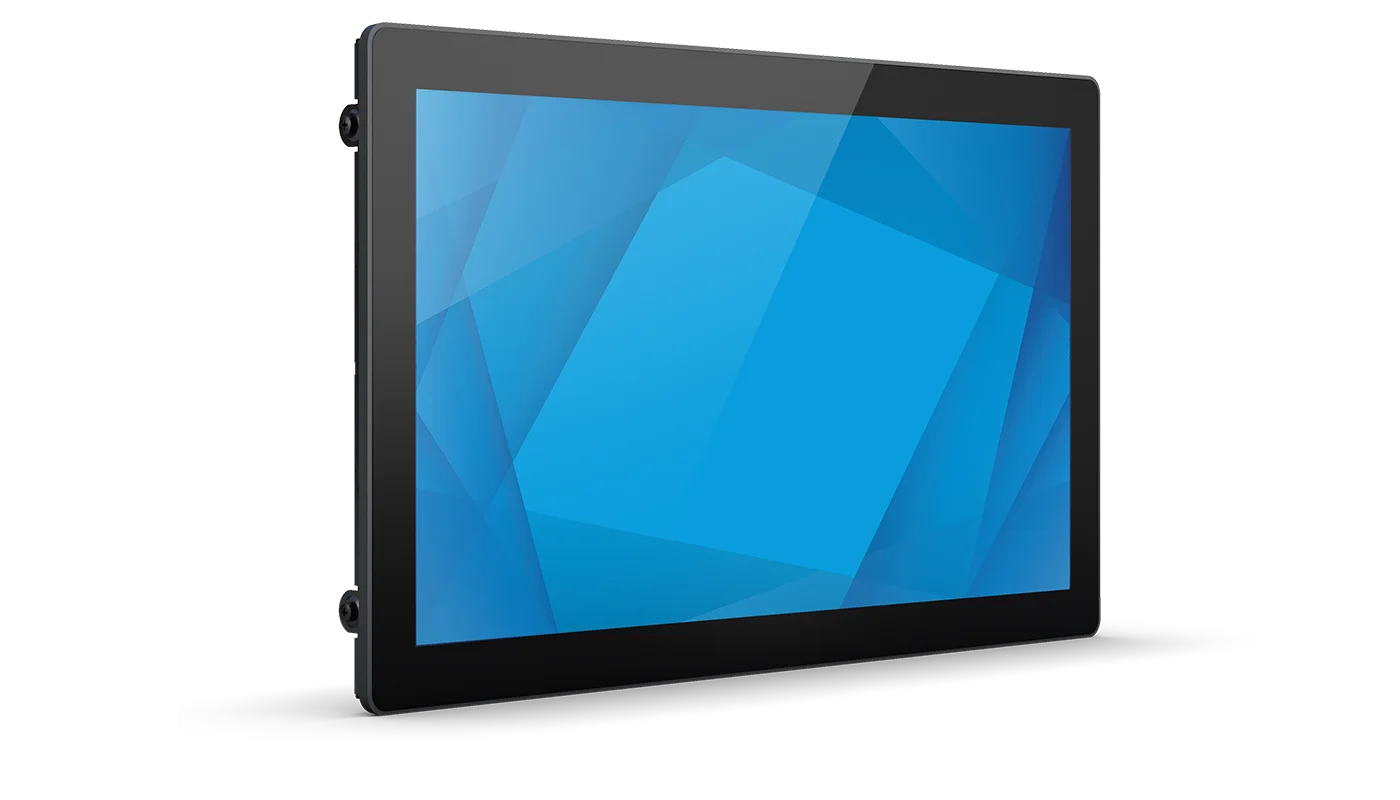

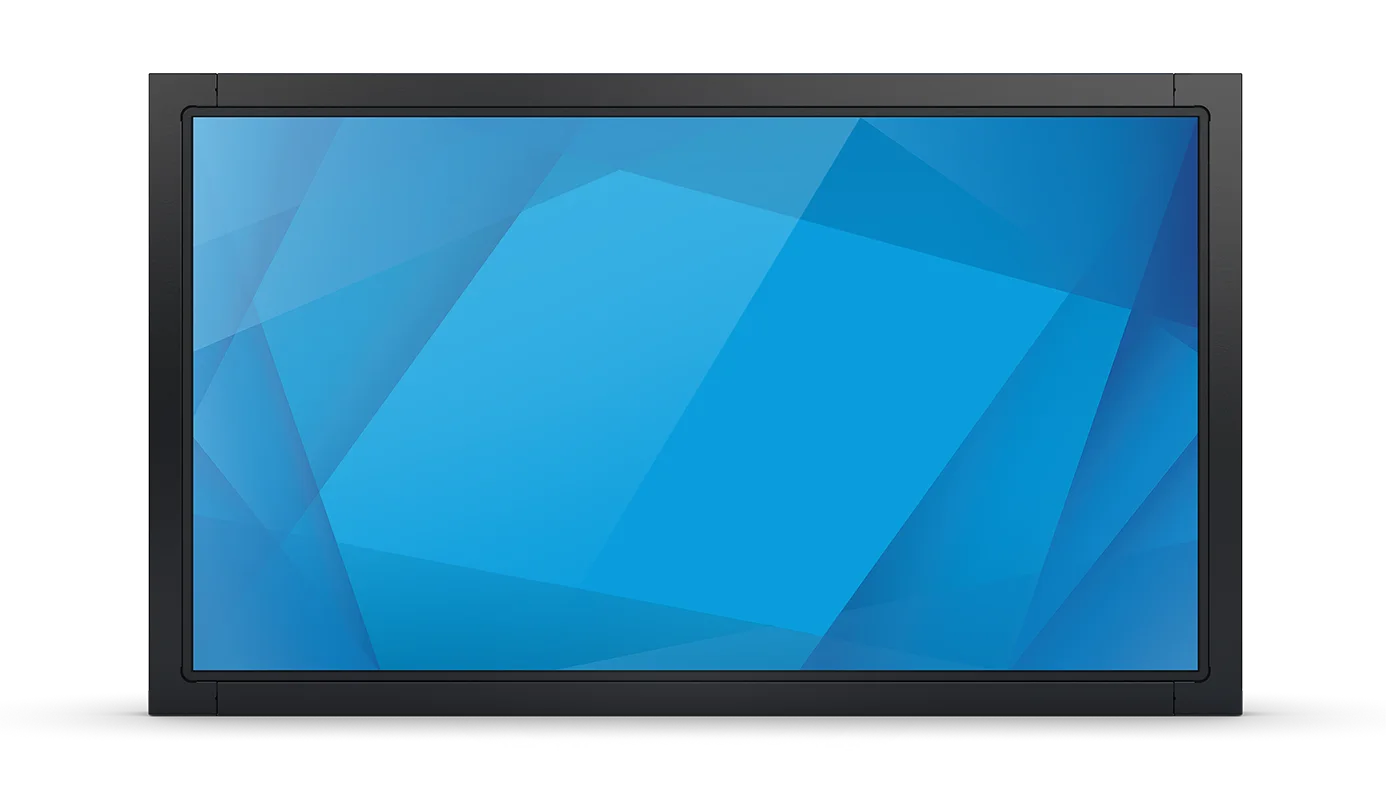

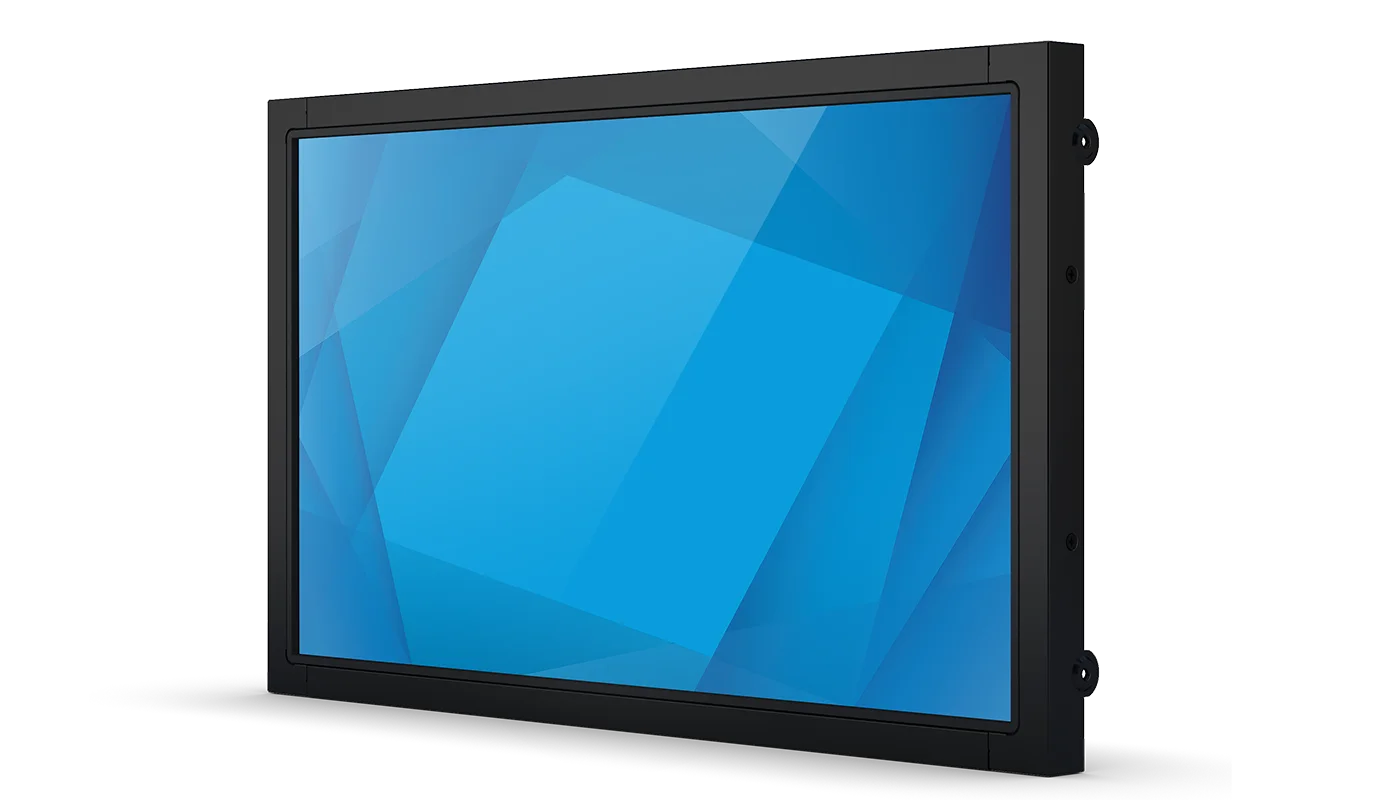

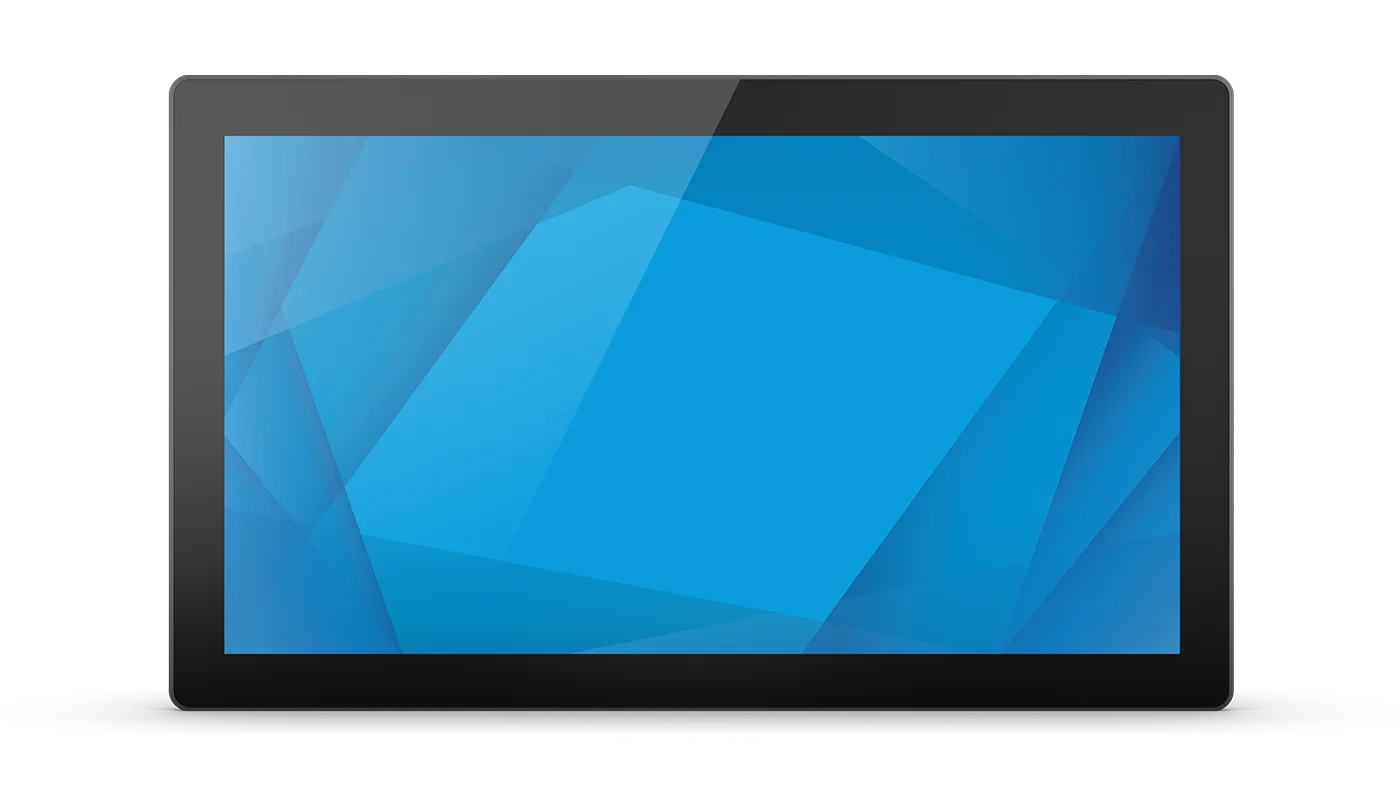

Elo Touch 2094L 19.5" Open Frame Touchscreen
The Elo 2094L 20-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Des
- Display19.5'' diagonal, Active matrix TFT LCD (LED)
- SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The Elo 2094L 20-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
- We chose Elo touchscreens to power our award-winning BLUE FIRE Kiosk because they offered the ease of integration into our enclosure... We knew we could rely on a durable, long lifecycle product that will deliver a high quality interactive experience for years to come.
- With EloView™ and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
- Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
- Our TouchPro™ PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
- We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
Videos
Specifications
Technical
- Part Number(s)
- IntelliTouch (Worldwide) - E328883; TouchPro PCAP (Worldwide) - E331214
- Enclosure Color
- Black
- Touch Technology & Capacity
- SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch; PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Touch Interface
- TouchPro PCAP - USB 2.0; IntelliTouch - Dual serial/USB 2.0
- Diagonal Size
- 19.5'' diagonal, Active matrix TFT LCD (LED)
- On Screen Display
- Accessible through switches on the unit’s tethered OSD Control box.; Controls: Menu, Up, Down, Select, Power; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
- Aspect Ratio
- 16:9
- Active Area
- 17.12" x 9.40" / 434.88mm x 238.68mm
- Resolution
- 1920 x 1080
- Other Supported Resolutions
- 640 x 480 60Hz; 720 x 400 70Hz; 800 x 500, 60Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50, 60Hz
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD panel: 250 nits; IntelliTouch: 225 nits; TouchPro PCAP: 225 nits
- Response Time-total (typical)
- 20 msec
- Contrast Ratio
- 3000:1
- Input Video Format
- HDMI V1.3 Type A receptacle for HDMI input; Analog VGA on Female DB-15 connector; DisplayPort V1.1a - Supports later versions of Display Port video input
- Input Video Frequency
- Horizontal: 30 - 82 KHz; Vertical: 50 - 75 Hz
- Video Interface
- HDM, VGA & Display Port
- Power Supply
- External DC - Optional power brick (sold separately)
- Input power connector (Monitor)
- Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
- Input Voltage
- 12VDC +/- 5%
- Adapter Output Power Connector
- DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
- Power Consumption (Typical)
- Monitor + Adapter; ON (Default - 75% Brightness): 13.87 W; ON (Typical - 100% Brightness): 16.54 W; SLEEP: 1.5 W; OFF: 0.5W

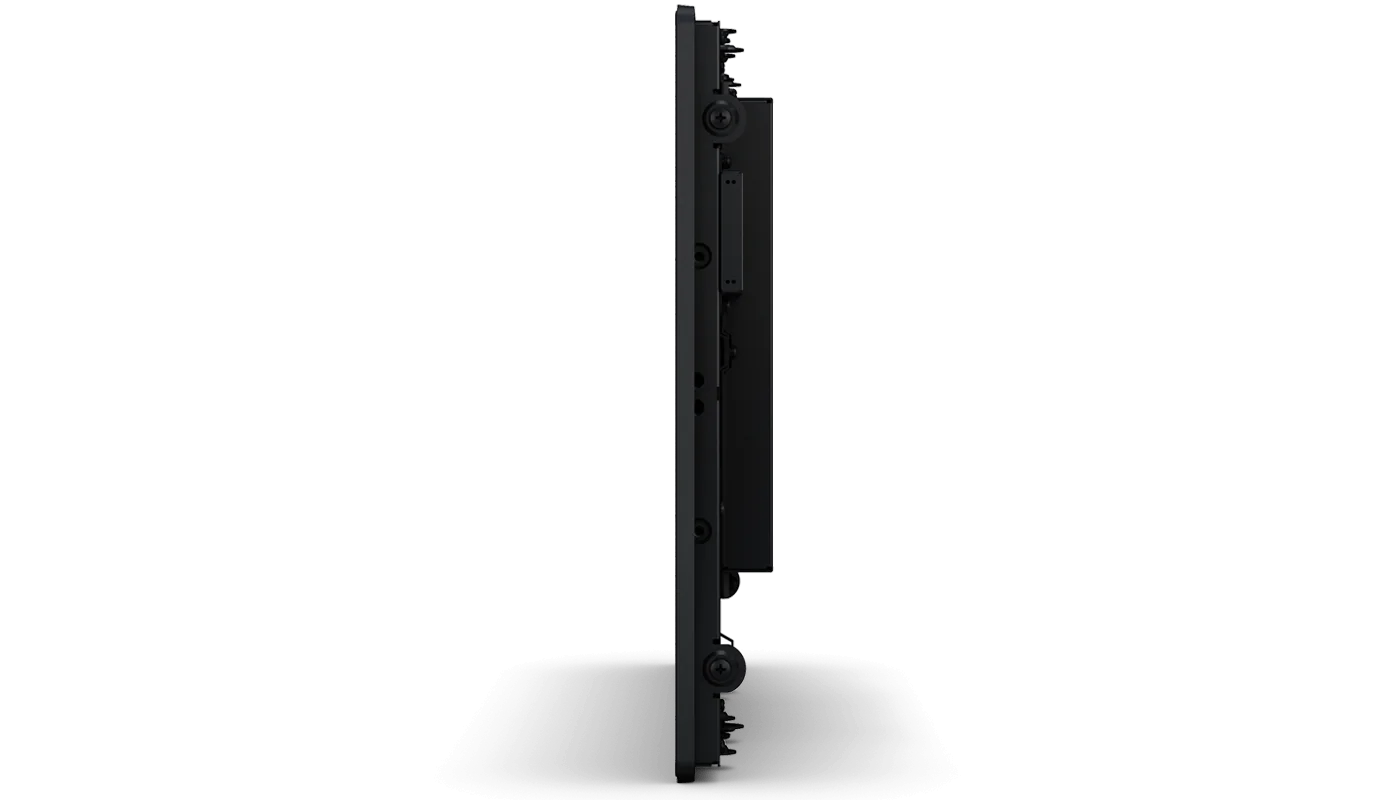

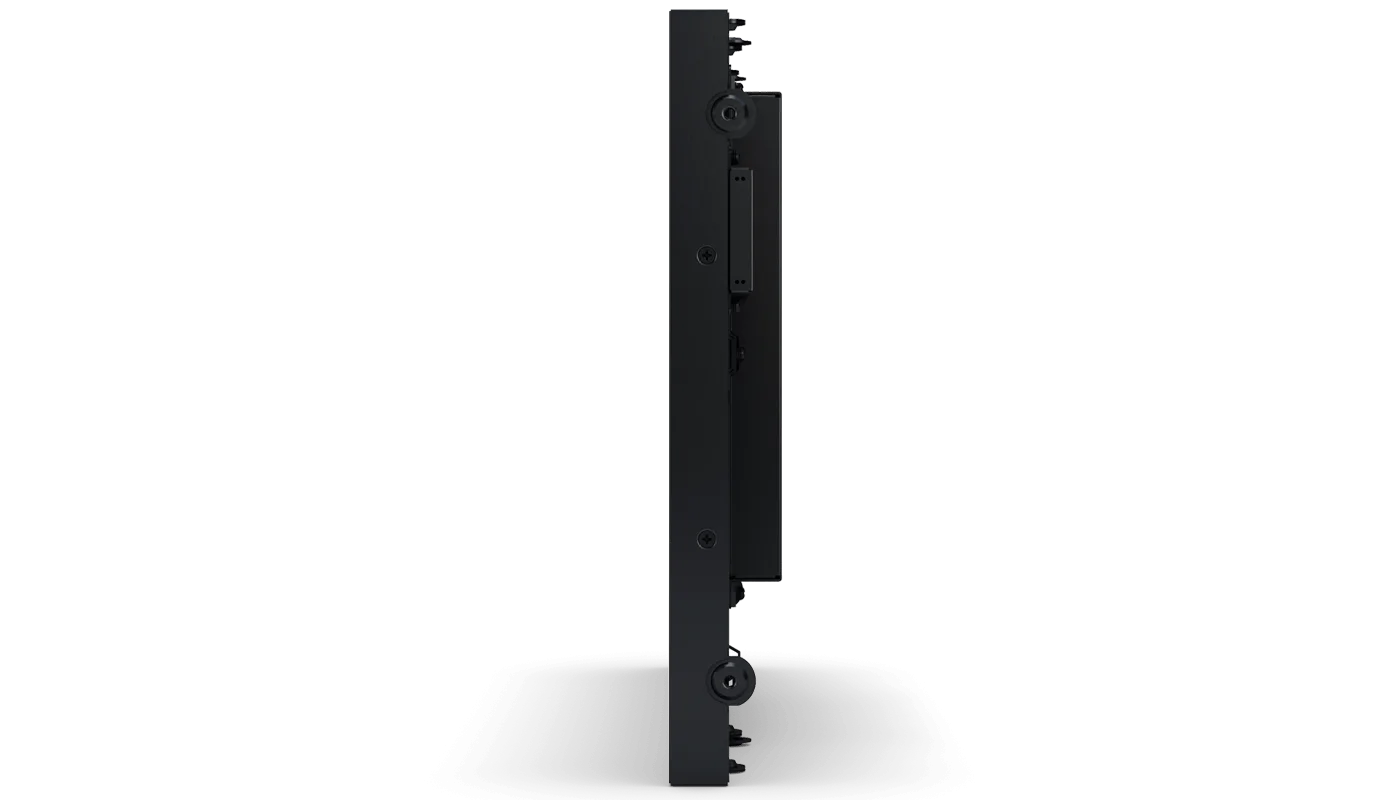

- Dimensions
- Bezel: 18.74" x 11.03" x 1.71" / 476mm x 280.1mm x 43.4mm; Zero-Bezel: 18.87" x 11.22" x 1.59" / 479.2mm x 285.0mm x 40.5mm
- Shipping Box Dimensions
- 22.64" x 14.8" x 7.28" / 575mm x 376mm x 185mm
- Weight (Unpackaged)
- 10.36 lbs / 4.7Kg
- Weight (Packaged)
- 14.11 lbs / 6.4Kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- Sealability
- Touchscreen sealed to bezel; Touchscreen sealed to LCD
- MTBF
- 50,000 hours demonstrated
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; Russia EAC; RoHS, China RoHS, WEEE
- Compliance
- GLI 27 kV air / 8 kV contact ESD compliant (TouchPro PCAP only); UL 62368 ball-drop compliant (TouchPro PCAP only); IK07 impact compliant (TouchPro PCAP only)

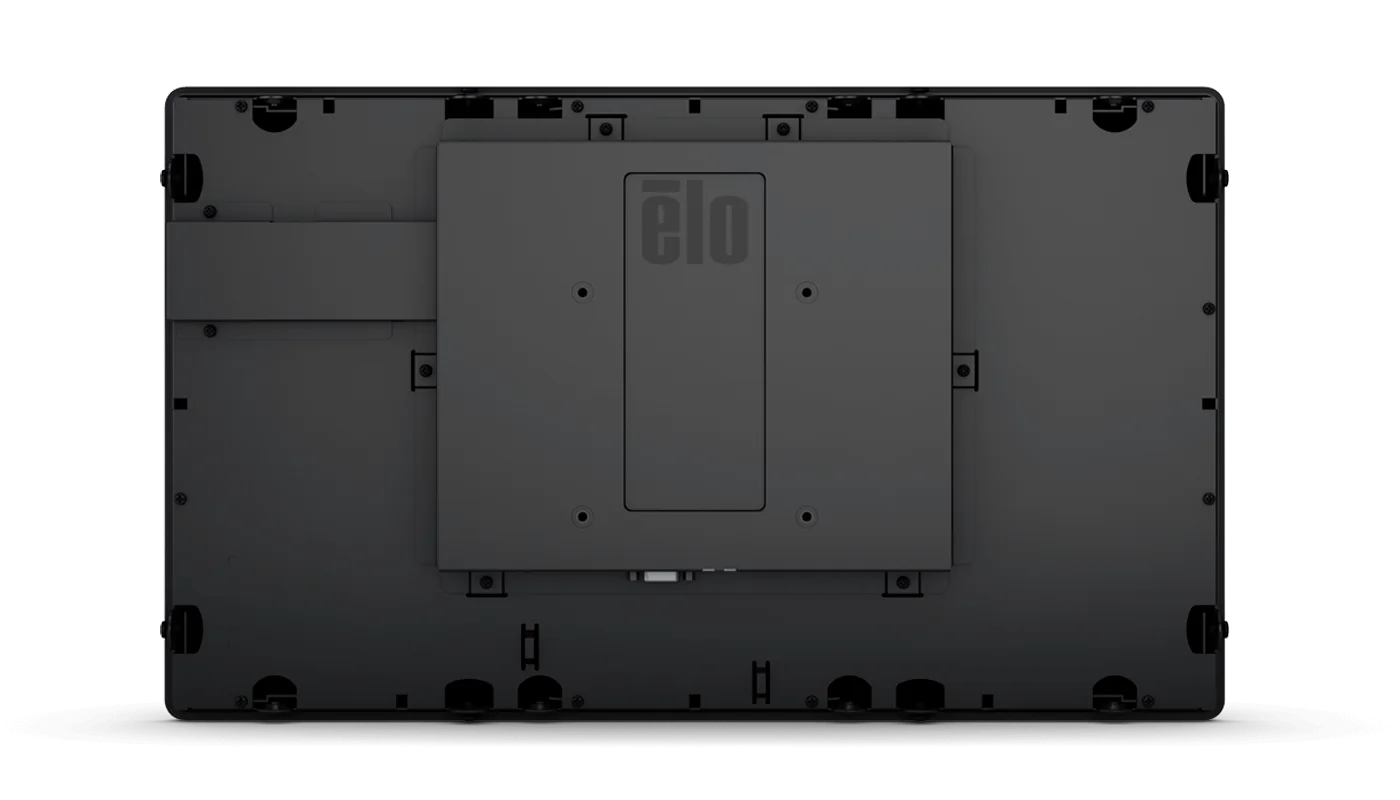

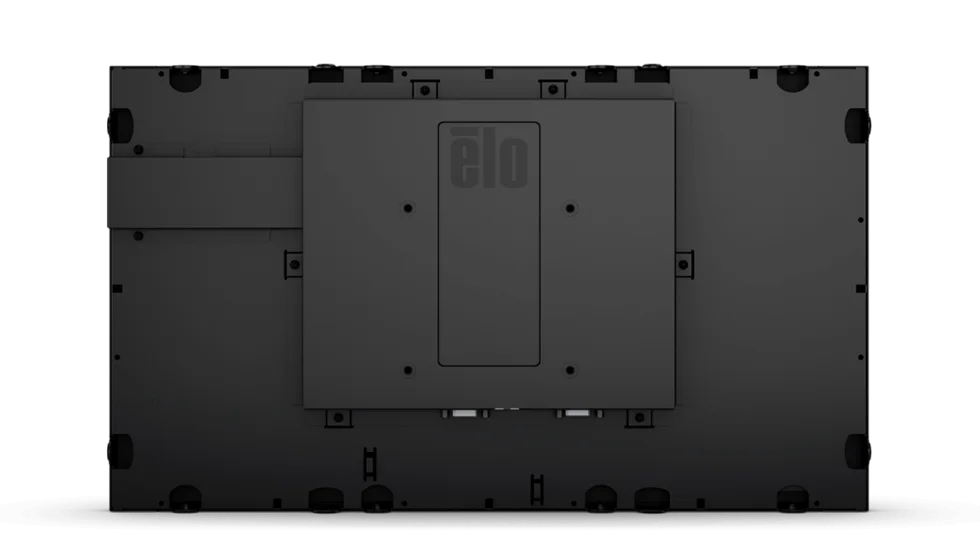

- Mounting Options
- 100mm VESA mount; 2 Hole mounting interface on all four sides.; Front mount with optional bezel kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models); Rack mount with optional kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models); Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details)
- What's in the Box
- HDMI cable; VGA Cable; RJ45 OSD Remote; Touch USB Cable; Quick Install Guide; For Zero-Bezel Models: Flush Mount Brackets w/Screws; For Bezeled - IntelliTouch Models: “L” (Side Mount) Brackets and w/Screws; EEI Label; Japan Class-B TM info sheet
- Options / Peripherals / Upgrades
- Remote OSD (RJ45) - Elo P/N: E483757; Replacement Cable Kit (HDMI, VGA, USB and Serial cables) - Elo P/N: E546861; Cable Kit DVI-D to HDMI – Elo P/N: E538507; Cable Kit DP to DP – Elo P/N: E582895; North America power adapter and cable kit - Elo P/N: E005277; European & Korea power adapter and cable kit - Elo P/N: E571601; UK power adapter and cable kit - Elo P/N: E180092; China power adapter and cable kit - Elo P/N: E558862; Taiwan power adapter and cable kit - Elo P/N: E818655; Japan power adapter and cable kit - Elo P/N: E182546; Argentina power adapter and cable kit - Elo P/N: E887099; Australia power adapter and cable kit - Elo P/N: E637593; IntelliTouch Stylus Pen - Elo P/N: D82064-000; Elo 20-inch & 22-inch Wide Flush-mount Bracket - Elo P/N: E190706; Elo 20-inch Wide Front-mount Bezel - Elo P/N: E553352 See Mounting Options Spec for Compatibility; Elo 20-inch Wide Rack-mount Bezel - Elo P/N: E553538 (See Mounting Options Spec for Compatibility); Power DC 24V/DC 12V Converter - Elo P/N: E239980; Elo Backpack® 5 (Standard Model) - Elo P/N: E620713
- Optional PCAP Stylus Pen
- E066148
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
