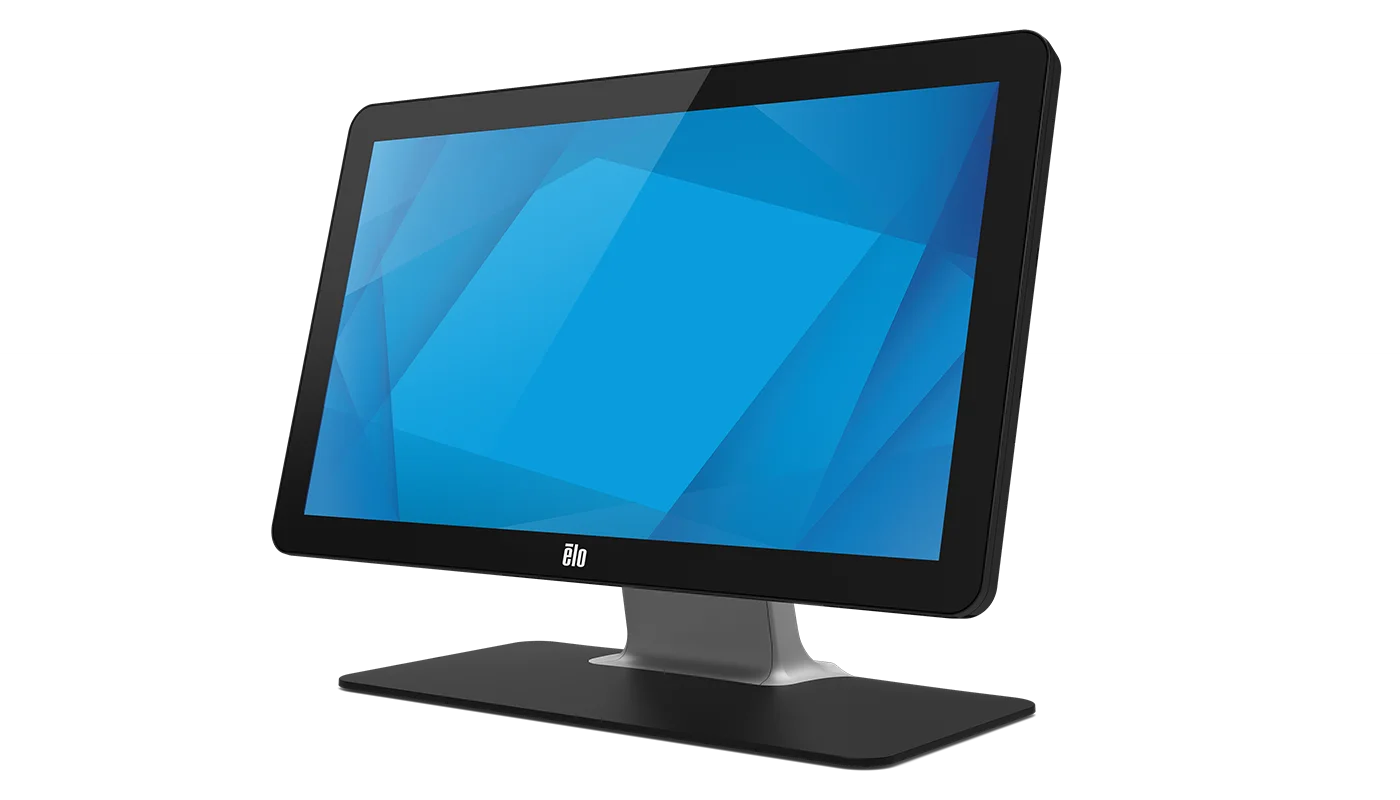

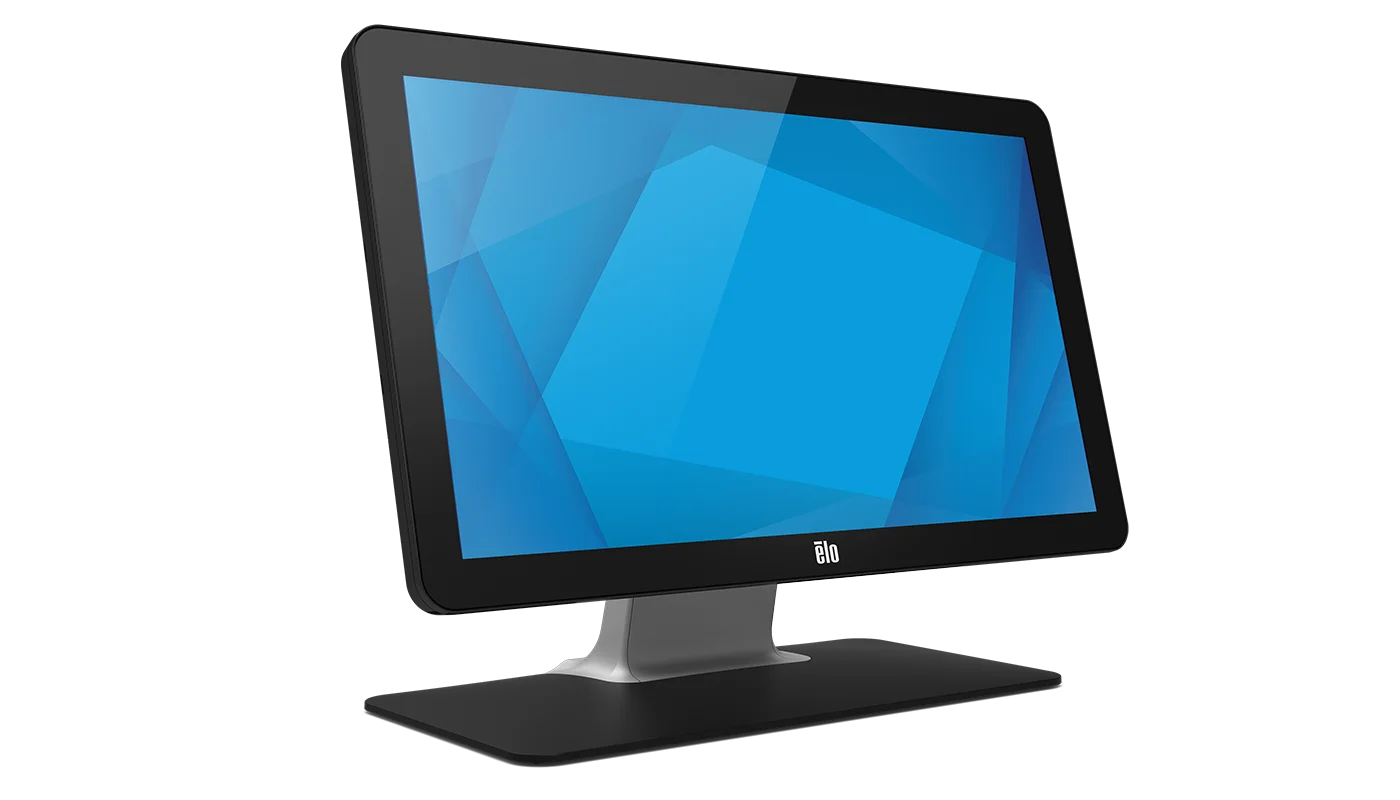

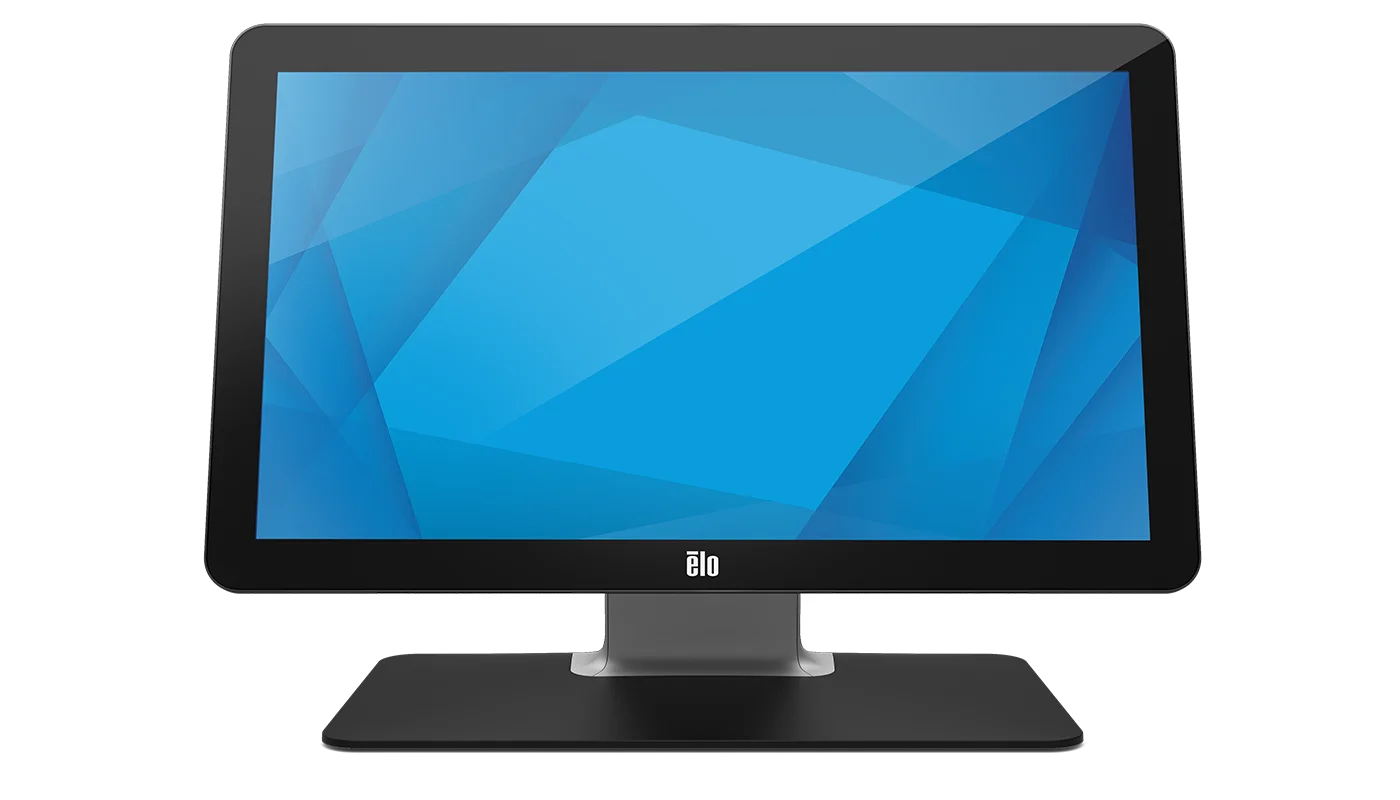

Elo Touch 2002L 20" Touchscreen Monitor

Display19.5'' diagonal, Active matrix TFT LCD (LED)
SealingIPX1 for front side

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

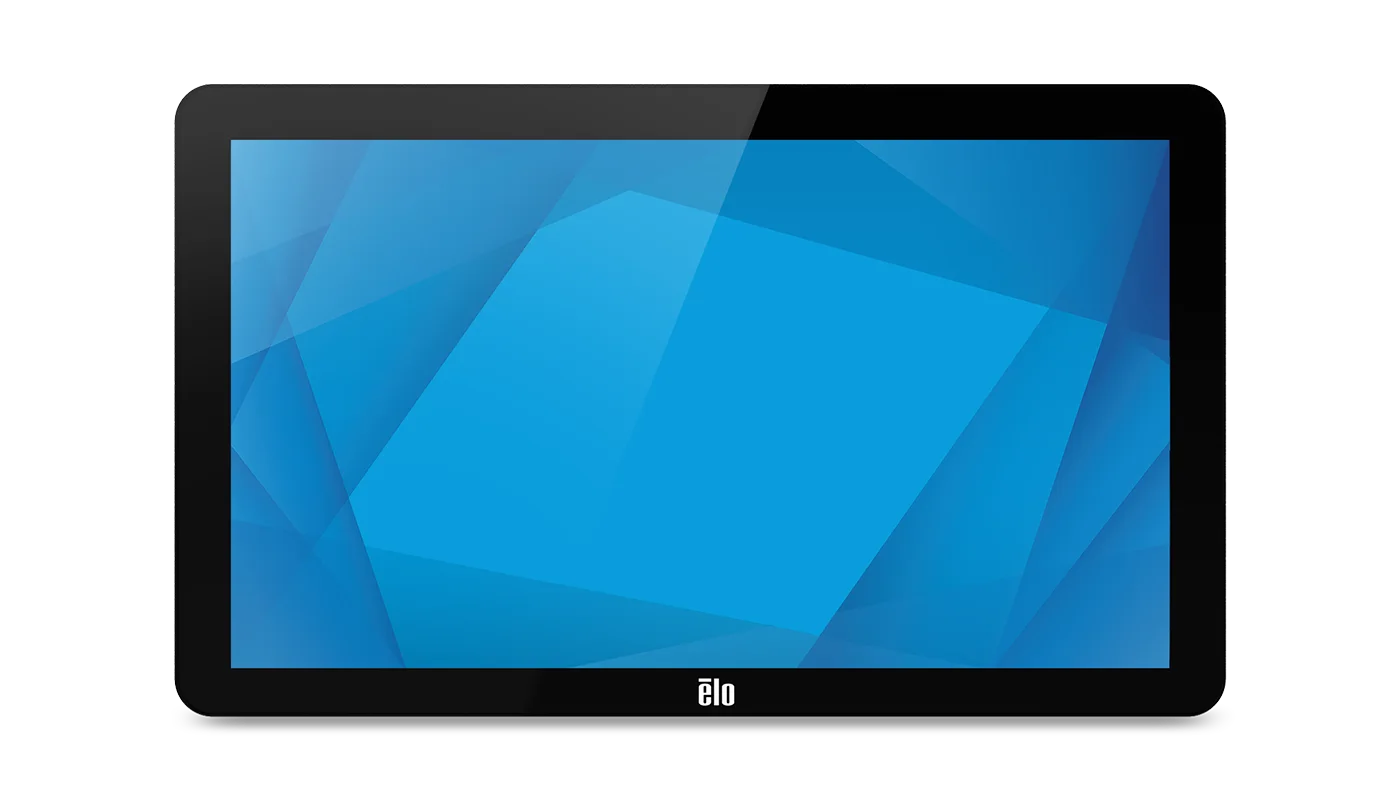

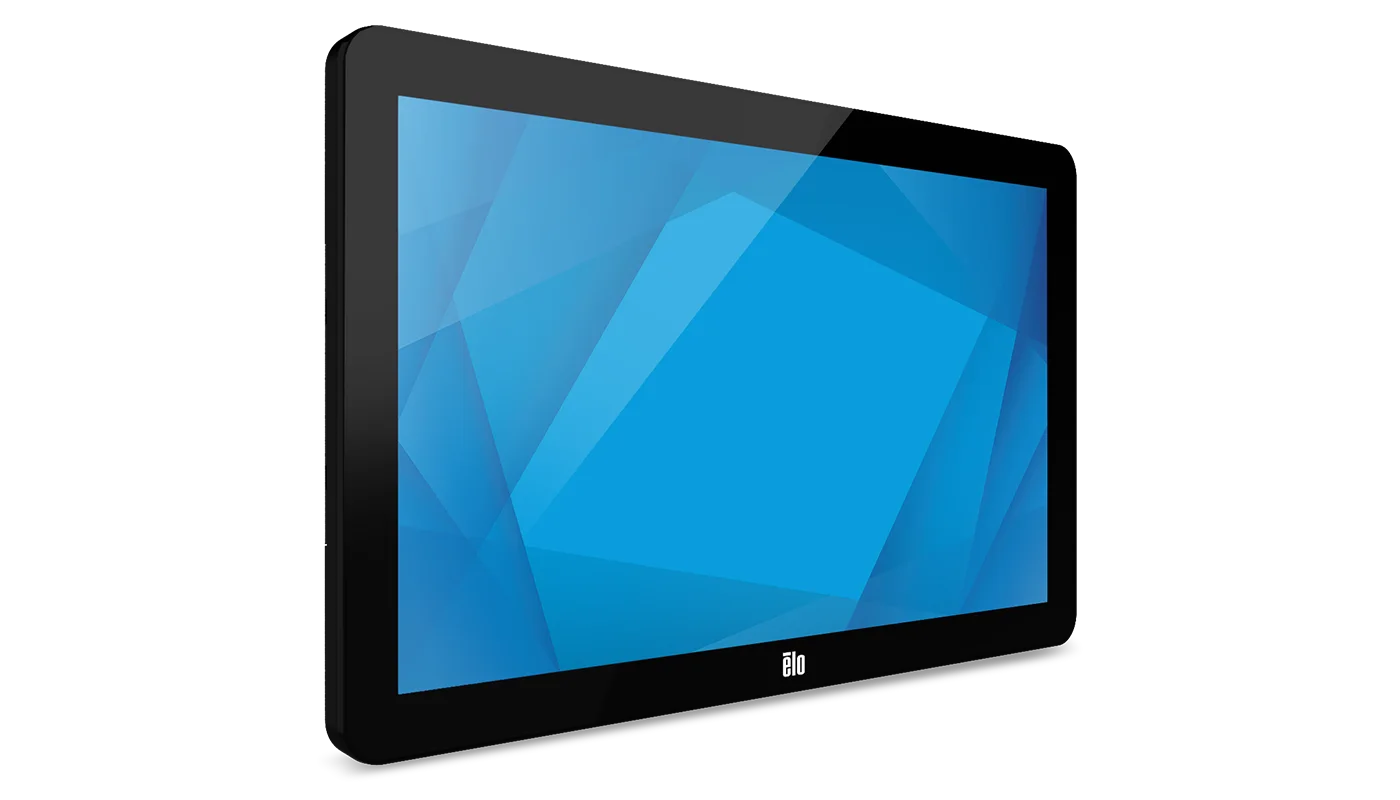

The Elo 2002L 20-inch widescreen LCD touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo’s industry-leading TouchPro™ PCAP technology. The sleek, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 2002L well suited for high traffic environments.

The Elo 02-Series Monitors are available in sizes from 7 to 27 inch with multiple mount and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns.
The 2002L offers optional accessories with easy installation includinga mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications.
For retail applications where customer engagement is critical, the 2002L offers 11.5% more screen real estate compared to the 1919L.
The 20-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

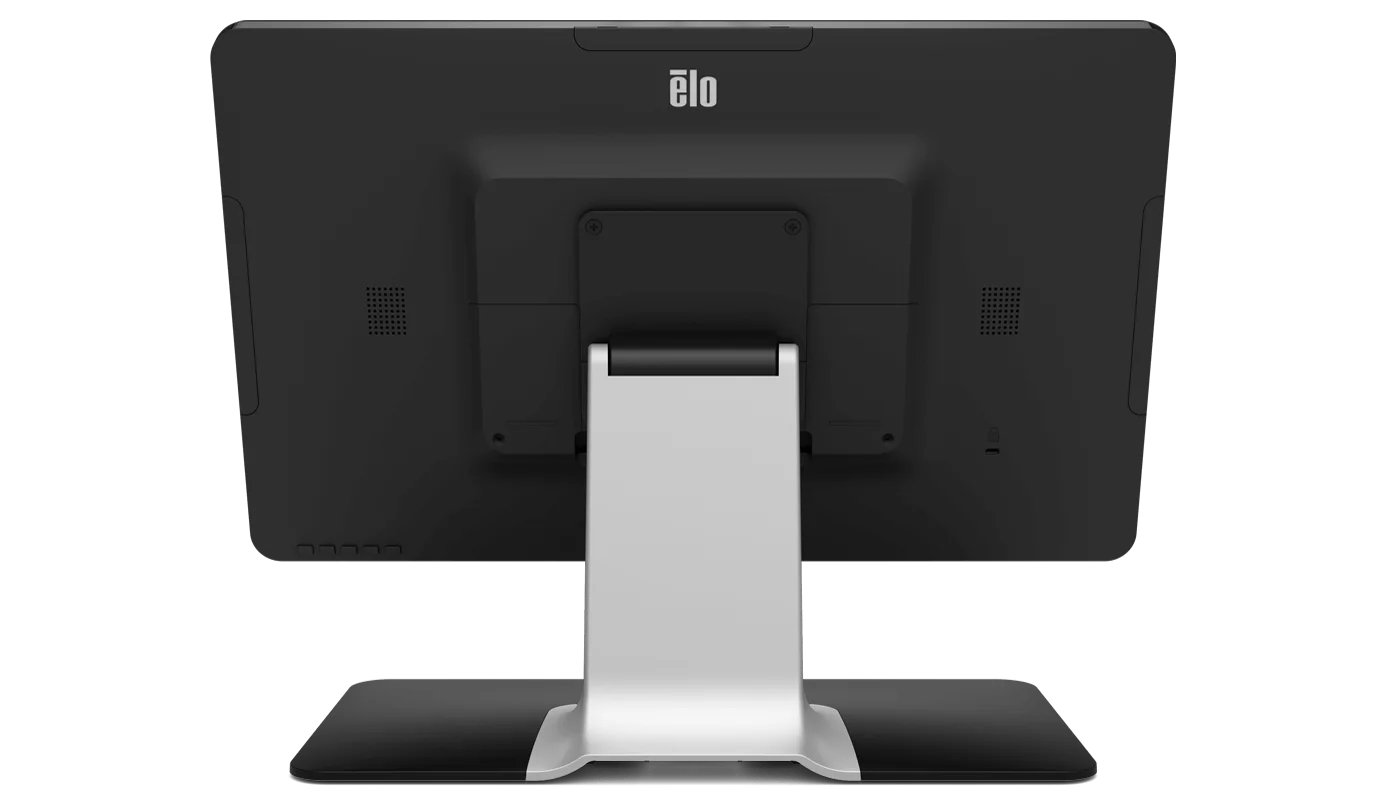

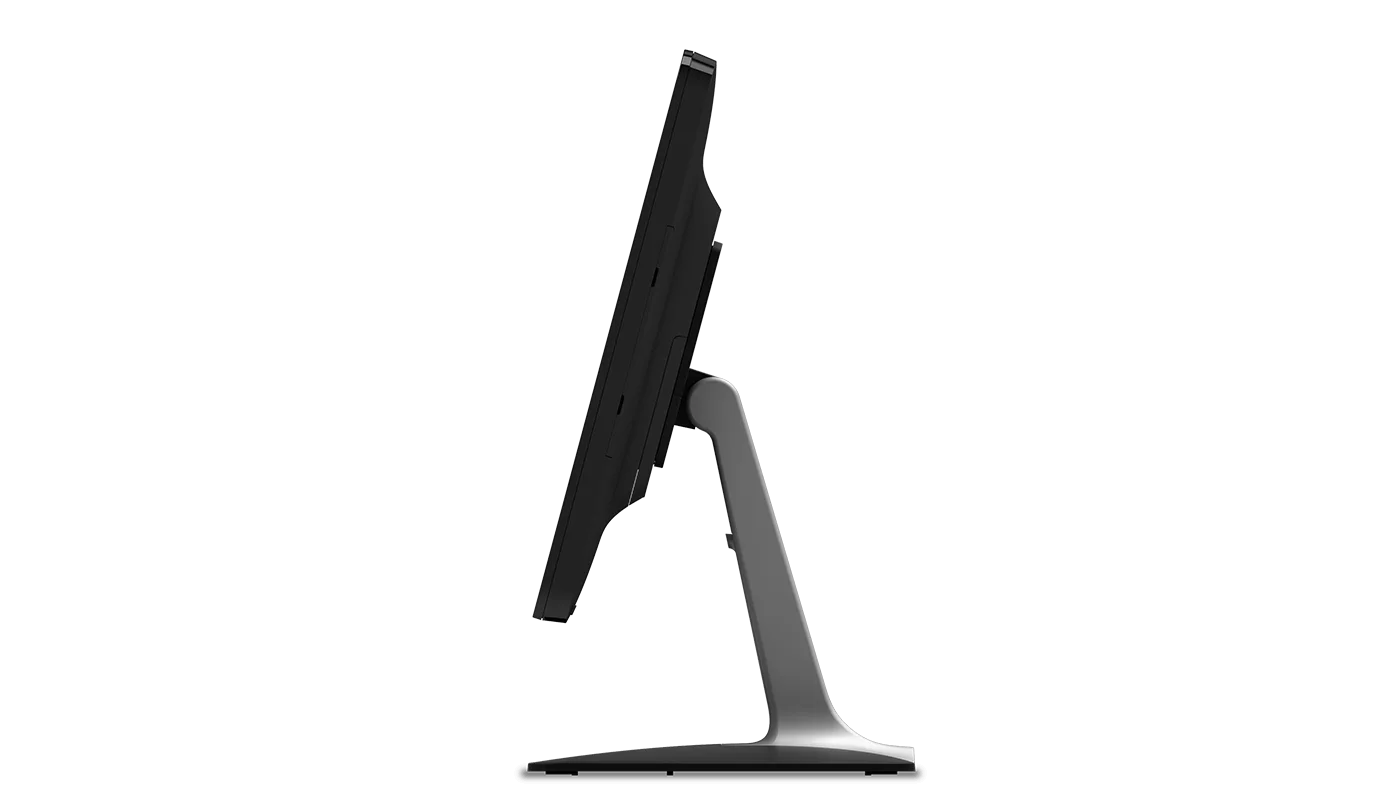

Installation flexibility with mounting in portrait, landscape and table-top orientation, adjustable height stand

Best for: Kitchen Display Systems · Price Checkers · Interactive Price Check Displays

Specifications

Technical

Part Number(s): With Stand - E396119; Without Stand - E125897; *For NA, LATAM & APJ only
Enclosure Color: Black
Touch Technology & Capacity: PCAP (Projected Capacitive) - 10 Touch
Diagonal Size: 19.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 17.20" x 9.48" / 436.9mm x 240.7mm
Resolution: 1920 x 1080 @ 50, 60Hz
Other Supported Resolutions: 640 x 480 60Hz; 640 x 400 70Hz; 720 x 576 50Hz; 720 x 400 70Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 720 50, 60Hz; 1280 x 960 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50, 60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical): LCD Panel: 250 nits; PCAP: 225 nits
Response Time-total (typical): 20 msec
Contrast Ratio: 3000:1
Touch Interface: USB
On Screen Display: Accessible through switches along the bottom.; Controls: Menu, Power, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
Speakers: Two x 2W internal speakers
Input Video Format: Mini-VGA (Mini-VGA to VGA DE-15 (DB-15) Male connecter cable included) HDMI (HDMI cable included), HDCP supported
Input Video Frequency: Horizontal: 31.5 - 80 KHz; Vertical: 50 - 60 Hz
Power Consumption (Typical): Monitor + AC/DC adapter; ON (Default - 85% Brightness): 15.97 W; ON (Typical - 100% Brightness): 17.77 W; SLEEP: 0.33W; OFF: 0.24W
Input Voltage: 12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector: Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor Dimensions (without Stand): 11.57" x 19.22" x 1.52" / 293.9 mm x 488.31 mm x 38.7 mm
Monitor Dimensions (with Stand): 13.87" x 19.22" x 7.61" / 352.3mm x 488.31mm x 193.4mm
Shipping Box Dimensions: With Stand: 16.50" x 22.52" x 9.92" / 419 mm x 572 mm x 252 mm; Without Stand: 18.35" x 24.49" x 7.17" / 466 mm x 622 mm x 182 mm
Weight (Unpackaged): With Stand: 11.68 lbs / 5.3 kg; Without Stand: 7.25 lbs / 3.29 kg
Weight (Packaged): With Stand: 19.84 lbs / 9 kg; Without Stand: 11.42 lbs / 5.18 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95%
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 4-hole 75mm and 100mm mounting interface on rear of unit; See dimensional drawings for details
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Canada cUL, IC, Europe CE, United Kingdom UKCA, Japan VCCI, United States UL, FCC, China CCC, Korea, KCC, e-standby, Australia RCM, India BIS, International CB, Russia EAC, RoHS, China RoHS, WEEE, REACH
Ingress Protection: IPX1 for front side
What's in the Box: Touchmonitor; Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male); USB cable (USB Type A plug to USB Type B plug); HDMI cable; Audio cable; QIG; Power brick with US, EU, UK, KR, AU and CN clips; 4 screws (for E125897)
Optional PCAP Stylus Pen: E066148
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465; EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; 1.8m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210789; 3m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210606; Power Brick Kit – 1.8m Power Cable - Elo P/N: E211174; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; Elo Backpack® 4 (Value Model) - Elo P/N: E393754; Elo Backpack® 4 (Standard Model) - Elo P/N: E393359

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
