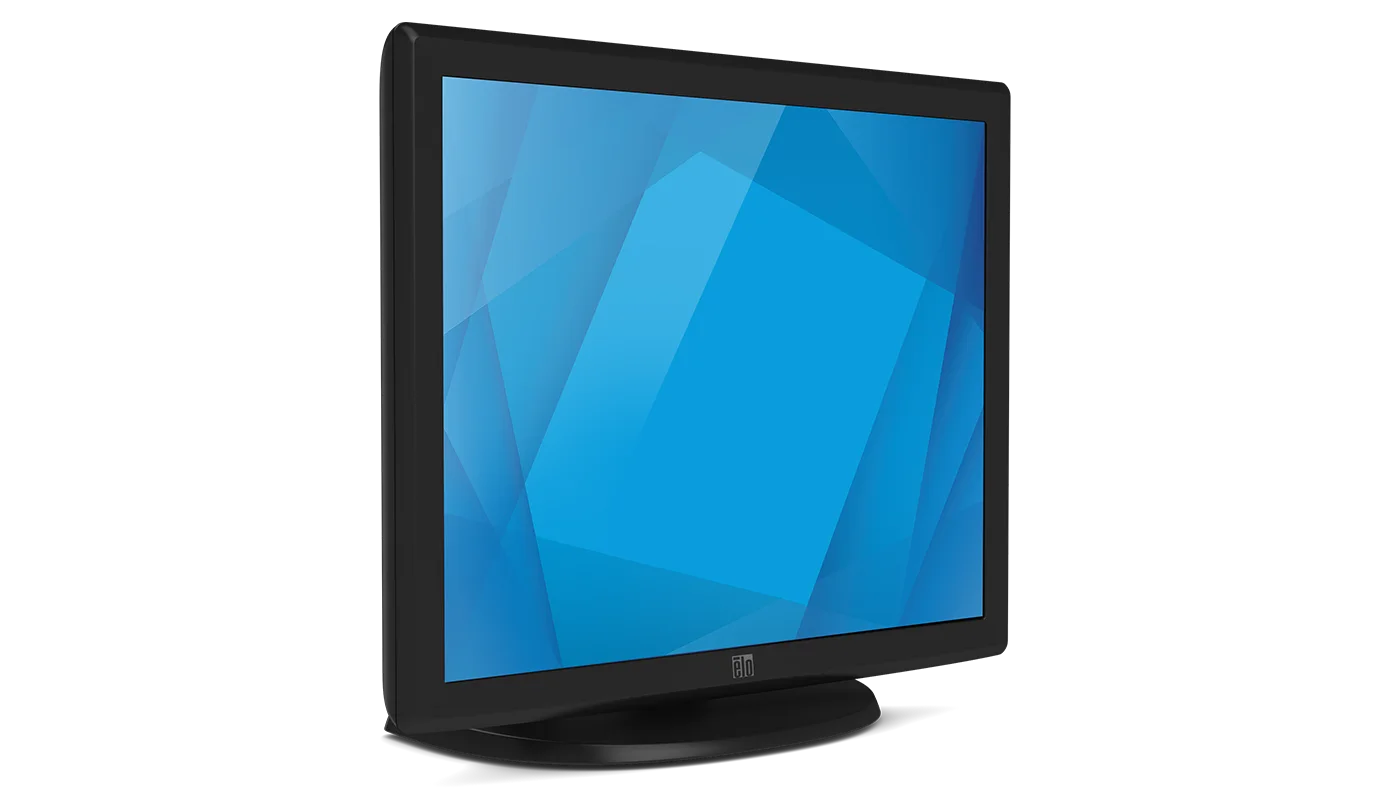

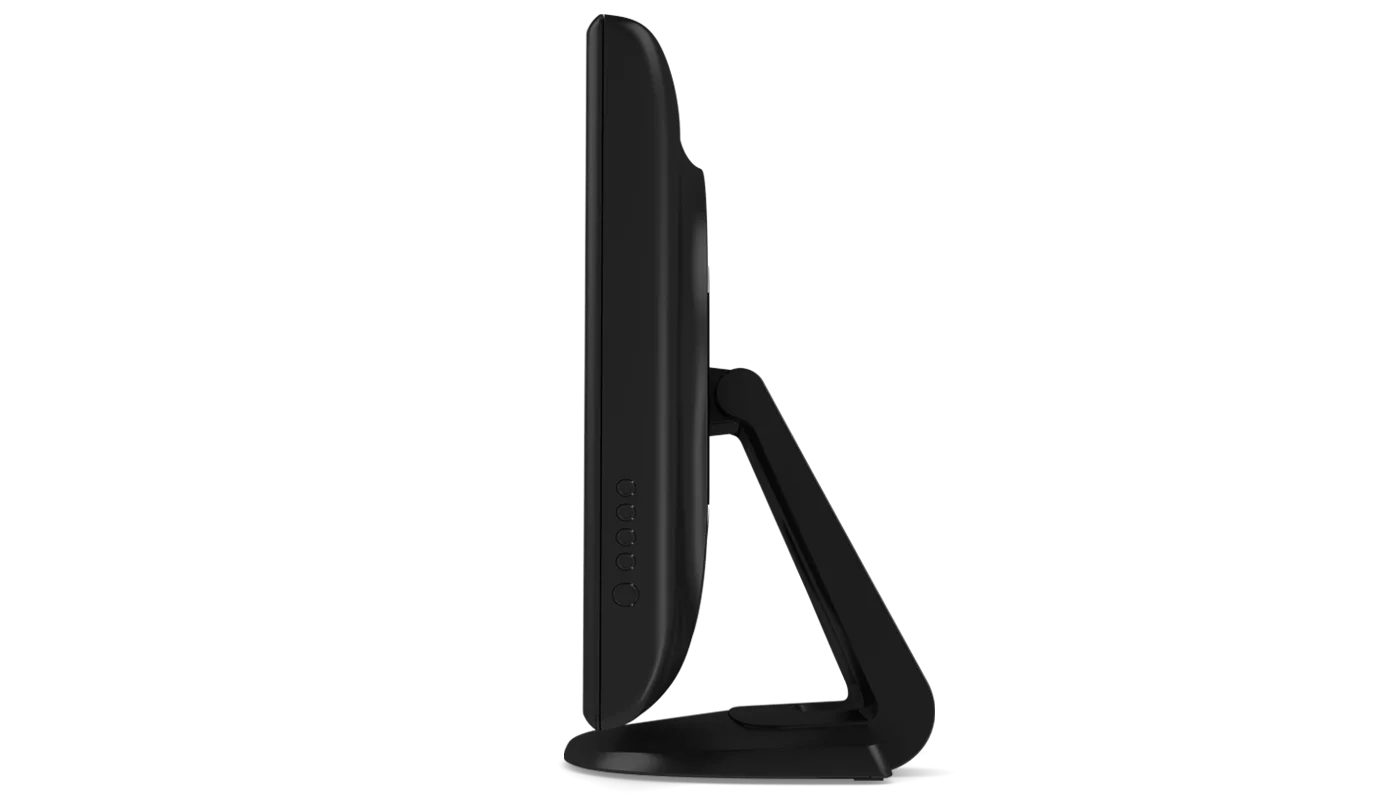

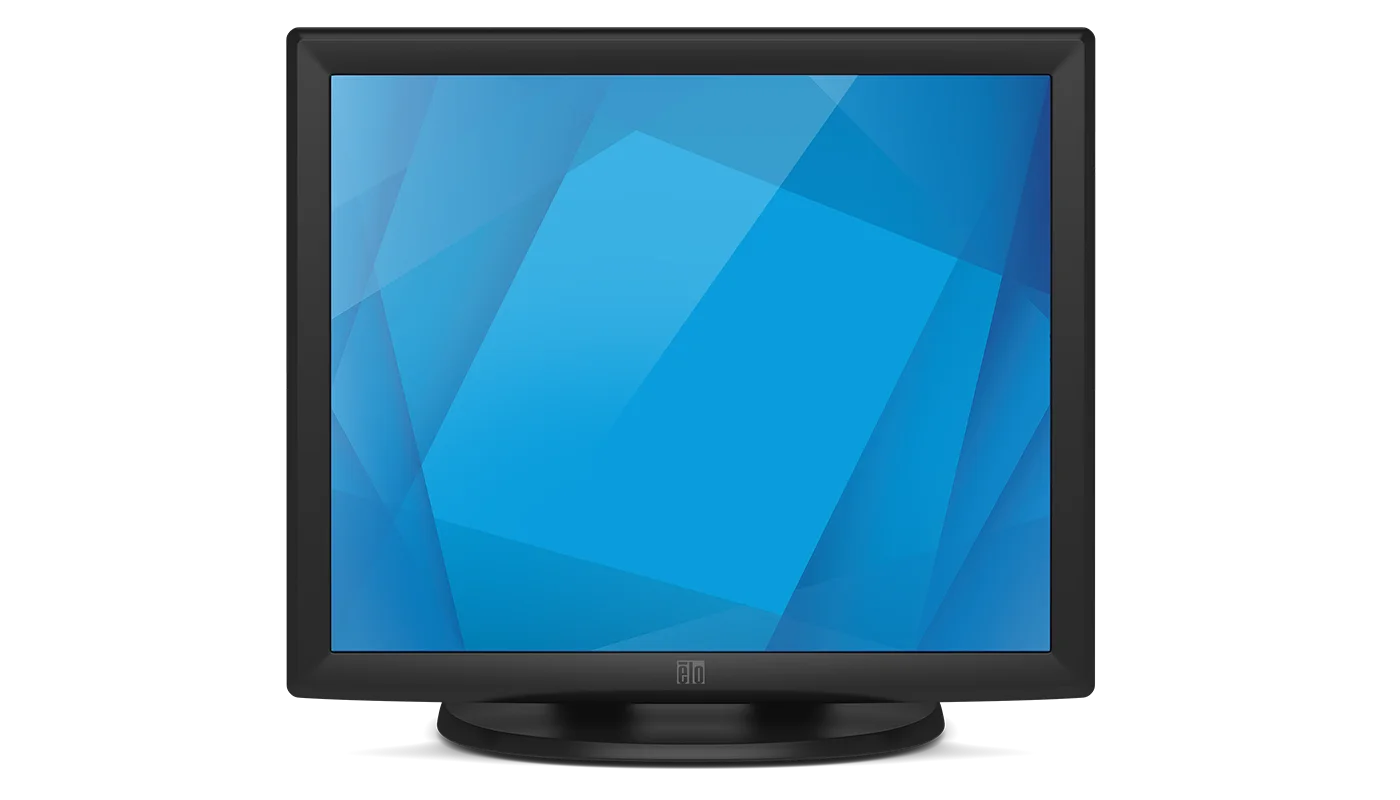

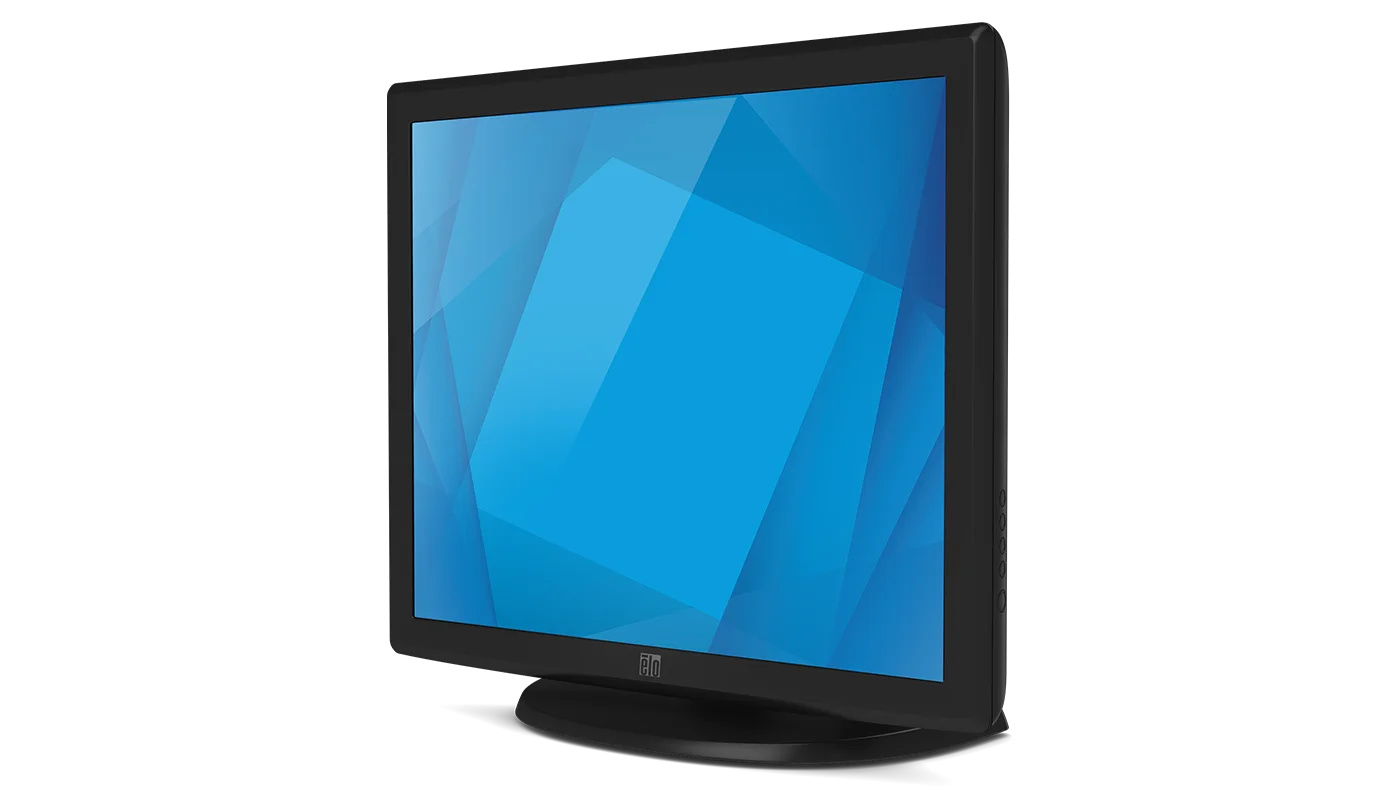

Elo Touch 1915L 19" Touchscreen Monitor
The Elo 1915L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a reta
- Display19'' diagonal, Active matrix TFT LCD (LED)
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The Elo 1915L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1915L can be used in a wide variety of environments with its ability to register inputs from a finger, gloved hand or soft stylus with a fast and accurate response. The touchmonitor is available with Elo’s industry-leading touch technologies and multiple mounting options to support most application uses.
- The 1915L desktop LCD touchmonitor is available with Elo's single touch AccuTouch™ five-wire resistive offering a dual serial/ USB touch interface.
- The Elo 1915L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
- The 1915L touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
- Affordability paired with Elo quality OR Consumer-grade pricing with Elo commercial-grade reliability
Specifications
Technical
- Part Number(s)
- AccuTouch - E607608
- Enclosure Color
- Dark Gray
- Touch Technology & Capacity
- 5-Wire Resistive (AccuTouch®) - Single-Touch
- Diagonal Size
- 19'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 5:4
- Active Area
- 14.8" x 11.9" / 376.3mm x 301.1mm
- Resolution
- 1280 x 1024
- Other Supported Resolutions
- 1280 x 1024 at 60 or 75 Hz; 1152 x 864 at 75 Hz; 1024 x 768 at 60, 65, 70 or 75 Hz; 832 x 624 at 75 Hz (Mac); 800 x 600 at 56, 60, 72 or 75 Hz; 720 x 400 at 70 Hz; 720 x 350 at 70 Hz; 640 x 480 at 60, 66, 72 or 75 Hz
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD panel: 250 nits; AccuTouch: 200 nits
- Response Time-total (typical)
- 14 msec
- Contrast Ratio
- 1000:1
- Power
- Internal AC, power connector-C6 type; Input voltage range: 100-240VAC, 50/60Hz; Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter, 8.8mm Barrel depth); Monitor input power signal specifications: 12VDC +/- 5%
- Video
- VGA (VGA DE-15 (DB-15) Male connecter cable included); Input Video Horizontal Sync frequency range: 31.5 – 80KHz; Input Video Vertical Sync (frame rate) frequency range: 56.3-75Hz
- Power Consumption (Typical)
- Monitor only:; ON: 12.76W; SLEEP: 1.33W; OFF: 0.3W
- I/O Ports
- VGA; DC jack; AC jack; USB Type B; RS232 (DB-9)
- On Screen Display
- Accessible through switches along the bottom.; Controls: Menu, Power, Up, Down, Select; Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
- Monitor Dimensions (without Stand)
- 14.1" x 16.9" x 2.44" / 359 mm x 429 mm x 62 mm
- Monitor Dimensions (with Stand)
- 15.4" x 16.9" x 8.3" / 390 mm x 429 mm x 212 mm
- Shipping Box Dimensions
- 21.28" x 19.50" x 11.23"/ 540 mm x 495 mm x 285 mm
- Weight (Unpackaged)
- 17.4 lb / 7.9 kg
- Weight (Packaged)
- 25.8 lb / 11.7 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)
- MTBF
- 50,000 hours demonstrated

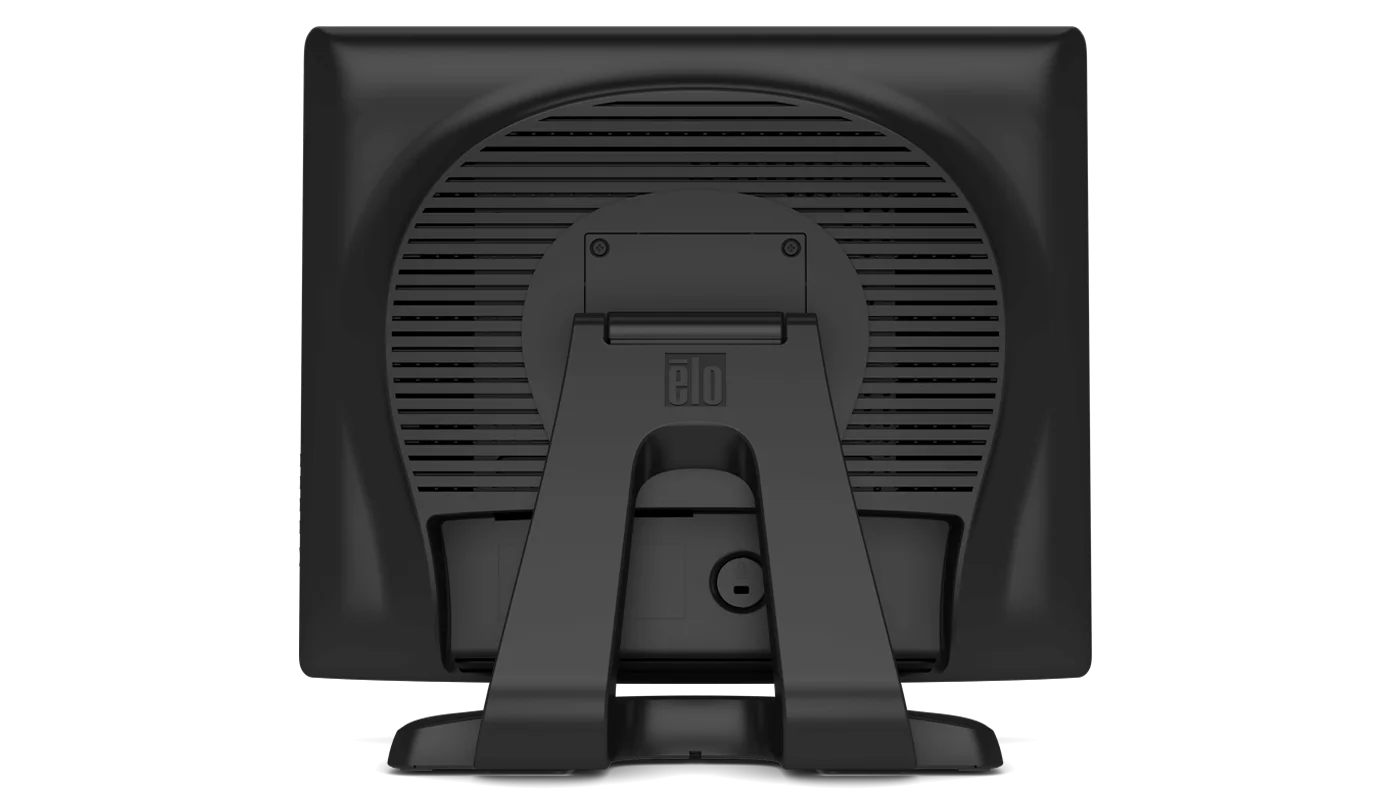

- Mounting Options
- VESA 4-hole 100mm mounting interface on rear of unit
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Canada CUL, IC; China CCC; Europe CE; United Kingdom UKCA; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico NoM; RoHS, China RoHS, WEEE, REACH
- What's in the Box
- Touch monitor; Quick Install Guide; 3x Tie wraps; VGA cable; Touch USB cable; NA Power cable; EU Power cable; EEI Label
- Optional Peripherals
- North America power adapter and cable kit - Elo P/N: E005277; European & Korea power adapter and cable kit - Elo P/N: E571601; UK power adapter and cable kit - Elo P/N: E180092; China power adapter and cable kit - Elo P/N: E558862; Taiwan power adapter and cable kit - Elo P/N: E818655; Japan power adapter and cable kit - Elo P/N: E182546; Argentina power adapter and cable kit - Elo P/N: E887099; Australia power adapter and cable kit - Elo P/N: E637593
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
