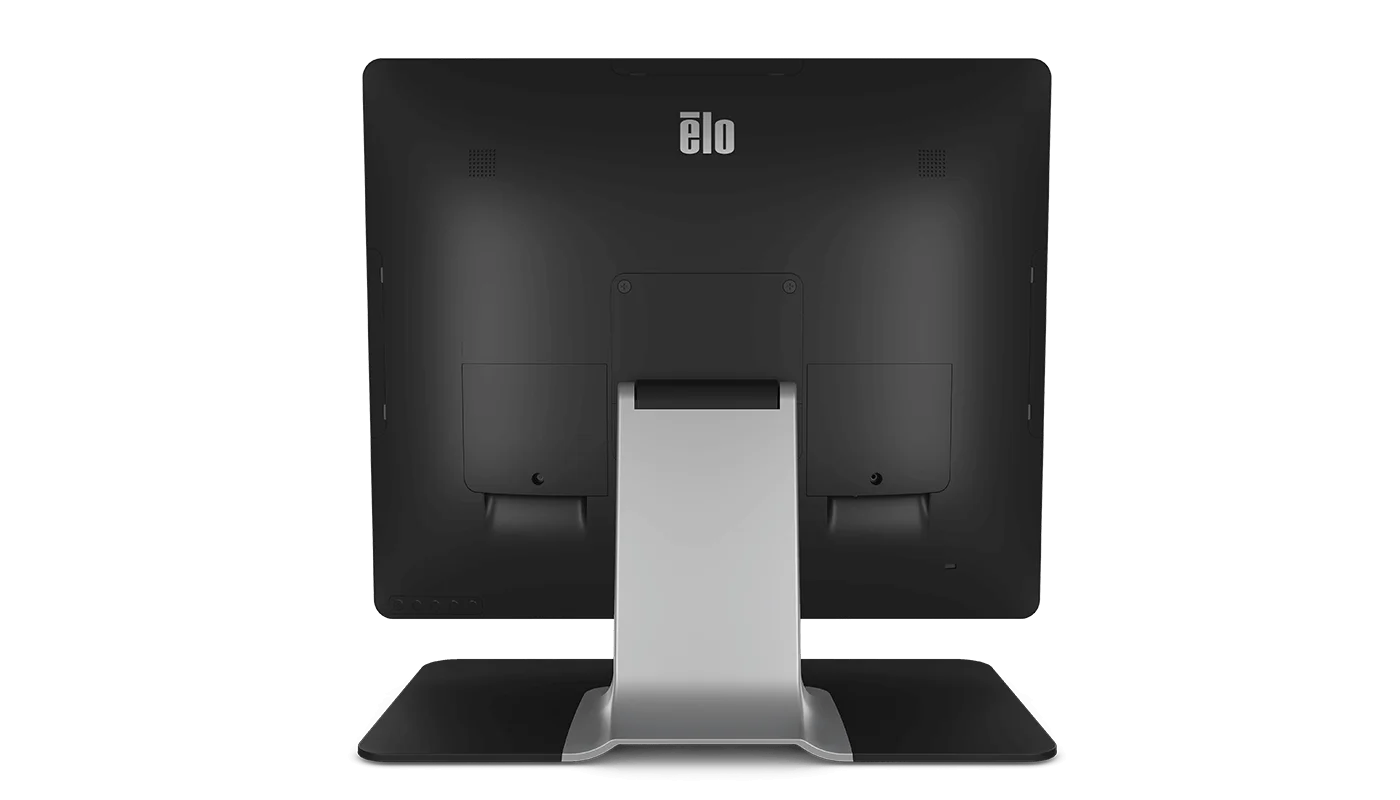

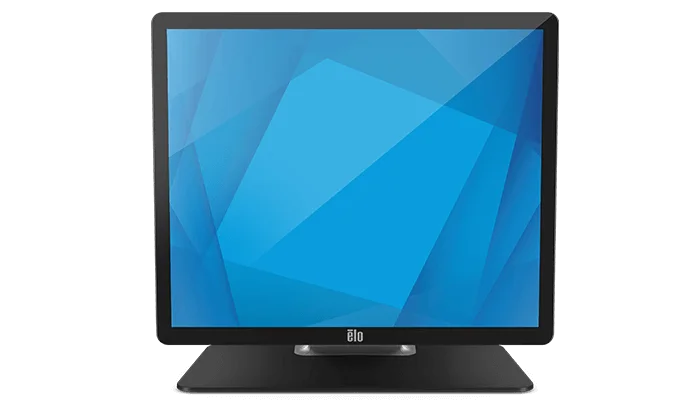

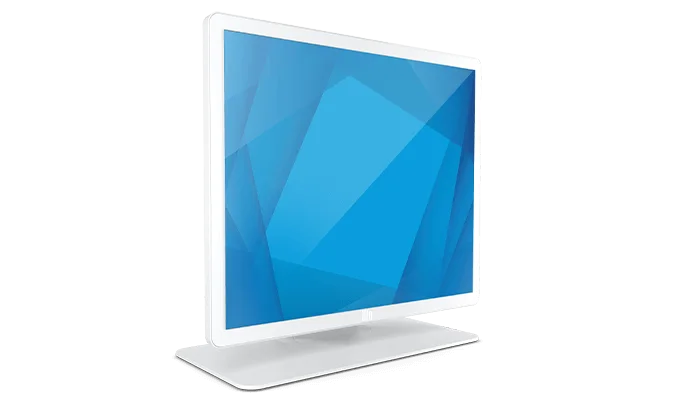

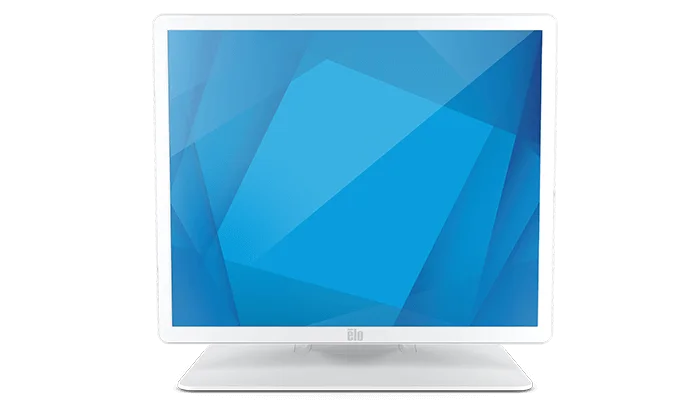

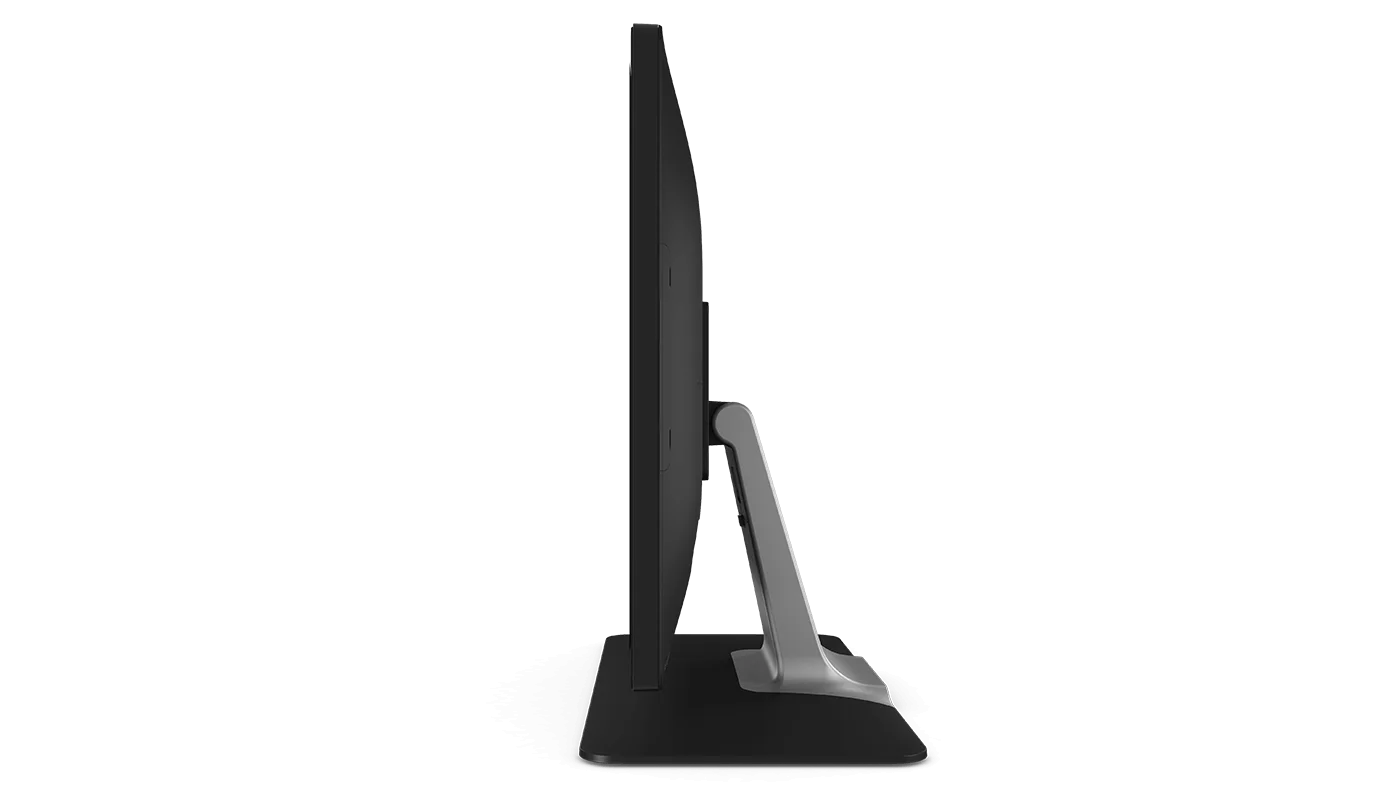

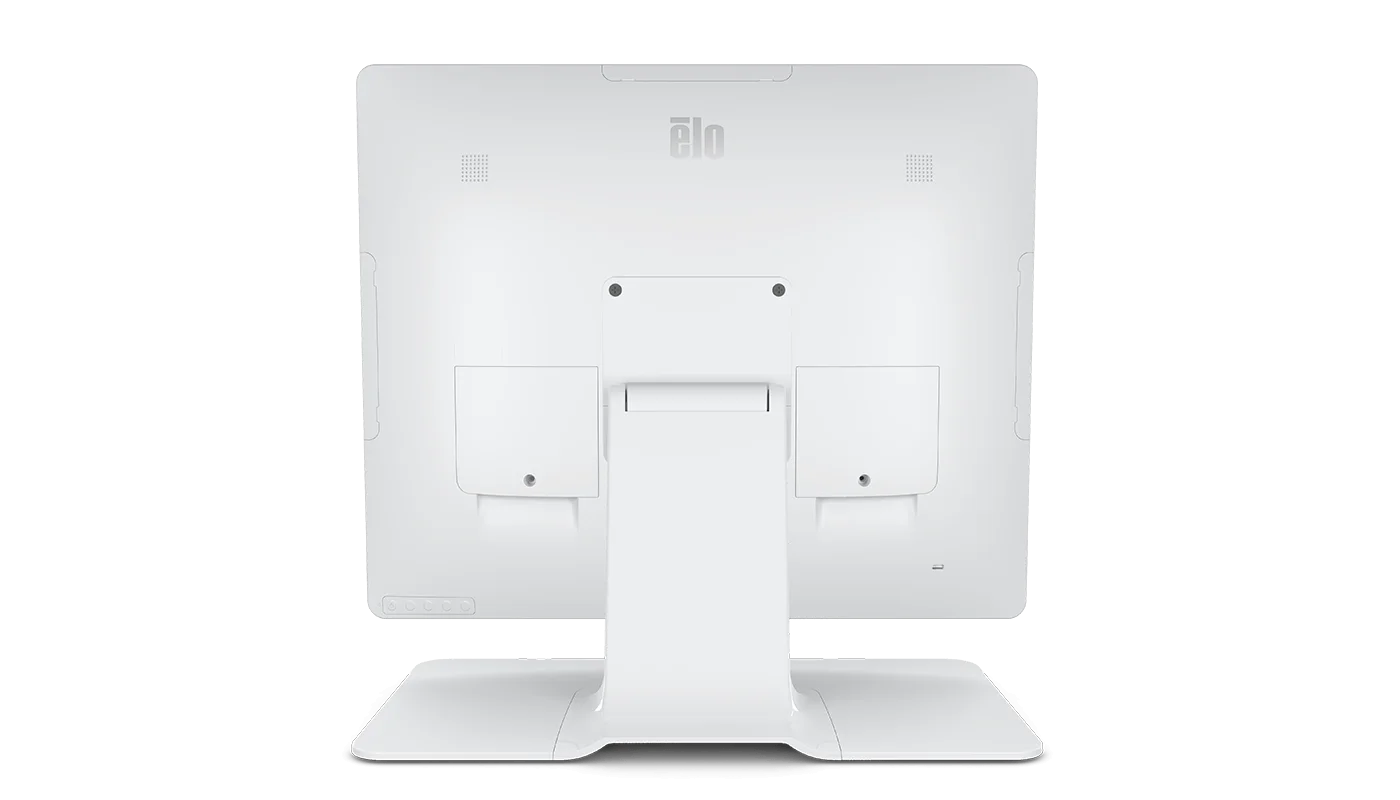

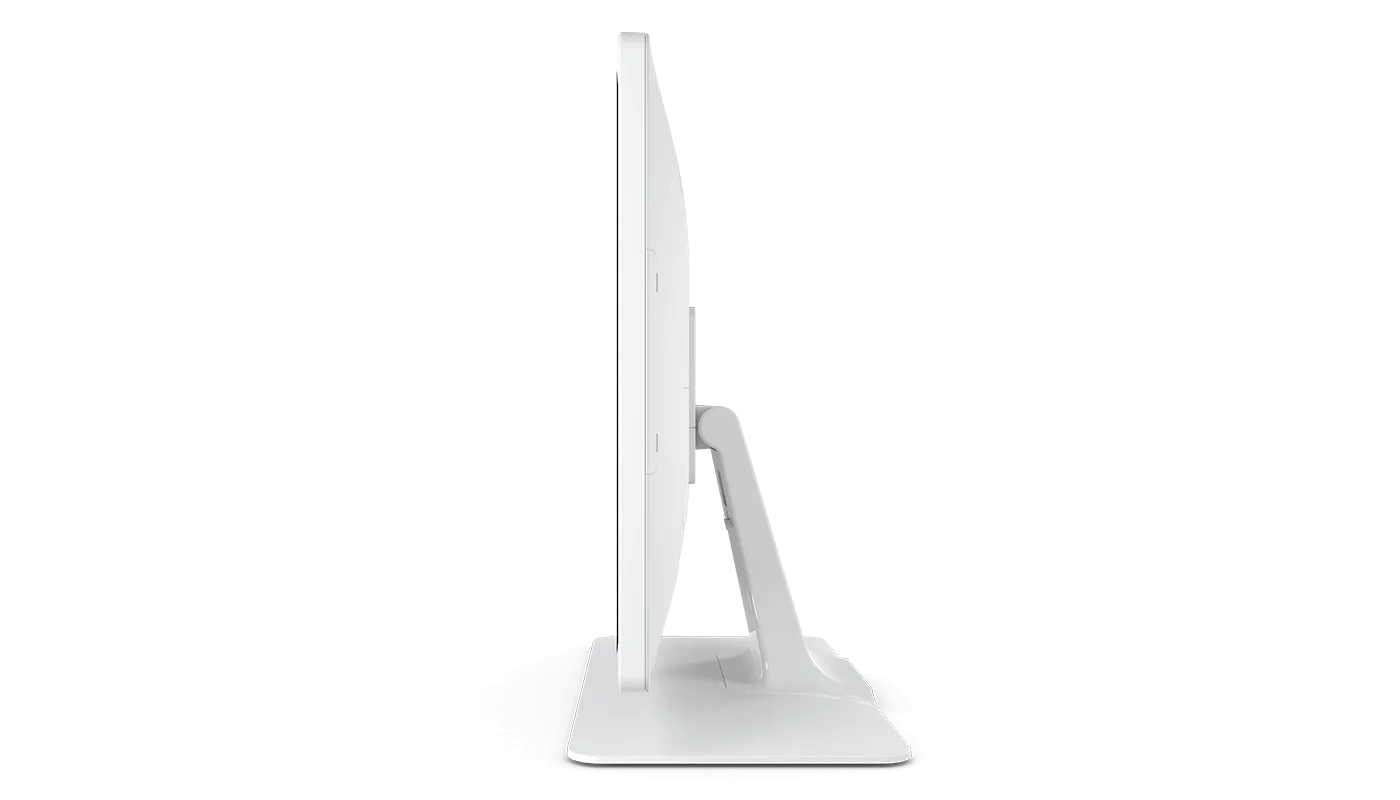

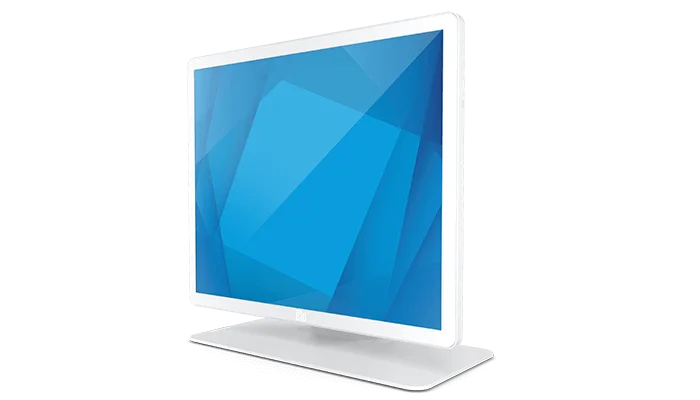

Elo Touch 1903LM 19" Medical Grade Touchscreen Monitor
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing p
- Display19'' diagonal, Active matrix TFT LCD (LED)
- SealingIP54 entire enclosure
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
- Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.
- TouchPro™ PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.
- Backed by Elo’s 3-year standard warranty with optional EloCare service offerings.
- Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.
- Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Specifications
Technical
- Part Number(s)
- TouchPro PCAP White with stand - E658586; TouchPro PCAP Black with stand - E658394; TouchPro PCAP White without stand - E380665; TouchPro PCAP Black without stand - E380478
- Enclosure Color
- White or Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Diagonal Size
- 19'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 5:4
- Active Area
- 14.76" x 11.80" / 374.78 mm x 299.83 mm
- Resolution
- 1280 x 1024 @ 60Hz
- Other Supported Resolutions
- 640 x 480 @ 60Hz; 720 x 400 @ 70Hz; 640 x 400 @ 70Hz; 800 x 500 @ 60Hz; 800 x 600 @ 56, 60Hz; 1024 x 768 @ 60Hz; 1280 x 720 @ 58Hz, 60Hz; 1280 x 800 @ 60 Hz
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD Panel: 250 nits; TouchPro PCAP: 225 nits
- Response Time-total (typical)
- 14 msec
- Contrast Ratio
- 1000:1
- Touch Interface
- USB, Serial (via VGA)
- Surface Treatment
- Anti-glare
- On Screen Display
- Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM; Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean; Lockouts: OSD, Power
- I/O Ports
- VGA (RS232 touch supported via E810917); HDMI; Combo Jack; DC jack; USB Type B; USB 2.0 Type A; 4x Micro USB
- Speakers
- Two 2W internal speakers
- Input Video Format
- VGA (VGA DE-15 (DB-15) Male connecter cable included); HDMI (HDMI cable included)
- Input Video Frequency
- Horizontal: 30 – 82KHz; Vertical: 50 - 75Hz
- Power Consumption (Typical)
- Monitor + AC/DC adapter; ON (Default - 80% Brightness): 14.53 W; ON (Typical - 100% Brightness): 16.36 W; SLEEP: 0.79 W; OFF: 0.37 W
- Input Voltage
- 12VDC +/- 5%; 100-240VAC, 50/60Hz
- Input Connector
- Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
- Peripheral Mounting
- 4x Micro USB side ports (Top, Bottom, Left, Right)
- Monitor Dimensions (without Stand)
- 16.91" x 13.96" x 1.64" / 429.60 mm x 354.60 mm x 41.6 mm
- Monitor Dimensions (with Stand)
- 16.91" x 15.65" x 7.61" / 429.60 mm x 397.65 mm x 193.40 mm
- Shipping Box Dimensions
- With Stand: 18.97" x 20.75" x 10.24" / 482 mm x 527 mm x 260 mm; Without Stand: 18.97" x 20.75" x 7.47" / 482 mm x 527 mm x 190 mm
- Weight (Unpackaged)
- With Stand: 13.9 lbs / 6.3 kg; Without Stand: 9.48 lbs / 4.3 kg
- Weight (Packaged)
- With Stand: 21.6 lbs / 9.8 kg; Without Stand: 15.04 lbs / 6.82 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- VESA 4-hole 100mm mounting interface on rear of unit
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Canada CUL, IC; China CCC; Europe CE; United Kingdom UKCA; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico CoC; India BIS; RoHS, China RoHS, WEEE, REACH; ANSI/AAMI ES60601-1 (2005/(R)2012 + A1:2012, C1:2009/(R)2012 + A2:2010/(R)2012) - Amendment 1 - Revision Date 2012/08/21; CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 - Revision Date 2014/03; CB: IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD:2020 (Ed 3.2); CE: IEC 60601-1-2:2014 (Ed. 4); Risk Management: ISO 14971:2019; Usability: IEC 60601-1-6:2010/AMD2:2020, IEC 62366:2017
- DICOM
- DICOM Part 14 (AAPM secondary display)
- Ingress Protection
- IP54 entire enclosure
- Impact Protection
- IK06
- Power Cables
- North America Power Cable C13 - Elo P/N: E593865; Australia Power Cable C13 - Elo P/N: E594067; Europe Power Cable C13 - Elo P/N: E594264; Korea Power Cable C13 - Elo P/N: E594466; China Power Cable C13 - Elo P/N: E594670; Taiwan Power Cable C13 - Elo P/N: E594869; Japan Power Cable C13 - Elo P/N: E793799
- What's in the Box
- Touchmonitor; Quick Install Guide; 3x Tie wraps; VGA cable; HDMI cable; Touch USB cable; Audio cable; Power brick (E323104); NA Power cable; EU Power cable; EEI Label; DICOM calibration sheet; 2 x Cable cover screws; 4 x VESA Screws (only for E380478 and E380665); 4 x rubbers (only for E380478 and E380665, affix to VESA holes)
- Replacement DC Power Supply
- Power Brick - E593253
- Optional Peripherals
- PCAP Stylus Pen - Elo P/N: E066148; Privacy Screen 19-inch - Elo P/N: E352596; Elo Monitor Handles – 1 Set - Elo P/N: E352196
- Stands, Mounts & Kits
- Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; 1.8m Cable Kit - Elo P/N: E408193; Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330; Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963; Serial Touch & VGA Video Y-Cable - Elo P/N: E810917; VESA Mount for 02/03 Monitors on Wallaby Countertop and Floor Stands – Elo P/N: E698263
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
