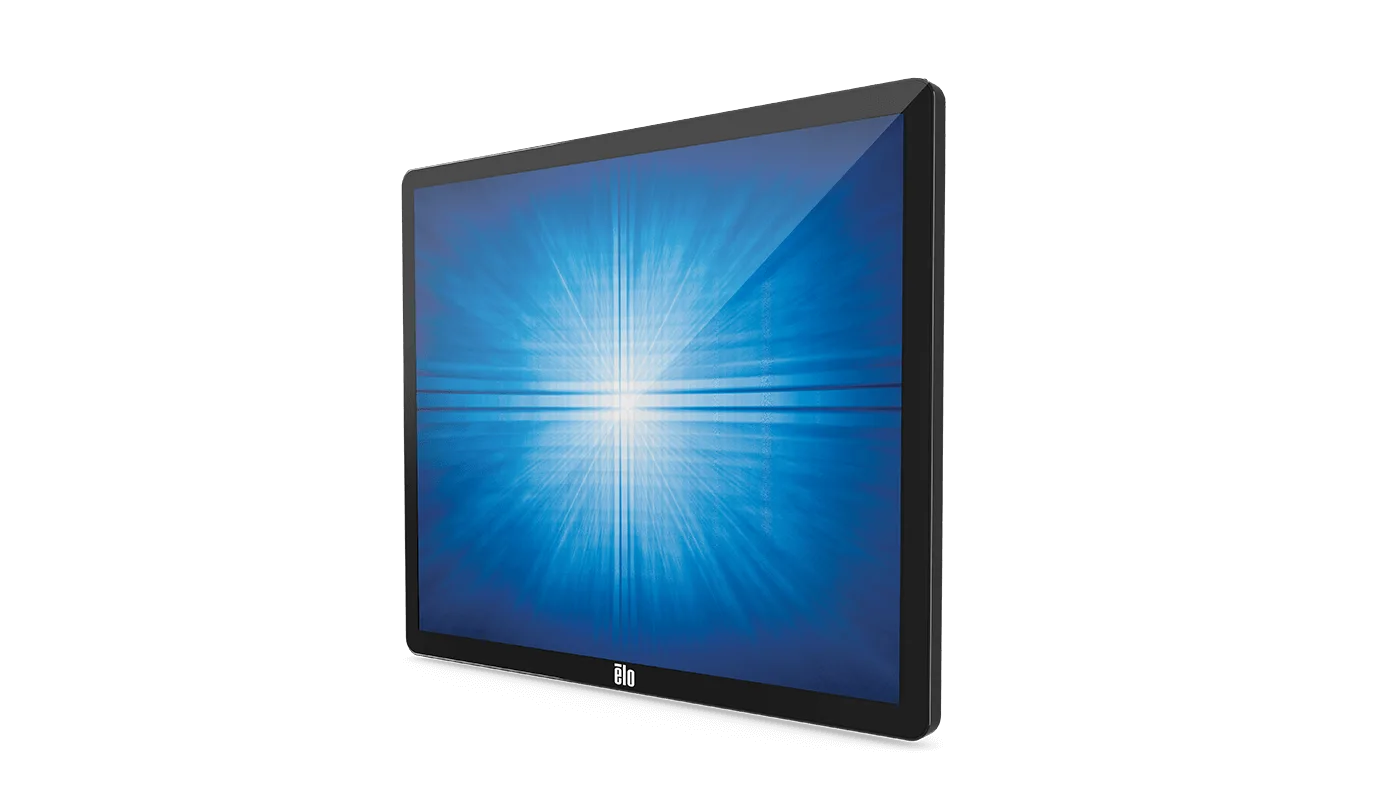

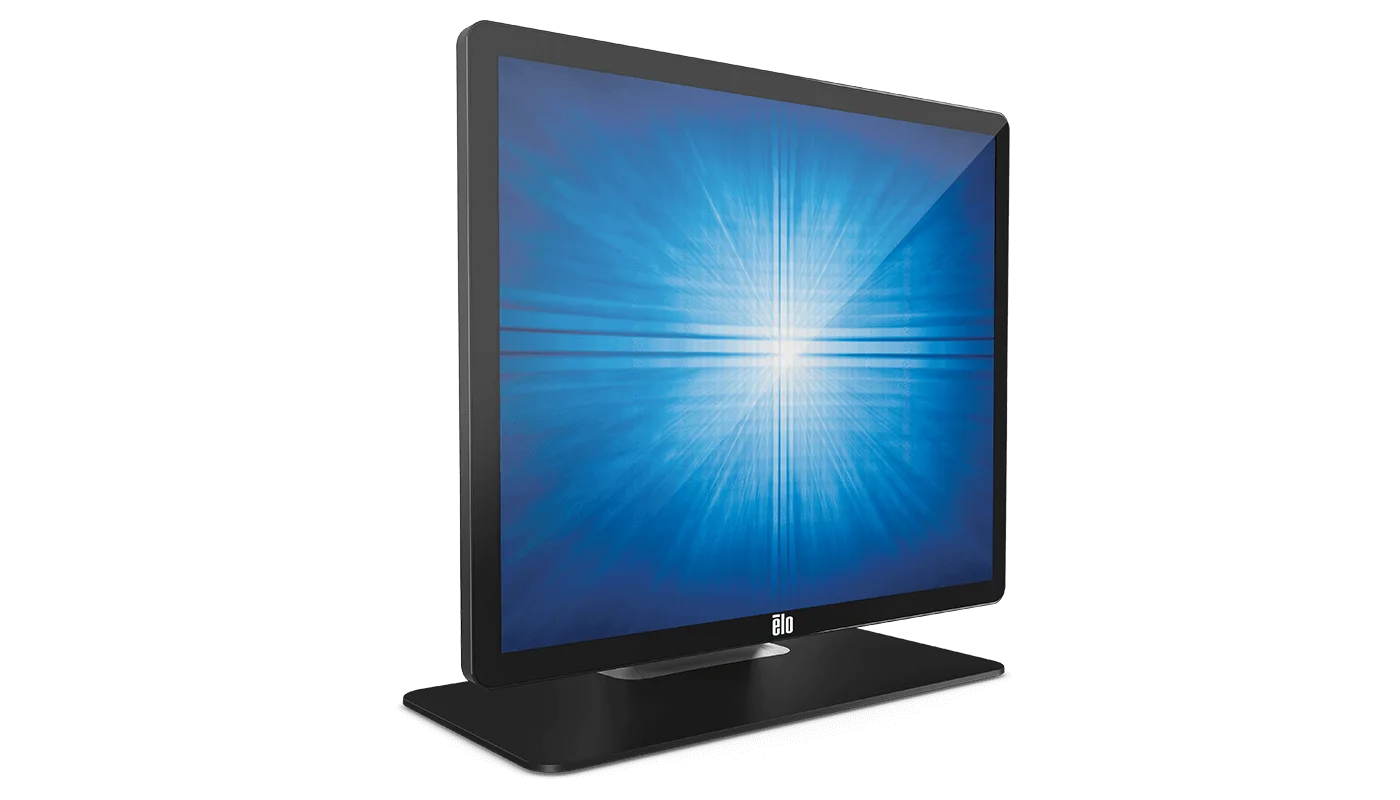

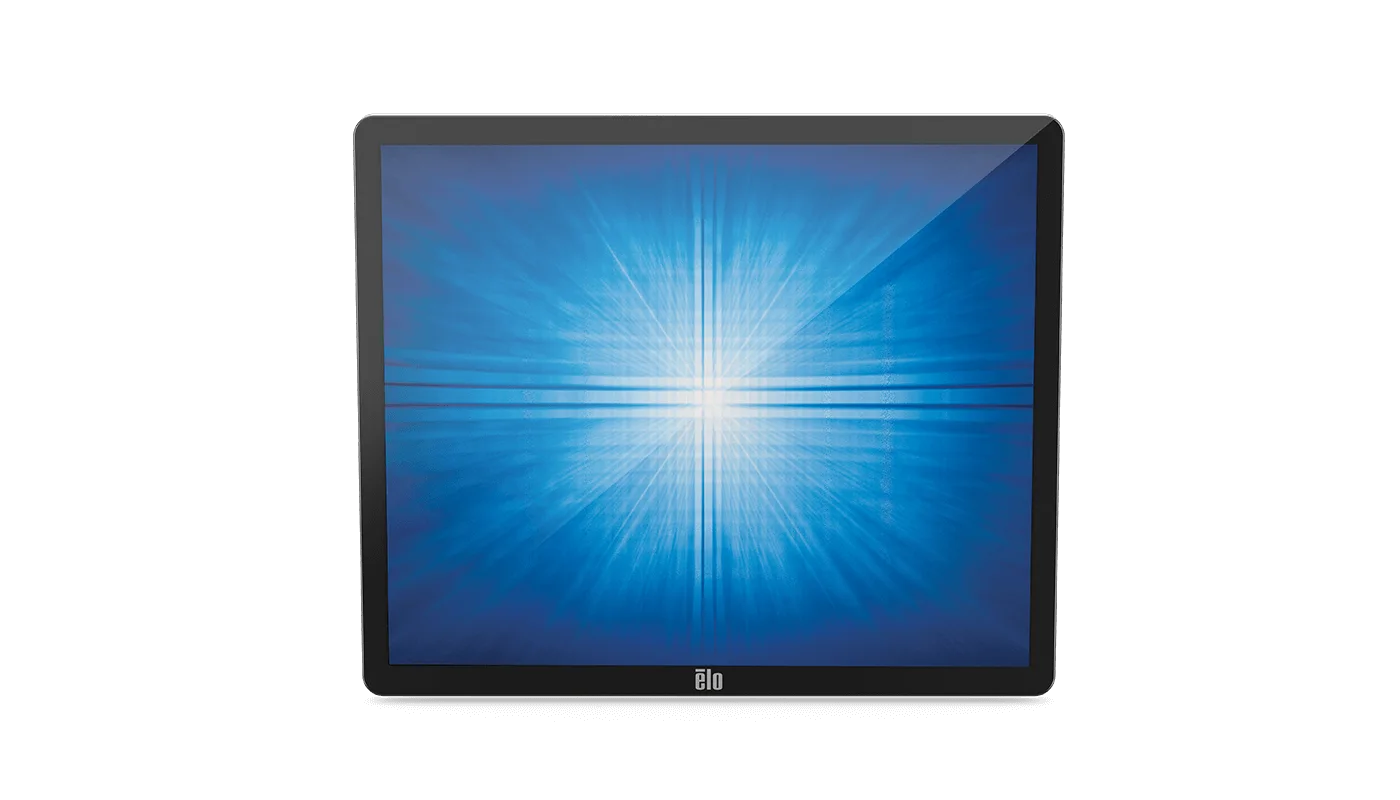

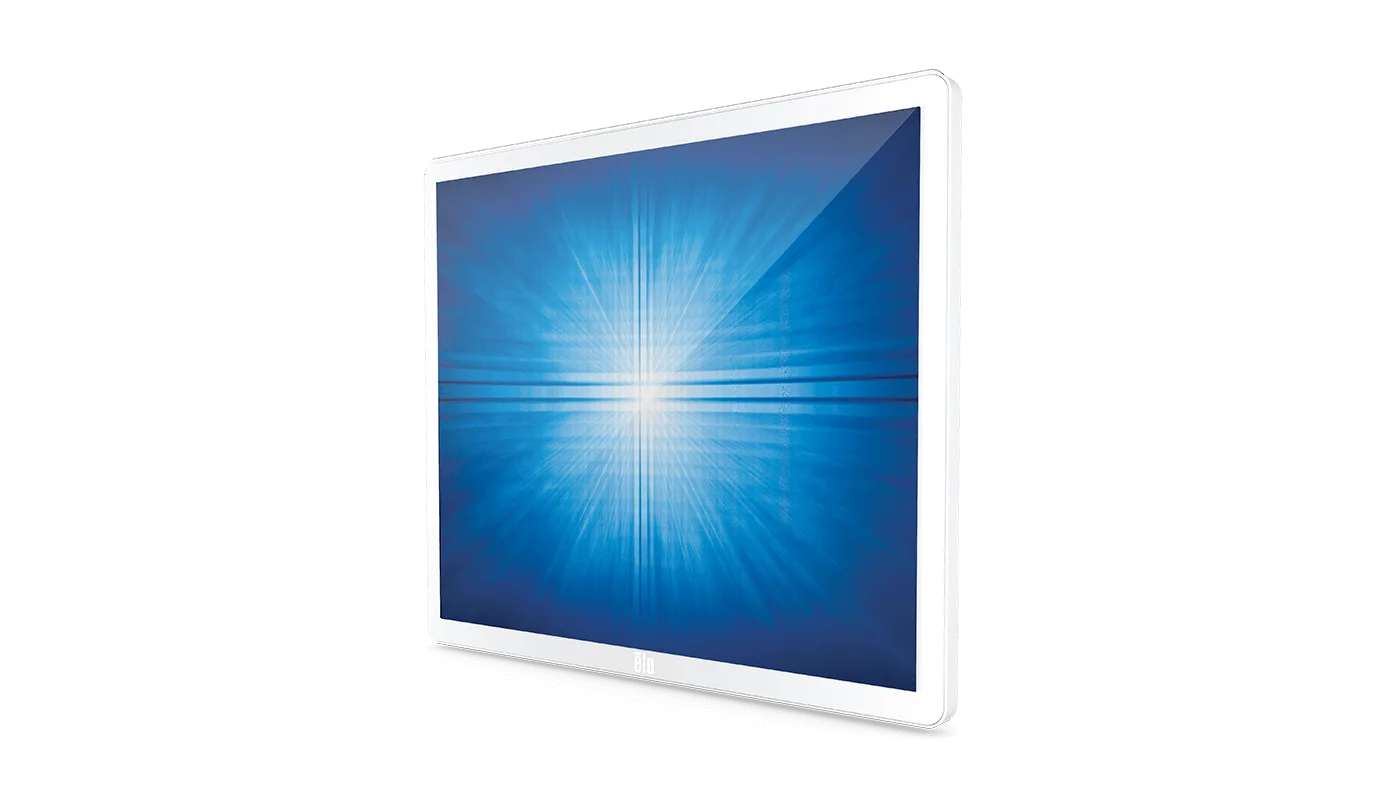

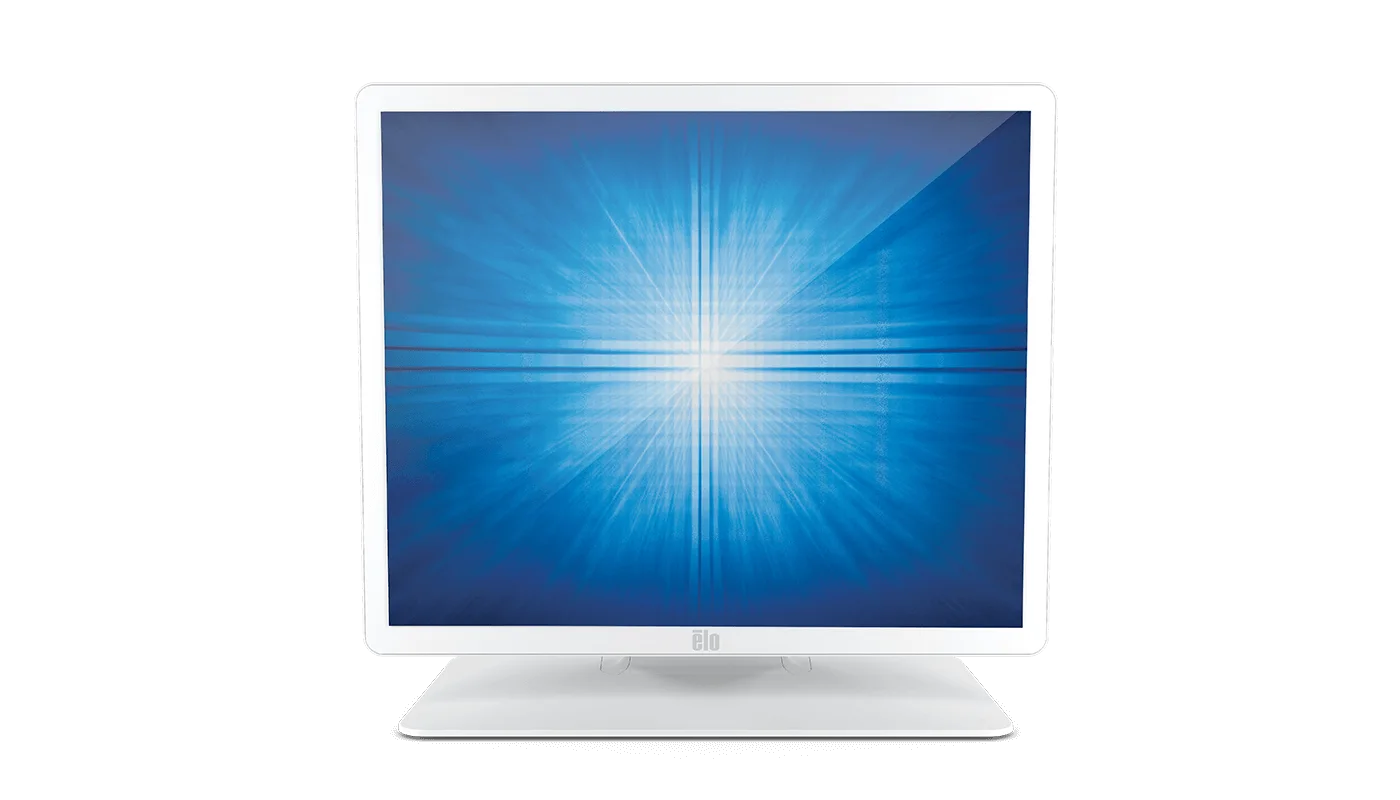

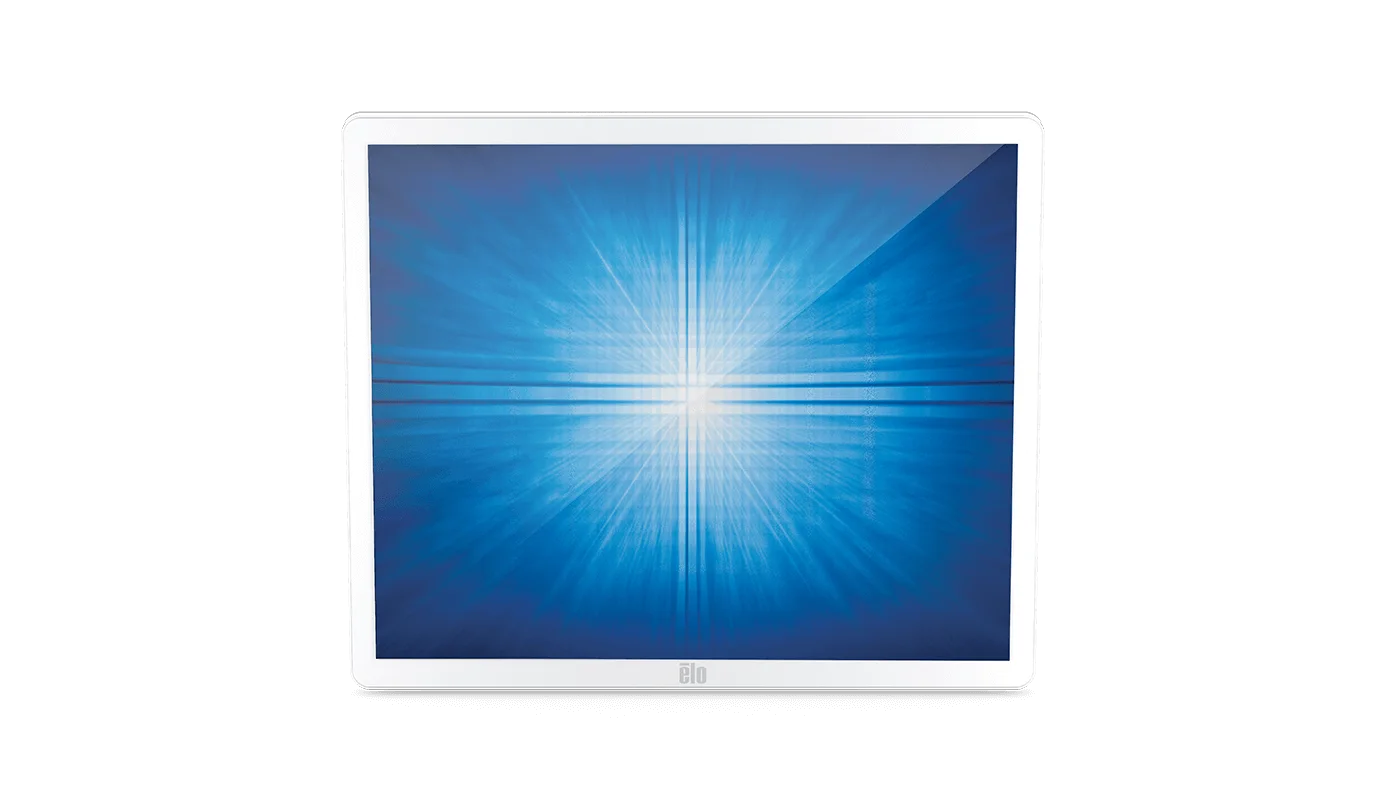

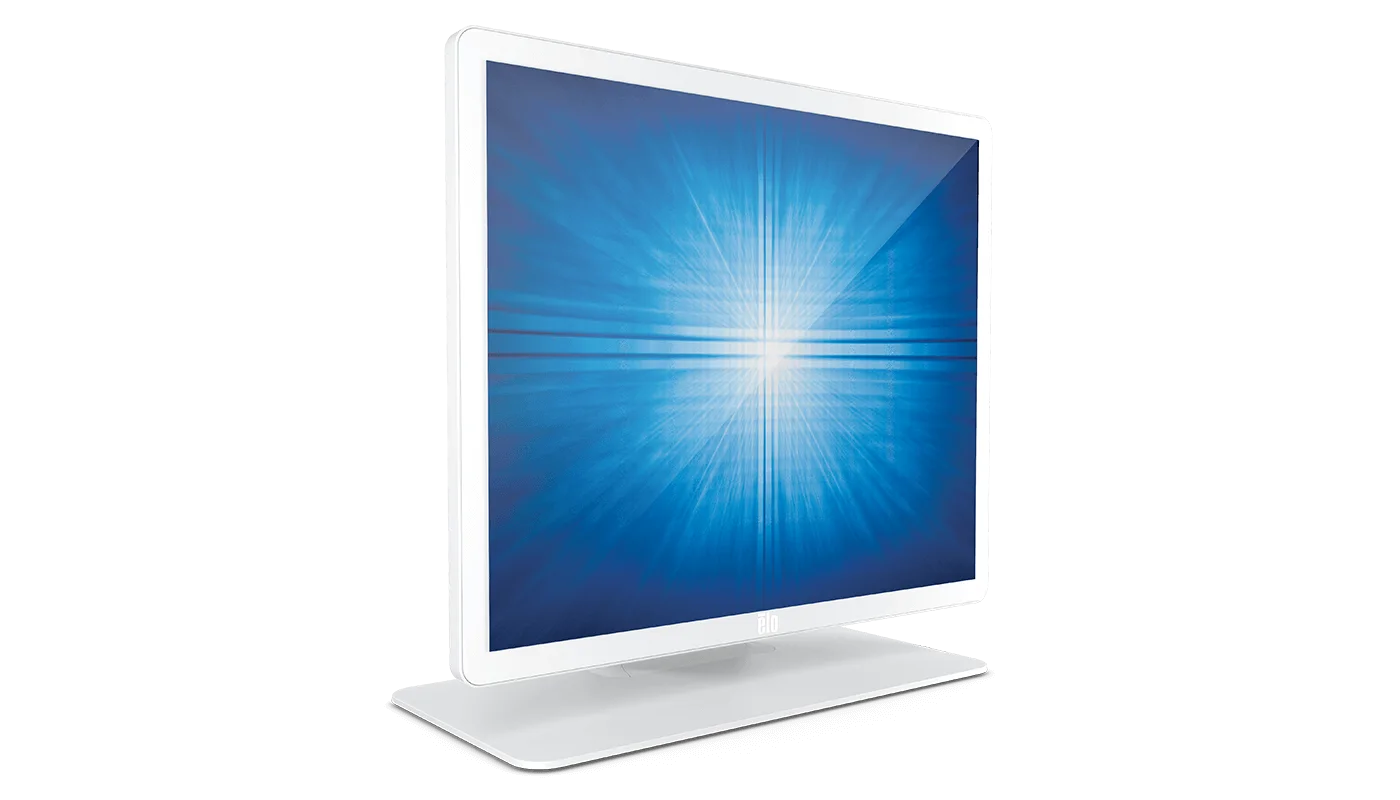

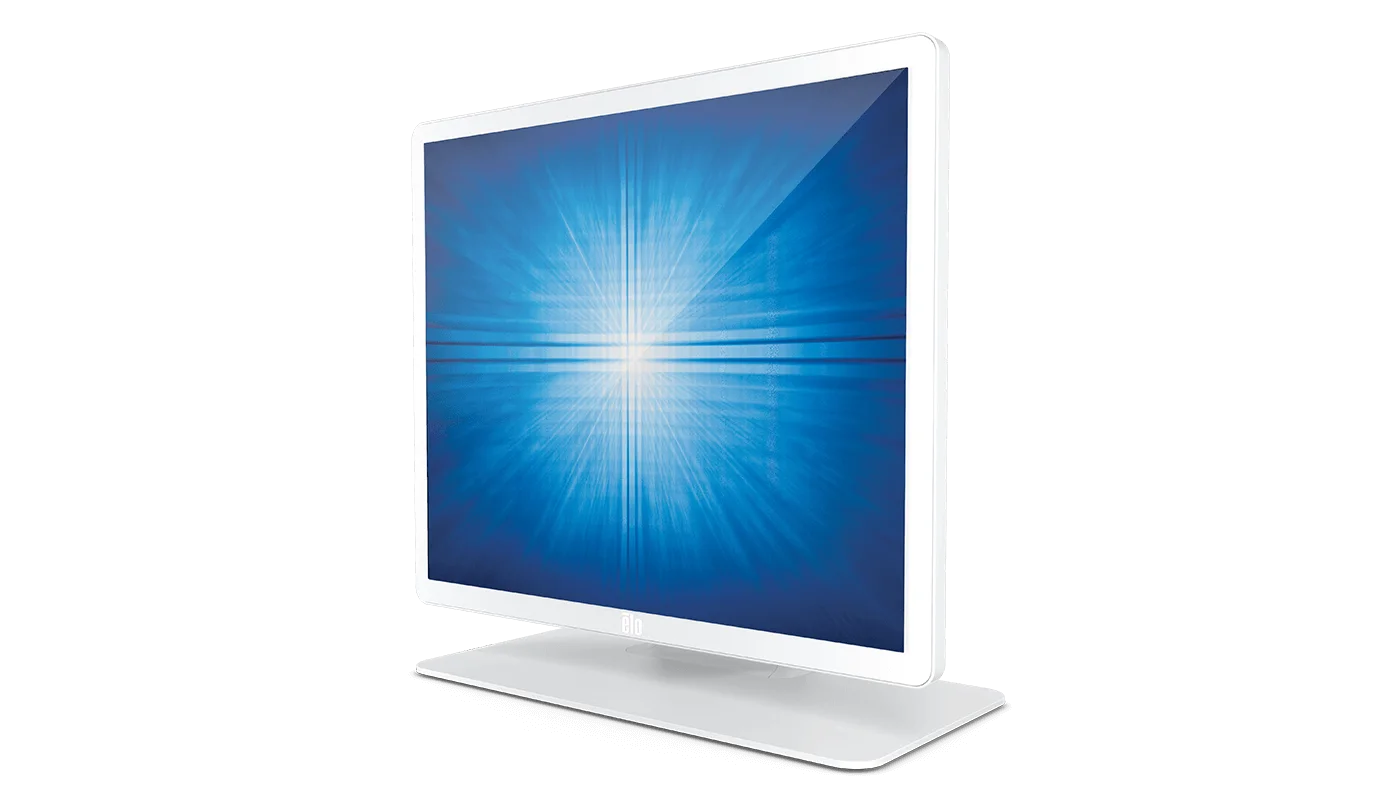

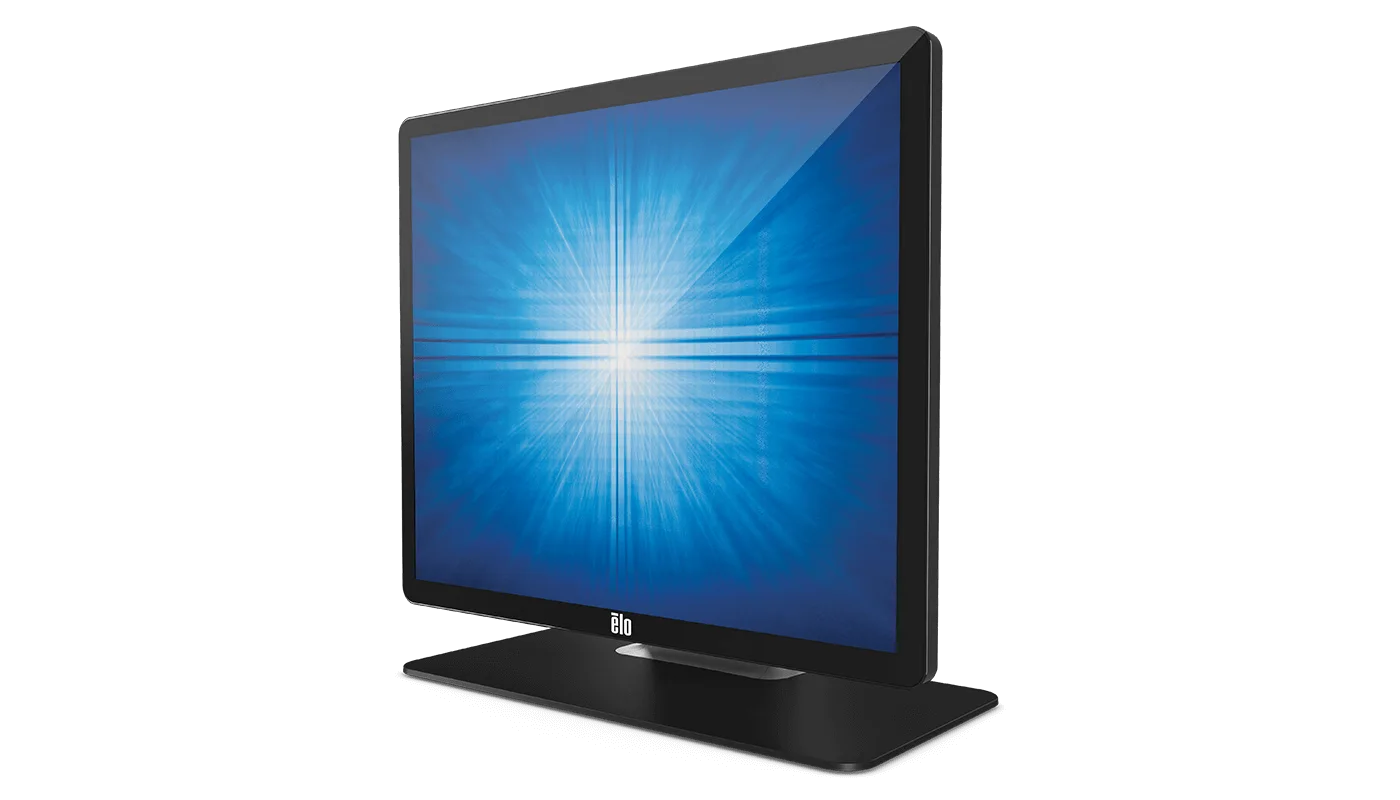

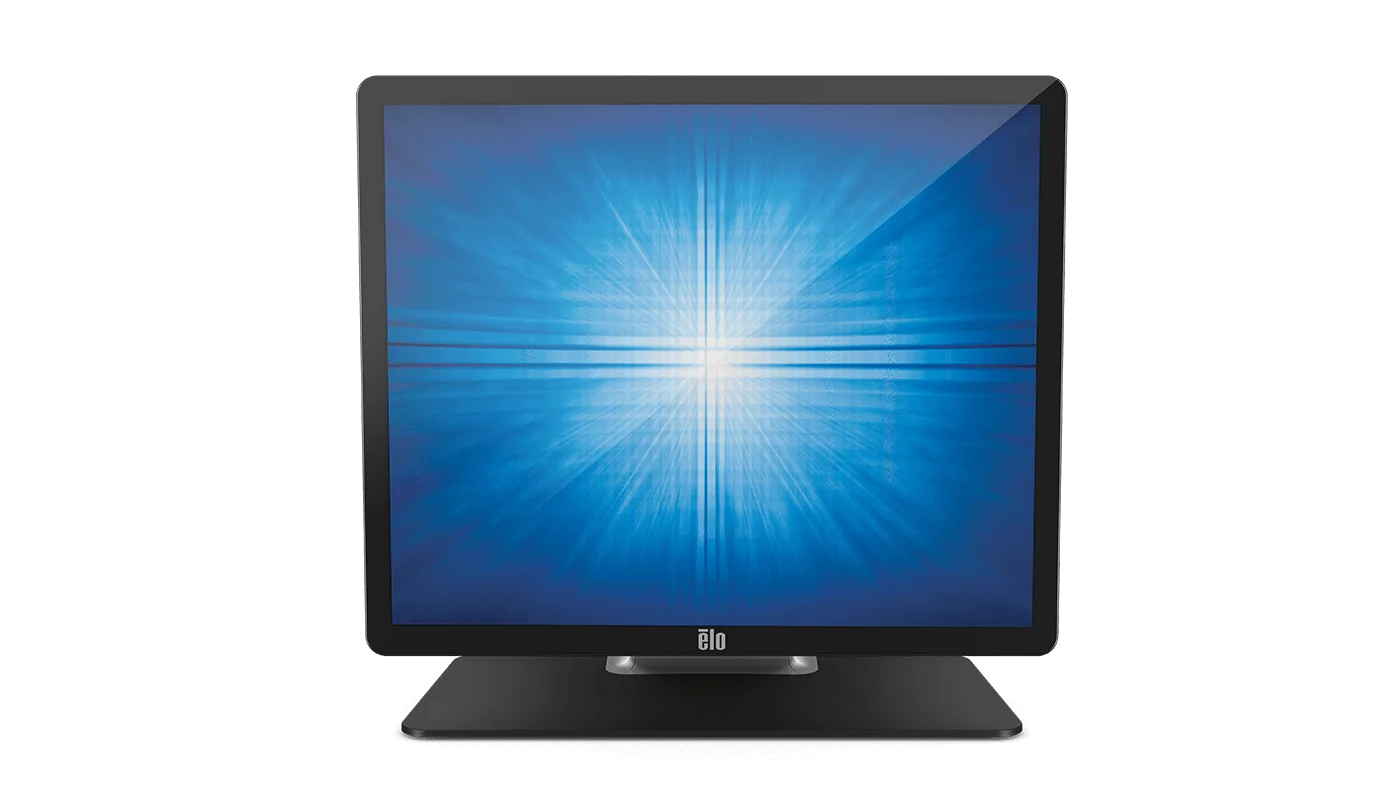

Elo Touch 1903LM 19" Medical Grade Touchscreen Monitor (Gen 2)
03-Series Medical Grade Touchscreen Monitors
- Display19'' diagonal, Active matrix TFT LCD (LED)
- SealingIP54 entire enclosure
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The Elo 03-Series of Touchscreen Monitors designed for the Healthcare applications includes four sizes – a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration the 03-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. Additionally, the 03-Series complies with IEC60601-1 4th edition requirements and is IP54 certified to support healthcare installations.
- The anti-glare touchscreens with Elo's industry-leading TouchPro™ PCAP technology offer wide viewing angles with excellent image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 03-Series Monitors provide a tablet-like experience.
- The 03-Series Medical Grade Touchscreen Monitors offer flexibility for installation in a variety of healthcare environments — from exam rooms and lab clinics to patient check-in and pharmacy check out. Whether you need a touchscreen at a nurse's station to enable support or as a directory to help patients and visitors get around the healthcare facility, the line of 03-Series monitors can support increased communication among patients and healthcare providers.*
- * This product is not an FDA approved “medical device” or otherwise approved by the FDA and is not ISO-13485 compliant. Depending on the intended use, additional certifications may be required.
- With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilators, anesthesia machines, diagnostic monitors, medication dispensers and more. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
- Optional privacy screen can be used as an additional physical safeguard for private health information or sensitive administrative data. Whether you are a physician or a patient, privacy matters.
Specifications
Technical
- Part Number(s)
- TouchPro PCAP White (Worldwide) - E124149; TouchPro PCAP Black (Worldwide) - E123955
- Enclosure Color
- White or Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Diagonal Size
- 19'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 5:4
- Active Area
- 14.76" x 11.80" / 374.78 mm x 299.83 mm
- Resolution
- 1280 x 1024 @ 60Hz
- Other Supported Resolutions
- 640 x 480 @ 60Hz; 720 x 400 @ 70Hz; 640 x 400 @ 70Hz; 800 x 500 @ 60Hz; 800 x 600 @ 56, 60Hz; 1024 x 768 @ 60Hz; 1280 x 720 @ 58Hz, 60Hz; 1280 x 800 @ 60 Hz
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD Panel: 250 nits; TouchPro PCAP: 225 nits
- Response Time-total (typical)
- 14 msec
- Contrast Ratio
- 1000:1
- Touch Interface
- USB
- Surface Treatment
- Anti-glare
- On Screen Display
- Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF; Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean; Lockouts: OSD, Power
- I/O Ports
- VGA; HDMI; Combo Jack; DC jack; USB Type B; USB 2.0 Type A; 4x Micro USB
- Speakers
- Two 2W internal speakers
- Input Video Format
- VGA (VGA DE-15 (DB-15) Male connecter cable included); HDMI (HDMI cable included)
- Input Video Frequency
- Horizontal: 30 – 82KHz; Vertical: 50 - 75Hz
- Power Consumption (Typical)
- Monitor +AC/DC adapter; ON: 18W; SLEEP: 0.8W; OFF: 0.4W
- Input Voltage
- 12VDC +/- 5%; 100-240VAC, 50/60Hz
- Input Connector
- Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
- Peripheral Mounting
- 4x Micro USB side ports (Top, Bottom, Left, Right)
- Monitor Dimensions (with Stand)
- 15.66" x 16.91" x 7.61" / 397.7 mm x 429.6 mm x 193.4 mm
- Shipping Box Dimensions
- 20.75" x 18.97" x 10.24" / 527 mm x 482 mm x 260 mm
- Weight (with stand)
- 13.9 lbs / 6.3 kg
- Weight (without stand)
- 9.48 lbs / 4.3 kg
- Weight (Packaged)
- 21.6 lbs / 9.8 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- VESA 4-hole 100mm mounting interface on rear of unit
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Canada CUL, IC; China CCC; Europe CE; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico CoC; India BIS; RoHS, China RoHS, WEEE, REACH; UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1; cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1; CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1); CE: IEC 60601-1-2:2014 (Ed. 4); Risk Management: ISO 14971:2007 + EN ISO 14971:2012; Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)
- Ingress Protection
- IP54 entire enclosure
- Power Cables
- North America Power Cable C13 - Elo P/N: E593865; Australia Power Cable C13 - Elo P/N: E594067; Europe Power Cable C13 - Elo P/N: E594264; Korea Power Cable C13 - Elo P/N: E594466; China Power Cable C13 - Elo P/N: E594670; Taiwan Power Cable C13 - Elo P/N: E594869; Japan Power Cable C13 - Elo P/N: E793799
- What's in the Box
- Touchmonitor; Quick Install Guide; 3x Tie wraps; VGA cable; HDMI cable; Touch USB cable; Audio cable; Power brick (E795350 or E323104); NA Power cable; EU Power cable; EEI Label
- Replacement DC Power Supply
- Power Brick 65W - E593253
- Optional Peripherals
- Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Magnetic Stripe Reader (White MSR) – Elo P/N: E352392; PCAP Stylus Pen - Elo P/N: E066148; Elo Monitor Handles – 1 Set - Elo P/N: E352196
- Stands, Mounts & Kits
- Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; 1.8m Cable Kit - Elo P/N: E408193; Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330; Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
