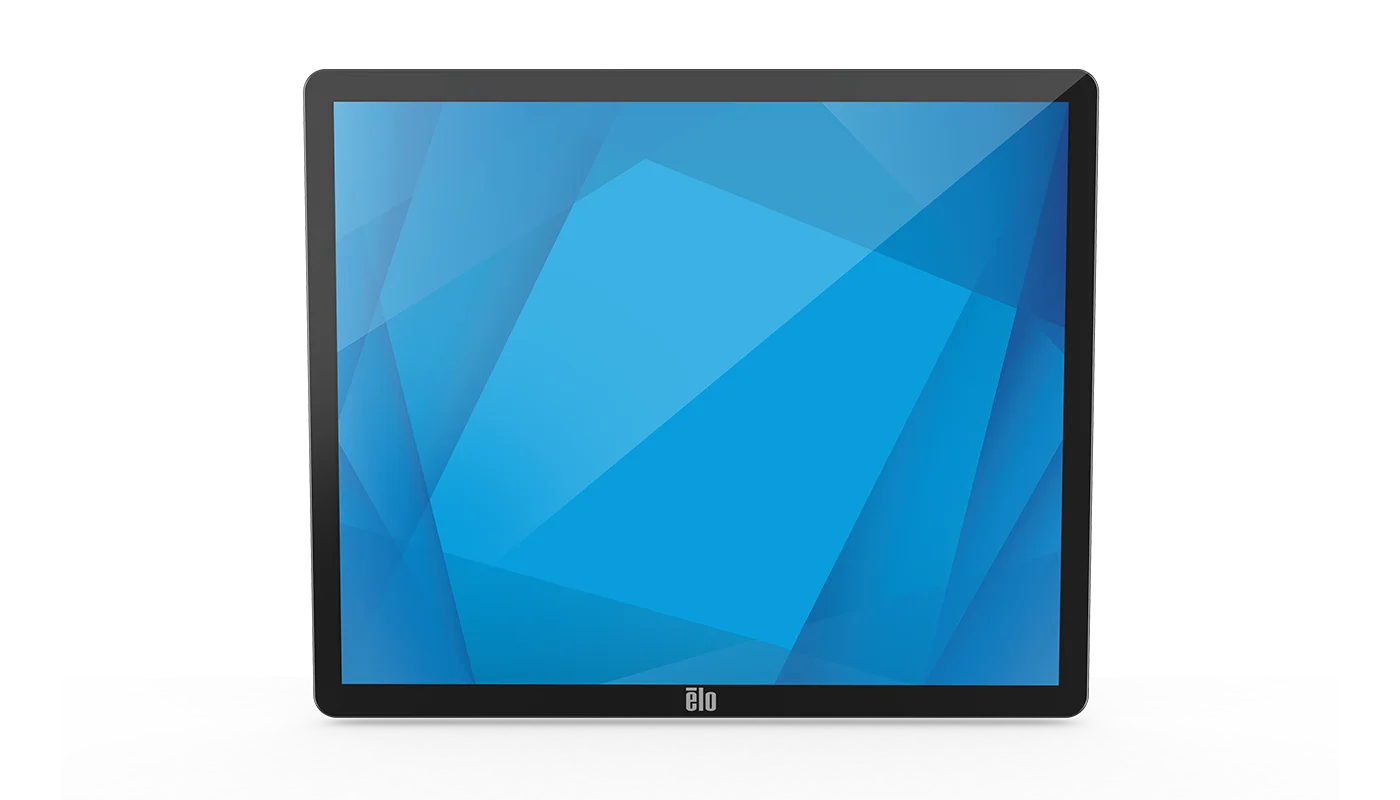

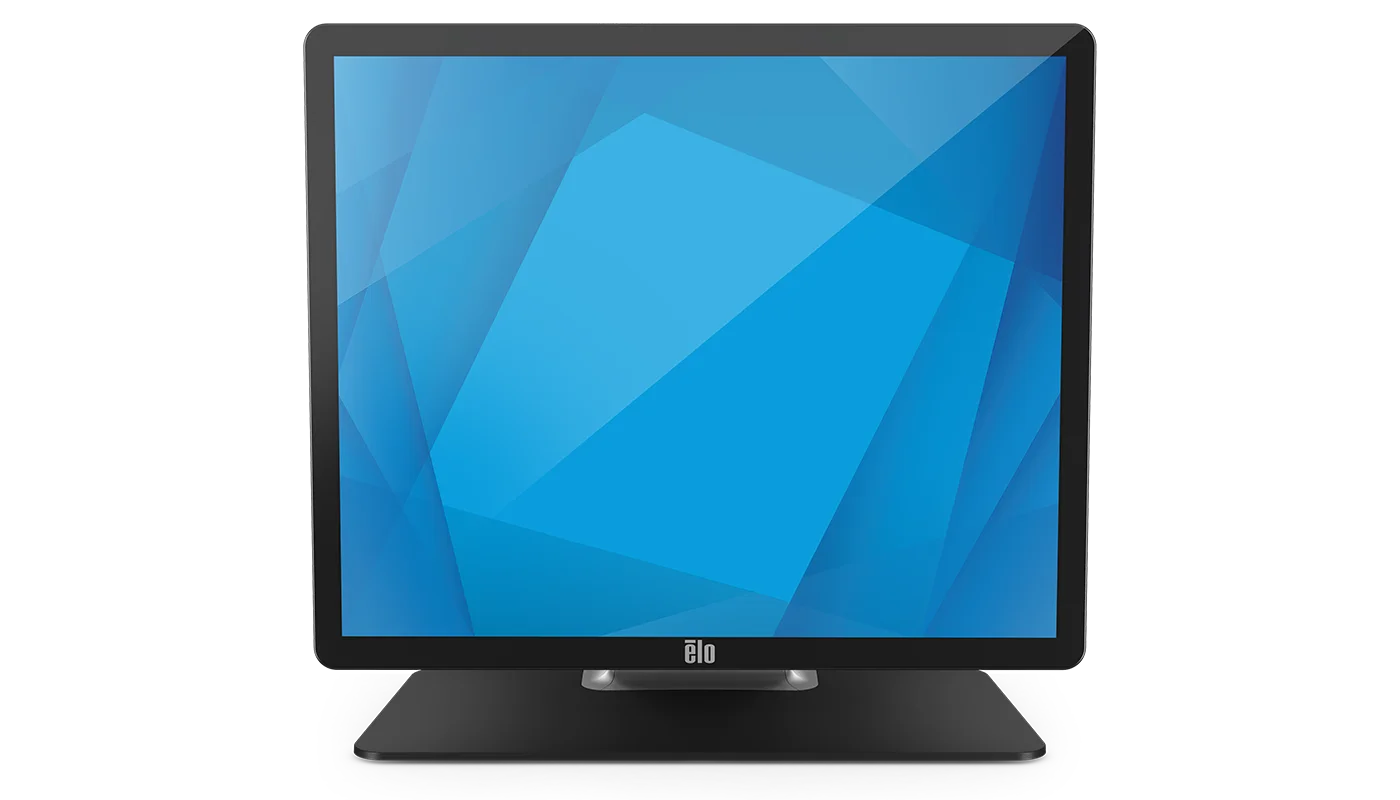

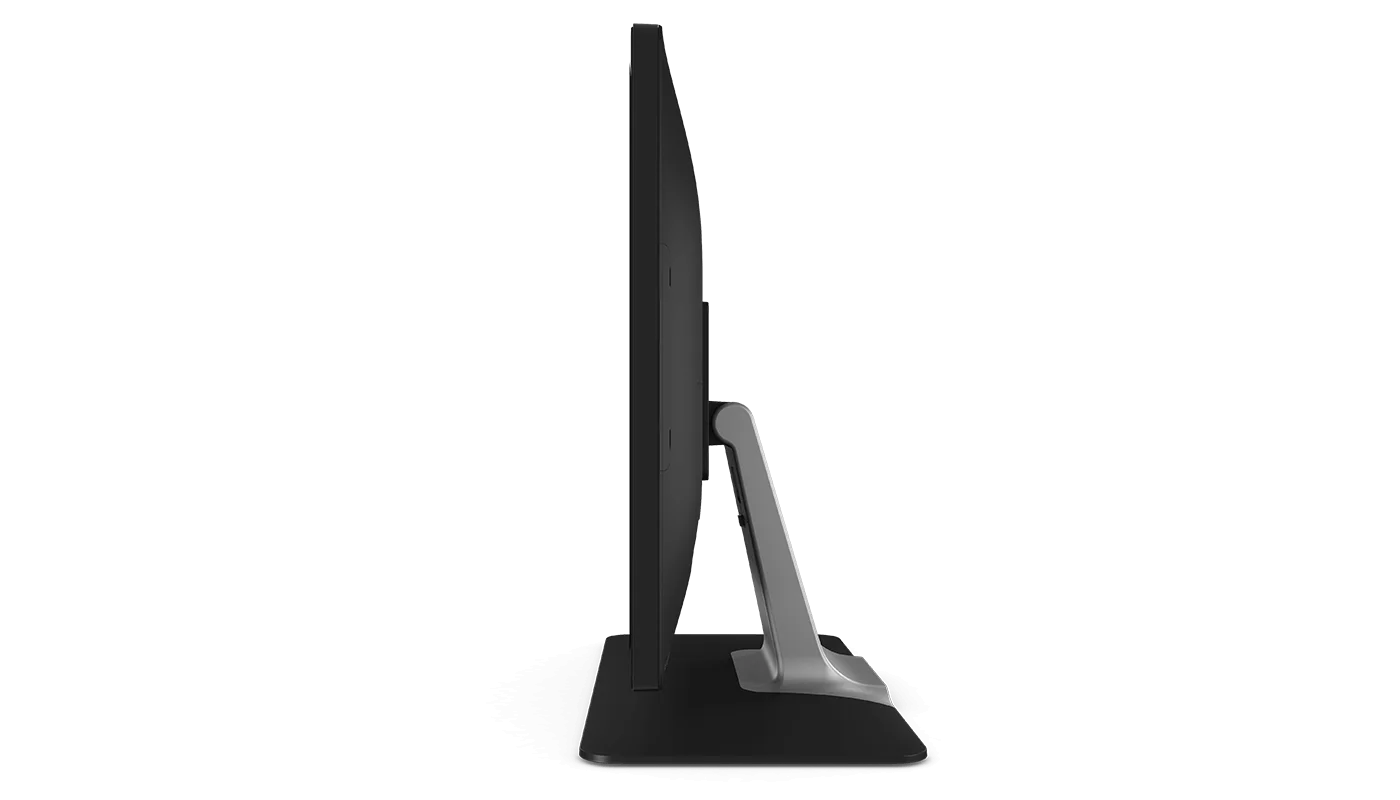

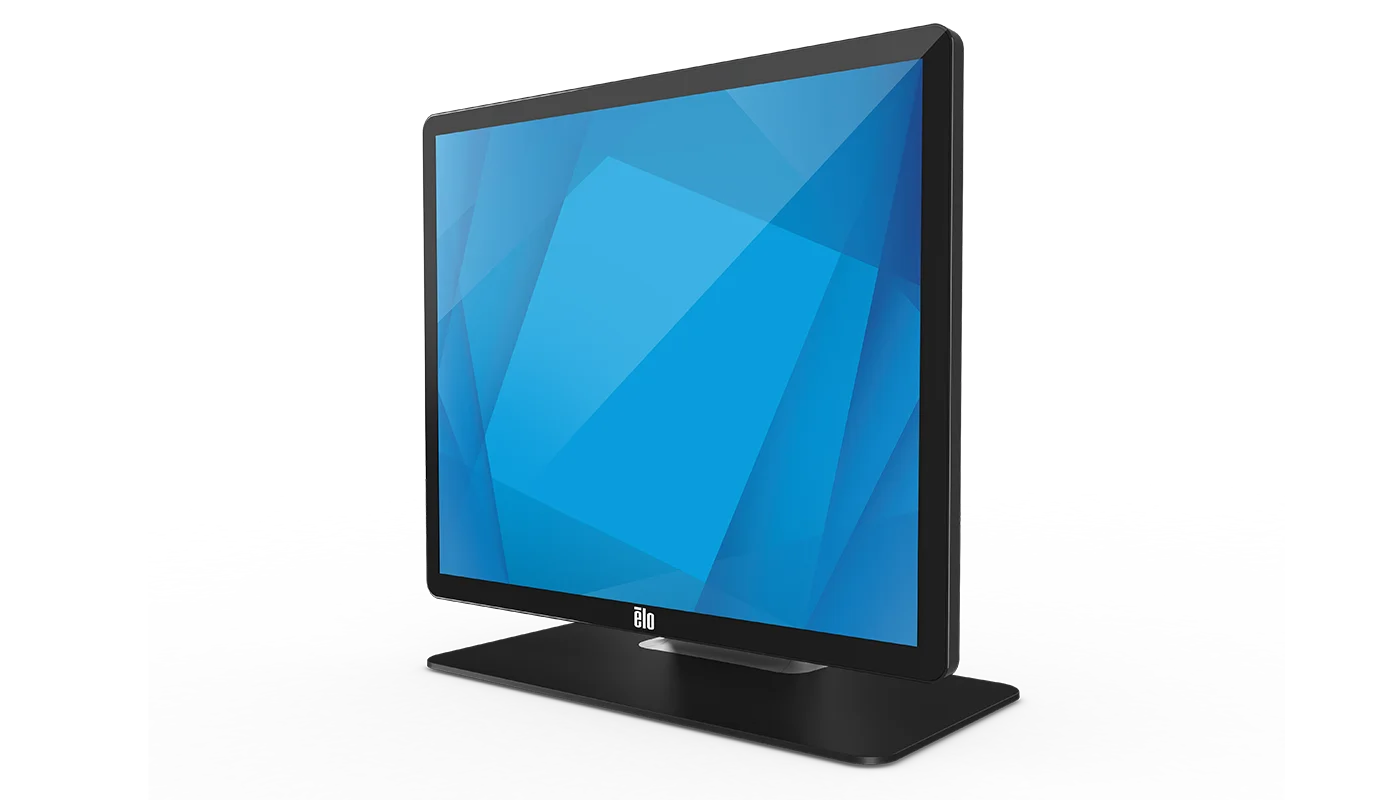

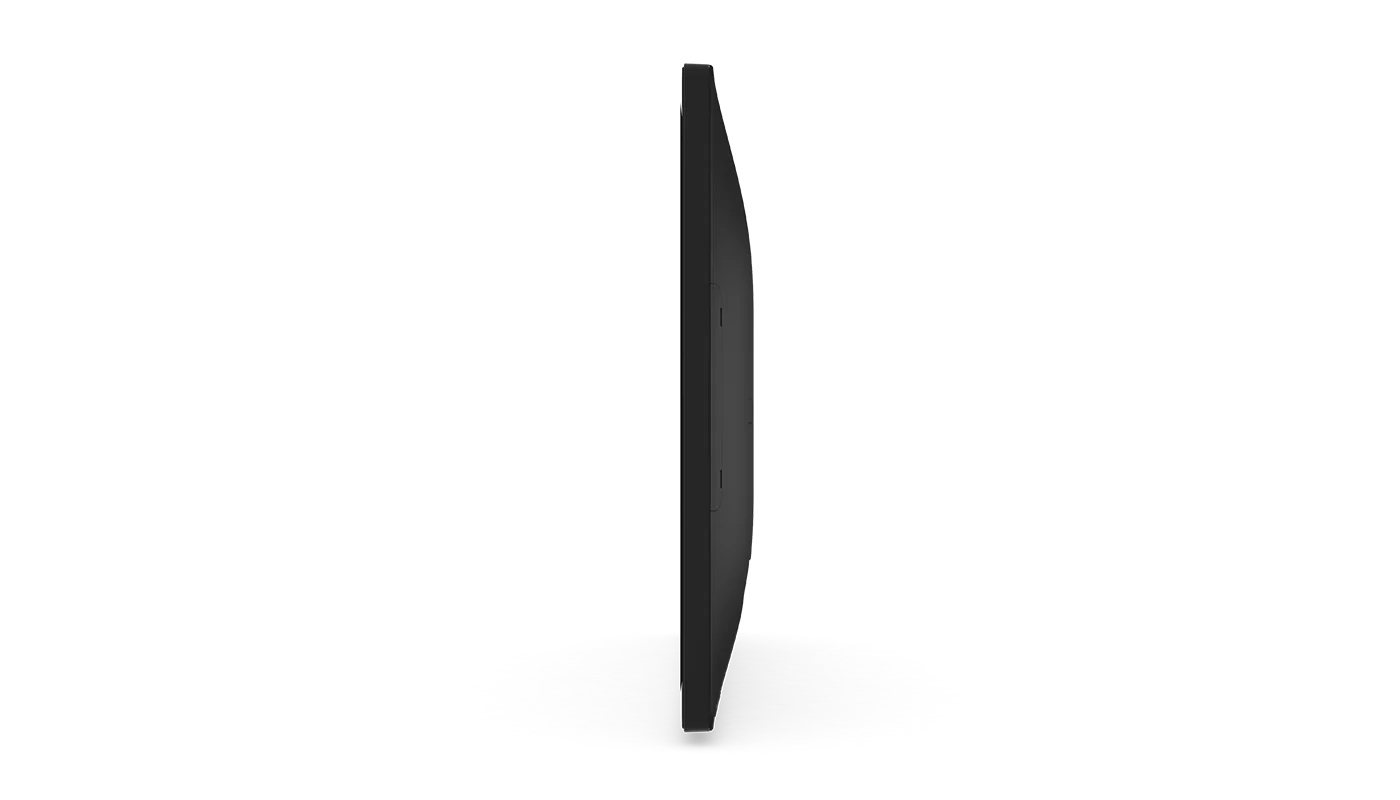

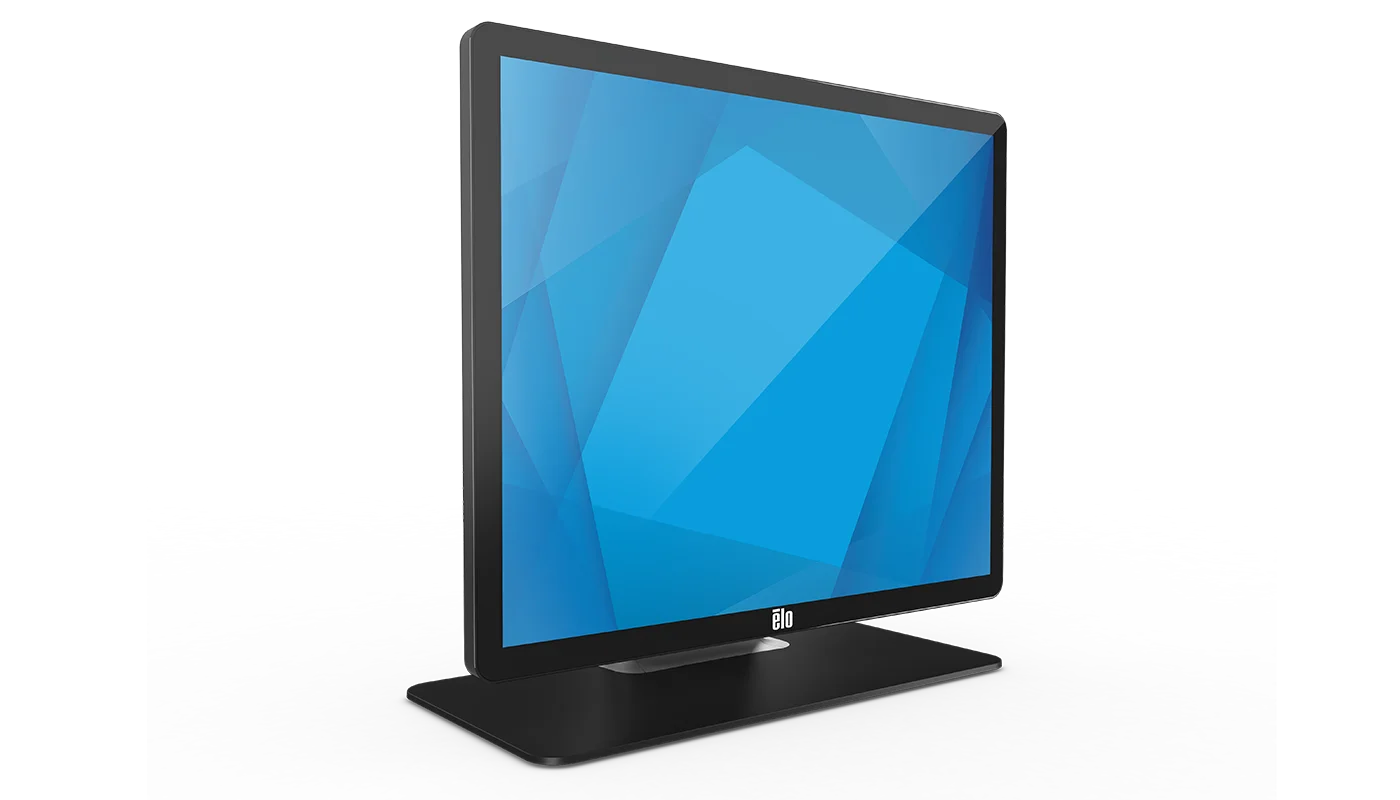

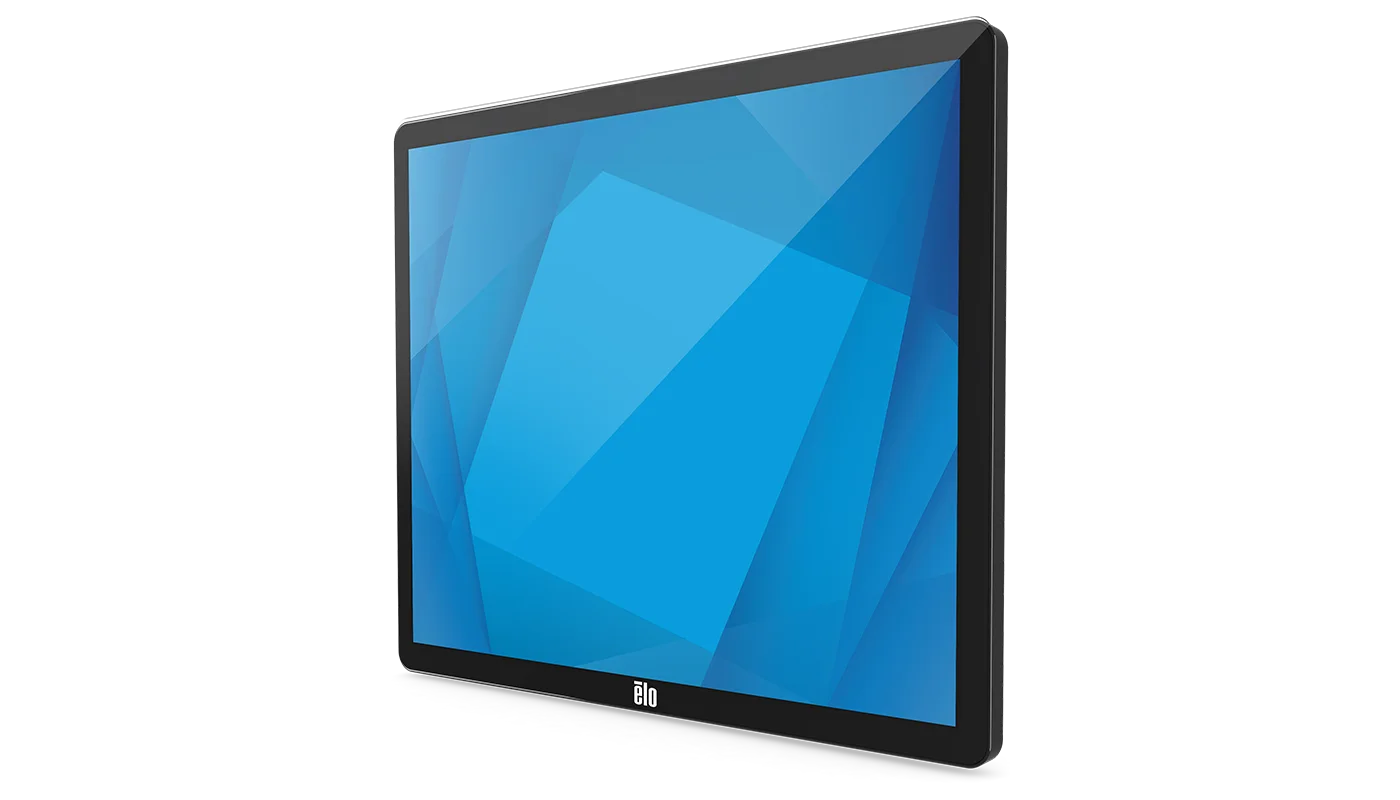

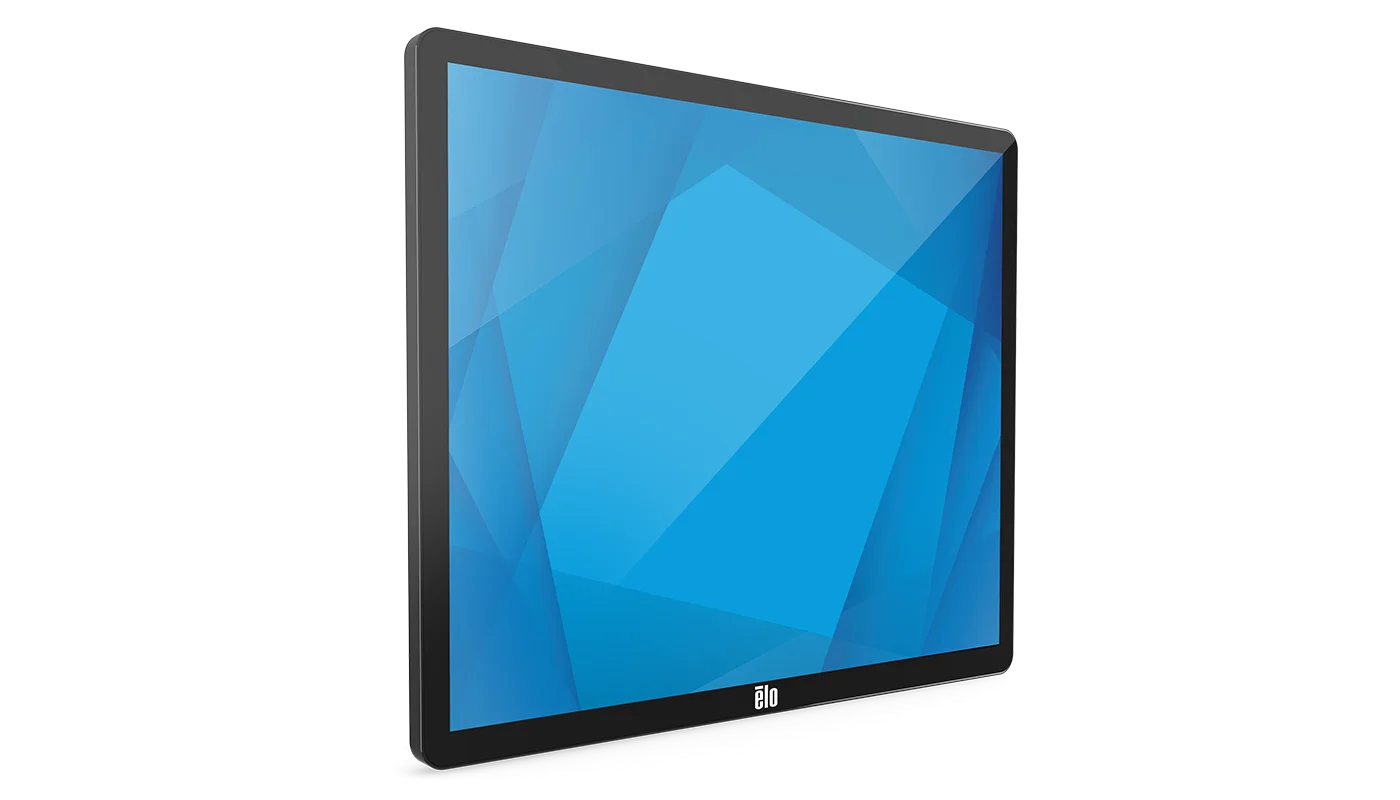

Elo Touch 1902L 19" Touchscreen Monitor
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays.
- Display19'' diagonal, Active matrix TFT LCD (LED)
- SealingIPX1 - Front only
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
- The brilliant touchscreens with Elo's industry-leading TouchPro™ PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
- Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
- Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
- The Biometric Fingerprint Scanner can be attached to provide secure and quick login.
- Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Best for: Kitchen Display Systems · Price Checkers · Interactive Price Check Displays
Specifications
Technical
- Part Number(s)
- With Stand - E351388; Without Stand - E125695
- Enclosure Color
- Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Diagonal Size
- 19'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 5:4
- Active Area
- 14.76" x 11.80" / 374.78 mm x 299.83 mm
- Resolution
- 1280 x 1024
- Other Supported Resolutions
- 640 x 480 @ 60Hz; 720 x 400 @ 70Hz; 640 x 400 @ 70Hz; 800 x 500 @ 60Hz; 800 x 600 @ 56, 60Hz; 1024 x 768 @ 60Hz; 1280 x 720 @ 58Hz, 60Hz; 1280 x 800 @ 60 Hz; 1280 x 1024 @ 60Hz
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD Panel: 250 nits; TouchPro PCAP: 225 nits
- Response Time-total (typical)
- 14 msec
- Contrast Ratio
- 1000:1
- Touch Interface
- USB
- Surface Treatment
- Clear
- On Screen Display
- Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru; Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean; Lockouts: OSD, Power
- I/O Ports
- VGA; HDMI; Combo Jack; DC jack; USB Type B; USB 2.0 Type A; 4x Micro USB
- Speakers
- Two 2W internal speakers
- Input Video Format
- VGA (VGA DE-15 (DB-15) Male connecter cable included); HDMI (HDMI cable included)
- Input Video Frequency
- Horizontal: 30 – 82KHz; Vertical: 50 - 75Hz
- Power Consumption (Typical)
- Monitor + AC/DC adapter; ON (Default - 80% Brightness): 13.07 W; ON (Typical - 100% Brightness): 14.58 W; SLEEP: 0.66 W; OFF: 0.32 W
- Input Voltage
- 12VDC +/- 5%; 100-240VAC, 50/60Hz
- Input Connector
- Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
- Peripheral Mounting
- 4x Micro USB side ports (Top, Bottom, Left, Right)
- Monitor Dimensions (without Stand)
- 13.96" x 429.6" x 1.64" / 354.6 mm x 429.6 mm x 41.6 mm

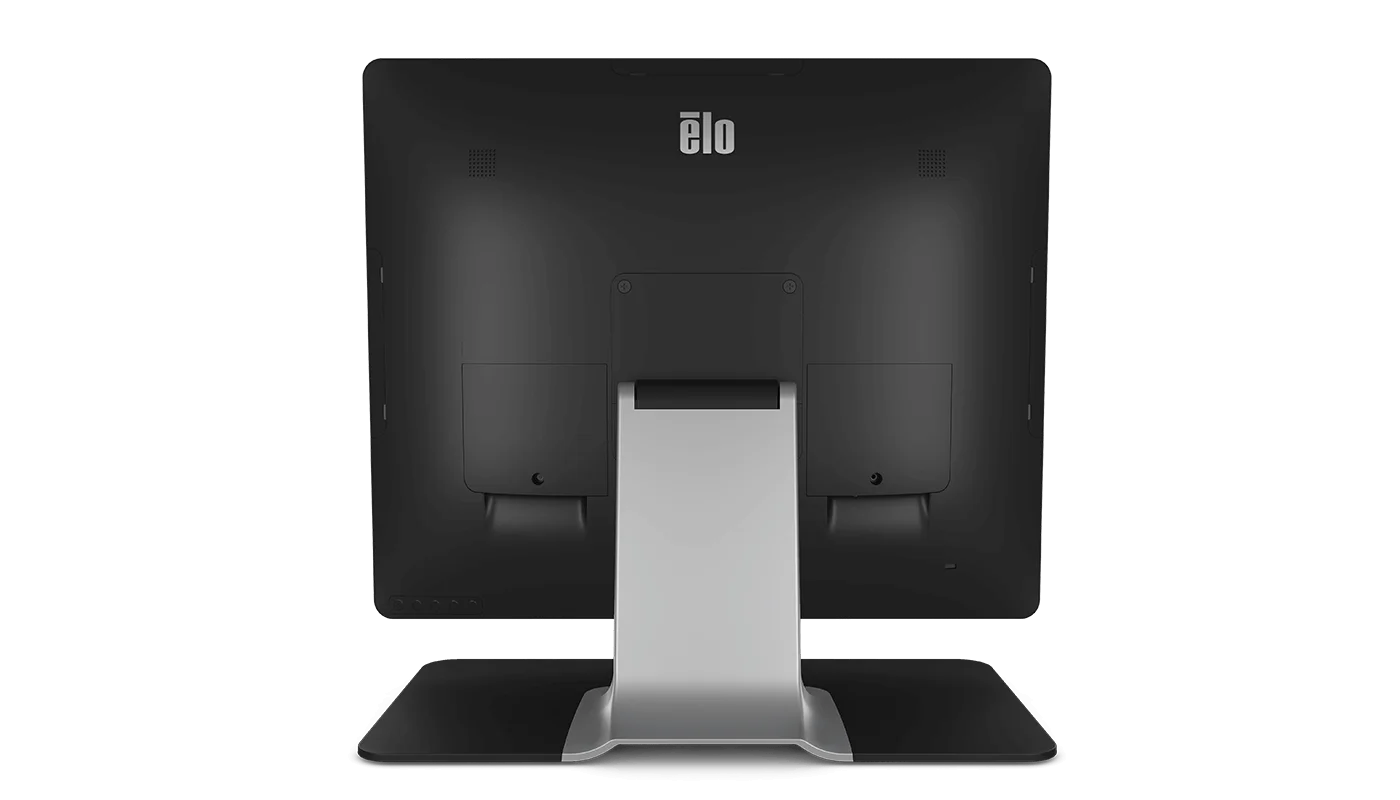

- Monitor Dimensions (with Stand)
- 15.66" x 16.91" x 7.61" / 397.7 mm x 429.6 mm x 193.4 mm
- Shipping Box Dimensions
- With Stand: 18.97" x 20.75" x 10.24" / 482 mm x 527 mm x 260 mm; Without Stand: 18.97" x 20.75" x 7.48" / 482 mm x 527 mm x 190 mm
- Weight (Unpackaged)
- With Stand: 13.9 lbs / 6.3 kg; Without Stand: 9.48 lbs / 4.3 kg
- Weight (Packaged)
- With Stand: 21.6 lbs / 9.8 kg; Without Stand: 14.33 lbs / 6.5 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
- MTBF
- 50,000 hours demonstrated
- Mounting Options

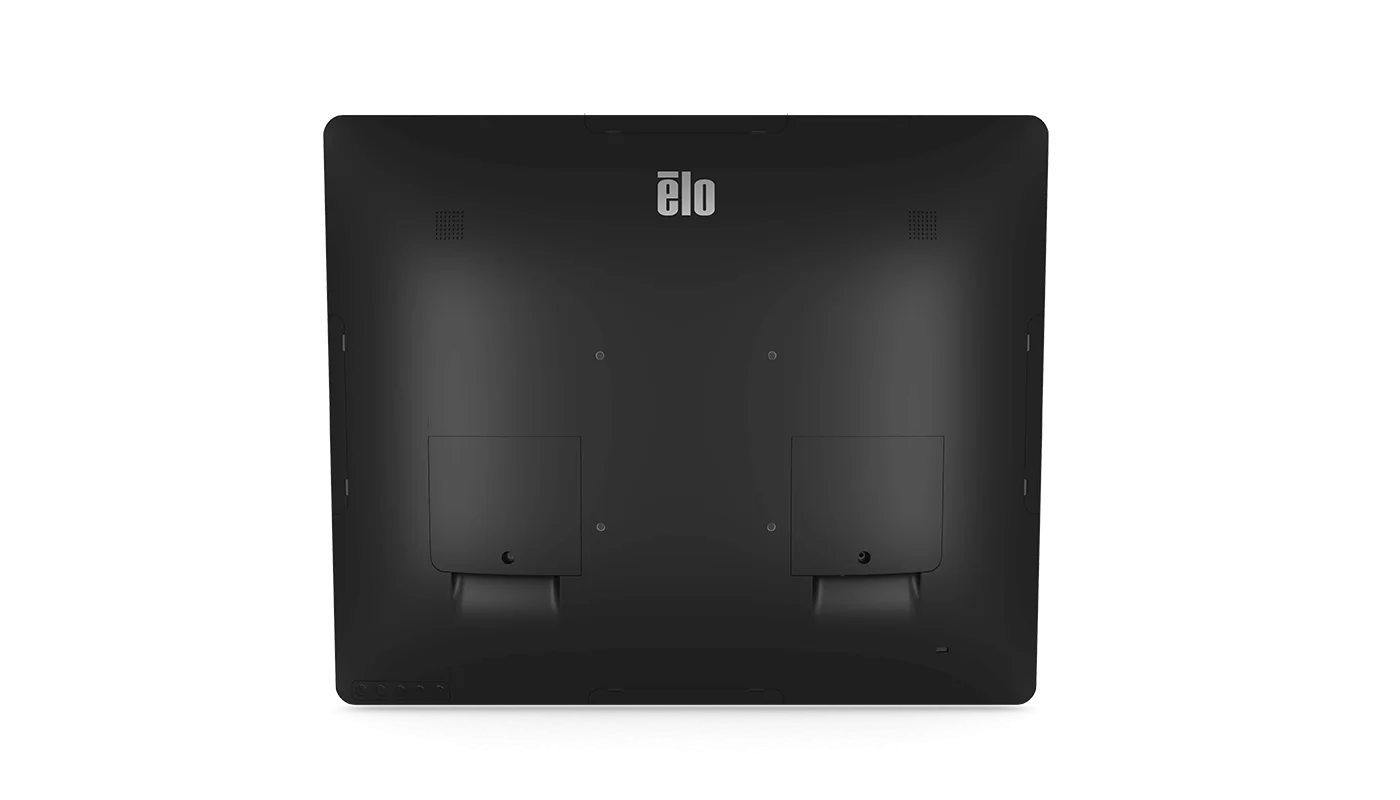

- VESA 4-hole 100mm mounting interface on rear of unit
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Canada CUL, IC; China CCC; Europe CE; United Kingdom UKCA; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico CoC; India BIS; RoHS, China RoHS, WEEE, REACH
- Ingress Protection
- IPX1 - Front only
- Impact Protection
- IK06
- Power Cables
- North America Power Cable C13 - Elo P/N: E593865; Australia Power Cable C13 - Elo P/N: E594067; Europe Power Cable C13 - Elo P/N: E594264; Korea Power Cable C13 - Elo P/N: E594466; China Power Cable C13 - Elo P/N: E594670; Taiwan Power Cable C13 - Elo P/N: E594869; Japan Power Cable C13 - Elo P/N: E793799
- What's in the Box
- Touchmonitor; Quick Install Guide; 3x Tie wraps; VGA cable; HDMI cable; Touch USB cable; Audio cable; Power brick; NA Power cable; EU Power cable; EEI Label; 4 x Screws (for E125695)
- Replacement DC Power Supply
- Power Brick 50W - E593661
- Optional Peripherals
- Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
- Stands, Mounts & Kits
- Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; 1.8m Cable Kit - Elo P/N: E408193; Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330; Elo Backpack® 4 (Value Model) - Elo P/N: E393754; Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
