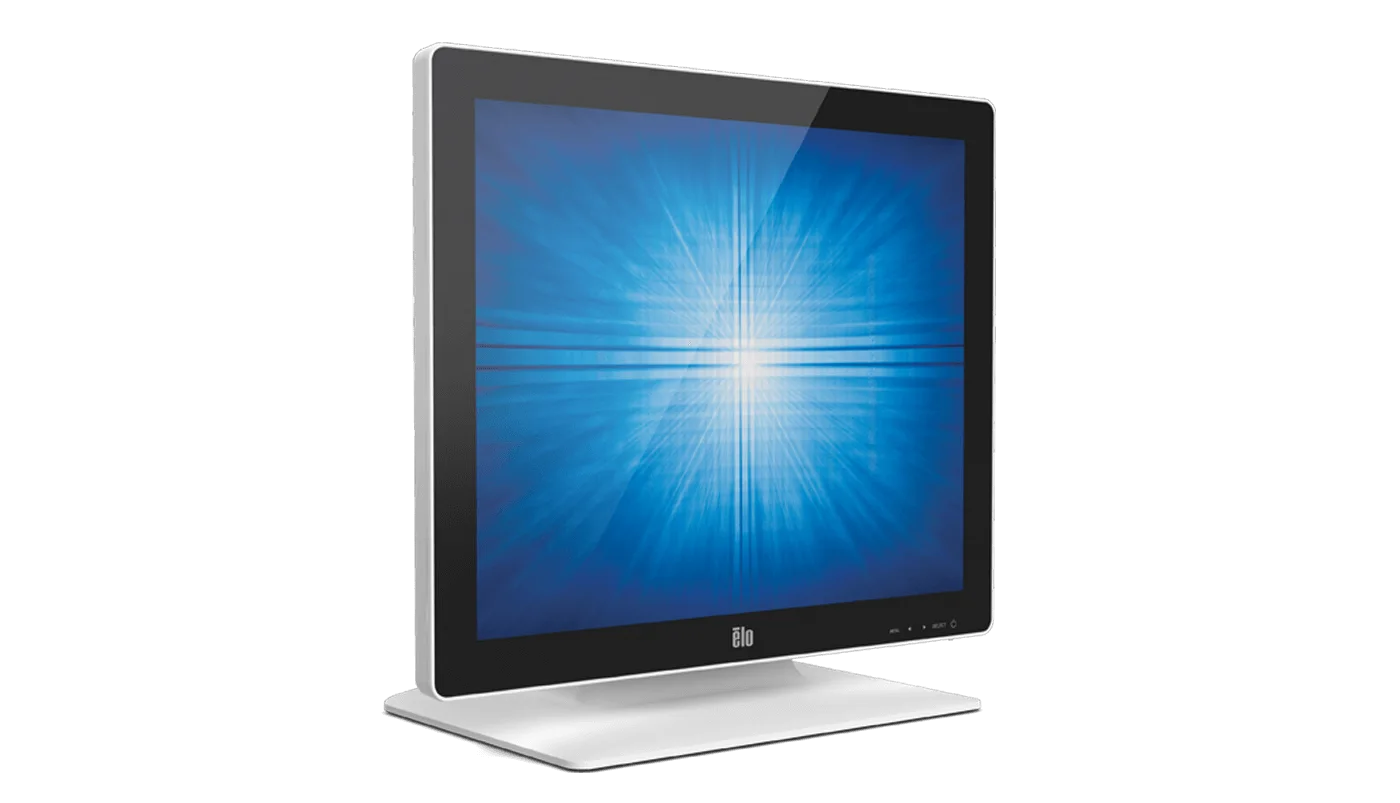

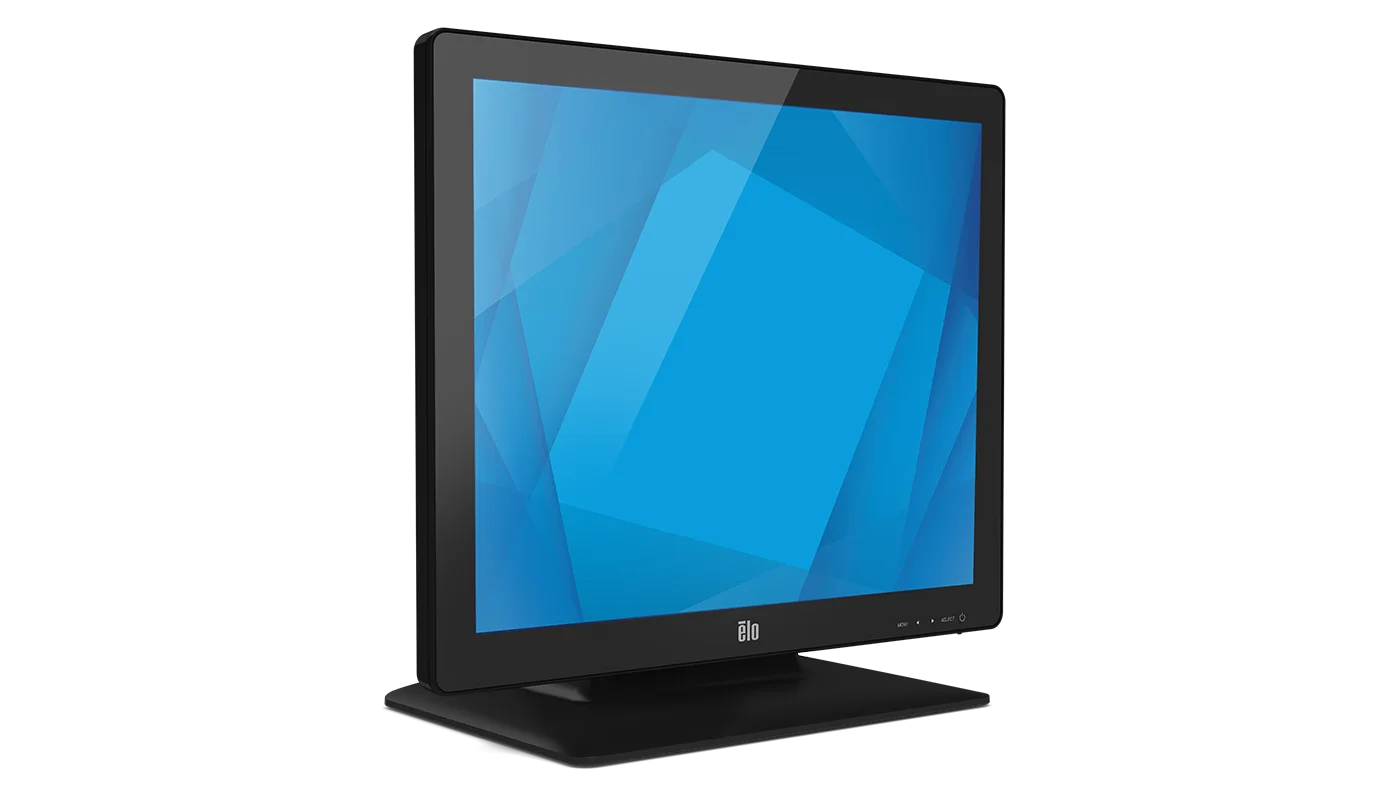

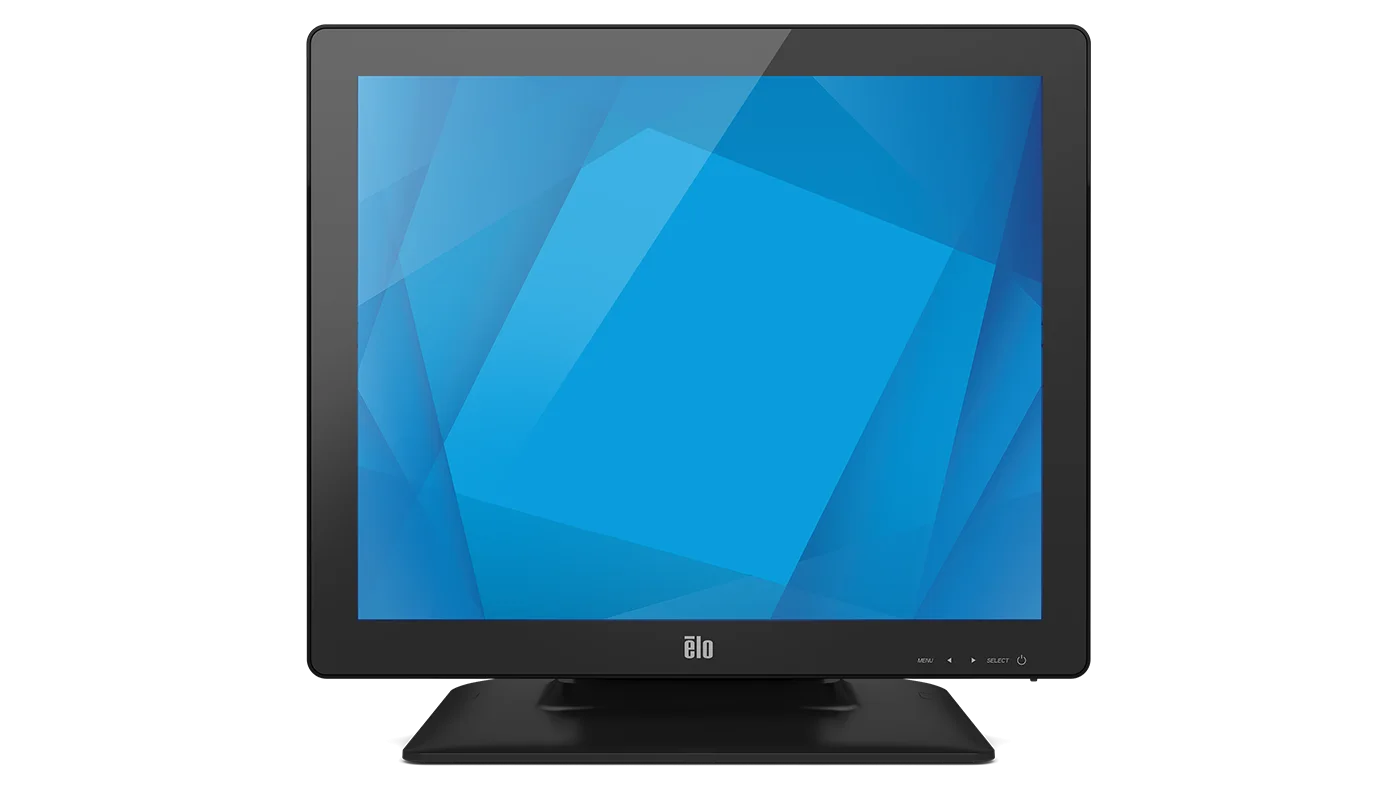

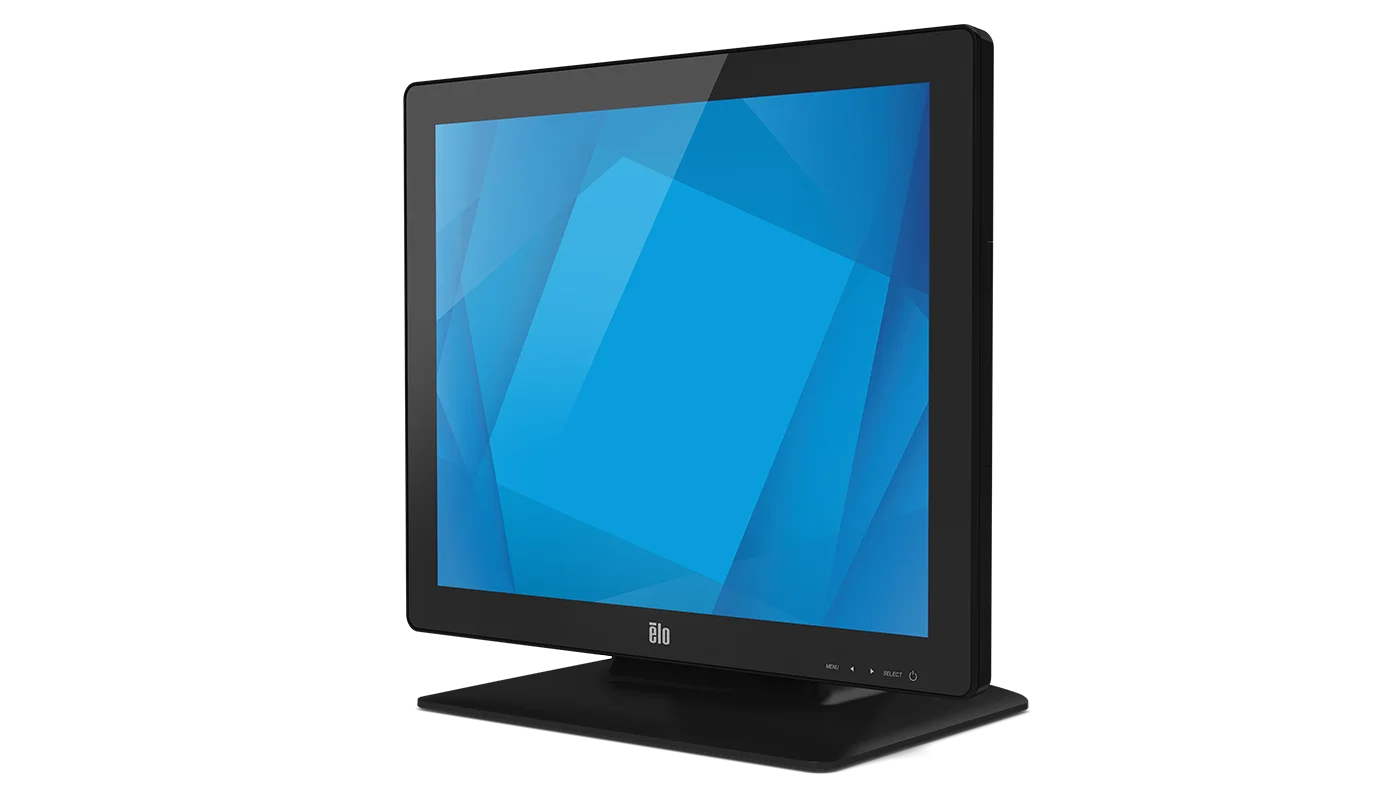

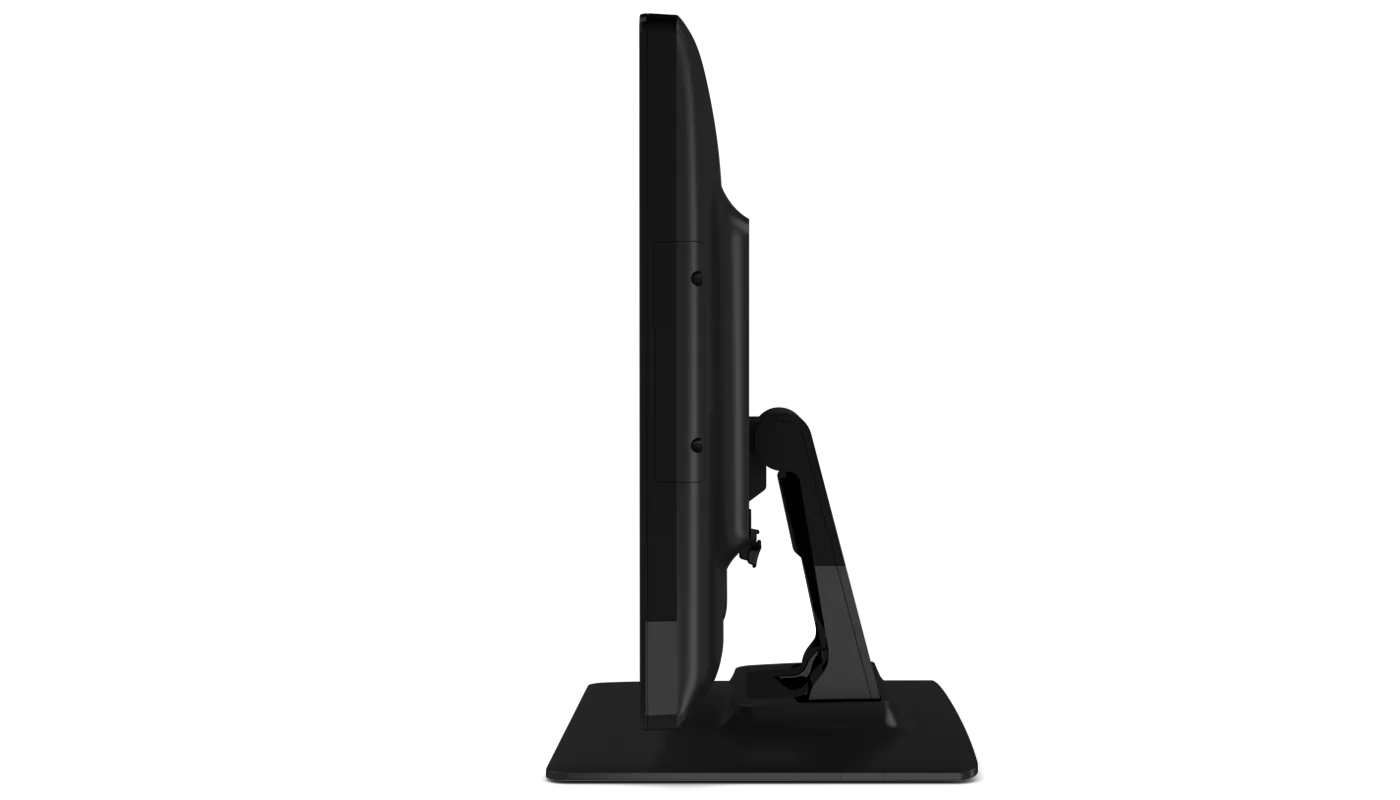

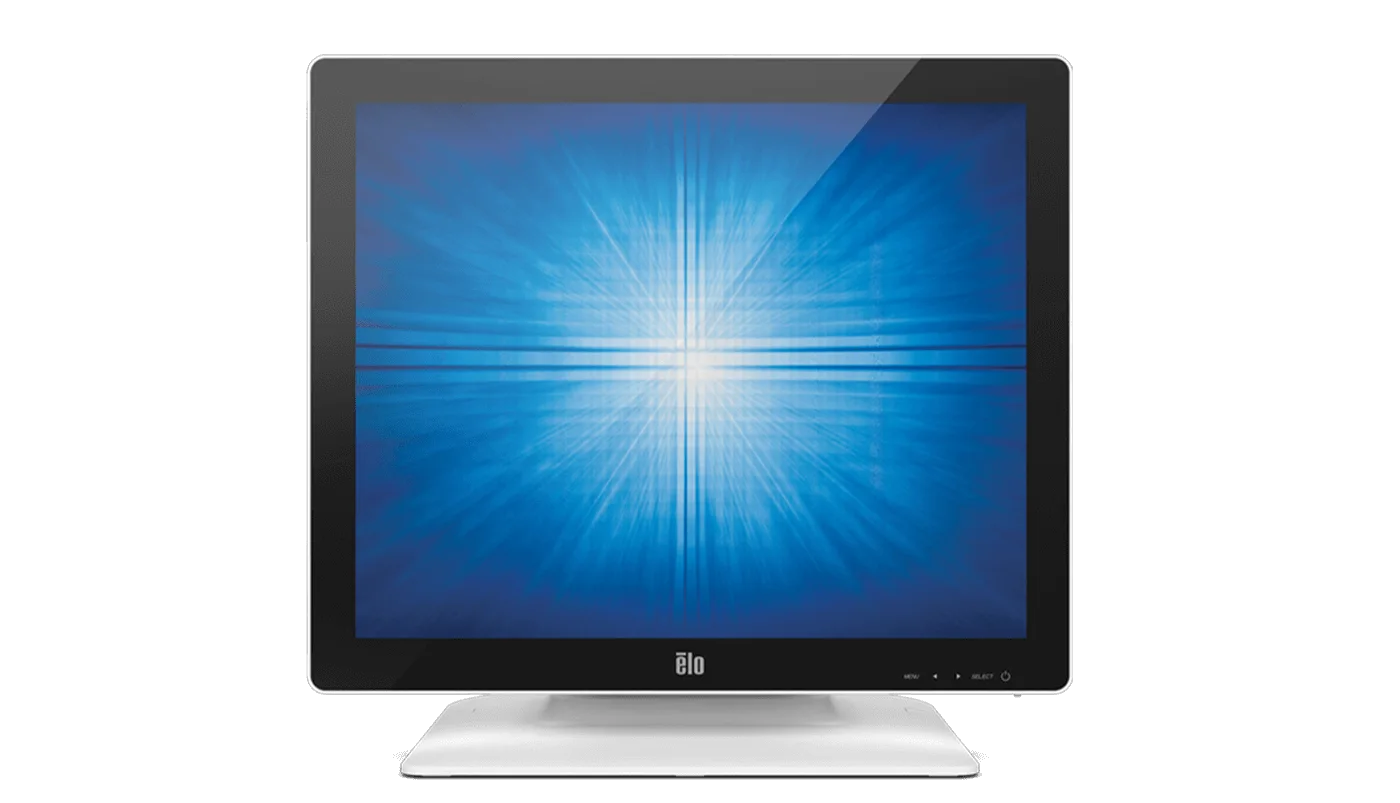

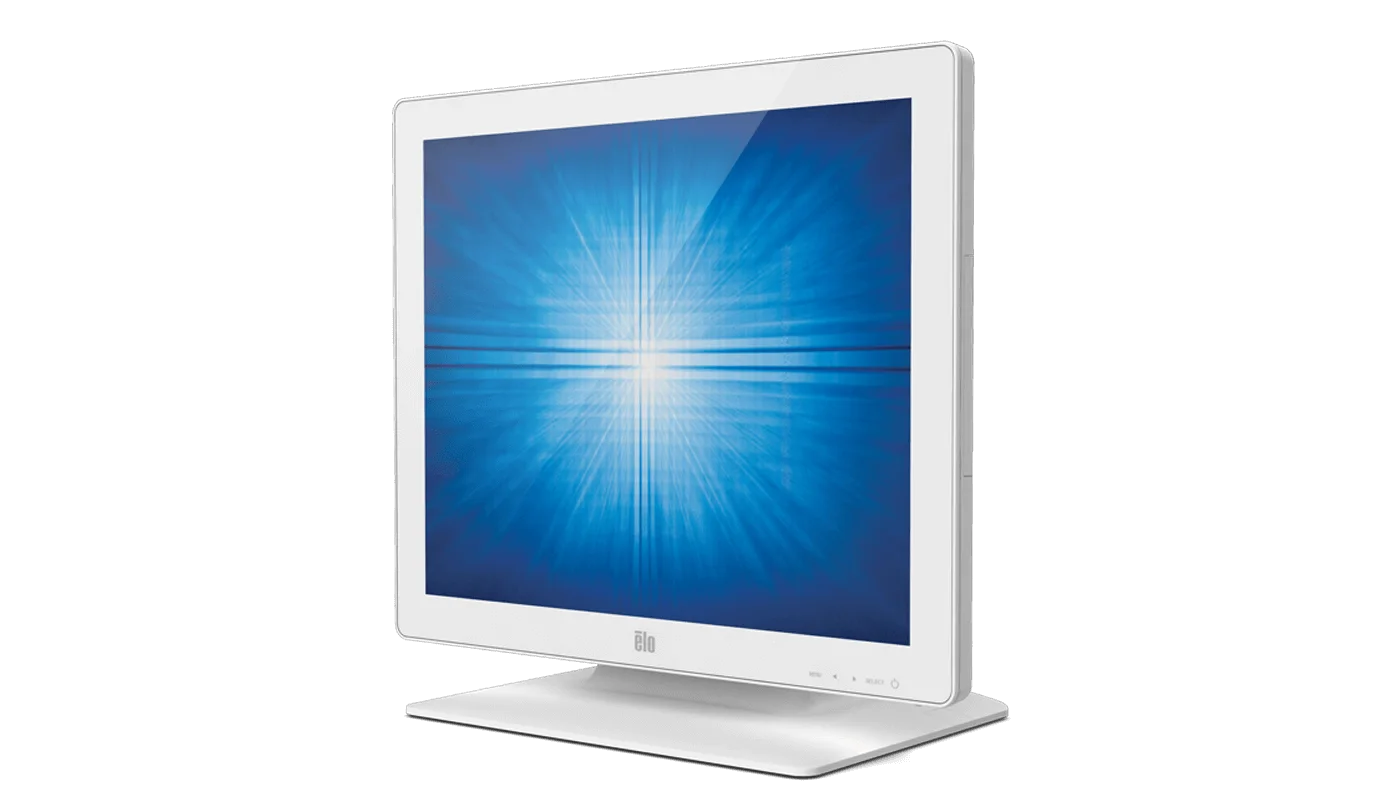

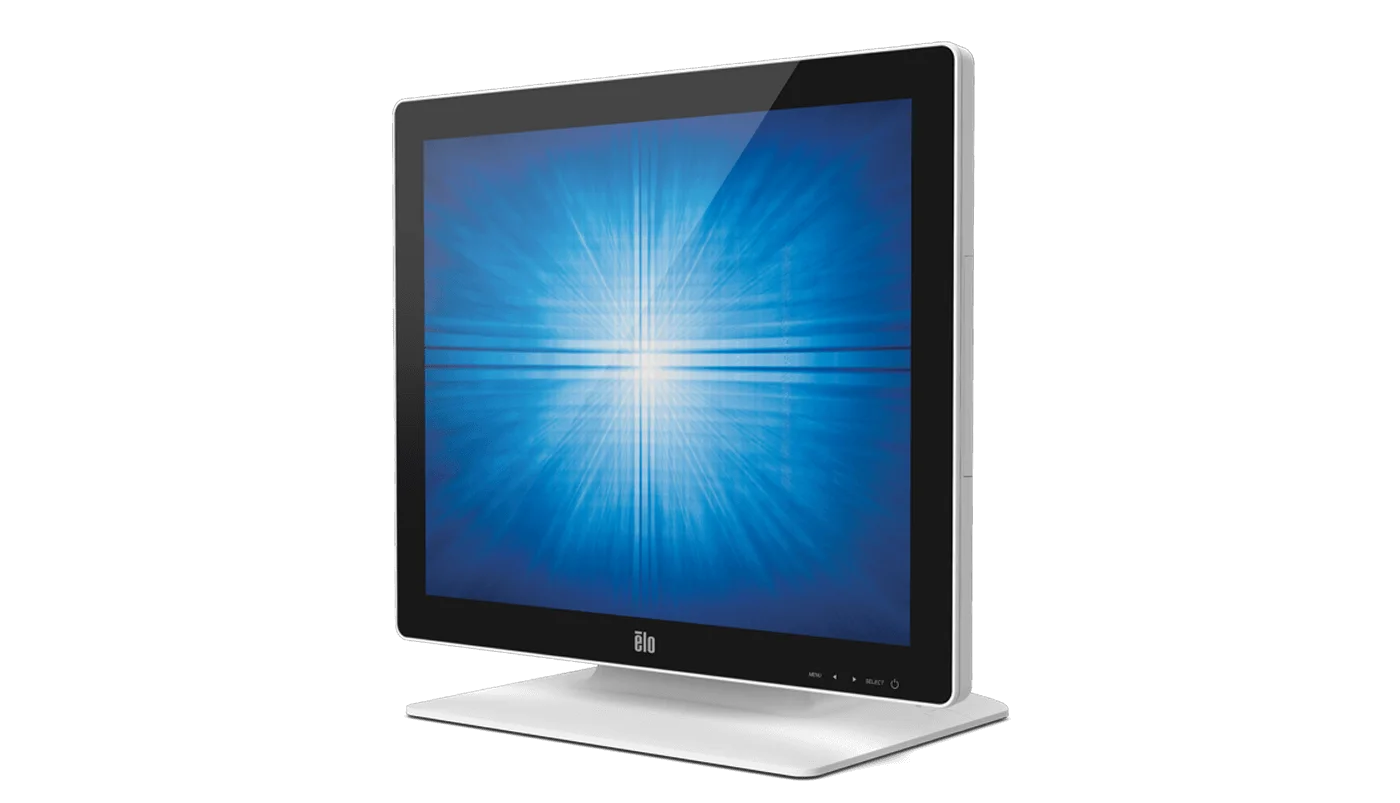

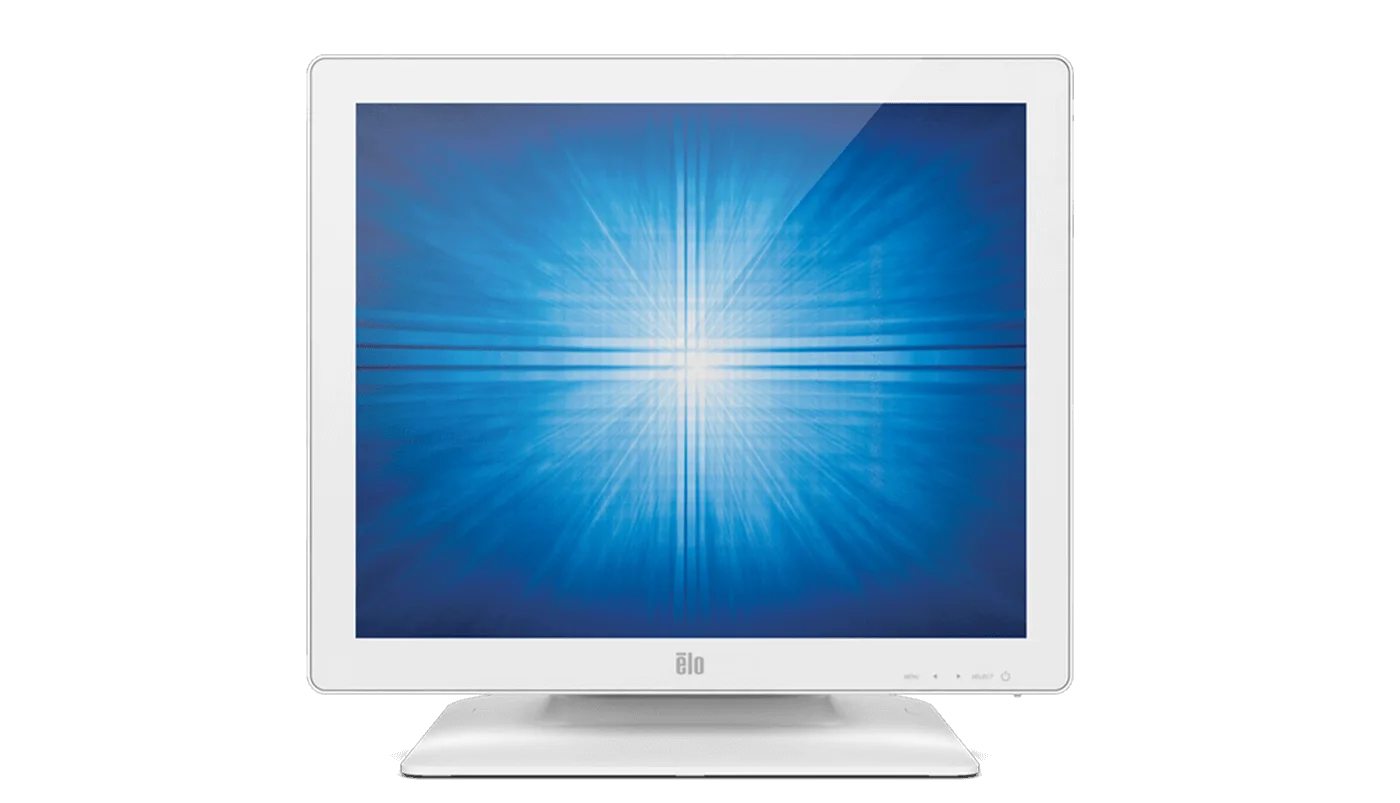

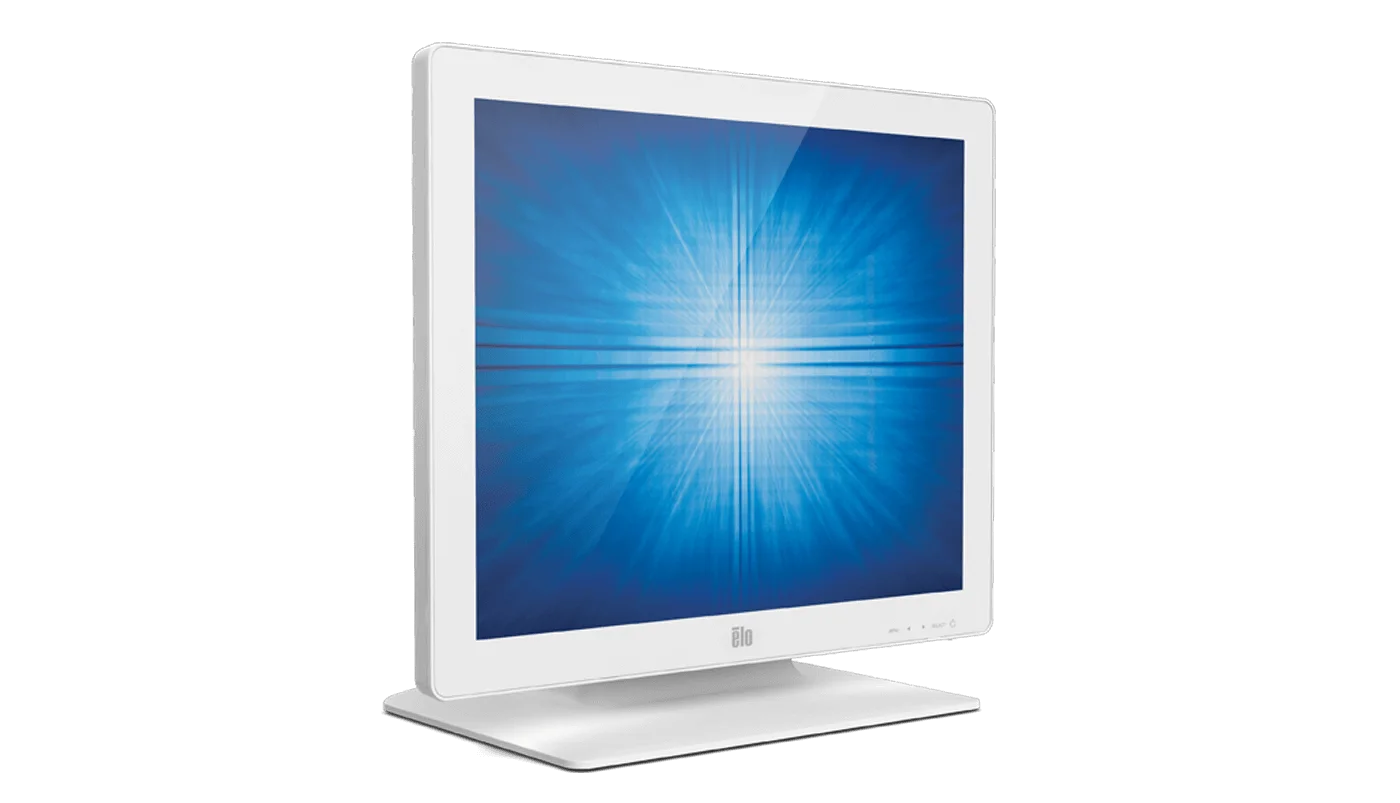

Elo Touch 1723L 17" Touchscreen Monitor
The Elo 1723L 17-inch standard format touchscreen monitor meets the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to
- Display17'' diagonal, Active matrix TFT LCD (LED)
- SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The Elo 1723L 17-inch standard format touchscreen monitor meets the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1723L brings a clean, modern feel to any environment. The zero-bezel monitor is available in both black or white with Elo’s industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
- The 17-inch monitor offers Elo's industry leading TouchPro™ PCAP touchscreen technology with a 10-touch tablet like experience. The clean edge-to-edge glass design is perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.
- The 1723L has been designed for touch from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
- The 17-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
Technical
- Part Number(s)
- PCAP White (Worldwide) - E016808; PCAP Black (Worldwide) - E683457
- Enclosure Color
- White or Black
- Touch Technology & Capacity
- PCAP (Projected Capacitive) - 10 Touch
- Diagonal Size
- 17'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 5:4
- Active Area
- 13.3" x 10.64" / 337.92mm x 270.34mm
- Resolution
- 1280 x 1024 at 75 Hz
- Other Supported Resolutions
- 1280 x 1024 at 60,75 Hz; 1024 x 768 at 60,75 Hz; 800 x 600 at 60,75 Hz; 720 x 400 at 70 Hz; 640 x 480 at 60,75 Hz
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD panel: 250 nits; PCAP: 225 nits
- Response Time-total (typical)
- 20 msec
- Contrast Ratio
- 1000:1
- Touch Interface
- USB
- On Screen Display
- Controls (side): Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
- USB Ports
- Two external USB ports
- Speakers
- Two 2W internal speakers
- Video
- Analog VGA on Female DB-15 connector; Digital DVI on Female DVI-D, Dual-Link connector; Digital HDMI type A Receptable; Input Video Horizontal Sync frequency range: 31.5 – 80KHz; Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
- Power
- Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter); Monitor input power signal specifications: 12.0VDC +/- 5%; Note: This monitor is sold with an AC-DC power adapter.; Adapter input connector: IEC 60320 C14; Adapter input voltage range: 100-240VAC, 50/60Hz
- Power Consumption (Typical)
- Monitor + AC/DC adapter; ON (100% brightness): 11W; ON (80% brightness - default): 9.7W; SLEEP: 1.3W; OFF: 0.2W
- Monitor Dimensions (with Stand)
- 15.43" x 8.24" x 14.20" / 391.9mm x 209.4mm x 360.7mm
- Shipping Box Dimensions
- 19.65" x 17.17" x 8.39" / 499mm x 436mm x 213mm
- Weight (Unpackaged)
- 11.46 lbs / 5.2 Kg
- Weight (Packaged)
- 18.7 lbs / 8.5 Kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
- Sealability
- Touchscreen sealed to bezel; Touchscreen sealed to LCD
- MTBF
- 50,000 hours demonstrated
- Stand Options
- Tilt, remove
- Mounting Options
- VESA 4-hole 75mm mounting interface on rear of unit; 3-hole threaded mounting on bottom of stand; See dimensional drawings for details
- Other Features
- 2 stage DPMS; VESA DDC Plug and Play; Security lock receptacle
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Australia RCM; Canada cUL, IC; China CCC; Europe CE; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NOM; Taiwan BSMI Mark; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
- What's in the Box
- 1723L Touchmonitor; Quick Install Guide; 50W Power Brick, power cable; IEC 60320-C13 to NA/EU plug; DVI-D cable; VGA cable (DB-15 male to DB-15 male); USB cable (Type A plug to Type B plug); Audio cable; Stand base assembly; Filler Plate; HDMI cable; EEI Label
- Optional Peripherals
- Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912; North America power adapter and cable kit - Elo P/N: E005277; European & Korea power adapter and cable kit - Elo P/N: E571601; UK power adapter and cable kit - Elo P/N: E180092; China power adapter and cable kit - Elo P/N: E558862; Taiwan power adapter and cable kit - Elo P/N: E818655; Japan power adapter and cable kit - Elo P/N: E182546; Argentina power adapter and cable kit - Elo P/N: E887099; Australia power adapter and cable kit - Elo P/N: E637593; PCAP Stylus Pen - Elo P/N: E066148
- Stands, Mounts & Kits
- 1723L VESA Mount Plate (White) - Elo p/n: E000451; 1723L VESA Mount Plate (Black) - Elo p/n: E000450; 1723L Replacement Stand (Black) - Elo P/N: E896711; 1723L Replacement Stand (White) - Elo P/N: E574298
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
