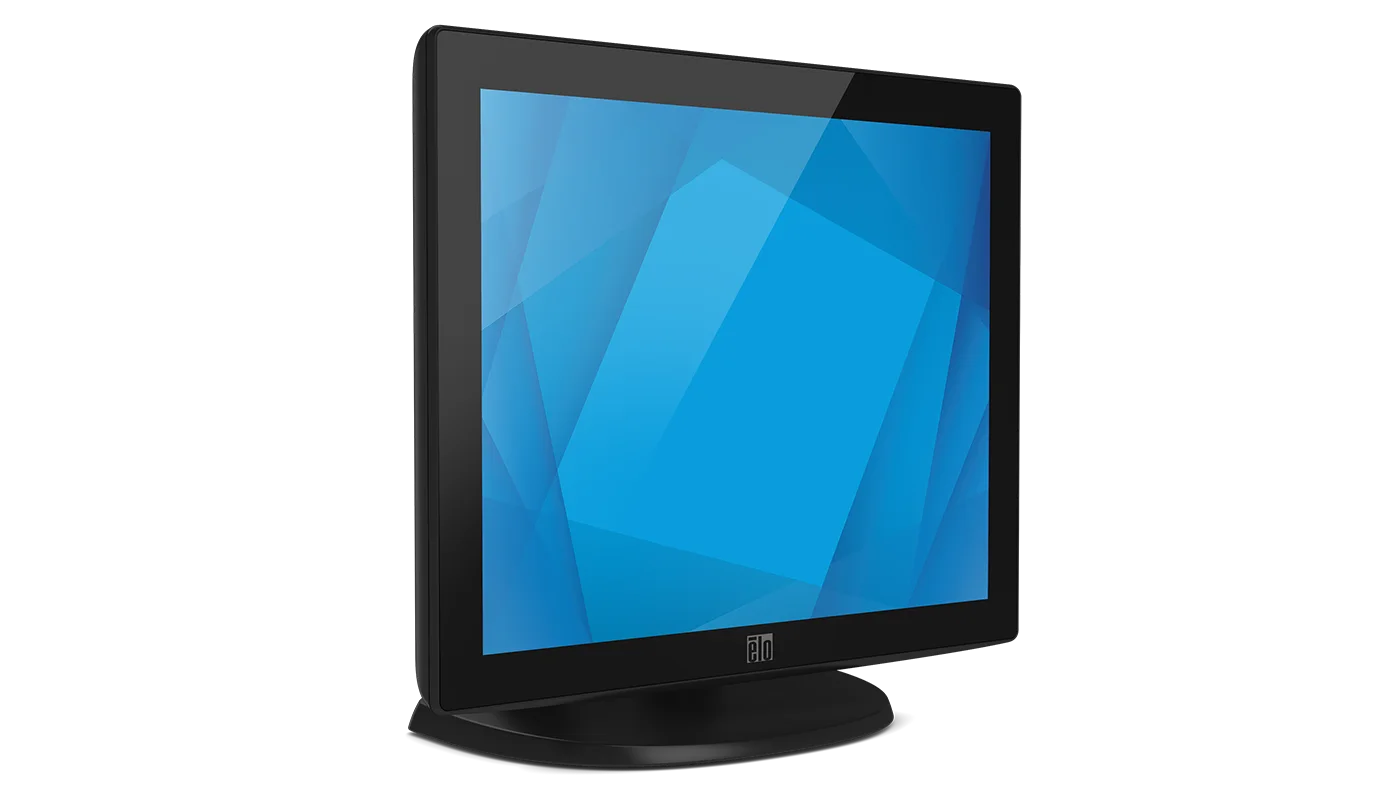

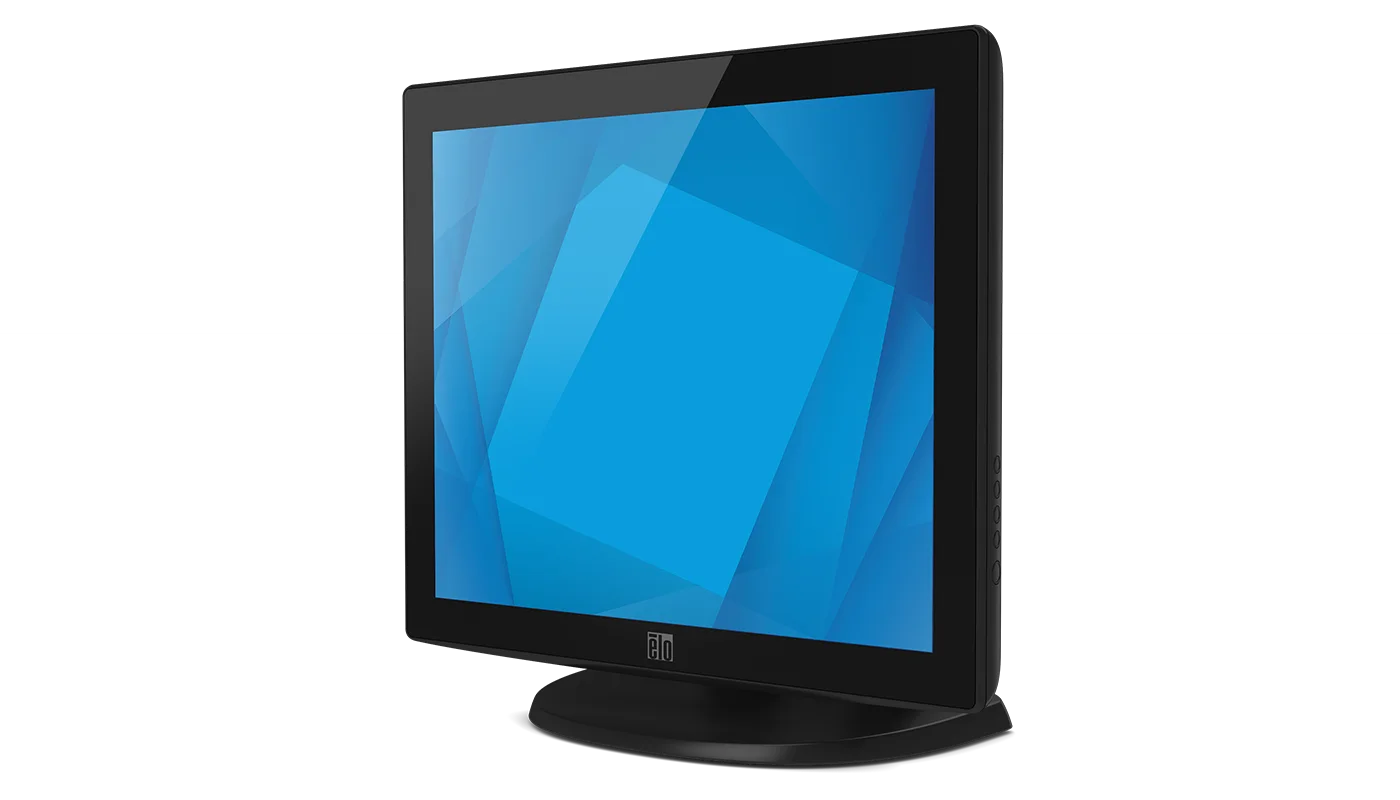

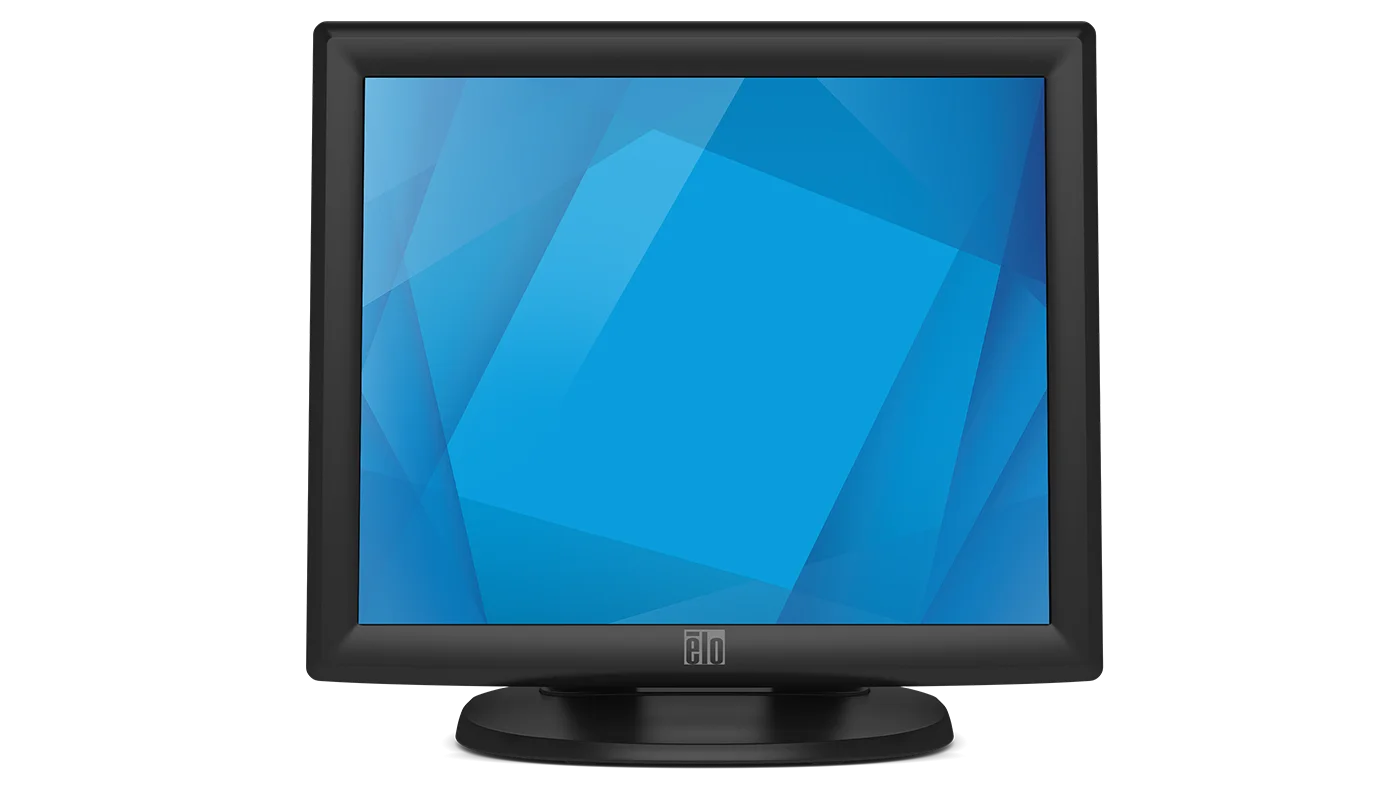

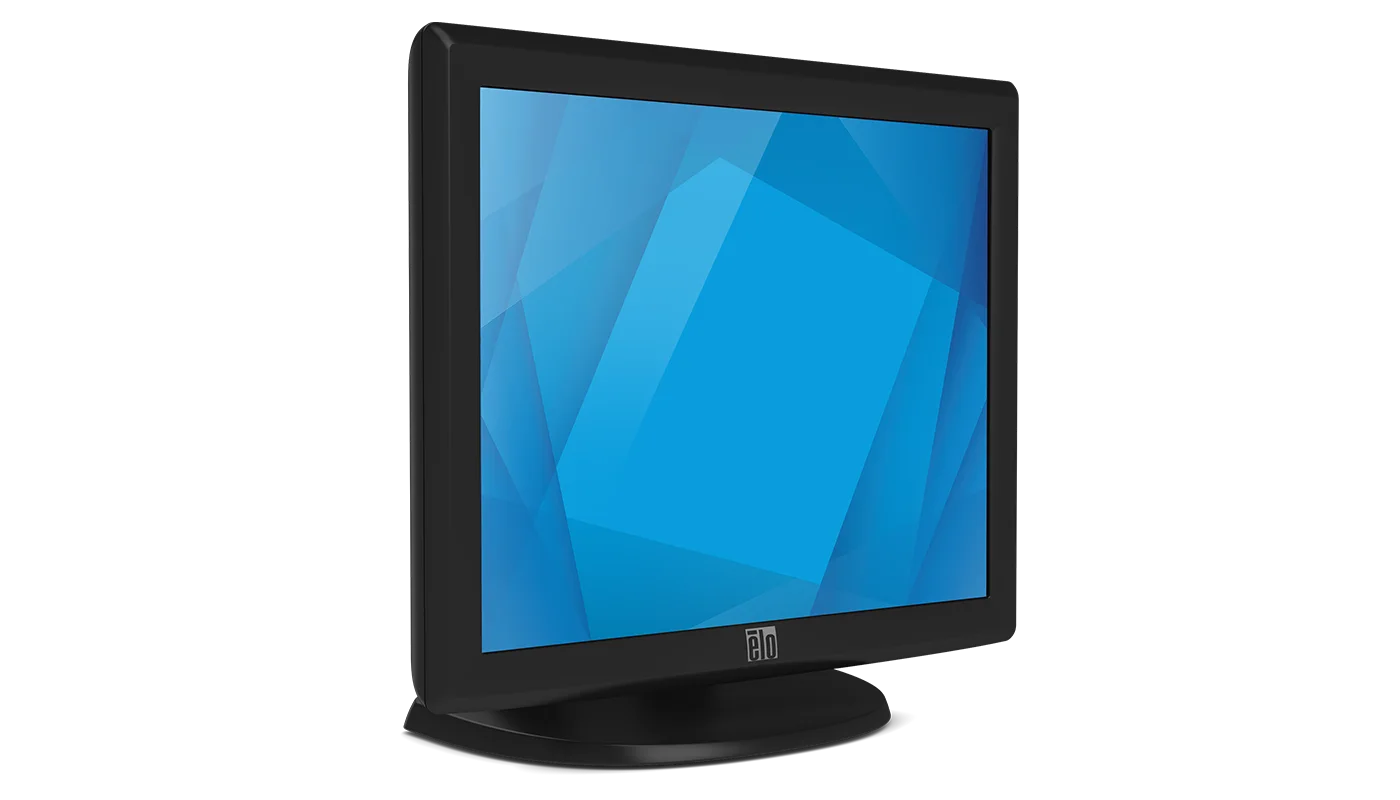

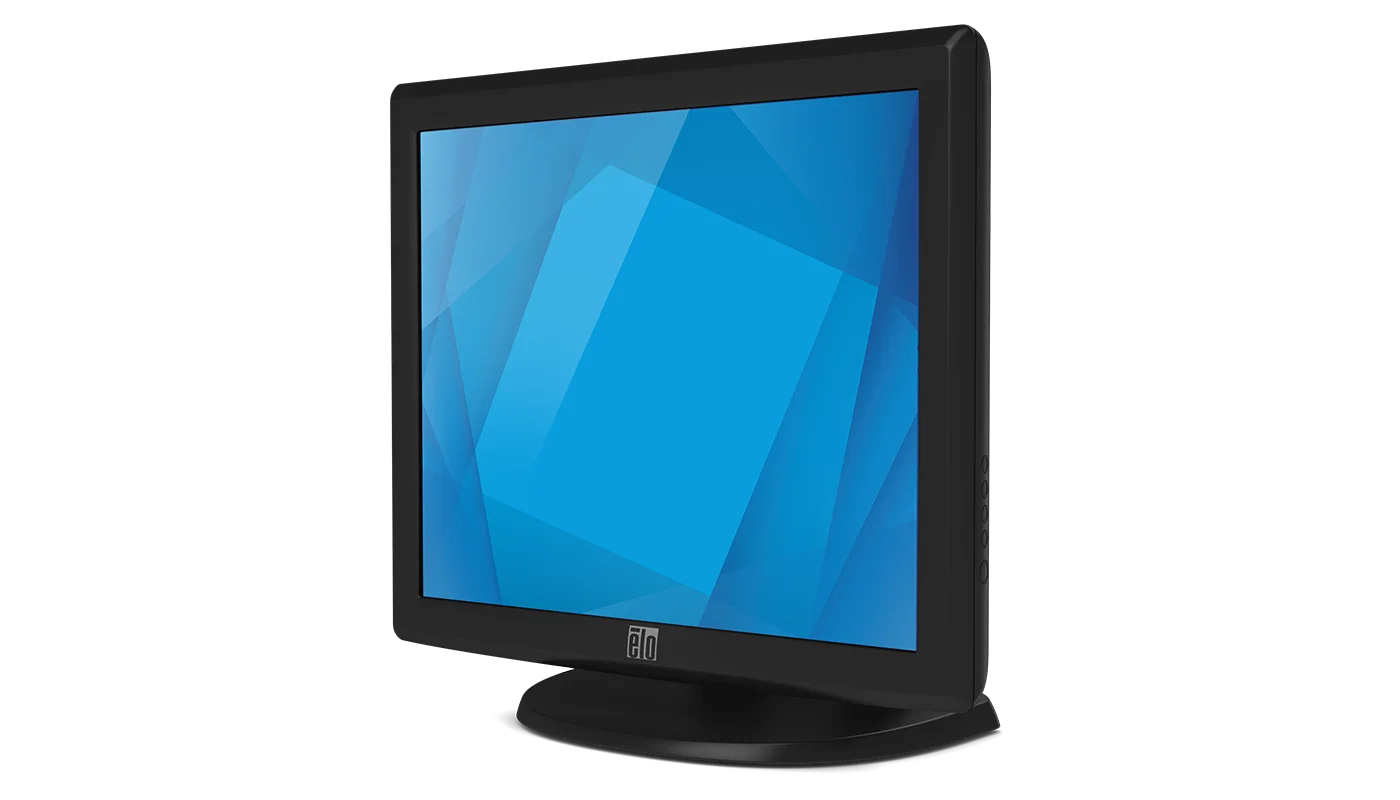

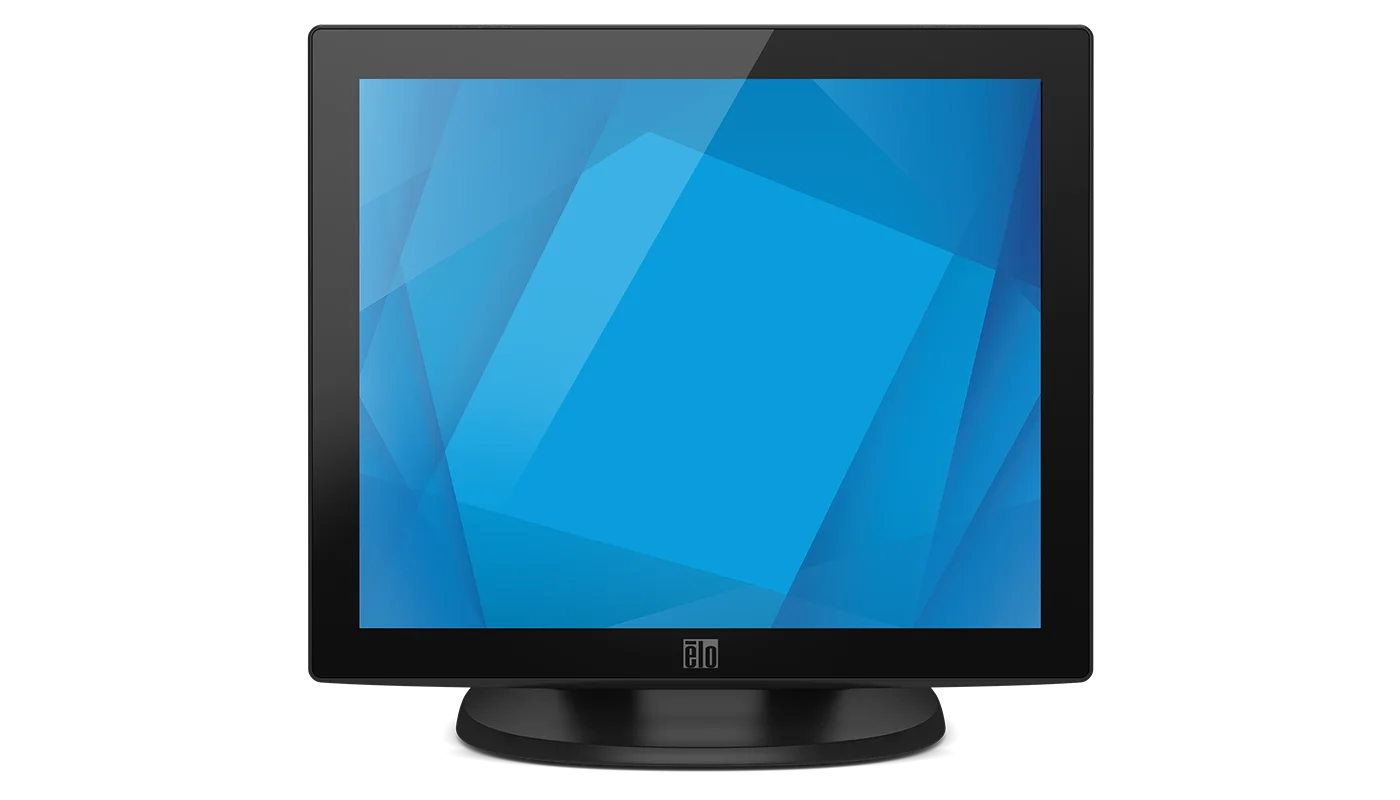

Elo Touch 1715L 17" Touchscreen Monitor
The Elo 1715L 17-inch standard format touchscreen monitor delivers professional-grade built-for-touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable bas
- Display17'' diagonal, Active matrix TFT LCD (LED)
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The Elo 1715L 17-inch standard format touchscreen monitor delivers professional-grade built-for-touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1715L offers flexibility for mounting and three touch technology options.

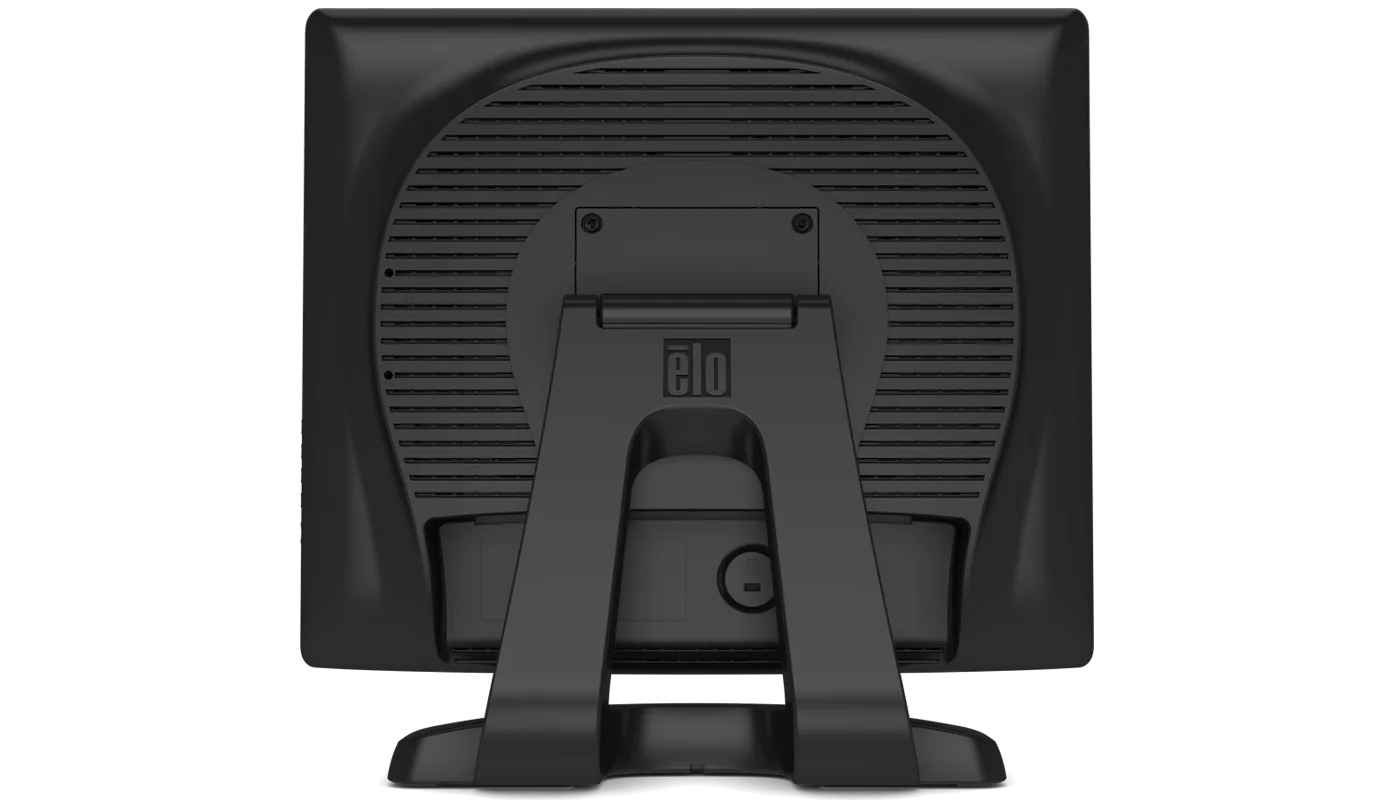

- The Elo 1715L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand.
- The 17-inch touchscreen monitor features AccuTouch™ five-wire resistive with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment.
- Affordability paired with Elo quality OR Consumer-grade pricing with Elo commercial-grade reliability
Specifications
Technical
- Part Number(s)
- AccuTouch (Americas, EMEA) - E603162
- Enclosure Color
- Dark Gray
- Touch Technology & Capacity
- 5-Wire Resistive (AccuTouch®) - Single-Touch
- Diagonal Size
- 17'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 5:4
- Active Area
- 13.3" x 10.6" / 338mm x 270mm
- Resolution
- 1280 x 1024
- Other Supported Resolutions
- 640 x 480 66 Hz; 640 x 480 60, 72, 75 Hz; 720 x 350 70 Hz; 720 x 400 70 Hz; 800 x 600 56, 60, 72, 75 Hz; 832 x 624 75 Hz; 1024 x 768 65 Hz; 1024 x 768 60, 70, 75 Hz; 1152 x 864 75 Hz; 1280 x 960 60 Hz; 1280 x 1024 60, 75 Hz
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD panel: 250 nits; AccuTouch: 200 nits
- Response Time-total (typical)
- 20 msec
- Contrast Ratio
- 1000:1
- Power
- Internal AC, power connector-C6 type; Input voltage range: 100-240VAC, 50/60Hz; Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter, 8.8mm Barrel depth); Monitor input power signal specifications: 12VDC +/- 5%
- Video
- VGA (VGA DE-15 (DB-15) Male connecter cable included); Input Video Horizontal Sync frequency range: 31.5 – 80 KHz; Input Video Vertical Sync (frame rate) frequency range: 56.3 - 75Hz
- Power Consumption (Typical)
- Monitor only:; ON: 10.52 W; SLEEP: 1.34 W; OFF: 0.3 W
- I/O Ports
- VGA; DC jack; AC jack; USB Type B; RS232 (DB-9)
- On Screen Display

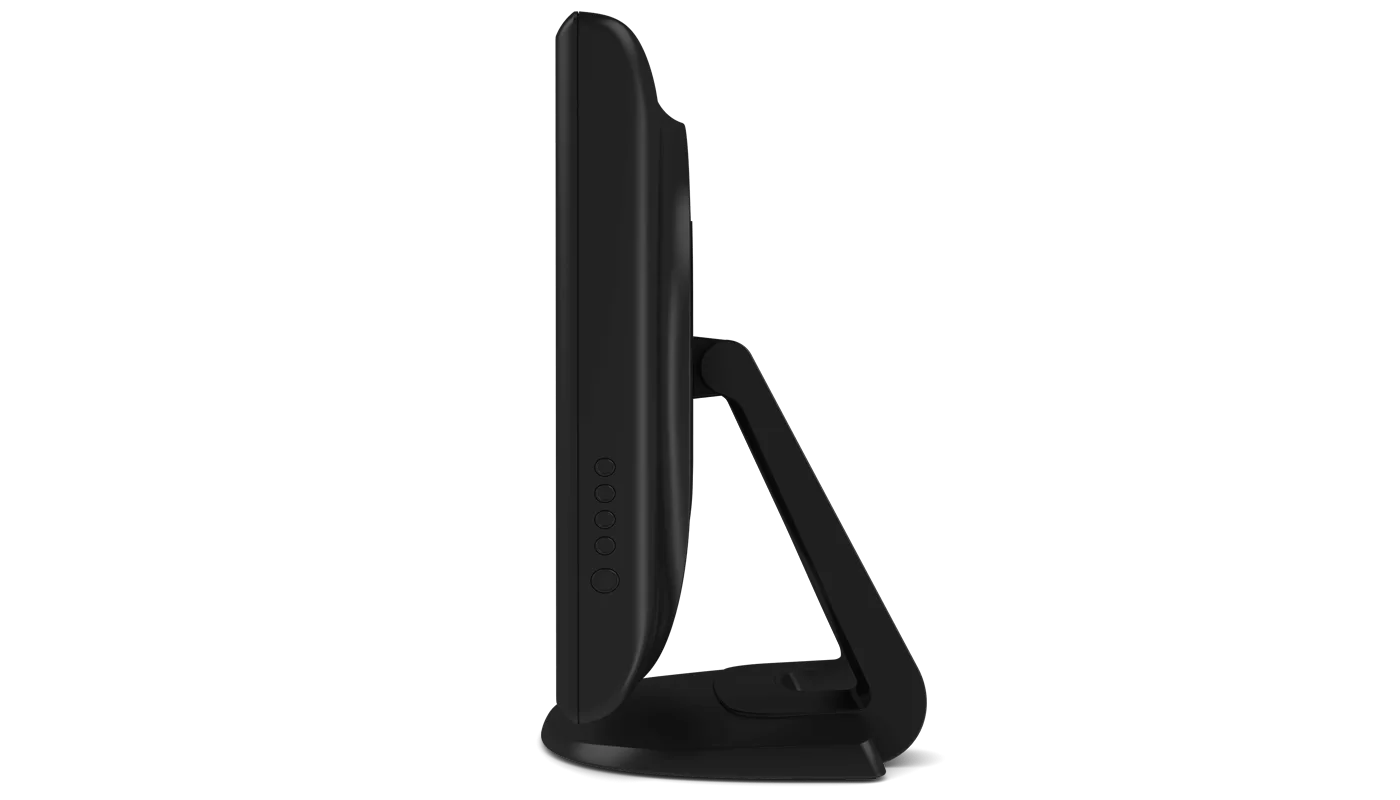

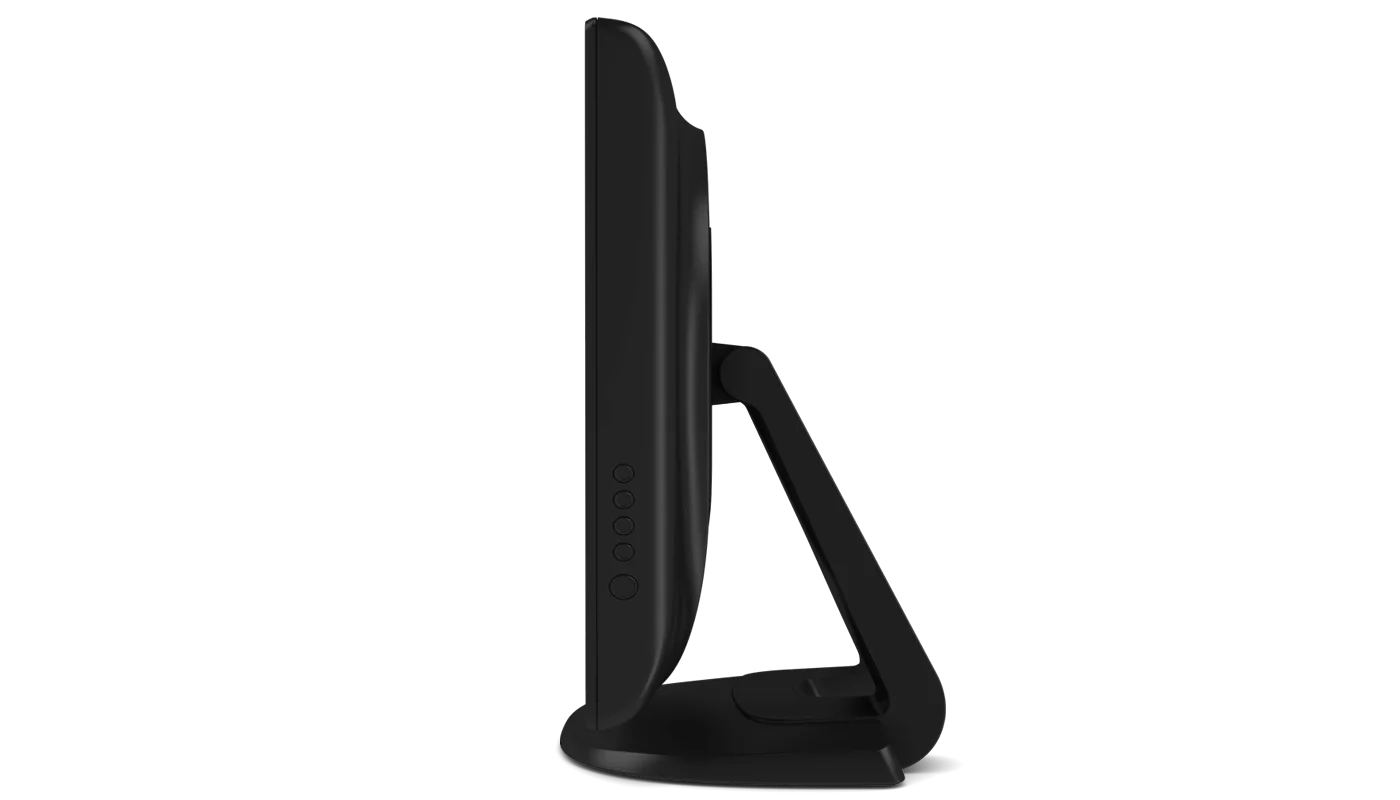

- Accessible through switches along the bottom.; Controls: Menu, Power, Up, Down, Select; Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
- Monitor Dimensions (without Stand)
- 13.0" x 15.4" x 2.44" / 331 mm x 391 mm x 62 mm
- Monitor Dimensions (with Stand)
- 14.4" x 15.4" x 8.0" / 366 mm x 391 mm x 203 mm
- Shipping Box Dimensions
- 10.2" x 19.4" x 17.6" / 260 mm x 494 mm x 448 mm
- Weight (with stand)
- 15.2 lb / 6.9 kg
- Shipping Weight (With stand)
- 21.2 lb / 9.6 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)
- MTBF
- 50,000 hours demonstrated
- Mounting Options

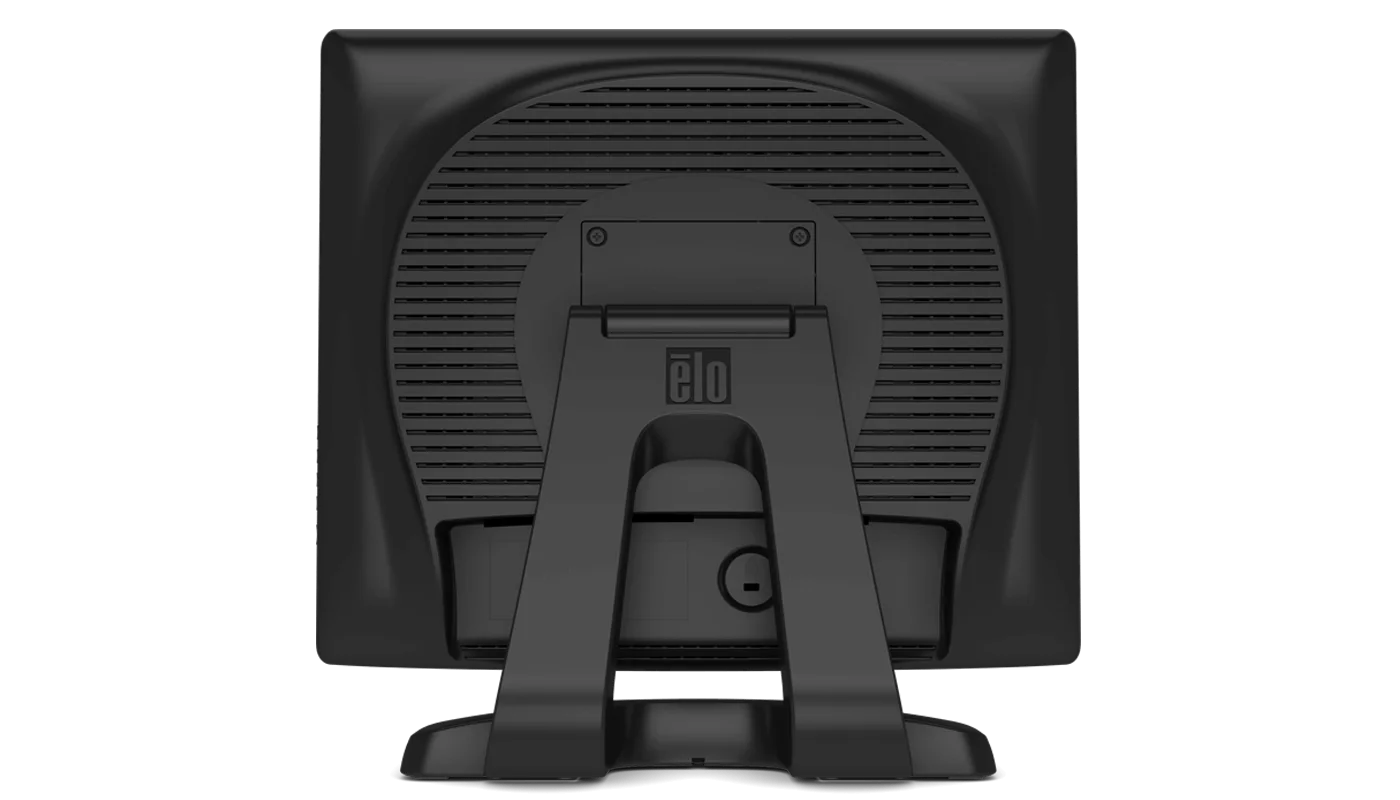

- VESA 4-hole 100mm mounting interface on rear of unit
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Canada CUL, IC; China CCC; Europe CE; United Kingdom UKCA; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico NoM; RoHS, China RoHS, WEEE, REACH
- What's in the Box
- Touch monitor; Quick Install Guide; 3x Tie wraps; VGA cable; Touch USB cable; NA Power cable; EU Power cable; EEI Label
- Optional Peripherals
- North America power adapter and cable kit - Elo P/N: E005277; European & Korea power adapter and cable kit - Elo P/N: E571601; UK power adapter and cable kit - Elo P/N: E180092; China power adapter and cable kit - Elo P/N: E558862; Taiwan power adapter and cable kit - Elo P/N: E818655; Japan power adapter and cable kit - Elo P/N: E182546; Argentina power adapter and cable kit - Elo P/N: E887099; Australia power adapter and cable kit - Elo P/N: E637593
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
