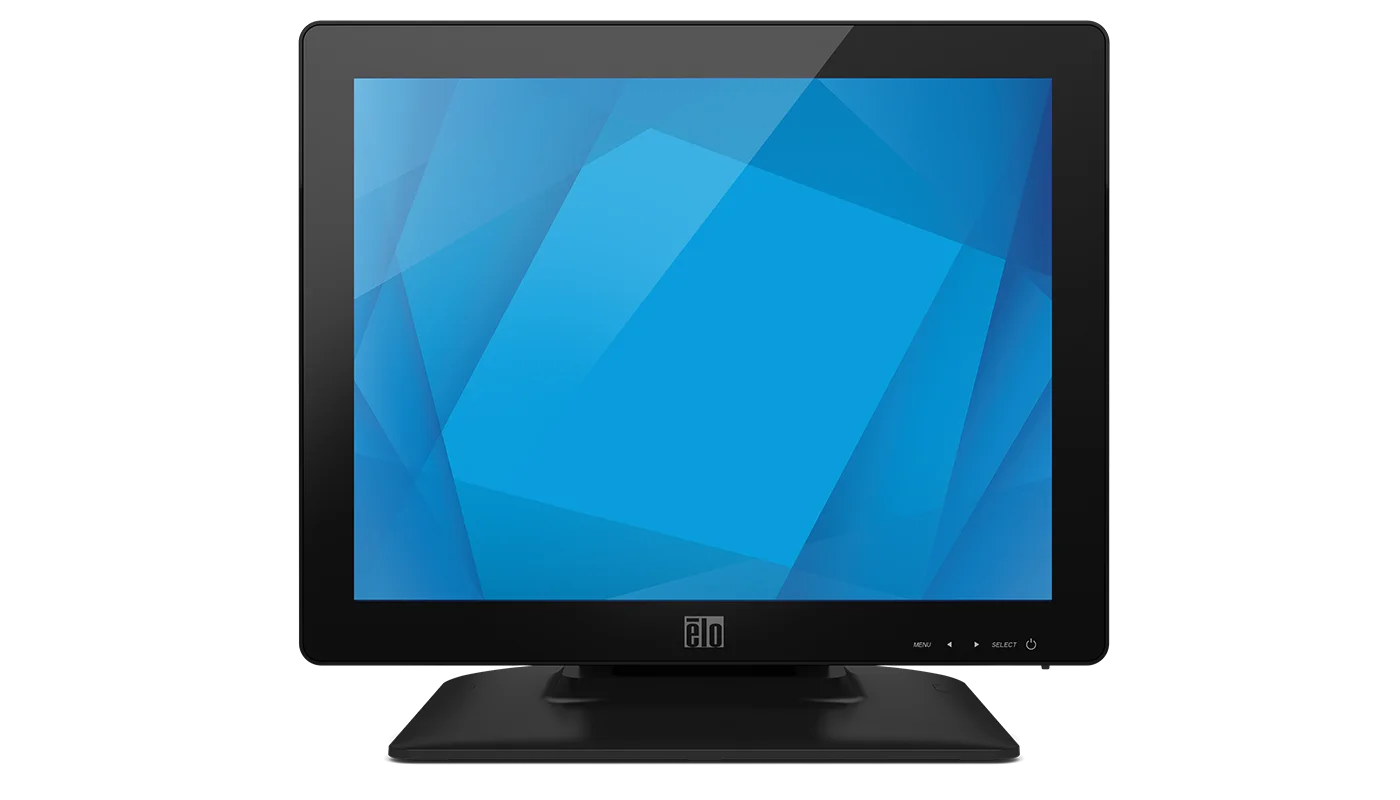

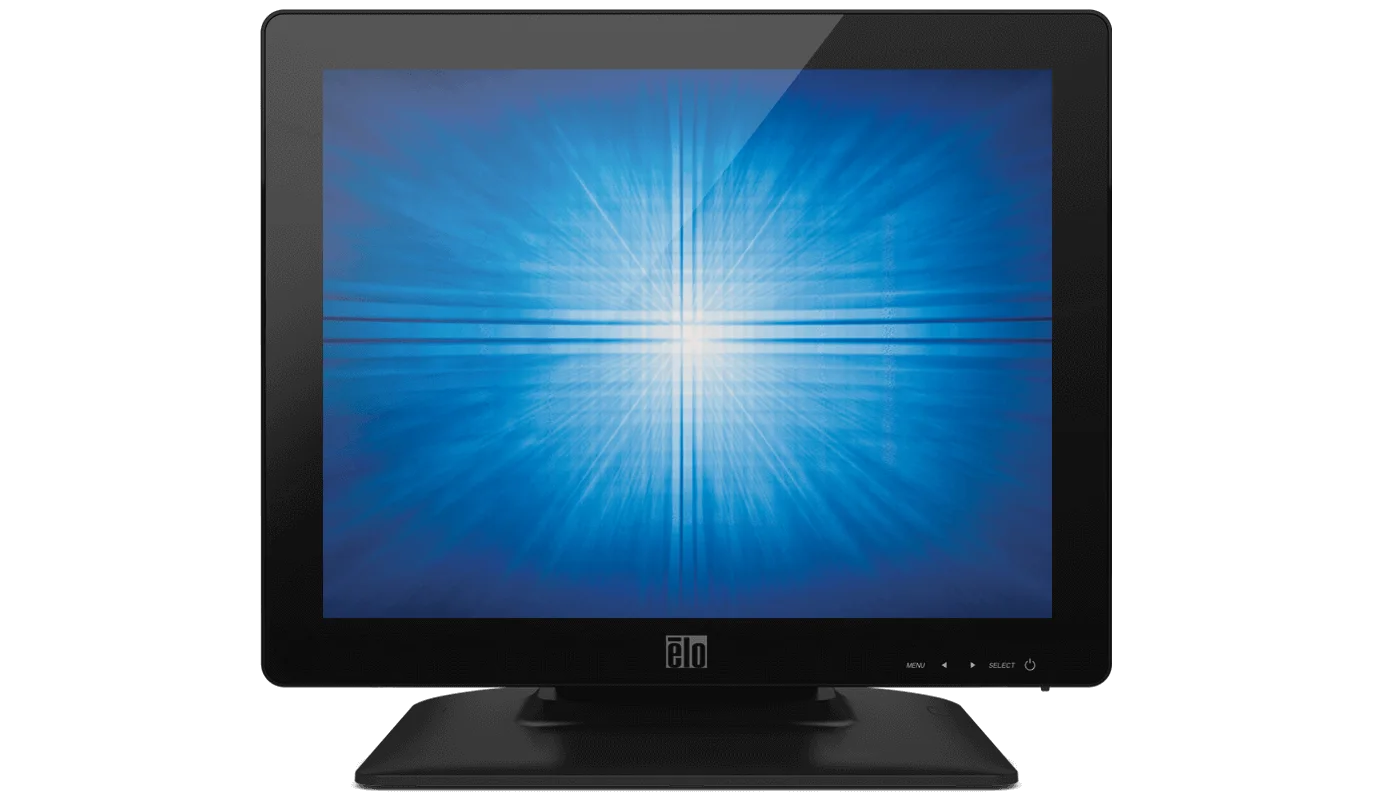

Elo Touch 1523L 15" Touchscreen Monitor
The Elo 1523L 15-inch standard format touchscreen monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. T
- Display15'' diagonal, Active matrix TFT LCD (LED)
- SealingTouchscreen sealed to bezel; Touchscreen sealed to LCD
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview

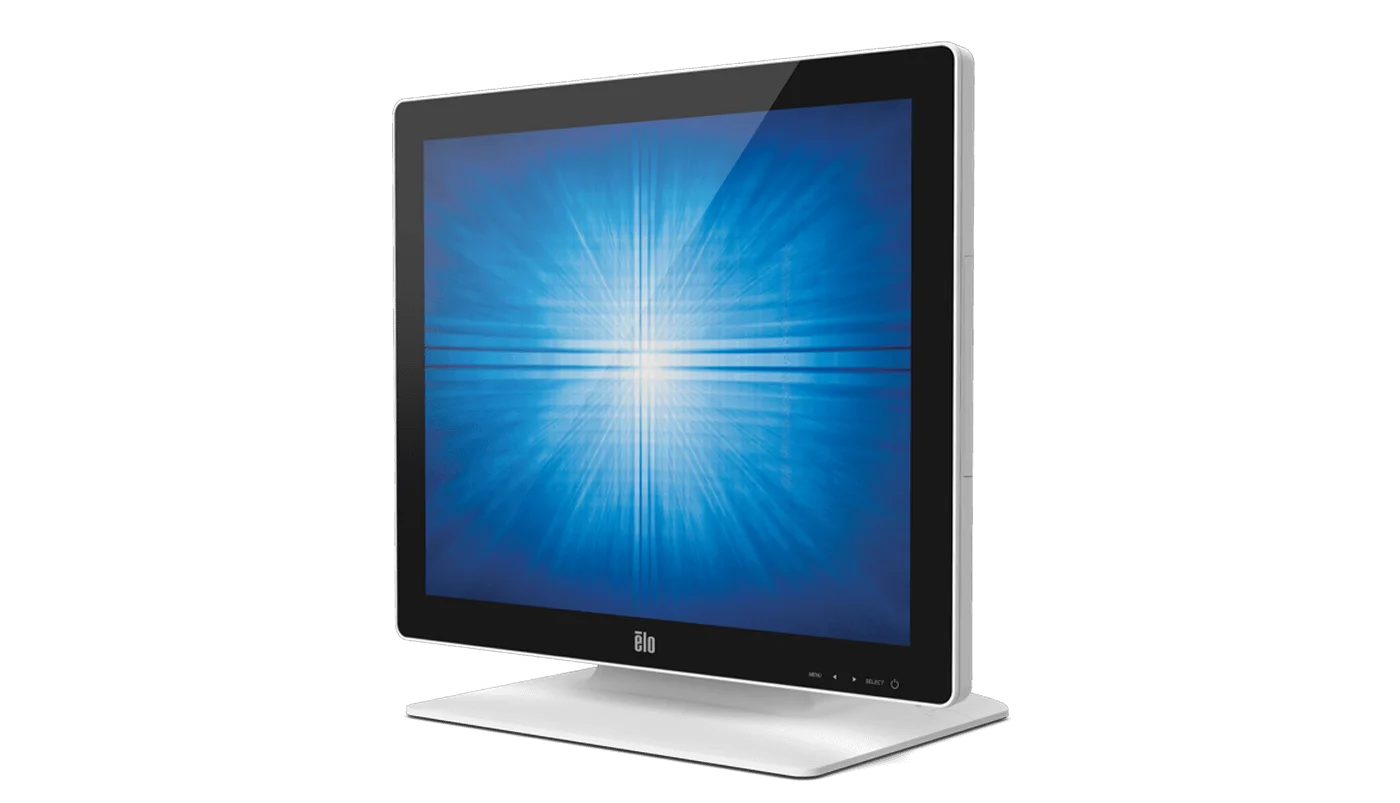

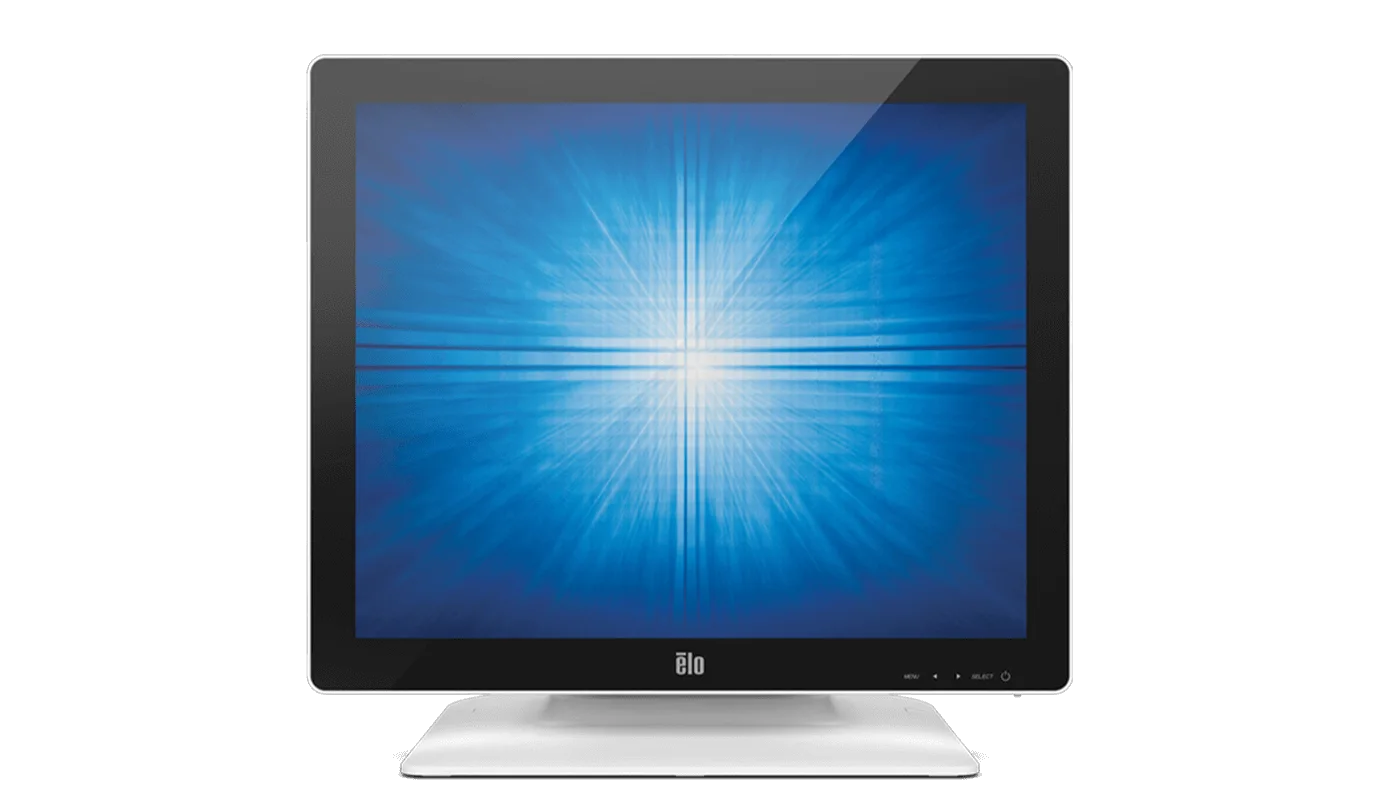

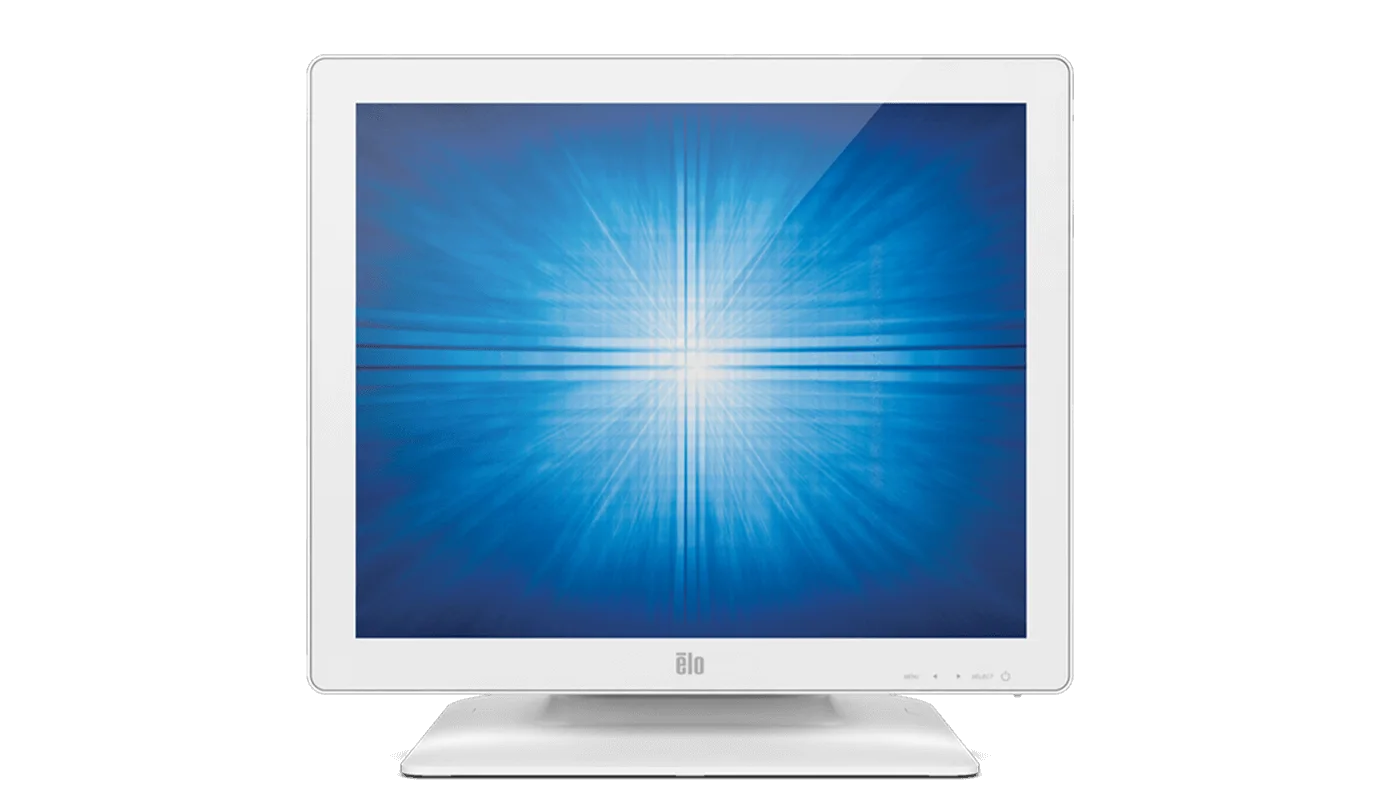

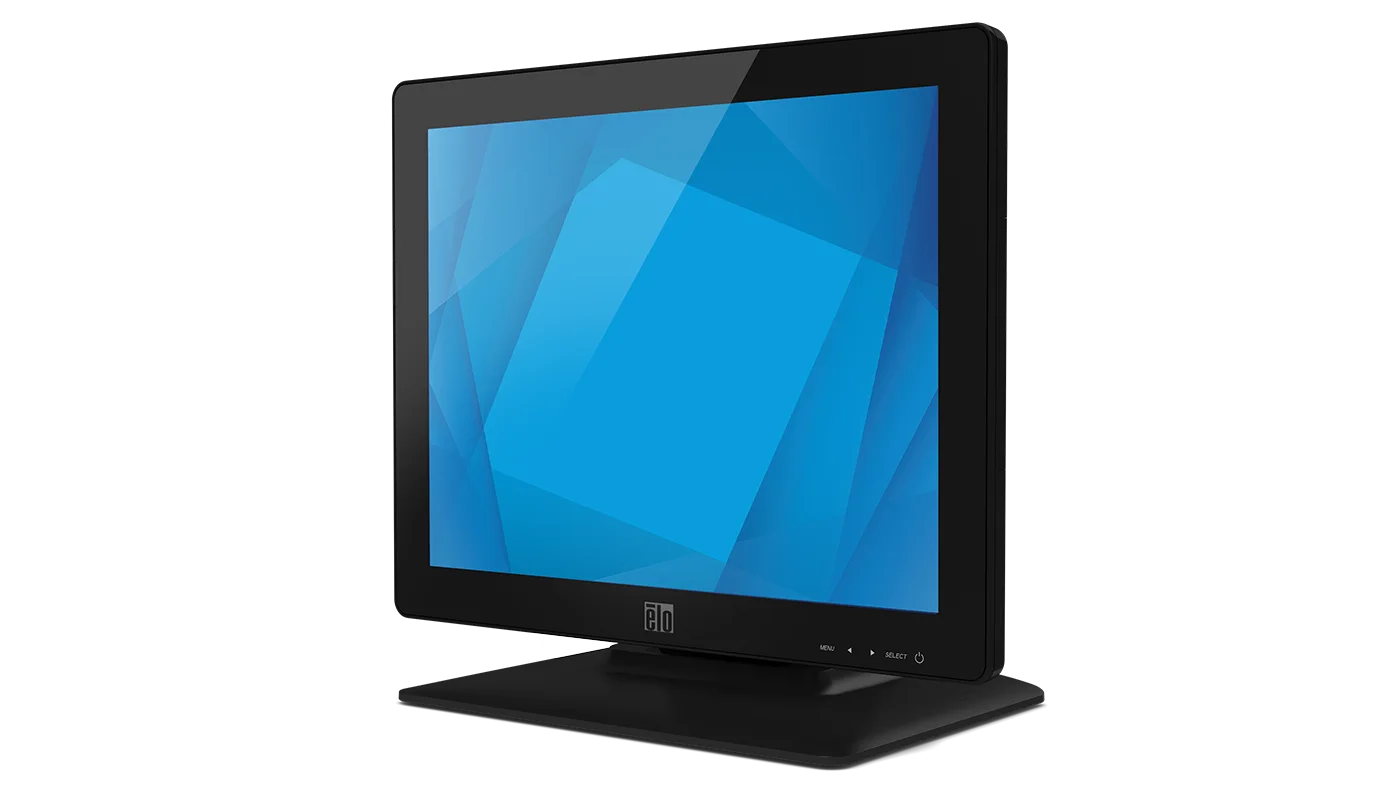

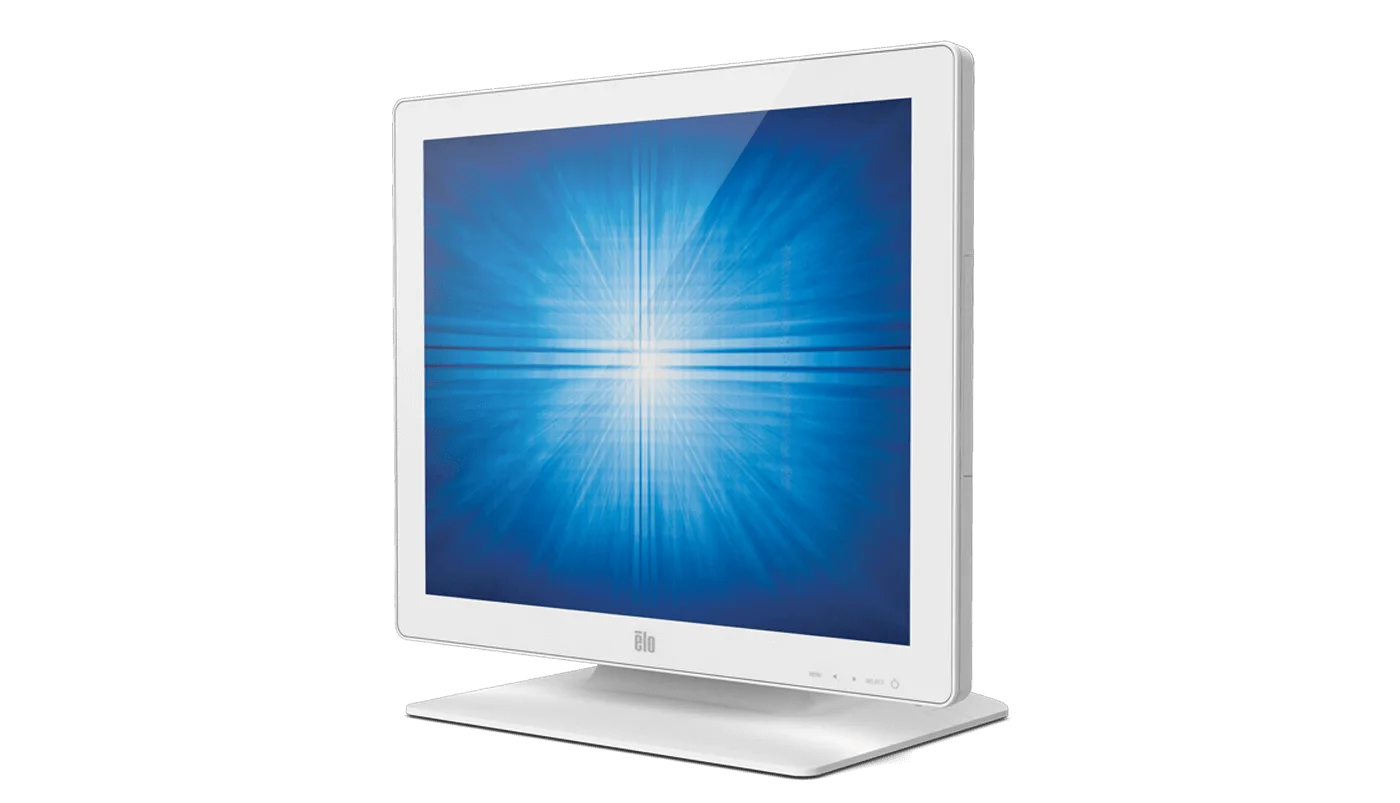

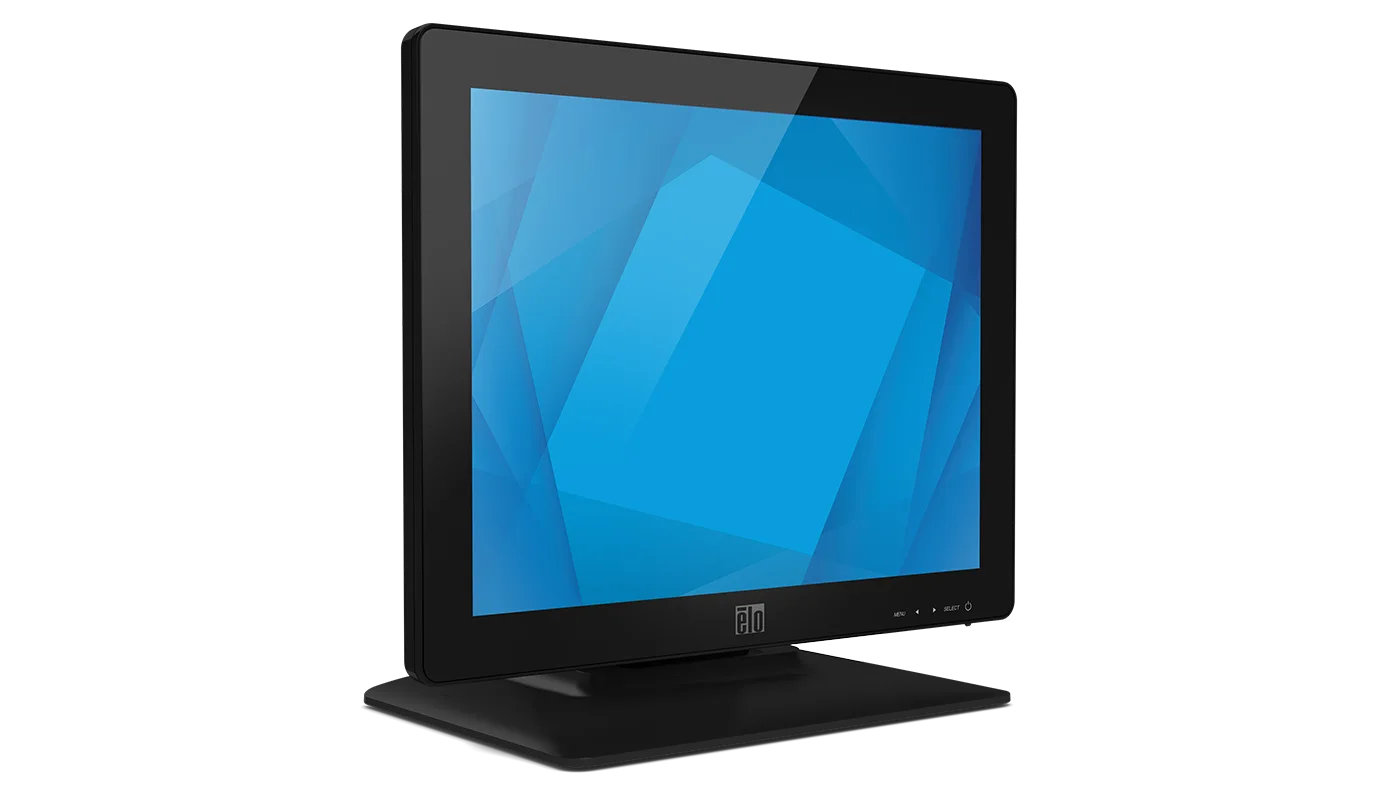

The Elo 1523L 15-inch standard format touchscreen monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1523L brings a clean, modern feel to any environment. The zero-bezel touchmonitor is available in both black or white with Elo’s industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
- The 15-inch monitor offers Elo's industry leading TouchPro™ PCAP touchscreen technology with a 10-touch tablet like experience. The clean edge-to-edge glass design is perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.

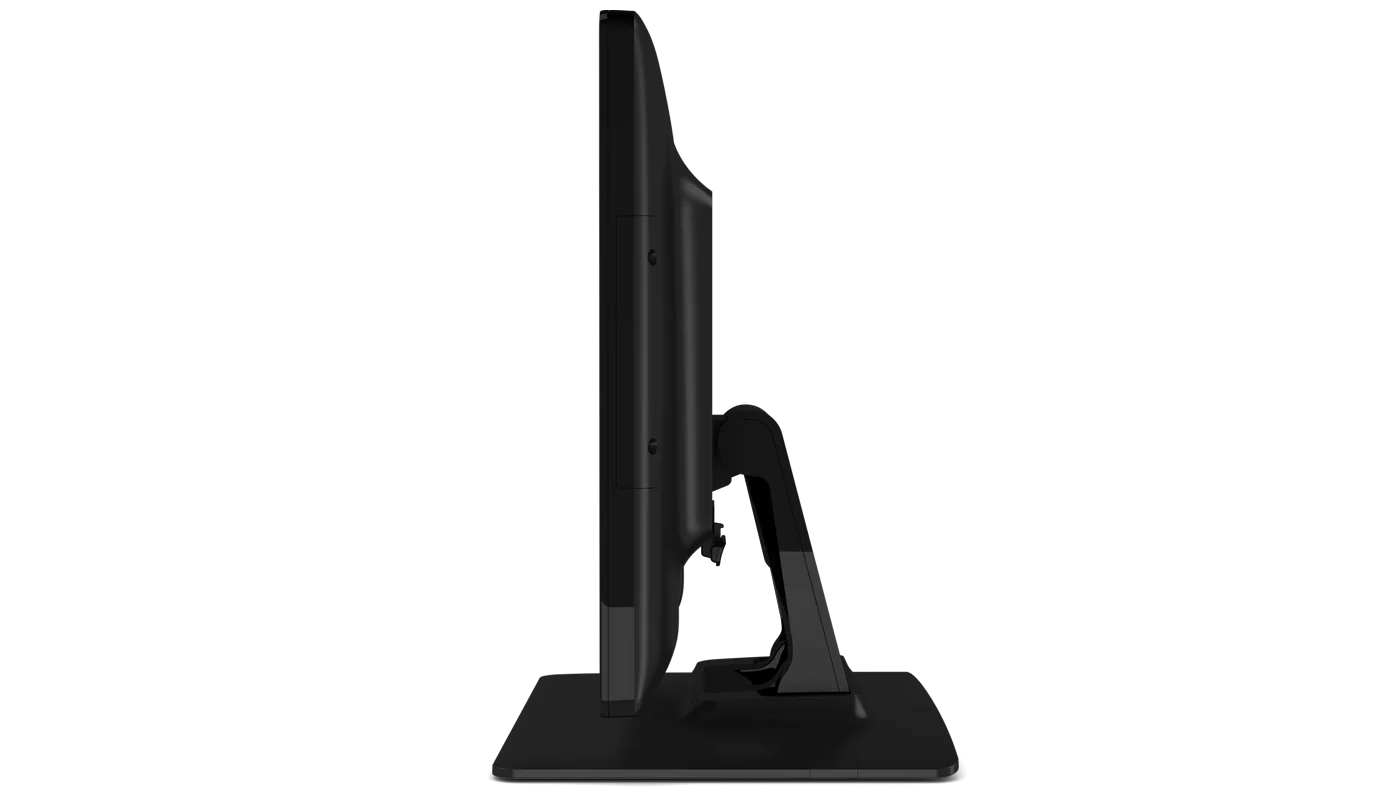

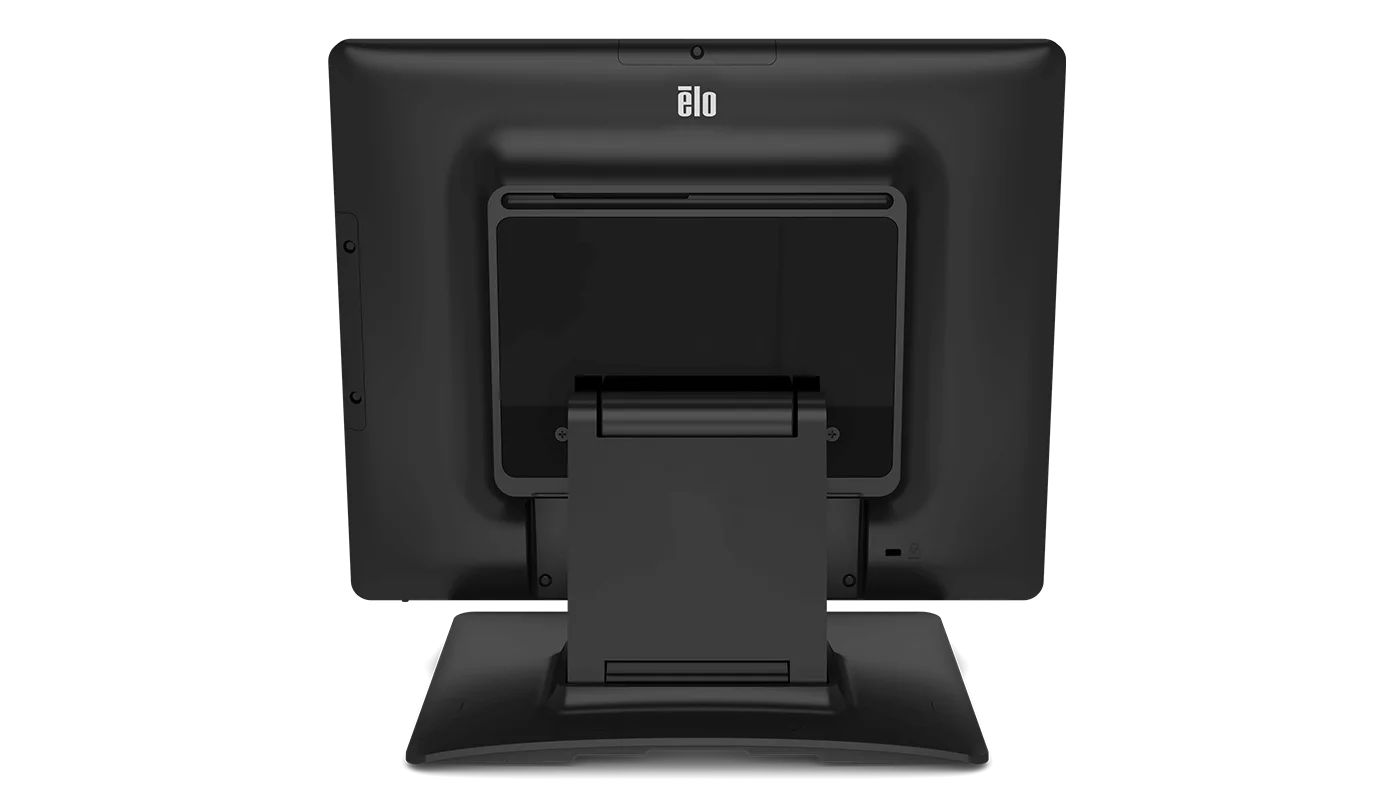

- The multiple mount and stand options for the 1523L ensures installation flexibility and accommodates tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns. The dual position stand offers a single hinge design with high/low settings and tilt functionality.
- The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
Technical
- Part Number(s)
- PCAP White (Worldwide) - E336518; PCAP Black (Worldwide) - E738607
- Enclosure Color
- White or Black
- Touch Technology & Capacity
- PCAP (Projected Capacitive) - 10 Touch
- Diagonal Size
- 15'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 4:3
- Active Area
- 11.97" x 8.98" / 304.13 mm x 228.1 mm
- Resolution
- 1024 x 768 @ 60Hz
- Other Supported Resolutions
- 1024 x 768 at 60, 65, 70 or 75 Hz; 800 x 600 at 56, 60,75 Hz; 720 x 400 at 70 Hz; 640 x 480 at 60,75 Hz
- Viewing Angle
- Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
- Number of Colors
- 16.2 million
- Brightness (typical)
- LCD panel: 300 nits; PCAP: 270 nits
- Response Time-total (typical)
- 23 msec
- Contrast Ratio
- 800:1
- Touch Interface
- USB
- On Screen Display
- Accessible through switches along the bottom:; Controls (side): Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
- USB Ports
- 2 peripheral ports (USB Interface)
- Speakers
- Two 2W internal speakers
- Video
- Analog VGA on Female DB-15 connector; Digital DVI on Female DVI-D, Dual-Link connector; Digital HDMI type A Receptacle; Input Video Horizontal Sync frequency range: 31.5 – 80KHz; Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
- Power
- Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter); Monitor input power signal specifications: 12VDC +/- 5%; Note: This monitor is sold with an AC-DC power adapter.; Adapter input connector: IEC 60320 C14; Adapter input voltage range: 100-240VAC, 50/60Hz
- Power Consumption (Typical)
- Monitor + AC/DC adapter; ON: 10.5W; SLEEP: 1.3W; OFF: 0.2W
- Monitor Dimensions (with Stand)
- 14.1" x 7.84" x 12.53" / 358.1mm x 199.1mm x 318.5mm
- Shipping Box Dimensions
- 17.48" x 14.88" x 8.31" / 444 mm x 378 mm x 211 mm
- Weight (Unpackaged)
- 9.26 lbs / 4.2 kg
- Weight (Packaged)
- 15.43 lb / 7.0 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
- Sealability
- Touchscreen sealed to bezel; Touchscreen sealed to LCD
- MTBF
- 50,000 hours demonstrated
- Stand Options
- Tilt, remove
- Mounting Options
- VESA 4-hole 75mm mounting interface on rear of unit; 3-hole threaded mounting on bottom of stand; See dimensional drawings for details
- Other Features
- 2 stage DPMS; VESA DDC Plug and Play; Security lock receptacle
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Australia RCM; Canada cUL, IC; China CCC; Europe CE; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NOM; Taiwan BSMI Mark; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
- What's in the Box
- 1523L Touchmonitor; Quick Install Guide; 50W Power Brick, power cable; IEC 60320-C13 to NA/EU plug; DVI-D cable; VGA cable (DB-15 male to DB-15 male); USB cable (Type A plug to Type B plug); Audio cable; Stand base assembly; Filler Plate; HDMI cable; EEI Label
- Optional Peripherals
- Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912; North America power adapter and cable kit - Elo P/N: E005277; European & Korea power adapter and cable kit - Elo P/N: E571601; UK power adapter and cable kit - Elo P/N: E180092; China power adapter and cable kit - Elo P/N: E558862; Taiwan power adapter and cable kit - Elo P/N: E818655; Japan power adapter and cable kit - Elo P/N: E182546; Argentina power adapter and cable kit - Elo P/N: E887099; Australia power adapter and cable kit - Elo P/N: E637593; PCAP Stylus Pen - Elo P/N: E066148
- Stands, Mounts & Kits
- 1523L VESA Mount Plate (White) - Elo p/n: E000449; 1523L VESA Mount Plate (Black) - Elo p/n: E000448
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
