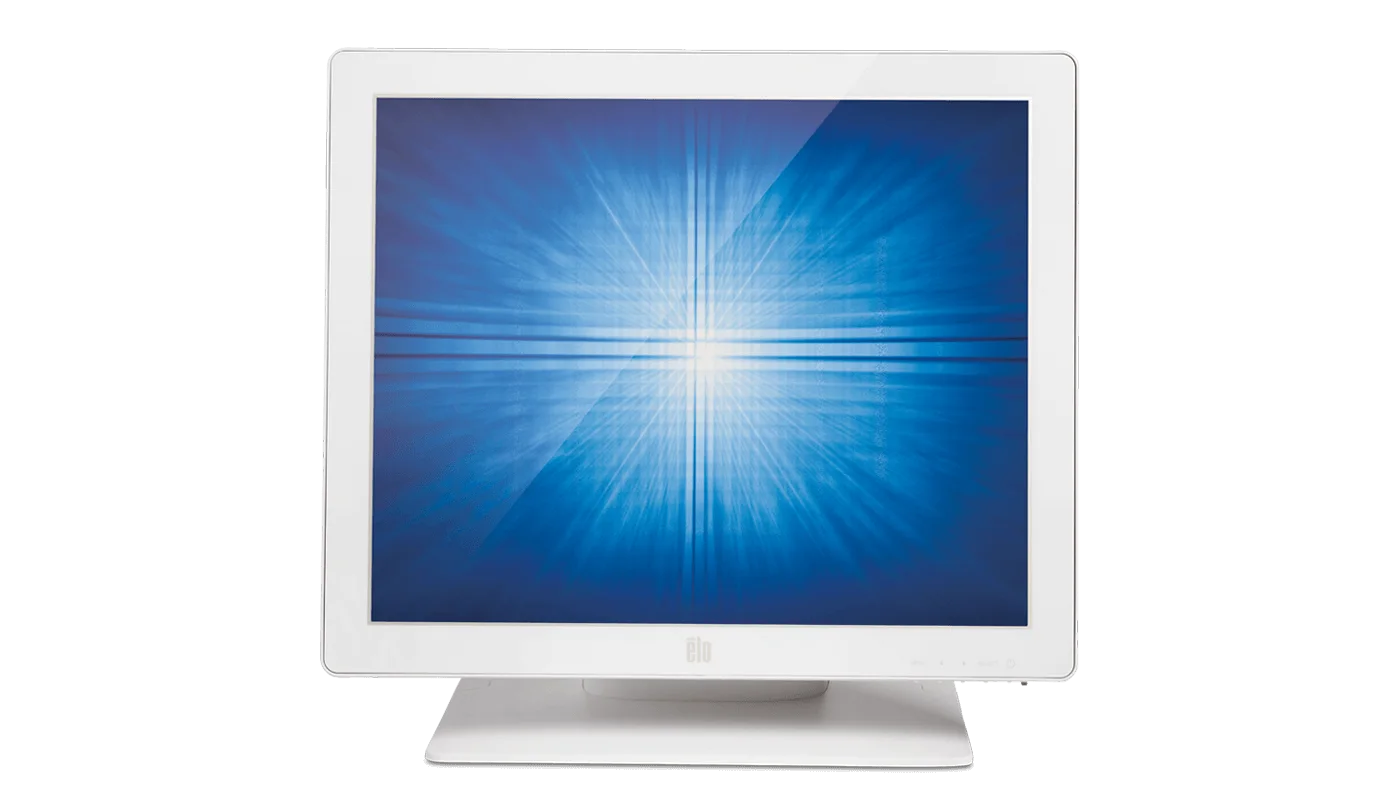

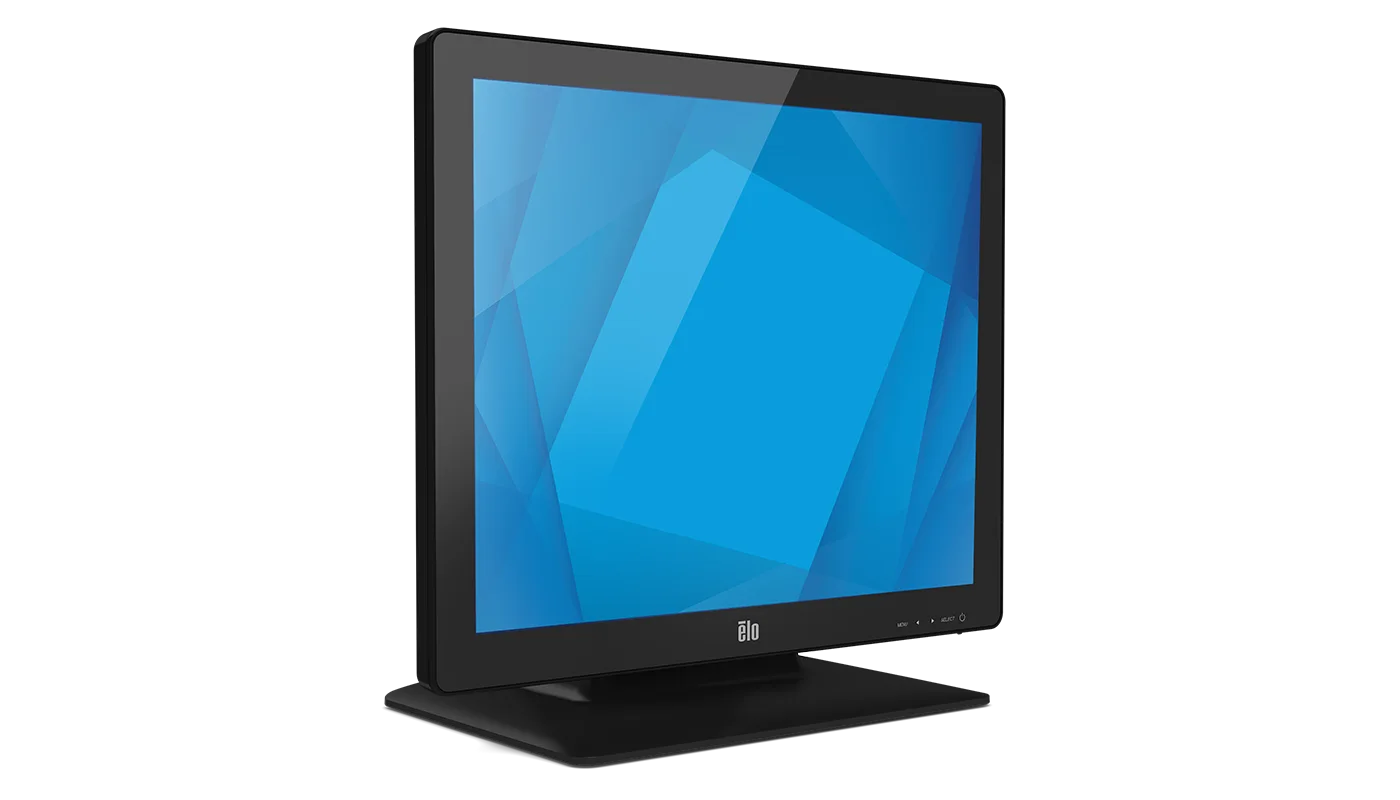

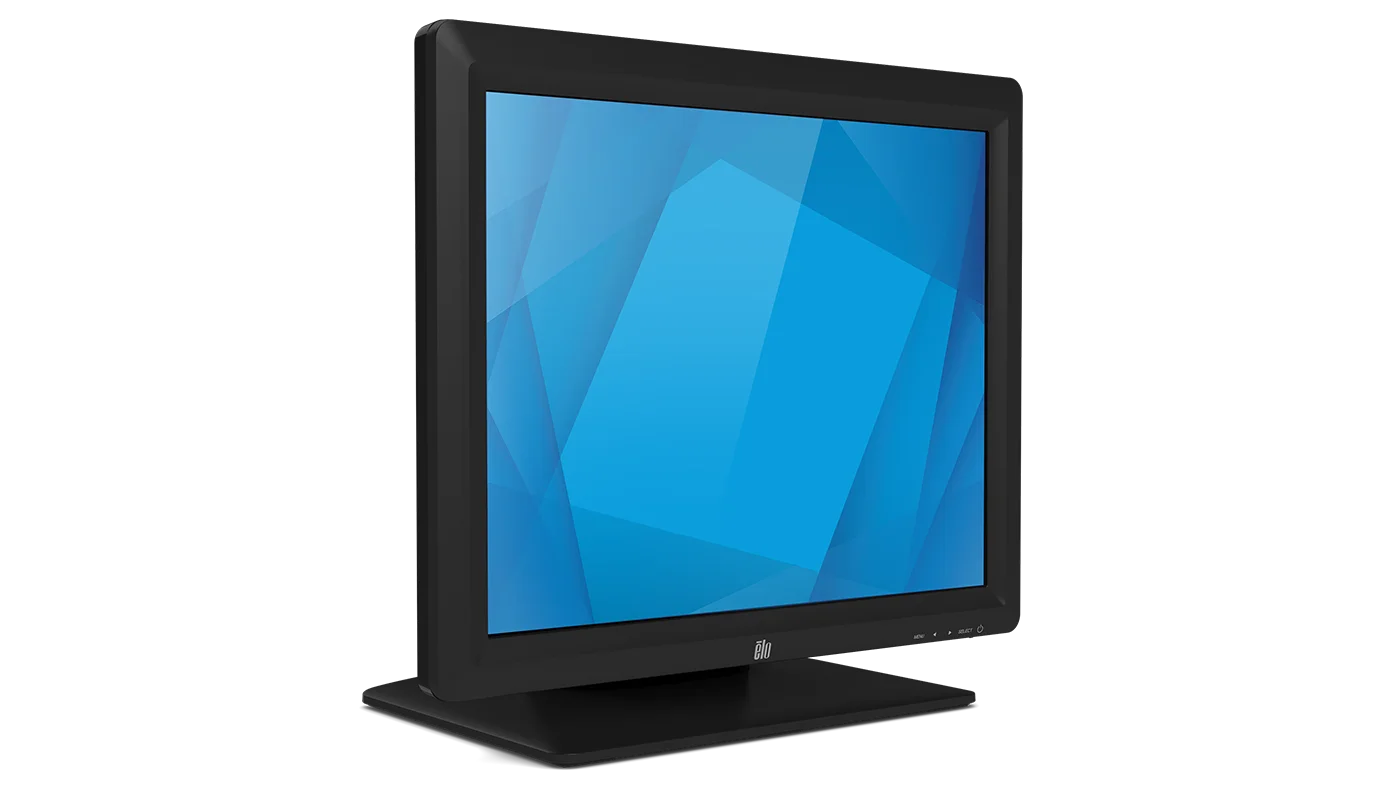

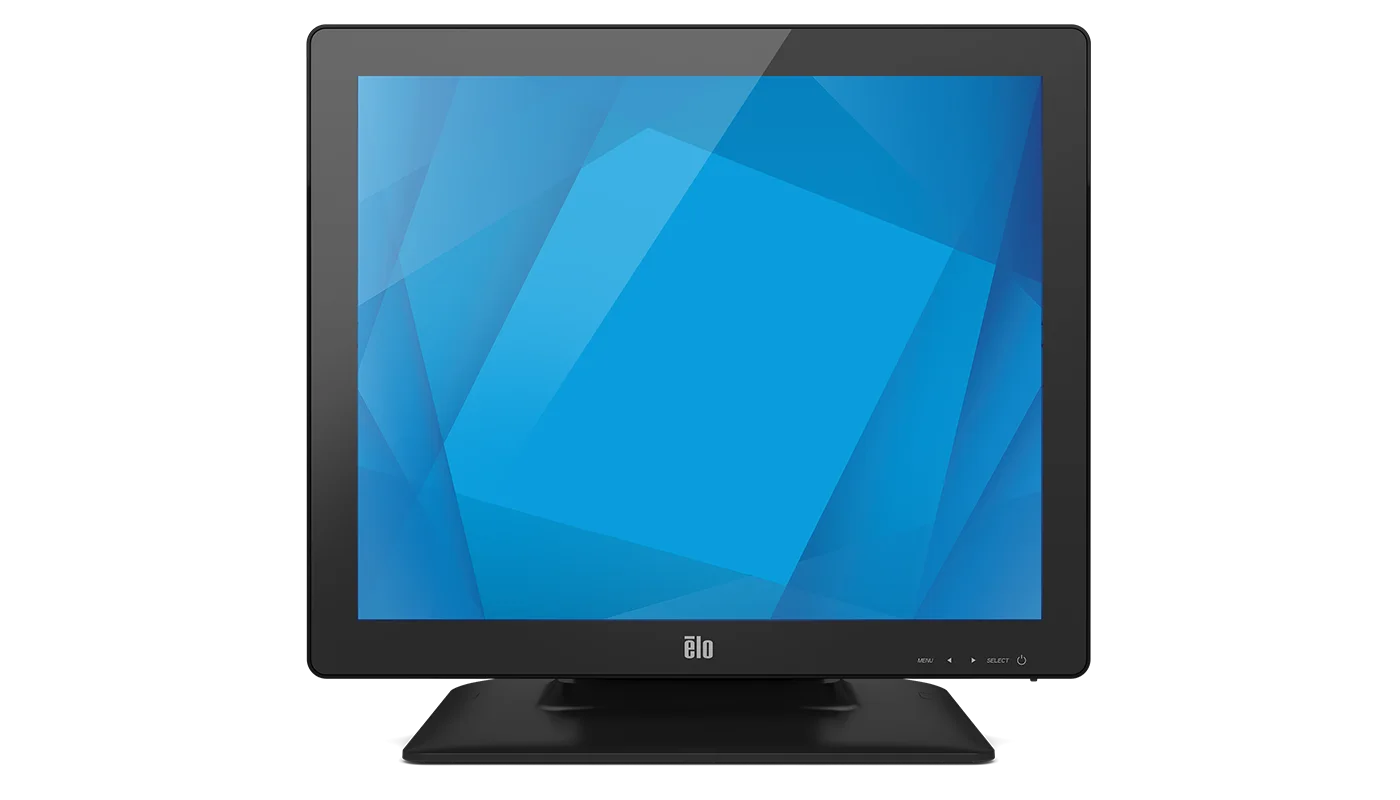

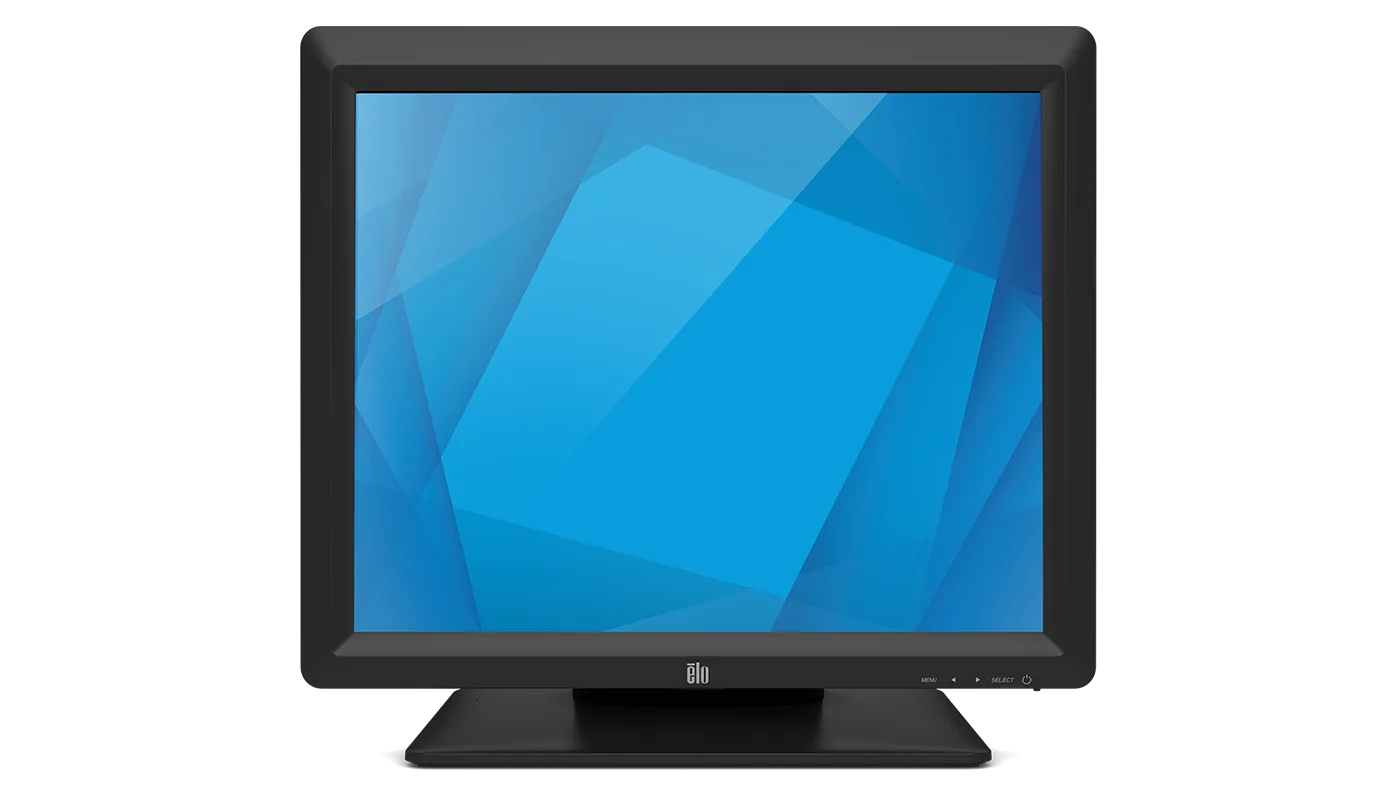

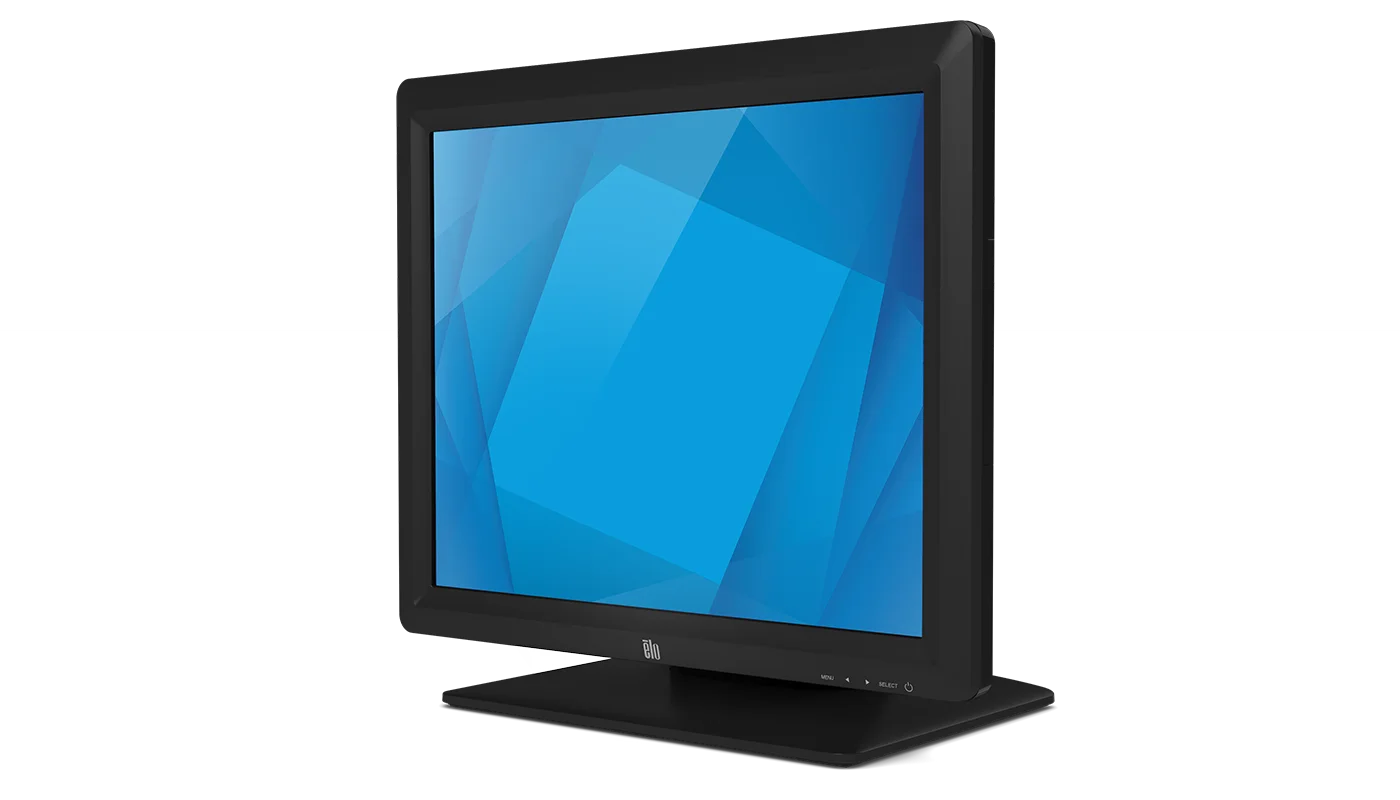

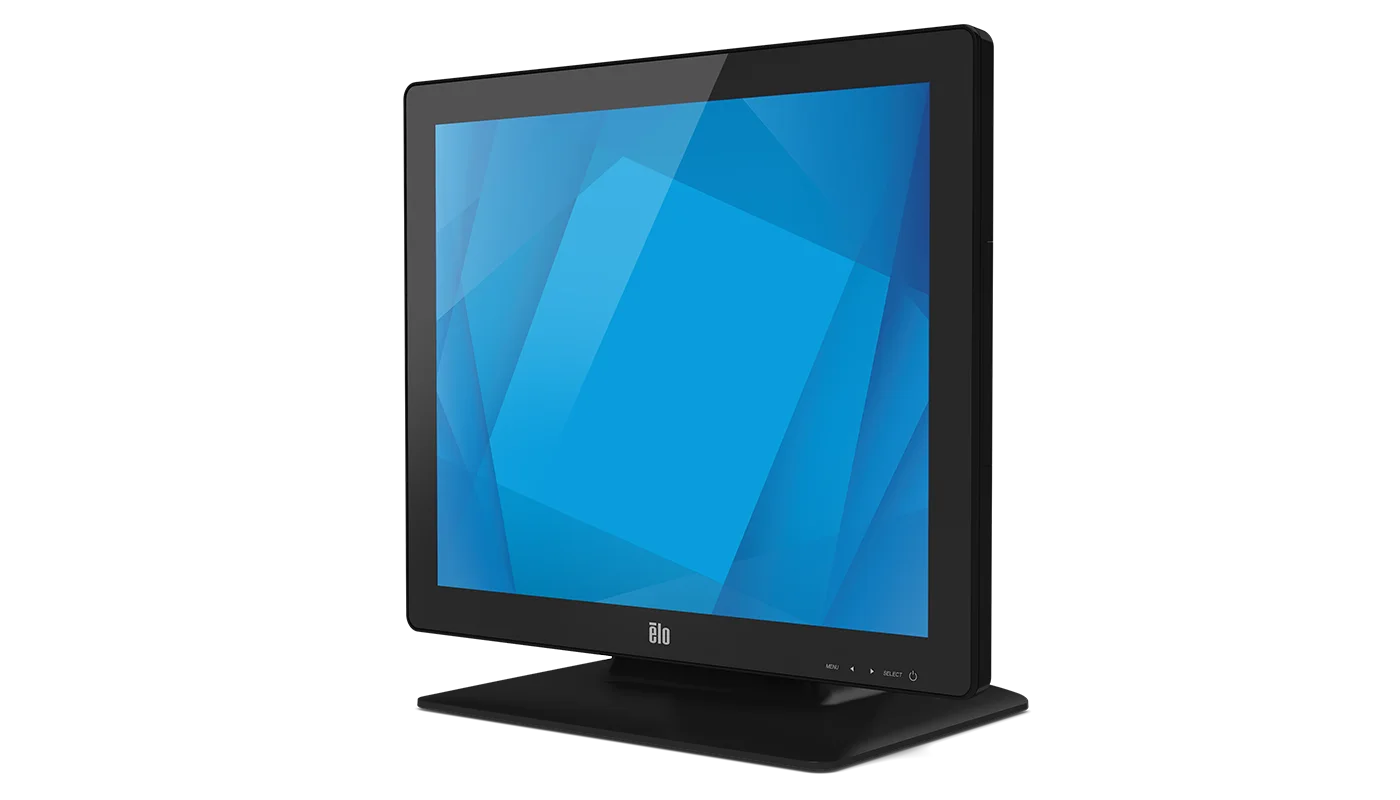

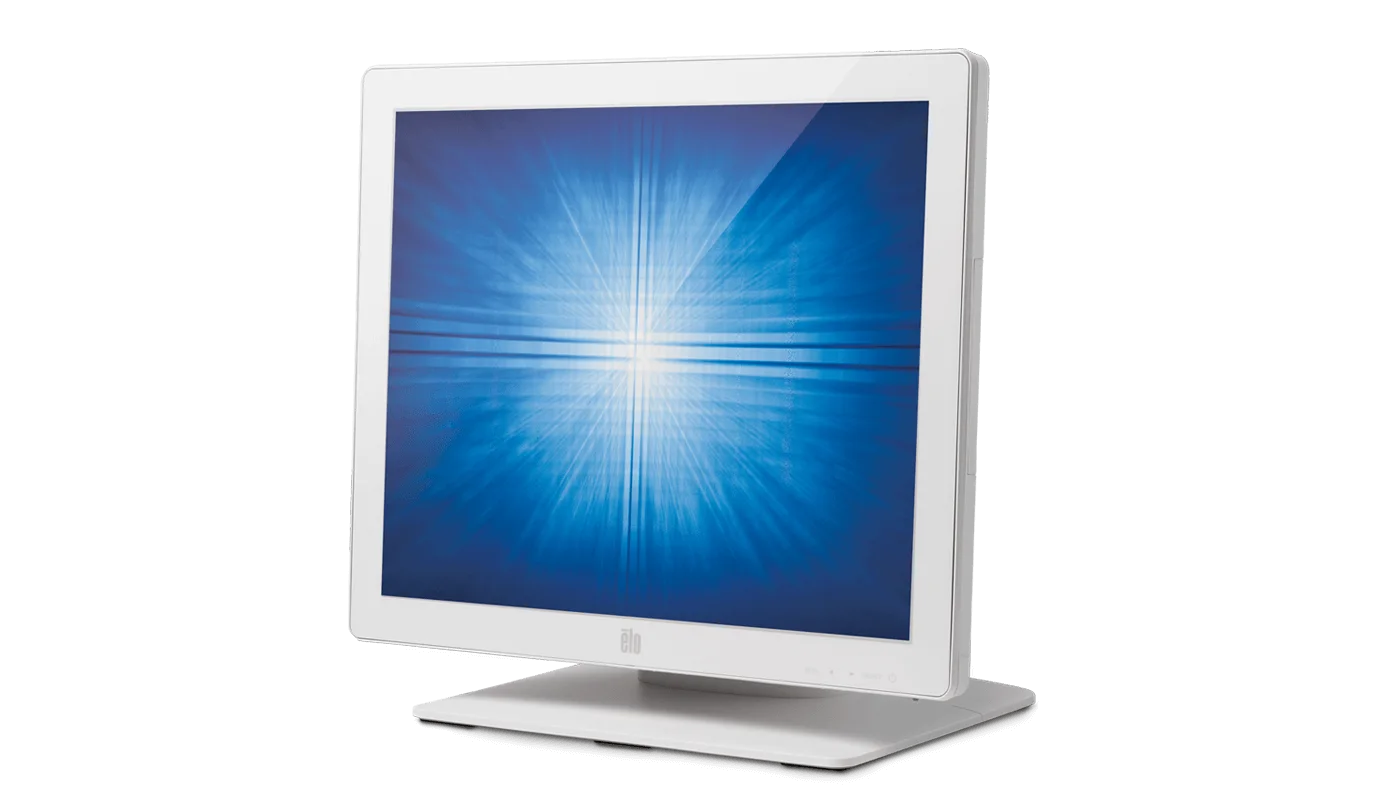

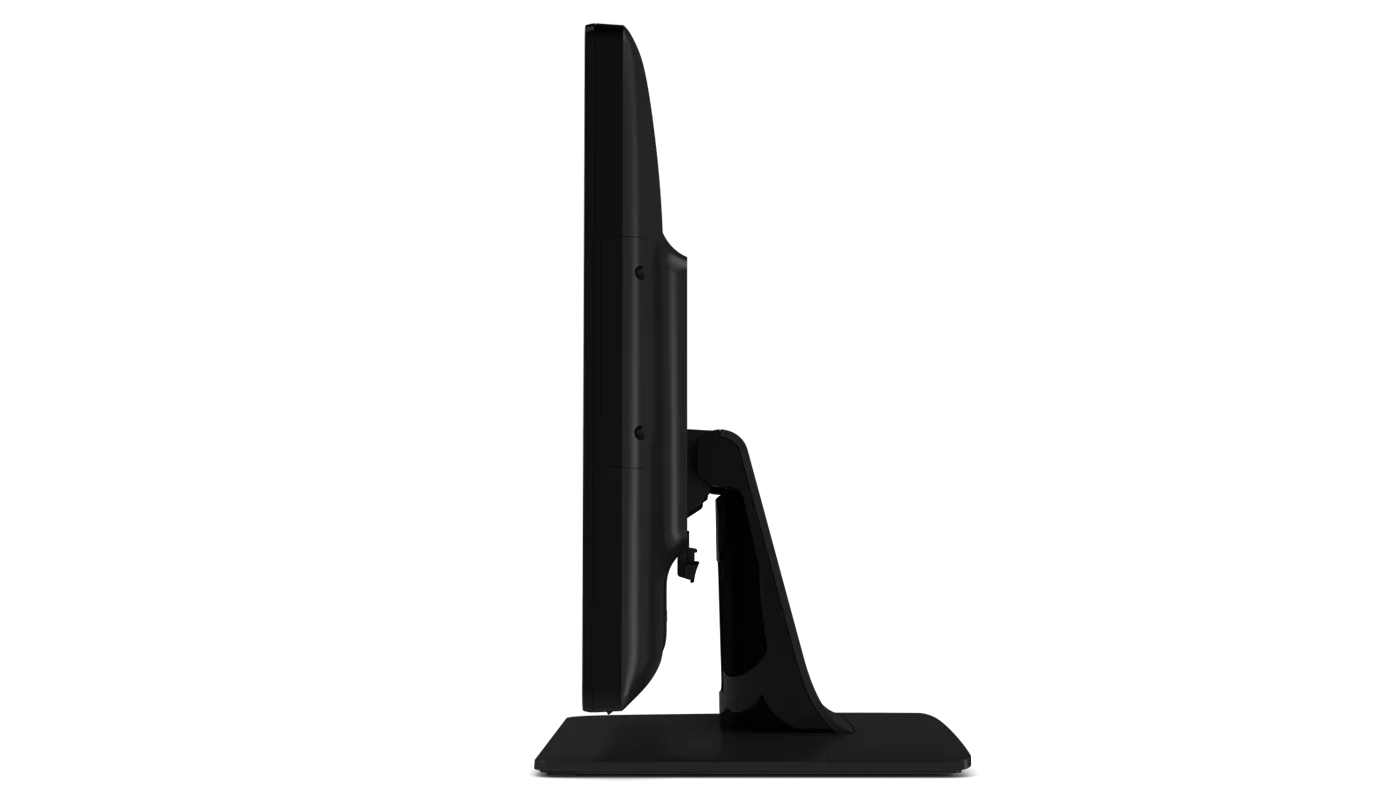

Elo Touch 1517L 15" Touchscreen Monitor
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a reta
- Display15'' diagonal, Active matrix TFT LCD (LED)
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
- The 15‑inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch™ five‑wire resistive is widely used in retail and hospitality environments for its proven ability to withstand splashing liquids, food, and grease. TouchPro™ projected capacitive (PCAP) delivers edge-to-edge glass with excellent optical performance, multi-touch capability, and long-term durability—ideal for modern, high-traffic environments.
- The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
- The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Specifications
Technical
- Part Number(s)
- AccuTouch Black (Worldwide) - E523163; AccuTouch ZB Black (Worldwide) - E144246; TouchPro PCAP Black (Worldwide) - E596184
- Enclosure Color
- Black
- Touch Technology & Capacity
- 5-Wire Resistive (AccuTouch®) - Single-Touch; PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Diagonal Size
- 15'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 4:3
- Active Area
- 11.97" x 8.98" / 304.13 mm x 228.10 mm
- Resolution
- 1024 x 768 @ 60Hz, 75Hz
- Other Supported Resolutions
- 640 x 480 60Hz, 75Hz; 720 x 400 70Hz; 800 x 600 56Hz, 60Hz, 75Hz; 1024 x 768 60Hz, 75Hz
- Viewing Angle
- Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
- Number of Colors
- 16.2 million
- Brightness (typical)
- LCD panel: 300 nits; TouchPro PCAP: 270 nits; AccuTouch: 240 nits
- Response Time-total (typical)
- 23 msec
- Contrast Ratio
- 800:1
- Touch Interface
- Serial (RS232) and USB
- On Screen Display
- Accessible through switches along the bottom.; Controls: Menu, Up, Down, Select, Power; Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
- I/O Ports
- VGA; HDMI; DC jack; AC jack; USB Type B; RS-232 (DB-9)
- Video
- Analog VGA on Female DB-15 connector; Digital HDMI on Type A receptacle; Input Video Horizontal Sync frequency range: 31.5 – 60KHz; Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
- Power
- Monitor AC input power connector: IEC 60320 C6; Monitor AC input voltage specifications: 100-240VAC, 50/60Hz.; Monitor DC input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter); Monitor DC input voltage specifications: 12VDC +/- 5%
- Power Consumption (Typical)
- Monitor Only; ON: 10.5W; SLEEP: 1.40W; OFF: 0.3W
- Monitor Dimensions (without Stand)
- Bezel: 14.1" x 1.97" x 11.22" / 358 mm x 50 mm x 285; Zero Bezel: 14.1" x 1.73" x 11.22" / 358 mm x 44.1 mm x 285 mm
- Monitor Dimensions (with Stand)
- 14.1" x 7.8" x 12.5" / 358 mm x 197 mm x 319 mm
- Shipping Box Dimensions
- 17.91" x 8.98" x 16.38" / 455 mm x 228 mm x 416 mm
- Weight (Unpackaged)
- 9.48 lbs / 4.3 kg
- Weight (Packaged)
- 16.09 lbs / 7.3 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- 20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- MTBF
- 50,000 hours demonstrated
- Mounting Options

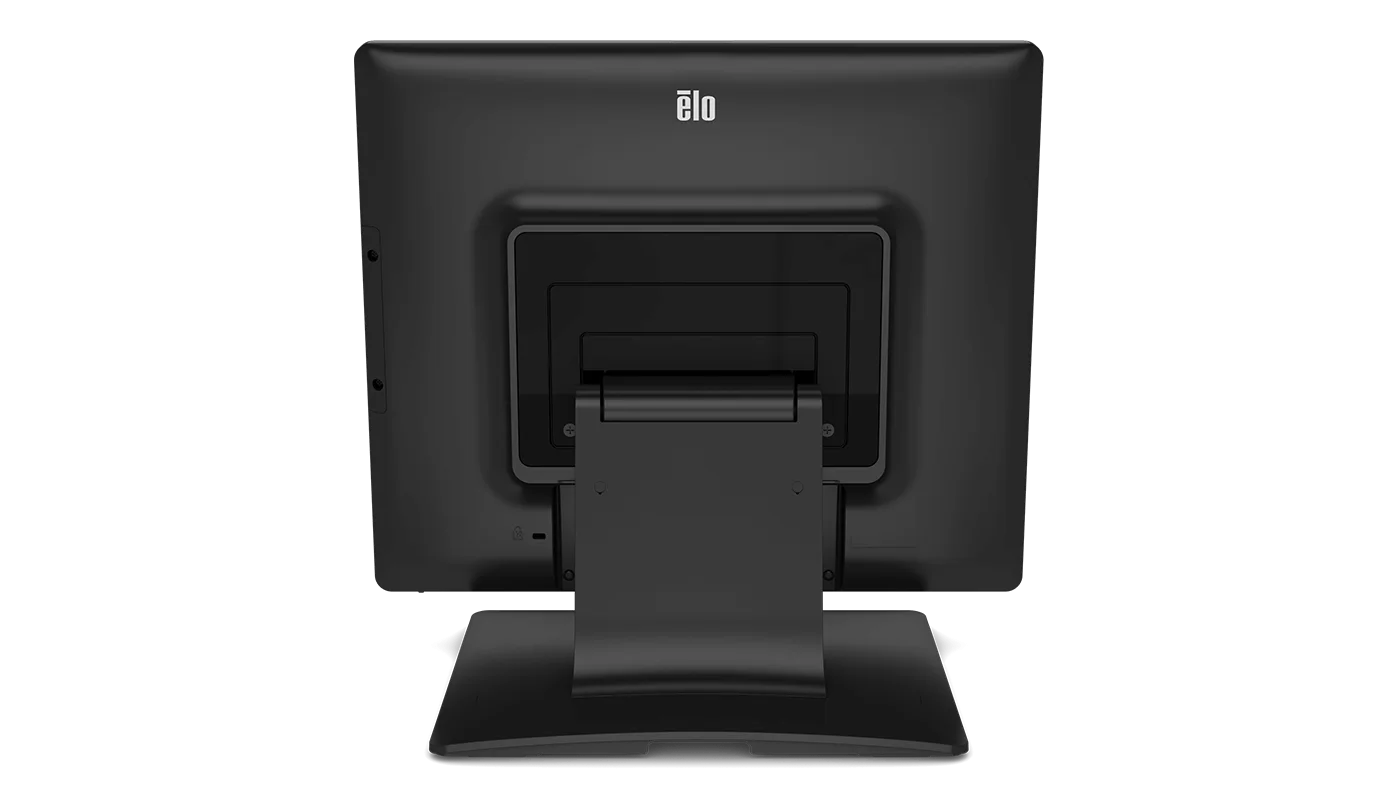

- VESA 4-hole 75mm mounting interface on rear of unit; 3-hole threaded mounting on bottom of stand
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Argentina S-mark; Australia RCM; Canada cUL, IC; China CCC; Europe CE; United Kingdom UKCA; Japan VCCI; Korea KCC, e-Standby; Mexico NOM; Taiwan BSMI Mark; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
- What's in the Box
- Touch monitor; Quick Install Guide; VGA Cable (DB-15 male to DB-15 male); Touch USB Cable (USB Type A plug to USB Type B plug); Power cable, IEC 60320-C5 to NA/EU plug; Stand Base assembly; Filler Plate; HDMI cable
- Optional Peripherals
- Magnetic Stripe Reader (Black MSR) – Elo P/N: E500356; North America power adapter and cable kit - Elo P/N: E005277; European & Korea power adapter and cable kit - Elo P/N: E571601; UK power adapter and cable kit - Elo P/N: E180092; China power adapter and cable kit - Elo P/N: E558862; Taiwan power adapter and cable kit - Elo P/N: E818655; Japan power adapter and cable kit - Elo P/N: E182546; Argentina power adapter and cable kit - Elo P/N: E887099; Australia power adapter and cable kit - Elo P/N: E637593
- Stands, Mounts & Kits
- 1517L VESA Mount Plate (Black) - Elo P/N: E000404; 1517L Replacement Stand (Black) - Elo P/N: E264383; China AC power cable – Elo P/N: E501749; UK AC power cable – Elo P/N: E540272
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
