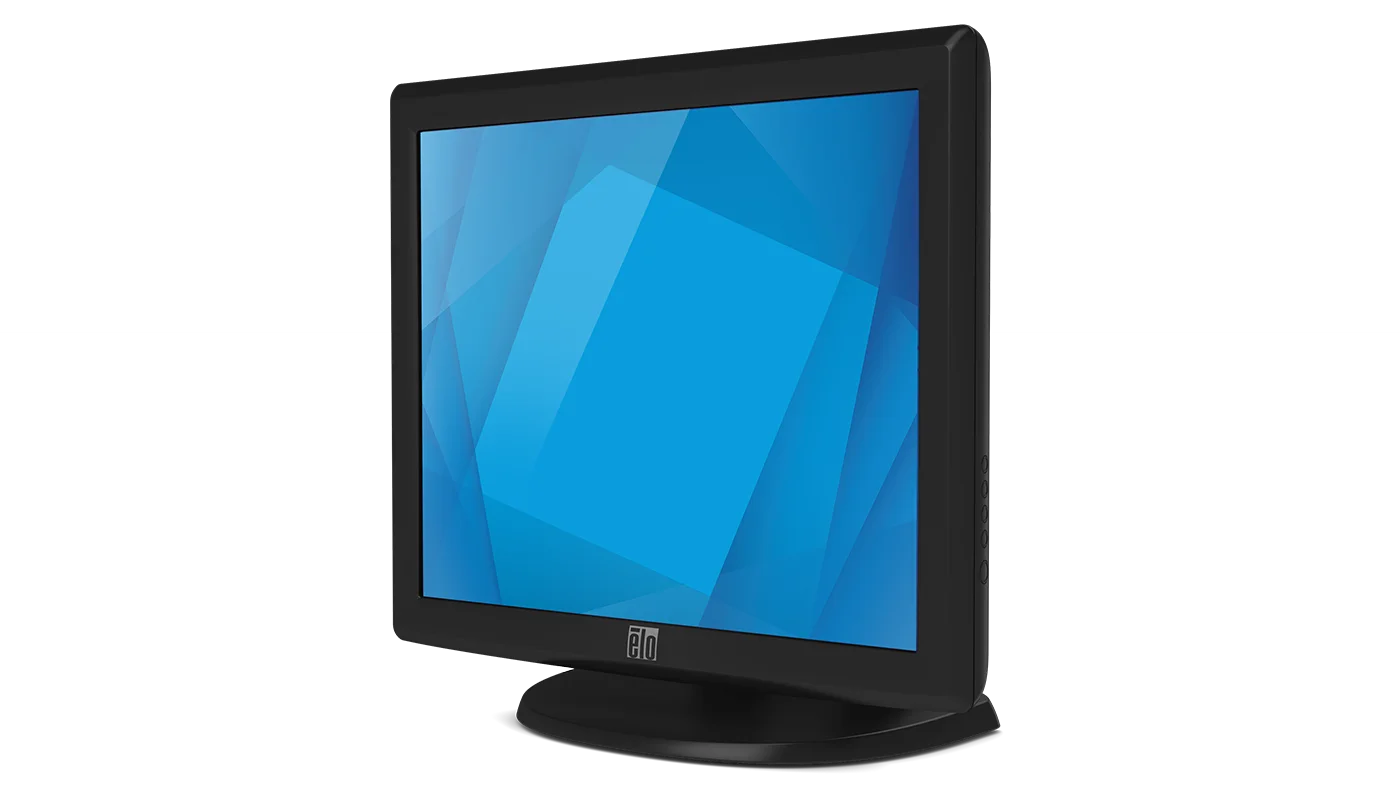

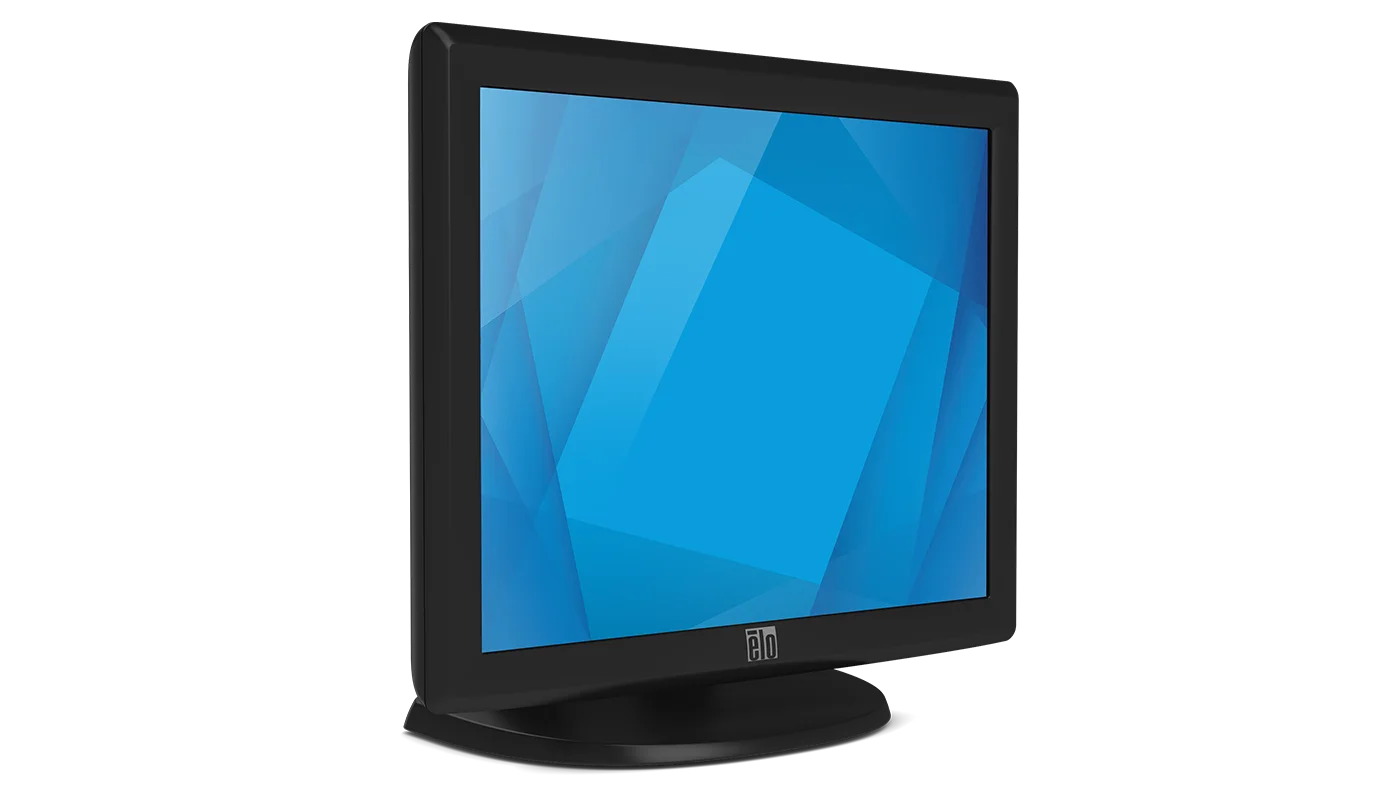

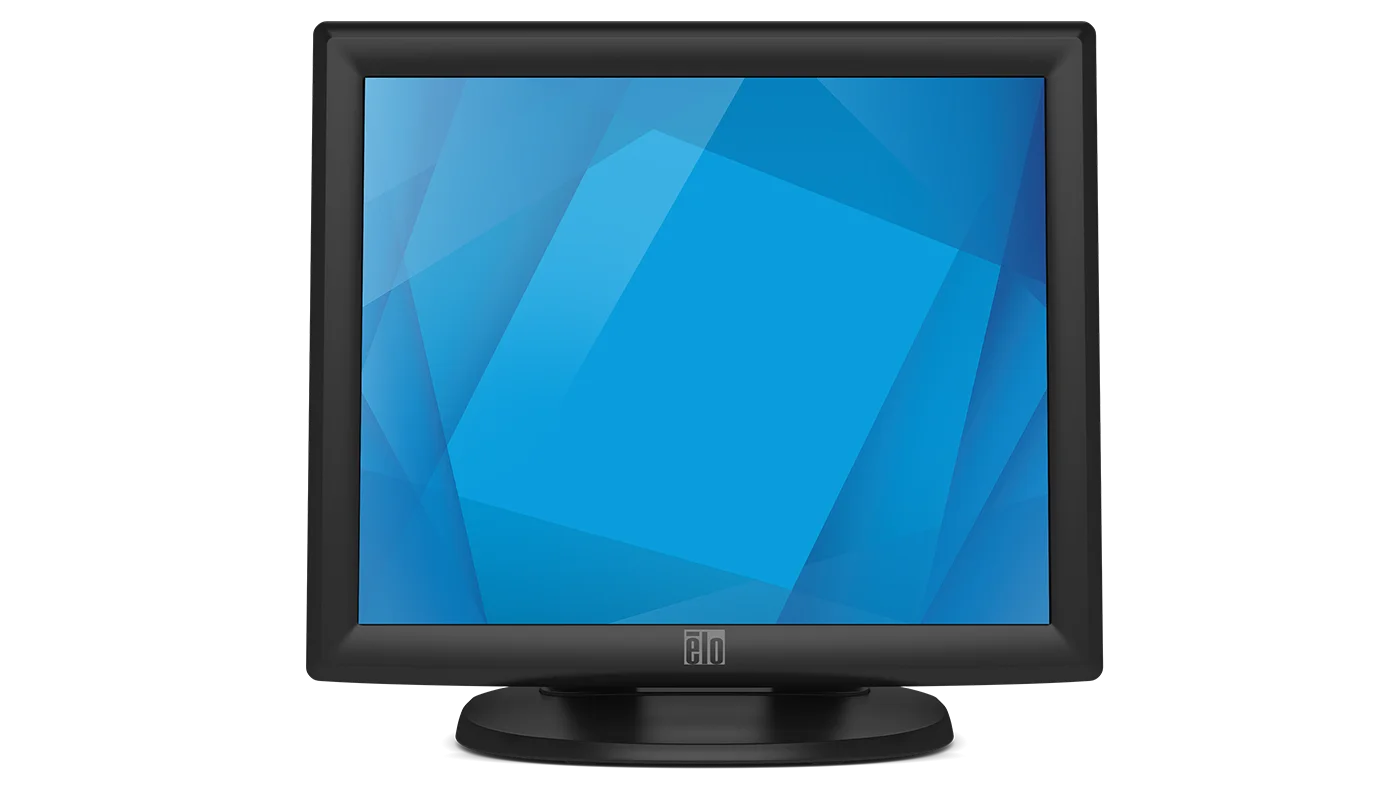

Elo Touch 1515L 15" Touchscreen Monitor
Overview
- Display15'' diagonal, Active matrix TFT LCD (LED)
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
Be sure to check out the newer models - 1502L (Widescreen) or 1517L (4:3 aspect ratio)
- The Elo 1515L 15-inch standard format touchscreen monitor delivers professional-grade built for touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1515L offers flexibility for mounting and two touch technology options.
- The 15-inch touchscreen monitor features AccuTouch™ five-wire resistive with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment.
- The optional ergonomic three-track mag stripe reader (MSR), is easily installed providing an elegant, integrated solution. The MSR is available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
- The Elo 1515L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand.
- The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
Technical
- Part Number(s)
- AccuTouch (Worldwide) - E210772; AccuTouch (EMEA) - E344320
- Enclosure Color
- Dark Gray
- Touch Technology & Capacity
- 5-Wire Resistive (AccuTouch®) - Single-Touch
- Diagonal Size
- 15'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 4:3
- Active Area
- 12.0" x 9.0" / 304mm x 228mm
- Resolution
- 1024 x 768
- Other Supported Resolutions
- 640 x 350 70 Hz; 640 x 480 60, 72, 75 Hz; 640 x 480 66 Hz; 720 x 400 at 70 Hz; 800 x 600 at 56, 60, 72 or 75 Hz; 832 x 624 at 75 Hz; 1024 x 768 65 Hz; 1024 x 768 60, 70, 75 Hz
- Viewing Angle
- Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
- Number of Colors
- 16.2 million
- Brightness (typical)
- LCD panel: 250 nits; AccuTouch: 200 nits
- Response Time-total (typical)
- 8 msec
- Contrast Ratio
- 800:1
- Input Video Format
- Analog VGA on Female DB-15 connector
- Input Video Frequency
- Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
- Power
- Internal AC, power connector-C6 type; Input voltage range: 100-240VAC, 50/60Hz; Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter, 8.8mm Barrel depth); Monitor input voltage range: 12VDC +/- 5%
- Power Consumption (Typical)
- AC in, monitor only; ON: 9.60 W; SLEEP: 1.38 W; OFF: 0.30 W
- I/O Ports
- VGA; DC jack; AC jack; USB Type B; RS232 (DB-9)

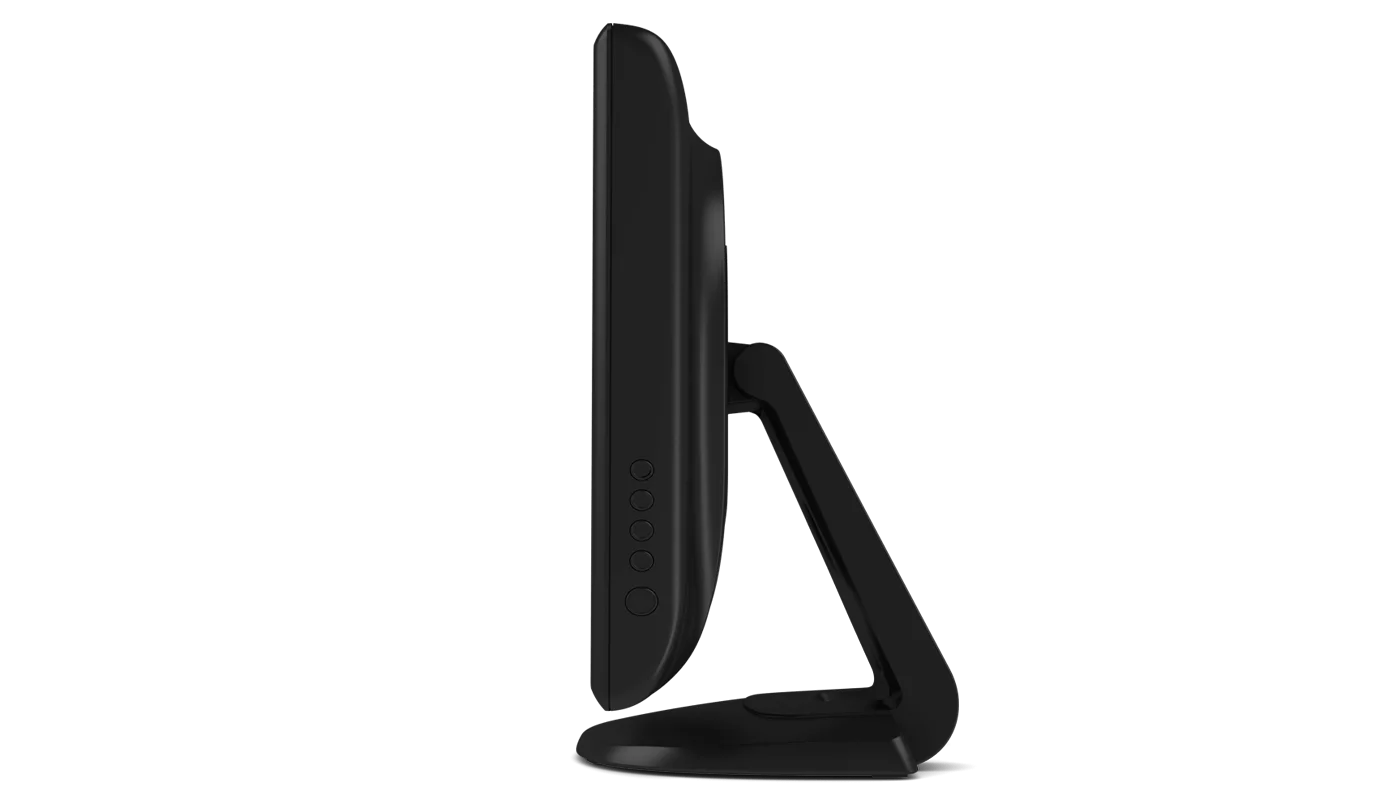

- On Screen Display
- Accessible through switches along the bottom.; Controls: Menu, Power, Up, Down, Select; Settings: Auto-Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
- Monitor Dimensions (without Stand)
- 11.0" x 13.8" x 2.2" / 280 mm x 350 mm x 55 mm
- Monitor Dimensions (with Stand)
- 12.2" x 13.8" x 6.9" / 310 mm x 350 mm x 175 mm
- Shipping Box Dimensions
- 10.2" x 17.5" x 15.0" / 260 mm x 445 mm x 380 mm
- Weight (with stand)
- 10.6 lb / 4.8 kg
- Shipping Weight (With stand)
- 15.4 lb / 7.0 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)
- MTBF
- 50,000 hours demonstrated

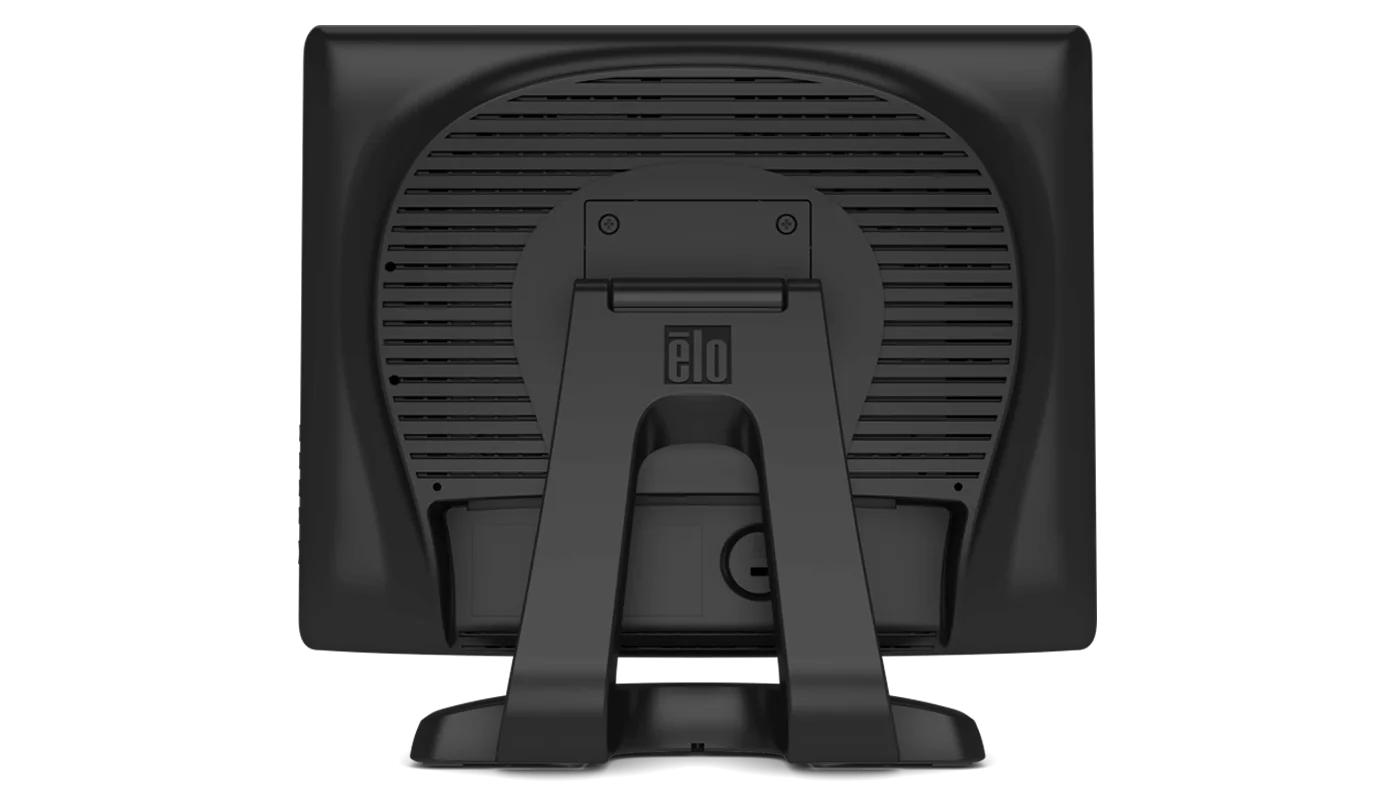

- Mounting Options
- VESA 4-hole 75mm mounting interface on rear of unit
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Canada CUL, IC; China CCC; Europe CE; United Kingdom UKCA; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico NoM; RoHS, China RoHS, WEEE, REACH
- What's in the Box
- Touch monitor; Quick Install Guide; 3x Tie wraps; VGA cable; Touch USB cable; NA Power cable; EU Power cable (For E344320 only); EEI Label
- Optional Peripherals
- North America power adapter and cable kit - Elo P/N: E005277; European & Korea power adapter and cable kit - Elo P/N: E571601; UK power adapter and cable kit - Elo P/N: E180092; China power adapter and cable kit - Elo P/N: E558862; Taiwan power adapter and cable kit - Elo P/N: E818655; Japan power adapter and cable kit - Elo P/N: E182546; Argentina power adapter and cable kit - Elo P/N: E887099; Australia power adapter and cable kit - Elo P/N: E637593
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
