Elo Touch · Display

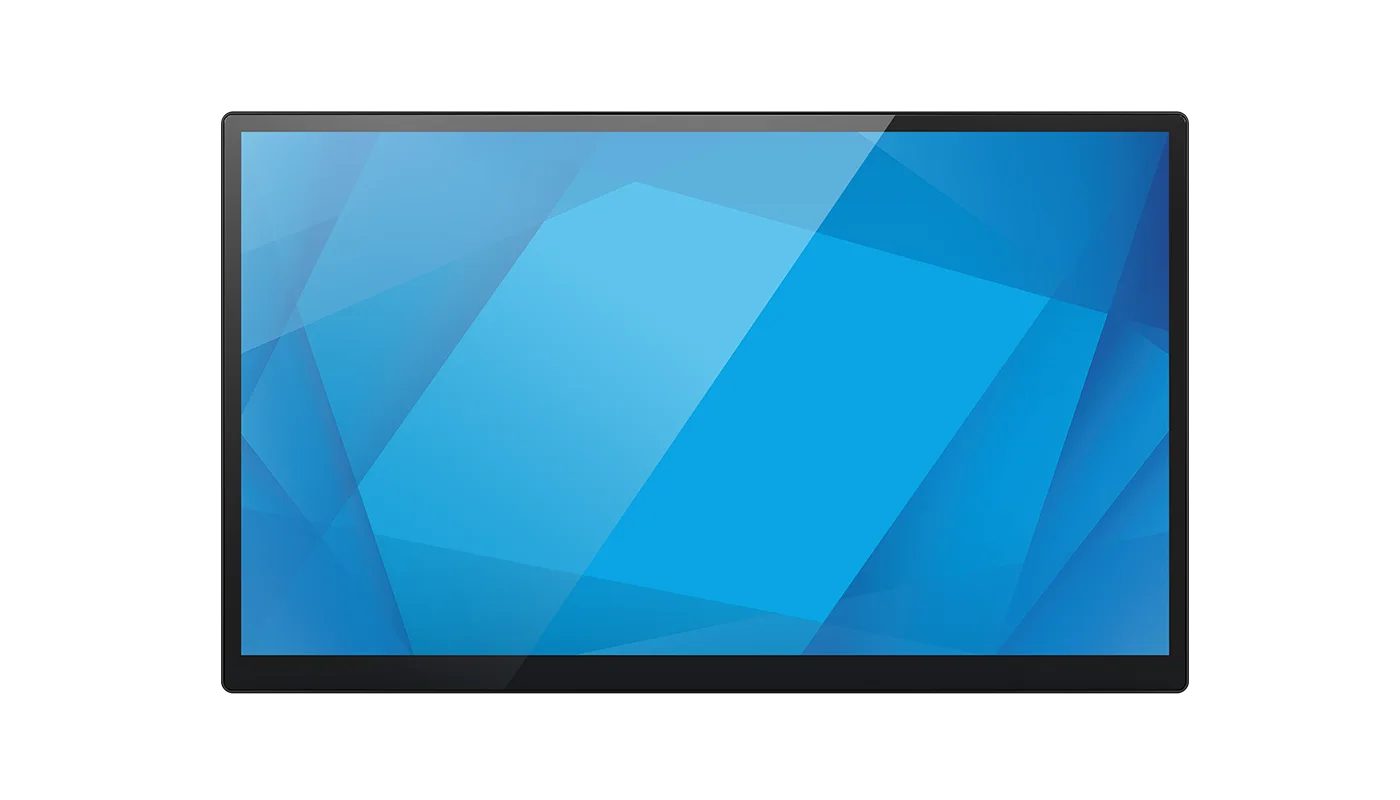

Elo Touch 1510L 15" Monitor

Display15.6'' diagonal, Active matrix TFT LCD (LED)

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The 1510L 15-inch Monitor delivers the superior quality Elo is known for in a non-touch display. Designed for durability, the Elo 15-inch monitor features anti-glare edge-to-edge glass with IK06 impact resistance, enhanced ESD performance and a ventless back and cable cover design to help reduce foreign contaminant ingress. From digital signage and kitchen display systems to dashboards, medical carts and production line monitors, the 1510L monitor provides a reliable, cost-effective display in a thin, compact form factor.

The 10L-Series 15-inch monitor is designed to meet the demands of commercial environments, offering durability, ease of maintenance, and visibility in bright lit environments.
The 15-inch monitor features easy-to-clean, anti-glare edge-to-edge glass offering optimal visibility in brightly lit environments.
Engineered with chemically strengthened, impact-resistant glass, the 10L-Series is designed to help resist vibrations and incidental contact.
The 10L-Series is engineered for maximum longevity- designed and tested to deliver reliable performance while maintaining consistent availability over time. As a result, Elo customers experience fewer disruptions, lower replacement costs, and greater ROI.
The 15-inch monitor offers a ventless-back and cable cover design to help prevent foreign contaminant ingress, supporting longer-term reliability in demanding environments.

Specifications

Technical

Part Number(s): North America - E448925; EMEA - E449111; APAC (power cable not included) - E138887
Enclosure Color: Black
Touch Technology & Capacity: Non-Touch
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344.16 mm x 193.59 mm
Resolution: 1920 x 1080
Other Supported Resolutions: 640x480 60Hz; 800x600 60Hz; 1024x768 60Hz; 1280x800 60Hz, 60Hz RB; 1366x768 60Hz, 60Hz RB; 1920x1080 60Hz
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors: 16.2 million
Brightness (typical): LCD panel: 250 nits With AG screen: 220 nits
Response Time-total (typical): 25 msec
Contrast Ratio: 700:1
Surface Treatment: Anti-glare
On Screen Display: The unit has on-screen display (OSD) buttons on the back; Controls: Menu (Select), Down (Minus), Up (Plus), Source (Exit), Power; Settings: Brightness, Contrast, Eco Mode, Image Ratio, Color Temperature, OSD H. Position, OSD V. Position, OSD Timeout, OSD Language, Input Select, Reset, Information, Auto adjust, Volume, Video Source (triggered by the hotkeys); Languages: English, French, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Portuguese. Japanese; Lockouts: OSD, Power
Speakers: Two x 2W internal speakers
Video: HDMI V1.4 Type A receptacle for HDMI input; DisplayPort V1.2 - Supports later versions of Display Port video input; USB Type-C (Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues); Input Video Horizontal Sync frequency range: 30 – 82KHz; Input Video Vertical Sync (frame rate) frequency range: 60Hz
Power: Option 1:; External DC - External DC Adapter 12V/36W included in the box; Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input power signal specifications: 12V DC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Option 2:; USB Type-C Input range: 5V±5%@3A / 9V±5%@3A / 15V±5% @1.8A / 20V±5%@1.35A
Power Consumption (Typical): ON (Default - 90% Brightness): 7W; ON (Typical - 100% Brightness): 8.5W; SLEEP (monitor + adapter): 0.5W; OFF (monitor + adapter): 0.3W
Monitor Dimensions (without Stand): 14.2" x 8.54" x 1.04" / 360.69 mm x 216.83 mm x 26.3 mm
Shipping Box Dimensions: 18.5" x 13.03" x 6.89" / 470 mm x 331 mm x 175 mm
Weight (Unpackaged): 2.93 lbs / 1.33 kg
Weight (Packaged): 5.67 lbs / 2.57 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95%
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 4-hole 75mm mounting interface on rear of unit
Warranty: 3-year
Regulatory approvals and declarations: Australia RCM; Canada cUL, IC; China CCC; Europe CE, TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Taiwán BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
Compliance: Energy Star 8.0; GLI 10 kV air / 8 kV contact ESD compliant; UL62368 ball-drop compliant; IK06 impact compliant
What's in the Box: Touchmonitor; HDMI cable; Power Brick; Quick Install Guide; EEI Label; Japan Class-B TM info sheet (E138887 only); 4 x VESA screws; NA Power Cord (E448925 only); EMEA Power Cord (E449111 only)
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
